Product Description

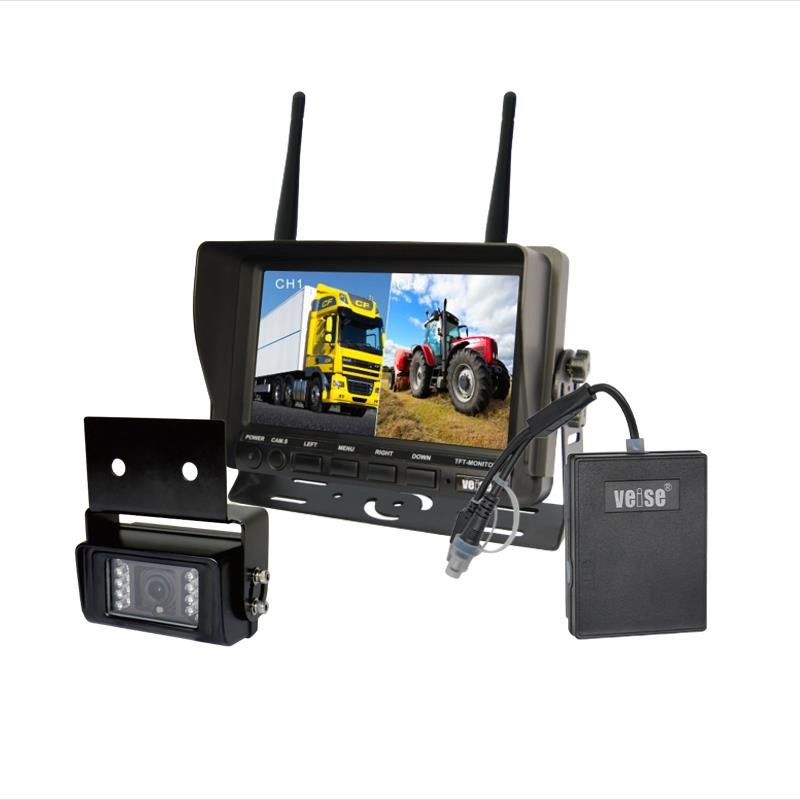

Wireless Camera Monitor System Overview

This high-definition wireless camera system is specifically designed for industrial and agricultural use, including forklifts, trucks, trailers, and agricultural equipment. It provides a robust, cable-free monitoring solution to enhance safety and operational efficiency.

📺
7-Inch IPS Screen

High-resolution 1024x600 display with 600cd/m2 brightness.

📶
Long Range

Stable transmission up to 300 meters in open areas.

💧
IP69K Waterproof

Nitrogen-filled, anti-fog, and fully waterproof camera housing.

⚡

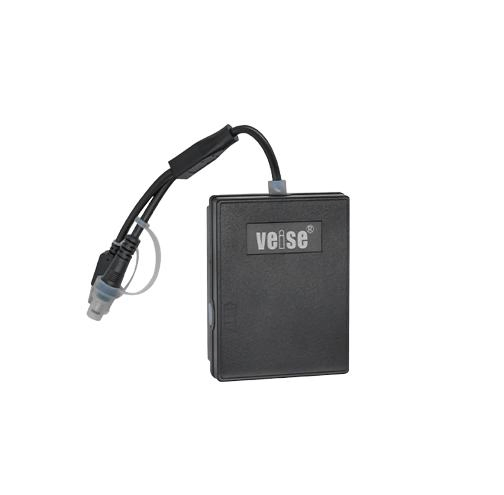

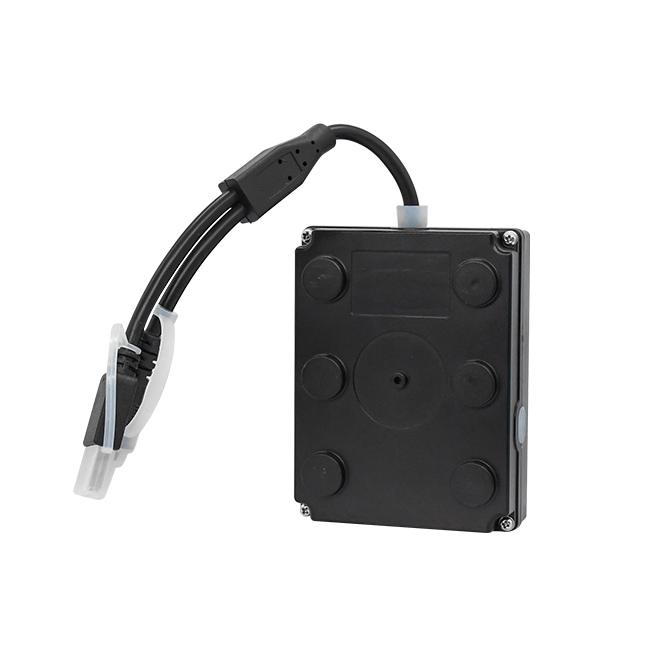

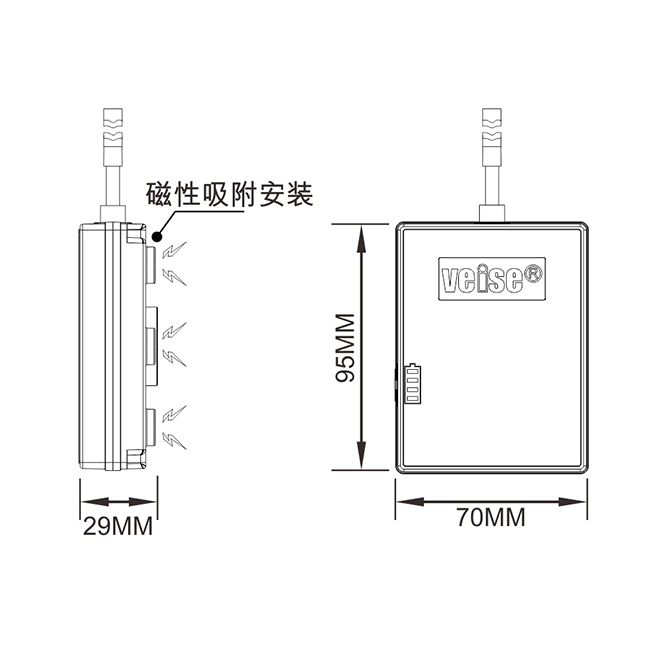

10000mAh Power

Includes a mobile rechargeable power supply for easy installation.

Core Specifications
System Model: HDWS-774H15A2M1-01A10W1
Display Type 7-inch IPS (Reverse Image)
Camera Resolution 1080P (1920 x 1080)
Viewing Angle 130°
Night Vision IR-CUT filter + 18pcs IR LEDs (15m distance)
Working Frequency 2400~2483.5MHz (Automatic Hopping)
Voltage Range DC8-32V
Split Screen 4CH Switching, 2-Split, 3-Split, Quad Display
Vibration Resistance 5G Rating
Detailed Component Analysis

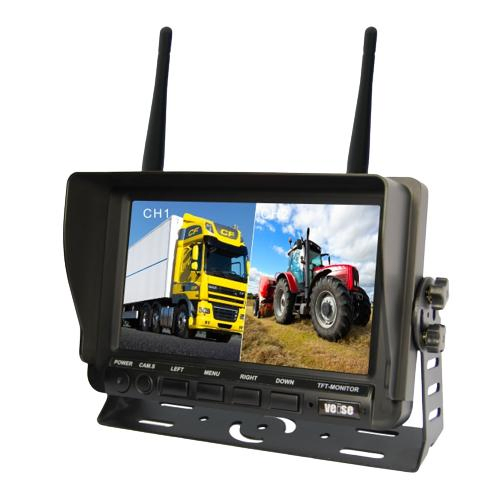

HD Wireless Monitor (MWHD-774H)
  • Support 4ch single screen switching + split display modes
  • Automotive industrial grade DSP for reliable performance
  • Graphical OSD menu for easy settings
  • U-shaped + bilateral fastening support for secure mounting
  • Reverse polarity and load dump pulse voltage suppression protection
1080P 2.4GHz Digital Wireless Camera (CWHD-15A2M)
  • Heat-dissipating aluminum alloy shell
  • Effective pixels: 1920(H) X 1080(V)
  • Waterproof Rating: IP69K
  • Operating Temperature: -20ºC to +60ºC
Product Imagery

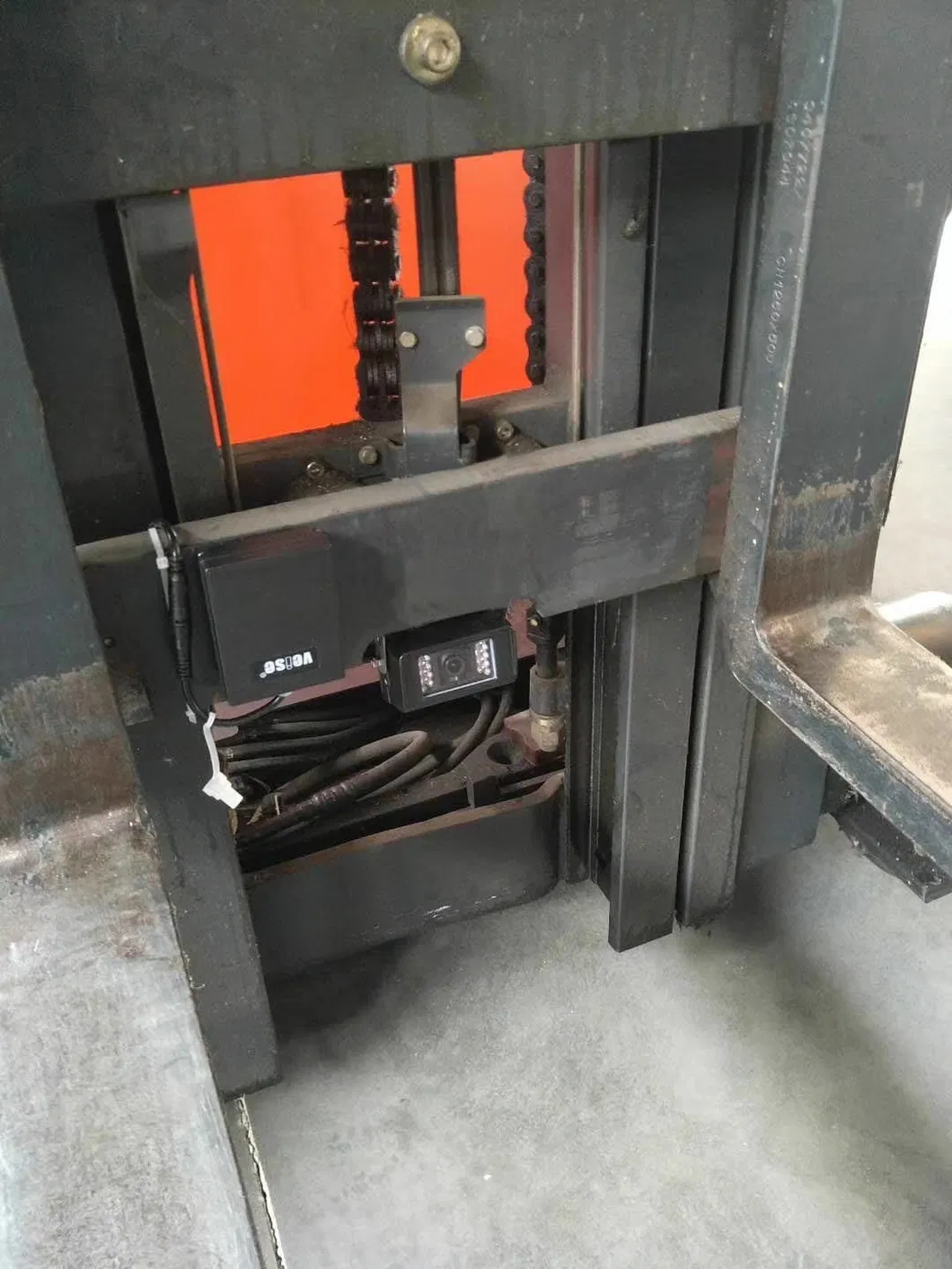

System Overview
Monitor Detail Camera Features Mounting Options
Application Scenario 1 Application Scenario 2 Power Supply
FAQ
How far is the wireless transmission range?
The system supports a stable transmission distance of up to 300 meters in an open, unobstructed area.
Is the camera capable of working in extreme weather?
Yes, the camera is IP69K waterproof, nitrogen-filled, and anti-fog. It operates in temperatures ranging from -20ºC to +60ºC.
How many cameras can the monitor support?
The monitor supports up to 4 channels and allows for single screen, 2-split, 3-split, and quad display modes.
What is the battery capacity of the mobile power supply?
The system includes a 10000mAh mobile rechargeable power supply utilizing original Panasonic lithium-ion cells.
Does the system support night vision?
Yes, the camera is equipped with an IR-CUT filter and 18 infrared LEDs, providing clear night vision up to 15 meters.
What are the main applications for this system?
It is ideal for forklifts, trailers, trucks, and agricultural vehicles where wiring can be difficult or impossible.
