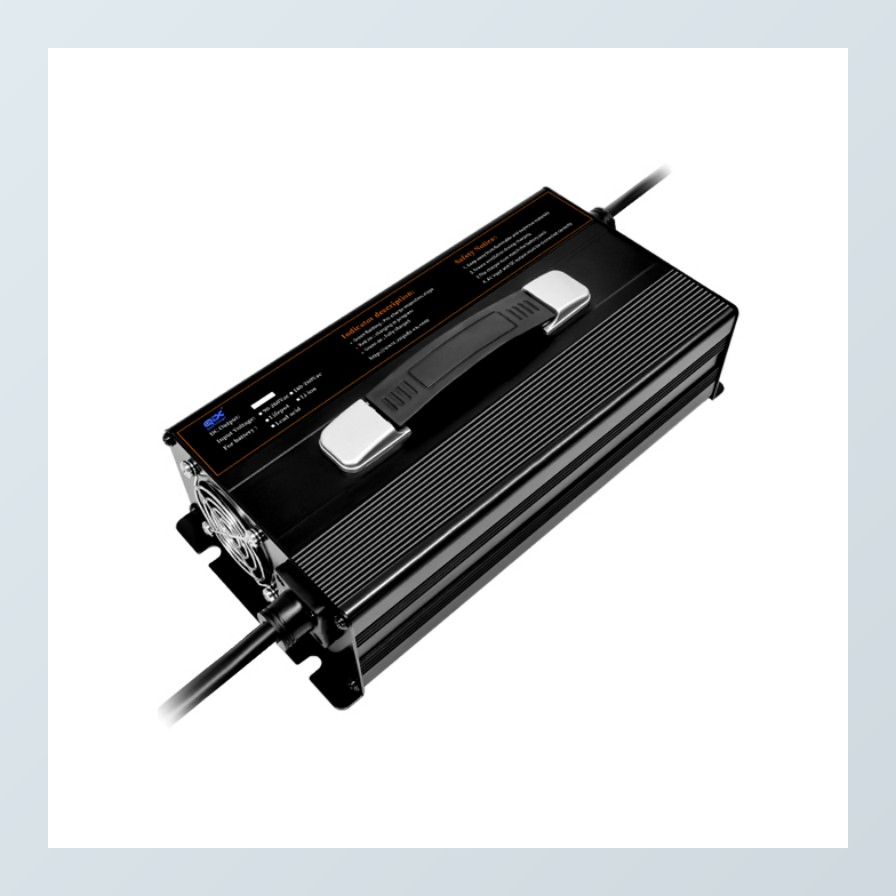

Rapid E-Bike and Scooter Lithium Battery Charging System

1 / 5

Rapid E-Bike and Scooter Lithium Battery Charging System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

STS2000

Application

Lithium/Li-ion/LiFePO4/Lead Acid Battery

Nominal Voltage

12V/24V/36V/48V/60V/72V

Charger Style

Intelligent Charger

Input Voltage

90-260V AC

Output Power

2000W

Efficiency

≥ 93%

IP Rating

IP34

Certification

RoHS, CE

Warranty

24 Months

Product Description

Intelligent Battery Chargers

This smart battery charger is designed for lead-acid, LiFePO4, and lithium battery packs. It is widely used in electric cars, forklifts, sightseeing cars, patrol cars, golf carts, and electric dining cars.

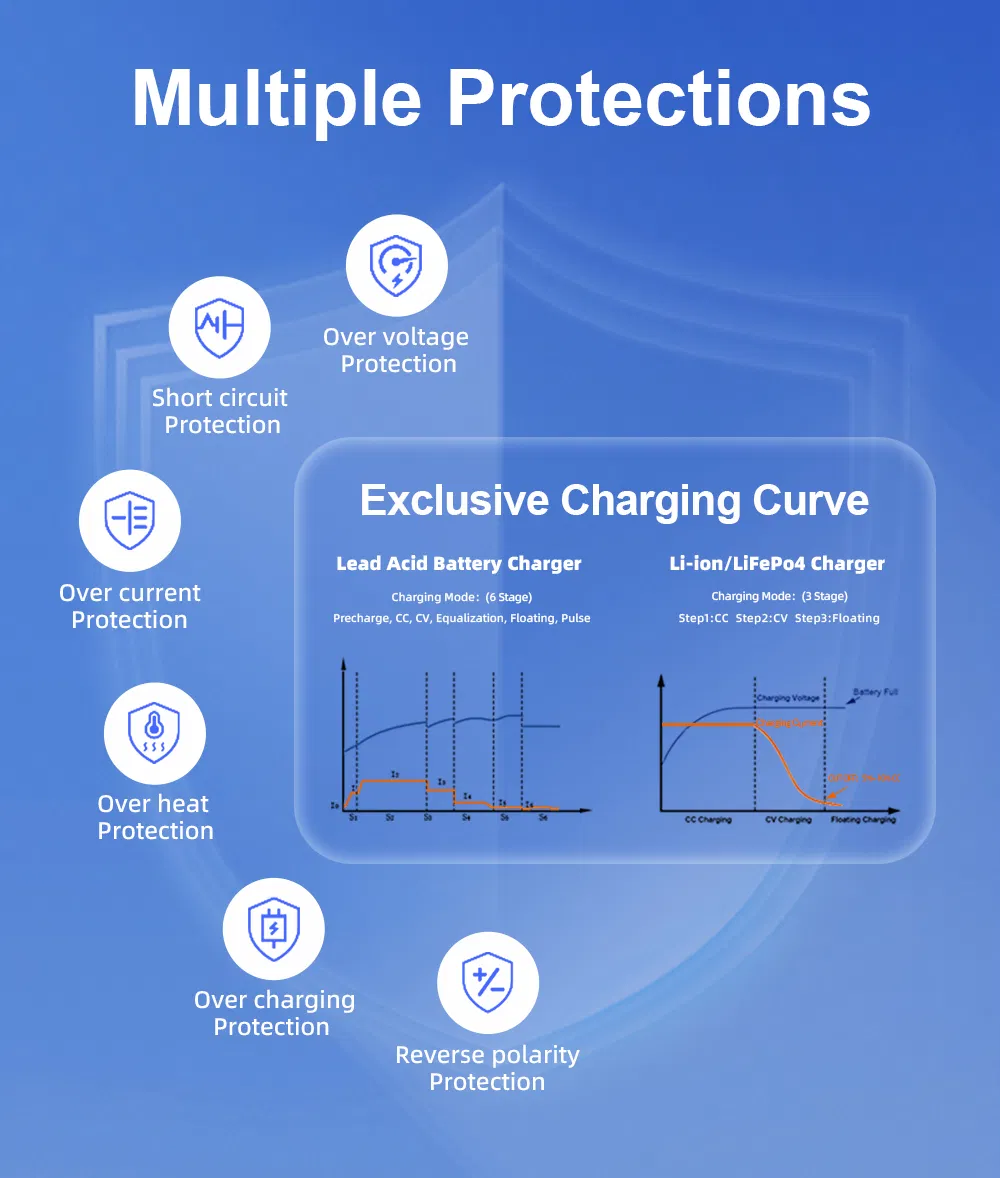

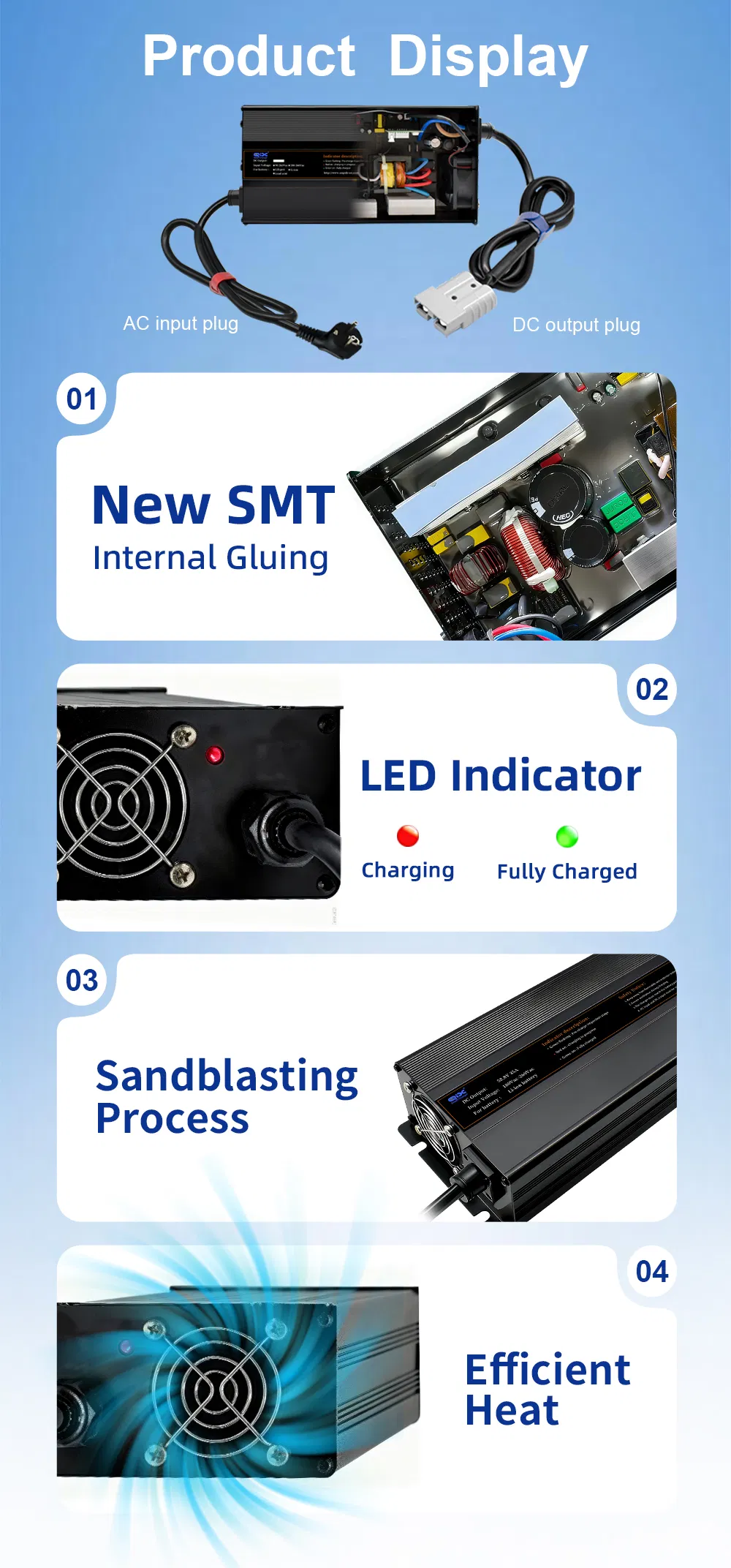

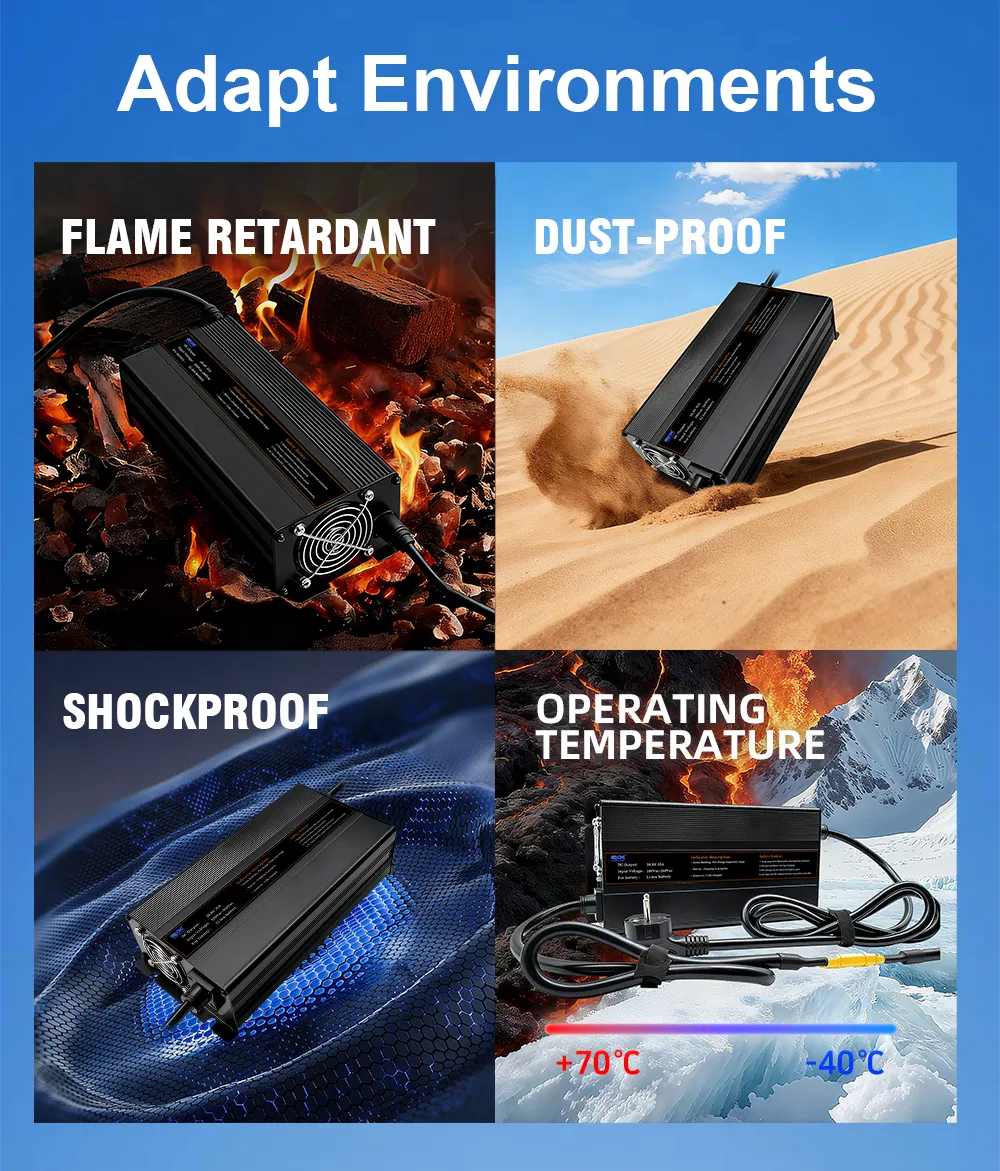

Key Features: Fully enclosed aluminum alloy shell for rapid heat dissipation, intelligent temperature control fan, and waterproof/splash-proof rating for reliable outdoor use.

Technical Parameters

Rated Voltage	Lead Acid (CV)	Li-ion (CV)	LiFePO4 (CV)	CC @220Vac	CC @110Vac	Weight (kg)	Size (mm)
12V	14.7V	16.8V	14.6V	50A	50A	2.4	25113470
24V	29.4V	33.6V	29.2V	50A	30A
36V	44.1V	42V	43.8V	35A	21A
48V	58.8V	54.6V	58.4V	35A	21A
60V	73.5V	71.4V	73V	30A	18A
72V	88.2V	84V	87.6V	25A	15A

Note: Cut-off point for Lithium battery is 5% of CC (adjustable between 3-10%).

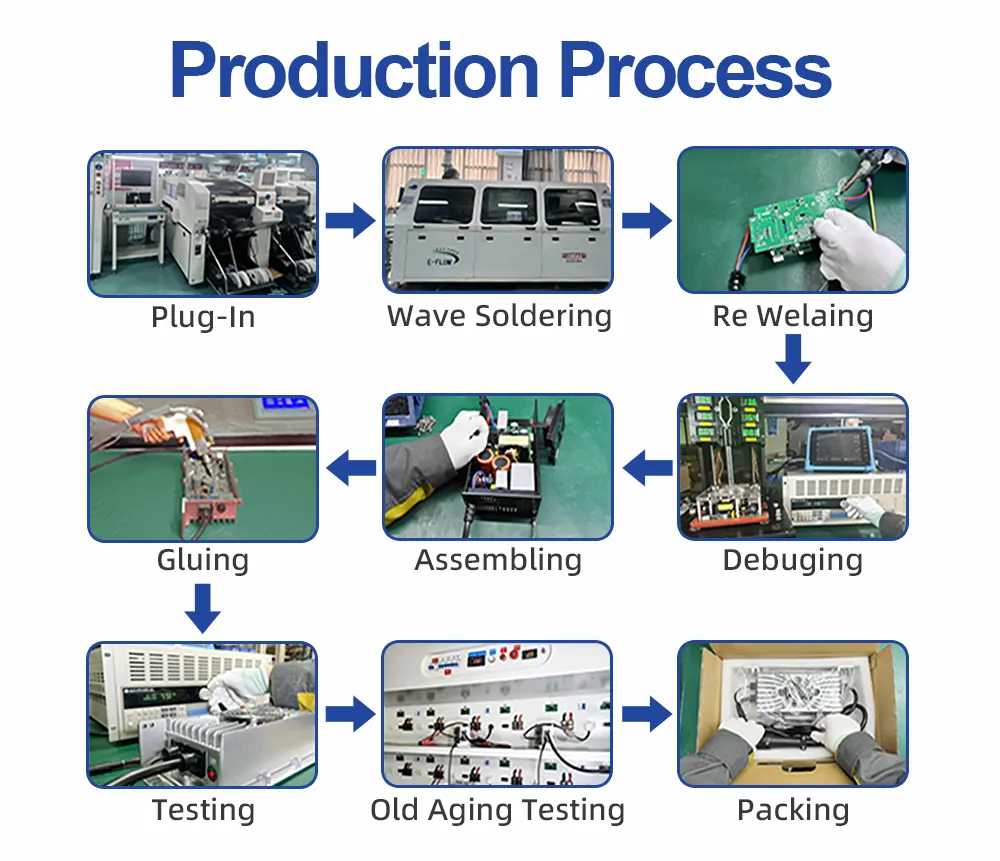

Production Process

1SMT: Precise mounting of electronic components onto PCB.
2Wave Soldering: High-temperature soldering for stable electrical connections.
3Repair Welding: Manual inspection and reinforcement of key joints.
4Debugging: Functional testing to ensure circuit performance.
5Assembly: Combining PCBA with structural components.
6Glue Filling: Sealing for waterproof, shockproof, and heat dissipation enhancement.
7Testing: Comprehensive verification of performance and security.
8Aging Test: Long-term continuous power-on tests for reliability.
9Packing: Shockproof and dust-proof packaging for safe transport.

Quality Certifications

CE Certification: Meets EU safety, health, and environmental regulations.

RoHS Compliance: Free from harmful chemicals for human health and environment.

CB Certification: Compliance with global electronic safety testing standards.

ISO 9001: Robust quality management framework for consistent results.

Expertise & Feedback

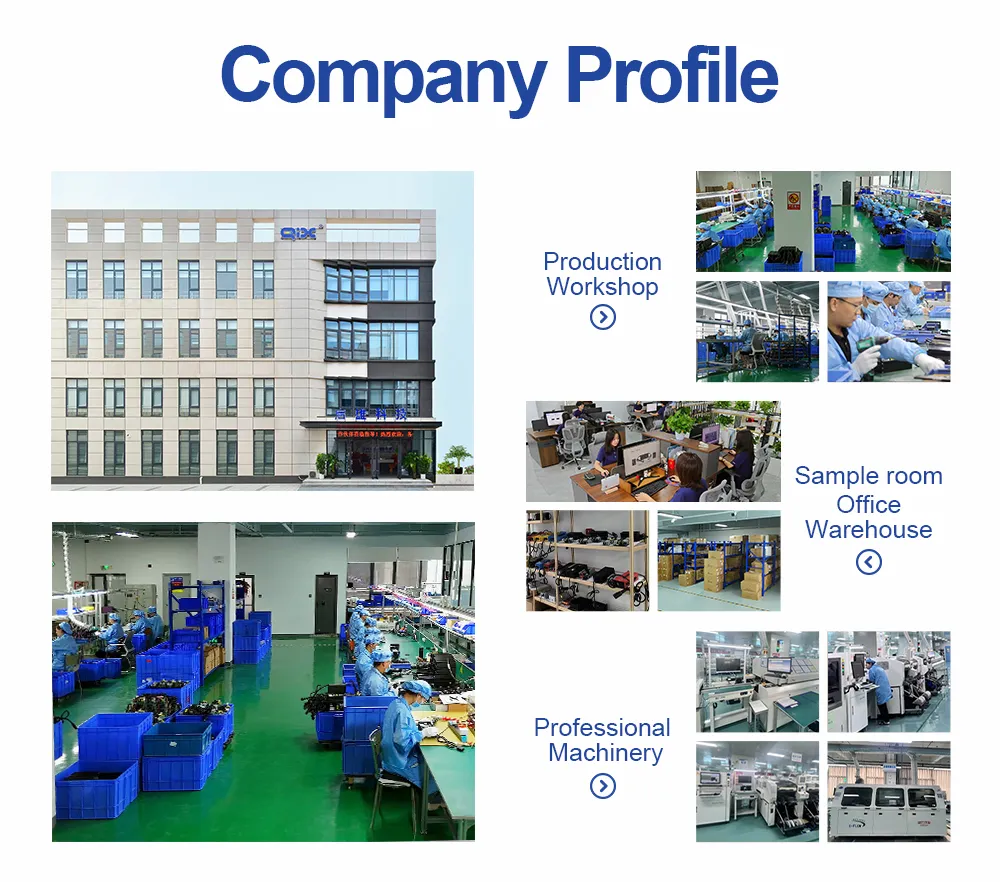

With 20 years of experience in the new energy sector, we operate from a 3000 square meter intelligent production base. Our "Five Dimensional Quality Assurance System" involves 26 distinct quality inspection processes from raw material to delivery.

Packing & Delivery

Package Gross Weight

19.000kg (Bulk)

Lead Time (1-2 pcs)

15 Days

Lead Time (3-100 pcs)

20 Days

Frequently Asked Questions

Are you a direct manufacturer?

Yes, we are a factory with over 20 years of experience specializing in Lead-acid, Lithium, and LiFePO4 battery chargers.

How do I choose the most suitable charger?

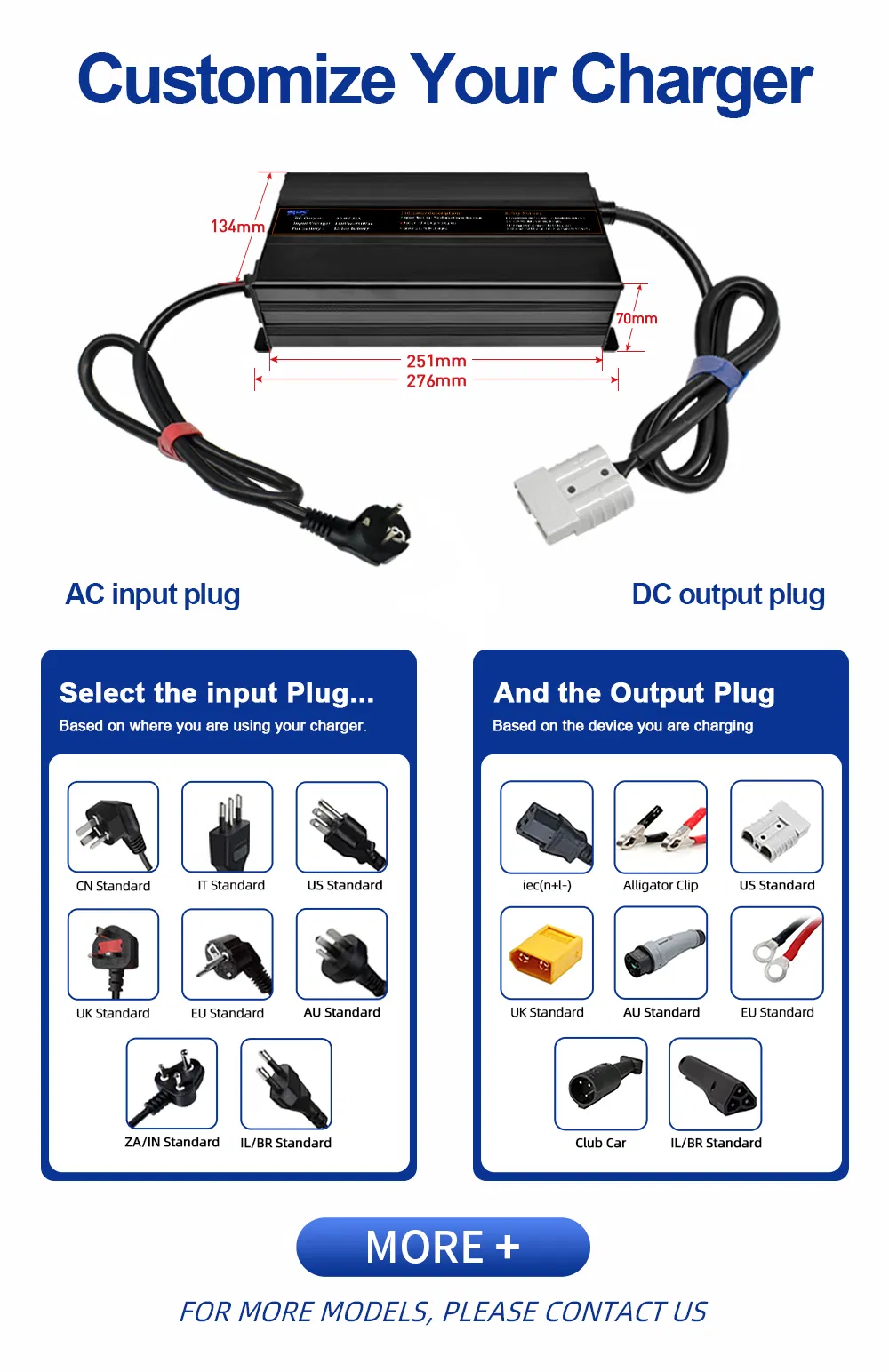

Please provide your input voltage, required output voltage and current, battery type, and the specific input/output plug specifications. We will then recommend the best match.

Do you offer OEM or ODM services?

Yes, we provide full OEM and ODM services. We have extensive experience in designing and developing products based on specific buyer requirements.

What is the typical delivery time?

Generally, production takes 5-7 days after receiving advance payment. Shipping can be arranged via DHL, FedEx, UPS, or sea freight depending on your urgency.

What payment methods do you accept?

We accept various payment types including T/T, PayPal, Bank Transfer, D/A, D/P, Credit Card, and L/C.

How do you handle technical support?

We have a professional technical team available for consultancy. We offer 24-hour after-service support to solve any operational or technical issues you may encounter.
