Product Description

Overview

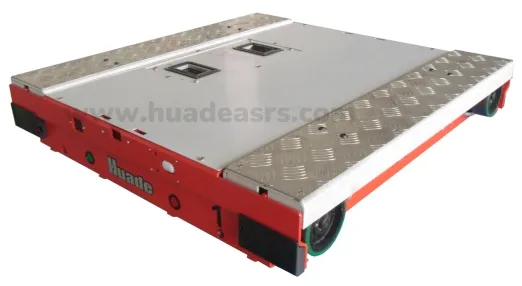

Type:Shuttle Robot

Pallet Size:1*1.2 or Customized

Warehouse Type:Existing or New Build

Load Capacity:Max 1500kg

Full Load Speed:45m/Min

Lifting Type:Mechanical

Battery Life:8 Hours Effective

Material:High-Strength Steel

Product Description

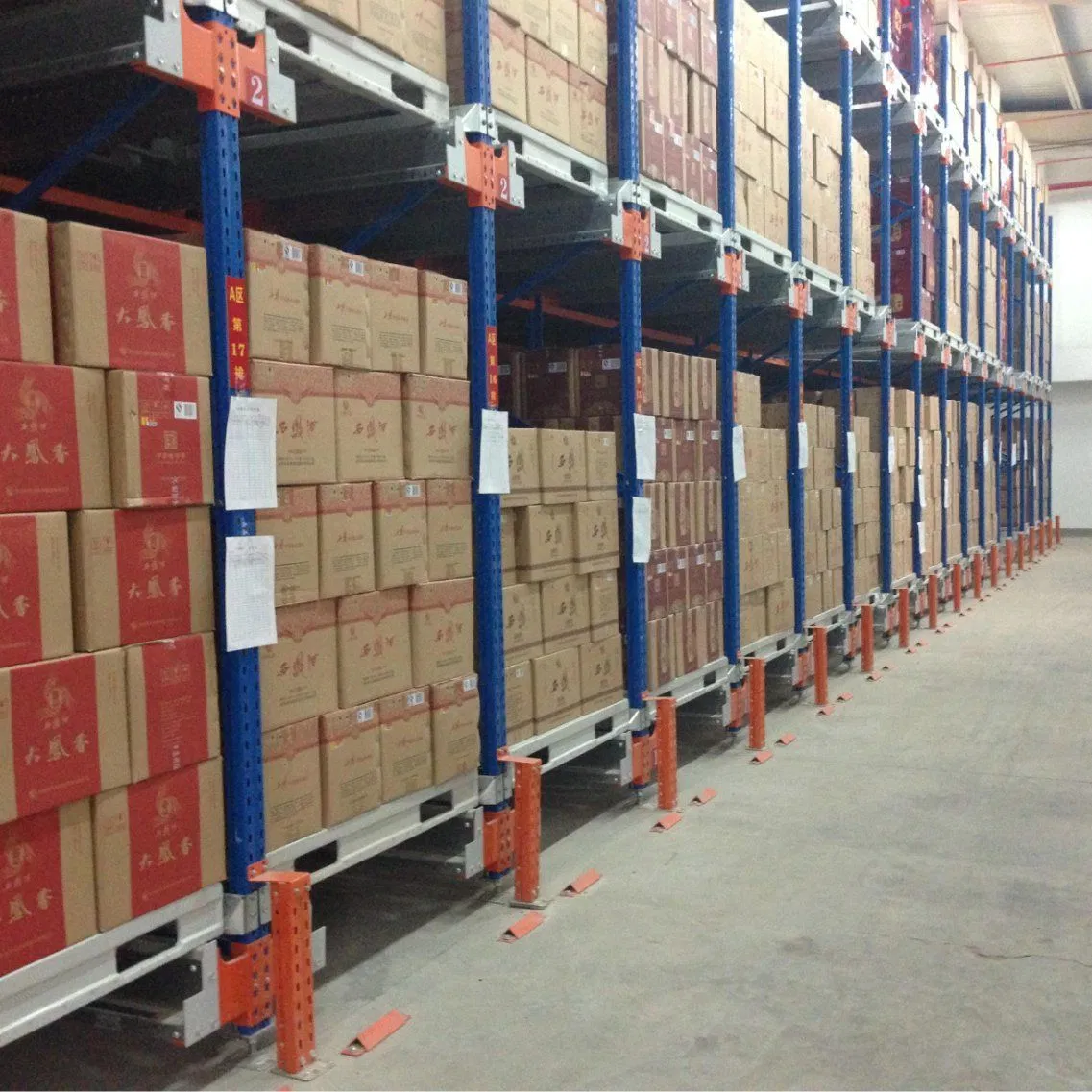

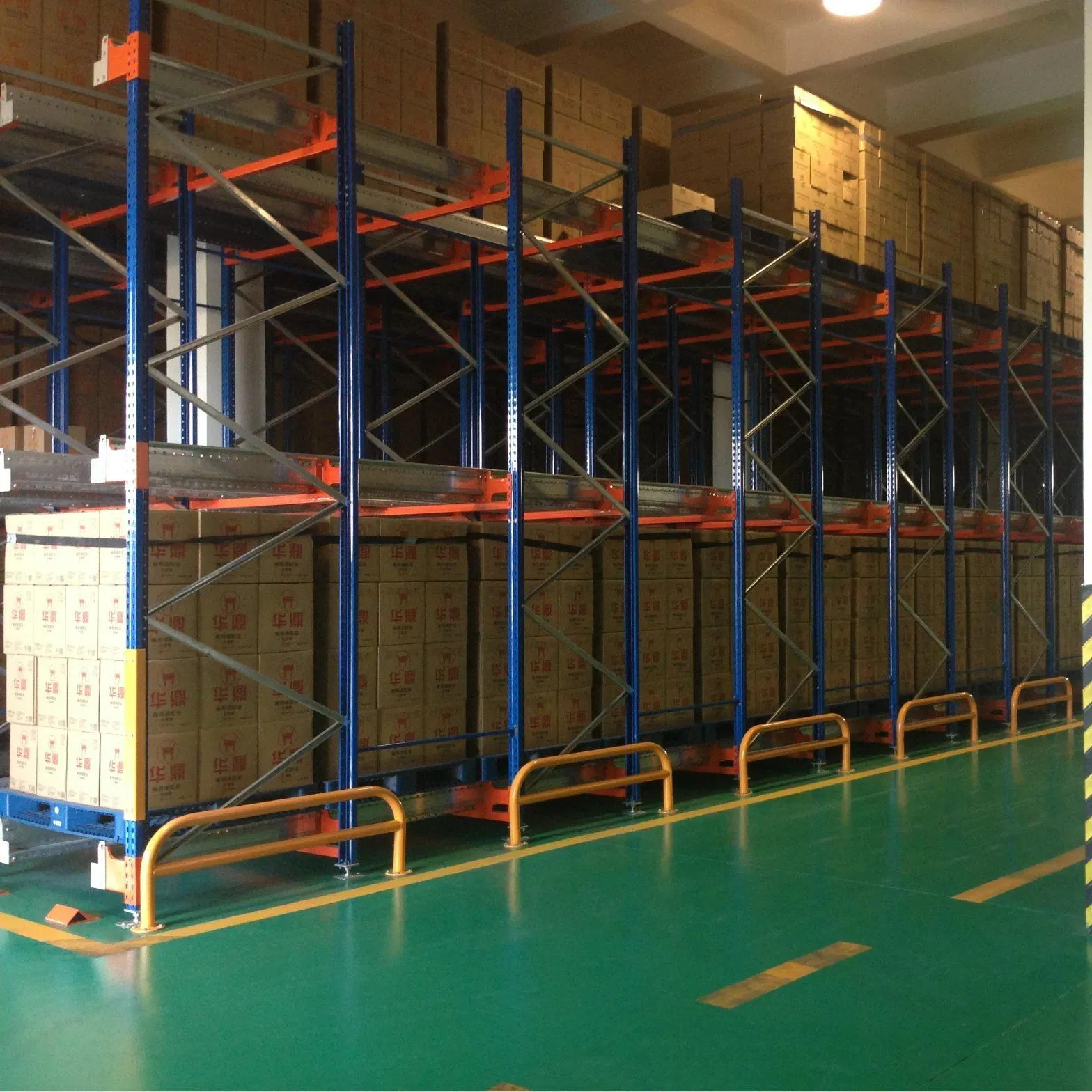

The Radio Shuttle Pallet Rack System is a semi-automated storage solution designed for high-density warehousing. It is ideal for businesses handling low SKU variety with high volumes, particularly in food, beverage, and cold chain logistics.

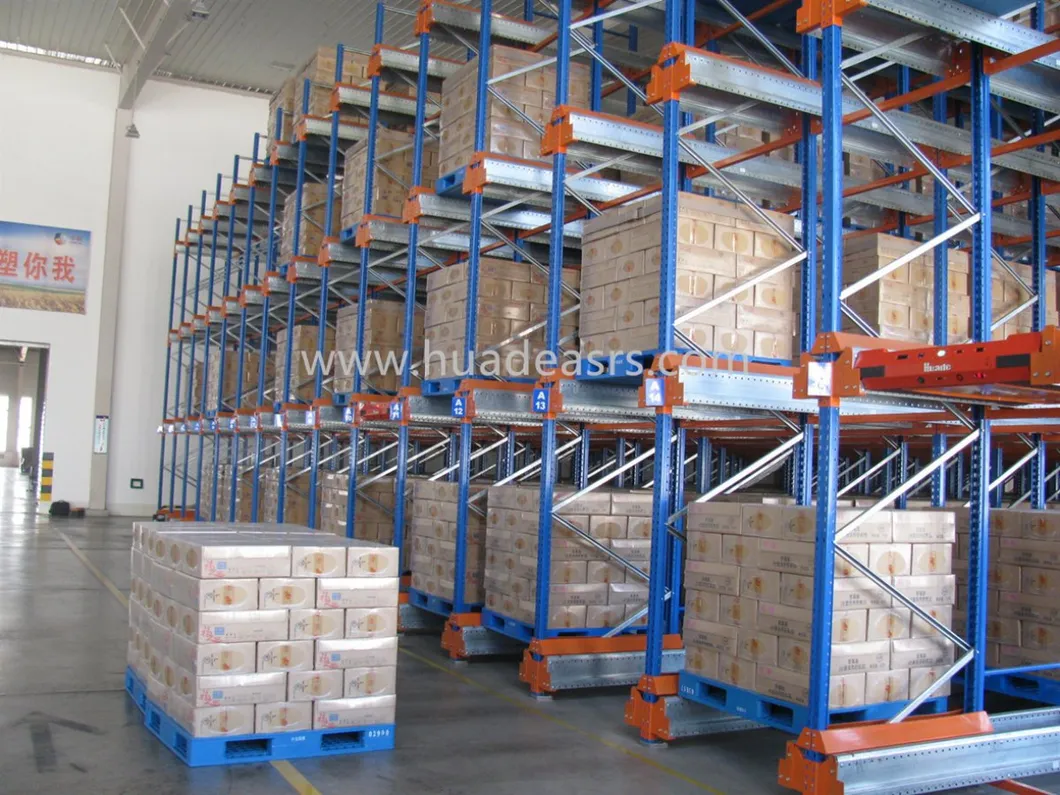

Intelligent Warehouse Storage Radio Shuttle Racking System

System Features

⚡ High Efficiency

80% space efficiency with lane lengths reaching 50m or more.

🚀 Speed

Load and unload 60% faster compared to traditional drive-in systems.

🛡️ Safety

Forklifts do not enter lanes, minimizing the risk of rack damage and accidents.

📦 Flexibility

Compatible with both LIFO and FIFO inventory management strategies.

Technical Specifications

Parameter Item	Details & Performance
Applicable Pallet Size	1.0x1.2m, 1.1x1.2m, 1.2x1.2m
Loading Capacity	1000kg / 1500kg
Running Speed	Empty: 50m/min \| Full Load: 40m/min
Acceleration	≤0.3m/s²
Motor Type	Brush servo motor 24VDC
Hoisting Height	40mm
Power Supply	Lithium iron phosphate power battery
Charging Time	4 Hours for 8 Hours usage

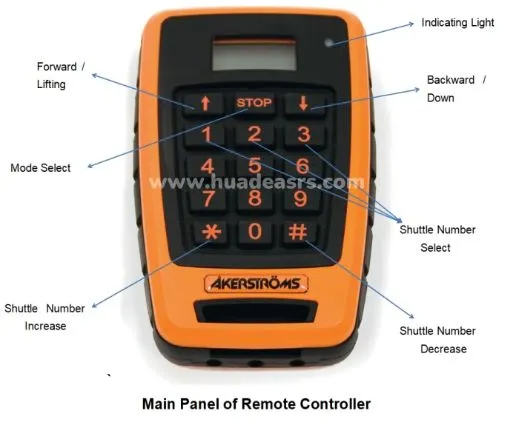

Intelligent Control System

The multi-function remote controller supports multiple languages and is designed to operate in extreme environments as low as -30ºC.

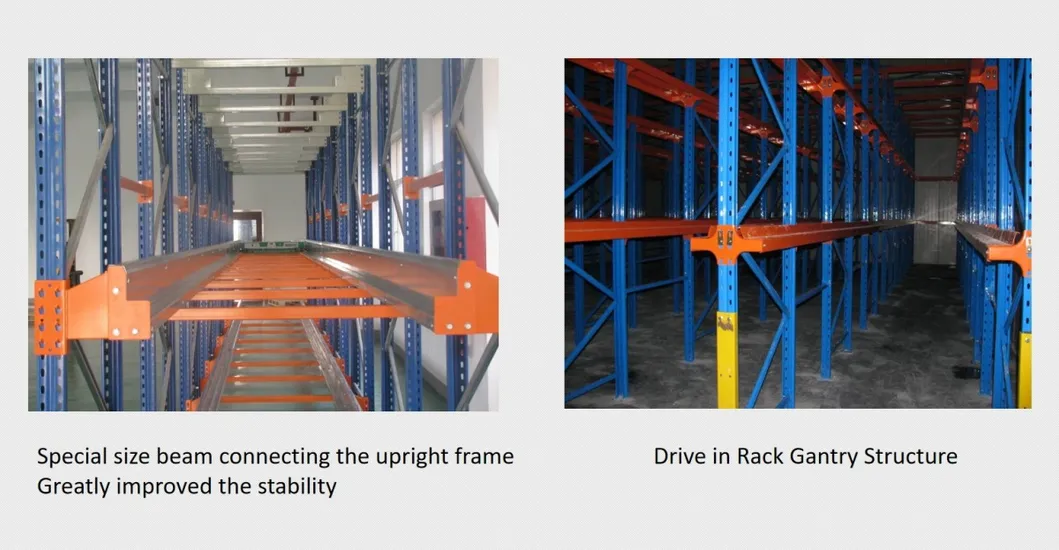

Radio Shuttle vs Drive-In Racking

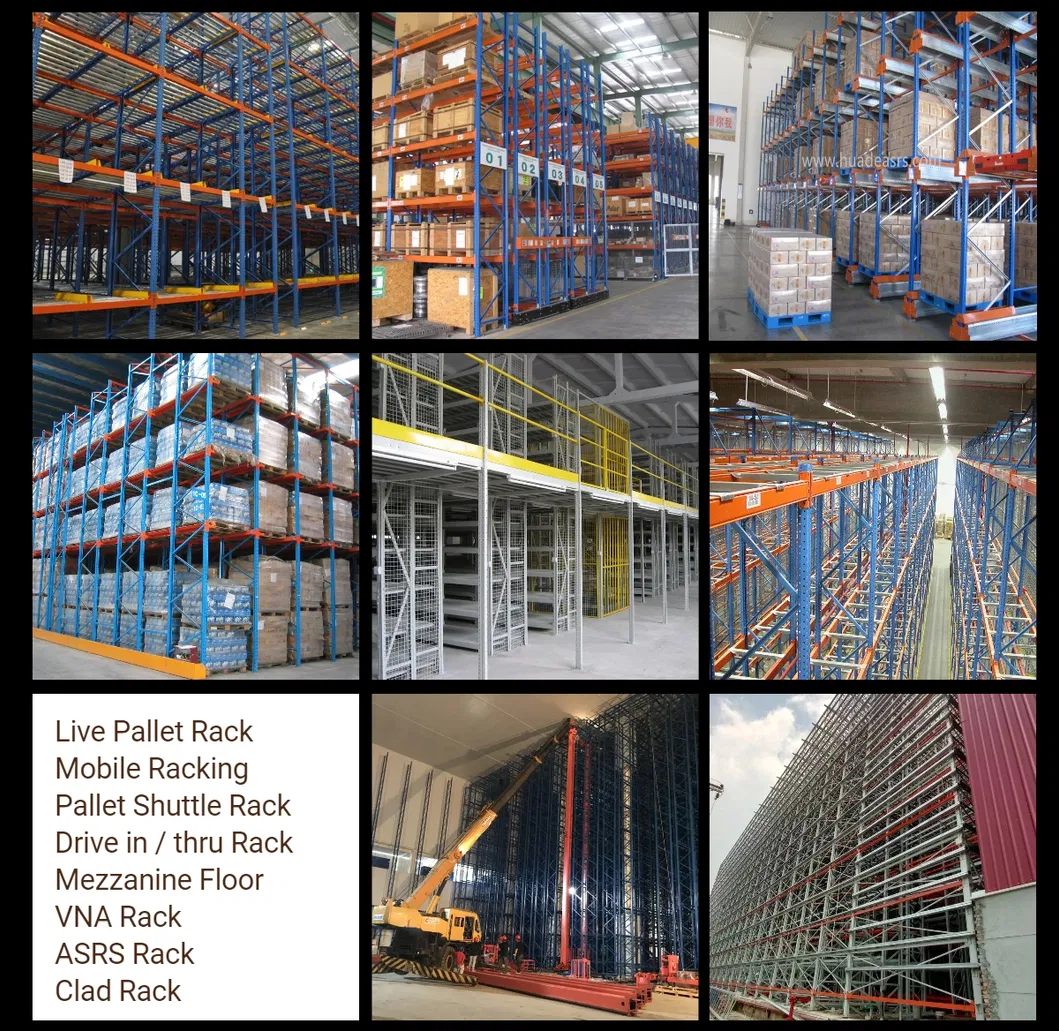

Main Racking Solutions

Frequently Asked Questions

Q1: What is a Radio Shuttle Racking System?

It is a high-density semi-automated storage system that uses an independent shuttle robot to move pallets within the racking channels, eliminating the need for forklifts to enter the lanes.

Q2: How does the shuttle system improve warehouse safety?

Since forklifts operate only at the face of the racking and do not drive inside the structure, the risk of collisions with the upright frames is significantly reduced, ensuring structural integrity and worker safety.

Q3: Is the system compatible with both FIFO and LIFO?

Yes, the system can be configured to support both First-In-First-Out (FIFO) and Last-In-First-Out (LIFO) inventory management, providing flexibility for different product types.

Q4: What is the battery life and charging requirement for the shuttle?

The shuttle uses a lithium iron phosphate battery that provides approximately 8 hours of effective working time. A full charge typically takes around 4 hours.

Q5: What are the maximum load and speed capabilities?

The system can handle a maximum load of 1500kg. It moves at an empty speed of up to 50m/min and a full-load speed of 40-45m/min.

Q6: Can the system operate in cold storage environments?

Yes, the intelligent control system and components are designed to be resistant to low temperatures, operating effectively in environments as cold as -30ºC.
