📦 Basic Specifications
Model NO.
HDWS-772S16A1M1-10W
Display Type
Reverse Image
Function
Waterproof, Dustproof, Shockproof
Operating Temp
-20°C to +70°C
Line of Sight
≤100m (Standard) / ≤300M (Digital)
Battery Type
Li-ion Batteries
💡 Product Overview

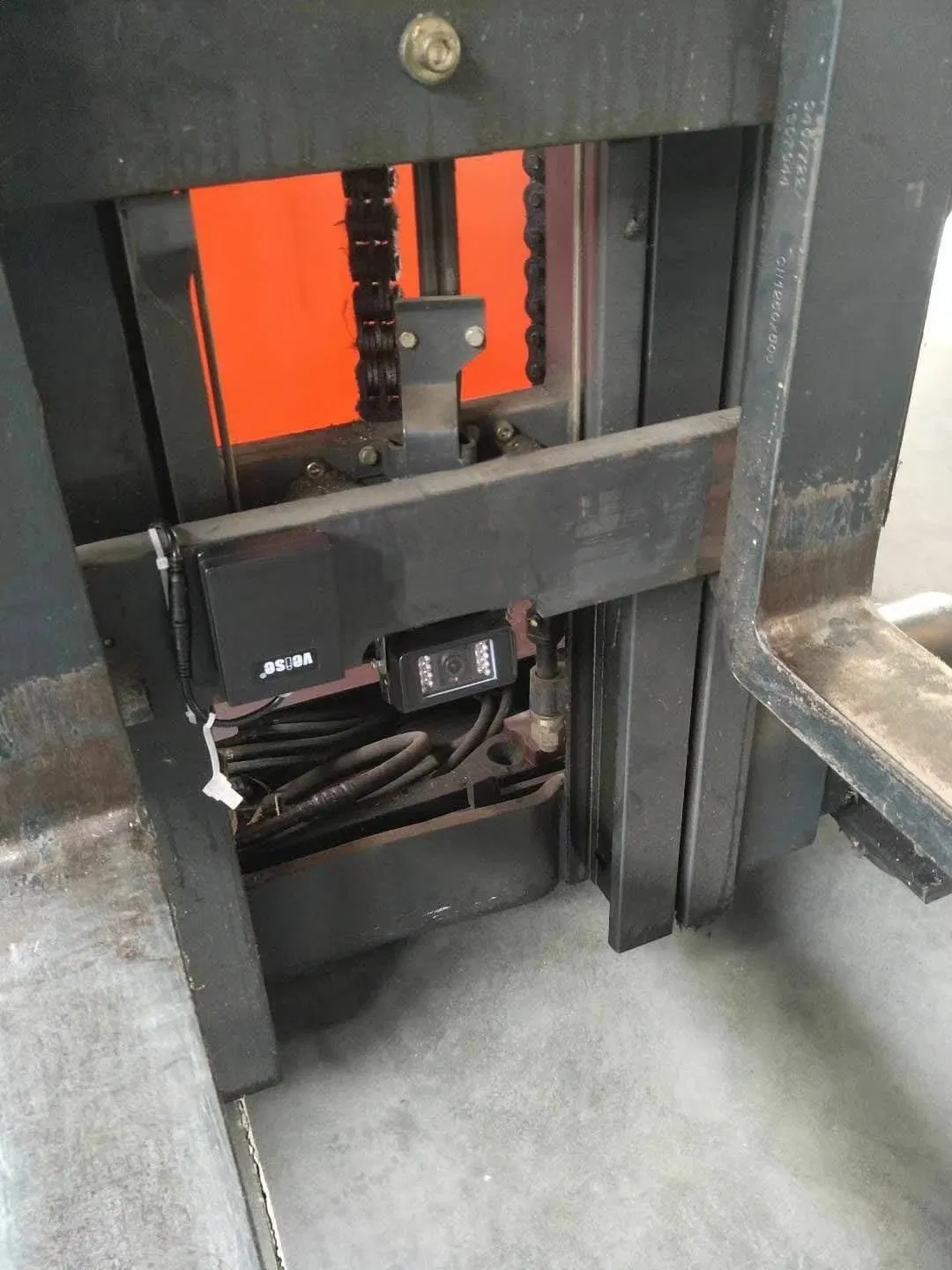

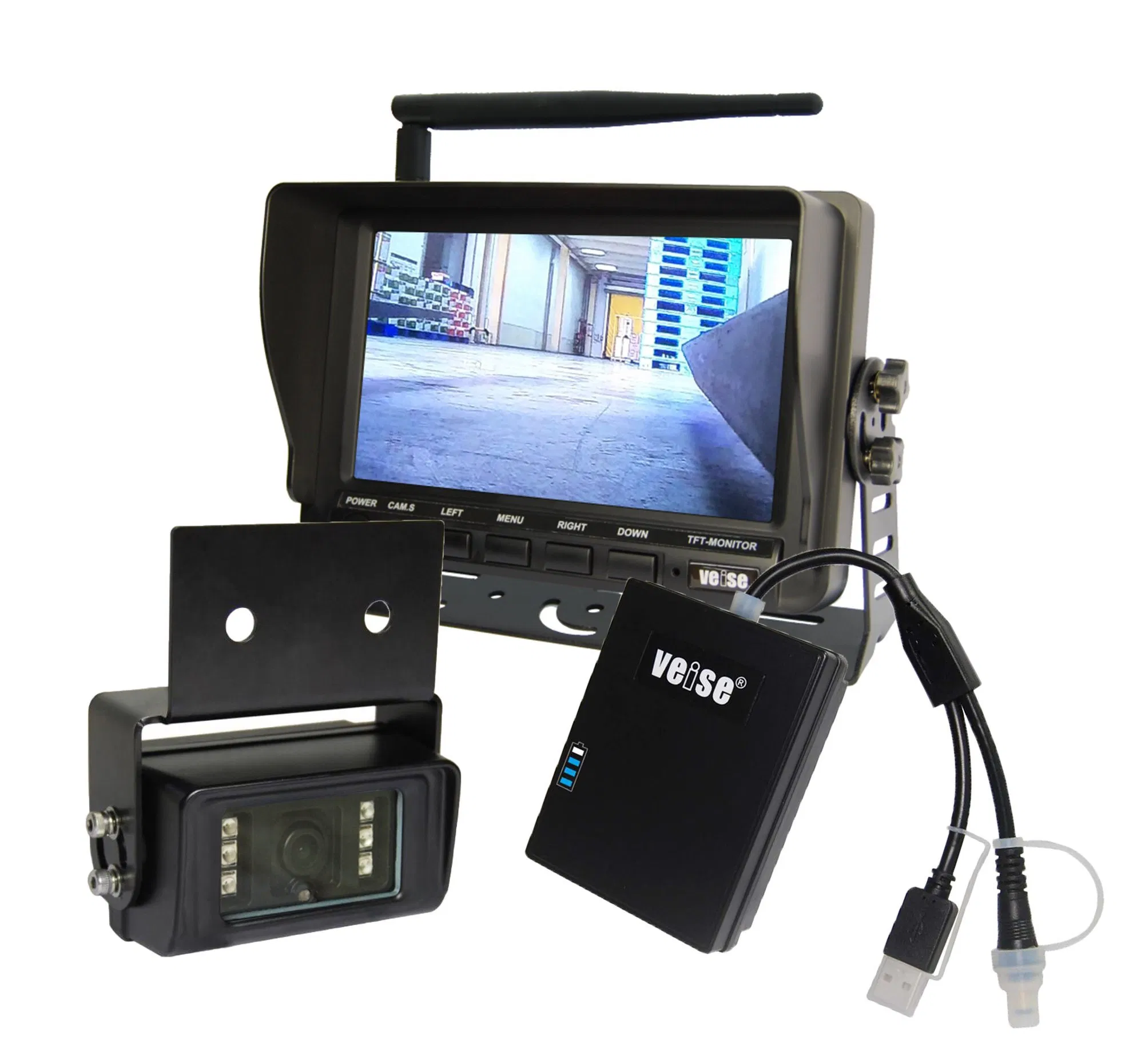

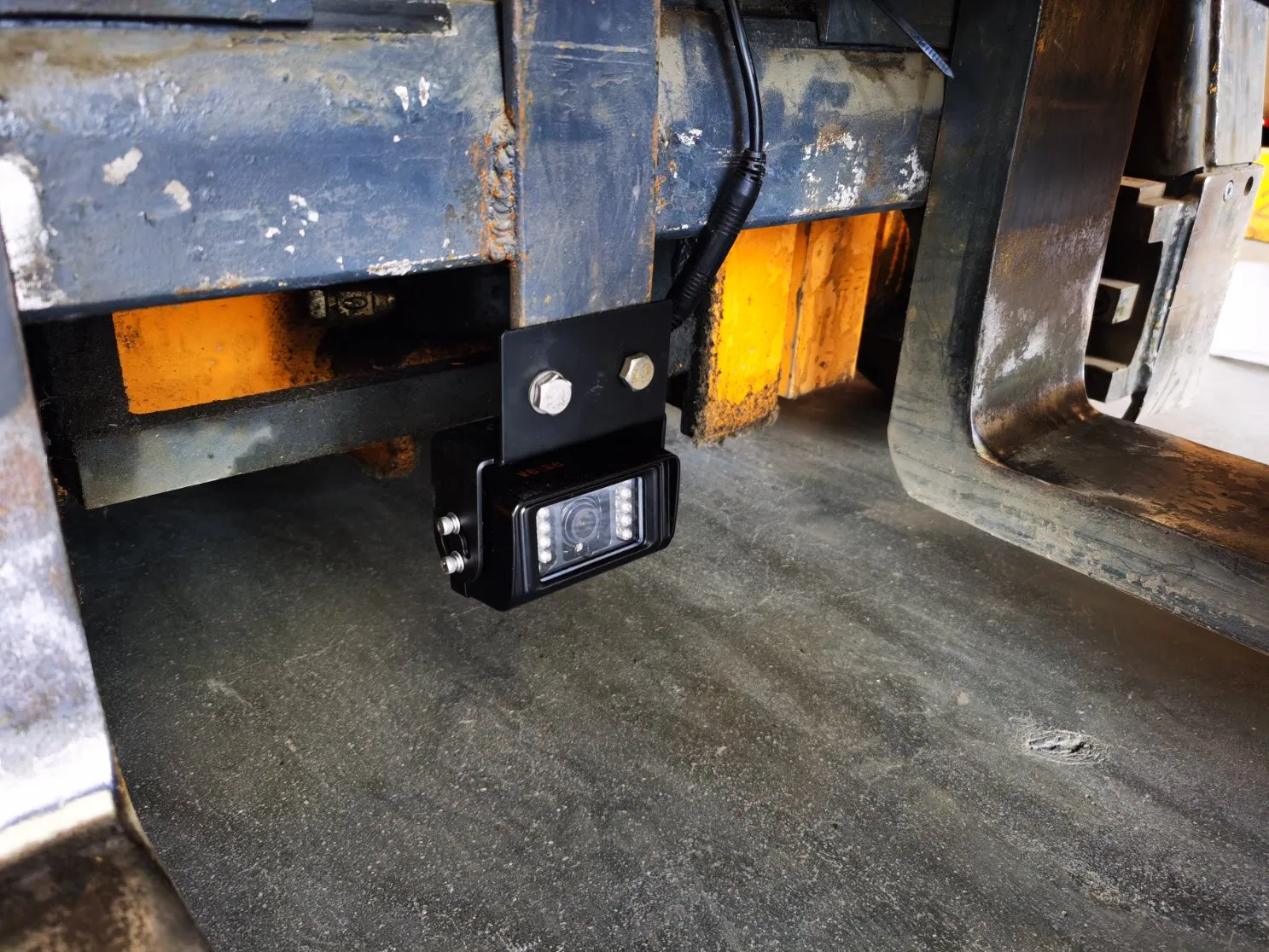

Forklift Wireless Camera System with HD Carriage Mounted Camera
- High-Resolution: 720P Stainless steel wireless camera with built-in 2.4GHz digital transmitter.
- Smart Display: Supports two-channels 1080P/960P/720P/CVBS signal input with split-view capabilities.
- High Brightness: 600cd/m2 screen ensures visibility in various lighting conditions.
- Rugged Build: IP69K waterproof camera with 100% nitrogen filling for antifogging.
- Extreme Resilience: Camera cable features low temperature resistance down to -40 ºC.
- Easy Installation: Mobile power output DC 12V(0.8A), eliminates the need to run long cables.
📊 Technical Parameters
| 720P Digital Wireless Receive Monitor (MWHD-772S) |
|---|
| Screen Size | 7" HD Screen with Removable Sun Visor |
| Operation Frequency | 2400 ~ 2483.5MHz |
| Display Resolution | 1024 RGB(H) x 600(V) dot |
| Contrast & Brightness | 500:1 / 600cd/m2 |
| Voltage & Temp | DC 8~32V / -20ºC to +70ºC |
| 720P Stainless Steel Wireless Camera (CWHD-16A1M) |
|---|
| Image Sensor | 1/3.7 inch Color CMOS |
| Transmission Range | Line of Sight ≤300M |
| Night Vision | 0 Lux (6pcs IR LEDs) |
| Durability | IP69K Waterproof / 10G Shockproof |
| Dimensions | 103.5(W) x 89(H) x 67(D) mm |

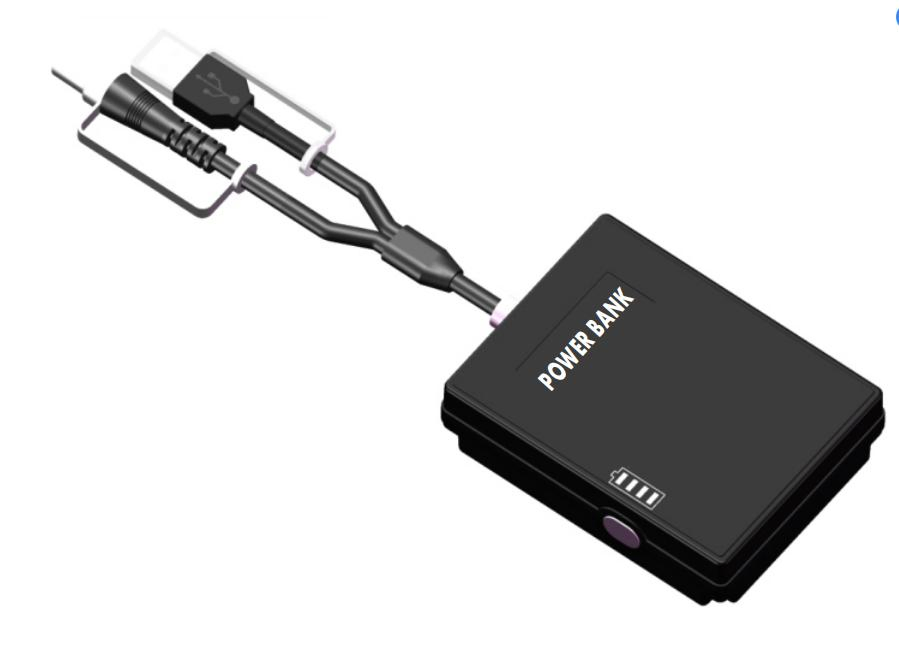

| DC12 Mobile Power (MP-01A10W1) |
|---|
| Capacity | 10000mAh Li-ion Battery |
| Output / Input | Output: 12V (0.8A) / Input: 5V-12V Fast Charge |
| Cycle Life | > 800 cycles |
| Protection | IP66 Waterproof / 6G Shockproof |
📸 Product & Factory Gallery

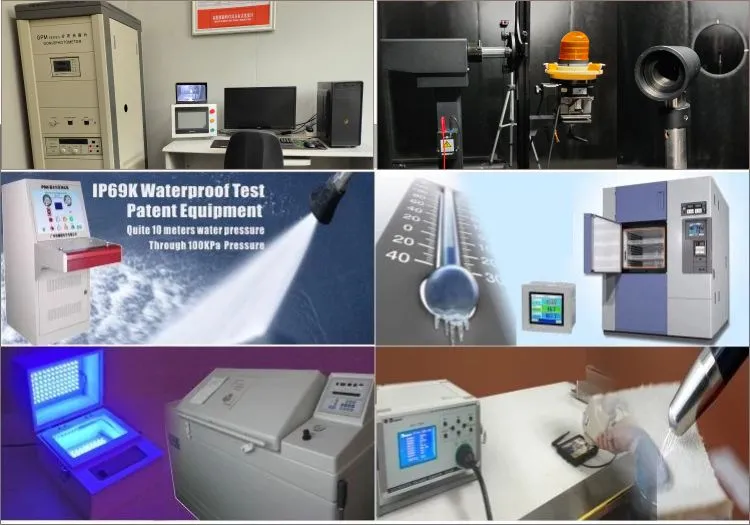

*Light intensity analyzer ensures ECE R65 compliance; Sealed pressure tester ensures IP69K waterproof rating.
❓ Frequently Asked Questions
How far is the wireless transmission range?
The system supports a digital wireless line-of-sight range of up to 300 meters, ensuring stable signal transmission for forklift operations.
Is the camera truly waterproof?
Yes, the camera has an IP69K rating, the highest level of protection against water and dust, and is 100% nitrogen-filled to prevent fogging.
What is the battery life of the mobile power pack?
The 10000mAh Li-ion battery is designed for durability with over 800 charging cycles and supports fast charging protocols.
Can the monitor display multiple camera feeds?
The monitor features a built-in 2-channel 2.4GHz digital wireless receiver and supports split-view image display.
Does the system work in low-temperature environments?
Absolutely. The system operates in temperatures as low as -20ºC, and the camera cable is specifically designed to resist temperatures down to -40ºC.
What are the power requirements?
The system supports a free operating voltage of DC 8-32V, making it compatible with a wide range of industrial vehicles.
