Basic Specifications
Model NO.
HDWS-774H23C2M1-10W
Shell Material
Stainless Steel
Display Type
Reverse Image
Function
Night Vision, Waterproof, Shockproof
Resolution
1024RGB x 600 DOT
Production Capacity
40000PCS/Month

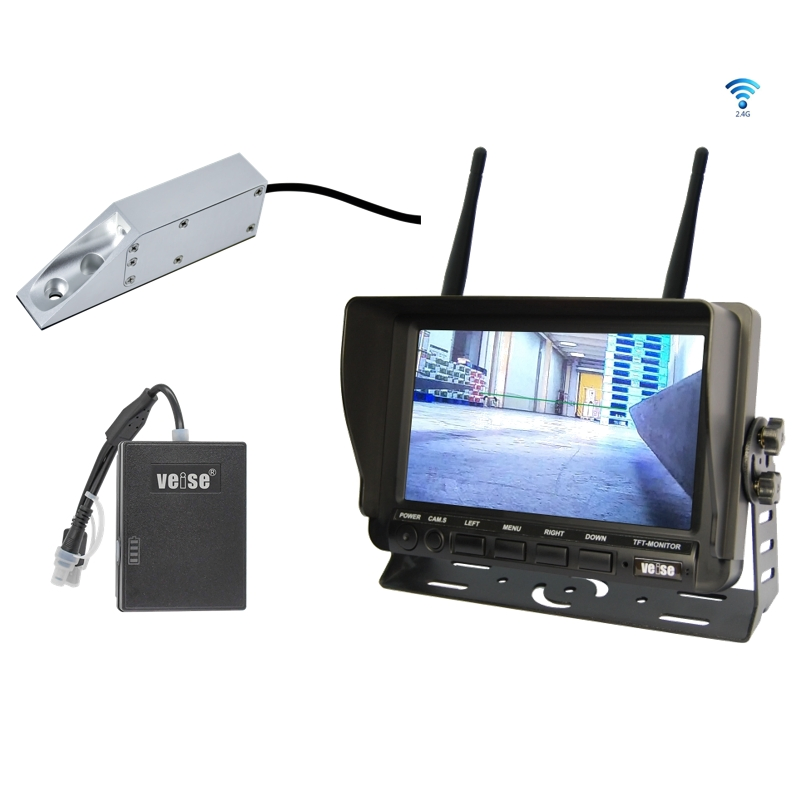

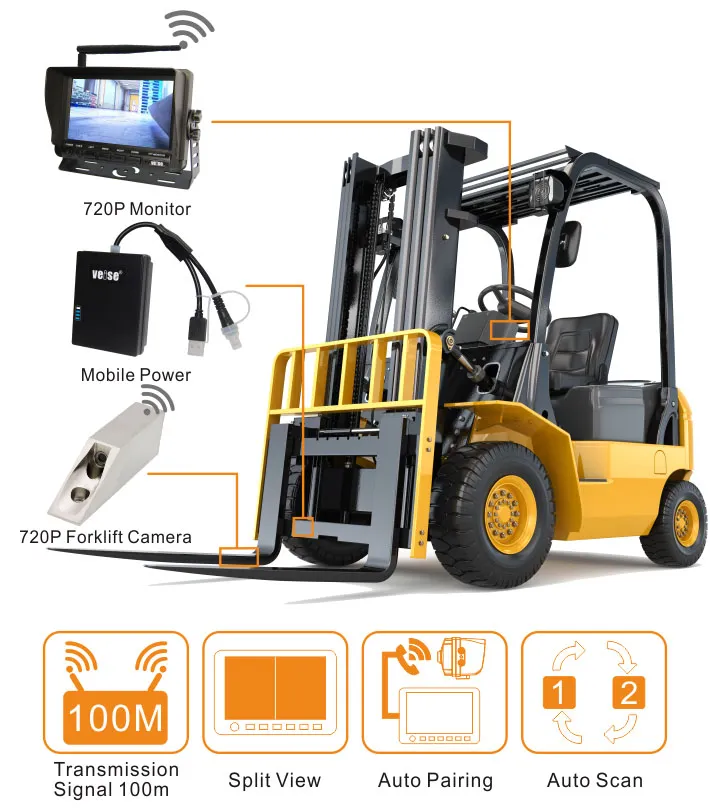

Magnetic Wireless Safety Camera System for Forklifts

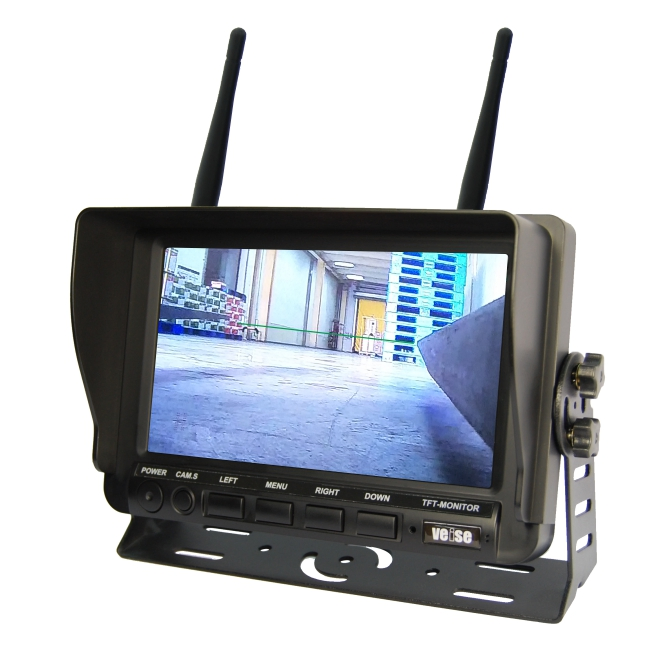

7-Inch HD Wireless Monitor
- Supports 4ch single screen switching + 2 split + 3 split + quad display
- 1024RGBX600 high resolution with 600cd/m² high brightness
- Open transmission distance up to 300 meters
- Automotive industrial grade DSP with Graphical OSD menu
- Reverse polarity and load dump pulse voltage suppression protection

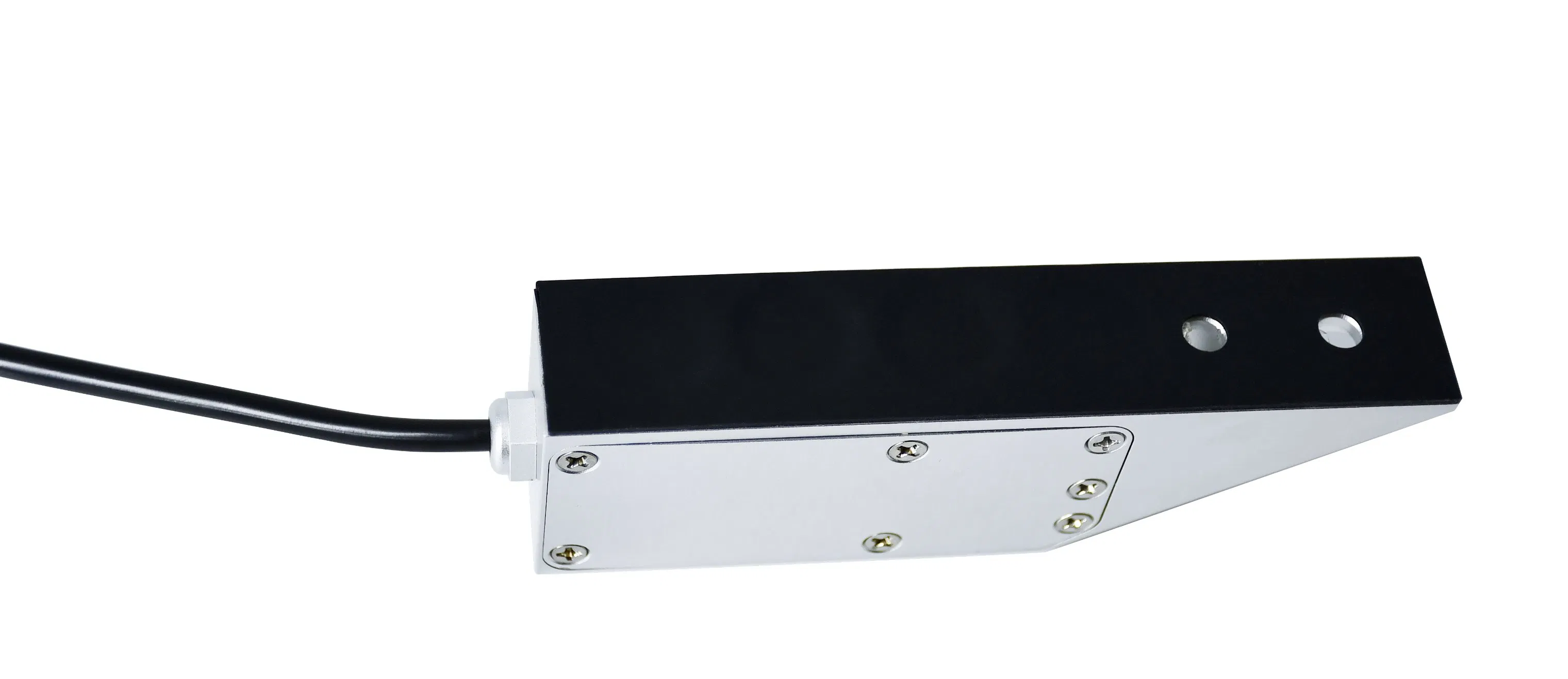

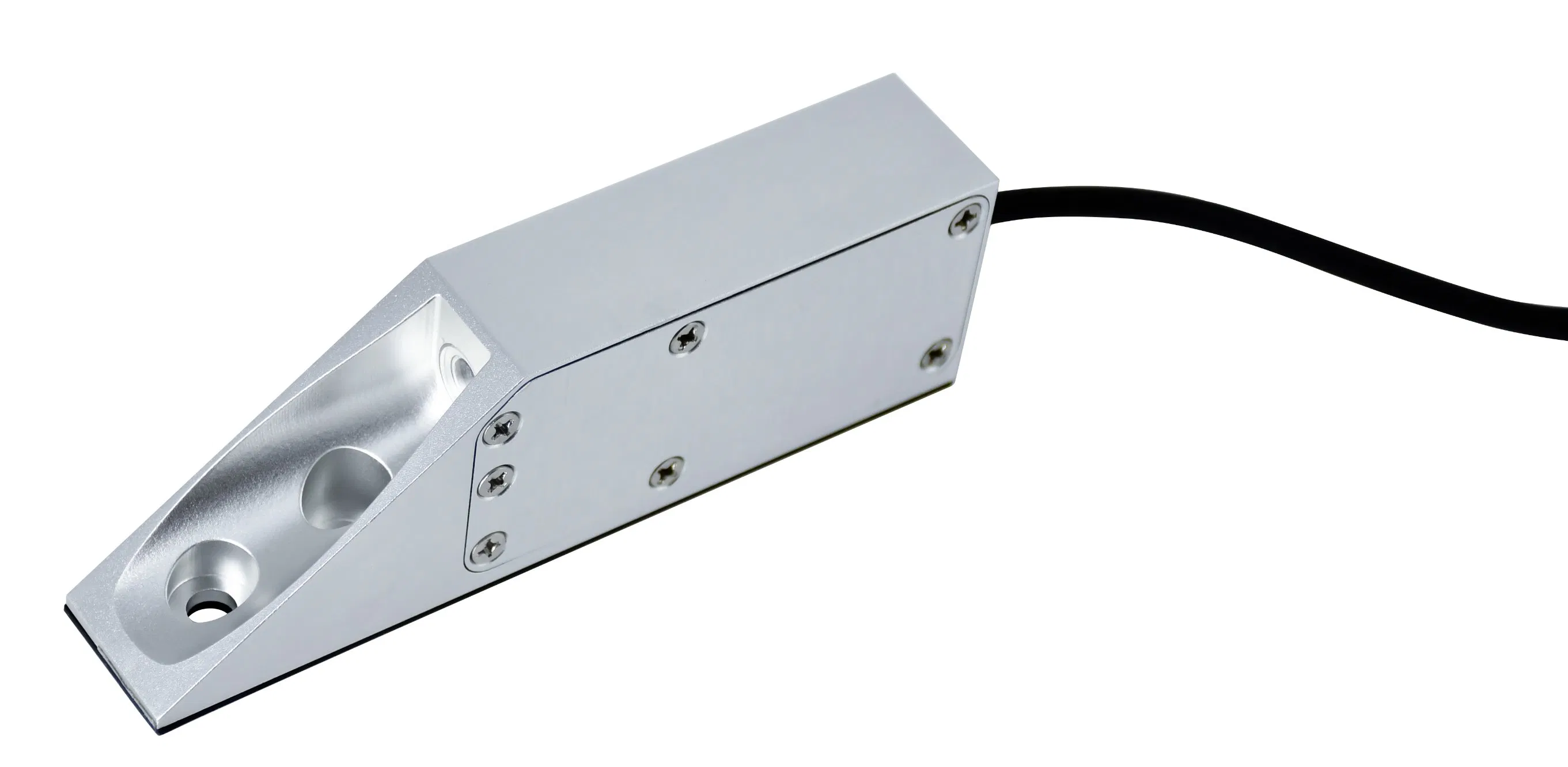

1080P Magnetic Wireless Forklift Camera
- Effective Pixels: 1920(H) X 1080(V)
- Collision-proof aluminum alloy housing with IP69K waterproof grade
- 3 LED white light fill lights for clearer fork operation
- Large wide-angle view specifically designed for forklift safety
- Magnetic mounting for quick and non-destructive installation

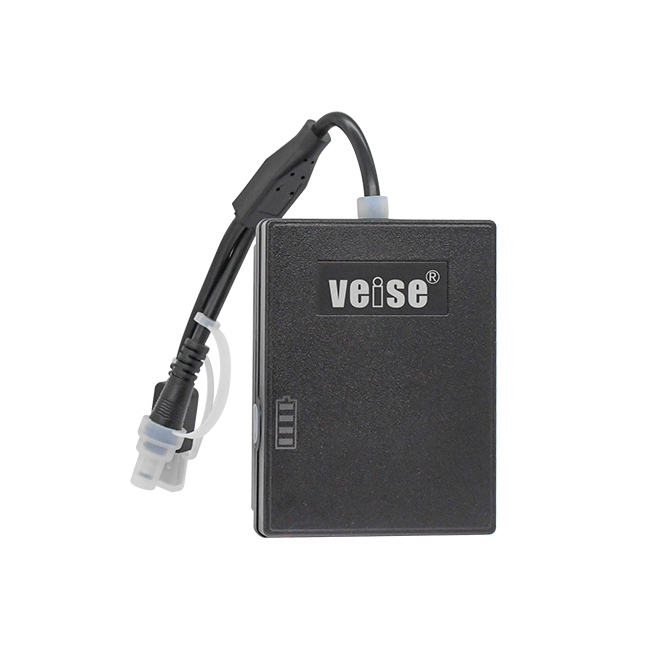

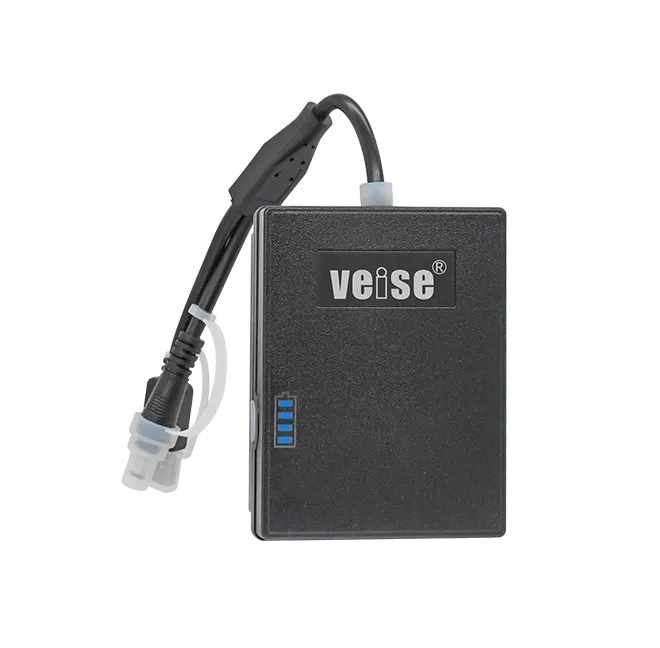

Magnetic Rechargeable Mobile Power Bank
- Constant current and constant voltage circuit for extended service life
- Overcharge, over-discharge, and temperature protection circuits
- Wide range voltage input 5V~12V, supports QC fast charge protocol
- IP67 Waterproof grade for industrial environments
Technical Specifications
| 1080P Digital Wireless Monitor (MWHD-774H) |
|---|
| Screen Size | 7" HD Screen with Removable Sun Visor |
| Operating Frequency | 2400 ~ 2483.5MHz |
| Contrast Ratio | 500:1 |
| Operating Voltage | DC 8~32V |
| Operating Temp | -20ºC to +70ºC |
| 1080P Stainless Steel Wireless Camera (CWHD-23C2M) |
|---|
| Image Sensor | 1/2.9 Color DSP |
| Effective Pixels | 1920(H) X 1080(V) |
| Viewing Angle | 52° |
| Waterproof/Shockproof | IP69K / 10G |
| Dimensions | 105(W) x 36(H) x 30(D) mm |
| Mobile Power Bank (MP-01A10W1) |
|---|
| Battery Capacity | 10000mAh (Li-ion) |
| Output | DC 12V (0.8A) |
| Charging Cycles | > 800 cycles |
| Waterproof Level | IP66 |
Product Gallery
Frequently Asked Questions
What is the wireless transmission range of this system?
The system supports an open transmission distance of up to 300 meters, ensuring a stable signal for large industrial vehicles.
Is the camera suitable for harsh environments?
Yes, the camera features a stainless steel/aluminum alloy housing and is IP69K waterproof rated, making it resistant to high-pressure water jets and dust.
How is the camera mounted on the forklift?
The camera uses a magnetic mounting system, allowing for quick installation and removal without the need for drilling or permanent modification.
Does the monitor support multiple views?
Yes, the 7-inch HD monitor supports 4-channel input and can display single, split, or quad-screen modes.
How long does the power bank battery last?
The mobile power bank has a 10000mAh capacity and is designed for high-cycle life (over 800 cycles), supporting DC 12V output for the camera.
Does the camera provide clear images in low light?
Absolutely. The camera includes 3 white LED fill lights and high-definition 1080P resolution to ensure clear visibility during fork operations in dark areas.
