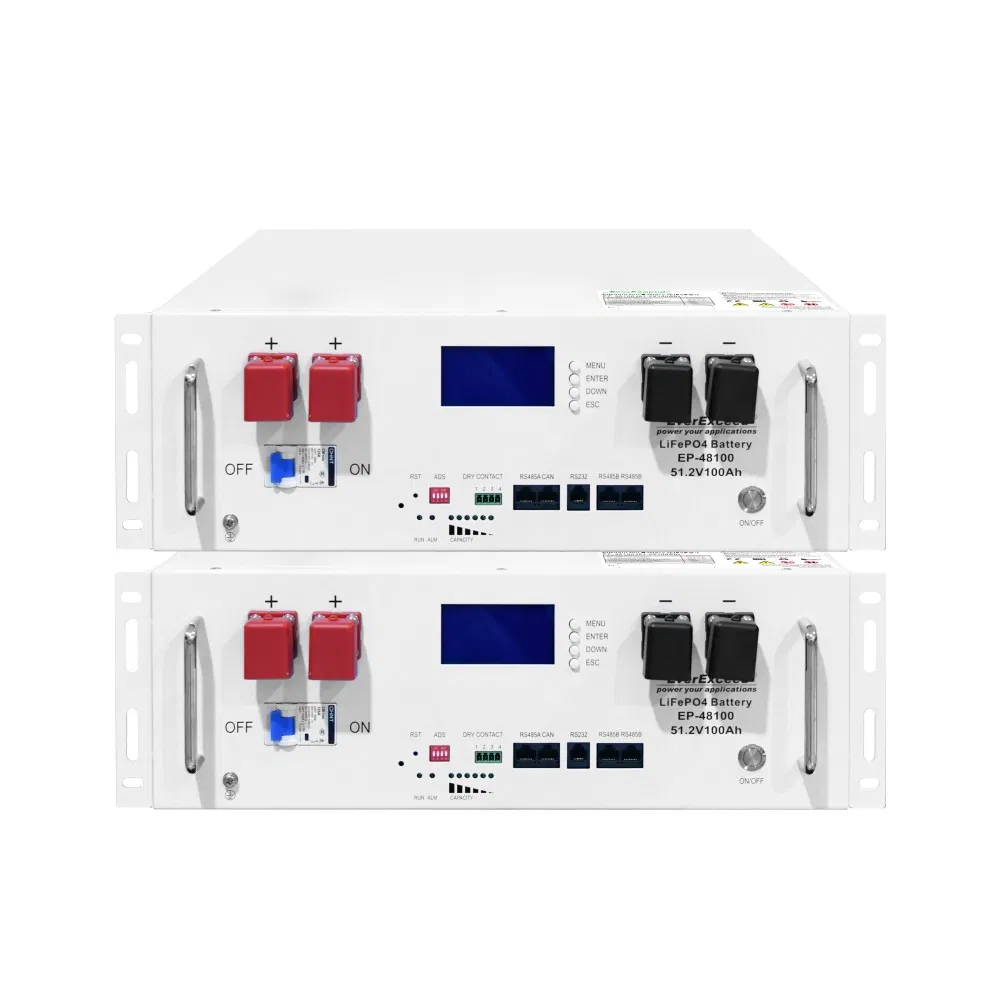

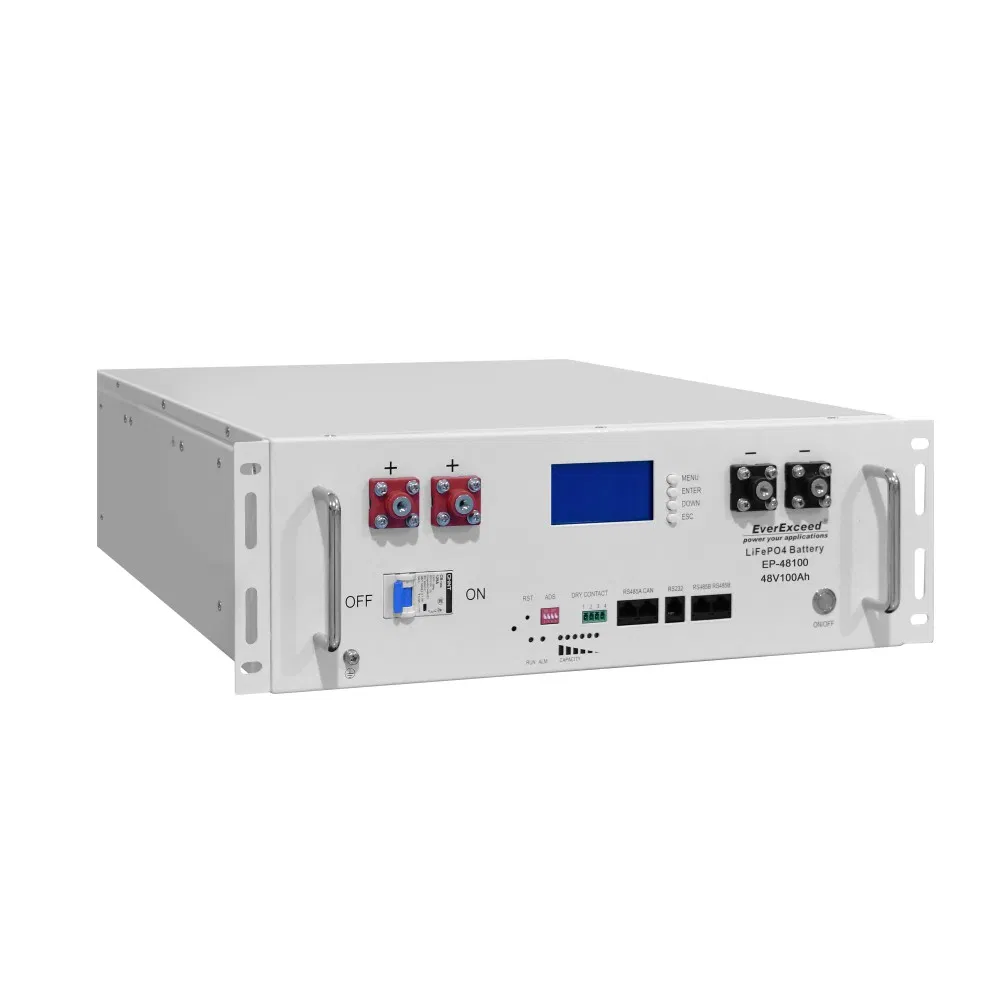

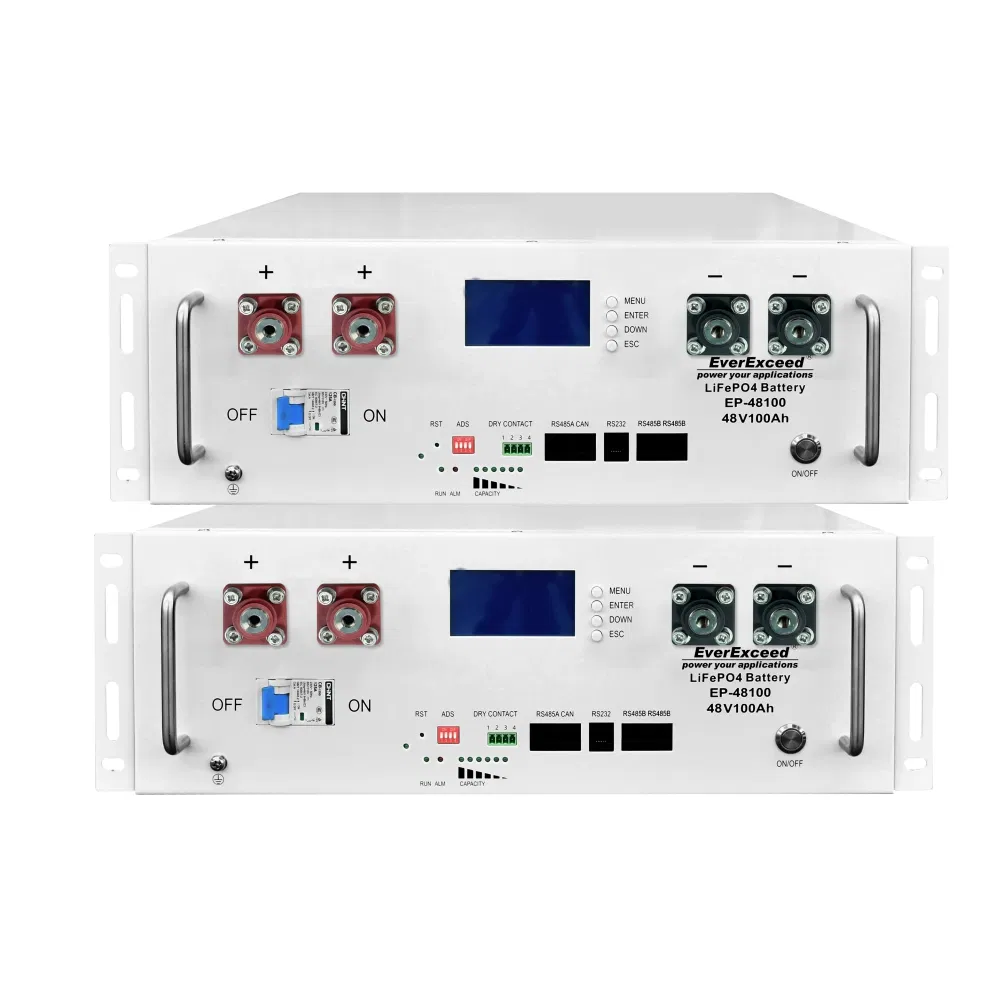

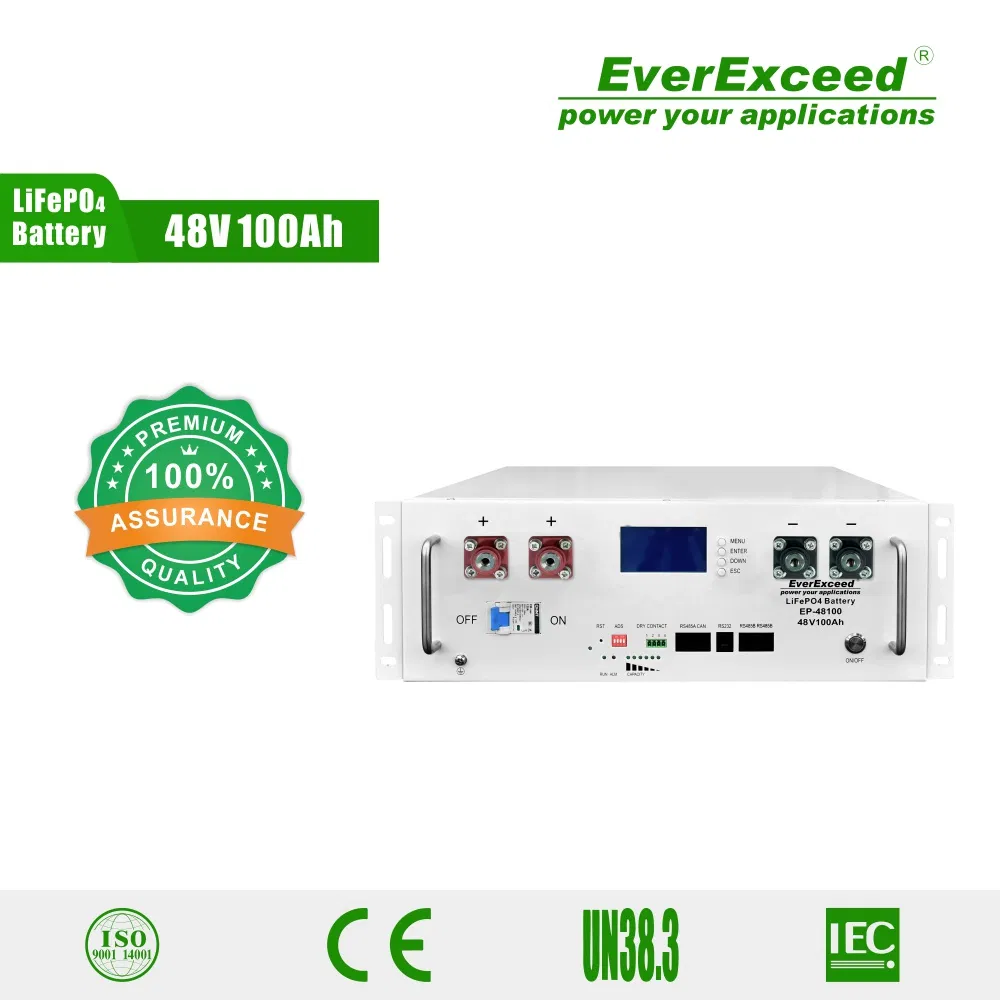

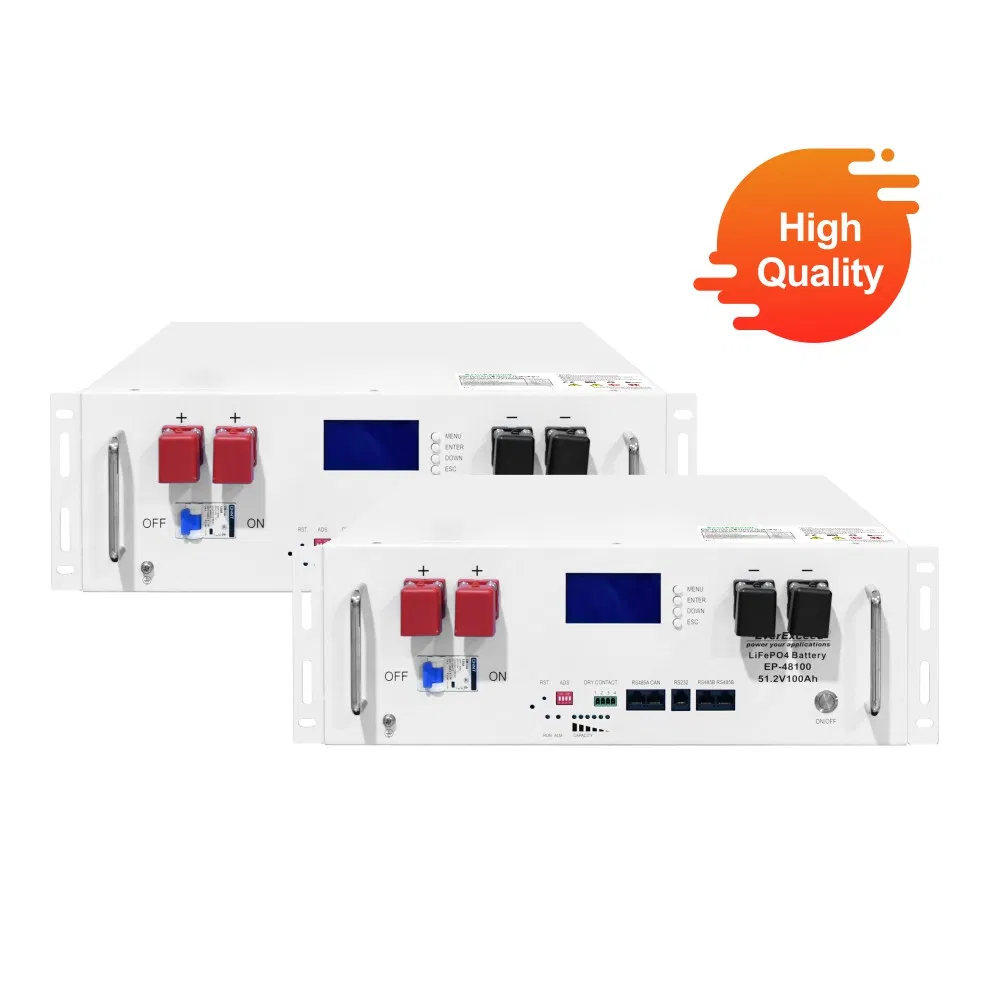

Factory OEM 48V 51.2V 100ah 200ah LiFePO4 Lithium Iron Phosphate Battery Pack for Energy Storage System RV PV Golf Cart
Solar LiFePO4 battery system is specially optimized for PV application, mainly used for the energy store battery of Photovoltaic system; Its advance intelligent lithium battery management technology ensures intelligent automatic management. With "Energy transfer" balanced technology, it provides high efficiency balanced performance and prolongs system operation life.
High Cycle Life
Over 6000 cycles @80% DOD; Superior DOD compared to lead acid batteries.
High Reliability
Excellent high temperature performance and ultra-low self-discharge rate <1.5%.
More Usable Capacity
Provides 100% usable energy, discharging entirely without causing system downtime.
Intelligent BMS
Monitors SOC, SOH, and protects from short-circuit, over-discharge, and high temperature.
Faster Charging
Fully charges within 2-3 hours, significantly faster than VRLA batteries.
Deep Cycling
Optimized for photovoltaic applications using high-cycle life active materials.
| Battery Type | LiFePO4 (Lithium iron phosphate) | |
|---|---|---|
| Battery Model | EP-48100 | |
| No.Of Cells In Series | 15 | 16 |
| Nominal Voltage | 48V | 51.2V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 9.6KWh | 10.24KWh |
| Dimension (H x W x D) | 483*620*177mm | |
| Max Discharge Current | 100A | |
| Communication | RS485 / RS232 / CAN | |
| Safety Standard | IEC62133, CE, UN38.3 | |
| Design Life | 15+ Years @ 25ºC | |
| Shipping & Payment | |
|---|---|
| Payment | T/T, L/C, Cash, Western Union etc. |
| Port | Major Sea Ports in China |
| Delivery | By sea/air/train/truck transportation |
| Packing | Carton box then pallet / wooden box |
