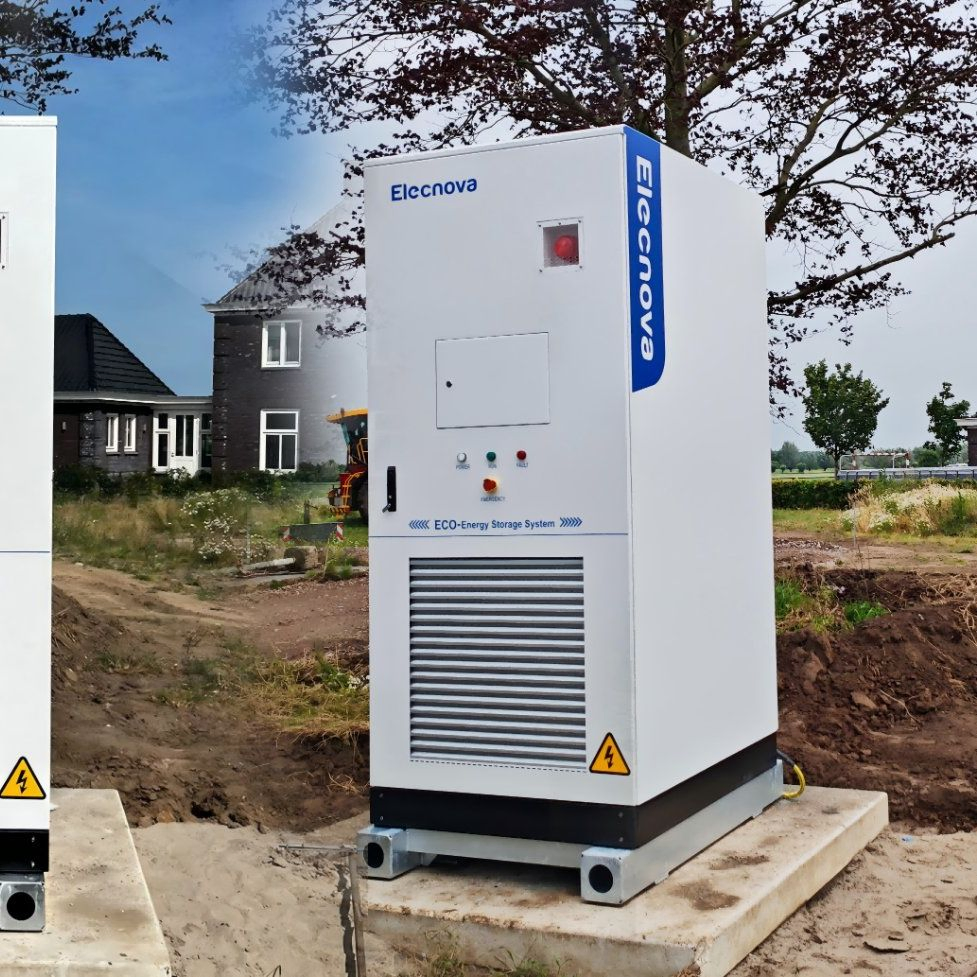

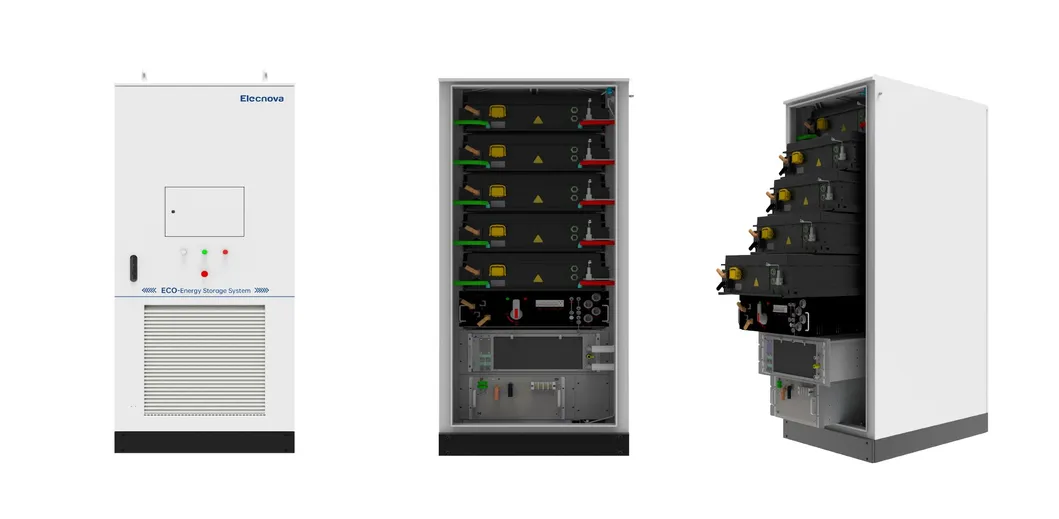

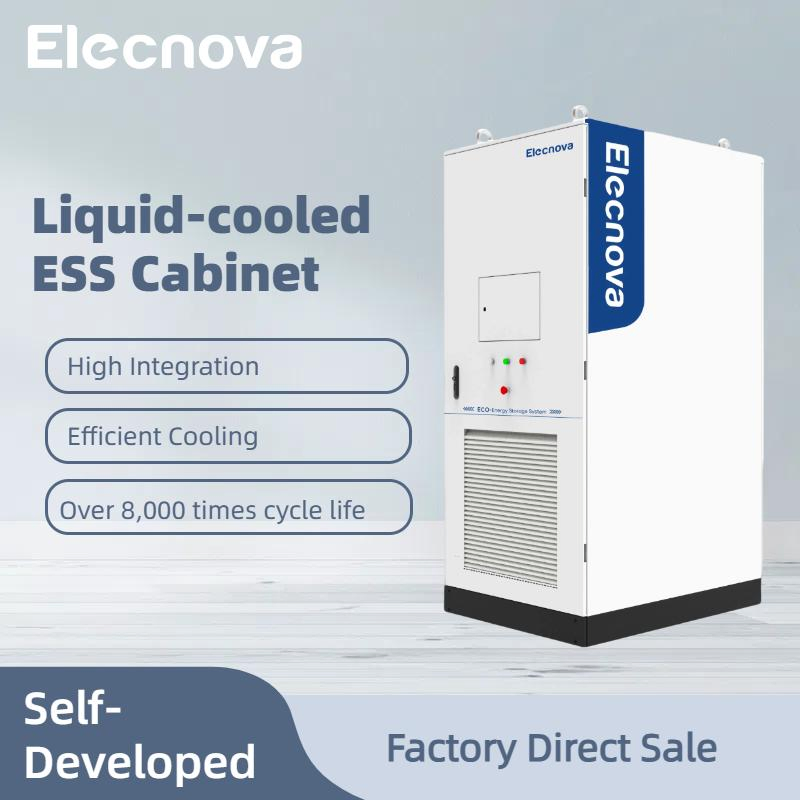

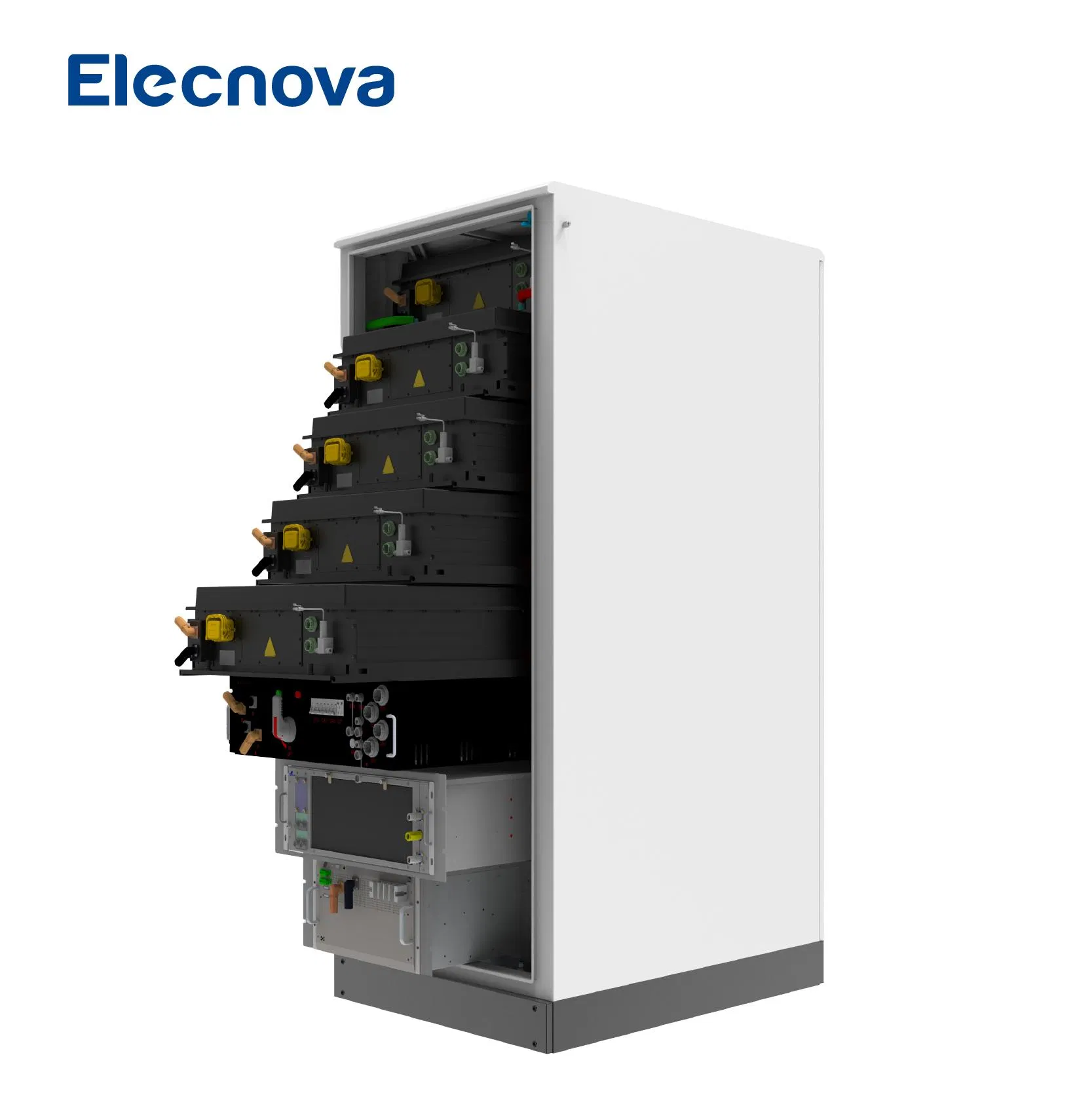

This 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

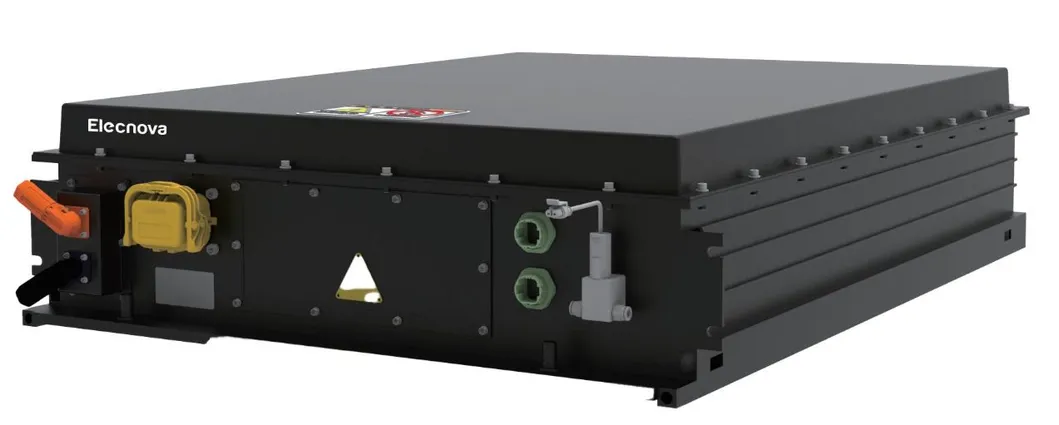

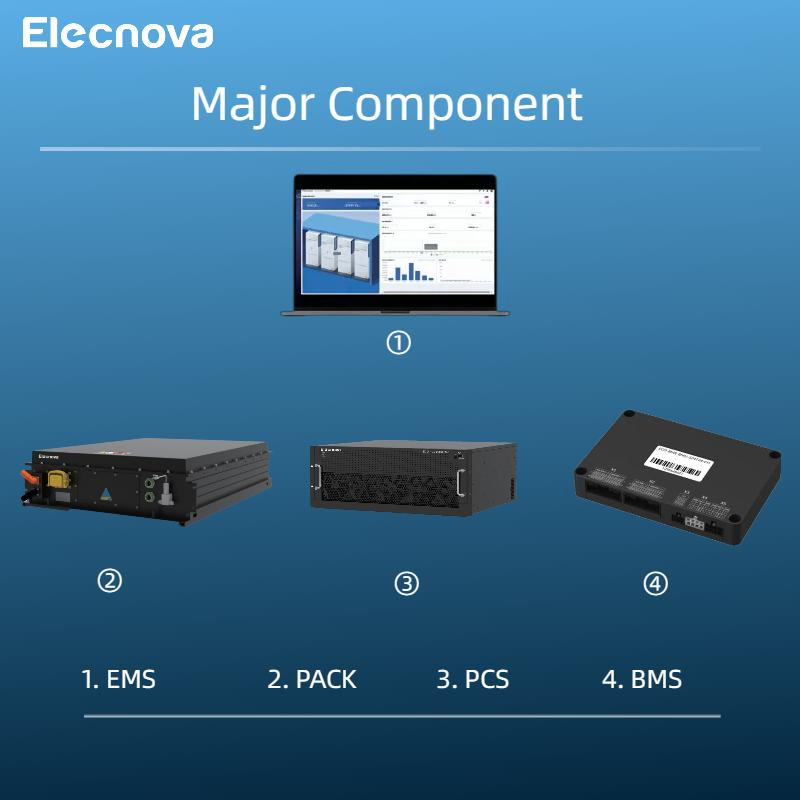

Consists of LFP cells (1P52S) with built-in BMU and liquid cooling plate. Protects against overvoltage, overcurrent, and overheat.

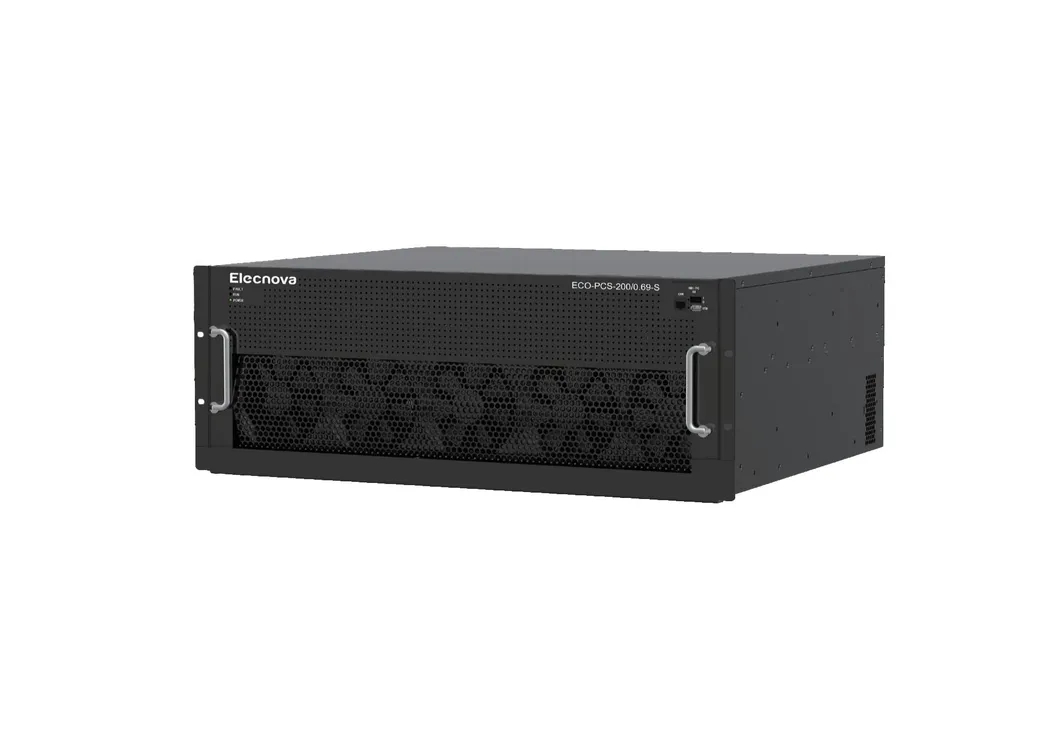

Modular inverter designed for bidirectional energy conversion in C&I ESS and microgrid applications.

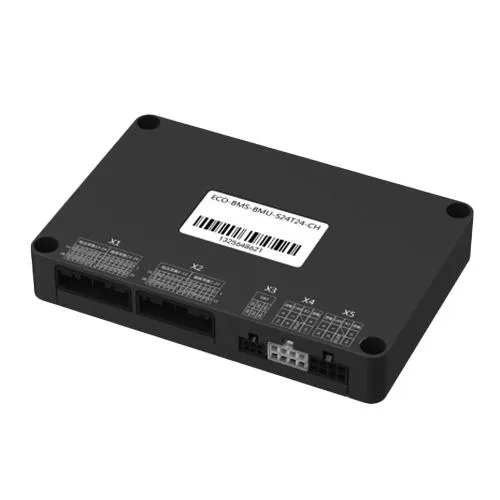

Supports three-level architecture (BMU+BCU+BAU). Real-time monitoring, fault diagnosis, and safety warnings.

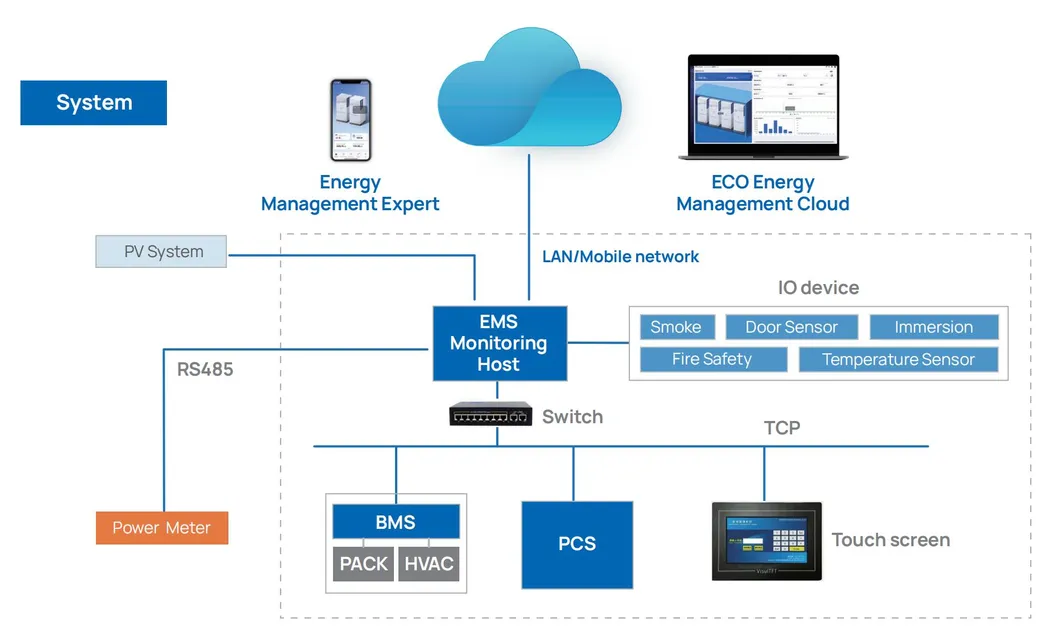

Integrated architecture suitable for user-side ESS, ensuring optimal system operation and maximizing ROI.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP 280Ah |
| Battery System | 233.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| Ingress Rating | IP65 (PACK) |
| AC Side Specifications | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling Method | Active liquid cooling |
| Operating Temperature | -25ºC ~ 55ºC |
| Fire Safety | NOVEC1230 / Aerosol |
Suitable for: Industrial Parks, Factories, Microgrids, EV Charging Stations, Commercial Complexes, and Data Centers.

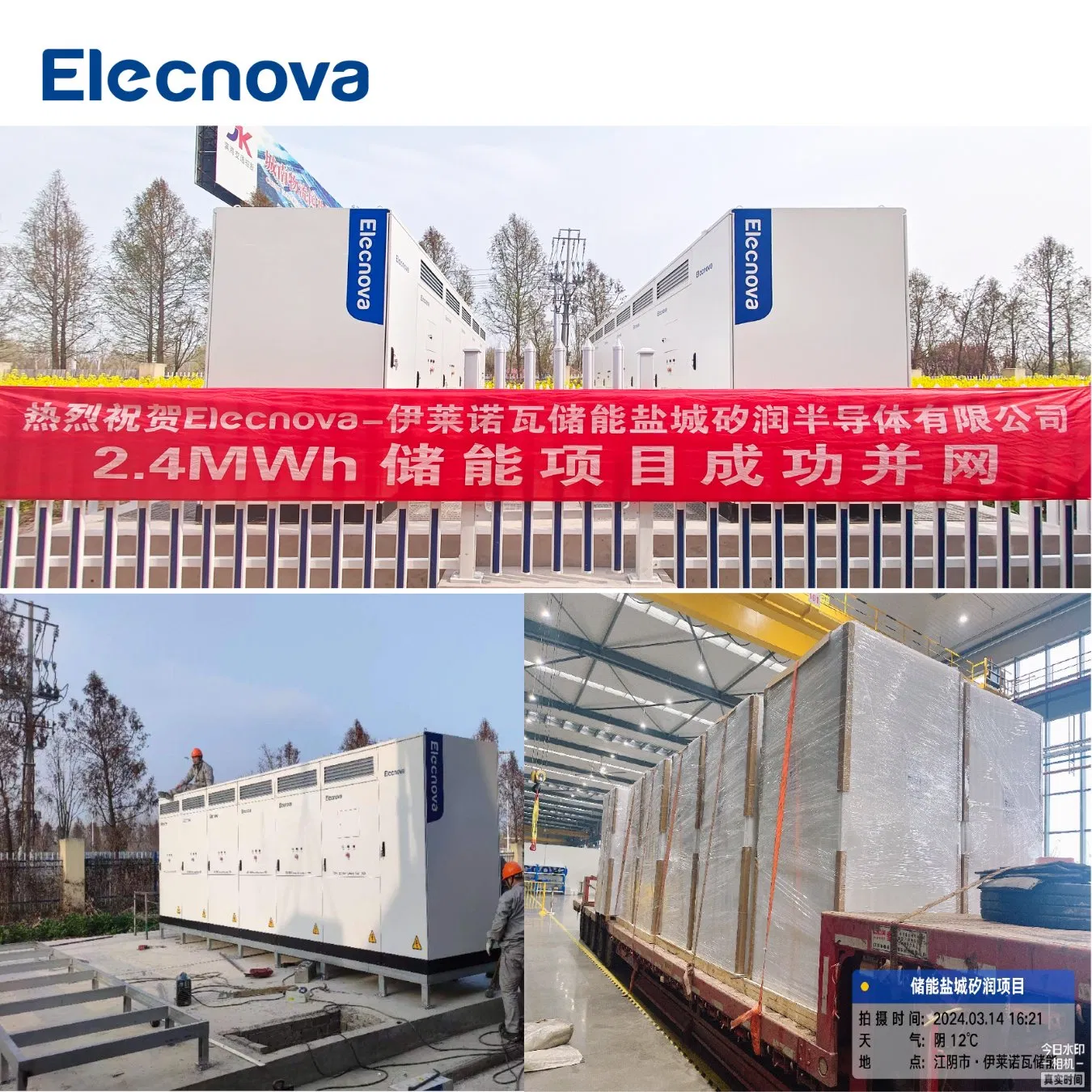

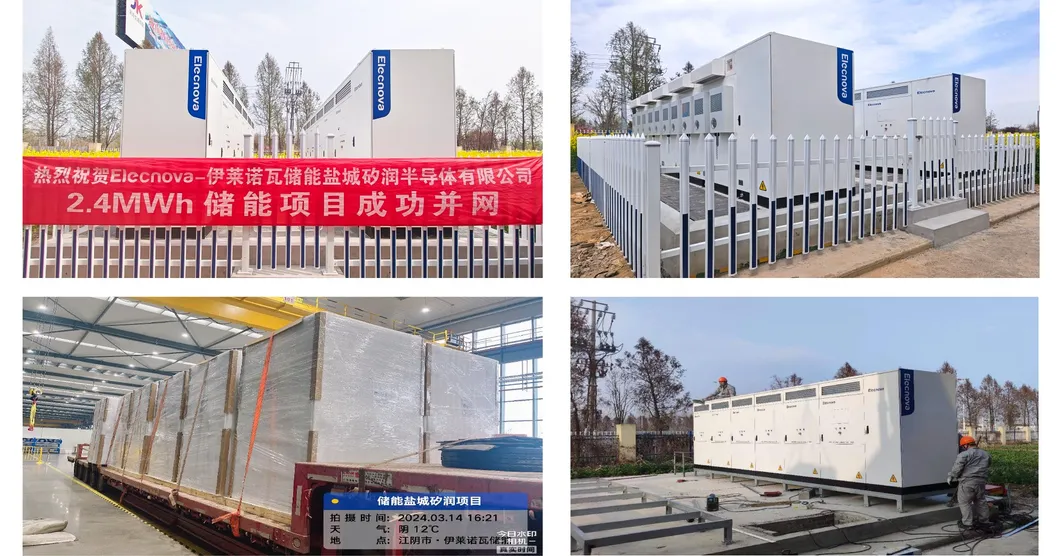

A 2.4MWh energy storage project successfully connected to the grid, featuring high efficiency, stability, and safety.
