| Model NO. | JSKJ-ESS-DC5000-A |
| Nominal Voltage | 1331.2V |
| Warranty | 5 Years |
| Nominal Capacity | 3768ah |
| Cycle Life | 8000 |
| Cell Type | Lfpbattery |
| Rated Energy | Expandable to 100mwh+ |

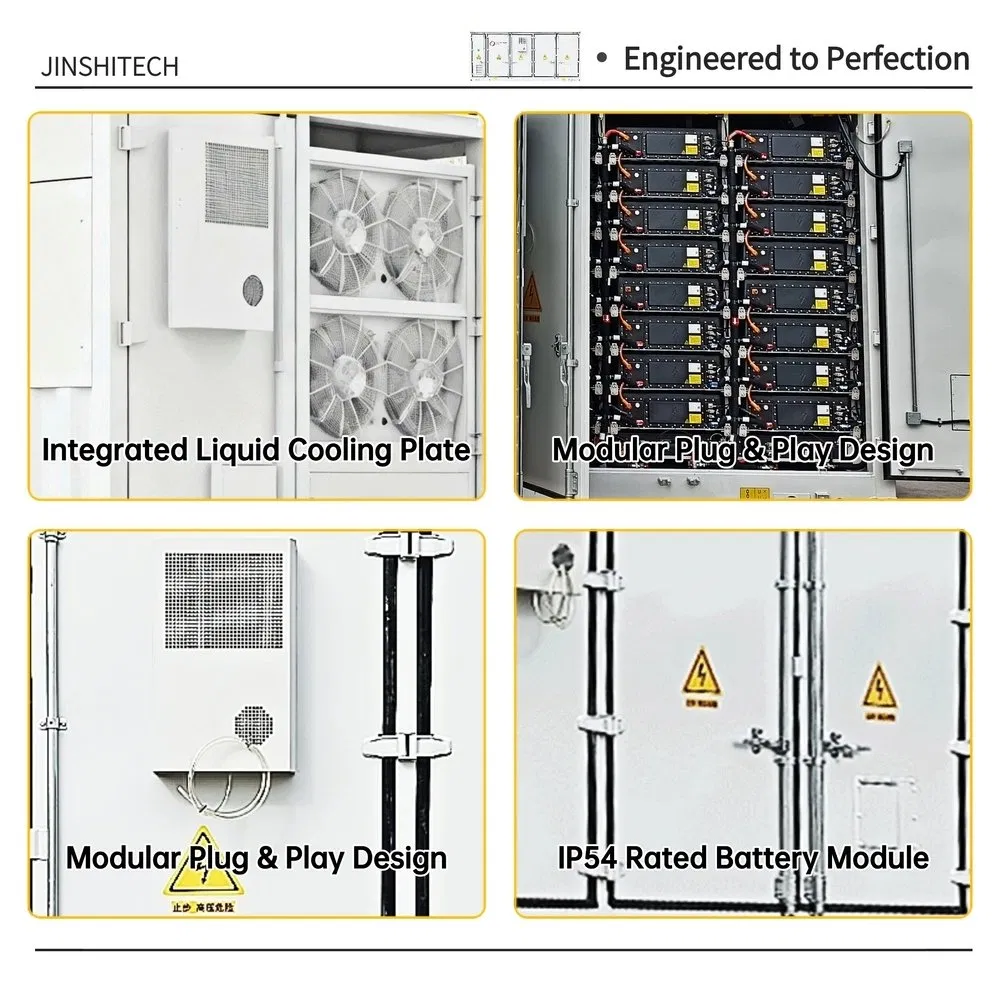

| Cooling Method | Liquid + Air Cooling Dual Thermal Management |
| Waterproof Design | IP54 (Outdoor Durability) |
| System Architecture | Triple Fire Protection + Triple BMS |

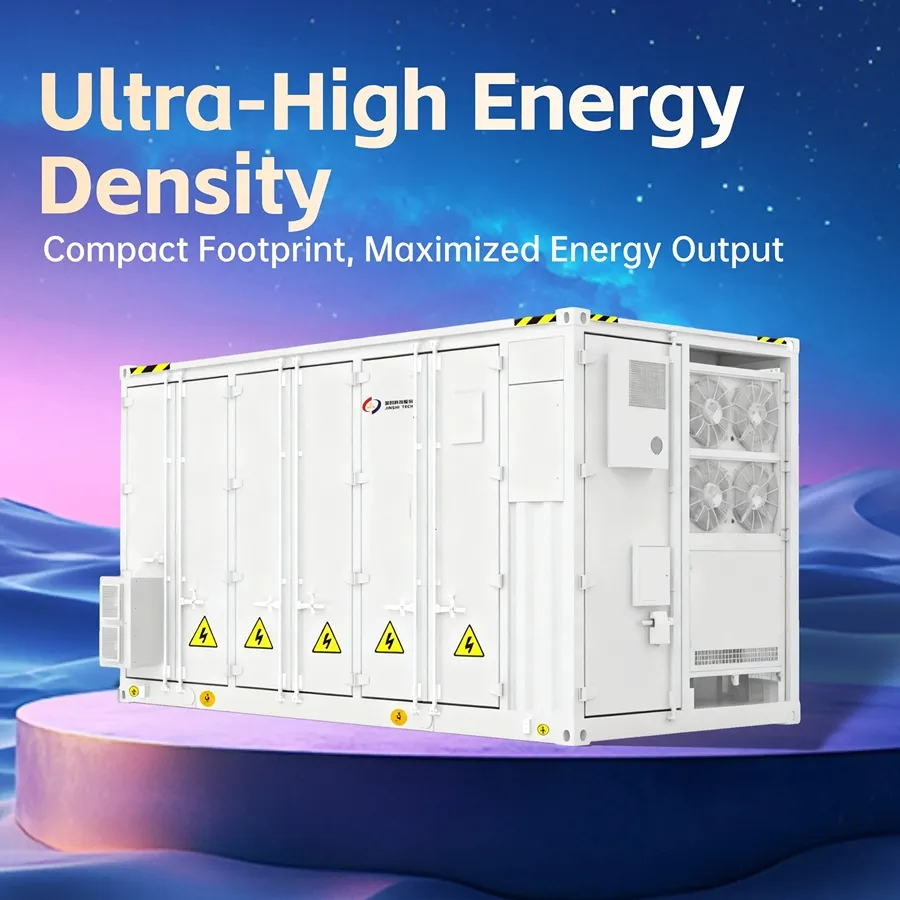

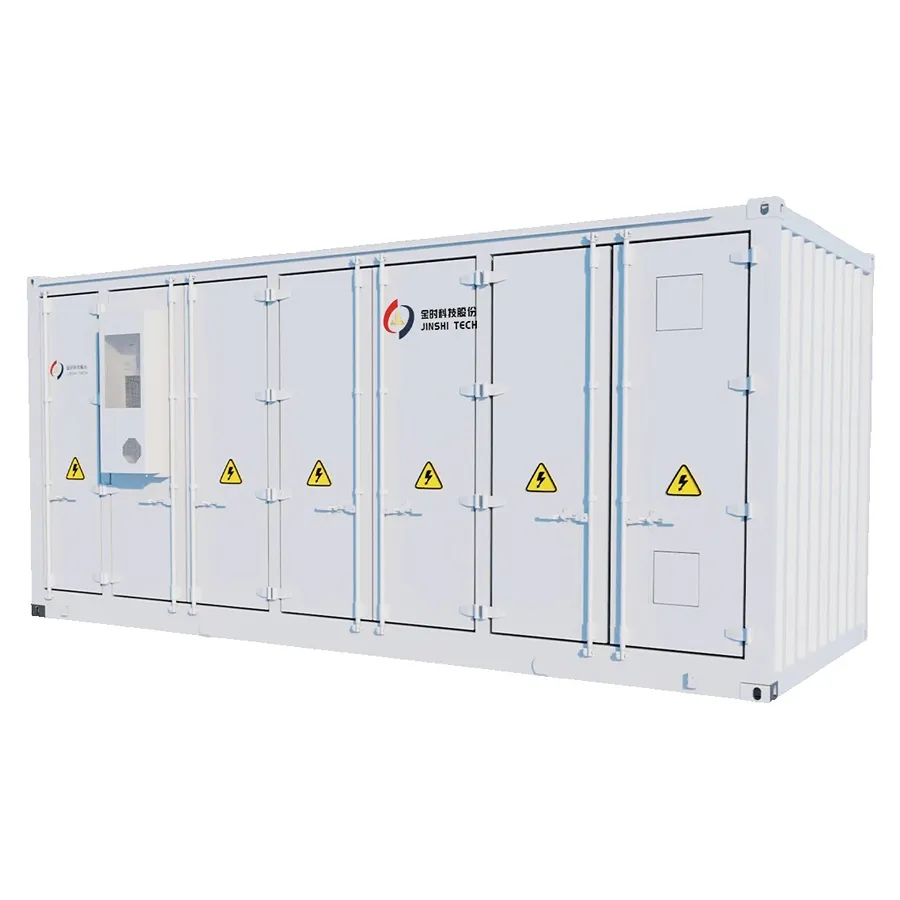

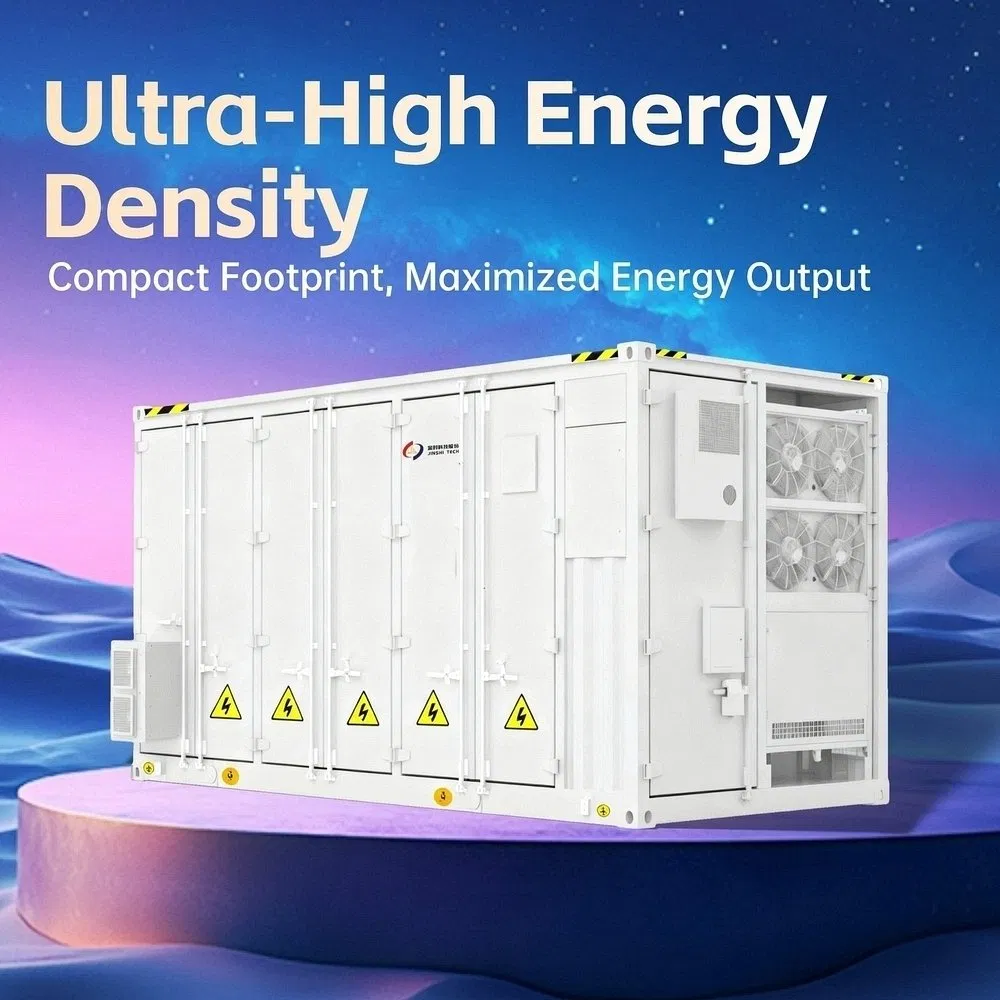

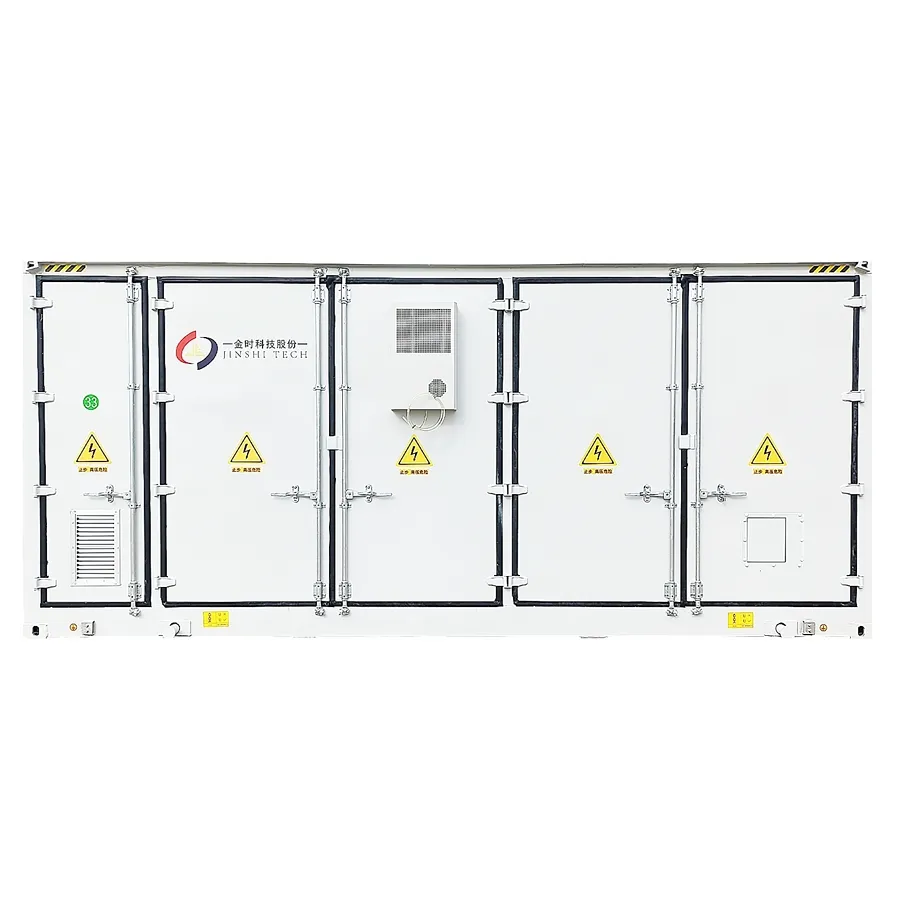

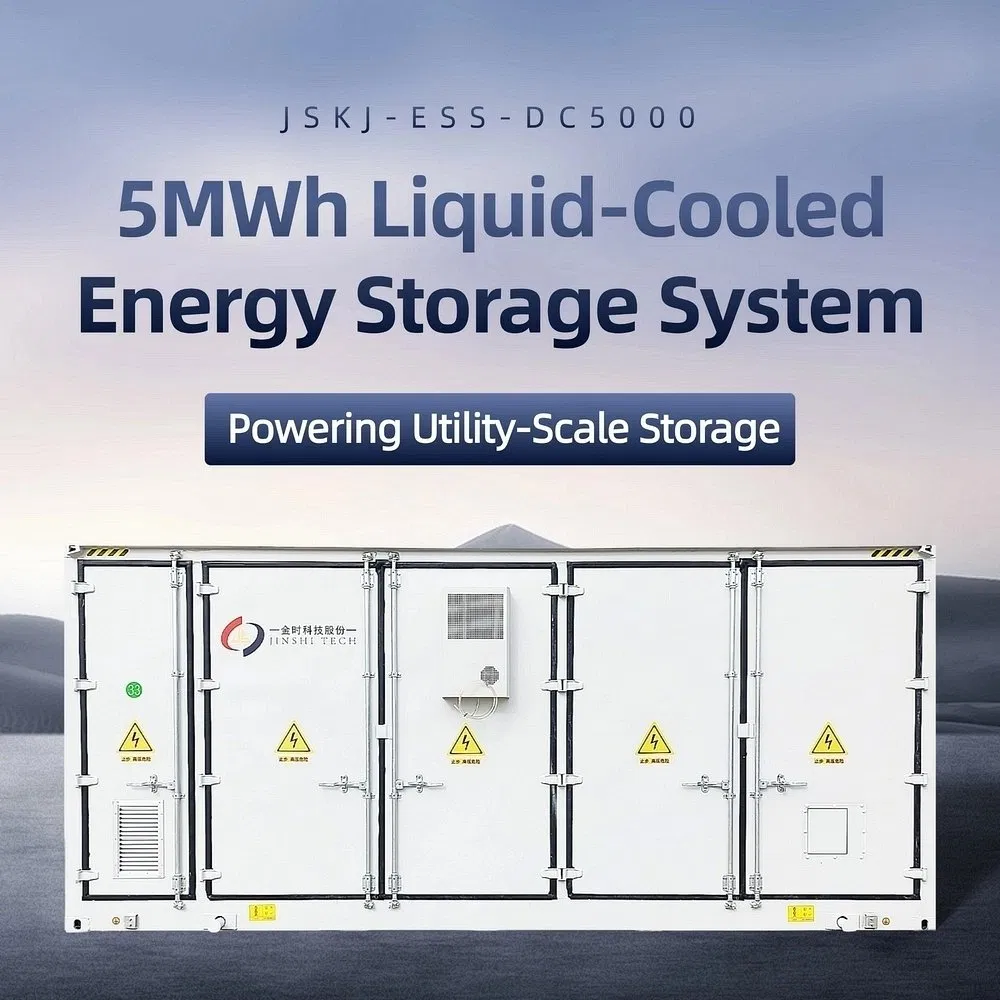

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

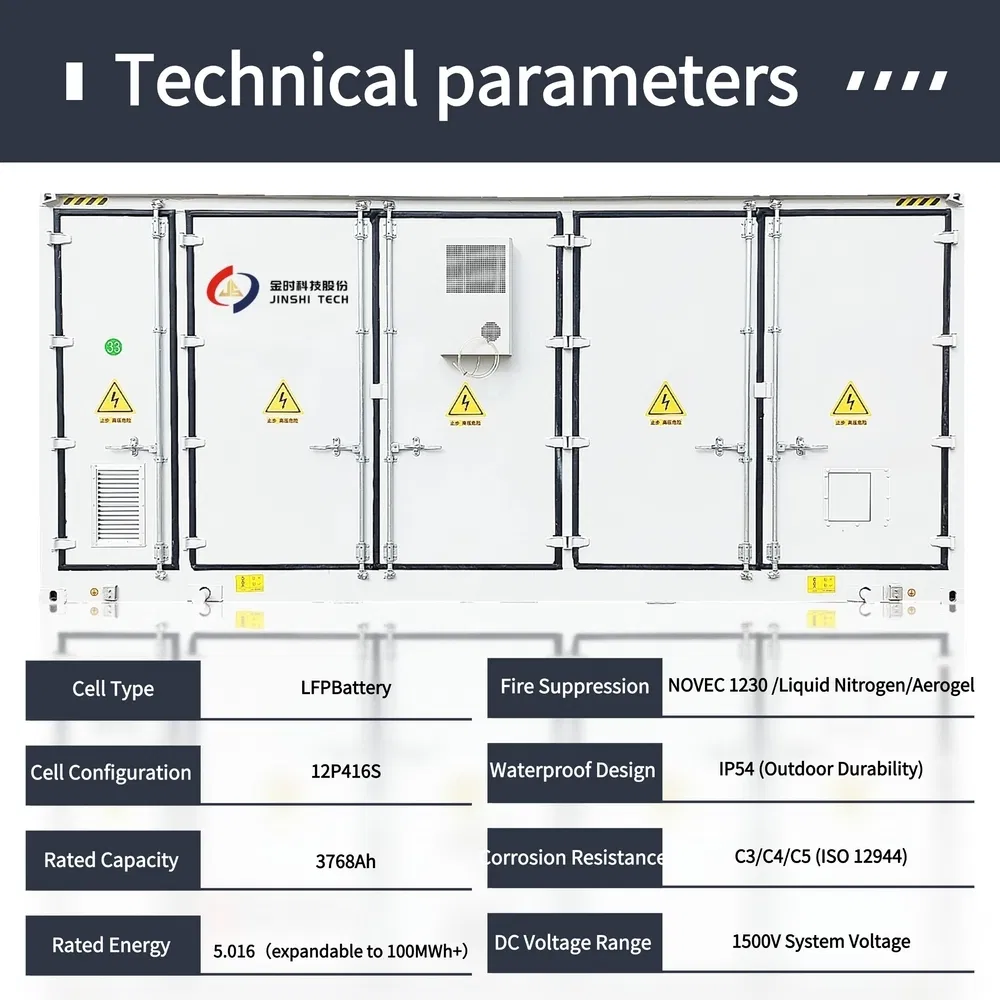

| Cell Configuration | 12P416S |
| Operating Voltage Range | 1164.8-1497.6V |
| Standard Charge/Discharge Current | 1884A/1884A |
| Fire Detection | Temp, CO, Smoke Sensors |
| Corrosion Resistance | C3/C4/C5 (ISO 12944) |
| DC Voltage Range | 1500V System Voltage |
| Package Size | 650.00cm * 280.00cm * 289.60cm |
| Package Gross Weight | 44000.000kg |
Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen fire suppression agents.
24/7 BMS (Battery Management System) with real-time temperature, CO, and smoke sensors; triple BMS redundancy ensures fail-safe operation.
IP54 waterproof rating for outdoor durability; C3/C4/C5 corrosion resistance suitable for inland, plateau, and coastal applications.
Optimized for rapid response grid services with a 1500V DC system voltage for enhanced efficiency.
