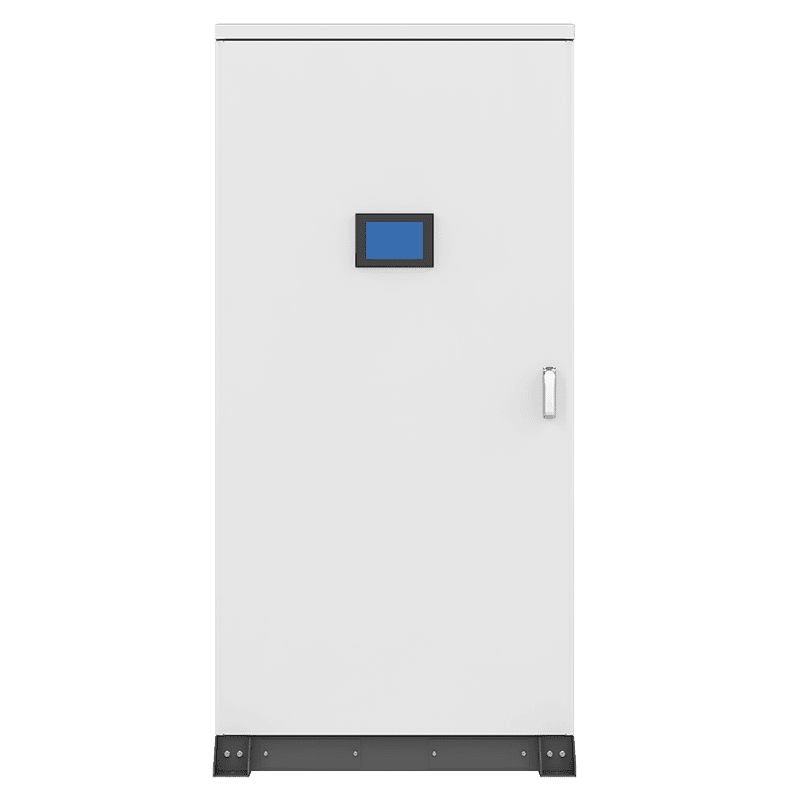

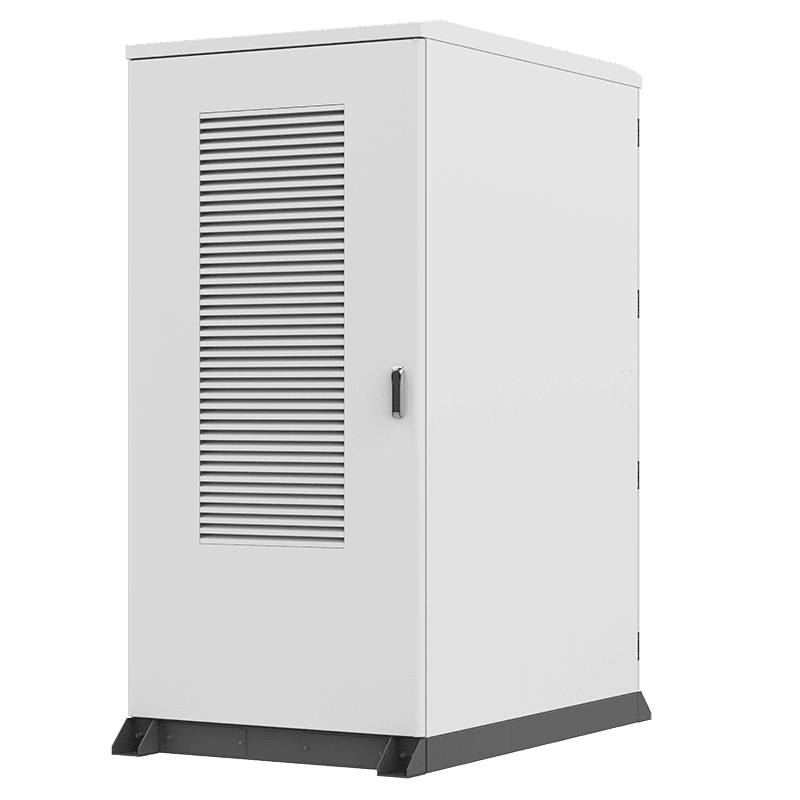

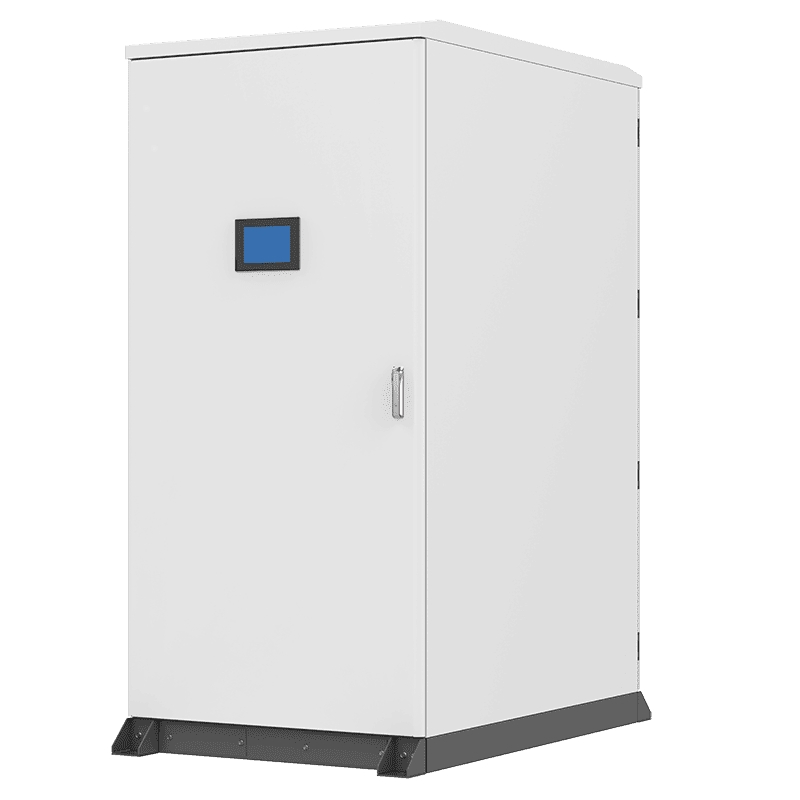

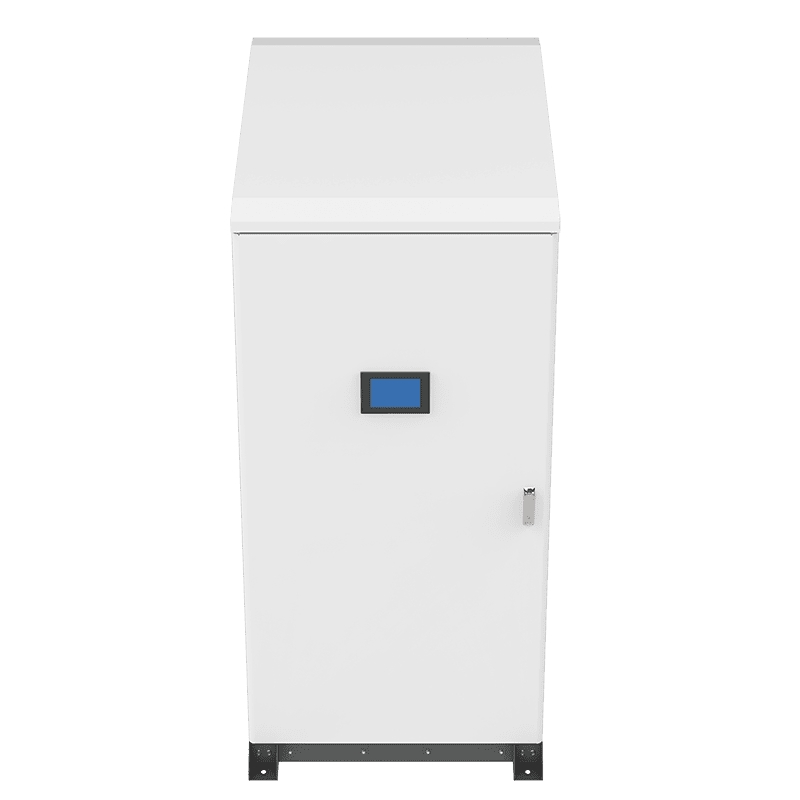

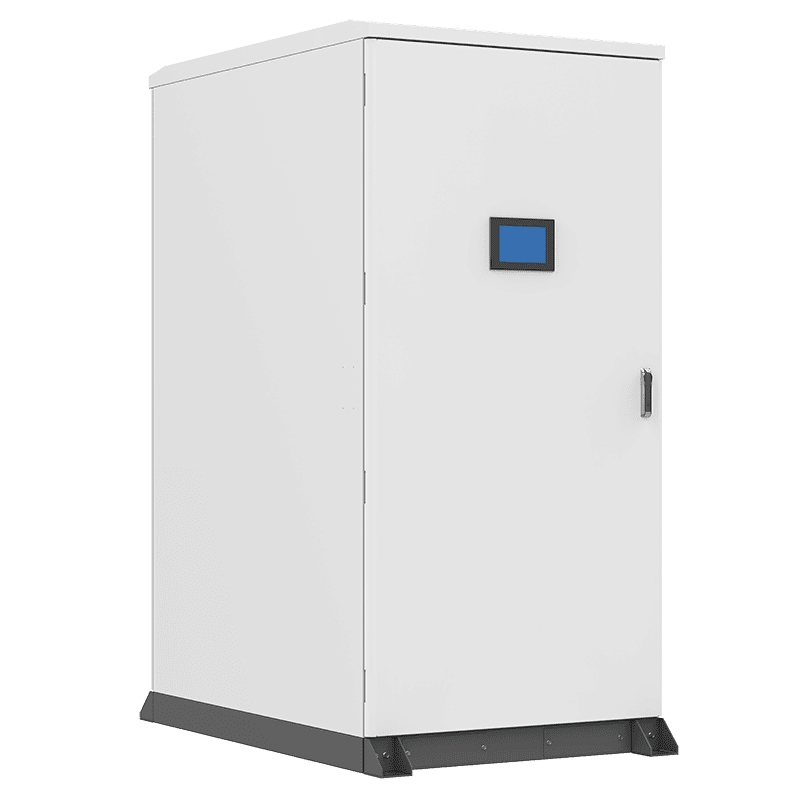

50kw/100kwh LiFePO4 Battery Storage System for Seamless Power Backup and Optimization

1 / 5

50kw/100kwh LiFePO4 Battery Storage System for Seamless Power Backup and Optimization

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

LF-LFP50kw/100kwh

Cycle Life

8000 Times or More

Nominal Capacity

14kwh-100kwh

Feature

All in One Machine

Style

Stackable, Modular, Rack, Container

Cell Type

Grade A LiFePO4

Customization

OEM, ODM Acceptable

Module Dimension

442*750*230mm

Inverter Installation

Built-in Cabinet

Communication

EMS: RS485 | Battery: CAN/RS485

HS Code

850760

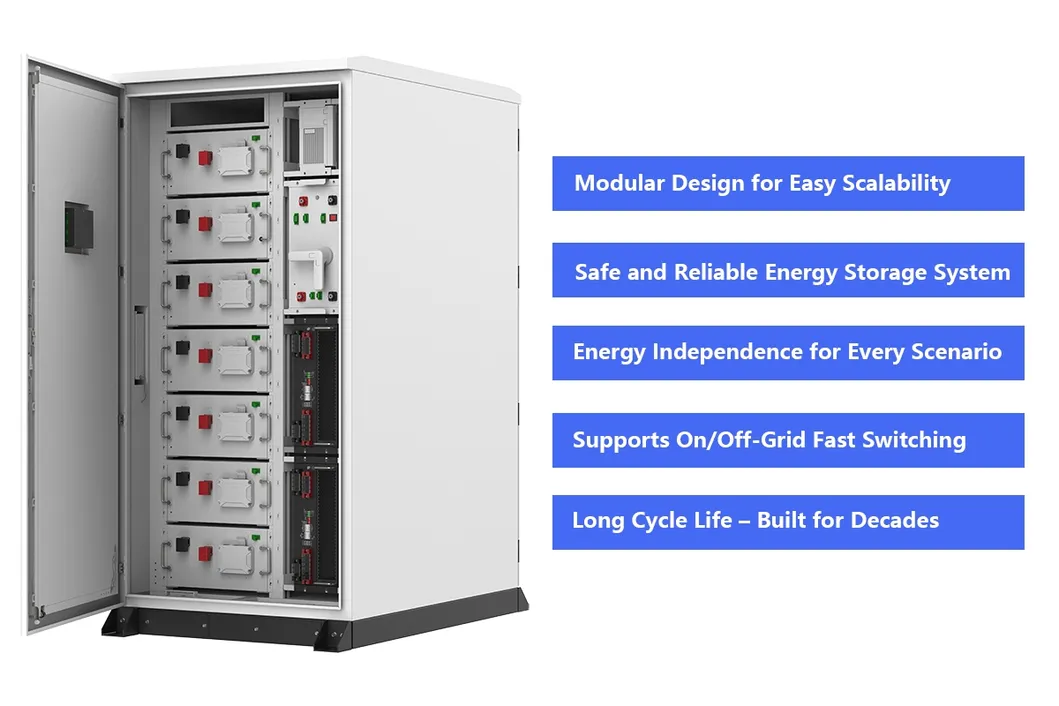

🌟 Product Features

Multi-channel communication: RS485, CAN, Ethernet, dry contact; supporting PCS and UPS.
Internal cell balance function with maximum balance current up to 300mA.
High precision acquisition: Battery voltage ±3mv, Temperature ±1ºC.
Automatic circulation, parallel, and offline control for easy lithium system expansion.
Comprehensive self-inspection and HMI display for clear status monitoring.
Dual-channel PV support with maximum power of 19.2KW.
Off-grid switching time less than 5ms for seamless power backup.
Integrated Black Start, island protection, and high/low voltage crossing functions.
Supports up to 15 PCS inverters in parallel.
Built-in Energy Management System (EMS).

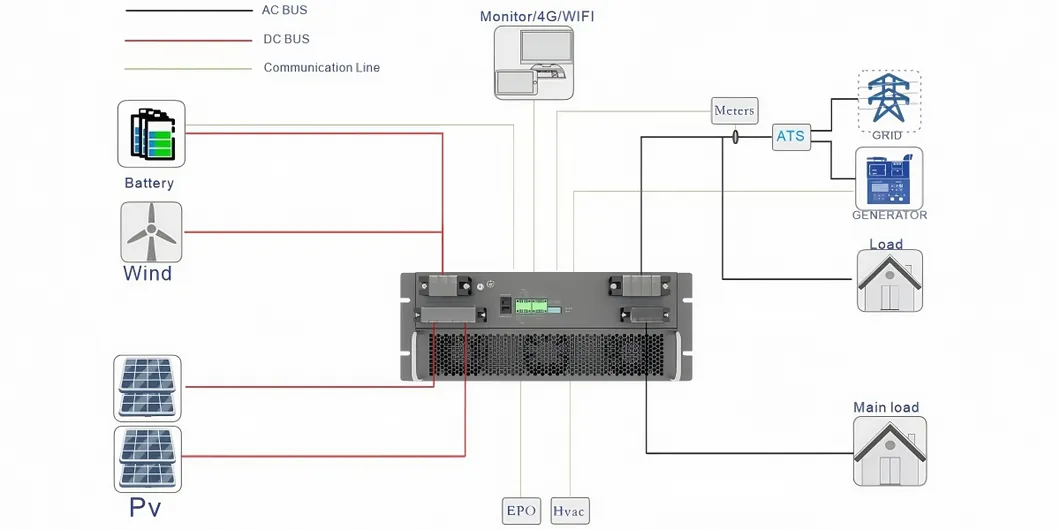

📋 Technical Specifications

Basic Technical Parameters	R-LFP30kw/50kwh	R-LFP50kw/100kwh
Battery System Parameters
Battery Module Voltage	51.2V	51.2V
Battery Module Number	4	7
System Voltage	204.8V	358.4V
Battery Capacity	280Ah	280Ah
Nominal Energy	50kwh	100kwh
PV Parameters
Max Power	19.2kw+19.2kw	30kw*2
Max PV Voltage	850V	850V
MPPT Voltage Range	200V-830V	200V-830V
AC Output (On Grid)
Normal Power	30kVA	25kVA*2
AC Voltage	400V/230V	400V/230V
System Efficiency & Environment
Efficiency	97%	97%
IP Rate	IP20	IP20
Work Temperature	-30~60ºC	-30~60ºC

🏢 Application Scenarios

Industrial & Public Parks
Commercial Buildings
Isolated Islands & Remote Areas
Large Ports & Railway Stations
Military Camps & Telecom Stations

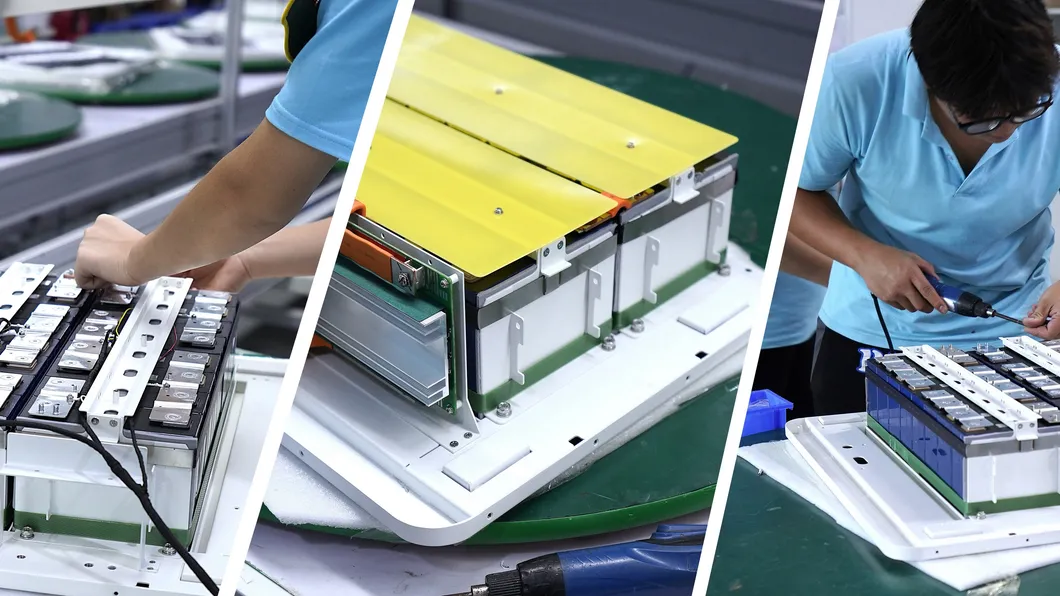

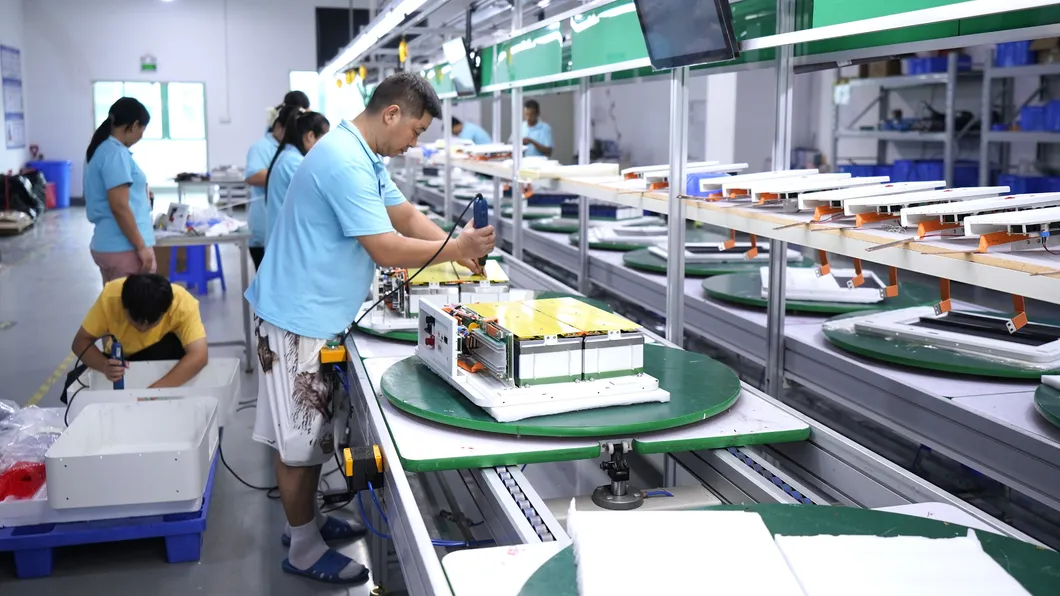

⚙️ Production and Testing

All products are carefully designed, manufactured, and 100% tested end-of-line to ensure perfect condition.

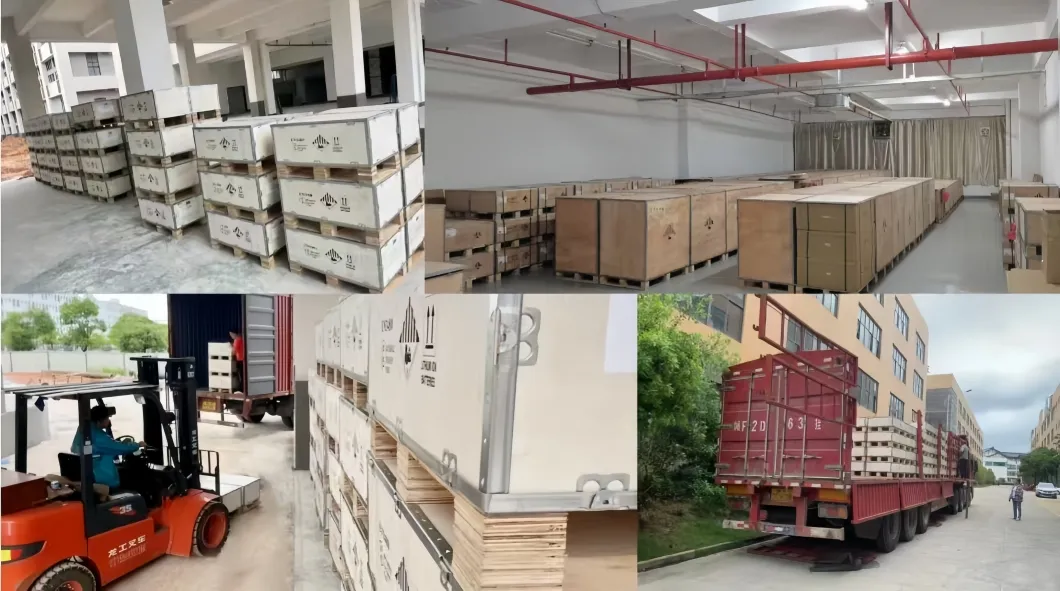

📦 Warehouse and Shipping

Products are safely and professionally packed to ensure they reach you in the best possible condition.

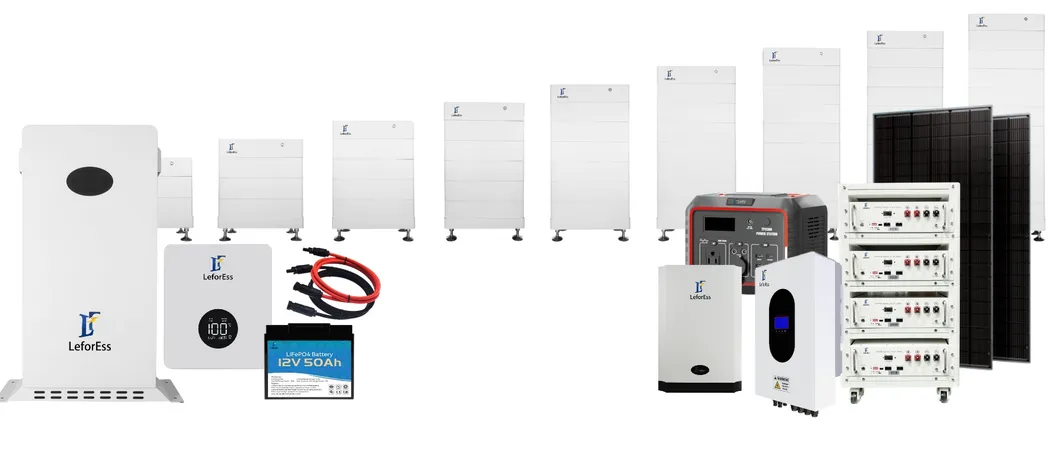

🔋 Product Family

Complete range of Energy Storage Systems, Inverters, and Portable Power Stations.

📜 Quality Certifications

Our systems meet global quality standards for production and safe transportation.

❓ Frequently Asked Questions

Are these lithium batteries safe for commercial use?

Yes. We use LiFePO4 cells, which are significantly safer and more thermally stable than other lithium types. The systems include comprehensive safety management via the BMS to prevent overcharge, overheating, and overcurrent.

What is the expected lifespan of the battery system?

The system is designed to exceed 6,000 cycles under standard conditions (25°C at a 0.5C charge/discharge rate).

Which inverter brands are compatible with this system?

The system works with most popular inverters via CAN or Modbus communication. If a specific brand is not listed, we can often upgrade the system if provided with the communication protocol.

Do you support OEM or customized requirements?

Yes, customized requirements for color, logo, and shipping marks are available through our OEM/ODM services.

What kind of technical support is available?

We offer reliable technical support. For remote assistance, our experts use AR (Augmented Reality) technology to help with troubleshooting and repairs in real-time.

What are the typical lead times for orders?

Sample orders typically take about 10 days. Bulk orders depend on the specific quantity and requirements of the order.
