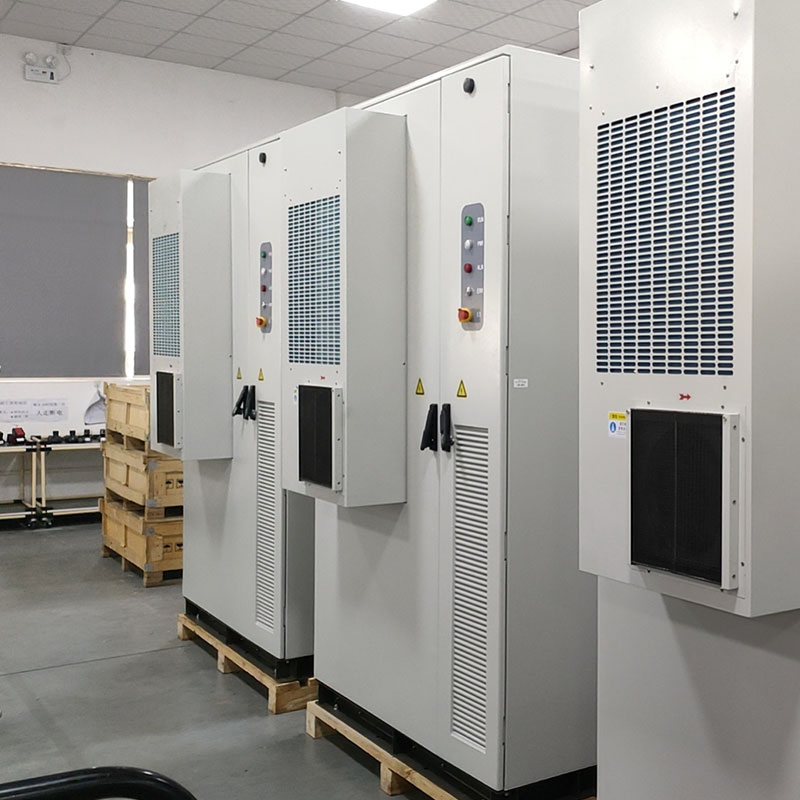

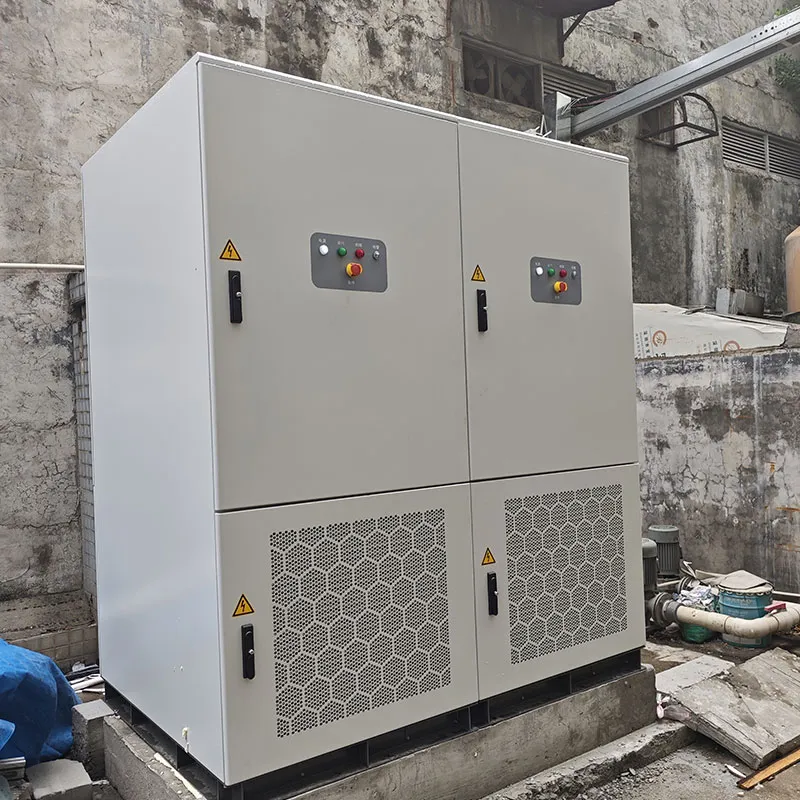

The liquid-cooled energy storage battery system has a capacity of 241kWh. The battery system includes the battery pack, liquid cooling unit, BMS, and fire protection system. The entire system is connected to 220V AC power.

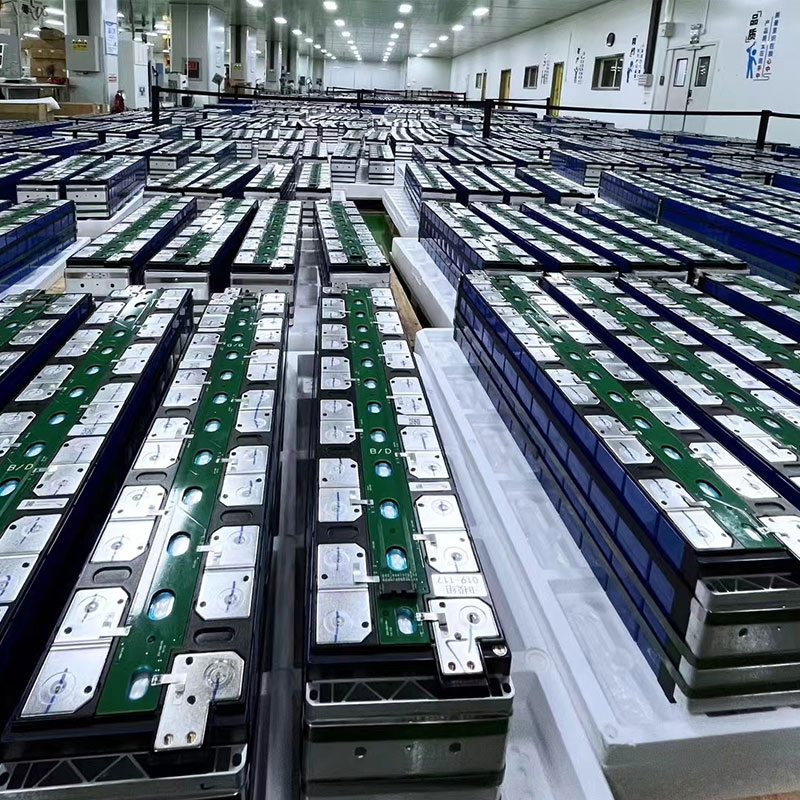

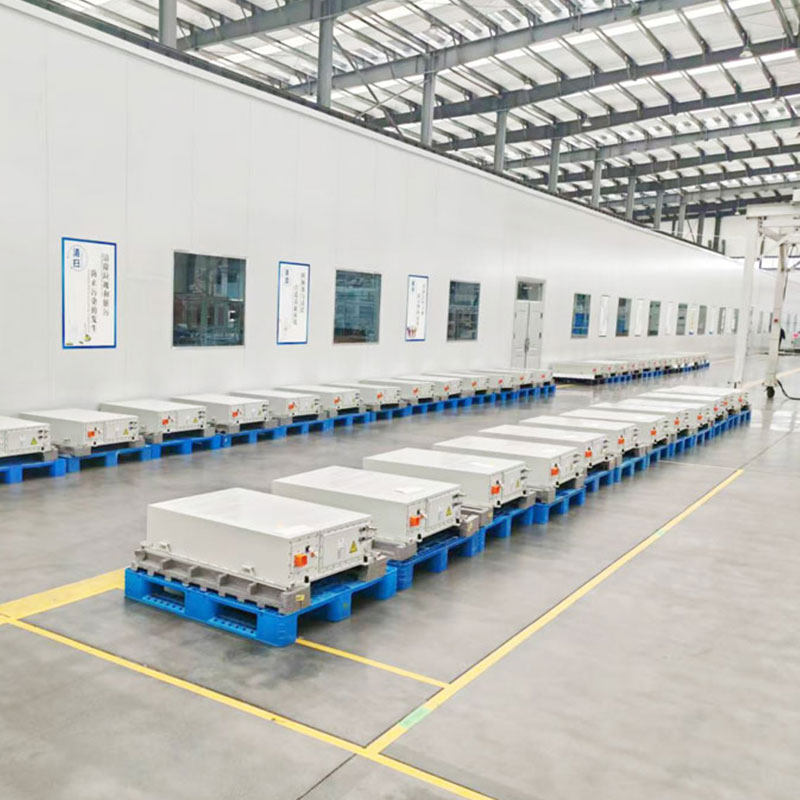

| Category | Technical Parameters | |
|---|---|---|
| Basic parameters | Cell type | 3.2V/314Ah, LFP |
| System rated capacity | 241kWh | |
| Battery grouping | 5*1P48S | |
| System voltage | 660~864V | |
| Charge-discharge rate | ≤0.5P | |
| Battery efficiency | ≥ 94% (excluding AC auxiliary power) | |
| Operating temperature range | Discharge: -20~55°C; Charging: 0~55°C | |
| Fire fighting method | Aerosol fire protection | |
| Communication mode | CAN, RS485, Modbus-TCP, LAN | |
| Cooling method | Liquid cooling | |
| Protection level | IP54 | |
| Anti-corrosion grade | C4 | |
| Weight | 2.4t | |
| Dimensions (W*D*H) | 1000*1350*2065 mm (without ring) | |
| Humidity range | 0~95% (non-condensing) | |
| Highest working altitude | 5000m (>3000m degraded) | |
| Authentication | GB_T 36276-2023, UN38.3, IEC62619 | |
| No. | Name | 1P48S 314Ah Specifications |
|---|---|---|
| 1 | Cell type | LFP |
| 2 | Charging rate | ≤0.5P |
| 3 | Discharge rate | ≤0.5P |
| 4 | Composition | 1P48S |
| 5 | Nominal capacity | 314Ah |
| 6 | Nominal energy | 48.2304kWh |
| 7 | Nominal voltage | 153.6V |
| 8 | Operating voltage range | 129.6~172.8V |
| 9 | Voltage acquisition | Full Acquisition + Total Positive/Total Negative |
| 10 | Temperature acquisition | 10K/B value 3435 |
| 11 | Maximum operating temperature range | Charging 0°C~55°C; Discharge -30°C~55°C |
| 12 | Optimum operating temperature | 25ºC±2ºC |
| 13 | Transport and storage temperature | -20°C~45°C (1 month); -20°C~25°C (6 months) |
| 14 | Insulation performance | ≥ 500MΩ@2500VDC |
| 15 | Withstand voltage | Leakage current ≤ 1mA @4500VDC |
| 16 | IP rating | ≥IP67 |
| 17 | Product weight | 310kg |
| 18 | Dimensions (W*D*H) | 790±2mm × 1132±2mm × 248±2mm |

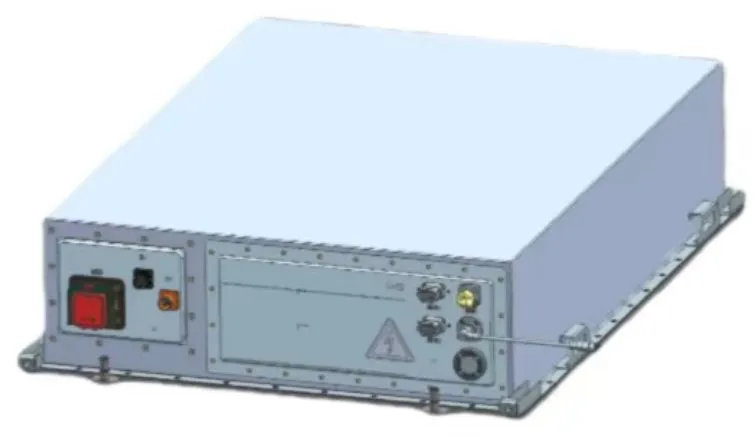

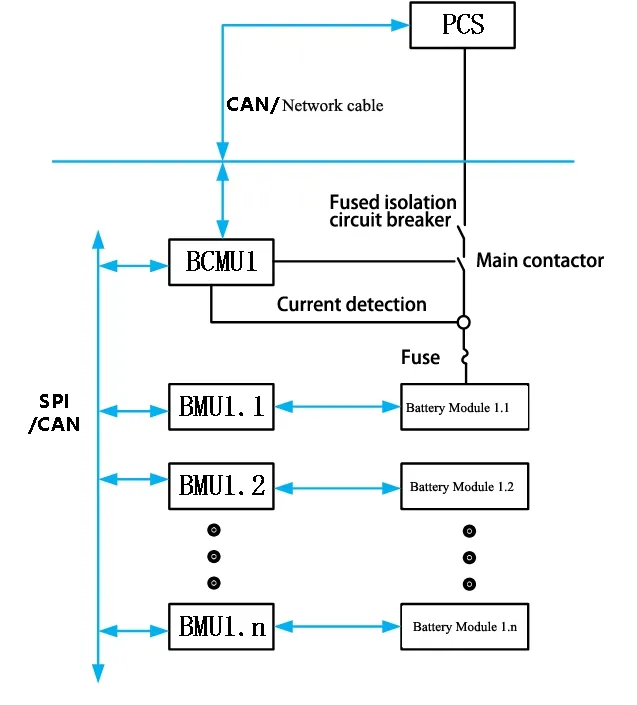

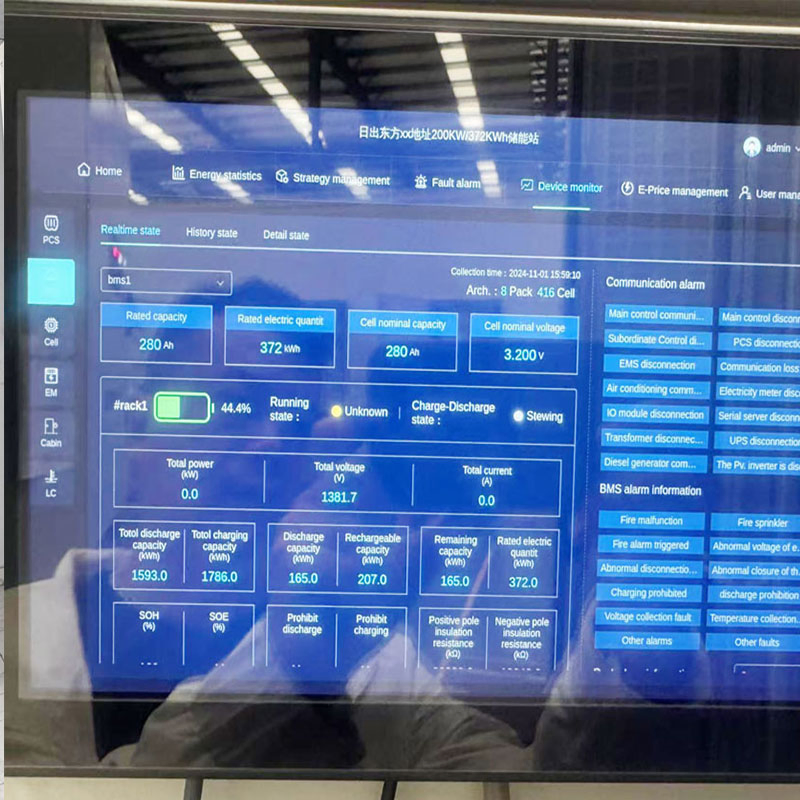

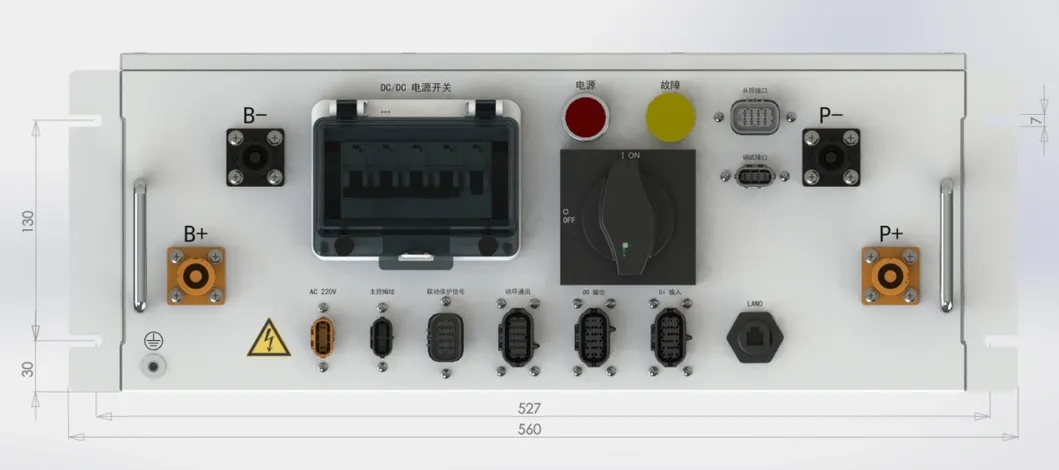

The energy storage system is equipped with a complete BMS, using a secondary management architecture (module and cluster levels) to ensure safe and stable operation. For larger parallel systems, it can upgrade to a three-level architecture (stack, cluster, and module level).
| No. | Name | Technical Parameters |
|---|---|---|
| 1 | Rated current | 250A |
| 2 | Operating voltage | 1000V |
| 3 | SOC accuracy | 5% |
The system utilizes liquid cooling to control battery cell temperatures effectively. This ensures the energy storage system operates within the optimal range, extending service life and reliability.
| No. | Technical Requirements | Specifications |
|---|---|---|
| 1 | Power Rating (Refrigeration) | 3kW |
| 2 | Rated cooling capacity | ~5kW |
| 3 | Heating power | ~3kW |
| 4 | Coolant | 50% water + 50% ethylene glycol |
| 5 | Operating temperature | -30~55ºC |
| 6 | High voltage power supply | 220VAC±10% |
| 7 | Refrigerant | R410a |
| 8 | Unit electrical protection level | IP55 |
| 9 | Dimensions | L700 × W900 × H245mm |
| 10 | Communication mode | RS485/CAN |

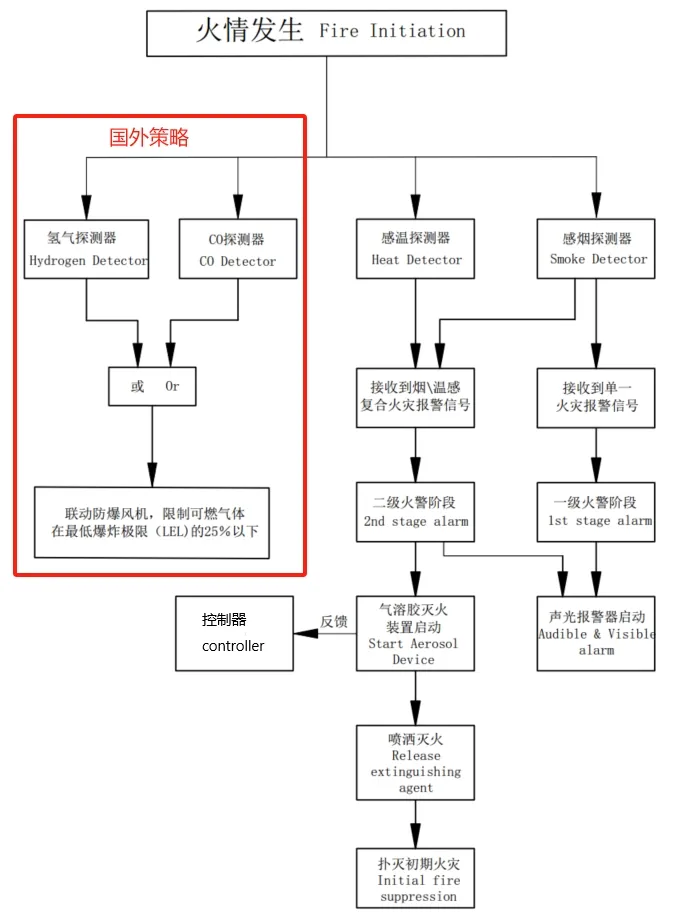

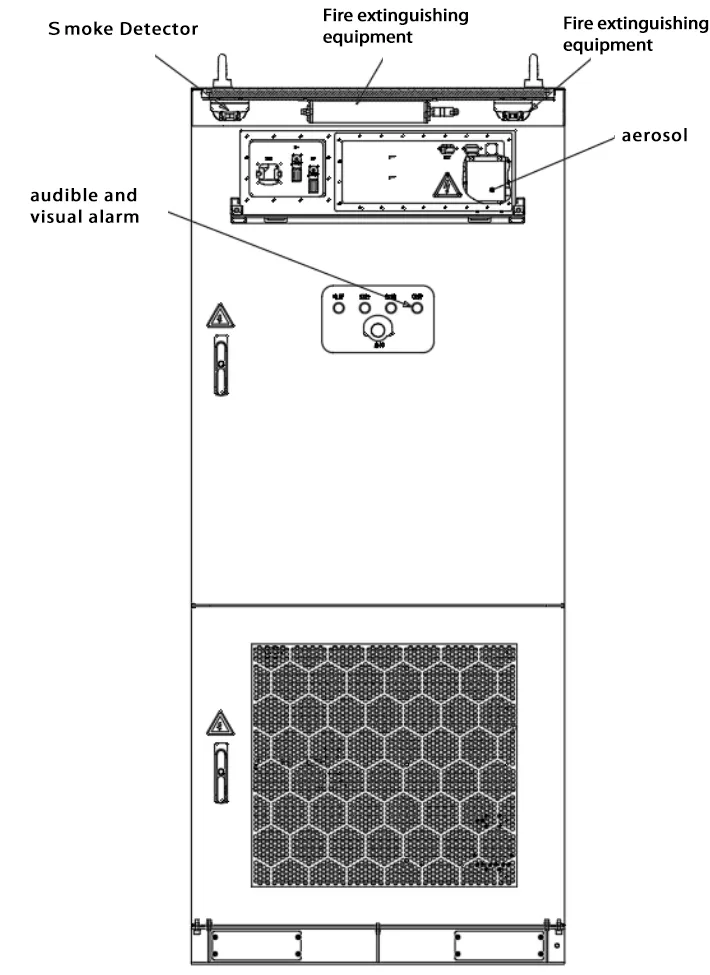

Multi-level protection approach:
| No. | Project | Performance/Parameters |
|---|---|---|

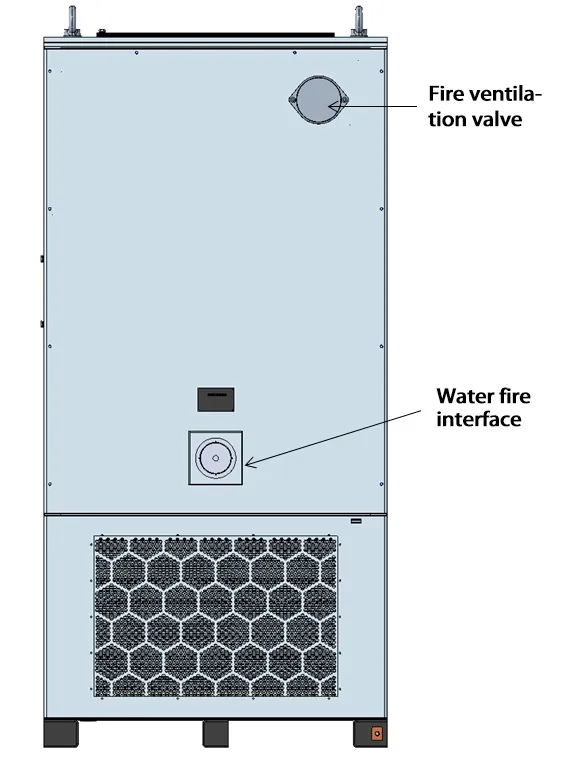

| 1 | Filling Medium | Aerosol |
| 2 | Filling agent quality | 5*40g (PACK level) + 1*300g (cluster level) |
| 3 | Supply voltage | 24V |
| 4 | Communication mode | Dry contact point |
| 5 | Protect space | 5m³ |
| 6 | Expiration date | 10 years |
Disclaimer: Specifications are for reference only. Technical updates may occur without prior notice.
