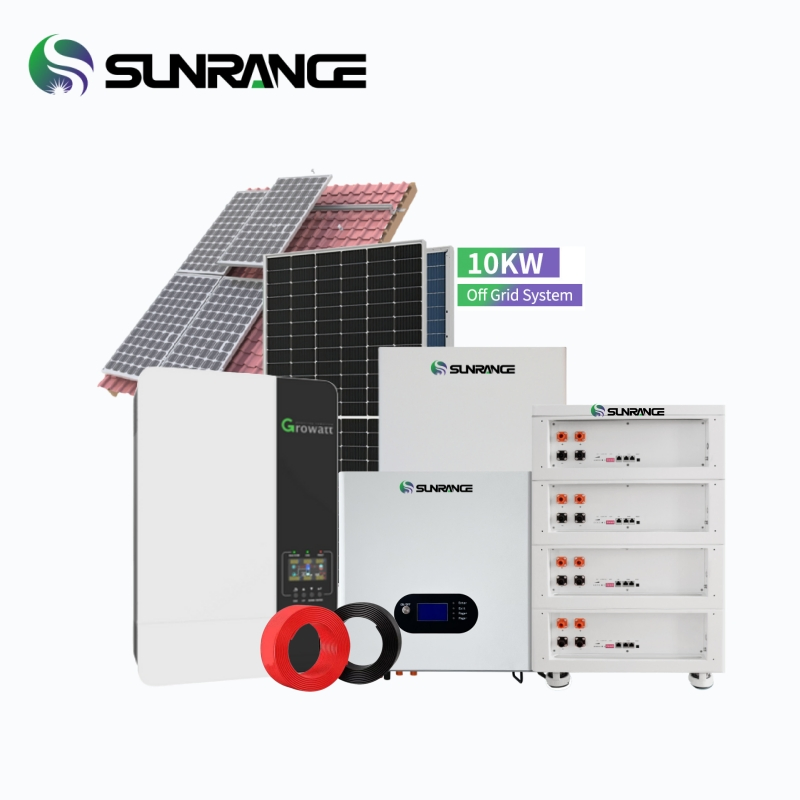

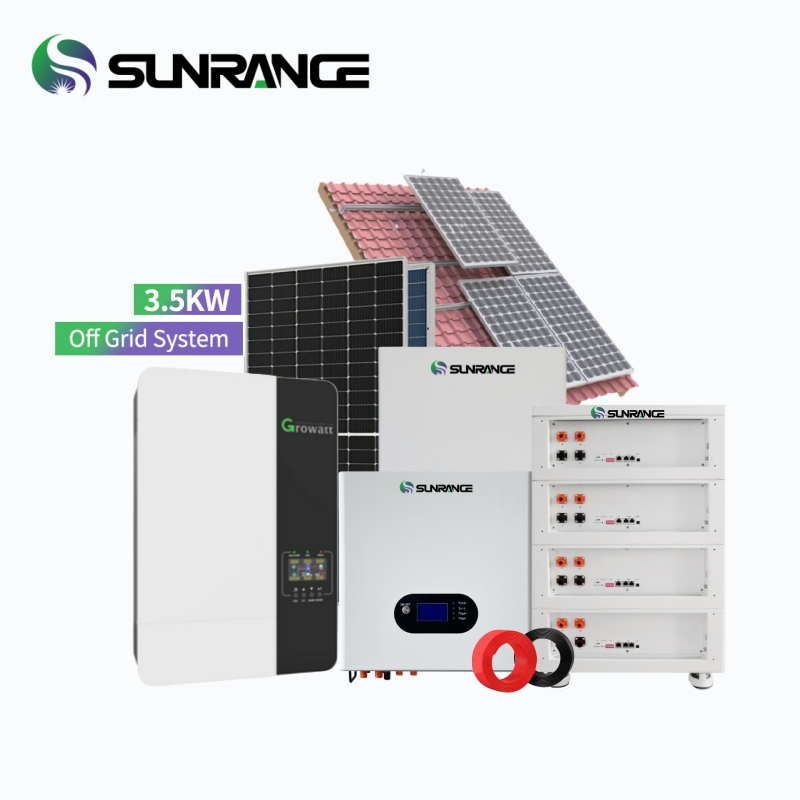

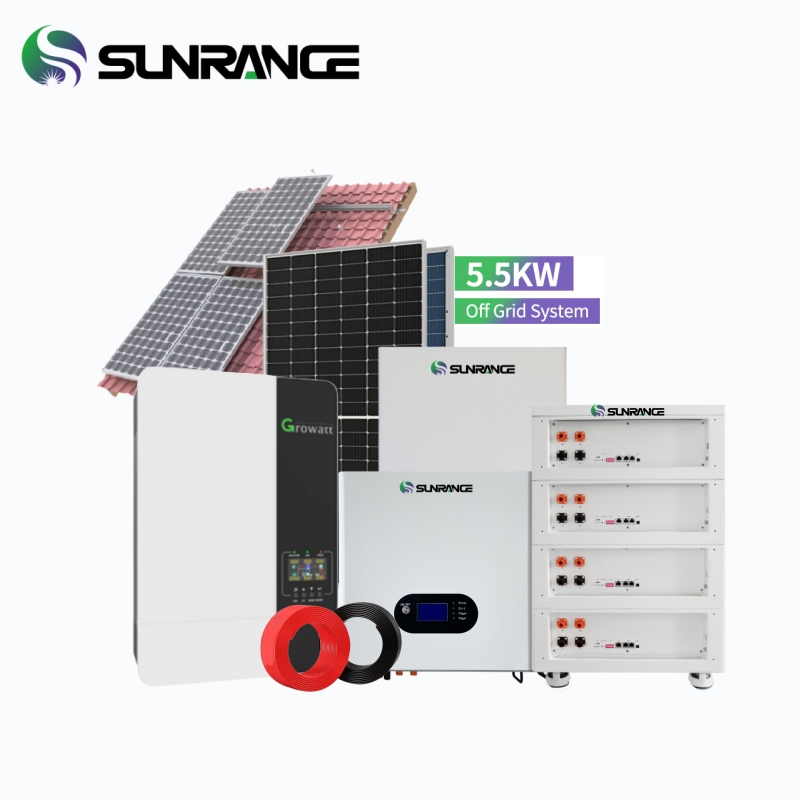

| Components | SR3KW-OFF | SR5KW-OFF | SR8KW-OFF | SR10KW-OFF |
|---|---|---|---|---|
| 580W Solar Panel | 5 Pieces | 8 Pieces | 14 Pieces | 16 Pieces |
| DC Combiner Box | 1 pcs | 1 pcs | 1 pcs | 1 pcs |
| Off Grid Inverter | 3kw | 5kw | 8kw | 10kw |
| Battery Type | Gel/Lithium Battery | |||
| DC Cable | 100 Meters | 200 Meters | 200 Meters | 200 Meters |
| MC4 Connector | 4 Pairs | 6 Pairs | 6 Pairs | 8 Pairs |
| Mounting System | Ground or Roof ( Customized Optional ) | |||

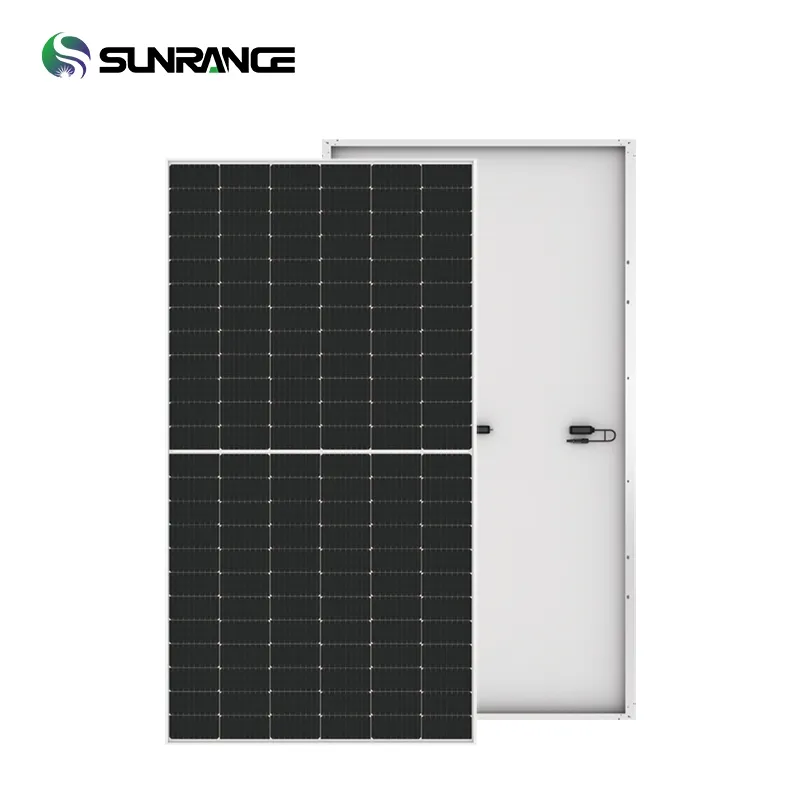

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Voltage at Maximum power (Vmpp): 43.09V
Current Maximum Power (lmpp): 13.46A
MODULE EFFICIENCY: 22.44%

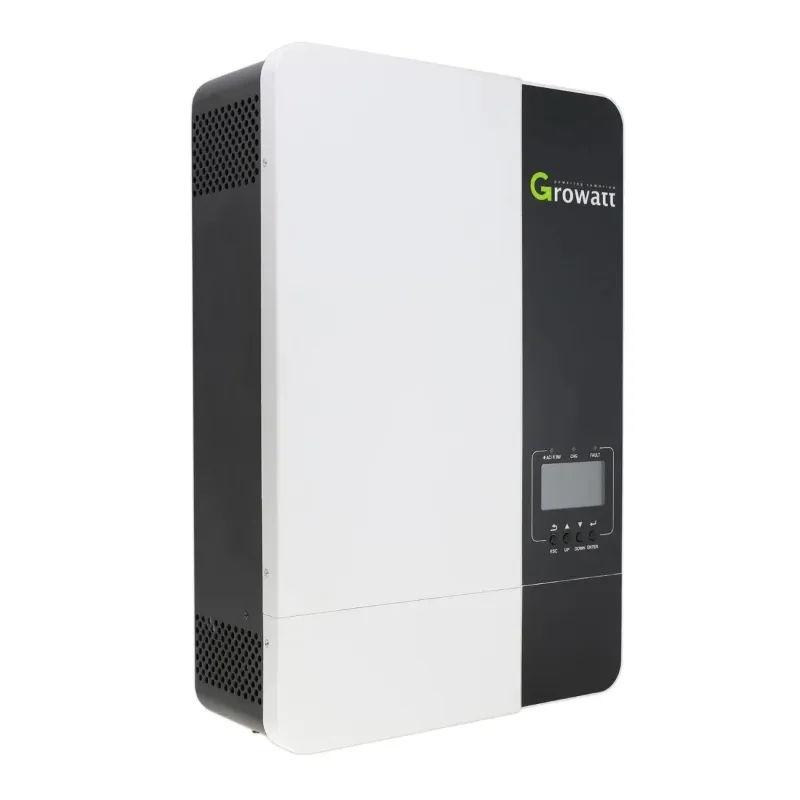

1. Pure sine wave inverter
2. Parallel operation with up to 9 units
3. Auto restart while AC is recovering
4. Built-in MPPT solar charge controller
5. Compatible to mains voltage or generator power
6. Selectable input voltage range for appliances
7. Configurable AC/Solar priority via LCD setting

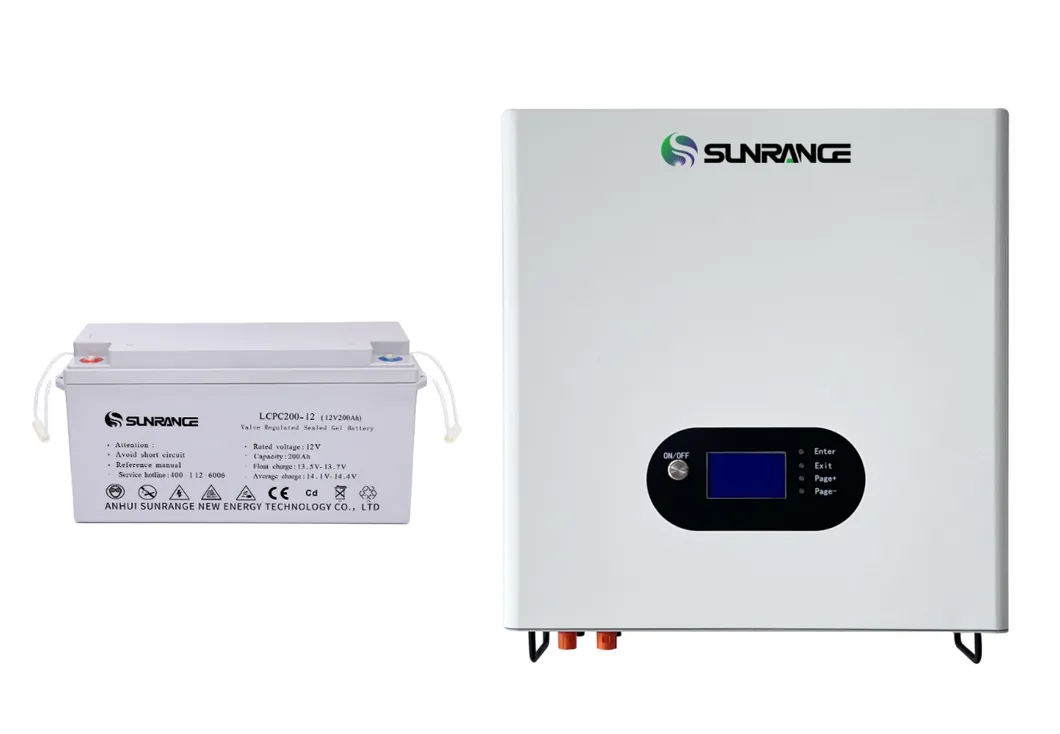

1. Deep cycle long lifespan
2. High discharge performance
3. Easy installation and Maintenance-free
4. Agm/Gel/Lithium Ion Battery Type
5. 2V/12V/48V/High Voltage Battery
6. More than 6000 times, up to 90% DOD
7. Wide ambient temperature range adaptability

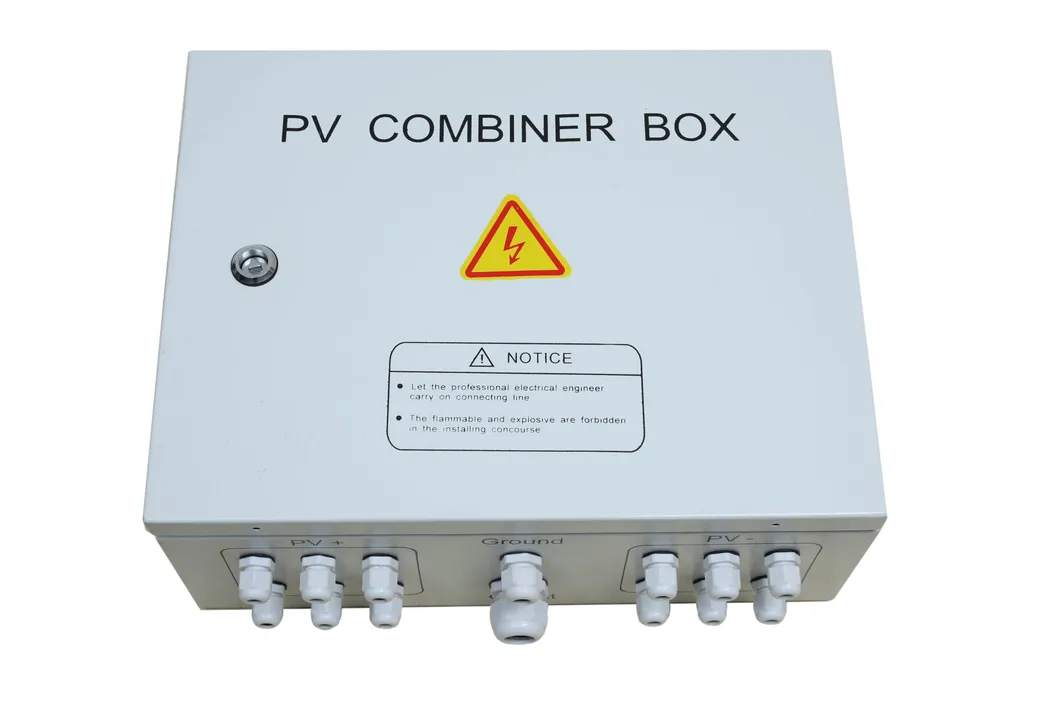

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A

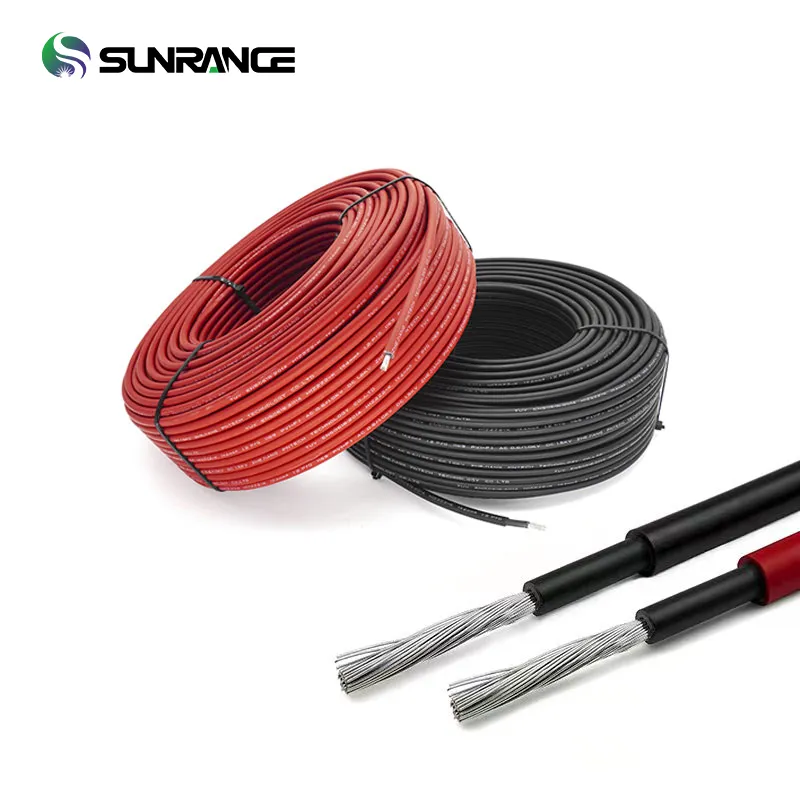

Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600VDC/1000VDC (TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years

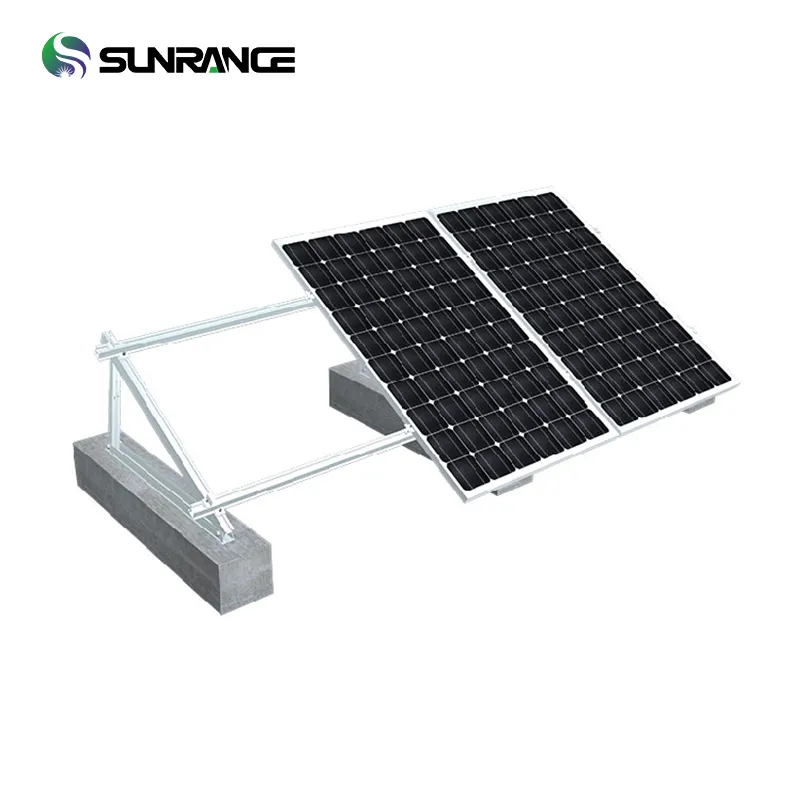

Material: Ai6005 & Sus304
Clamps: 30, 35, 40mm Mid & End Clamps
Options: Asphalt Shingle Mount, Hanger Bolt, Cable Clips, Ground Lugs

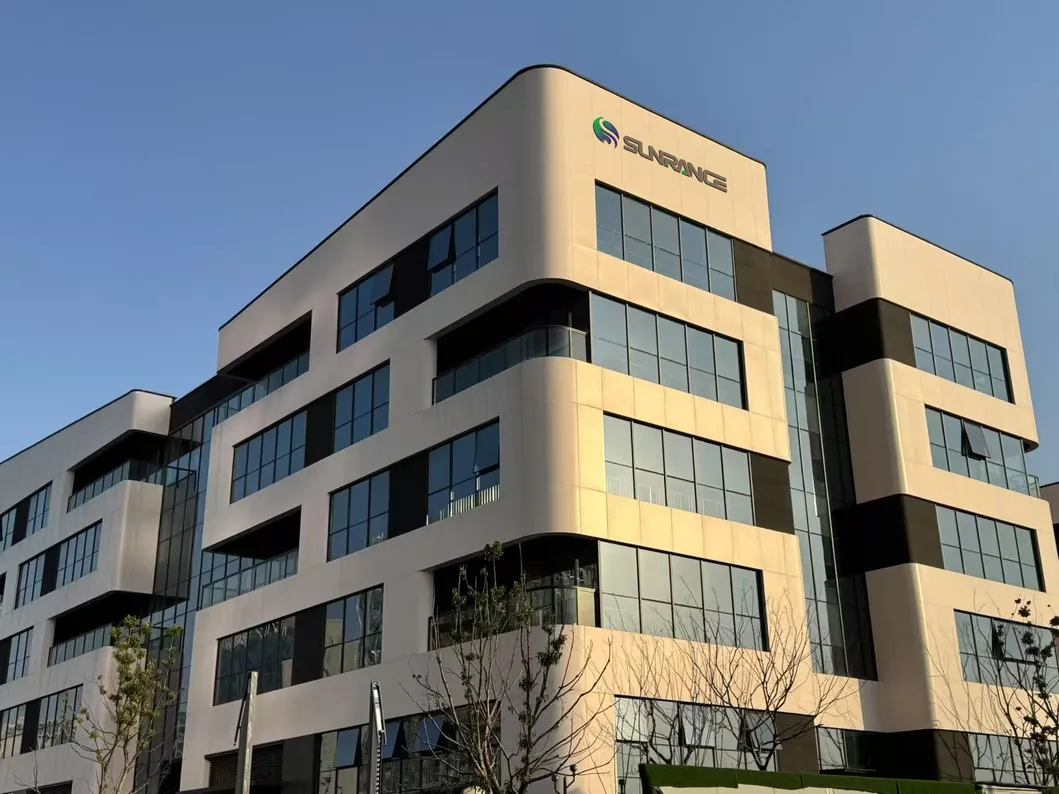

An emerging brand in the photovoltaic industry with customers located on all continents. We provide high-quality products and professional services, offering diverse design solutions for large, medium, and small-scale requirements. We continuously improve technology to enhance user experience.
