Basic Information
Communication
RS232, RS485, CAN
Certifications
CE, RoHS, UN38.3, SGS, ISO9001, ISO14000

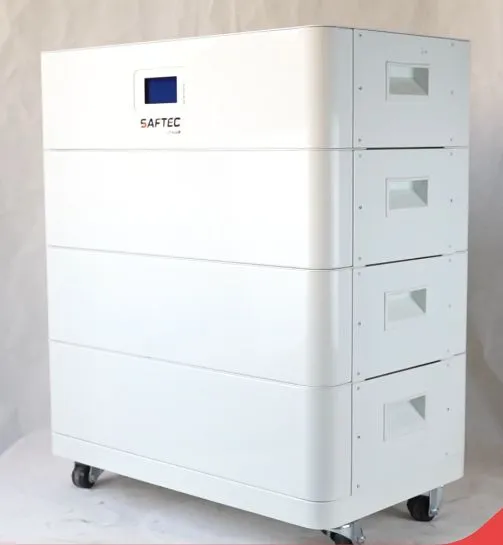

Product Overview

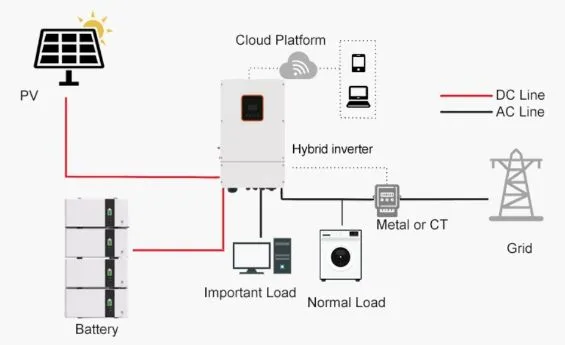

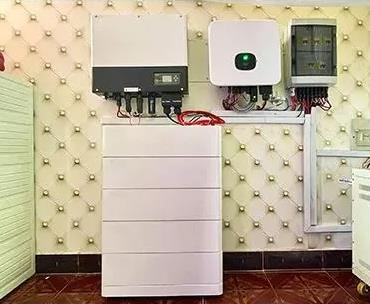

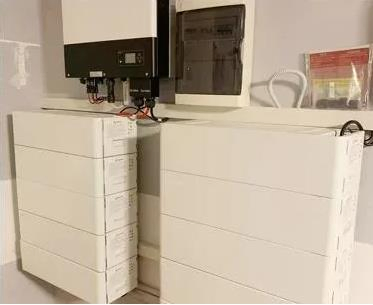

Home energy storage systems utilize energy generated from rooftop solar installations and wind turbines to provide reliable power. These systems store excess electricity during low-demand periods for peak use, acting as both an emergency power supply and a cost-saving solution for families.
As renewable energy shifts toward residential markets, home energy storage has become essential, particularly for households with photovoltaic systems or in regions with unstable grid power.
Technical Specifications
| Parameters |
Model STC-48V100AH |
Model STC-51.2V100AH |
| Capacity | 102Ah | 102Ah |
| Standard Voltage (Vdc) | 48V | 51.2V |
| Standard Charge Current | 30A | 30A |
| Max Charge Current | 50A | 50A |
| Standard Discharge Current | 50A | 50A |
| Max Discharge Current | 100A | 100A |
| Communication | RS232, RS485, CAN | RS232, RS485, CAN |
| Operation Life (Years) | 10 | 10 |
| Operation Temp | 0-50ºC | 0-50ºC |
| Storage Temp | -20-60ºC | -20-60ºC |
| Scalable | Max 10 Packs | Max 10 Packs |
| Weight | 43kg | 45kg |
Product Advantages
- Safe BMS: Advanced Battery Management System for protection, balanced management, and real-time monitoring.
- Flexible Capacity: Options range from 2.5kWh up to 20kWh.
- Compact Design: Small footprint (490*490*135mm) and lightweight (approx. 30kg).

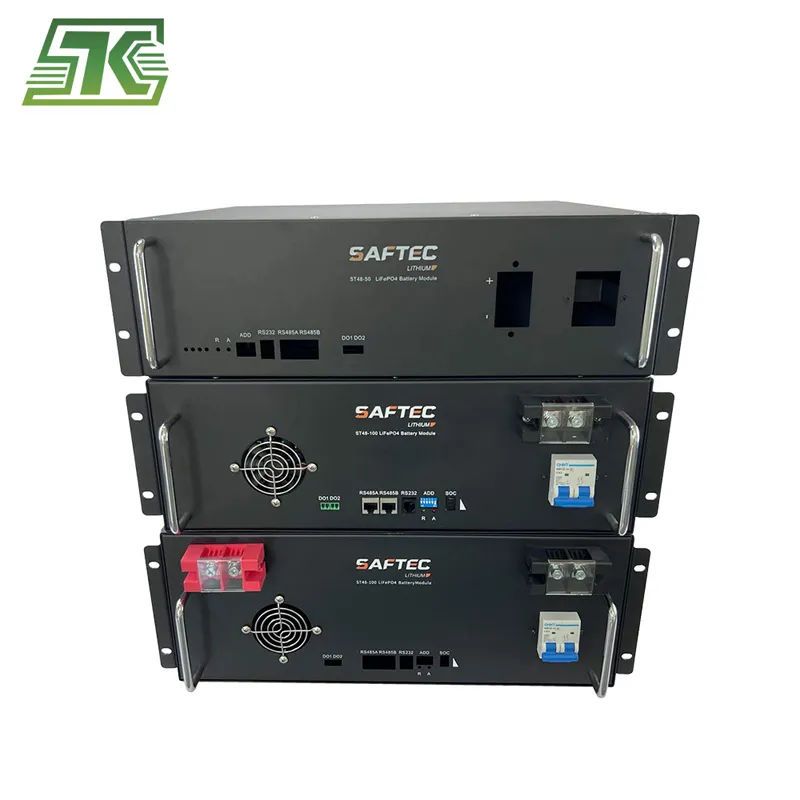

- Easy Installation: Modular design compatible with standard 19-inch cabinets.
- Long Life: Maintenance-free design with a service life exceeding 10 years.
- Seamless Upgrade: Compatible with existing lead-acid battery equipment.
Lithium Battery for Solar Systems
High Voltage Solutions: 10kWh - 40kWh LiFePO4 Battery Packs
LiFePO4 Cell: High energy density and safety.

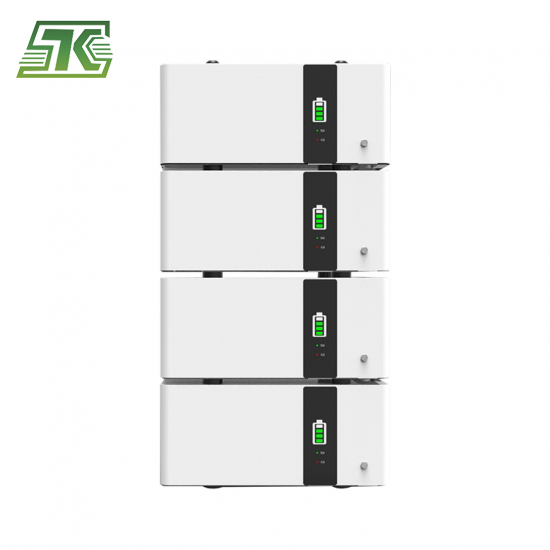

Series Connection: Up to 10 stackable modules.
SOC Algorithm: Accurate self-calibration functions.
Cell Monitoring: 3-level protection and automatic alarms.
Application Scenarios

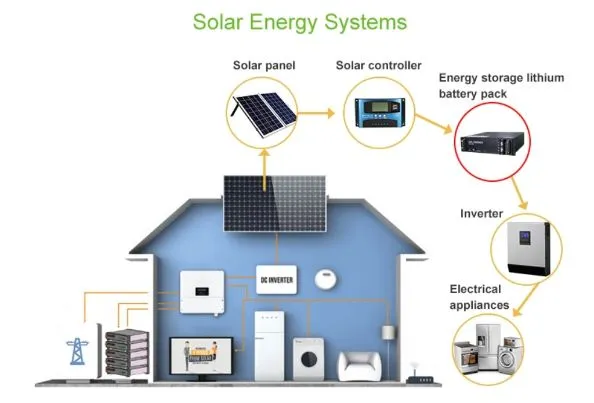

Solar Energy Storage
Grid Energy Storage
Communication Base Stations
Substation Systems
Data Centers
Electric Forklifts
AGV & Robotics
Distributed Energy
Other Products
Frequently Asked Questions
1. What is the expected lifespan of these battery packs?
The batteries are designed for a 10-year operation life with high-quality LiFePO4 cells and advanced BMS protection.
2. Can I expand the system capacity later?
Yes, the system is highly scalable. You can connect up to 10 battery packs in series or parallel to meet your energy requirements.
3. What safety protections are included?
The integrated BMS provides 3-level protection, including over-charge protection, temperature compensation, and deep-cycle discharge control.
4. Are these batteries compatible with my existing solar inverter?
Our batteries support multiple communication protocols (RS232, RS485, CAN), making them compatible with most standard solar inverters and energy systems.
5. Do the batteries require regular maintenance?
No, these are maintenance-free lithium-ion batteries. The BMS automatically balances the cells and monitors the state of health.
6. What certifications do these products hold?
All products are certified with CE, RoHS, UN38.3, and are manufactured under ISO9001 and ISO14000 standards.
