Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
1 / 5
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System
Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System

Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
JM-R-51.2V
Battery Type
LiFePO4 Battery Pack
Nominal Voltage
51.2V / 48V
Rated Capacity
100-400ah
Battery Energy
10.24kwh (Customized)
Cycle Life
≥8000 Cycles
BMS
JBD-100A-16S
Communication
CAN / RS485 / RS232
Key Features & Summary
Server Rack Mounted Battery --- High-performance 51.2V Modular Energy Storage
▶

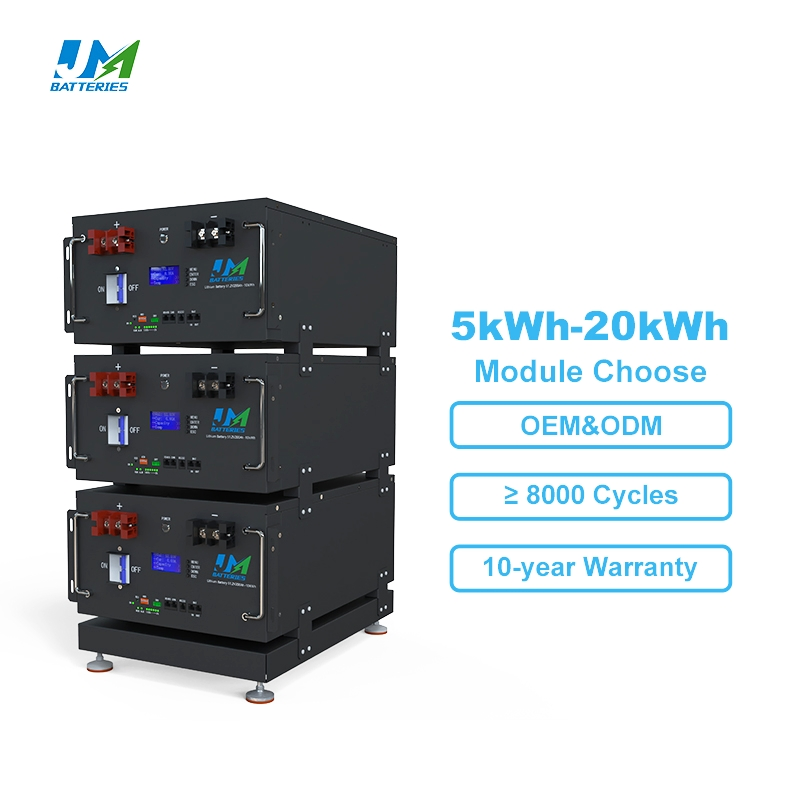

Modular design with customizable capacity (5.12-20.48kWh)
▶

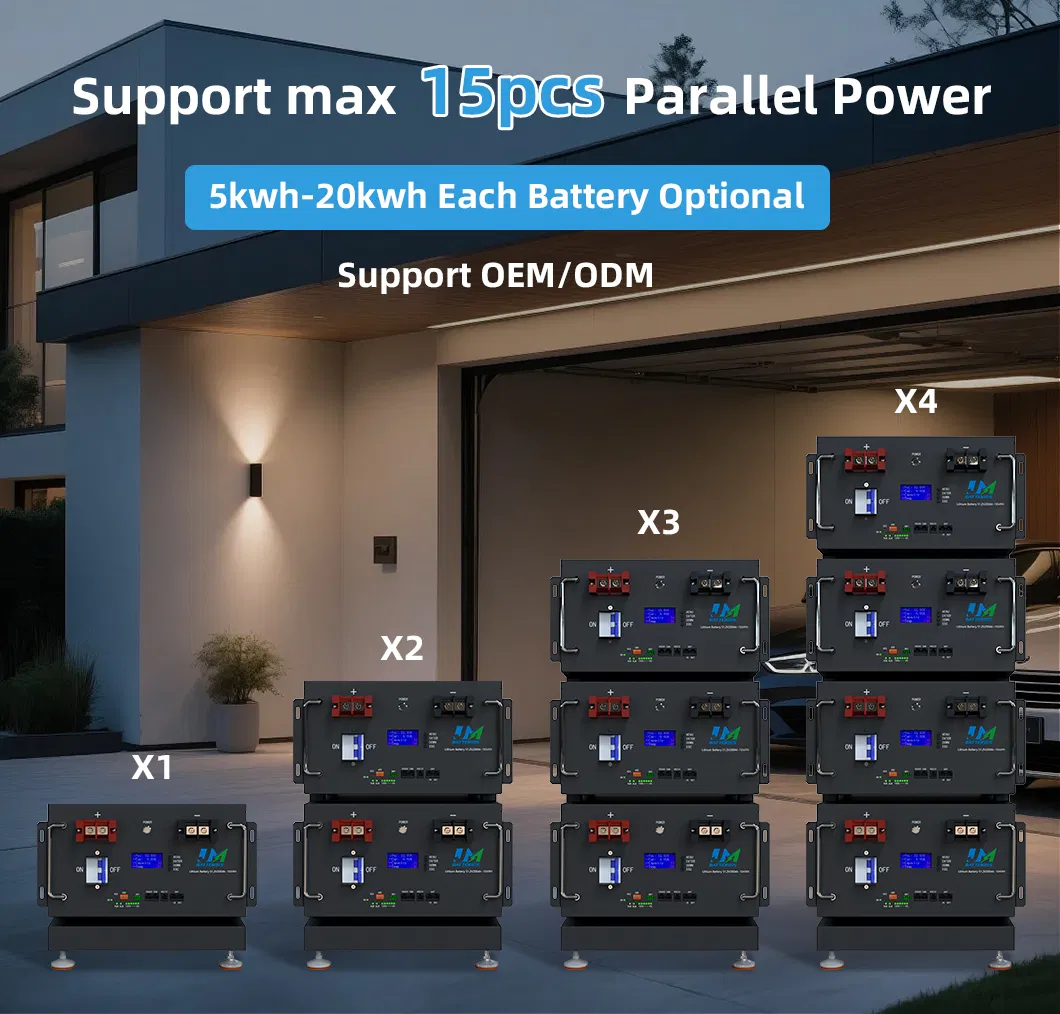

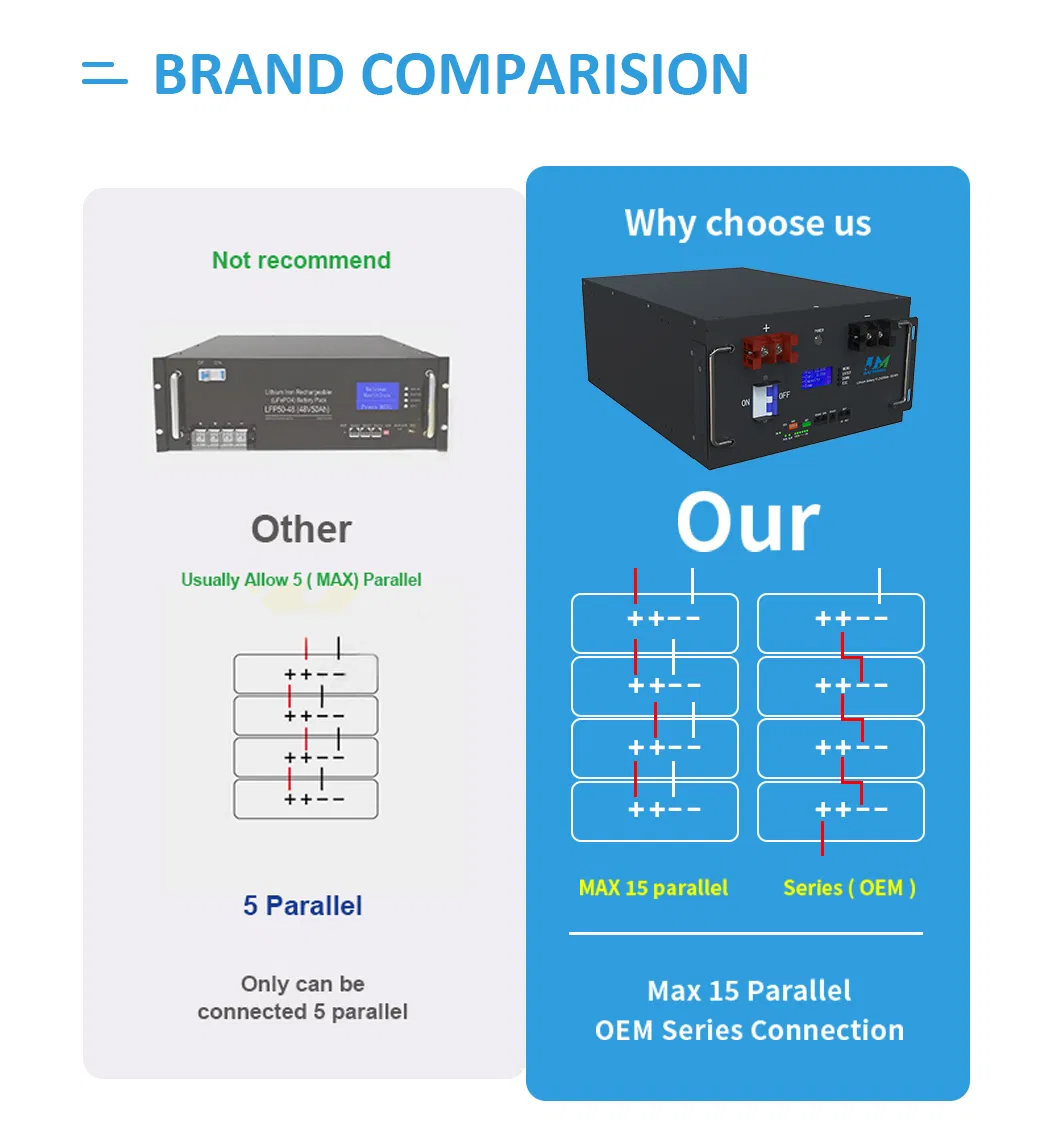

Supports up to 15 parallel connections for scalable storage
▶
Independent BMS for intelligent and safe power management
▶
LiFePO4 cells with 8000-cycle long lifespan
▶

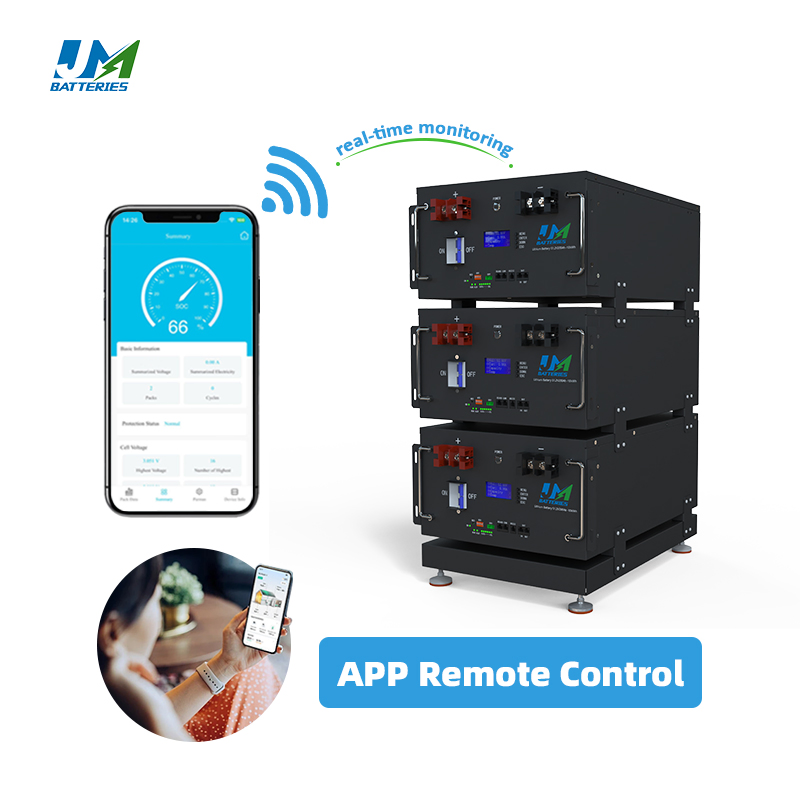

LCD + built-in WiFi for real-time monitoring
▶
Compatible with major inverter brands (DEYE, Growatt, etc.)
Technical Specifications
ModelJm-R-51.2V
Operating Voltage Range40V - 58.4V
Maximum Charging Current100-200A
Maximum Discharge Current100-200A

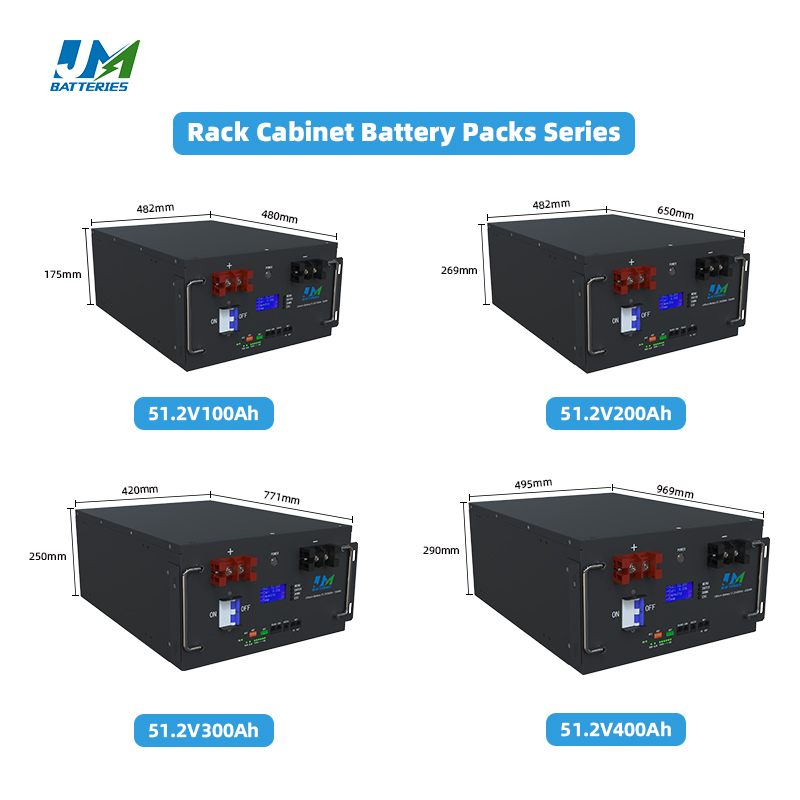

DimensionsL482-495 * W480-969 * H175-300 mm
Weight Range41kg - 175kg
Working Temperature-20 ºC ~ 60 ºC
Warranty10 Years
Inverter SupportDEYE, Growatt, PYLONTECH, SMA, MUST, GOODWE & Customized
Display TypeTouch Display / Push-Button Display
Detailed Gallery

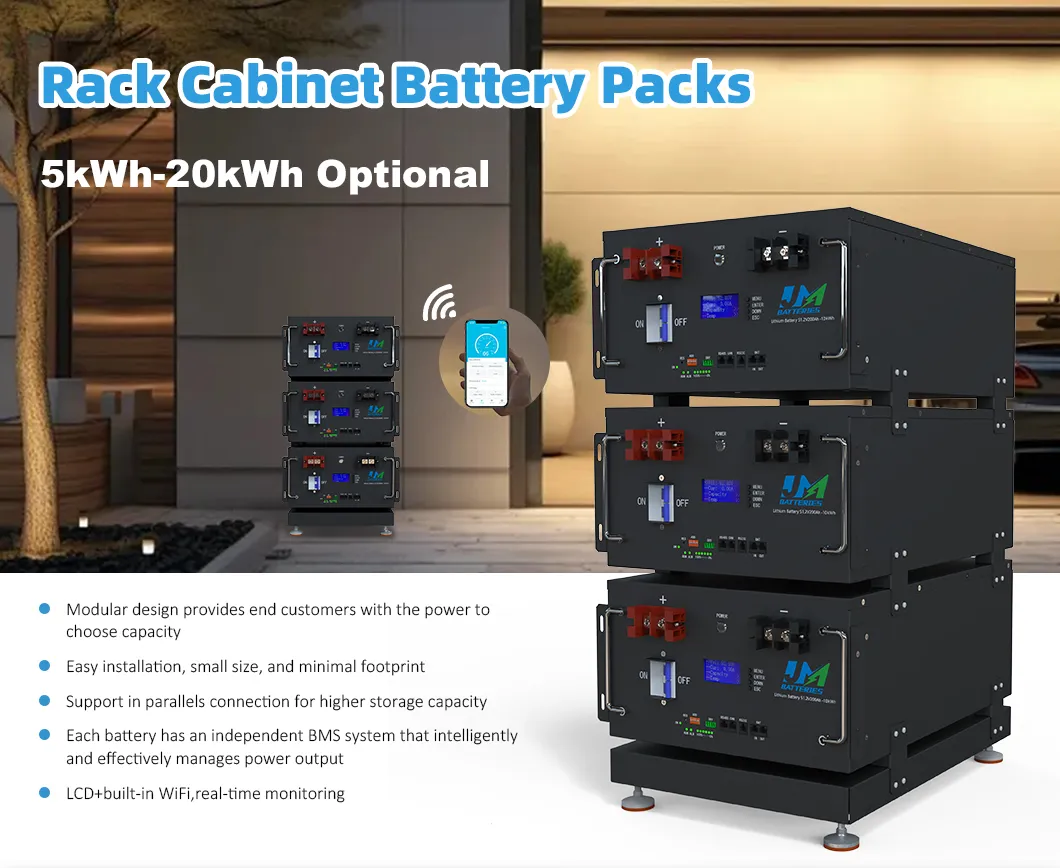

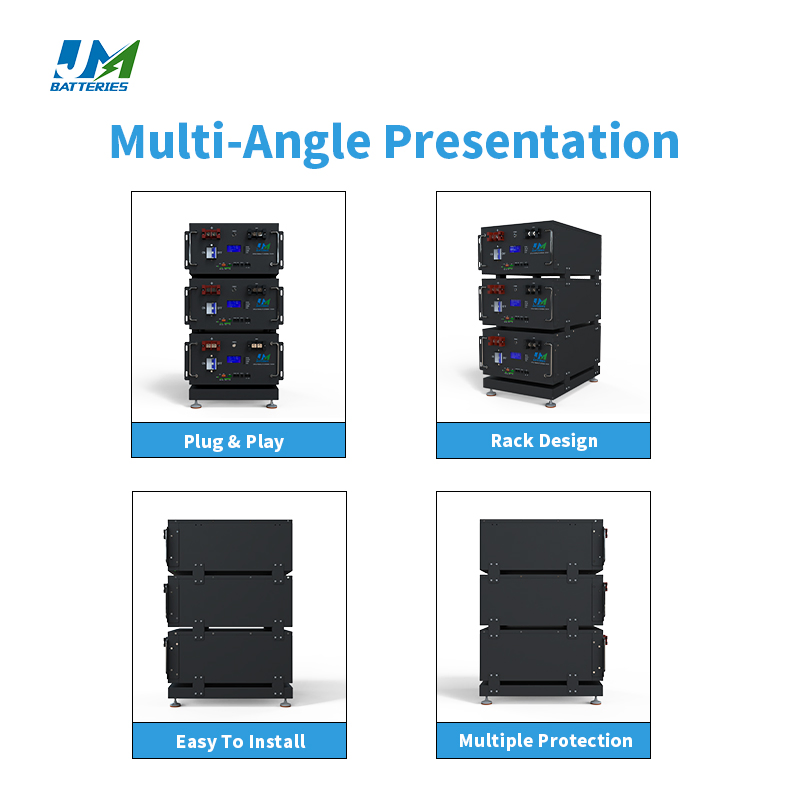

Battery Overview
Battery Interface

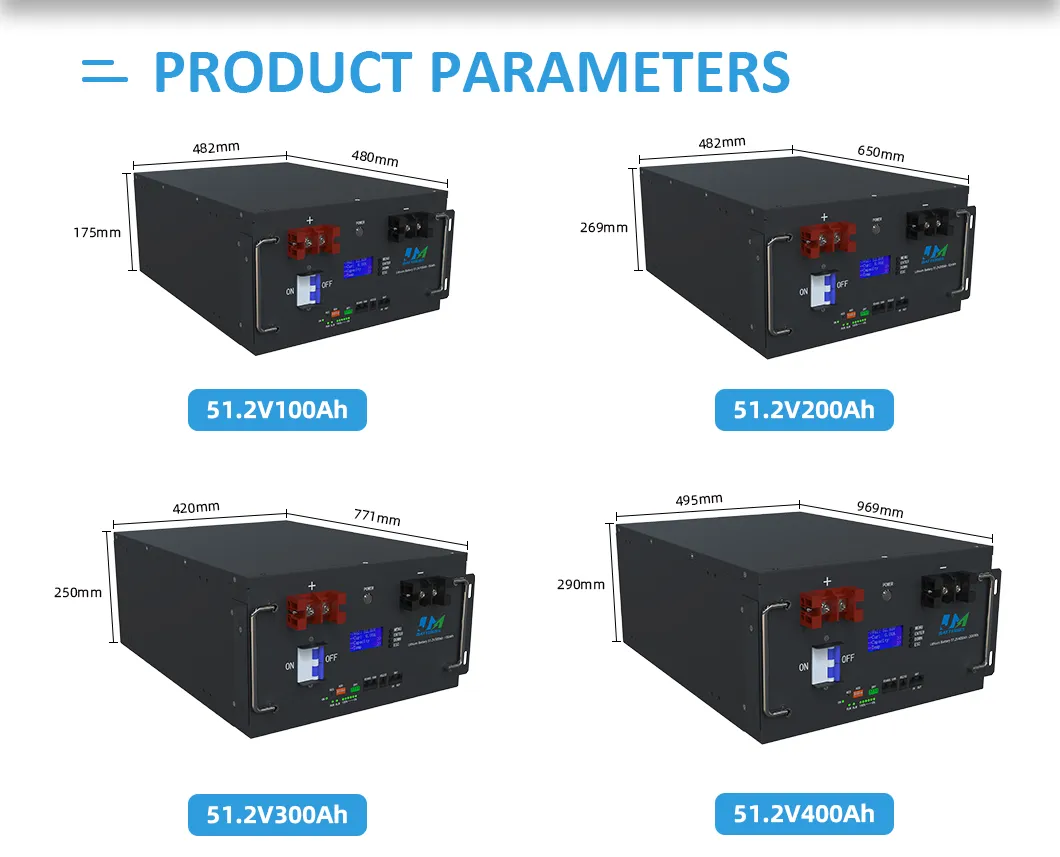

Modular Design

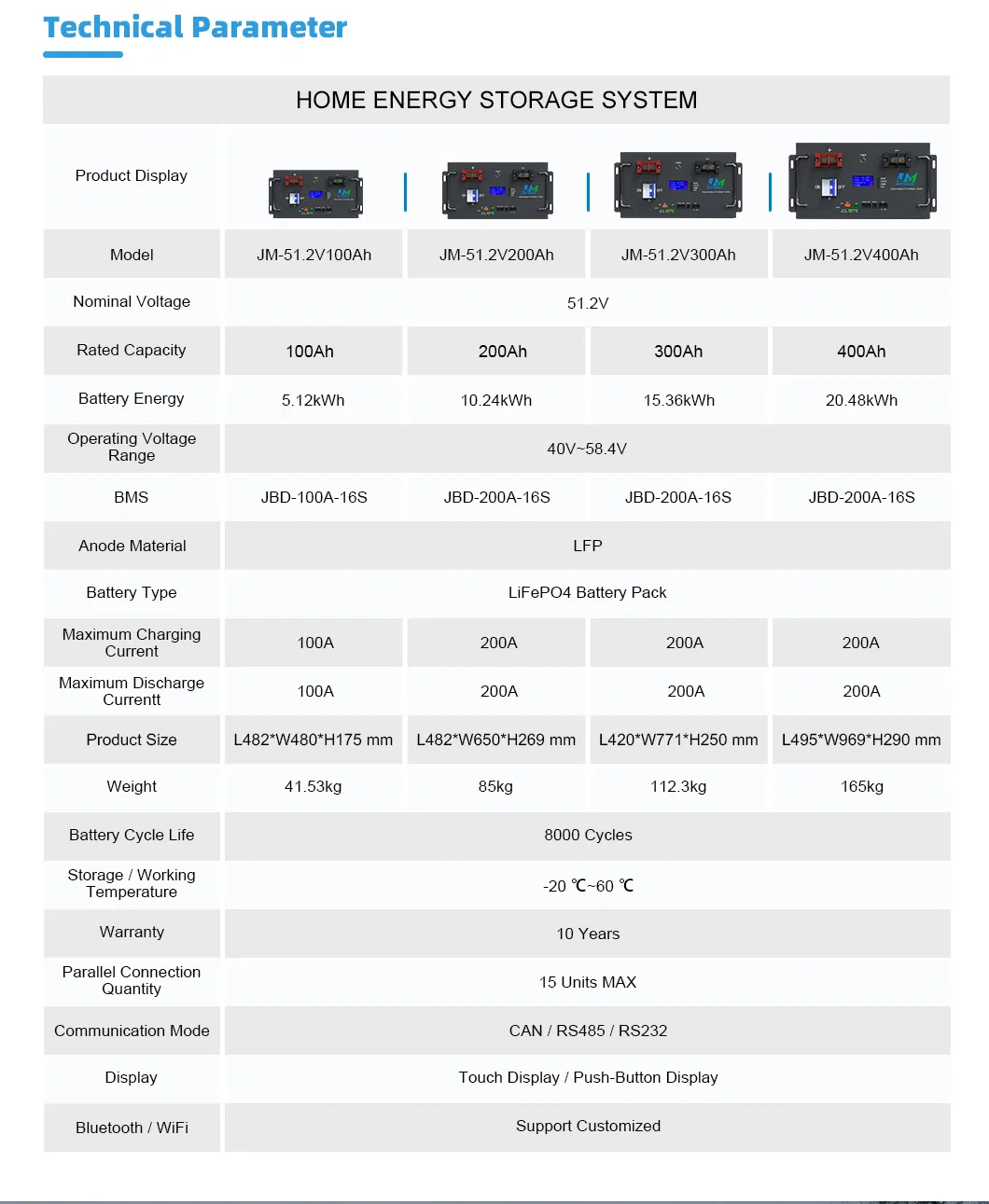

Technical Layout
Cell Details

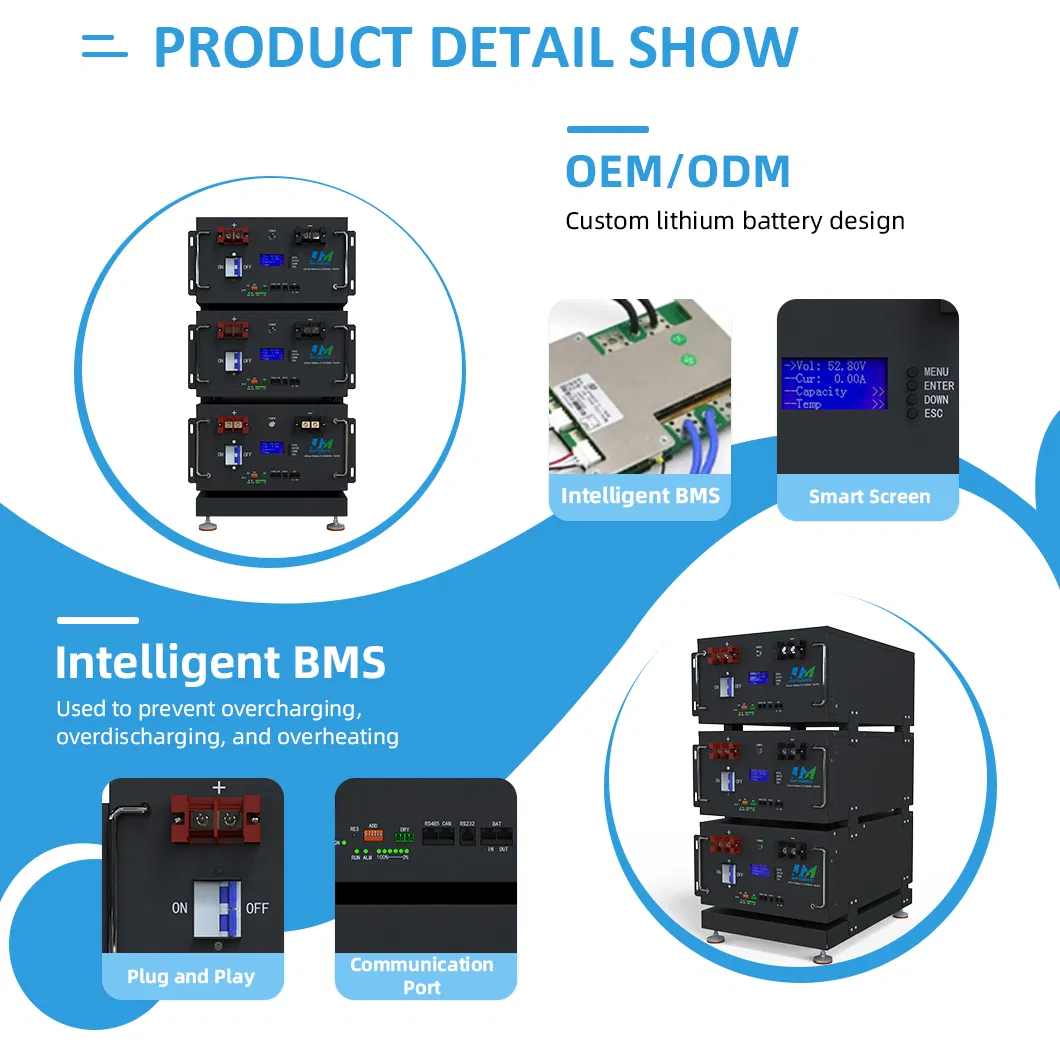

Internal BMS
Safety Testing
Rack Installation
Packaging & Delivery
Package Size
71.00cm * 46.00cm * 27.00cm
Gross Weight
120.00kg
Package Type
Sturdy Wooden Box
Lead Time
7 Days (1-2 Pcs); Negotiable (>2 Pcs)

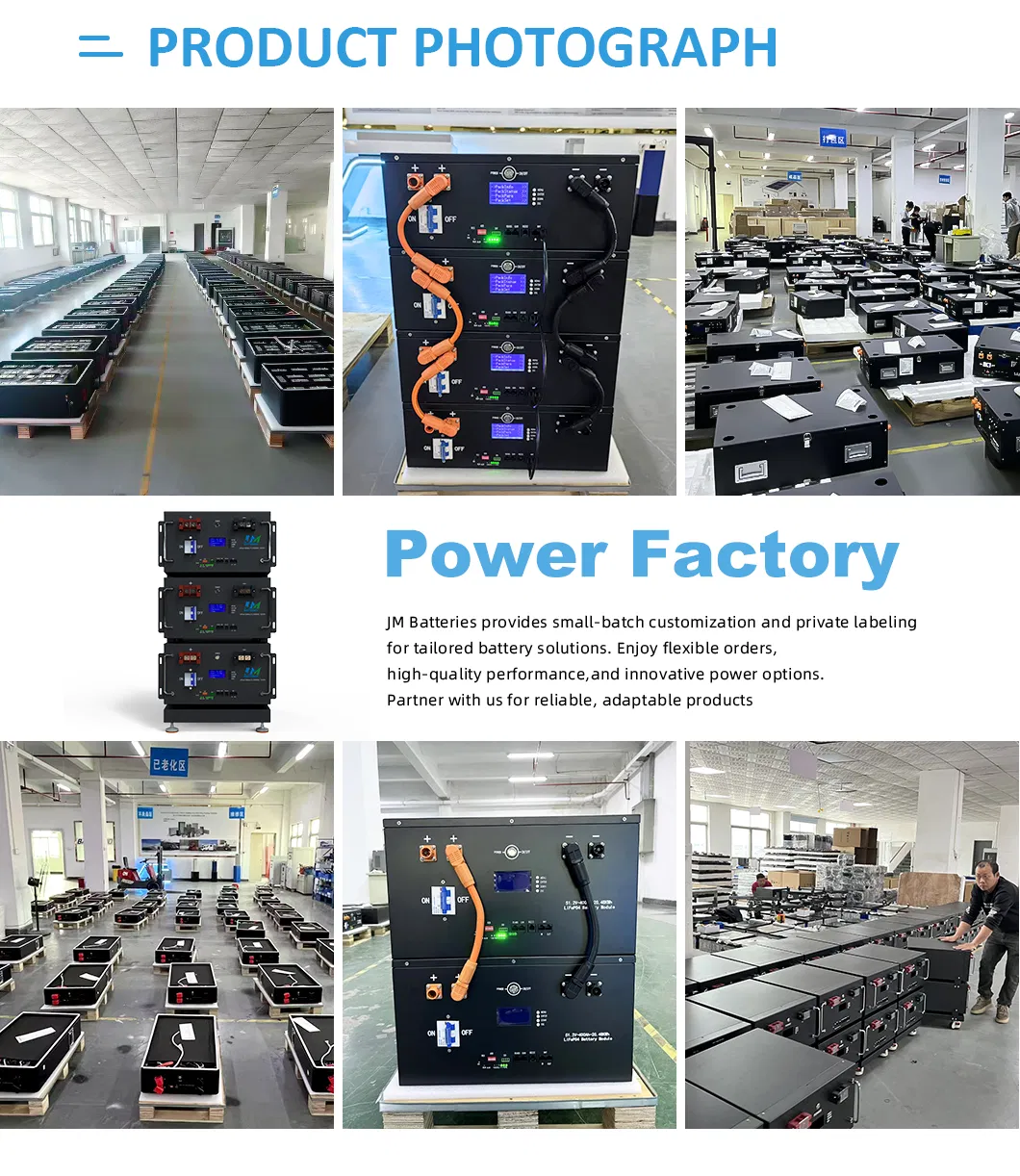

Shipping Package
Production Capabilities
Factory Environment

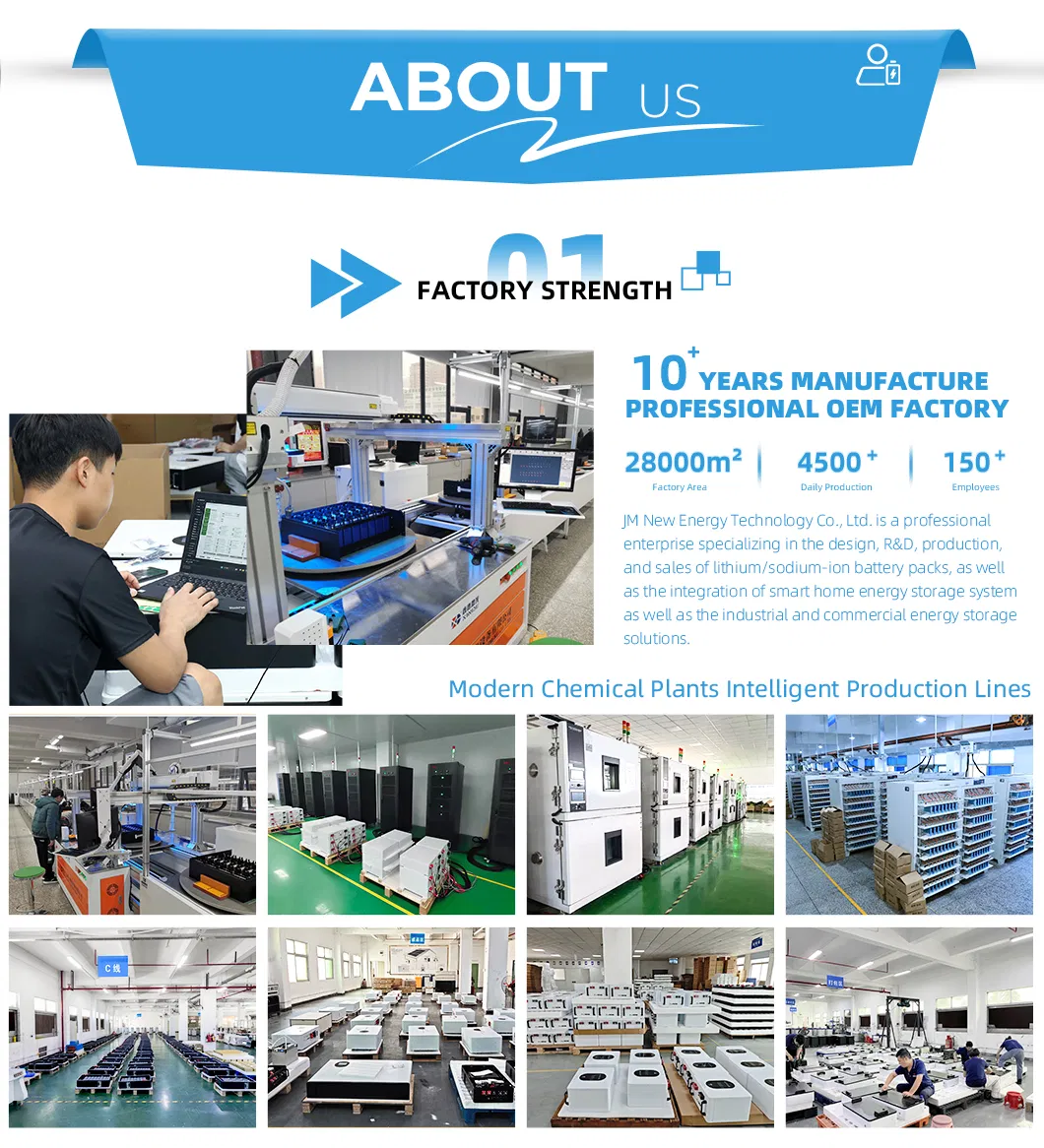

Production Line
R&D Lab
Certifications
Frequently Asked Questions
What is the production background of your batteries?
We are a professional manufacturer with over 6 years of experience integrating product design, R&D, manufacturing, and service, specializing in LiFePO4 battery packs and solar energy storage solutions.
How do you ensure the quality of the battery packs?
Quality is guaranteed through a rigorous process: we always provide a pre-production sample before mass production and conduct a final 100% inspection before shipment.
What products can I purchase from your catalog?
Our core range includes Lithium Batteries, customized Lithium Battery Packs, Solar Batteries, Energy Storage Systems, and Custom High Voltage Battery solutions.
What are the supported delivery and payment terms?
We accept various delivery terms including FOB, EXW, CIF, and DDP. Payments can be made via T/T, L/C, MoneyGram, Credit Card, or Western Union in USD, EUR, GBP, or CNY.
Are the batteries compatible with my current inverter?
Yes, our batteries are compatible with major inverter brands like DEYE, Growatt, PYLONTECH, SMA, MUST, and GOODWE. We also support customization for other specific brands.
Where do you ship your products?
We serve a global market including North America, Africa, South America, Western and Northern Europe, and Southeast Asia.
