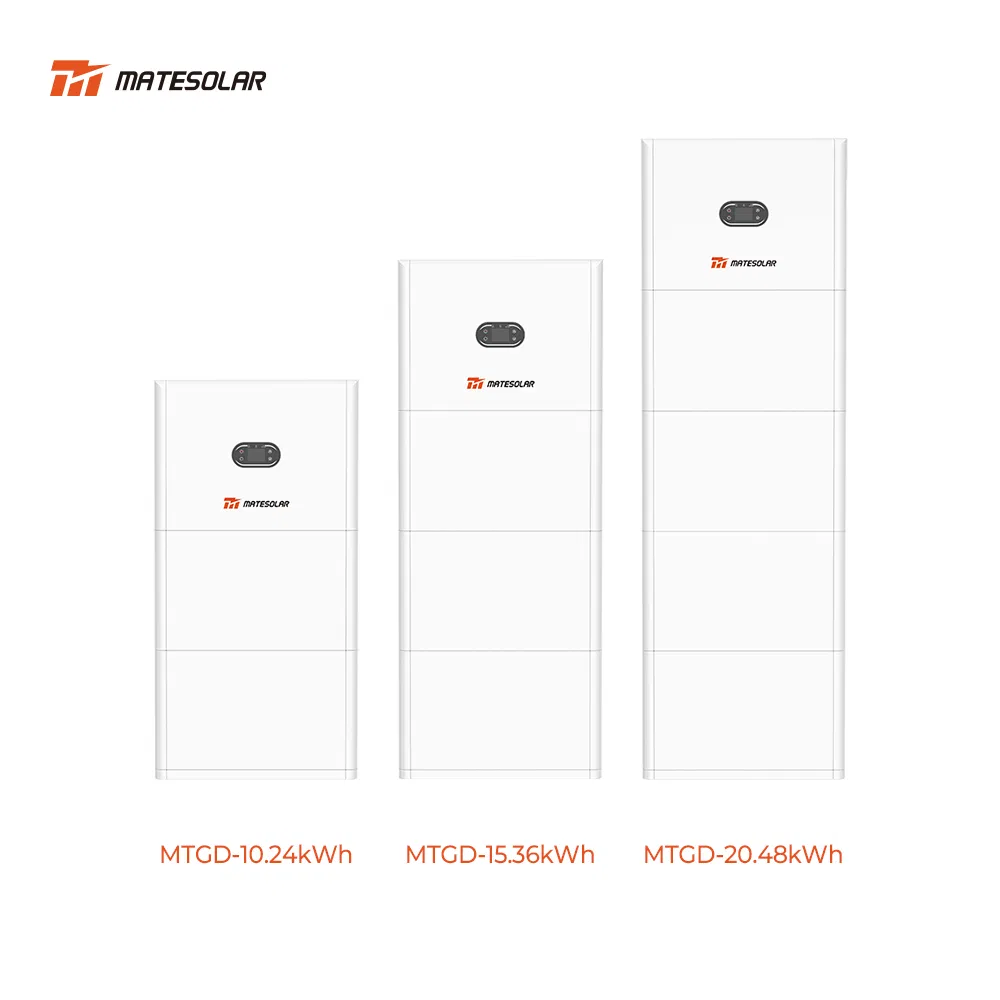

High-Capacity 51.2V Lithium Modular Battery Pack for Versatile Use

Customization: Available
Type: Lithium Metal Battery
Cathode Material: LFP

Product Description

Key Specifications

Model NO.GroundArk
RechargeableYes
Battery Voltage51.2V
Voltage Range44.8V~56.16V
Max. Charging Current100A
Max. PV Input Voltage600V
Start-up Voltage100V~550V
Weight120kg

Product Overview

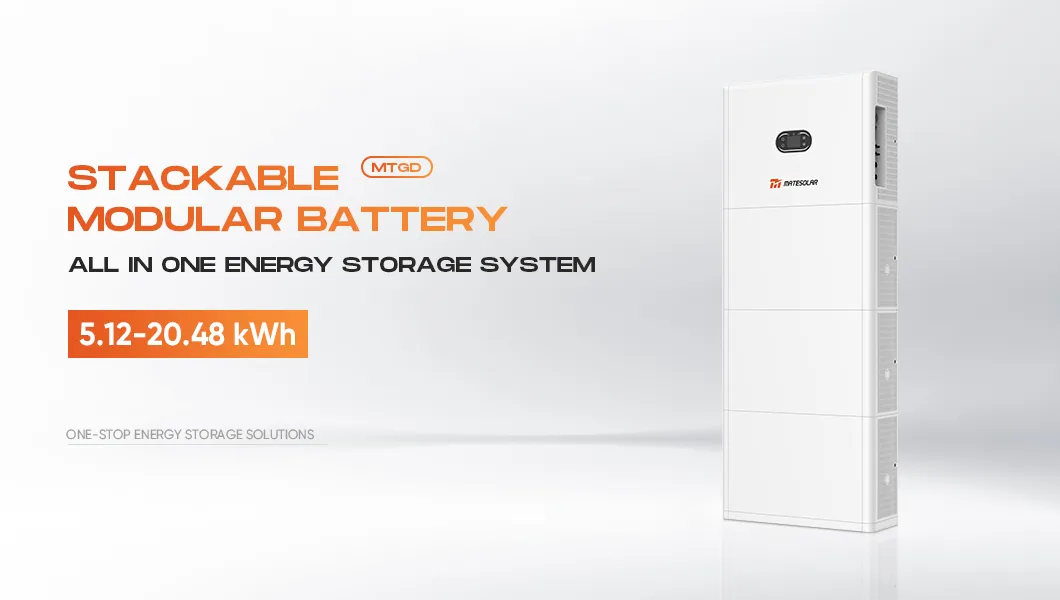

Lithium Modular Battery Pack

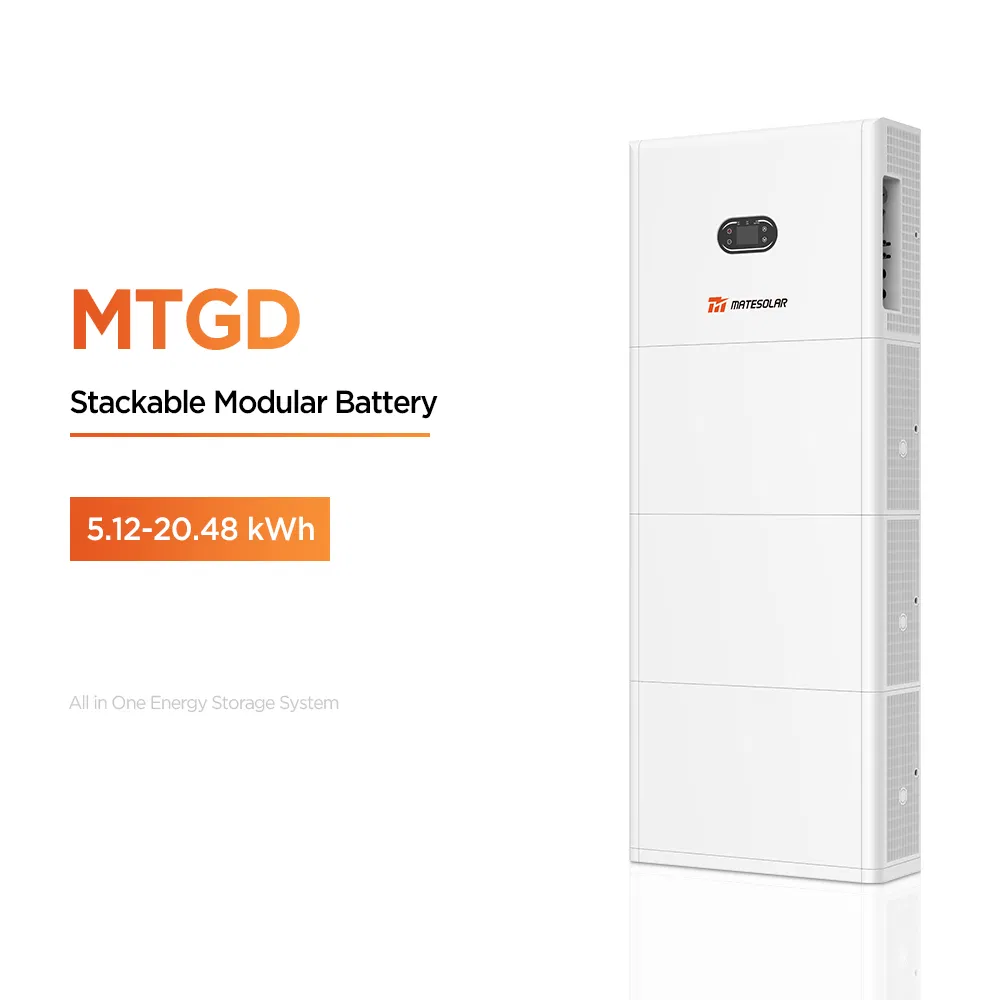

High-Capacity Battery Design

Technical Data

Parameter Specification Details
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Cycle Life ≥6000 (@25°C, 0.5C/0.5C)
Battery Energy 5.12kWh 10.24kWh 15.36kWh 20.48kWh
Dimensions (WxHxD) 640x875x210mm 640x1250x210mm 640x1625x210mm 640x2000x210mm
Protection Degree IP65
Cooling Method Natural

Applications & Scenarios

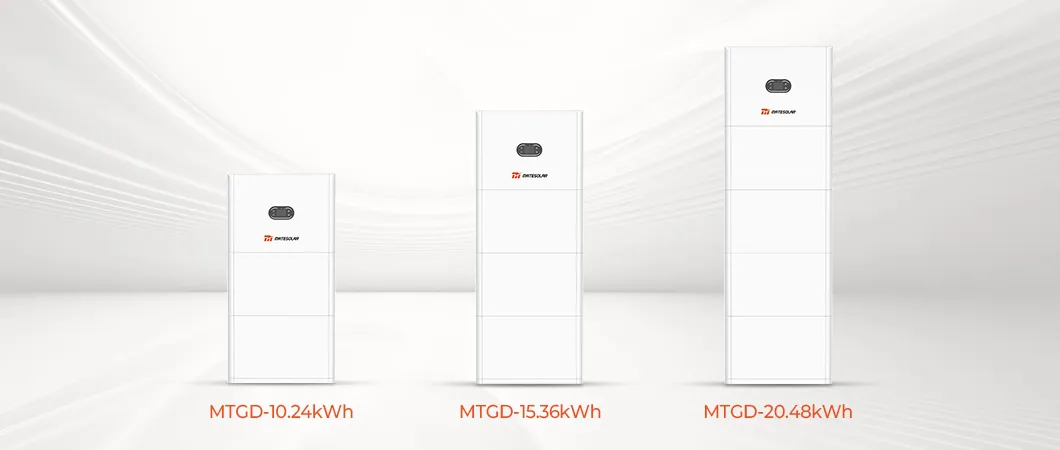

Application 1

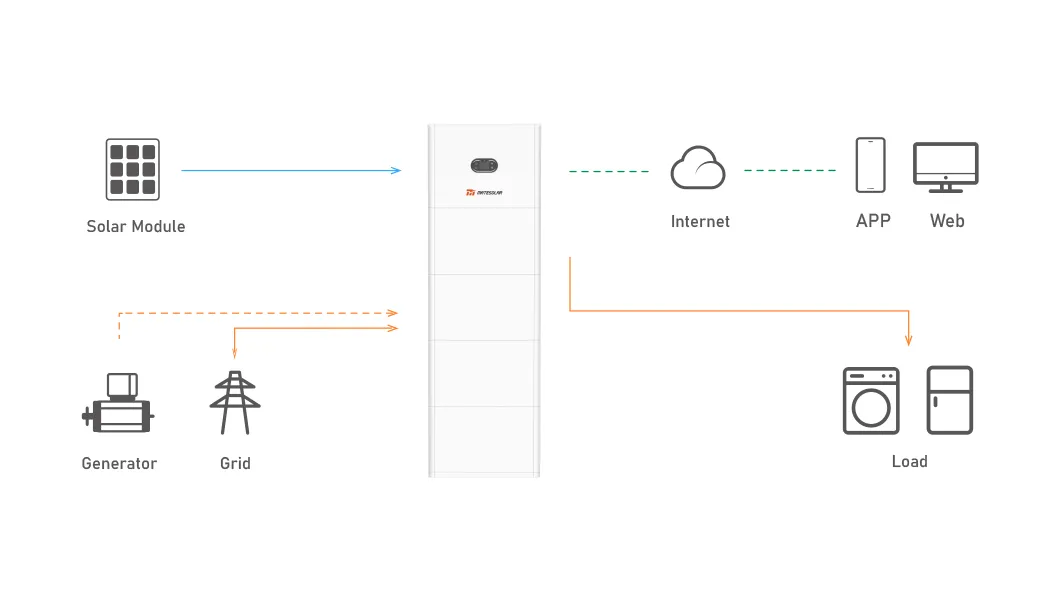

Application 2

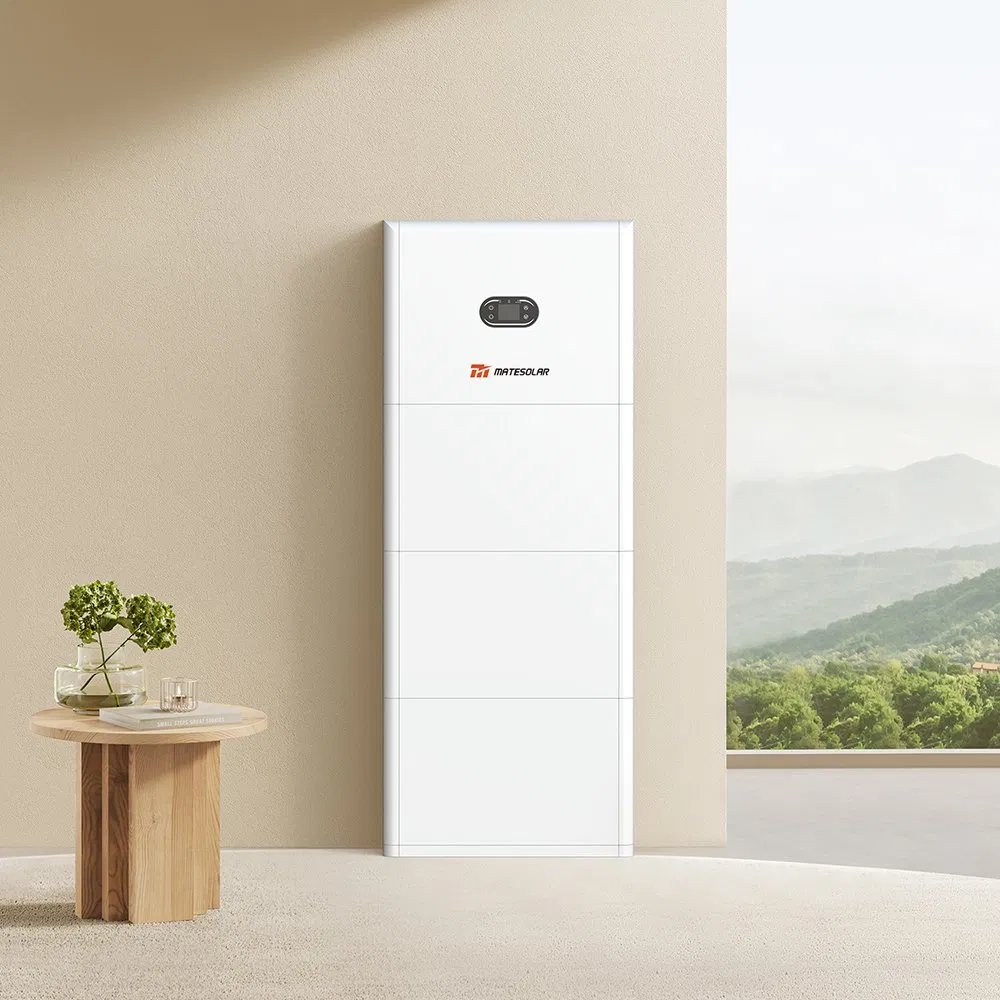

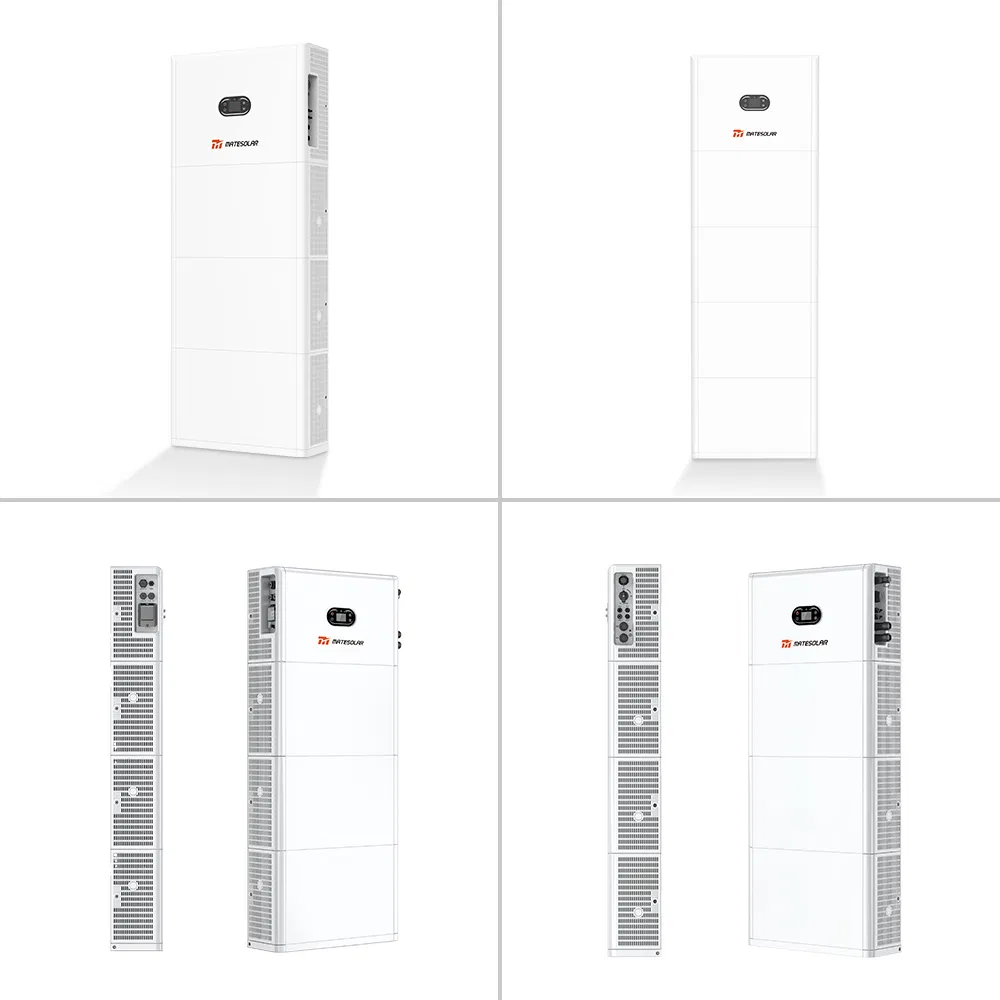

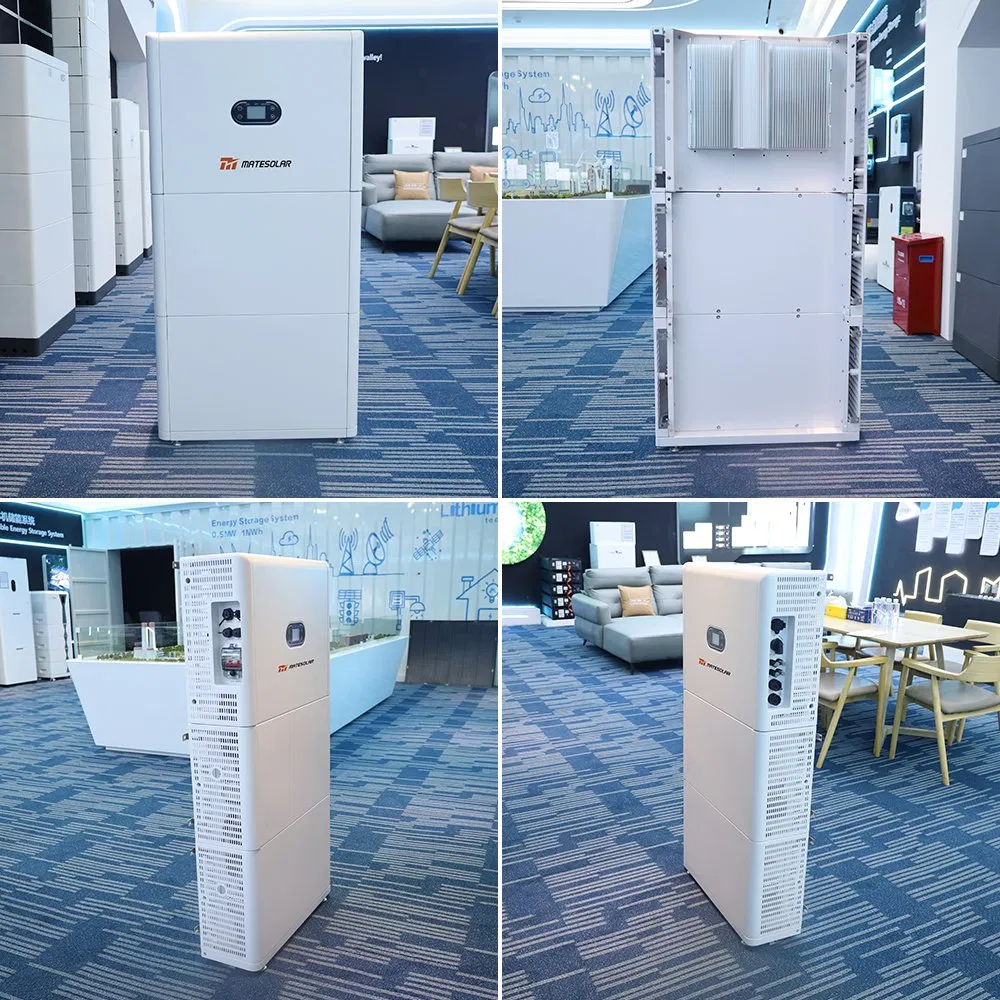

Product Image

Manufacturing Excellence

Our brand is a pioneer in the battery manufacturing industry, serving the global market since 2002 with unmatched expertise. We specialize in producing cutting-edge, environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries, setting benchmarks in sustainable energy solutions.

By leveraging state-of-the-art production equipment and rigorous testing protocols, we guarantee exceptional product longevity and superior energy density. Our R&D team consists of over 50 adept research engineers and esteemed professors dedicated to battery technology innovation.

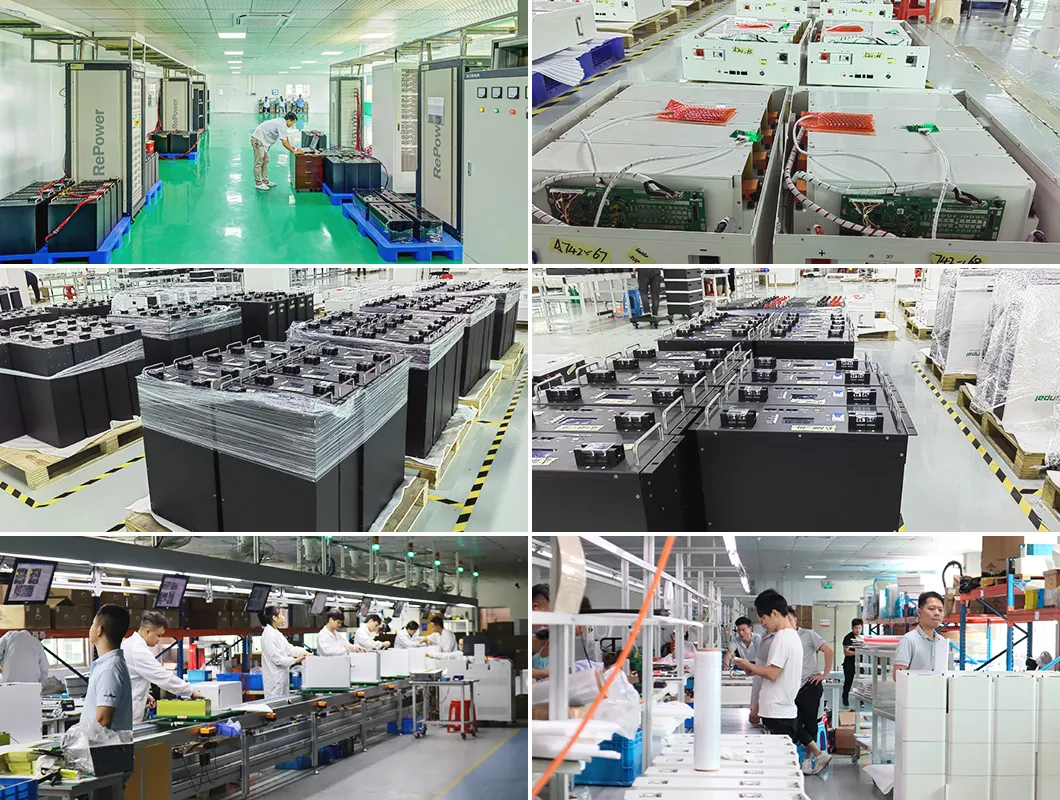

Factory Overview
Production Line
Exhibition
Quality Standards

Frequently Asked Questions

What type of battery chemistry is used in the GroundArk system?
The system utilizes Lithium Iron Phosphate (LiFePO4) chemistry, known for its high safety standards, stability, and long cycle life.
How many cycles can I expect from this battery pack?
The battery is designed for a cycle life of ≥6000 cycles at 25°C with a 0.5C charge/discharge rate.
Is the battery suitable for outdoor installation?
Yes, with an IP65 protection degree rating, the system is well-protected against dust and low-pressure water jets from any direction.
What communication interfaces are supported?
The unit supports a wide range of communication protocols including RS485, CAN, WIFI, 4G, LAN, and Bluetooth for easy monitoring and integration.
What are the built-in protection features?
It includes DC Reverse Polarity Protection, Insulation Resistance Monitoring, Ground Fault Monitoring, Over Current/Voltage Protection, and Battery Soft Start Protection.
What is the operating temperature range?
The system operates efficiently within a temperature range of -10°C to +45°C.
