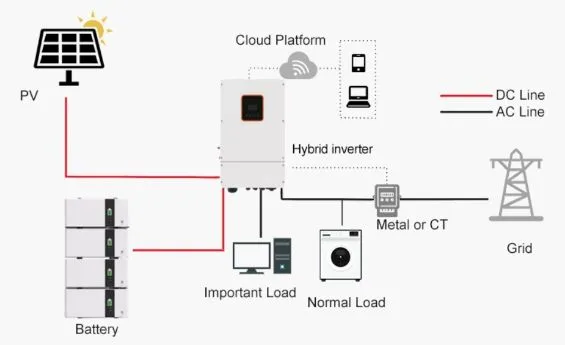

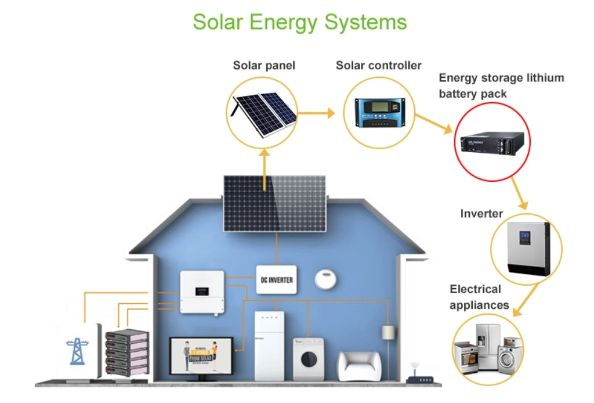

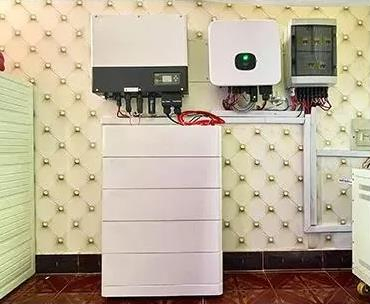

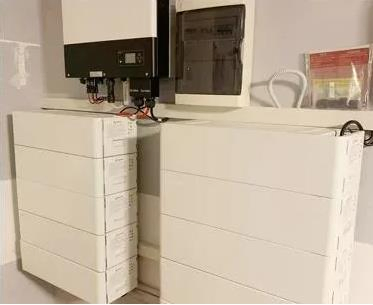

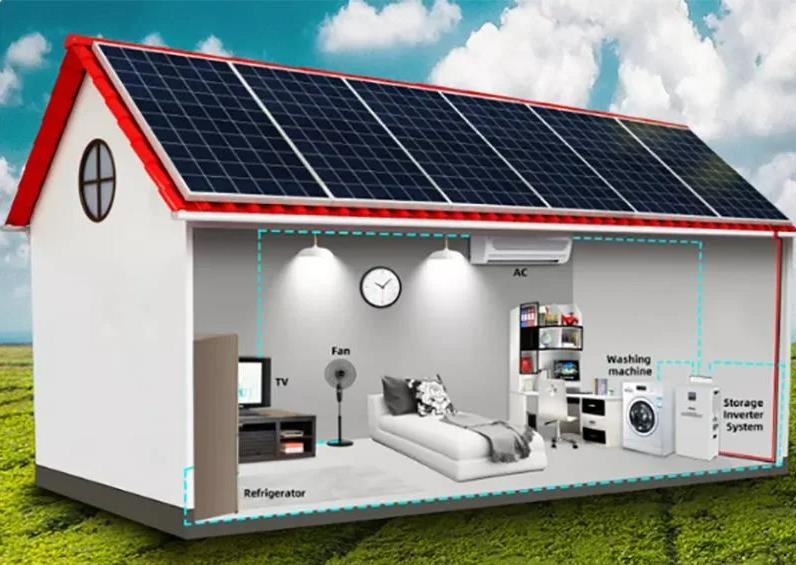

Home energy storage systems utilize energy generated from rooftop solar installations or home wind turbines. These systems store electricity during low-cost periods or high-generation periods for peak use. They serve not only as an emergency power supply but also significantly reduce household electricity expenses.
As new energy solutions move into the civilian market, home energy storage devices are becoming essential, especially for residences with photovoltaic systems. In regions with unstable power supply, the demand for reliable household energy storage is particularly strong.

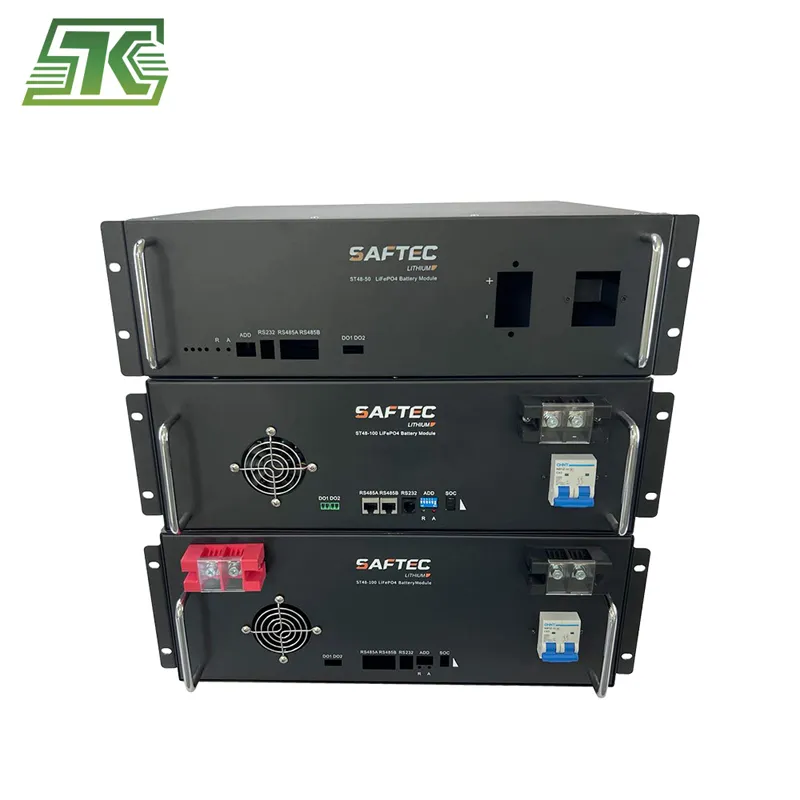

| Type | Model A (48V) | Model B (51.2V) |
|---|---|---|
| Capacity | 102Ah | 102Ah |
| Standard Voltage (Vdc) | 48 | 51.2 |
| Standard Charge Current | 30A | 30A |
| Max Charge Current | 50A | 50A |
| Standard Discharge Current | 50A | 50A |
| Max Discharge Current | 100A | 100A |
| Communication | RS232 RS485 CAN | RS232 RS485 CAN |
| Operation Life (Years) | 10 | 10 |
| Operation Temperature | 0-50ºC | 0-50ºC |
| Weight | 43kg | 45kg |
LiFePO4 Cell Technology: High energy density and superior safety standards.

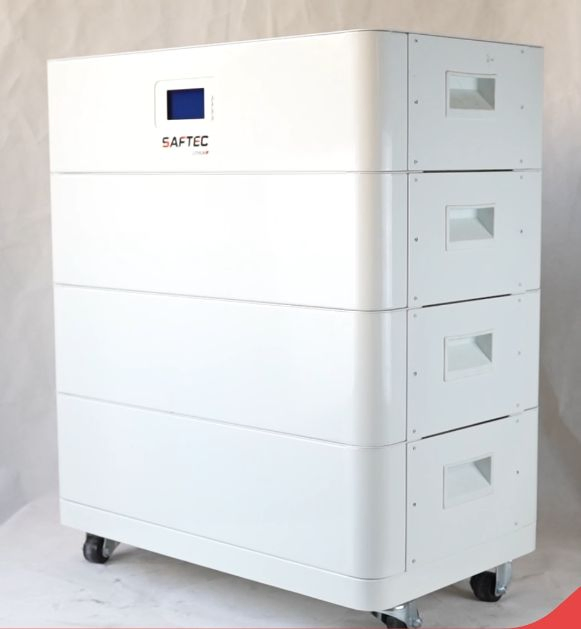

Series Connection: Scalable architecture supporting up to 10 stacked modules.
Advanced SOC Algorithm: Accurate state-of-charge calculation with self-calibration.
Cell Monitoring: 3-level protection with automatic alarms and real-time voltage monitoring.
Energy Balance Control: Maintains cell voltage consistency to prolong battery lifespan.

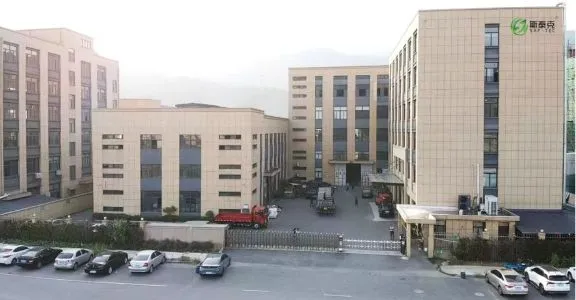

Providing high-quality battery solutions since 2007, certified by ISO9001, ISO1400, SGS, CE, and UN38.3. We specialize in deep cycle, VRLA, and lithium-ion technologies for solar, UPS, and emergency power systems.
