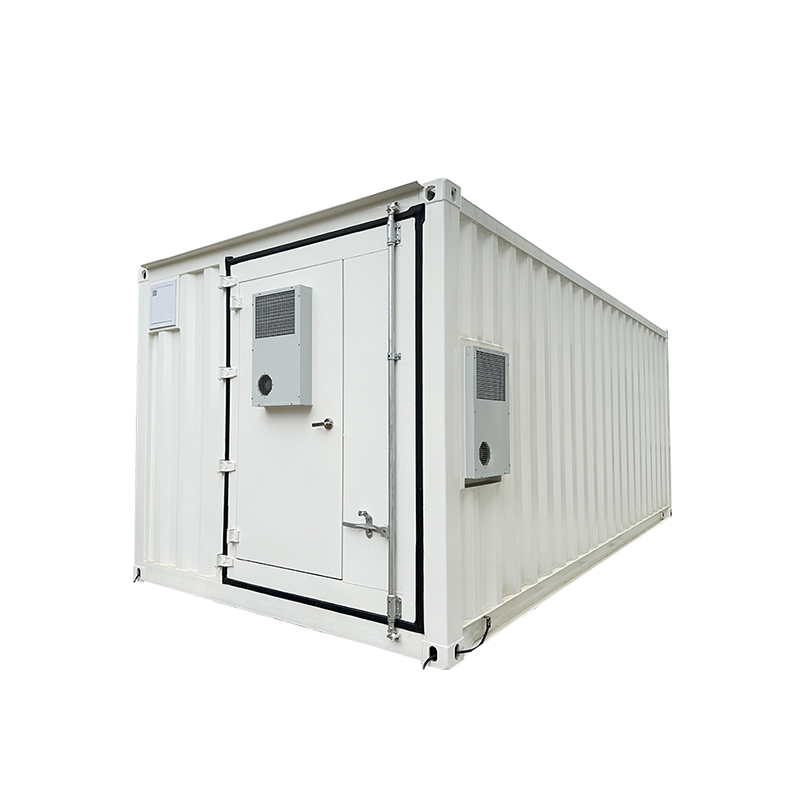

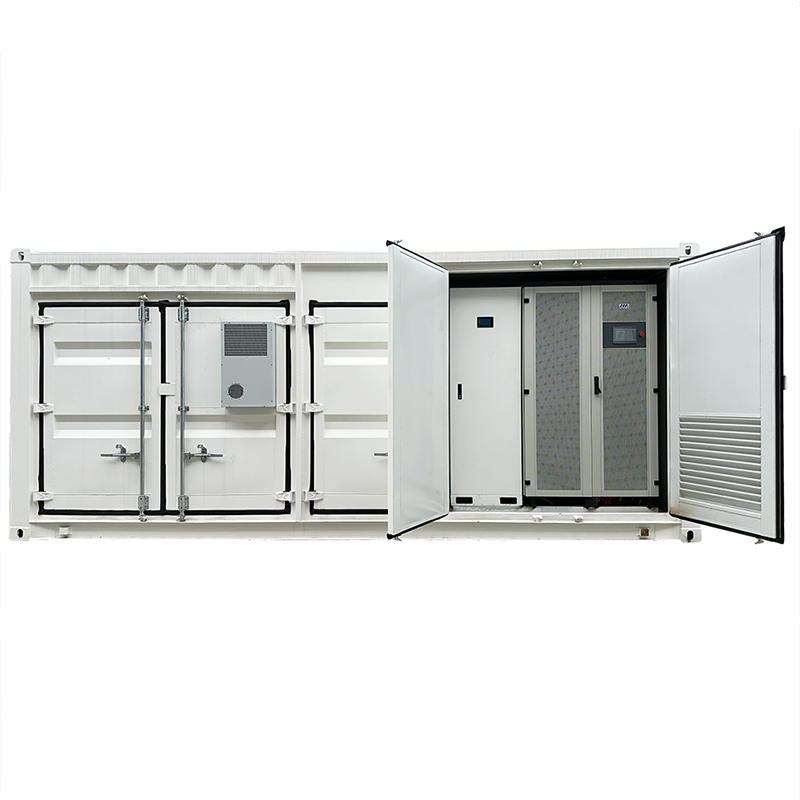

5.01 Mwh ISO Approved Br Solar Carton and Pallet Energy Storage Solution

1 / 5

5.01 Mwh ISO Approved Br Solar Carton and Pallet Energy Storage Solution

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

ℹ

Basic Specifications

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial, School, Factory

Specification

100kwh, 233kwh

Cell Type

Lithium Iron Phosphate (LFP)

Cooling

Liquid Cooling

Protection

IP55

Rated Capacity

5.01 Mwh

Rated Voltage

1331.2V

Origin

China

Capacity

1000 set/Month

📦

Packaging & Delivery

Package Size

110.00cm * 140.00cm * 238.00cm

Gross Weight

2000.000kg

Transport

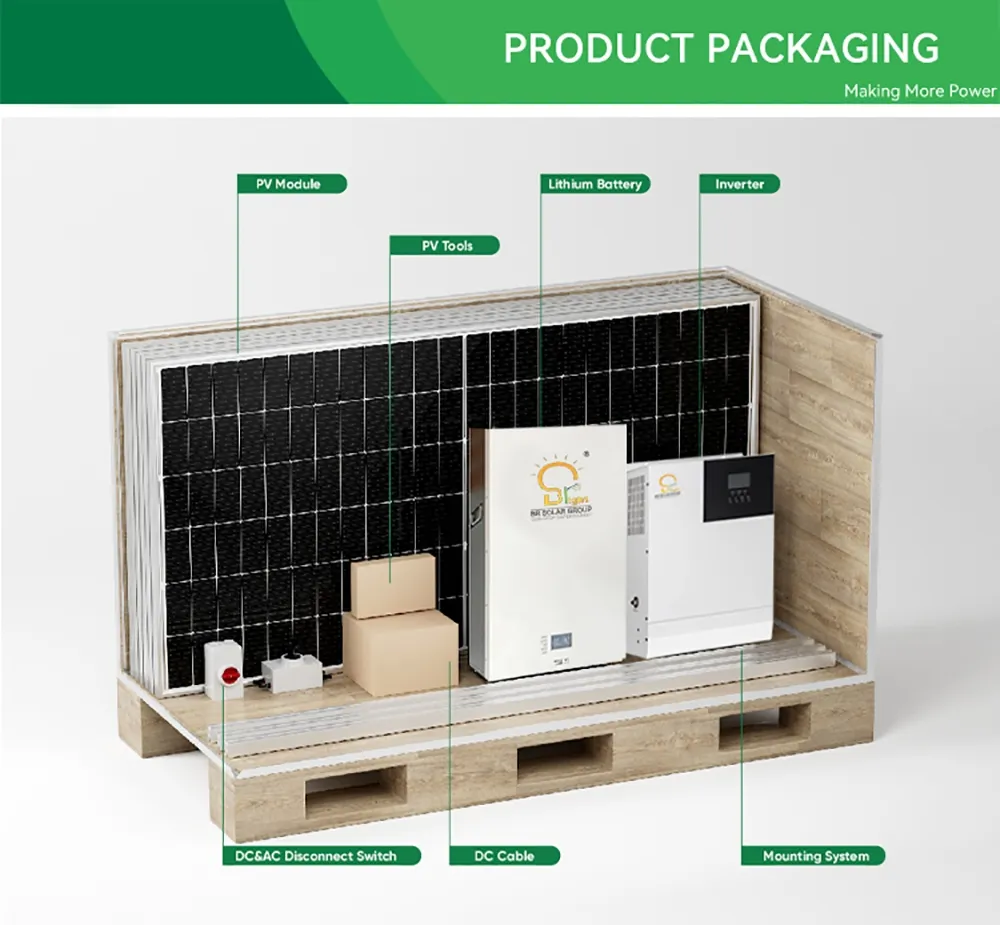

Carton and Pallet

📝

Product Description

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V
Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Storage temperature	−20~45ºC
Corrosion-proof grade	C4/C5(optional)
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interface	Ethernet/CAN/RS485

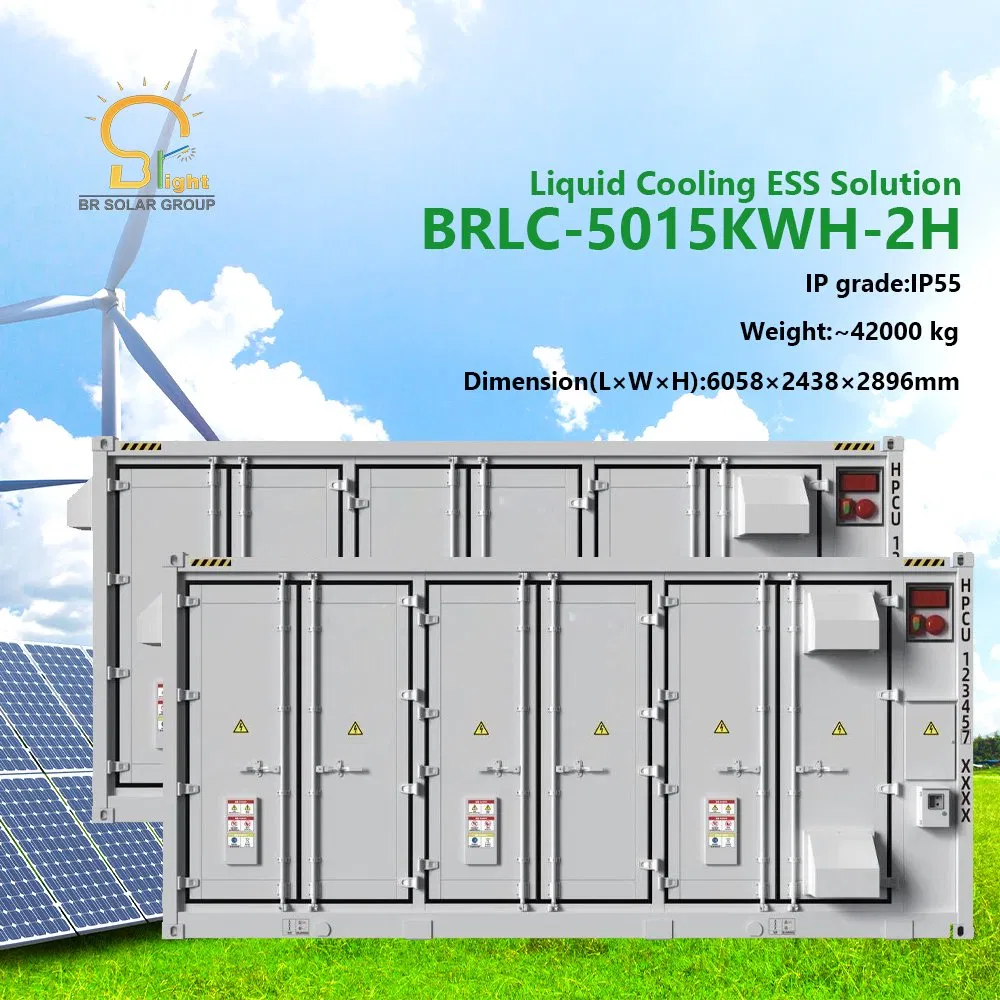

Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

❓

Frequently Asked Questions

What is the primary battery technology used in this system?

The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for their thermal stability and long life cycles.

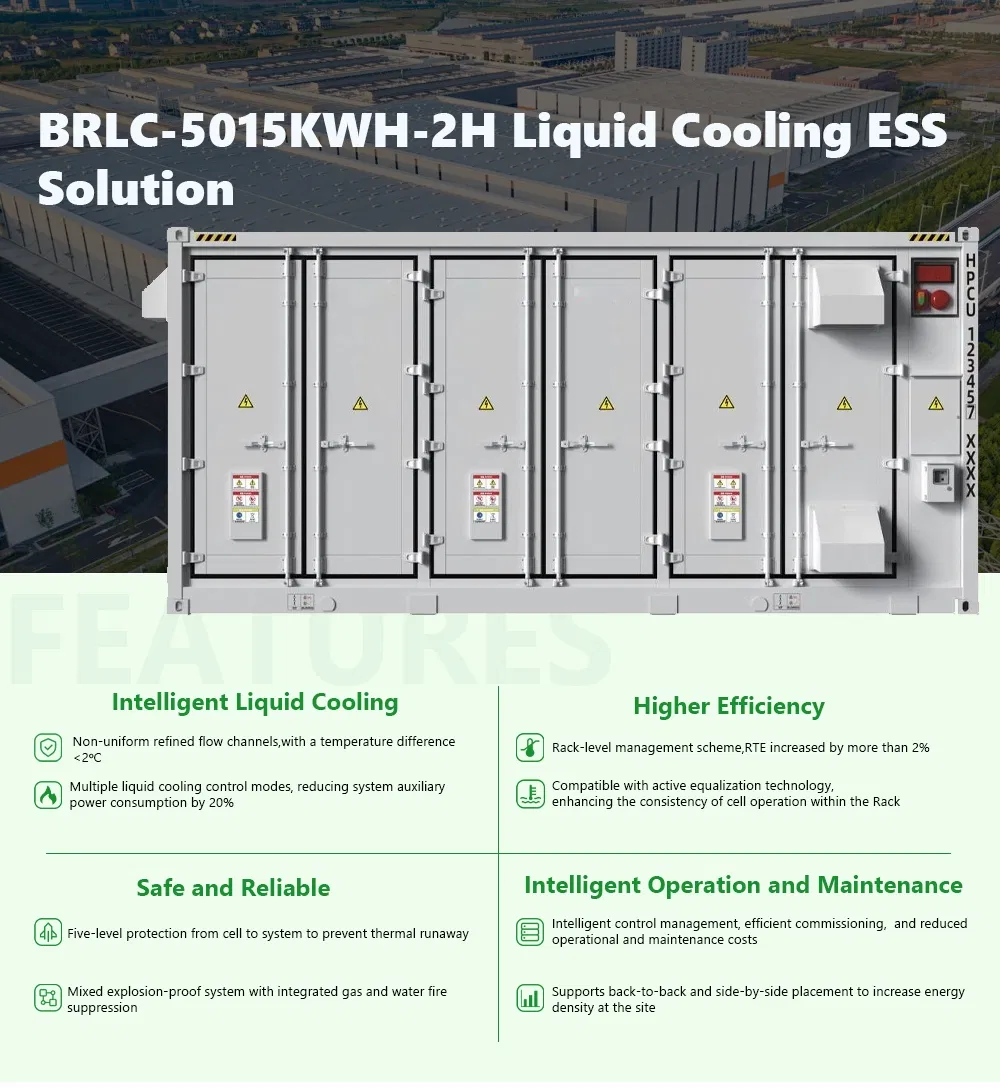

How does the liquid cooling system work?

The integrated liquid cooling system maintains optimal operating temperatures for all battery cells, ensuring efficiency even in high-demand environments and extending the overall lifespan of the hardware.

Can this energy storage unit be installed outdoors?

Yes, the system is designed with an IP55 protection grade and optional C4/C5 corrosion-proof ratings, making it suitable for various outdoor industrial and commercial environments.

What safety features are included for fire protection?

Safety is a priority; the unit includes temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, and a dedicated fire extinguishing gas system with water sprinklers.

What is the operating temperature range for the system?

This storage solution is engineered to operate reliably in temperatures ranging from -30ºC to 50ºC, making it versatile for different geographic locations.

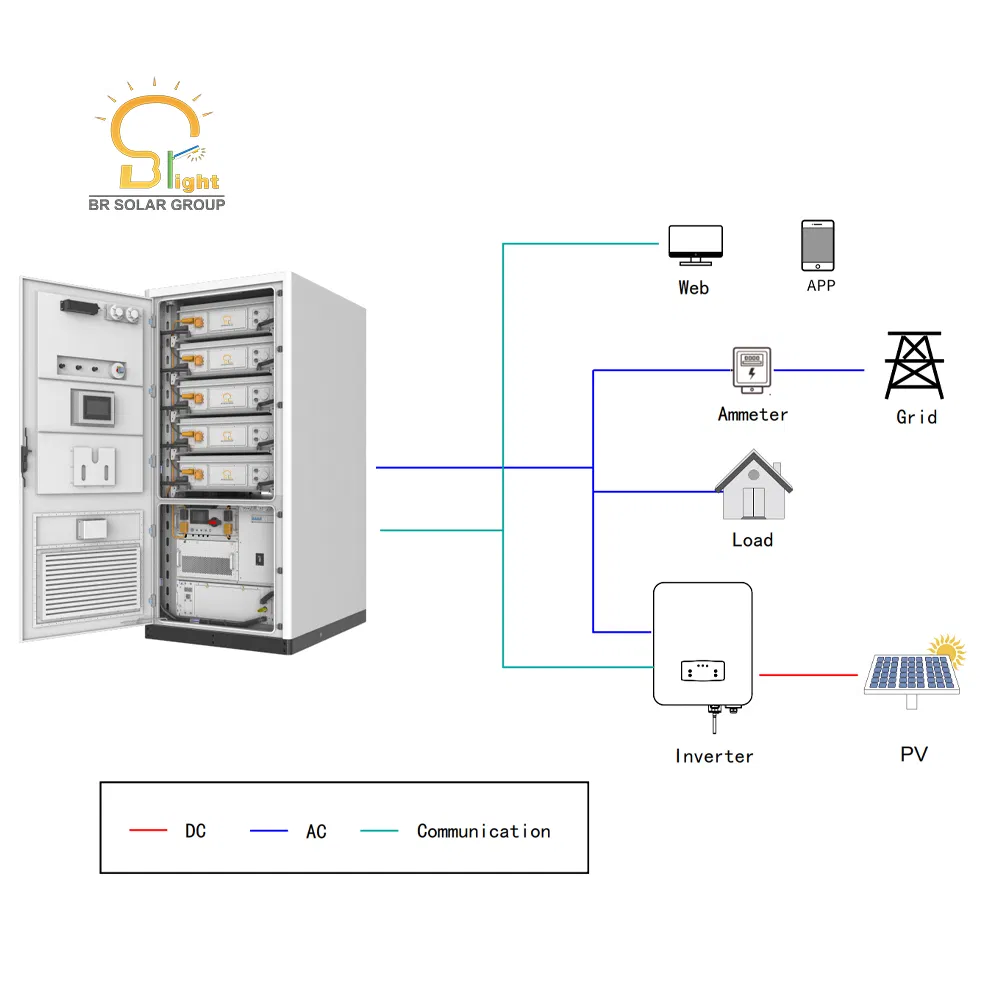

What communication interfaces are supported?

The system supports standard external communication interfaces including Ethernet, CAN, and RS485 for seamless integration with existing monitoring infrastructure.
