Basic Information

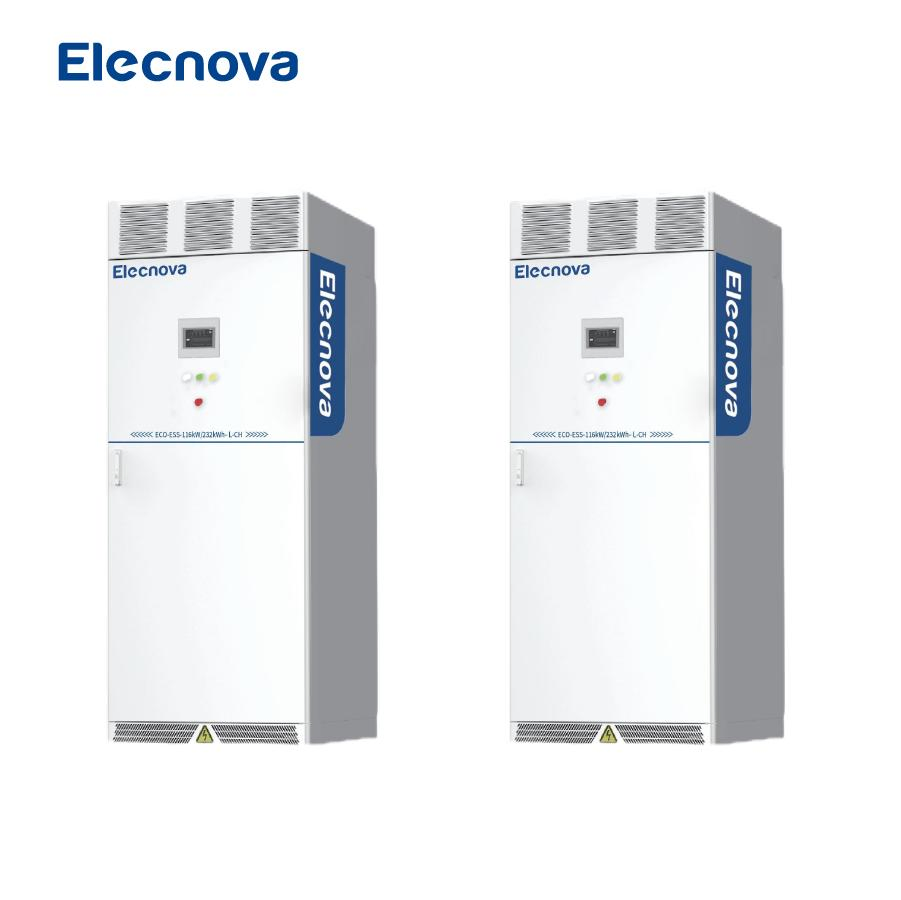

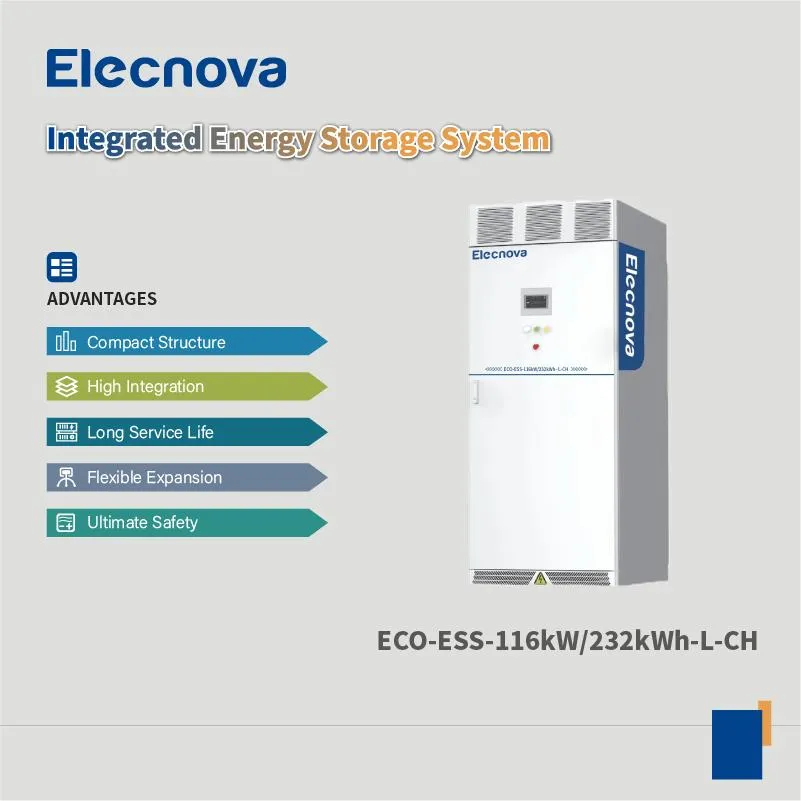

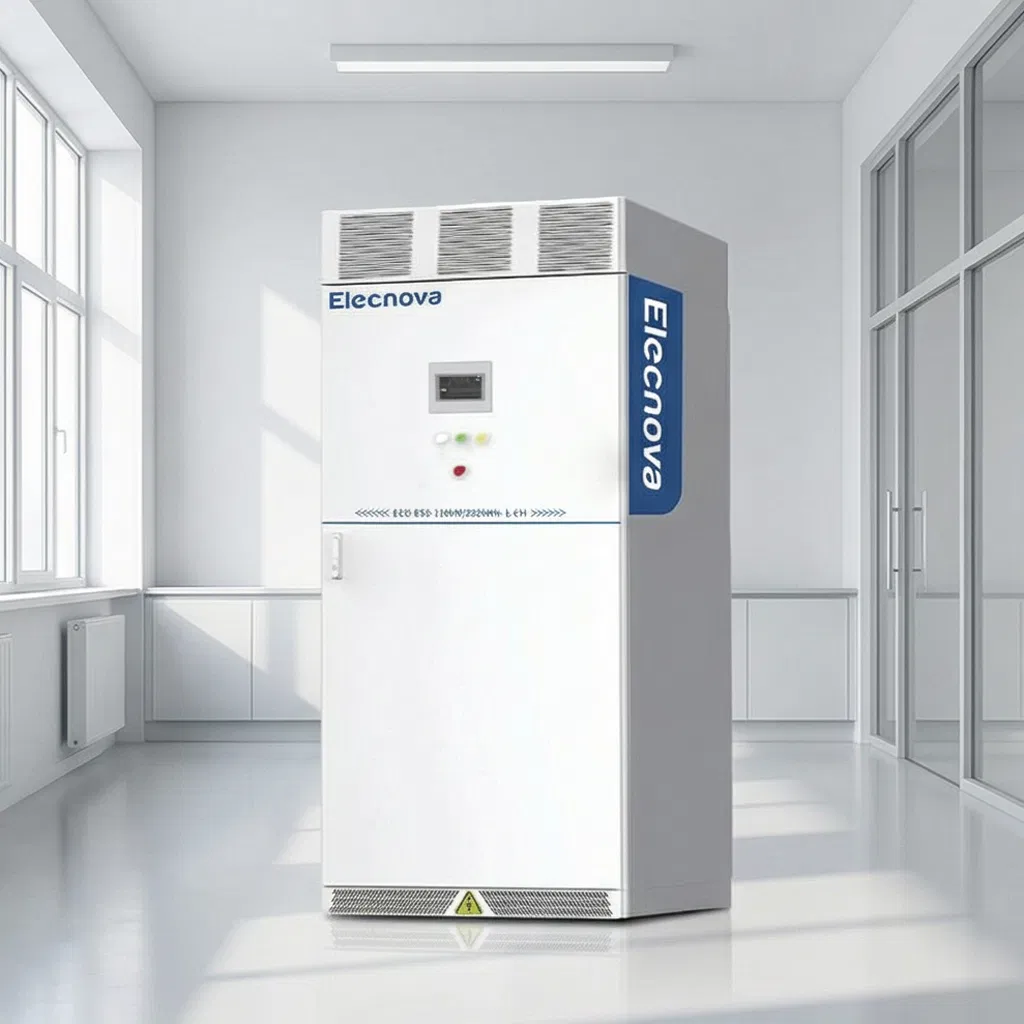

Model NO.ECO-ESS-116kW/232kWh-L-CH
Nominal Capacity232kWh
Cycle Life8000 Cycles
Cooling MethodLiquid Cooling
Switching Time<100ms
Energy Efficiency>91%

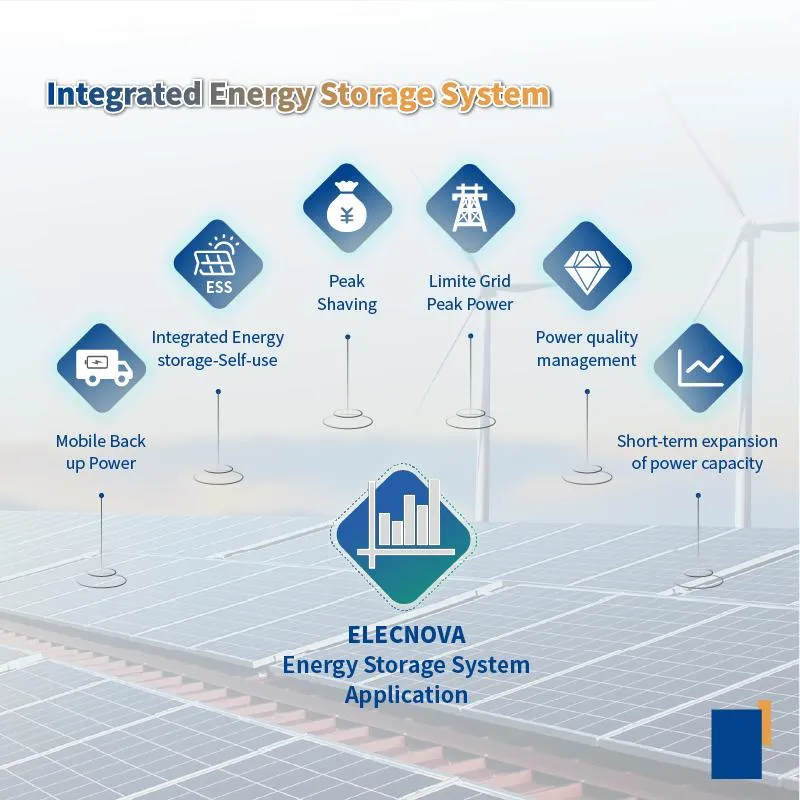

ApplicationIndustrial & Commercial

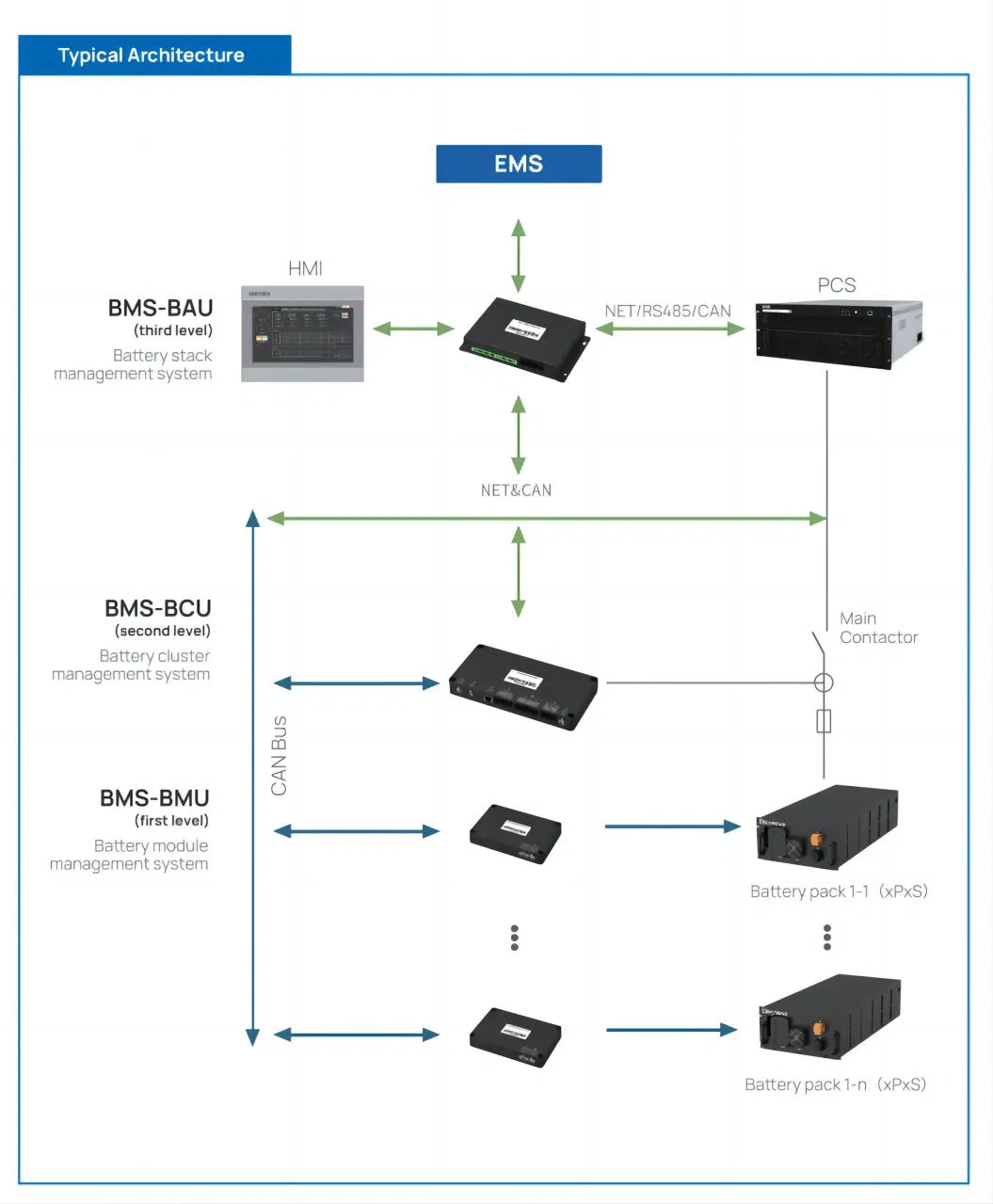

BMSBuilt-in BMS Protection
Specification1100*1300*2350mm
Product Parameters
| DC Battery Parameters |
|---|
| Battery Cell Type | LFP 3.2V/280Ah |

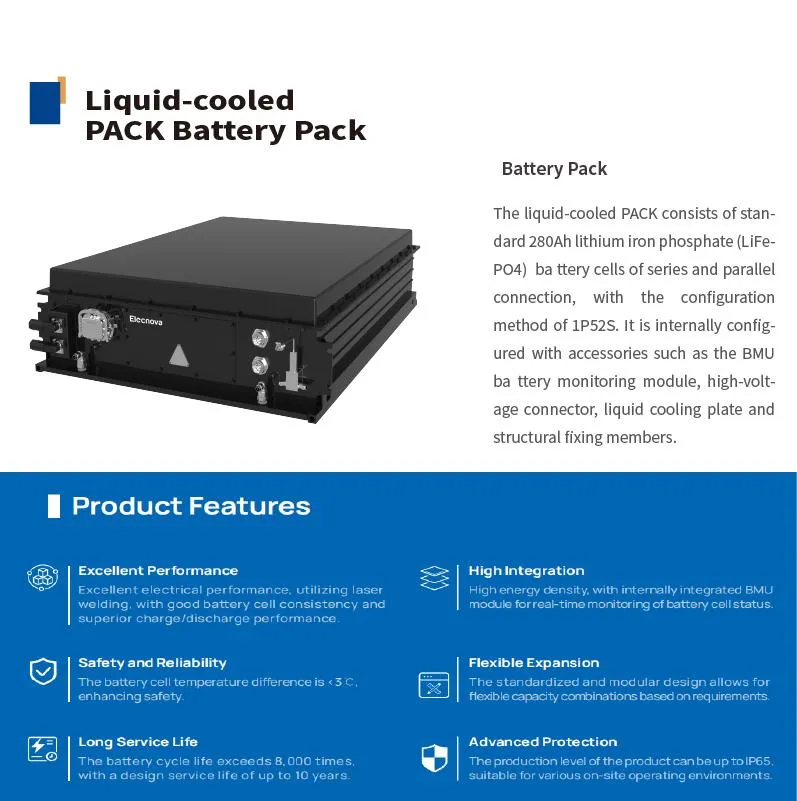

| Battery Pack Configuration | 46.59kWh/1P52S |
| Battery System Configuration | 232kWh/1P260S |
| Battery Voltage Range | 728~936V DC |
| AC Side Parameters |
|---|
| AC Rated Power | 116kW |
| AC Maximum Power | 128kW (continuous for 1min) |
| AC Current Distortion Rate | <3% |
| Grid Rated Voltage | 400V AC |
| Rated Grid Frequency | 50Hz |
| System Parameters |
|---|
| Energy Conversion Efficiency | ≥91% |
| Discharge Depth | 95%DOD |
| Protection Level | IP55 |
| Operating Temperature | -25~55ºC |
| Fire Suppression System | Combustible gas/smoke/temperature detection + perfluorohexanone |
| Weight | 2,800kg |
Product Overview & Detailed Photos

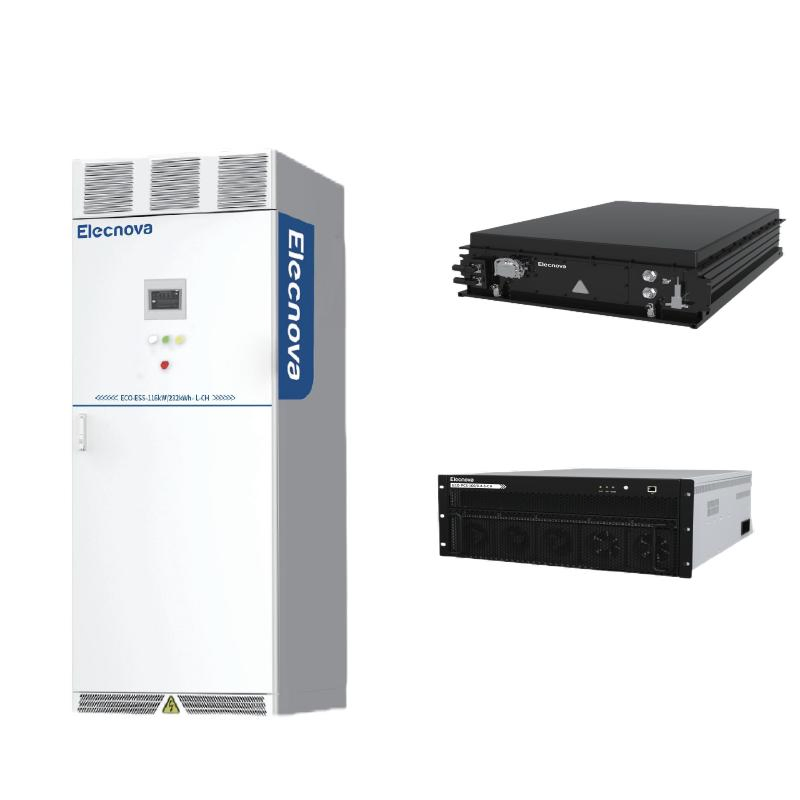

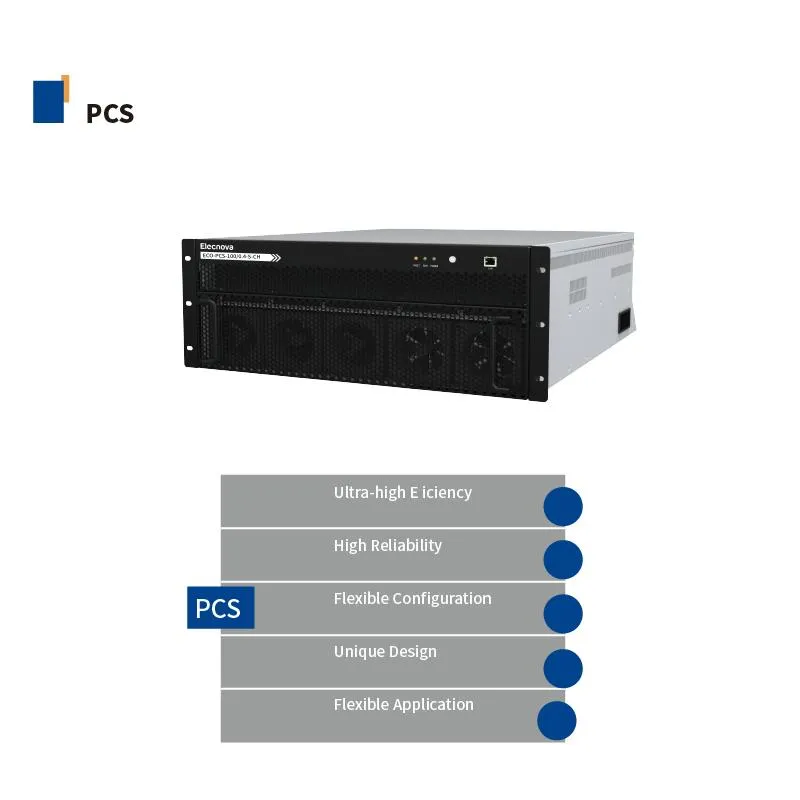

The ECO-PCS series product is a modular converter designed specifically for small-sized energy storage systems. It has a maximum rated power of 200kW and serves as a bidirectional energy converter within the entire energy storage system. It can meet the demands of various application scenarios, such as industrial and commercial energy storage, substation area energy storage, photovoltaic energy storage micro-grid, etc.

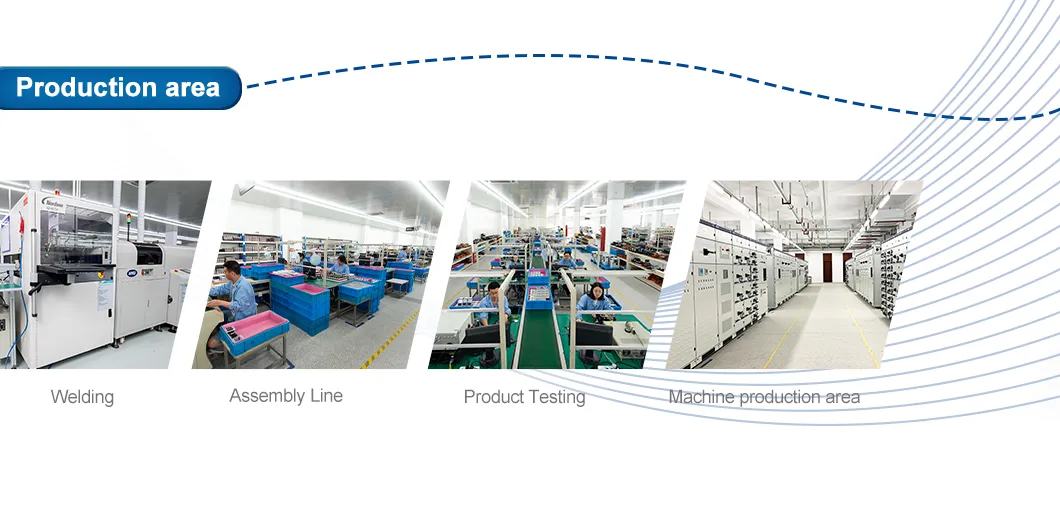

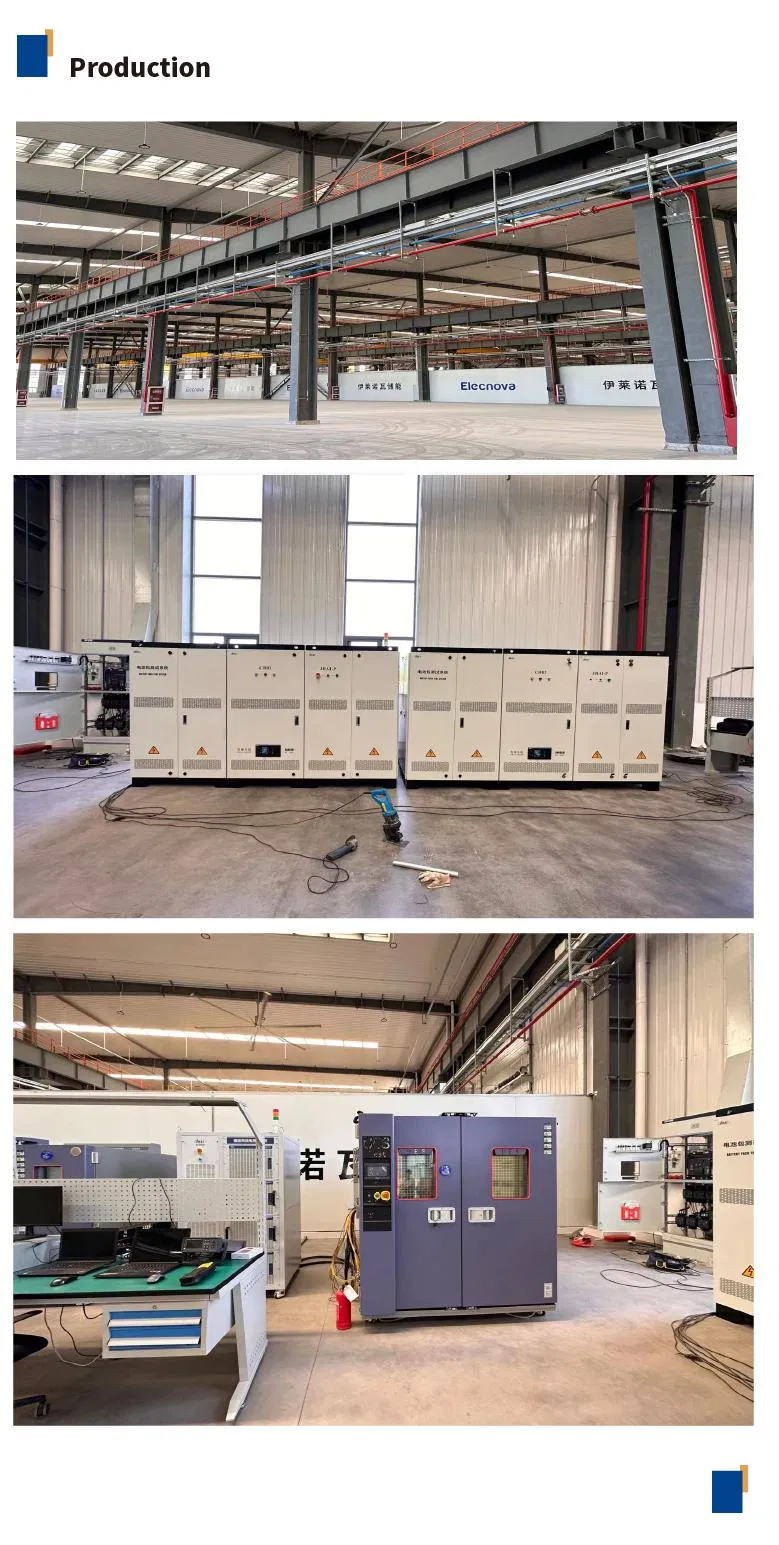

Production Details

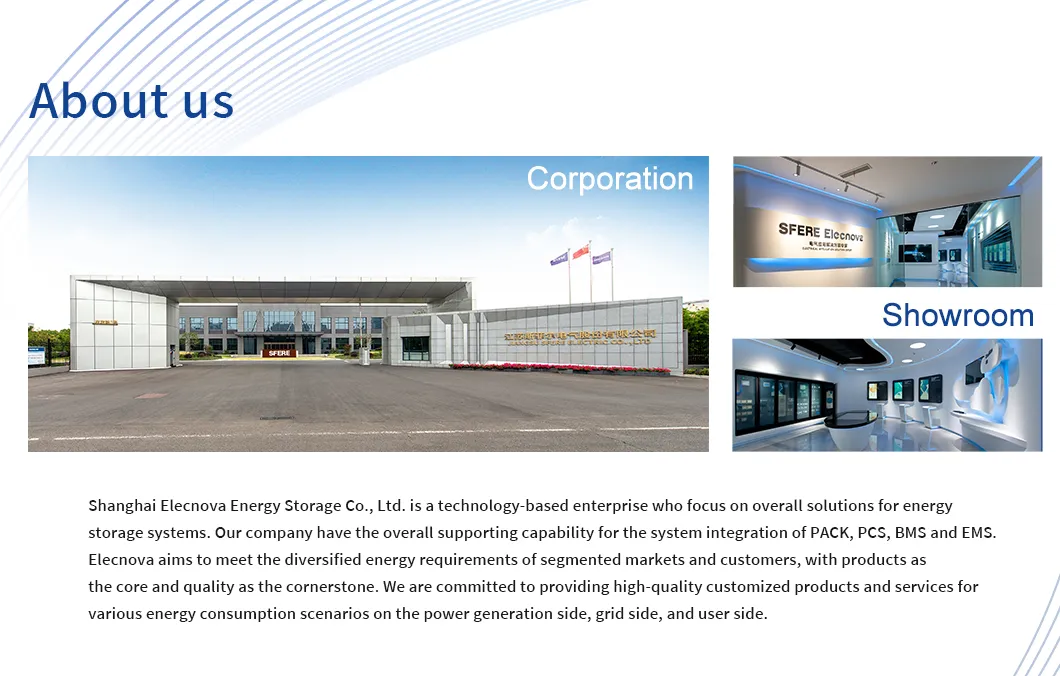

Workshop & Facility
FAQ
Are you a trading company or a manufacturer?
We are a factory based in the production province, specializing in high-efficiency energy storage solutions.
Does your company provide customized manufacturing?
Yes, we provide OEM/ODM services. Our experienced R&D team provides high-efficiency solutions tailored to customer requirements.
How long is the delivery time for these systems?
For items currently in stock, the delivery time is approximately 1 month.
What are the available payment terms?
For orders under $3000, 100% payment is required before shipment. For orders over $3000, a 30% deposit is required, with the remaining 70% due before shipment or as negotiated.
What is the expected cycle life of the battery system?
The system is designed for high durability with a cycle life of ≥8,000 times.
Do you provide samples for testing?
Samples can be provided upon payment for the sample unit and the associated freight costs.
