Basic Information
Certification
CE, IEC, ISO
Application
Industrial, UPS-Back up System
Specification
Lead Acid Battery, Deep Cycle DOD50% 1200
Mark
Deep Cycle AGM Battery
Color
Red Body with Black Cover
Expected Cycle Life
15 Years

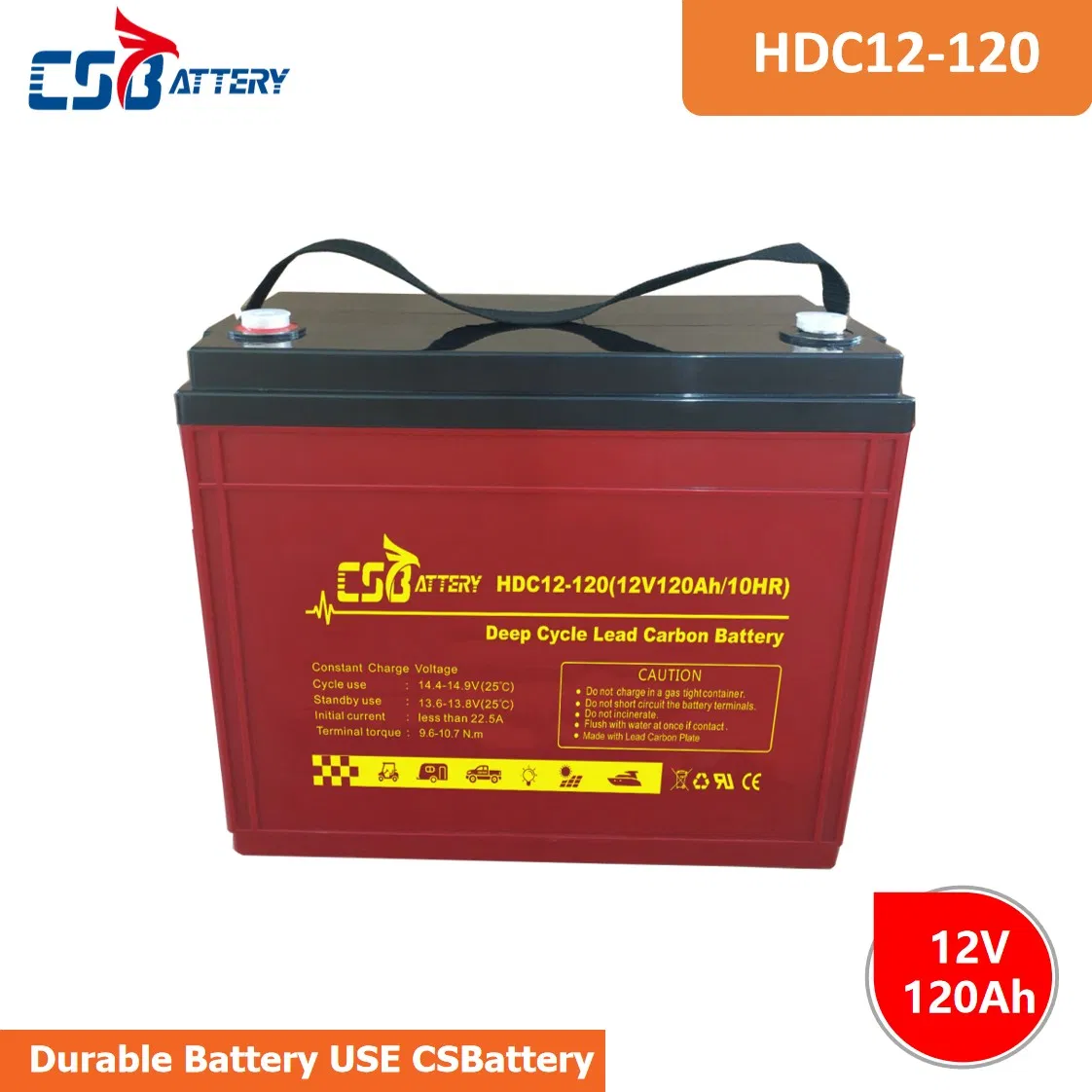

Product Overview

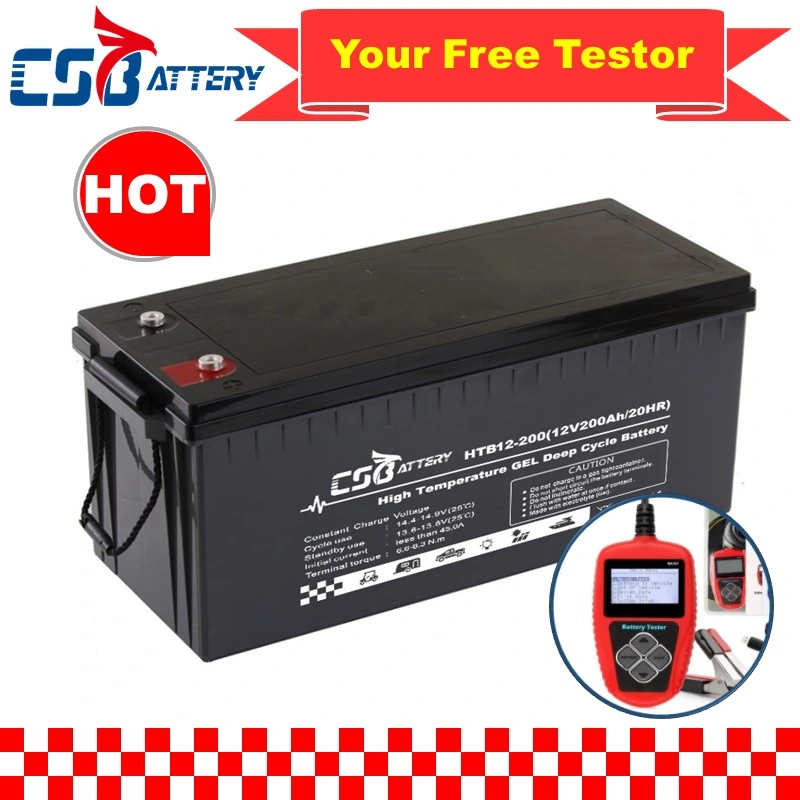

DC SERIES LONG LIFE DEEP CYCLE VRLA AGM BATTERY
Voltage: 6V, 8V, 12V | Capacity: 14Ah to 420Ah.
Design Floating Life: 12-15 years at 25 °C/77 °F.
Since 2003, we have focused on manufacturing maintenance-free AGM and GEL batteries. The DC series is a valve-regulated deep cycle battery designed for frequent cyclic discharge use with high reliability.
Key Features & Benefits
- Three years warranty for daily solar cycle use.
- 30% longer life than standard lead-acid batteries.
- Special Lead plates with Super-C additives for recovery.
- Excellent recovery from deep discharge.
- Cycle use: 50% Depth of Discharge, >1200 cycles.
- Low self-discharge rate: less than 3% per month.
- High-strength sealed assembly technology.
- No acid mist leakage, environmentally friendly.
Technical Specifications (HTB12-200)
| Parameter |
Value |
| Nominal Voltage | 12V |
| Design Floating Life @ 25ºC | 20 Years |
| Nominal Capacity @ 25ºC (20hr rate) | 200Ah |
| Capacity @ 25ºC | 10 hour rate | 180Ah |
| 5 hour rate | 159Ah |
| 1 hour rate | 115.5Ah |
| Internal Resistance (Full Charge) | ≤3mΩ |
| Max. Discharge Current (5s) | 1200A |

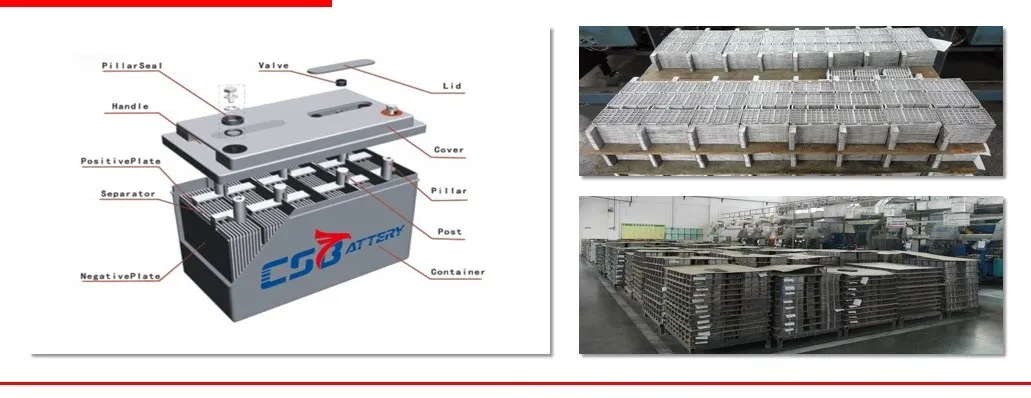

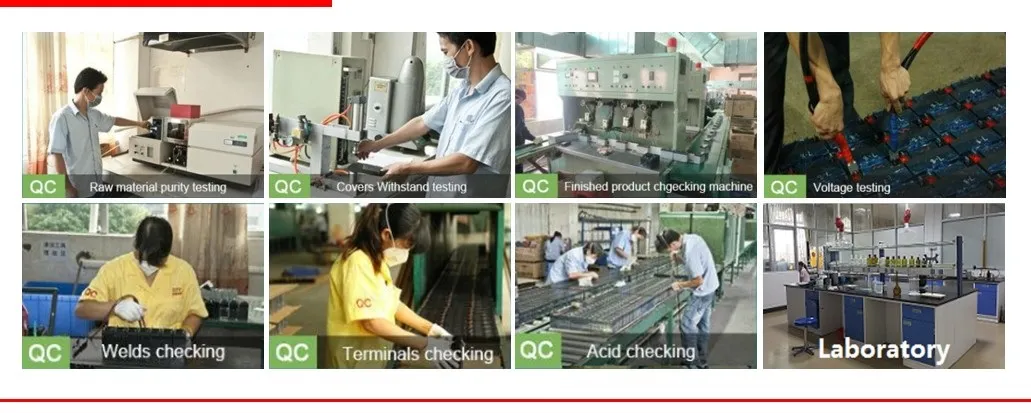

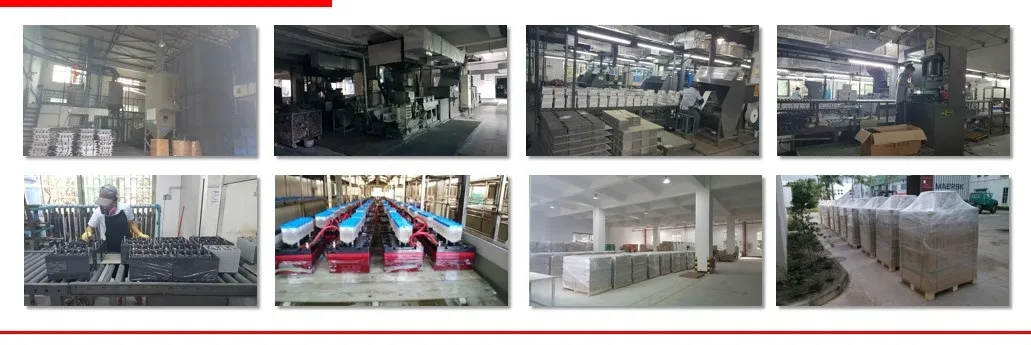

Product Structure & Quality Control
Certifications & Standards
Compliance: IEC 60896-21/22, IEC 61427, ISO9001/14001/18001, CE, UL, Eurobat guide.

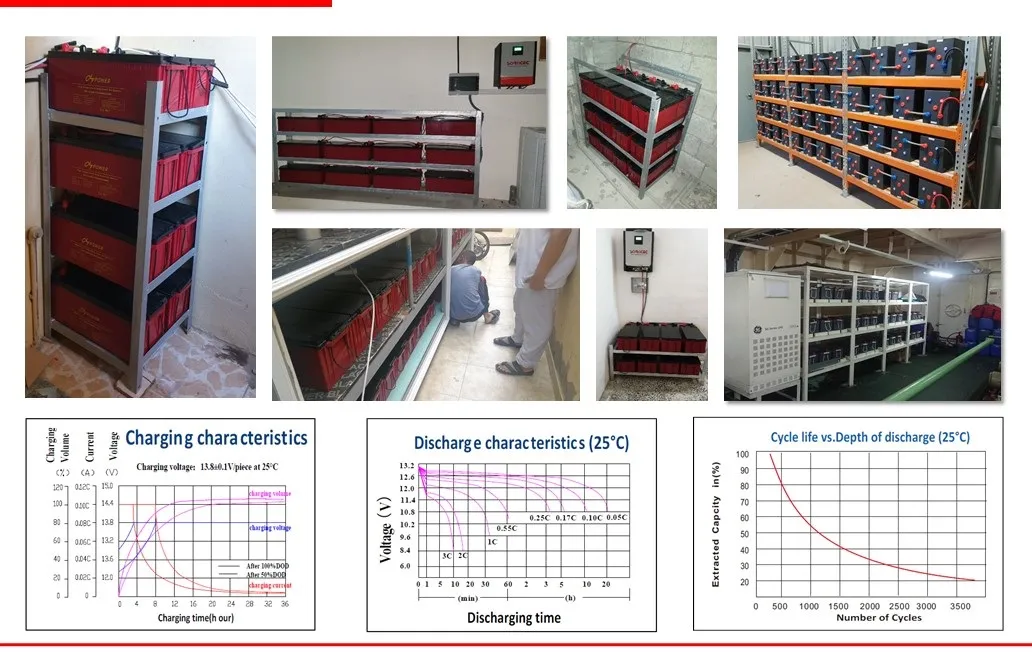

Applications
- Solar and Wind Energy Systems
- Electric Powered Vehicles / Golf Carts
- UPS & Emergency Backup Systems
- BTS Stations & Telecom Equipment
- Medical Equipment
- Power Tools & Control Systems

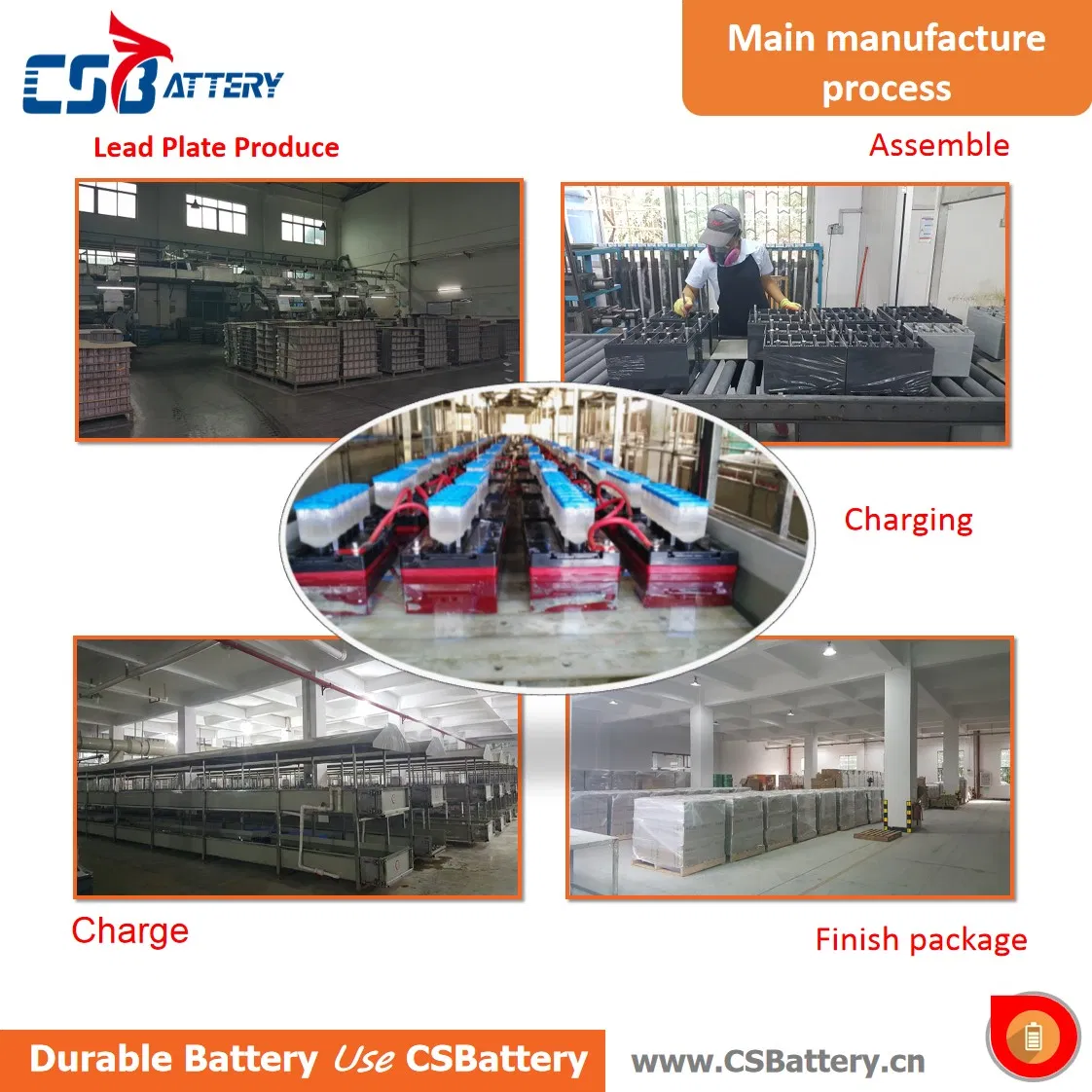

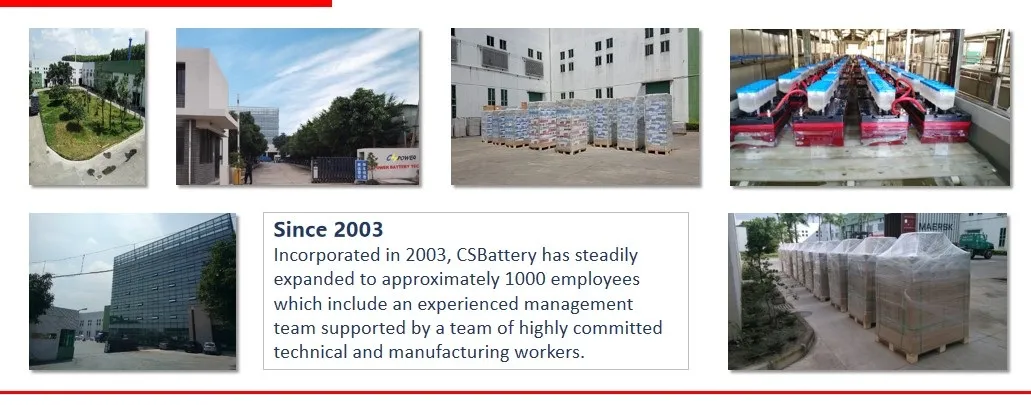

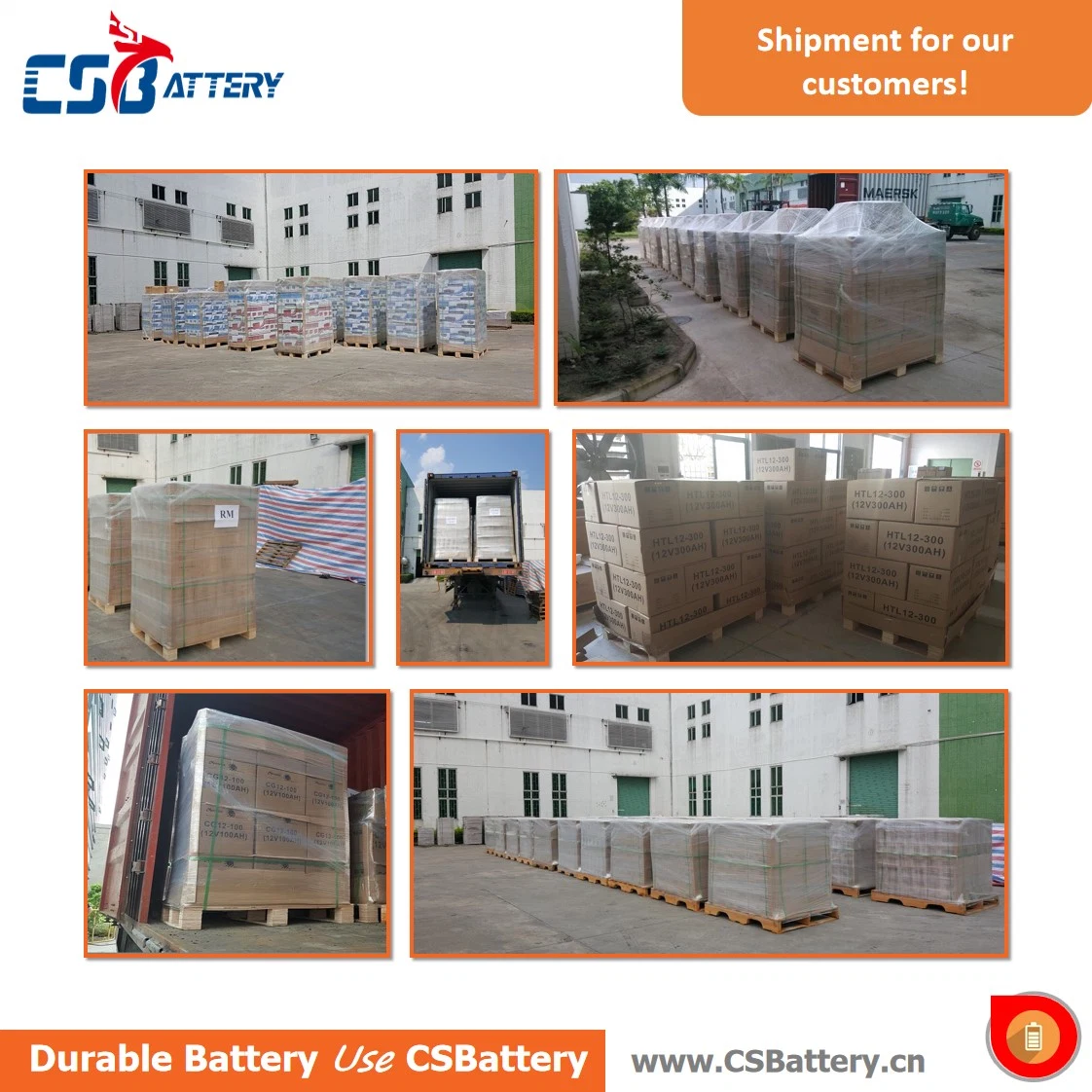

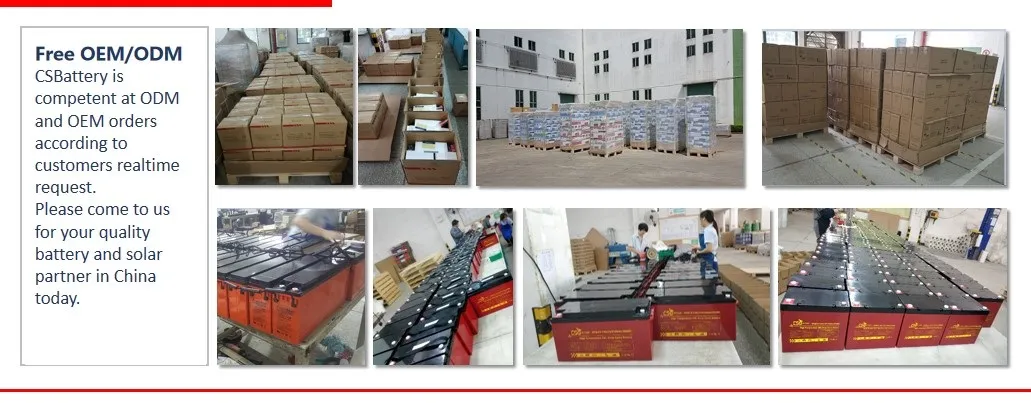

Packing & Factory
Model List - 12V Deep Cycle Series
| Model |
Voltage (V) |
Capacity (Ah) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
| DC12-55 | 12 | 55 | 229 | 138 | 208 | 16 |
| DC12-100 | 12 | 100 | 307 | 169 | 211 | 30.2 |
| DC12-150 | 12 | 150 | 484 | 171 | 241 | 45.5 |
| DC12-200 | 12 | 200 | 532 | 206 | 216 | 58.6 |
| DC12-250 | 12 | 250 | 520 | 269 | 203 | 71 |
| DC12-300 | 12 | 300 | 520 | 269 | 220 | 77 |
Frequently Asked Questions
Can the battery be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.
Can I fast charge my battery?
Fast charging is not recommended as it is harmful to the battery's chemical structure and reduces overall life span.
Can I do a partial replacement of my battery bank?
Partial battery replacement of lead-acid battery banks is not recommended. It is best to replace the entire set to ensure balanced performance.
How about the typical delivery time?
Usually about 7 days for stock products, around 20 days for half-container orders, and 30 days for full 20ft container products.
What is the shelf life of VRLA batteries?
VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without recharging. In hot climates, recharge every 3 months.
Why do batteries have different capacities at different hour rates?
Capacity is dependent on discharge current. A lower discharge current (like a 20-hr rate) allows the battery to deliver more total Ah than a high discharge current (like a 2-hr rate).
