Technical Overview
Battery Cell
280Ah Grade A+
Cooling System
Air Cooling
Dimensions
960*610*2000(mm)
Product Features
1
Safe & Reliable LiFePO4 Technology
Built with high-safety LFP 280Ah cells, offering superior thermal stability and a long cycle life (≥8000 cycles) to ensure consistent performance.
2

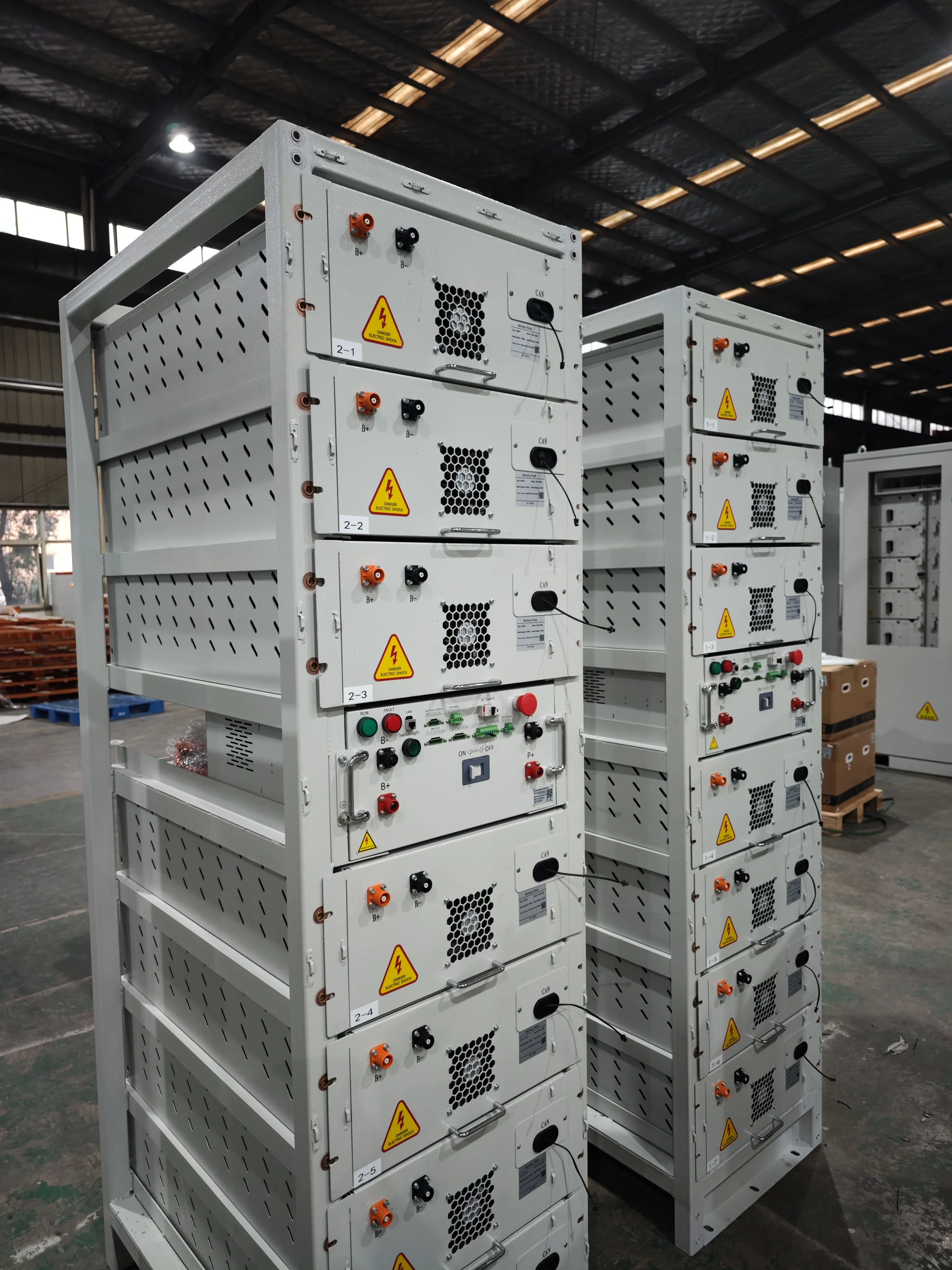

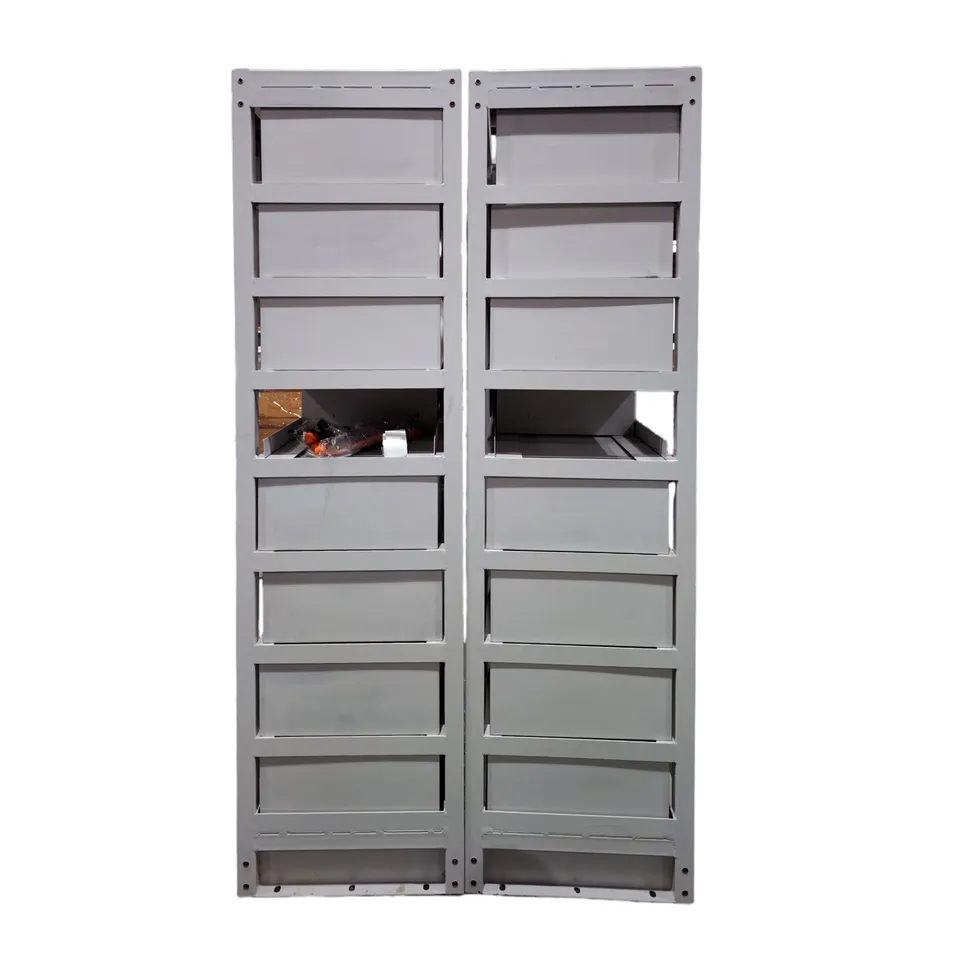

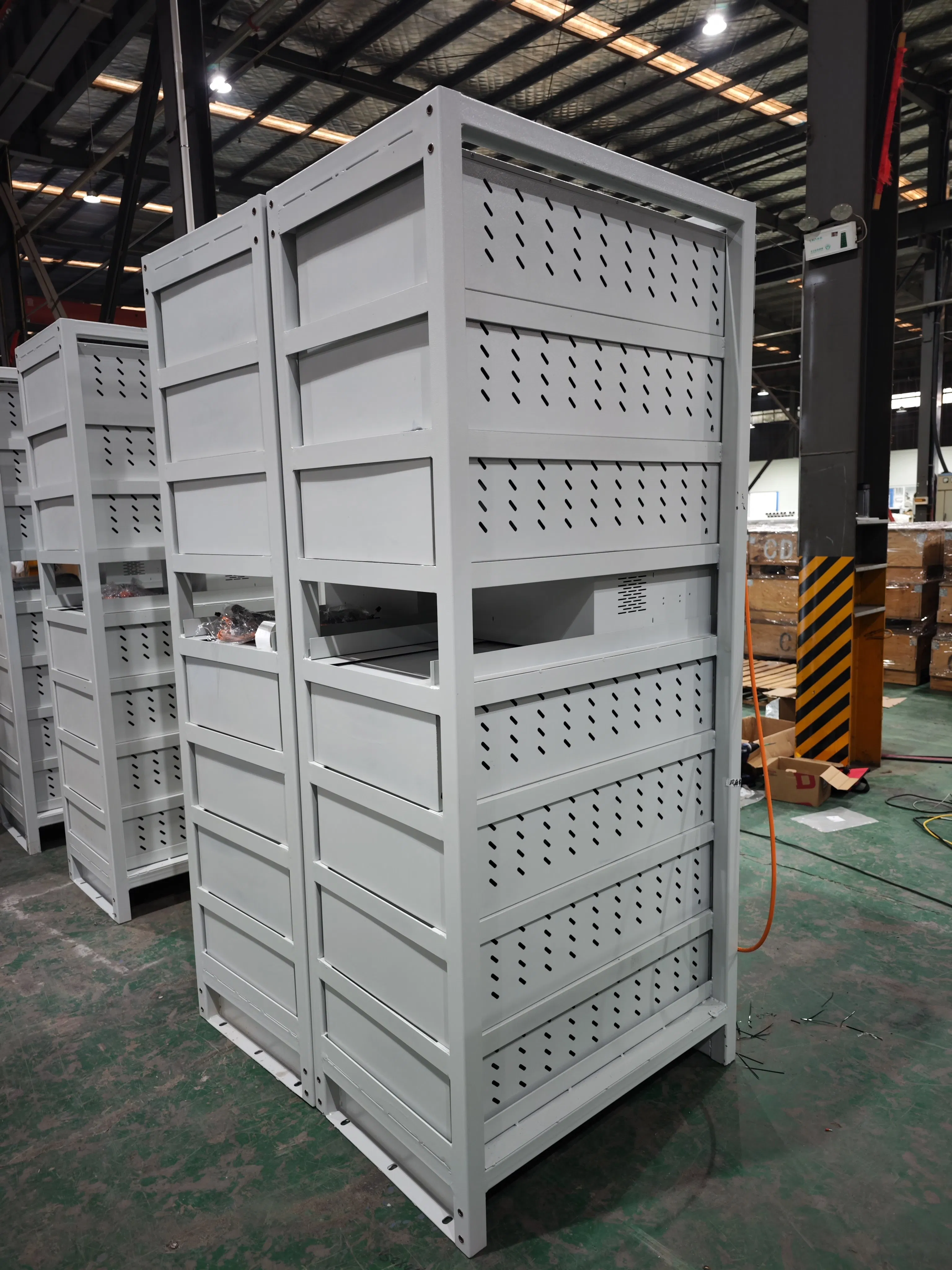

Compact Indoor Cabinet Design
Less than 1 m² footprint (approx. 0.55m²) enables flexible installation and easy transportation for diverse C&I applications.
3

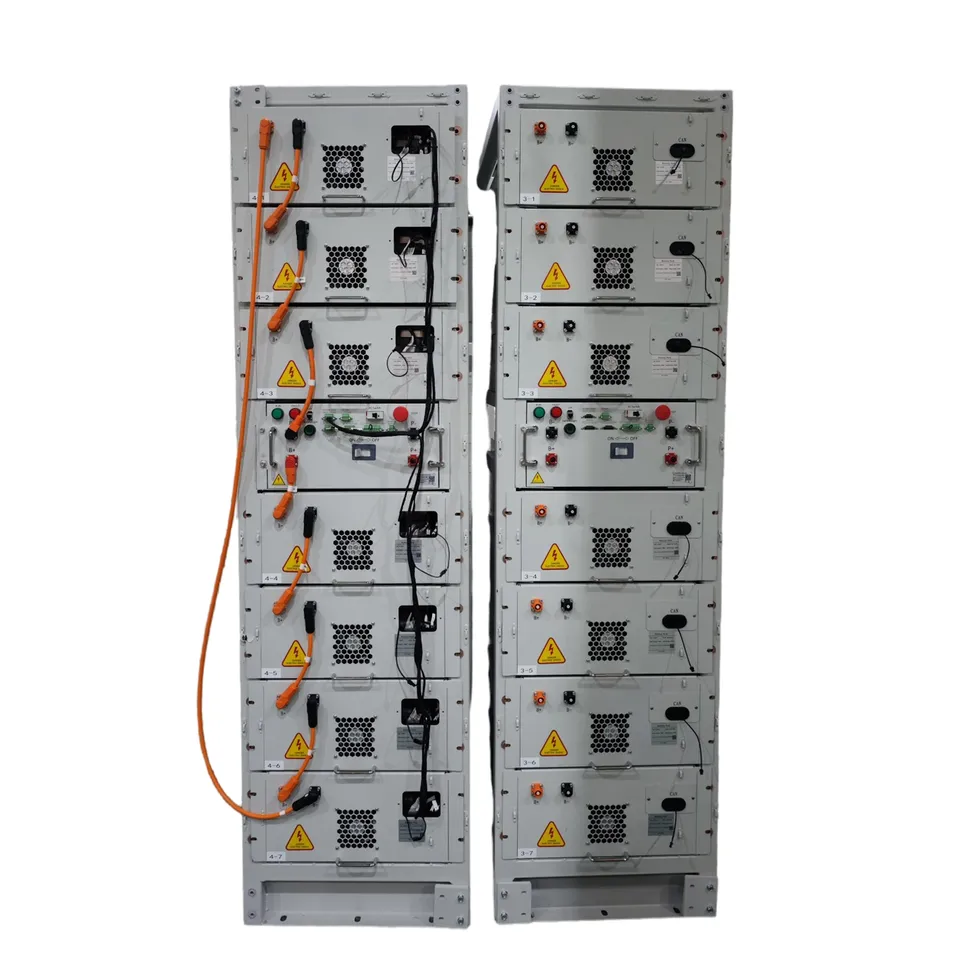

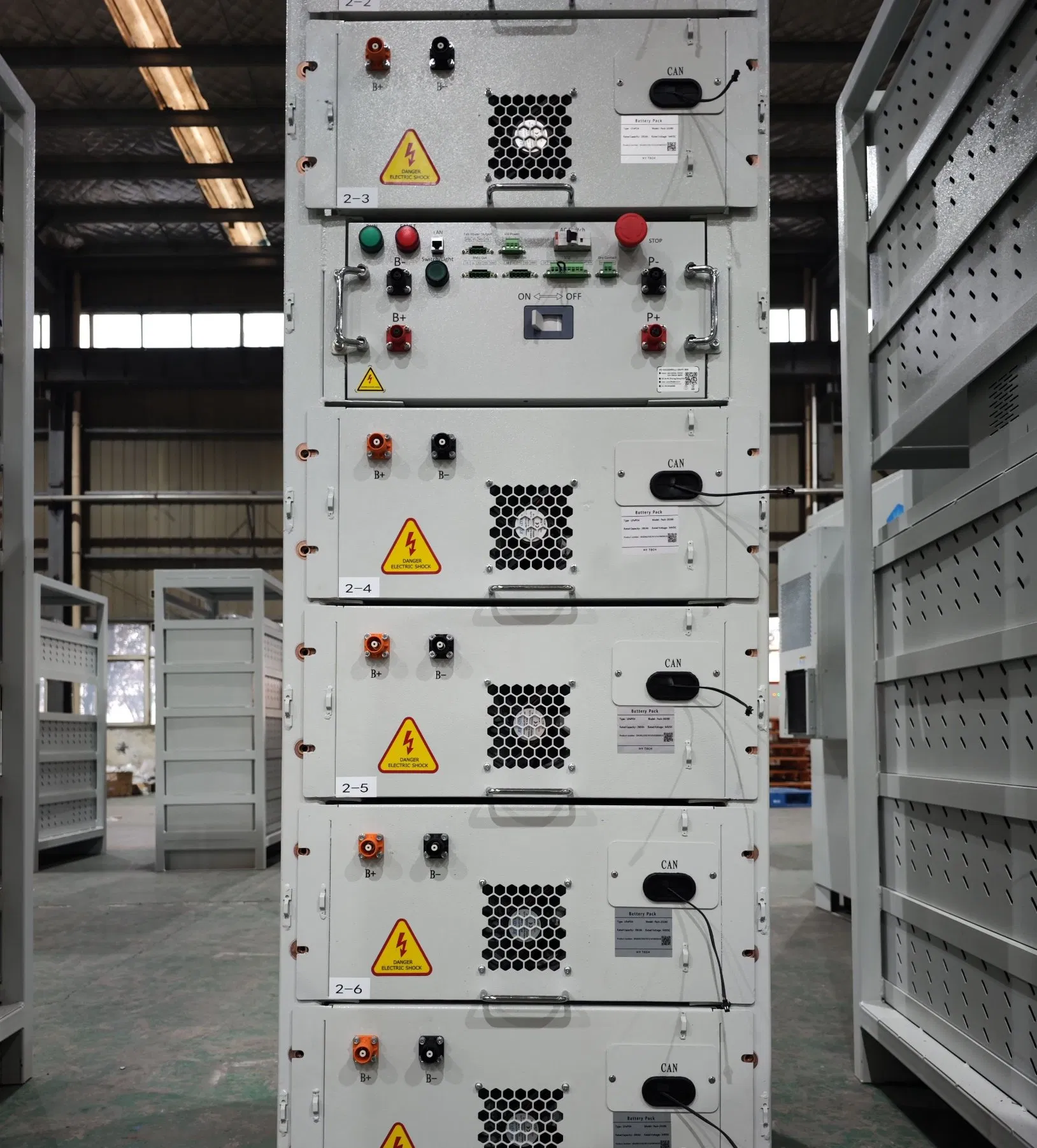

Modular & Scalable Architecture
Supports modular parallel expansion, enabling flexible capacity upgrades and adaptable deployment based on project needs.
4
Multi-Inverter Compatibility
Compatible with multiple brands of hybrid inverters for enhanced system flexibility and customized configuration.
5
Smart O&M and PV-Ready

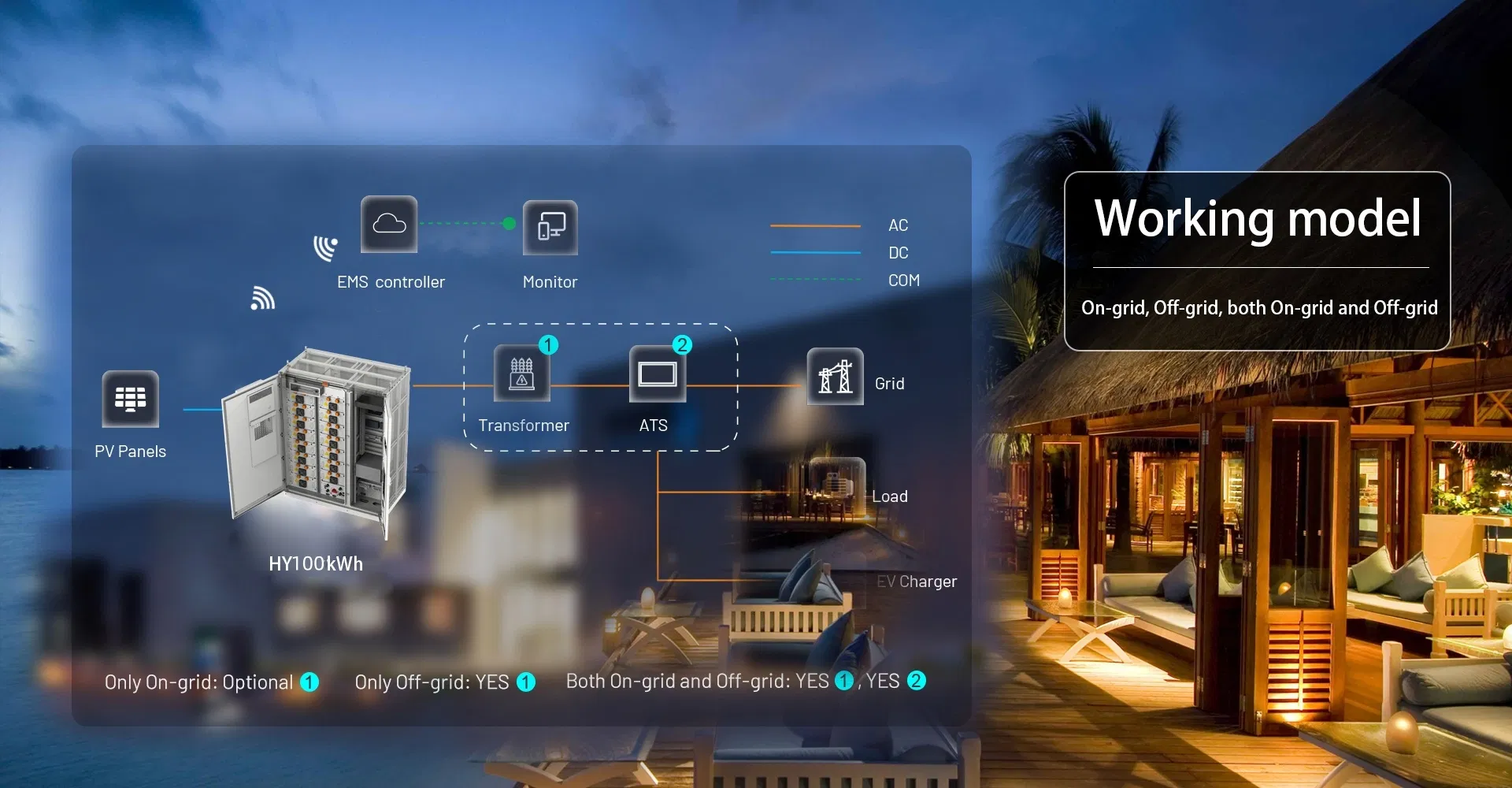

Plug-and-play PV connection for integrated solar + storage. Features onsite and cloud-based management for higher efficiency.
Technical Specifications
| Product Data Sheet |
| Model | DH-107kWh-50K |
| Rated Output Power | 50KW |
| Grid Type | Three Phase |
| Battery Capacity | 384V 107kWh |
| Battery Cell Type | 280Ah 1P 120S LiFePO4 |
| DC Side Voltage Range | 300-438V |
| Cooling System | Air Cooling |
| Protection Level | IP20 |
| Fire Protection Mode | Aerosol |
| Operating Temperature | 0 --- 60℃ |
| Max Working Altitude | 4000m |
| Communication | RS485, Ethernet, CAN, ModbusTCP/RTU |

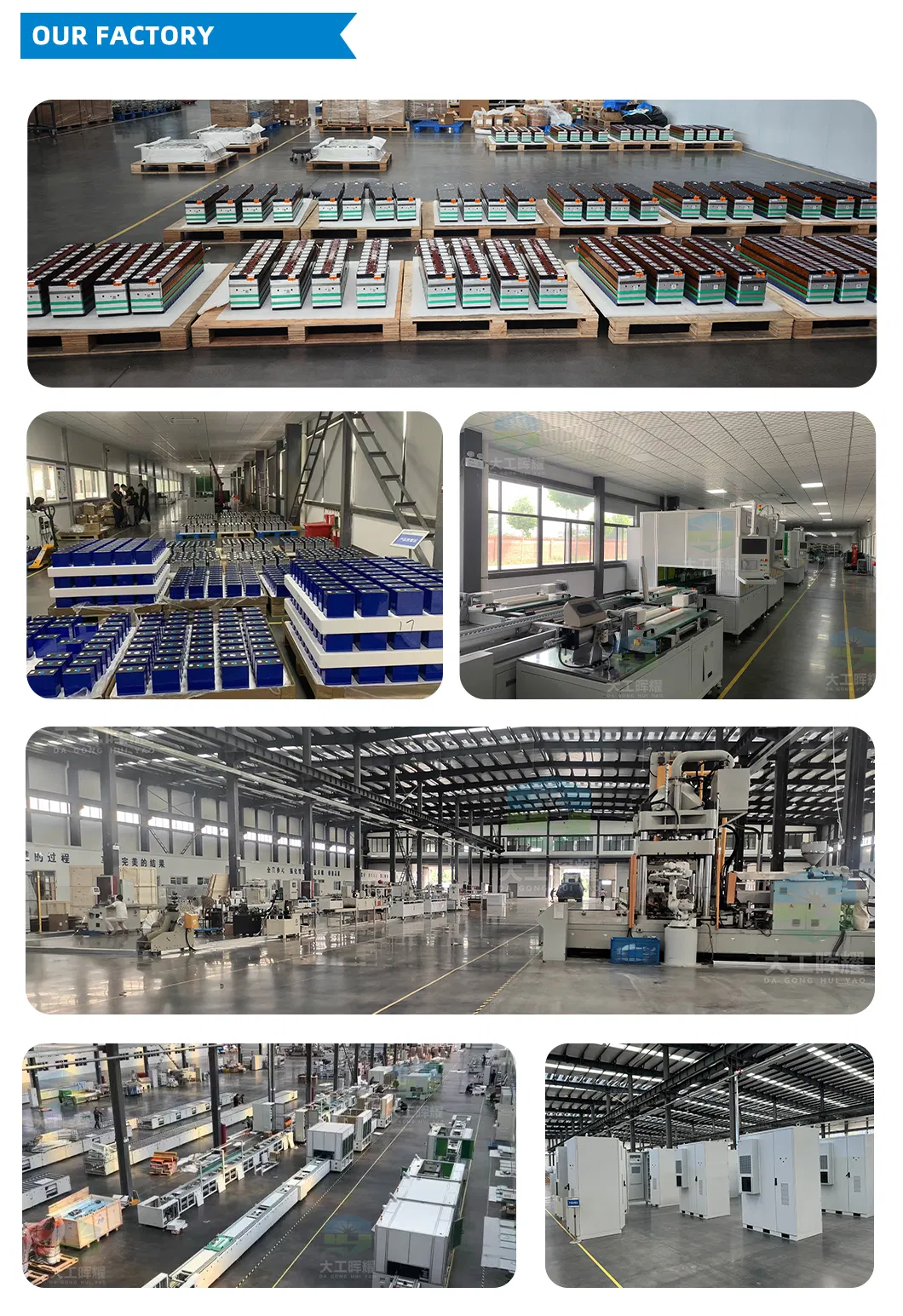

Professional Manufacturing
Frequently Asked Questions
Do I need to make electrical adjustments during the first start-up?
No adjustment is required. The parameters are preset at the factory, and the system will automatically adapt to standard operating conditions.
What kind of maintenance is required for the system?
The system is designed for automated operation. You can monitor performance via the local LCD screen or an optional WIFI module connected to the APP. No manual parameter changes are typically needed.
How do I calculate the solar requirements for my consumption?
For 4000kWh/year, daily use is approx 10.9kWh. For 2000kWh/year, it's approx 5.4kWh. We can determine the necessary solar panel count and battery capacity based on these daily consumption rates.
What is the after-sales policy for these systems?
Within the warranty period, product defects are handled via free replacement. Outside the warranty period, replacement parts are provided with a discount on the original price.
What are the minimum order requirements?
The Minimum Order Quantity (MOQ) for a complete solar energy system is 1 set. For individual solar components, the MOQ is 1 package.
What are the standard payment terms?
We typically accept T/T with a 30% deposit before production and the remaining 70% balance settled before delivery.
