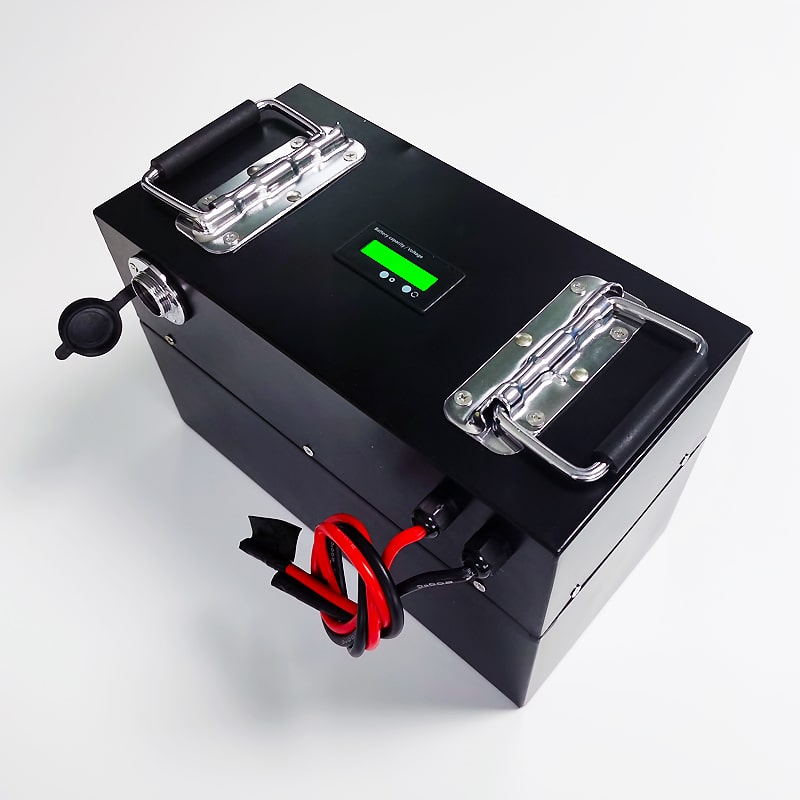

24s3p 72V 76.8V 18ah Rechargeable LiFePO4 Power Battery Pack with LCD Display

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO. LP768-180K-F(32650)
Rated Capacity 18ah / 18000mAh
Standard Voltage 72V / 76.8V
Battery Type LiFePO4 (Lithium Iron Phosphate)
Cell Specification 32650 3.2V 6000mAh
Composed Type 24S3P
Cycle Life 2000 ~ 3000 Times
Dimensions 300(T) x 190(W) x 150(H)mm

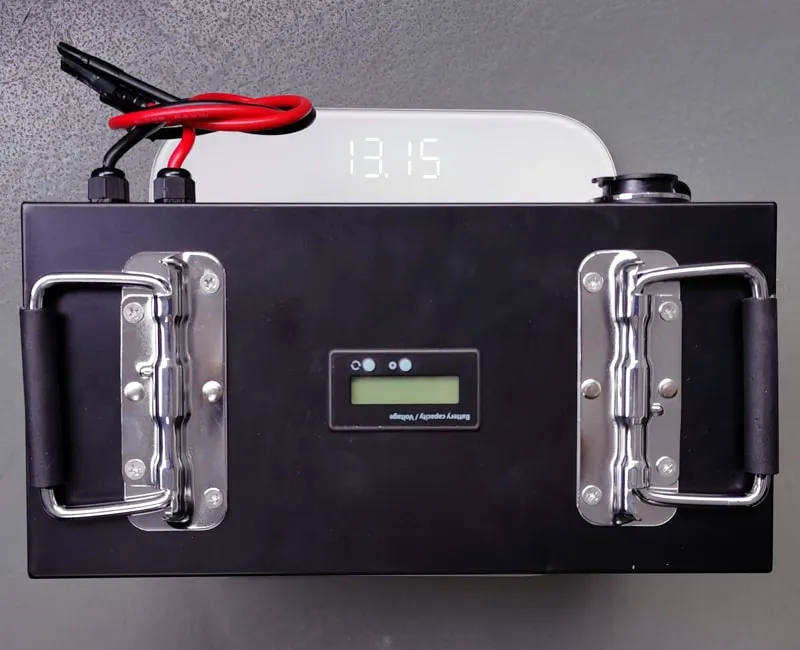

Weight 13.15kg
Usage Remote Control Boat, Plane, Car, Electrombile

Electrical Parameters

Max Charging Current: 20A
Continuous Discharge: 30A
Overcurrent Protection: 50±10A (Adjustable)
Overcharge Detection: 93.6±0.025V
Over-discharge Release: 60±0.05V
Balance Function: Yes (58mA±3mA per cell)
🔌

Recommended Charger Information

Model QW768-200-F
Input Voltage AC 100-240VAC 50/60Hz
Charging Mode CC/CV (Constant Current/Constant Voltage)
Charging Voltage 87.6V
LED Indicators Waiting: Green | Charging: Blue Flash | Full: Green | Error: Red Flash

Key Advantages

High safety performance with multiple testing passed (Short circuit, Overcharge, Thermal shock)
Long cycle life (up to 3000 times) and low self-discharge rate
Rugged black metal casing with GX25-2P waterproof charging socket
1.2m drop testing and 150C thermal shock test passed
📸

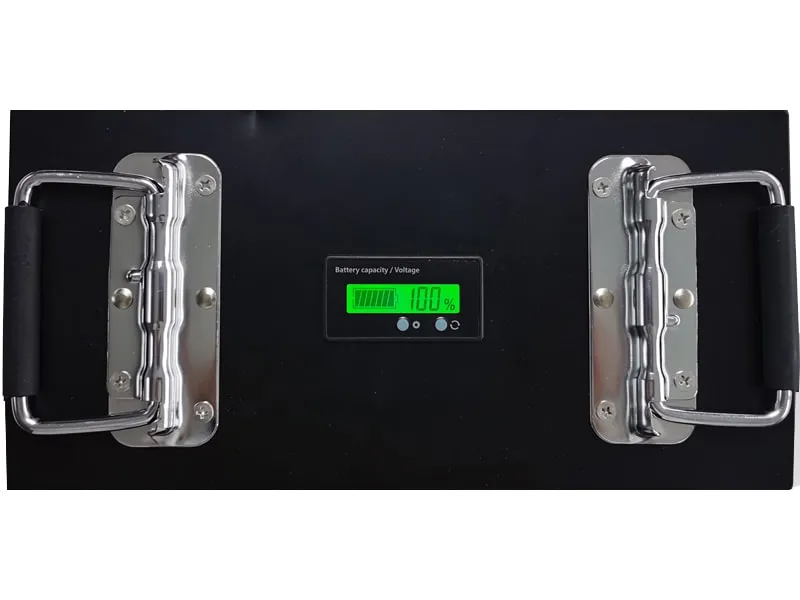

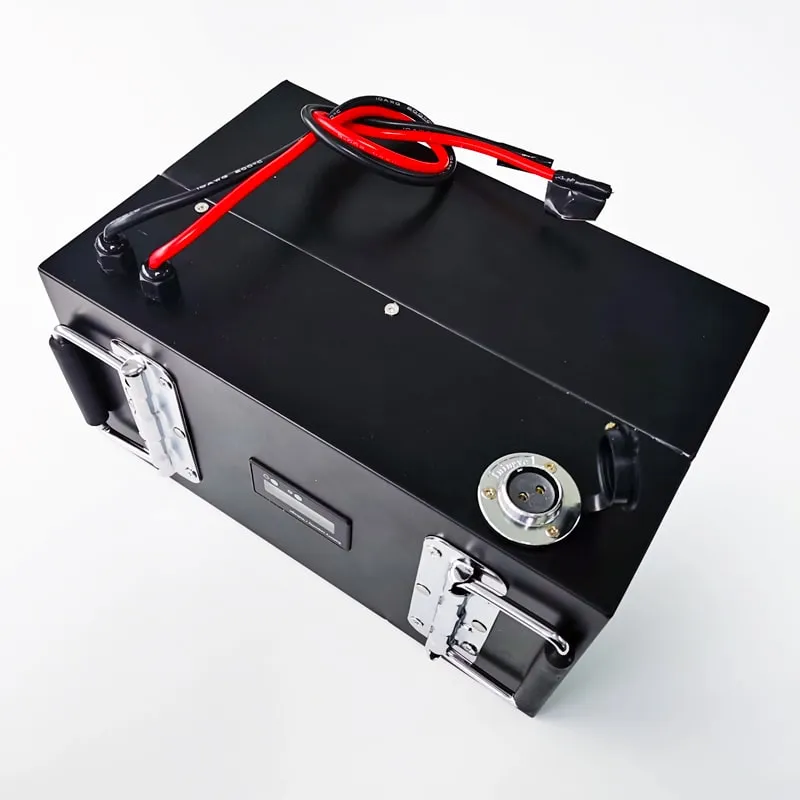

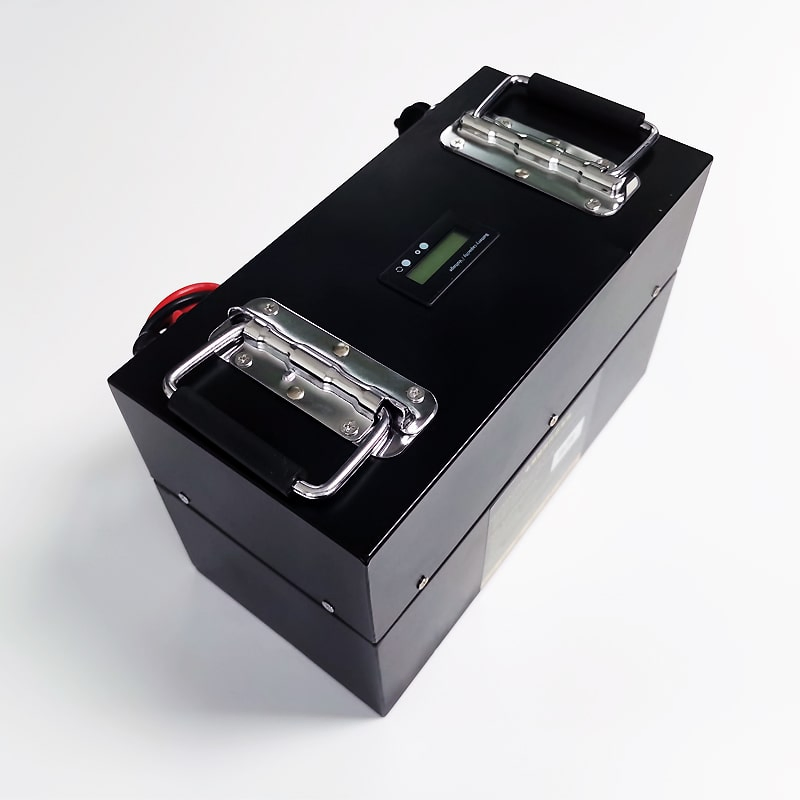

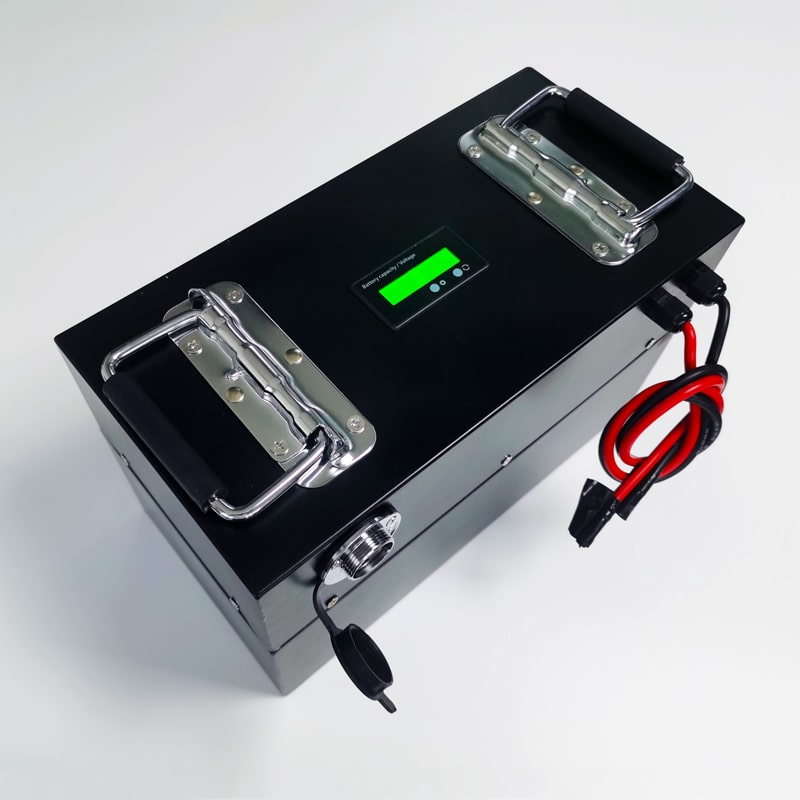

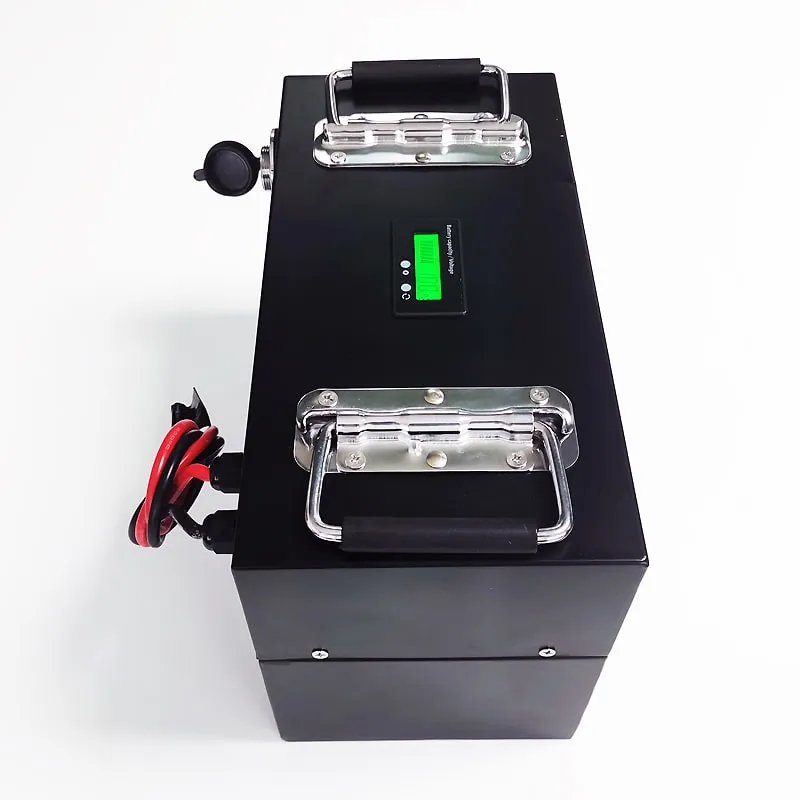

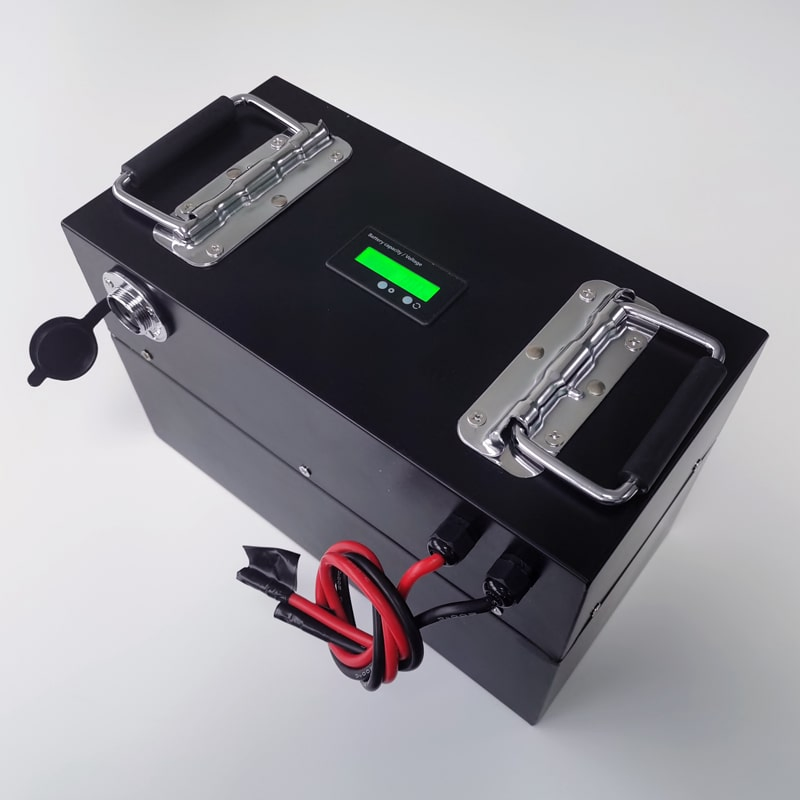

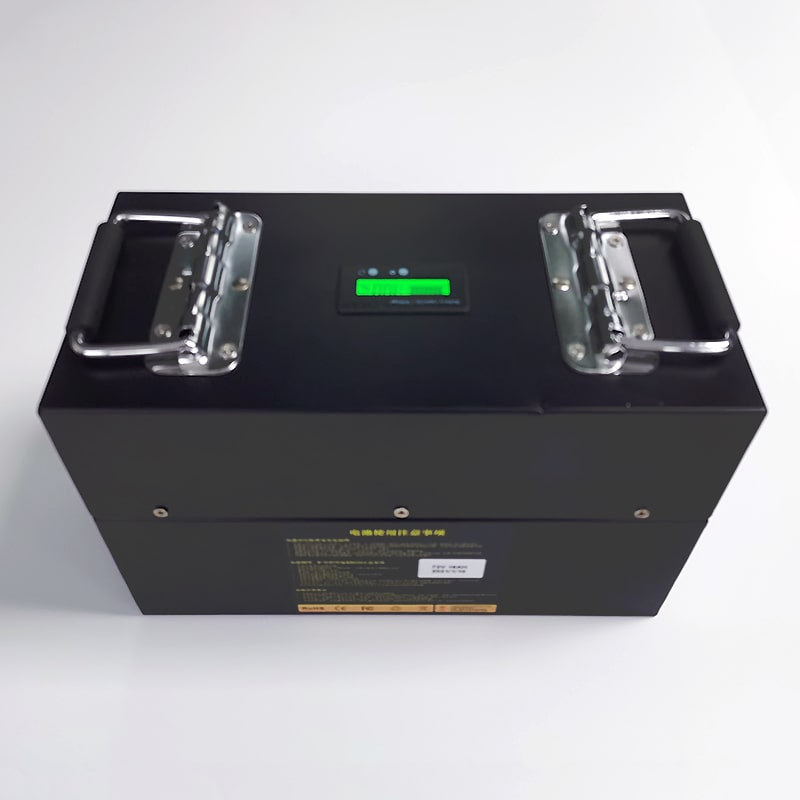

Product Gallery

⚠️ Safety Precautions

  • Do not throw battery into water or make it wet.
  • Keep the battery away from heat sources (like fire or heater).
  • Do not throw the battery into fire or heat the battery.
  • Forbid to hammer or trample the battery.
  • Forbid disassembling the battery in anyway.

Frequently Asked Questions

What is the cycle life of this LiFePO4 battery pack?
The battery pack offers a long cycle life of 2000 to 3000 times under standard conditions.
What applications is this 72V 18Ah battery suitable for?
It is ideal for high-power remote control boats, planes, cars, and various electromobile vehicles.
Does the battery pack include a protection system?
Yes, it features a built-in BMS that provides overcharge detection, over-discharge release, and overcurrent protection (50±10A).
What kind of charger should I use for this pack?
We recommend using a CC/CV charger with a 87.6V charging voltage and a maximum current of 20A.
Is the charging port waterproof?
Yes, the battery uses a GX25-2P charging socket equipped with a waterproof cap for extra protection.
What safety tests has this battery passed?
This model has passed multiple rigorous tests including 1.2m drop testing, 150C thermal shock, short circuit, and overcharge testing.
