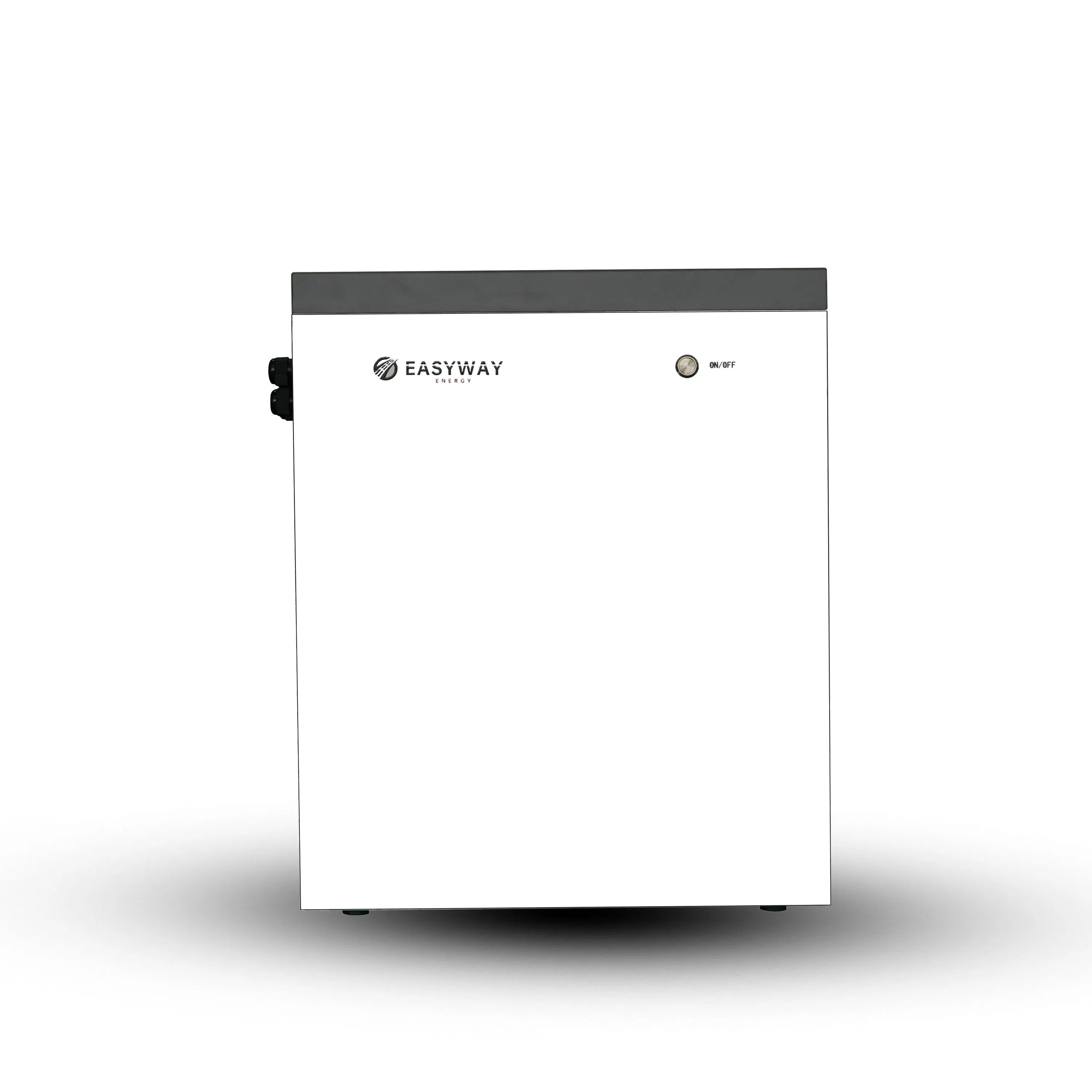

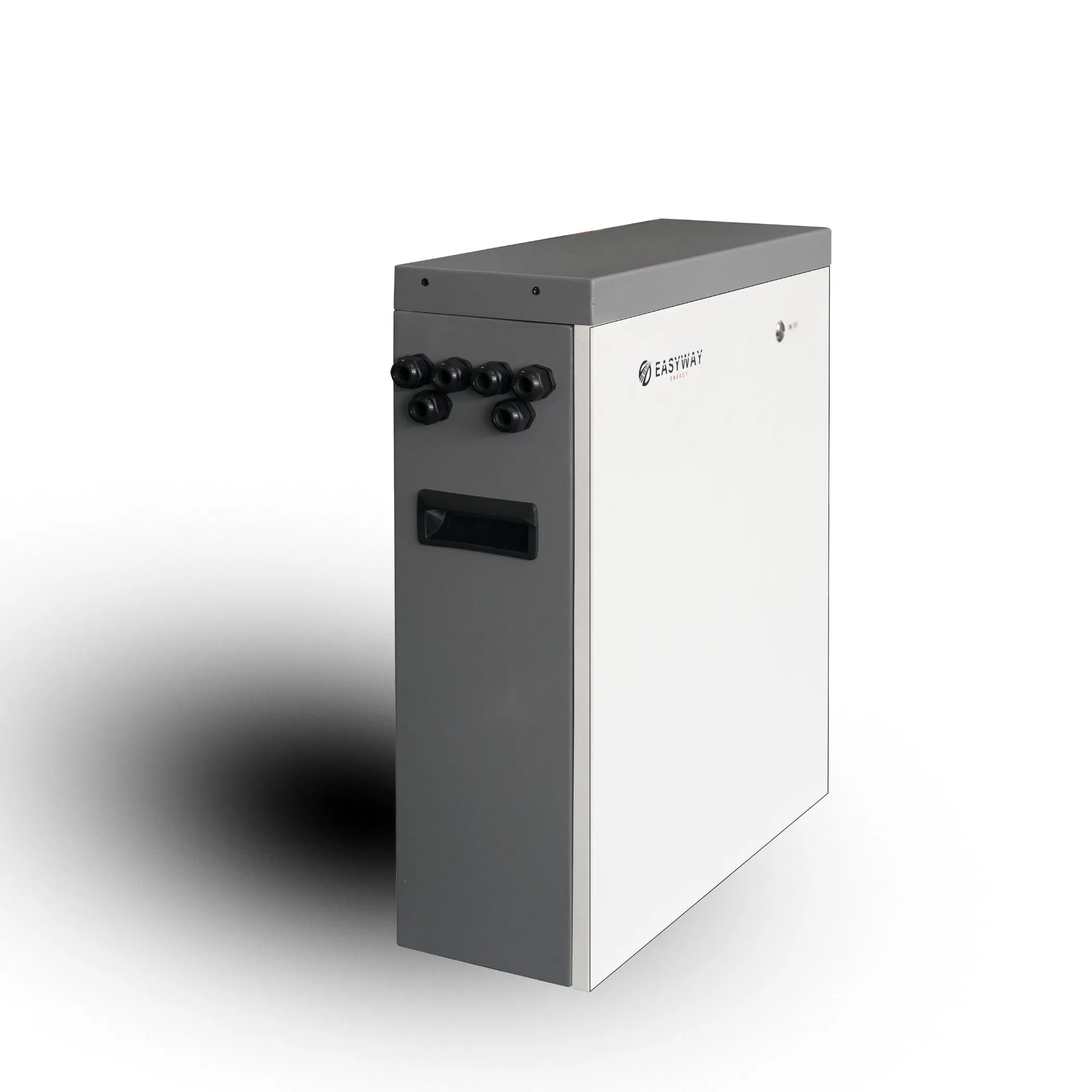

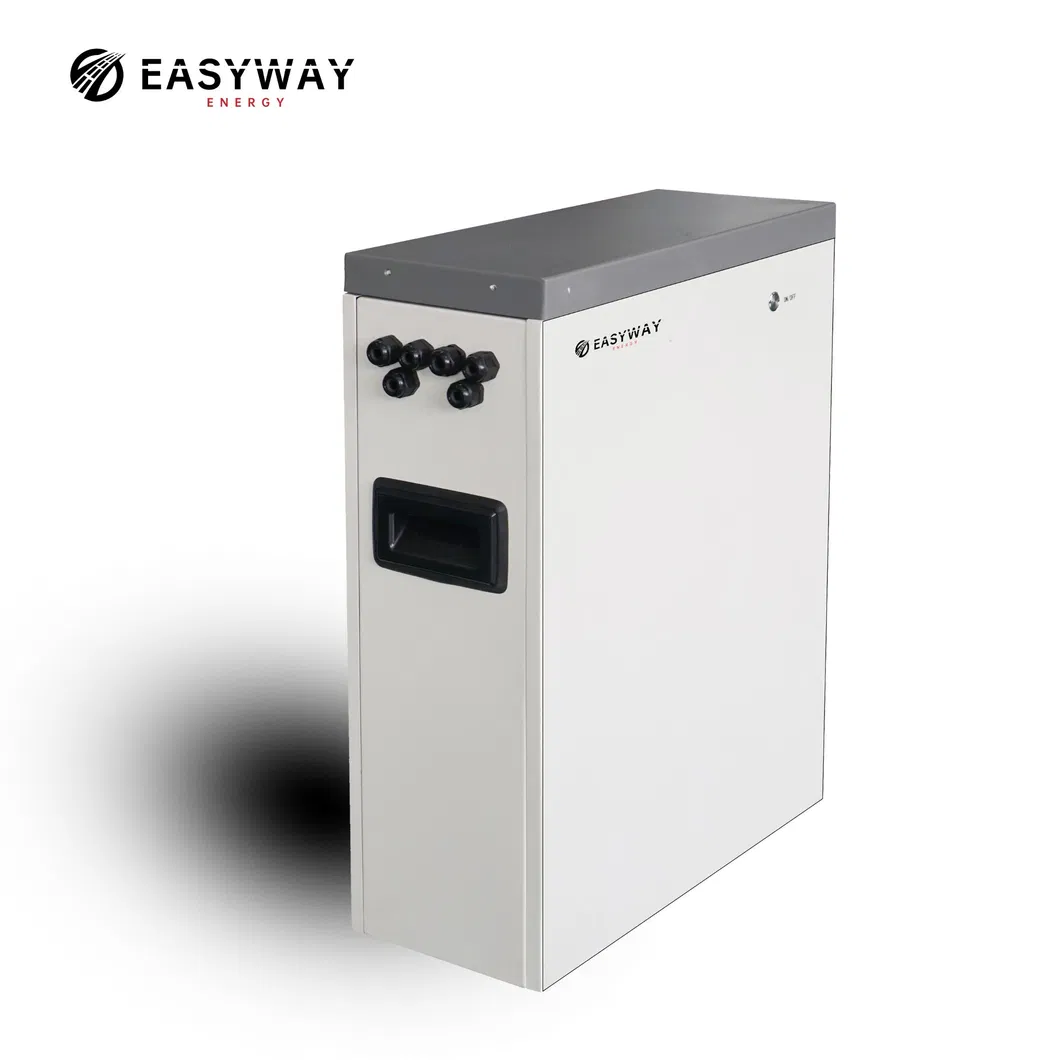

The LIFEPO4 PowerWall battery is a fashionable home energy storage solution designed for residential use. Equipped with a smart BMS to monitor battery status and provide multiple protections, the UNIV PowerWall series allows parallel connection to enhance capacity. It features easy monitoring of working conditions via uplink and optional Bluetooth. Its extraordinary compatibility with extensive inverter brands ensures seamless integration into your energy system for a reliable and continuous power supply.
| Model | UNIV-3.6kWh/LV(W) | UNIV-5.12kWh/LV(W) | UNIV-10kWh/LV(W) |
|---|---|---|---|
| Total energy(DC) | 3.6kWh | 5.22kWh | 9.9kWh |
| Usable energy(DC) | 3.4kWh | 5.1kWh | 9.7kWh |
| Norminal voltage | 48Vdc | 51.2V | 48V |
| Rated Capacity | 75Ah | 102Ah | 206Ah |
| Weight | 41kg | 57kg | 94kg |

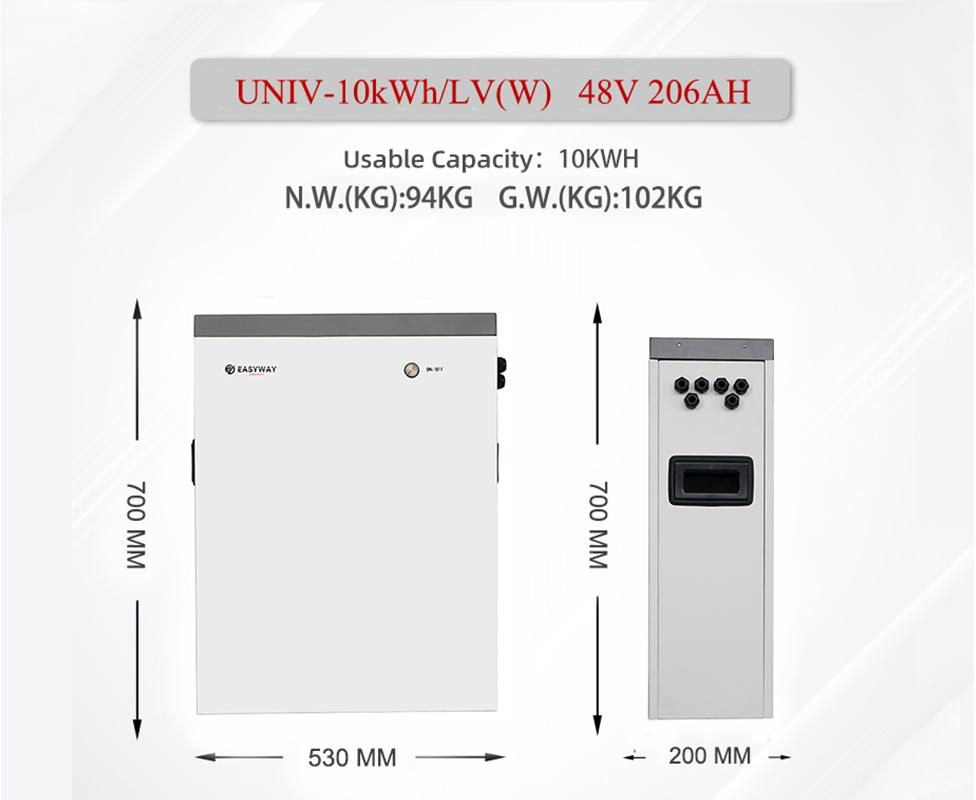

| Dimension(mm) | 500x600x180 | 500x600x180 | 530x700x200 |
| Operating temperature | 0--50ºC(charge); -20-- 60ºC(discharge) | ||
| Cooling type | Natural cooling | ||
| IP rating | IP55 | ||
| Parallel Capacity | Up to 16P | ||
| Life span | >15 years | ||
| Brand | Protocol Name | Communication |
|---|---|---|
| Pylontech | CAN-Bus-protocol-PYLON | CAN |
| Goodwe | Goodwe communication protocol | CAN |
| Solis | CAN communication protocol | CAN |
| SUNGROW | CAN-Bus-protocol-PYLON | CAN |
| Growatt | Growatt BMS CAN-Bus-protocol | CAN |
| Victronic | Voltronic Inverter and BMS 485 | 485 |
| Deye | Deye RS485-protocol-pylon | 485 |
| Luxpower | Luxpowertek Battery CAN Protocol | CAN |
