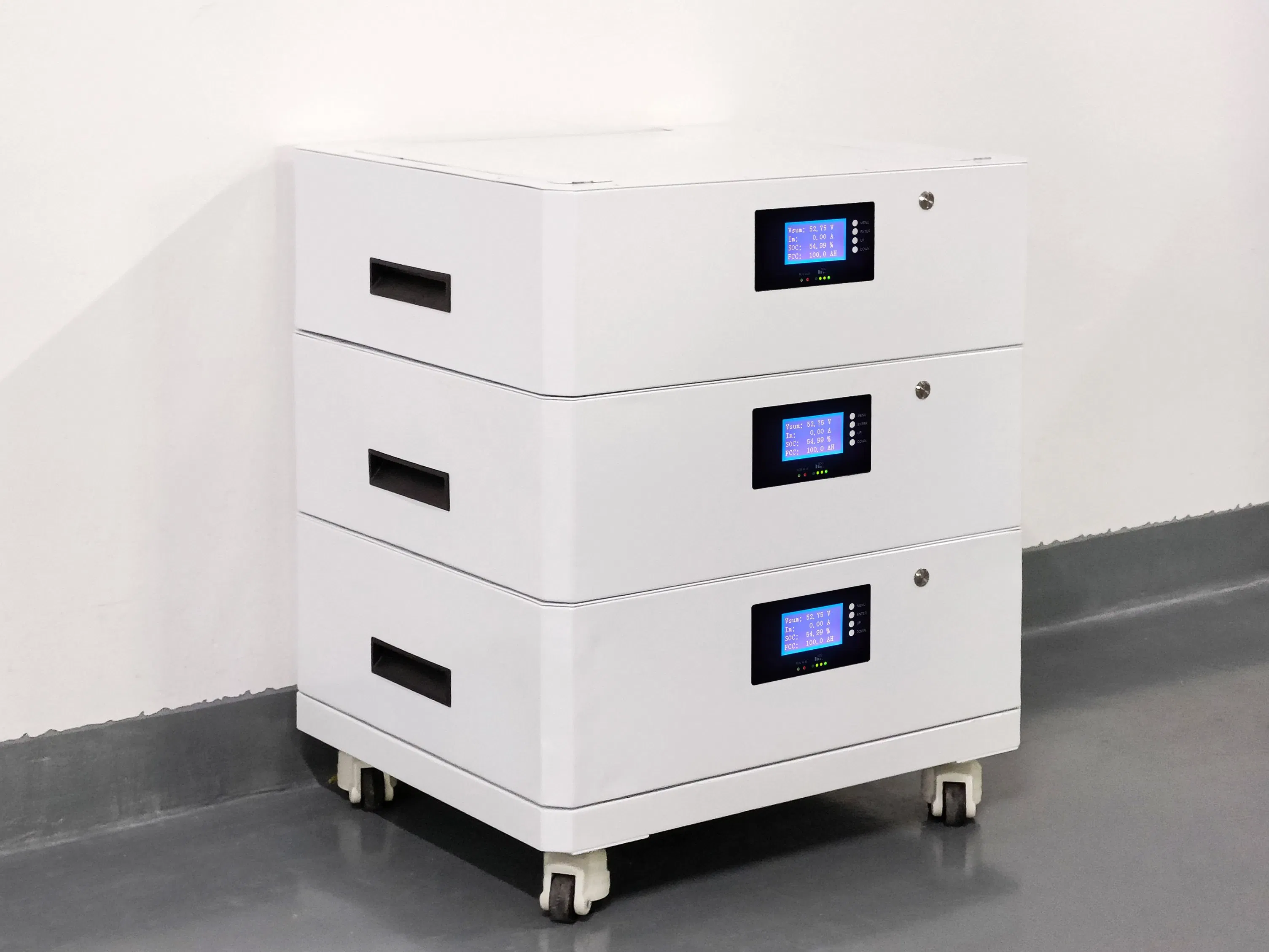

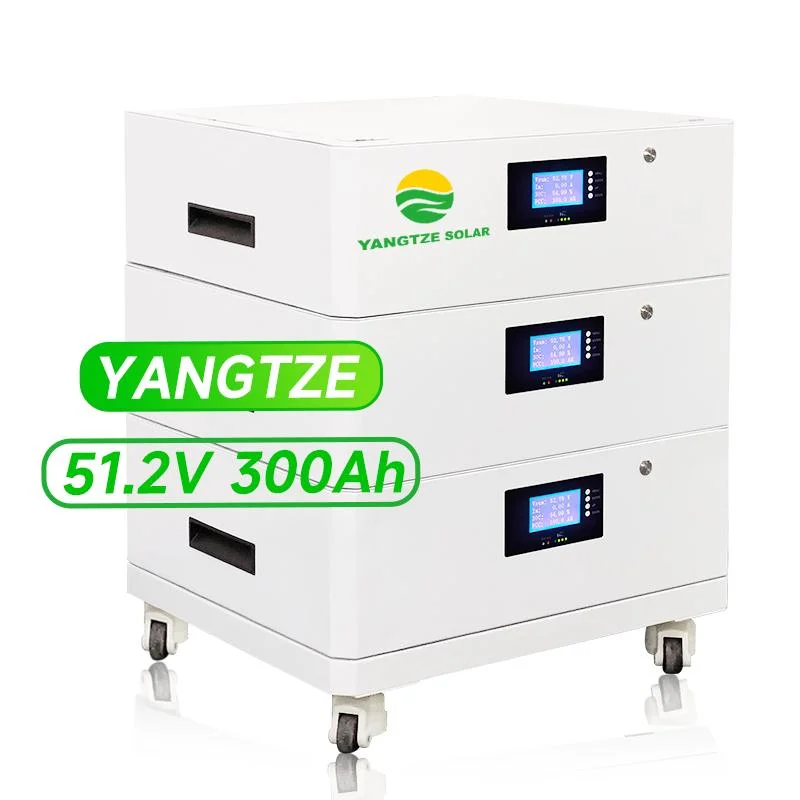

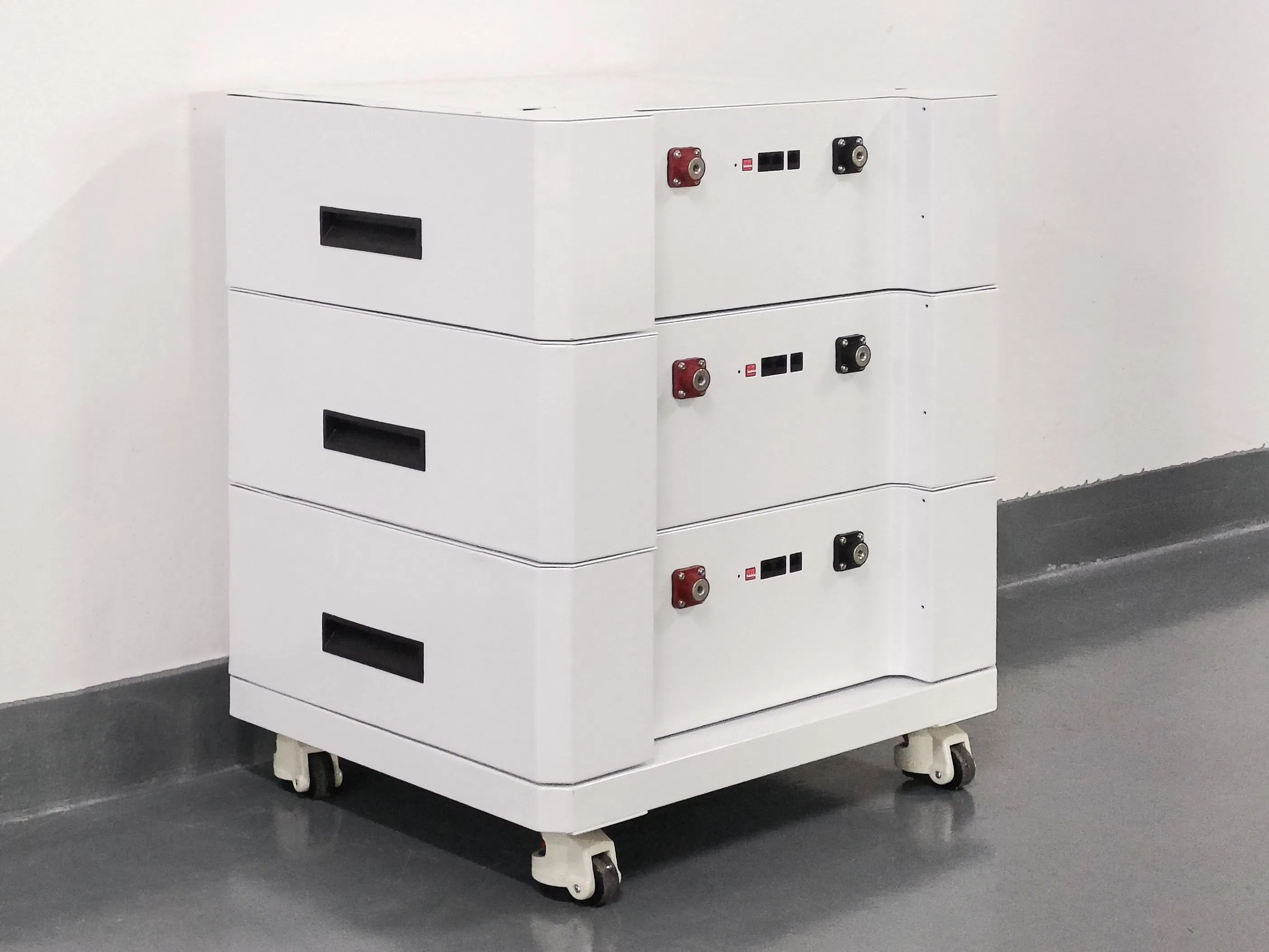

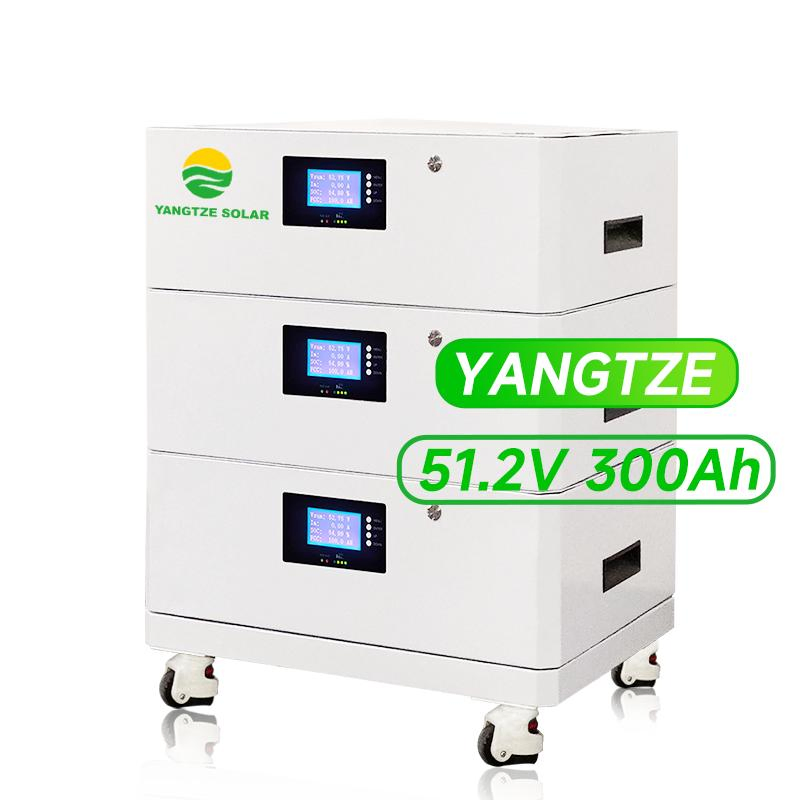

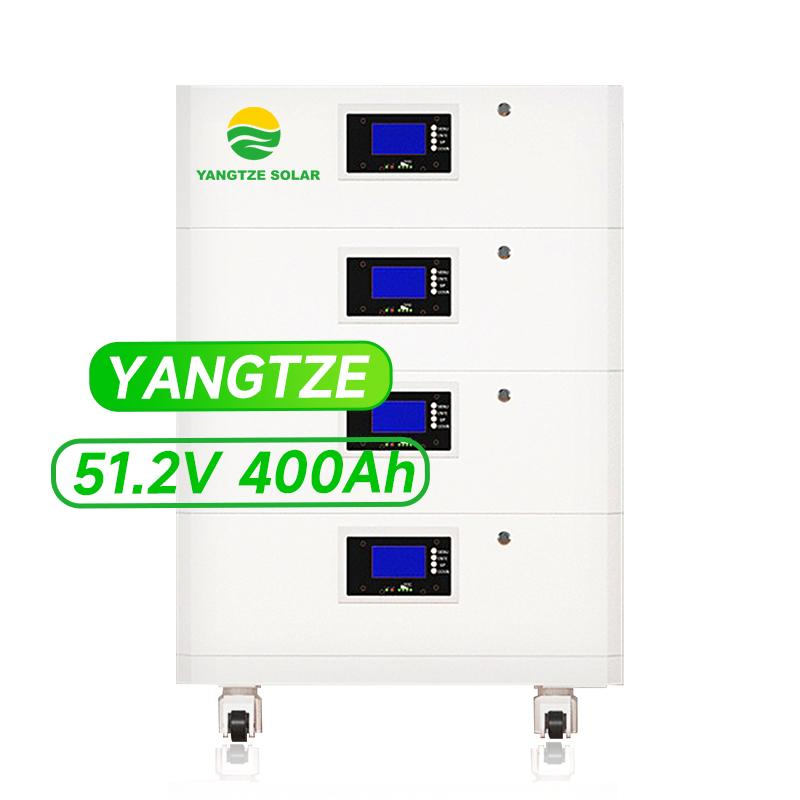

Yangtze Energy Storage Solar Battery LiFePO4 48V 300ah Lithium Ion Battery Pack

Still deciding? Get samples of $ !
Request Sample

Product Description

Energy Storage Solar Battery LiFePO4 48V 300ah
i

Basic Specifications

Model NO. LFeLi-48300S Nominal Voltage 48V
Discharge Rate Medium Discharge Rate Shape Square Battery
Electrolyte Li-ion Installation Fixed
Rechargeable Chargeable Maintenance Free
Warranty 5 Years Terminal Copper
Certificate CE / RoHS / ISO9001 / ISO14001 / IEC60896 / IEC61427

Key Features

Longer Cycle Life Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost.
Lighter Weight About 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.
Higher Power Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Superior Safety Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.

Technical Parameters

Electrical Characteristics Details
Standard Parameters Nominal Voltage 51.2V
Nominal Capacity 300Ah
Energy 15360Wh
Cycle Life >3500 cycles @ 1C 80% DOD
Charge & Discharge Charge Voltage 58.4±0.2V
Max. Charge Current 100A
Max. Pulse Current 200A (<3s)
Physical Dimensions 565*460*540mm / Customized
Approx. Weight 138kg
Environment IP Class IP65

Product Performance & Applications

Battery Performance Details
Battery Applications 1
Battery Applications 2
Manufacturing Standards
?

Frequently Asked Questions

What is the expected cycle life of this 48V 300Ah battery?
The battery offers an exceptional cycle life of more than 3,500 cycles at 80% Depth of Discharge (DOD) at a 1C rate.
How does the weight compare to traditional lead-acid batteries?
This lithium battery is significantly lighter, weighing approximately 40% of the weight of a comparable lead-acid battery, making it a convenient "drop-in" replacement.
What are the primary applications for this battery pack?
It is designed for solar and wind energy storage, back-up power for small UPS systems, electric wheelchairs, scooters, golf trolleys, and electric bikes.
What is the operating temperature range?
The battery operates efficiently in a wide temperature range: Charge temperature from 0ºC to 55ºC and Discharge temperature from -20ºC to 60ºC.
What safety features are included?
The Lithium Iron Phosphate (LiFePO4) chemistry is inherently safe, eliminating risks of explosion or combustion even under high impact or short circuit conditions.
What is the warranty period for this product?
This battery comes with a 5-year warranty, ensuring long-term reliability and performance for your energy needs.
