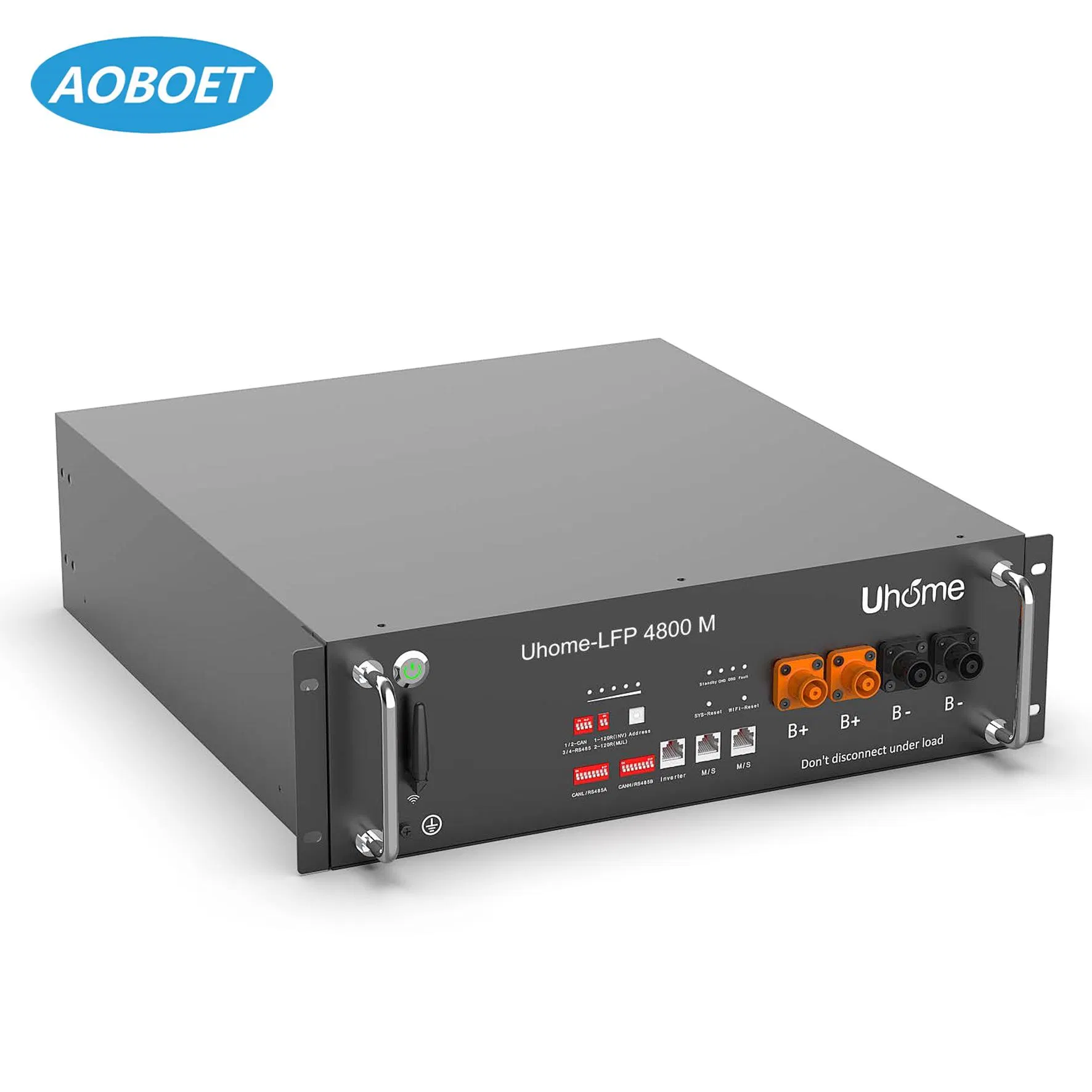

48V 100ah LiFePO4 Lithium Ion Modular Catl Cells Solar Energy Storage Battery 48V Lithium Ion Golf Cart Batteri Pack with BMS

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications

Model NO.
Uhome-LFP 4800M
Total Energy*
9.6kwh
Usable Energy(DC)*
9.2kwh
Nominal Power
4.8kw
Peak Power
9.6kw for 3sec
Nominal Voltage
48vd.C
Voltage Range
45~54.8vd.C
Nominal Current
200A
Max. Parallel
16 Units
Communication
CAN / RS485
Cooling Type
Natural Cooling
Weight
78kg
Dimensions
440*223*590 mm
Cycle Life
6000+ @ 80% DoD

Product Overview

48V 100ah LiFePO4 Lithium Battery
Digital Monitoring System APP Support
High Inverter Compatibility
Brand New Grade A Cells from World Top Tier 1 Manufacturers
CANbus & RS485 Standard Connection
Flexible Assembly: Series or Parallel up to 16P
10 Years Limited Warranty Support
Battery Panel Details

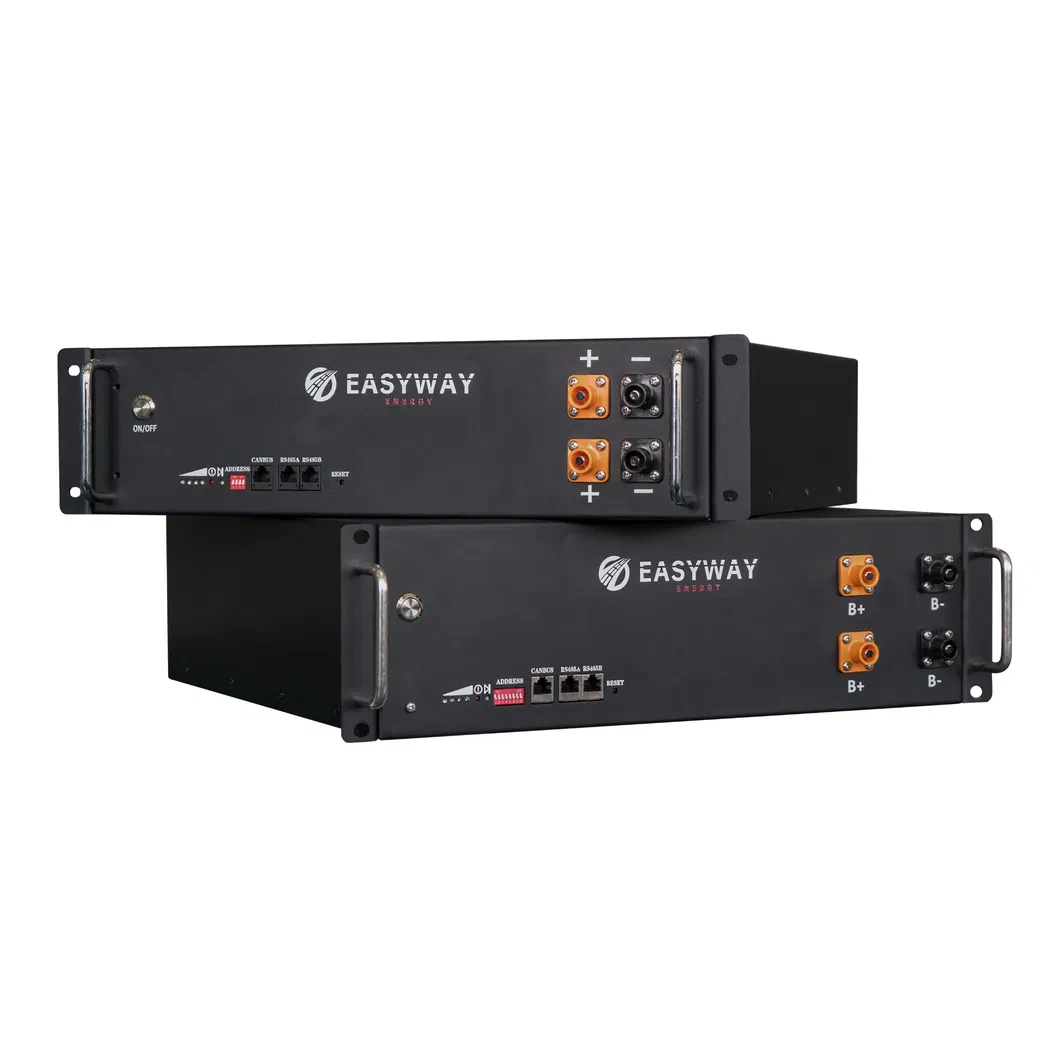

Module View

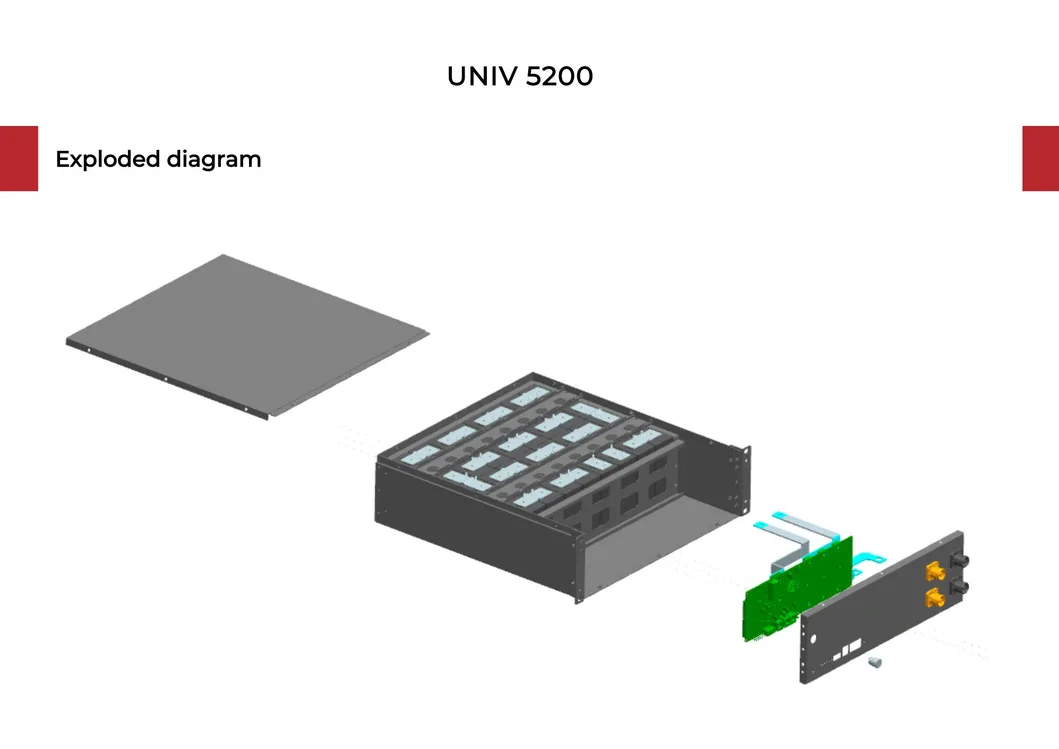

Internal Components

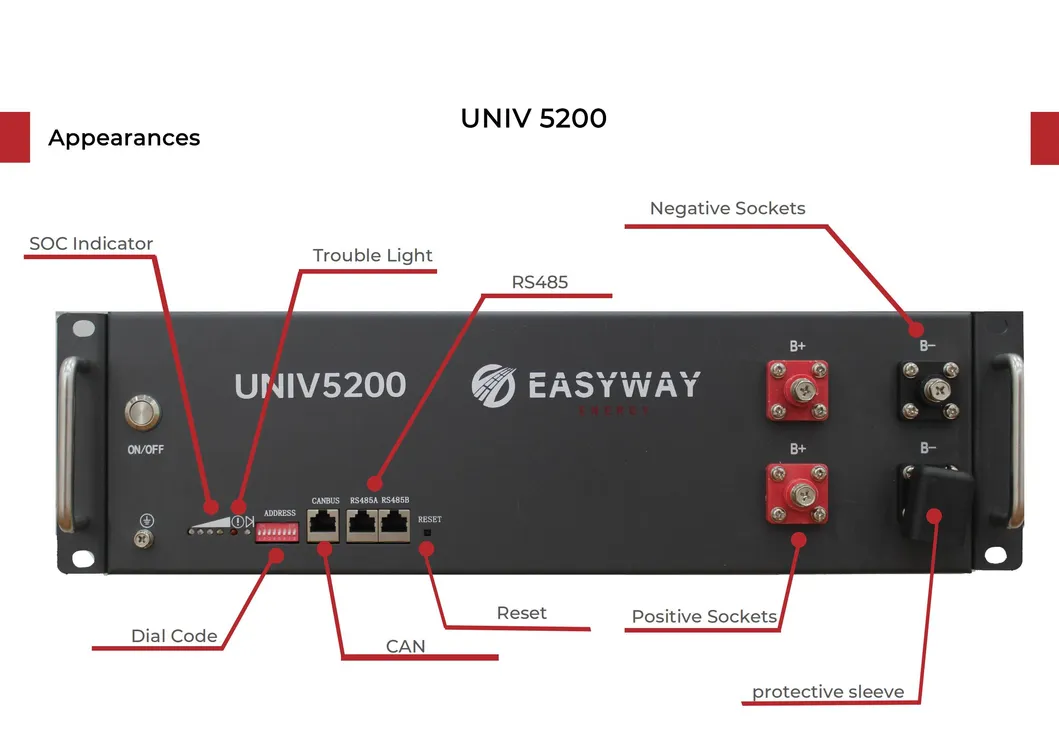

Side View

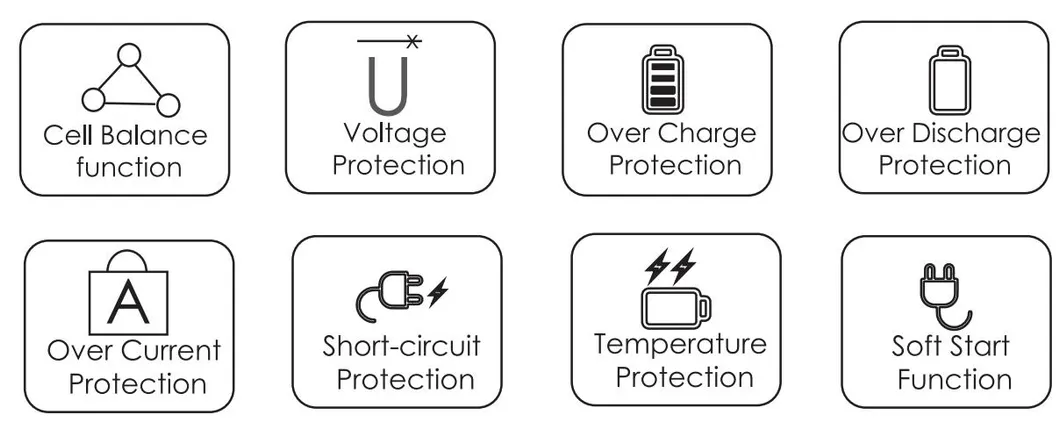

Safety Features
Performance Chart

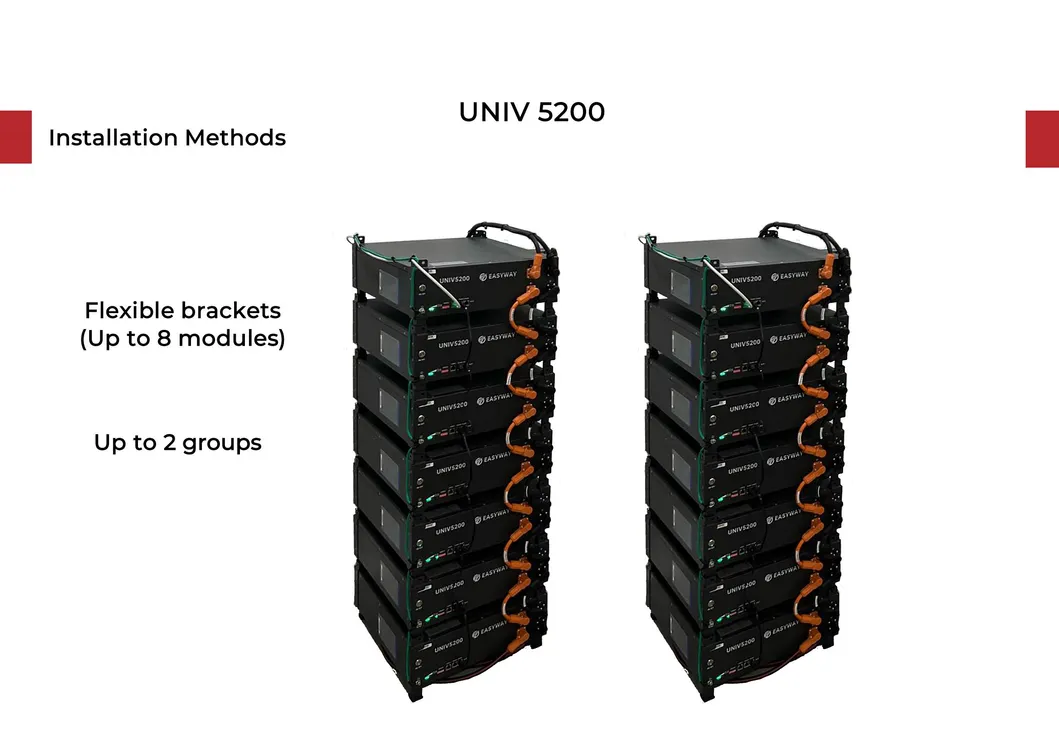

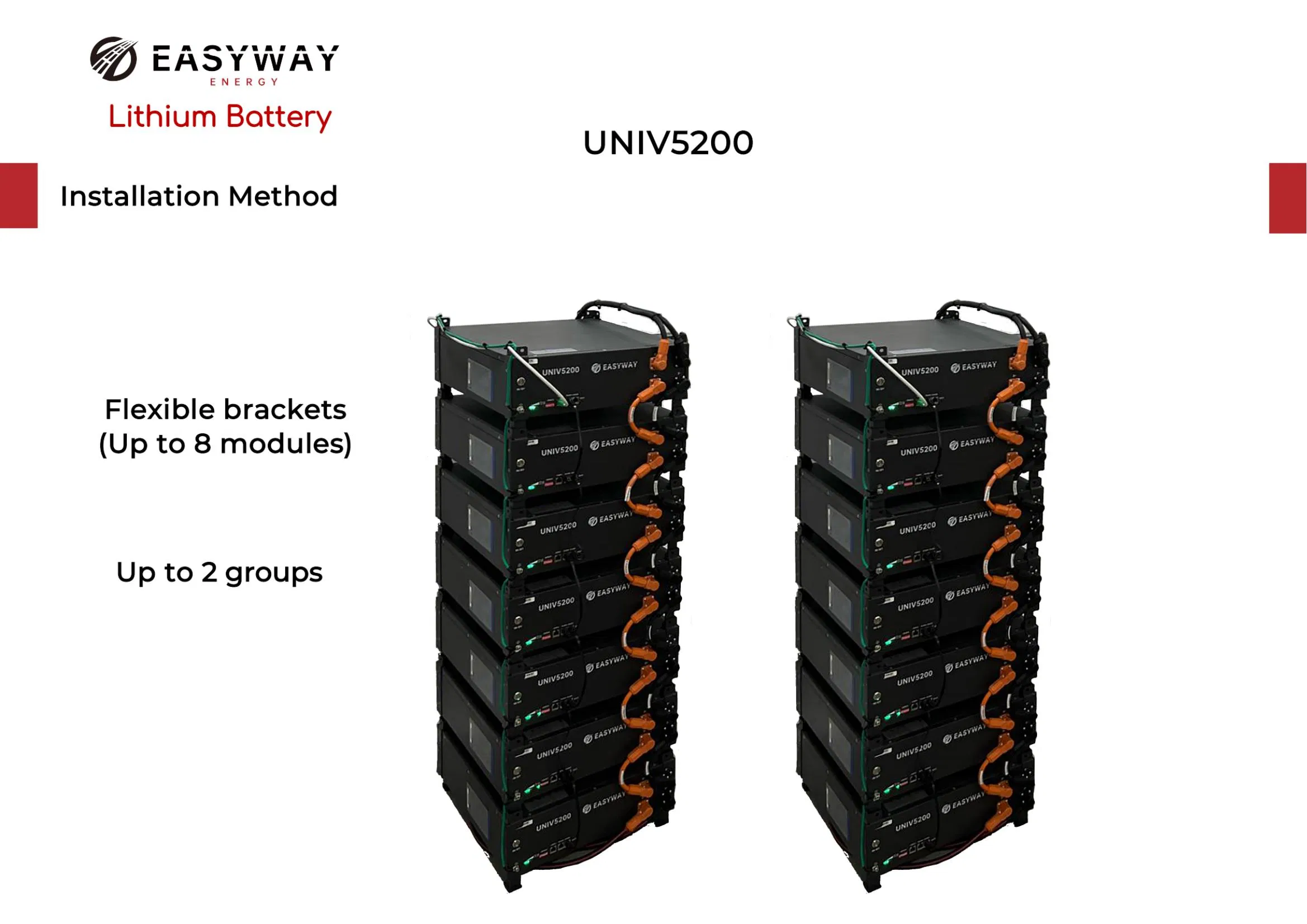

Battery Stack

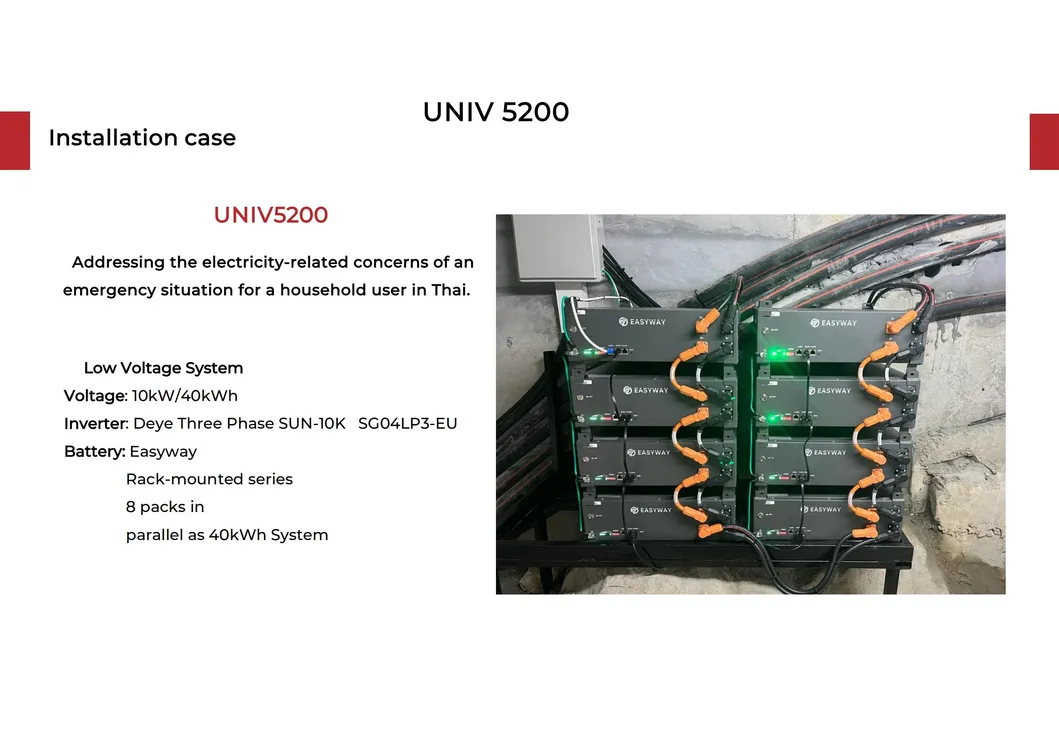

Installation Example

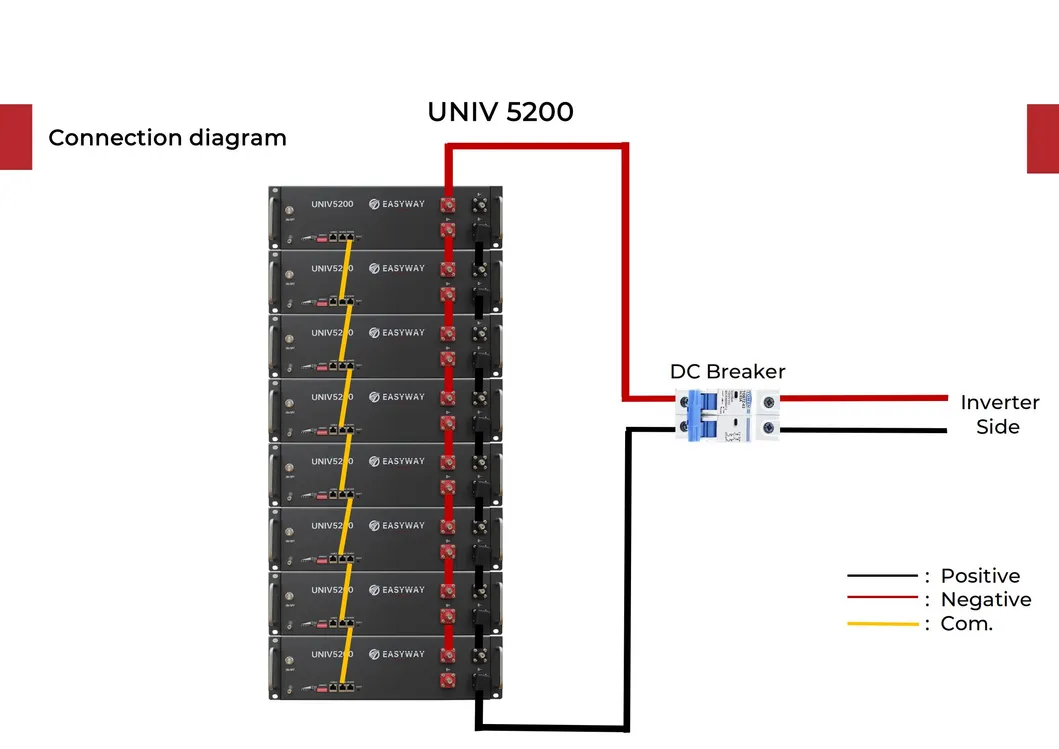

System Connection
Certification Details Quality Standards
Dimensions Guide

Production & Quality

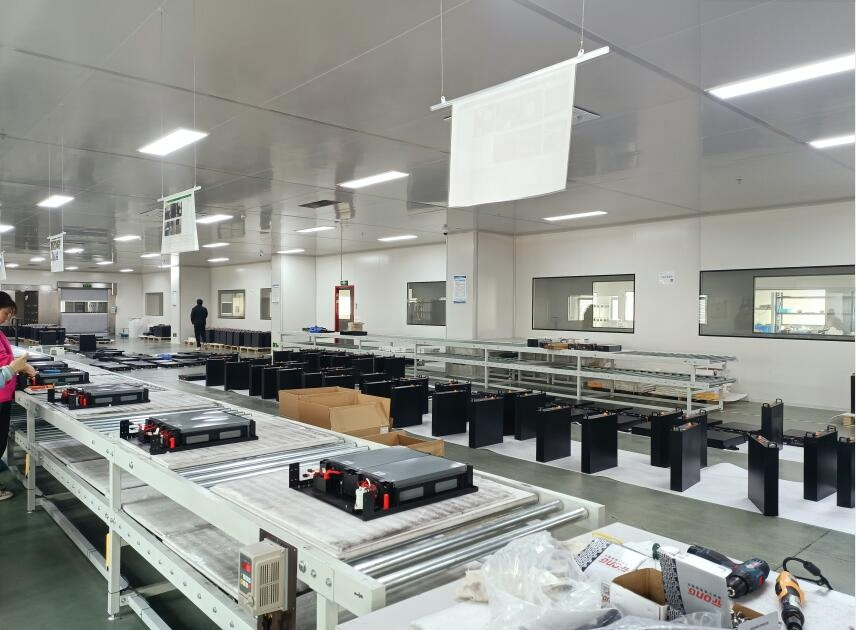

Production Line
Testing Lab
Warehouse Packaging

Global Presence

Distribution Map

Frequently Asked Questions

What is the expected life span of the battery?
Our batteries are built with Grade A LiFePO4 cells, offering a cycle life of up to 6000+ cycles at 80% Depth of Discharge (DoD).
How long is the warranty period?
We offer a 5+5 years comprehensive warranty providing after-sale service and technical support, including BMS replacement if necessary.
Which inverter brands are compatible with your batteries?
The integrated BMS supports CANbus and RS485 communication protocols, making it compatible with most major inverter brands in the market.
What is the standard delivery time and packaging?
Standard delivery is usually within 30 days. Units are securely packed in heavy-duty cartons or individual wooden cases for maximum protection.
Do you support OEM or customization?
Yes, we fully support customization including logos, stickers, and comprehensive OEM/ODM services.
Are the batteries certified for international transport?
Yes, all our products come with necessary certifications including CE, MSDS, and UN38.3 to ensure safe global transportation.
