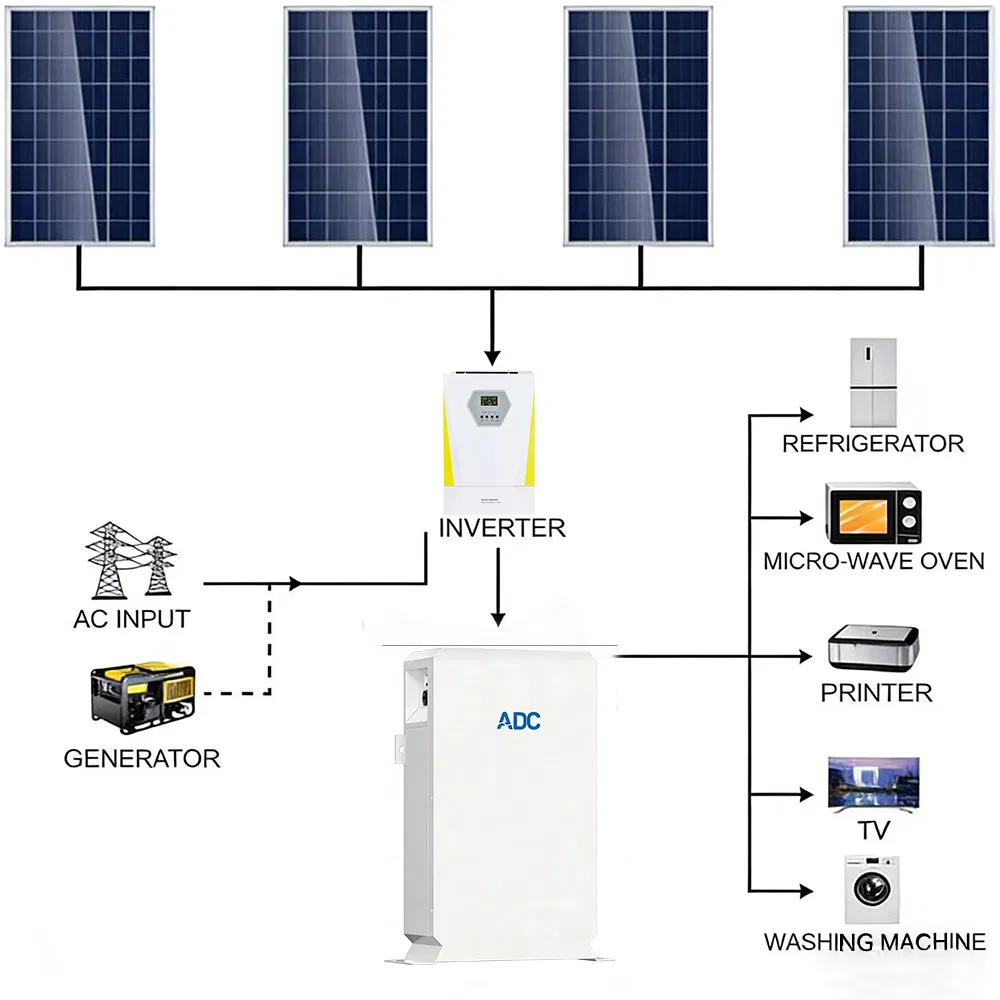

Compatible with various inverter brands, Victron, Goodwe, Pylon, Growatt, Solis, Lux, Solax, Sofar, Sacolar.
Support max 64pcs in parallel, which equals to 48v 6400ah, meeting all different house demands.
Features 99% Operating Efficiency vs 80% for AGM batteries. An equivalence of adding 20% additional solar panels.
A+++ Cells with 6000 cycles 80%DOD, 15 years of use even if deep discharged every day.
Samples ready in a week for quick testing and deployment.
Plug and play, providing all installing material, easy and quick setup.
All cells are bolted together with heavy plates and ABS holder for reliable internal connections.
RS485 and CAN on front panel with RJ45 port, fully plug and play for monitoring.

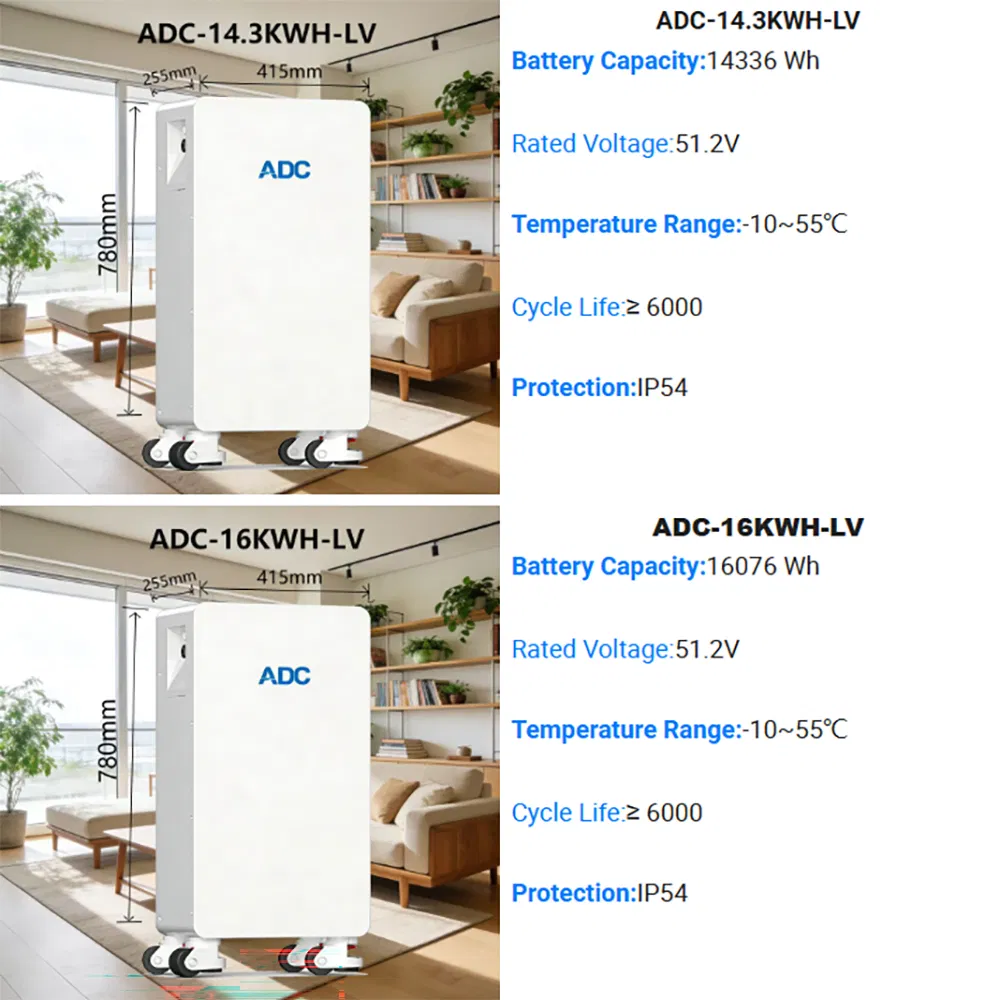

| Parameter | ADC-5KWH-LV | ADC-10.2KWH-LV | ADC-14.3KWH-LV | ADC-16KWH-LV |
|---|---|---|---|---|
| Battery Capacity (Wh) | 5,120 | 10,240 | 14,336 | 16,076 |
| Battery Configuration | 1P8S*2 | 1P8S*2 | 1P8S*2 | 1P8S*2 |
| Rated Voltage (V) | 51.2 | 51.2 | 51.2 | 51.2 |
| Max Charge/Discharge (A) | 75/100 | 105/120 | 140/200 | 155/200 |

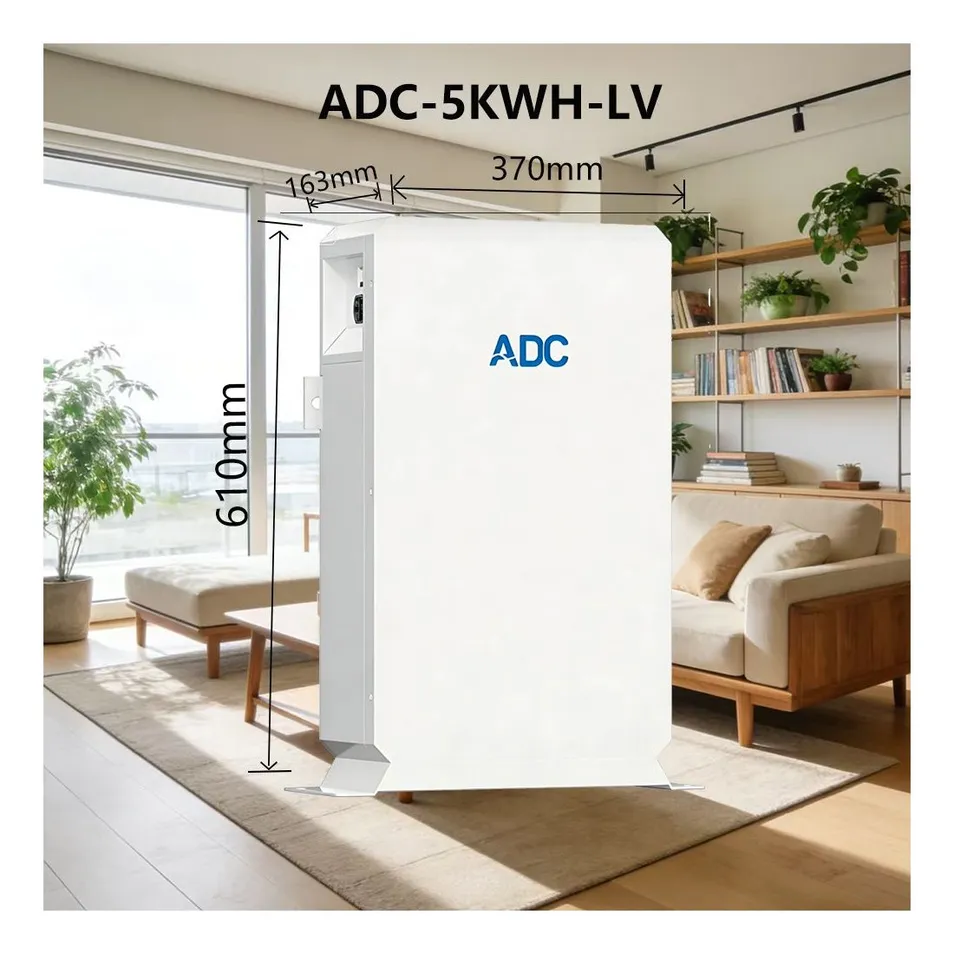

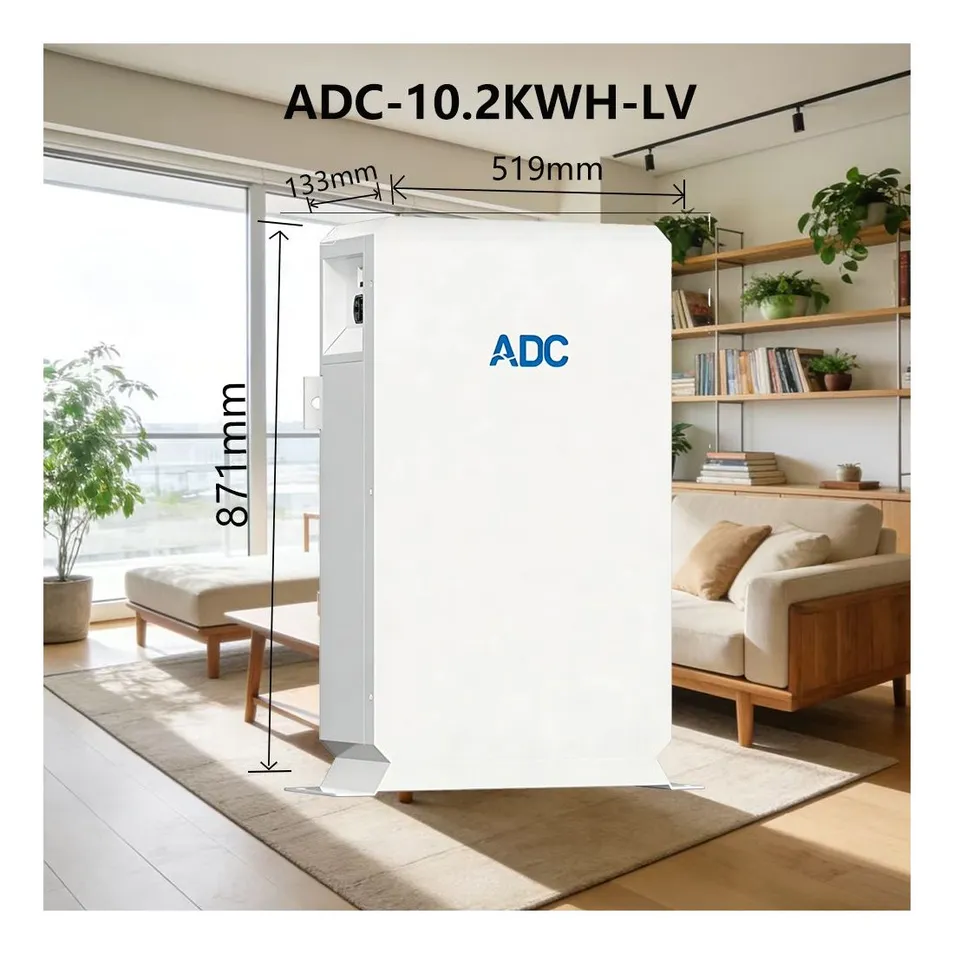

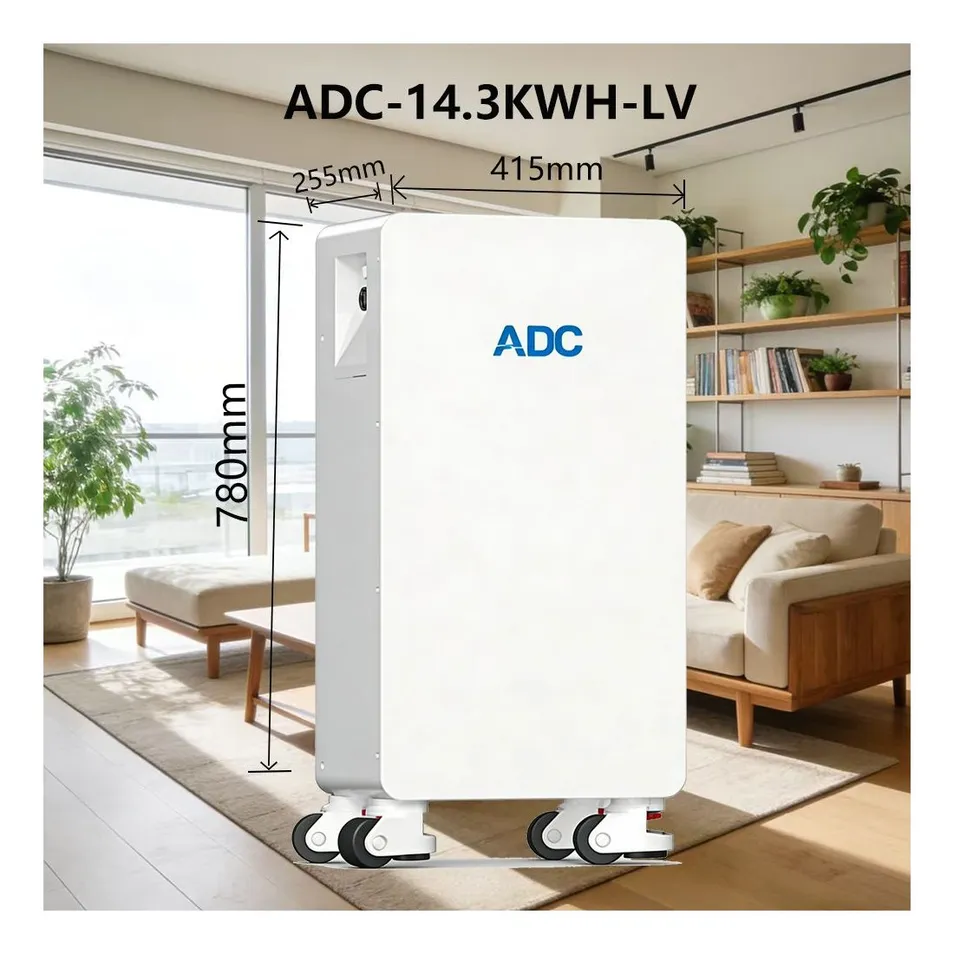

| Battery Dimensions (mm) | 610*370*163 | 871*519*133 | 780*415*255 | 780*415*255 |
| Weight (kg) | 44 | 92 | 119 | 121 |
| Communication | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
| Cycle Life | ≥6000 | ≥6000 | ≥6000 | ≥6000 |
| Protection | IP54 | IP54 | IP54 | IP54 |
With over 20 years in power technology, we specialize in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments.

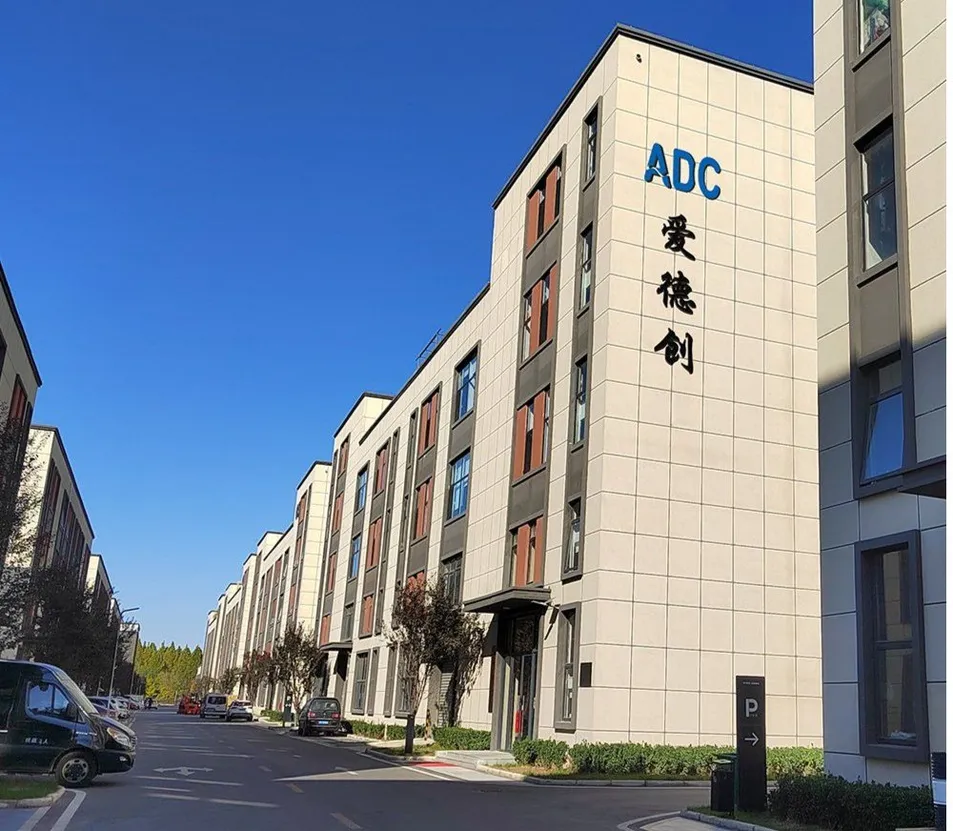

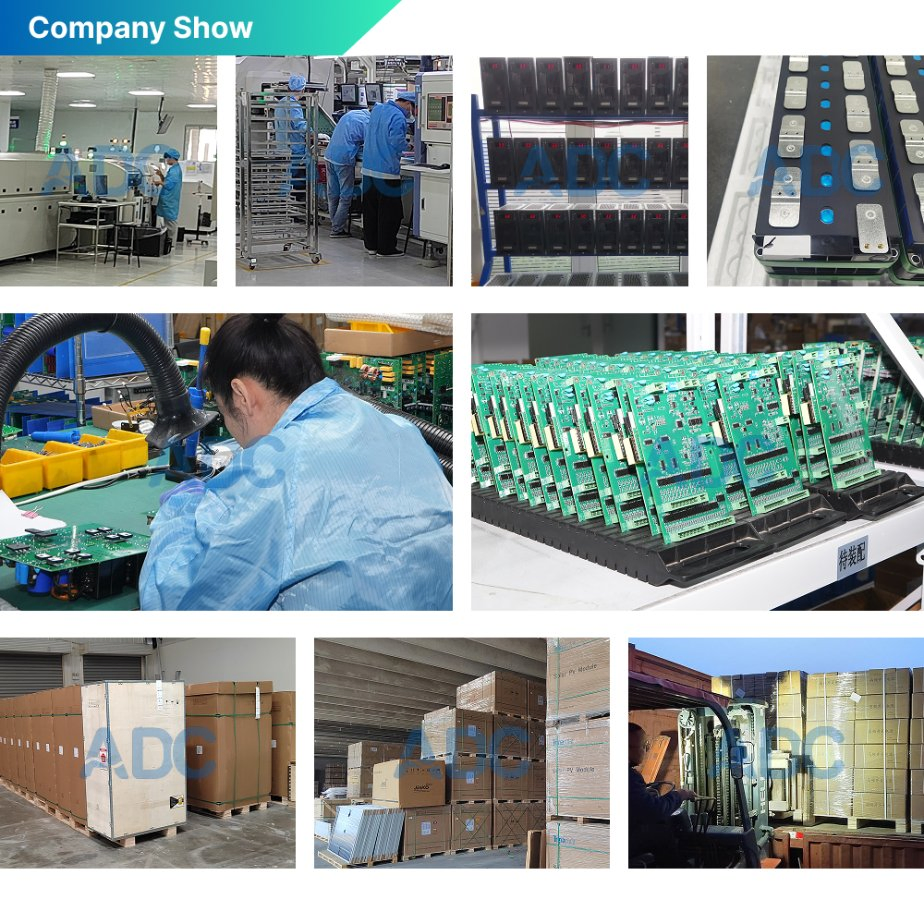

Our facility includes over 70 R&D engineers, 40,000 m² production space, and ISO 9001/ISO14001 certification to ensure top-tier product development and quality control.
