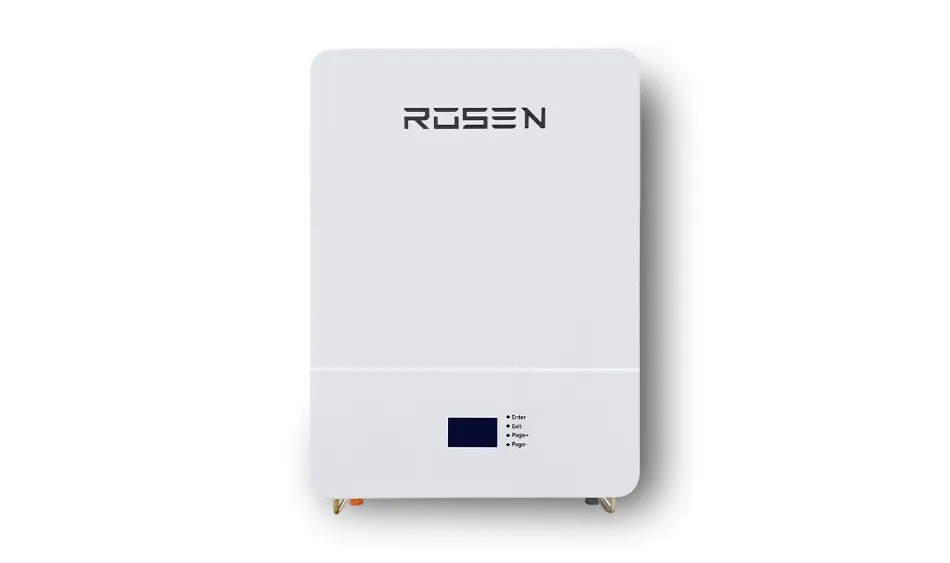

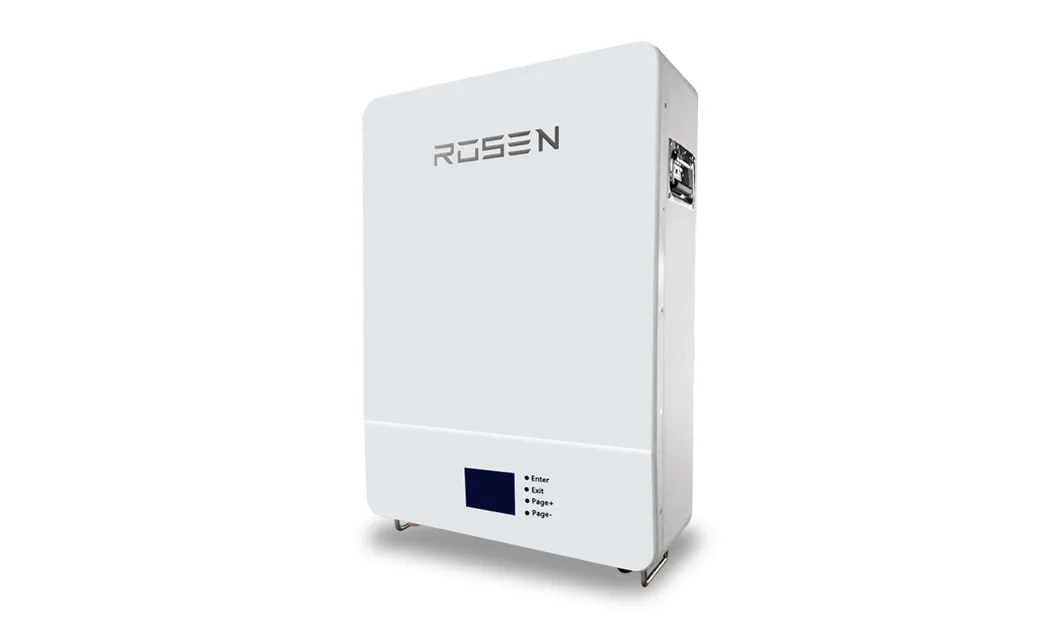

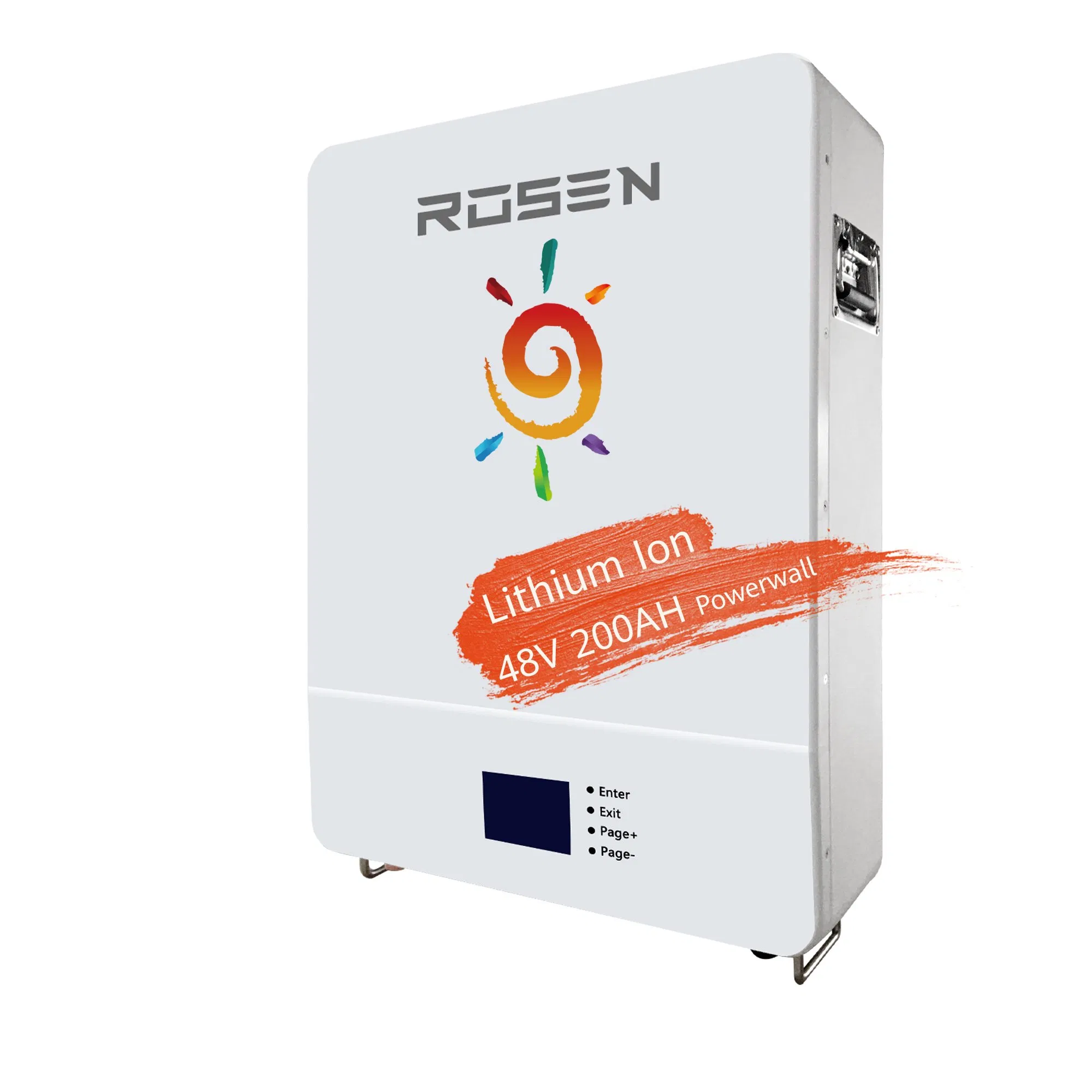

This Lithium battery has a compact design, integrated LCD screen, and convenient setting buttons. It supports Bluetooth monitoring on your smartphones and comes with all necessary cables and accessories ready for installation. We support OEM with customized logo designs to facilitate global cooperation.
The Lithium Ion Powerwall series is widely used in residential and commercial solar systems. Featuring more than 6000 deep cycles, up to 90% DOD, and safe phosphate battery cells, this Powerwall has gained international approval for its reliable performance.

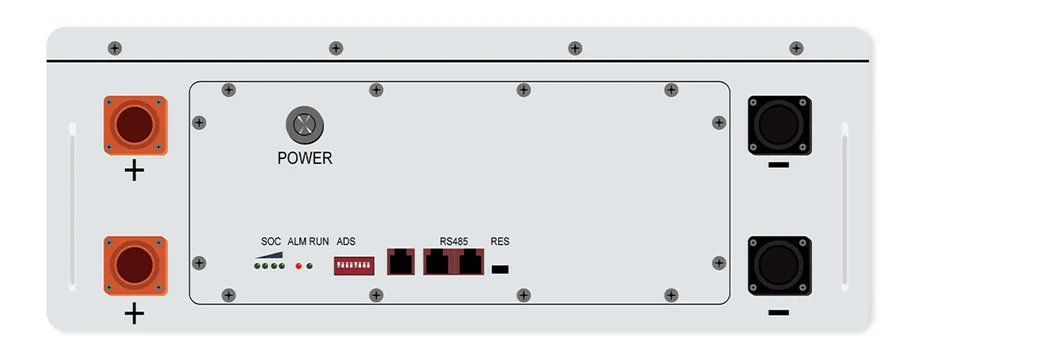

Units can be installed in parallel using a combiner box for enhanced protection. The integrated BMS communication protocol ensures comprehensive compatibility with various hybrid and off-grid inverters.
| Type | Module | Powerwall | |||
|---|---|---|---|---|---|
| LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | LFP48V300AH | |
| Nominal Energy [kWh] | 2.4 | 4.8 | 7.2 | 9.6 | 14.4 |
| Max Discharge [A] | 50 | 100 | 150 | 200 | 300 |
| Net Weight [kg] | 35 | 68 | 95 | 108 | 144 |
| Dimension [mm] | 442*480*185 | 680*495*185 | 680*495*185 | 680*495*185 | 1020*495*190 |
| Operating Temp | -20 ~ 50 [ºC] | ||||
| Life Cycles | >6000 | ||||
| Warranty | 10 Years | ||||
| Certificates | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||

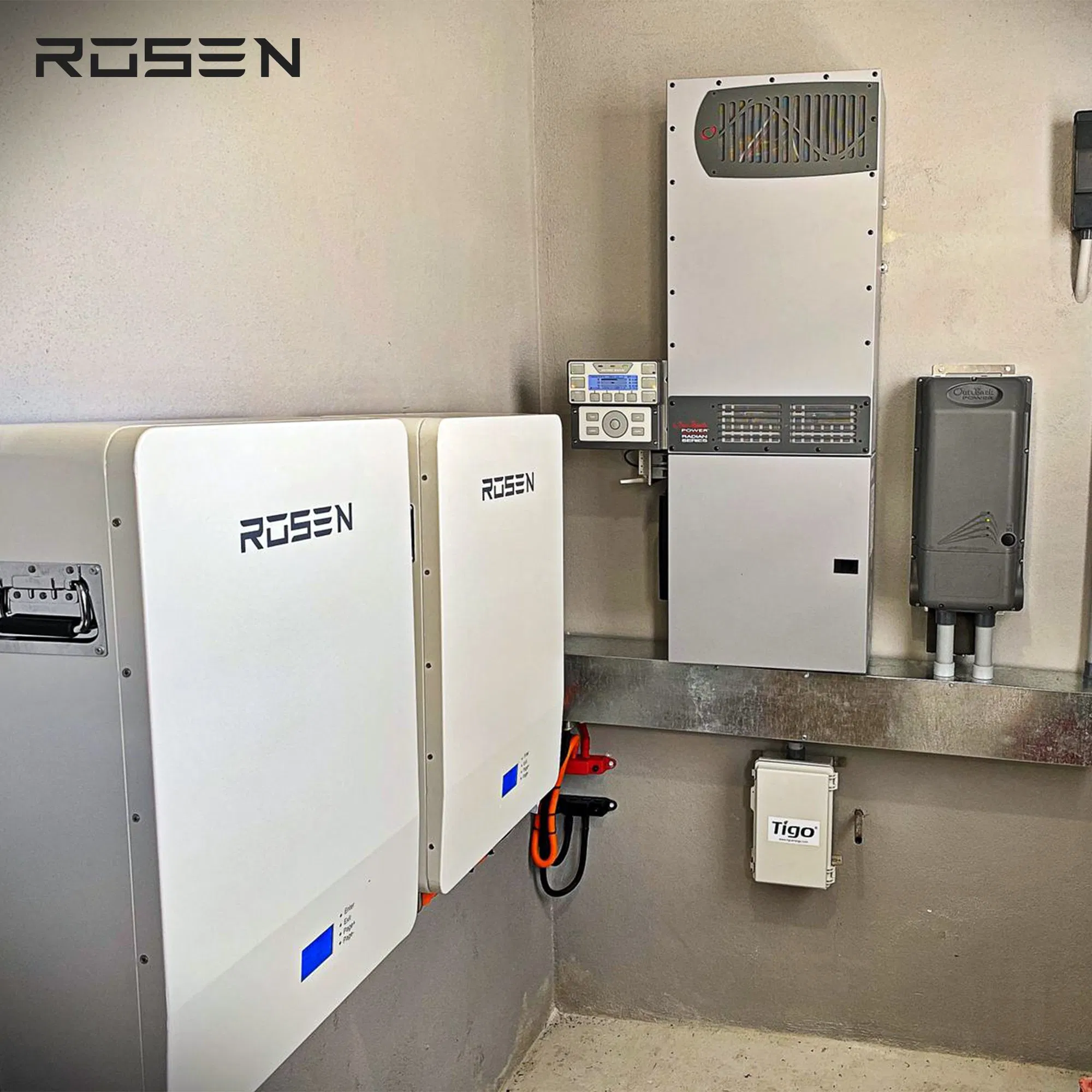

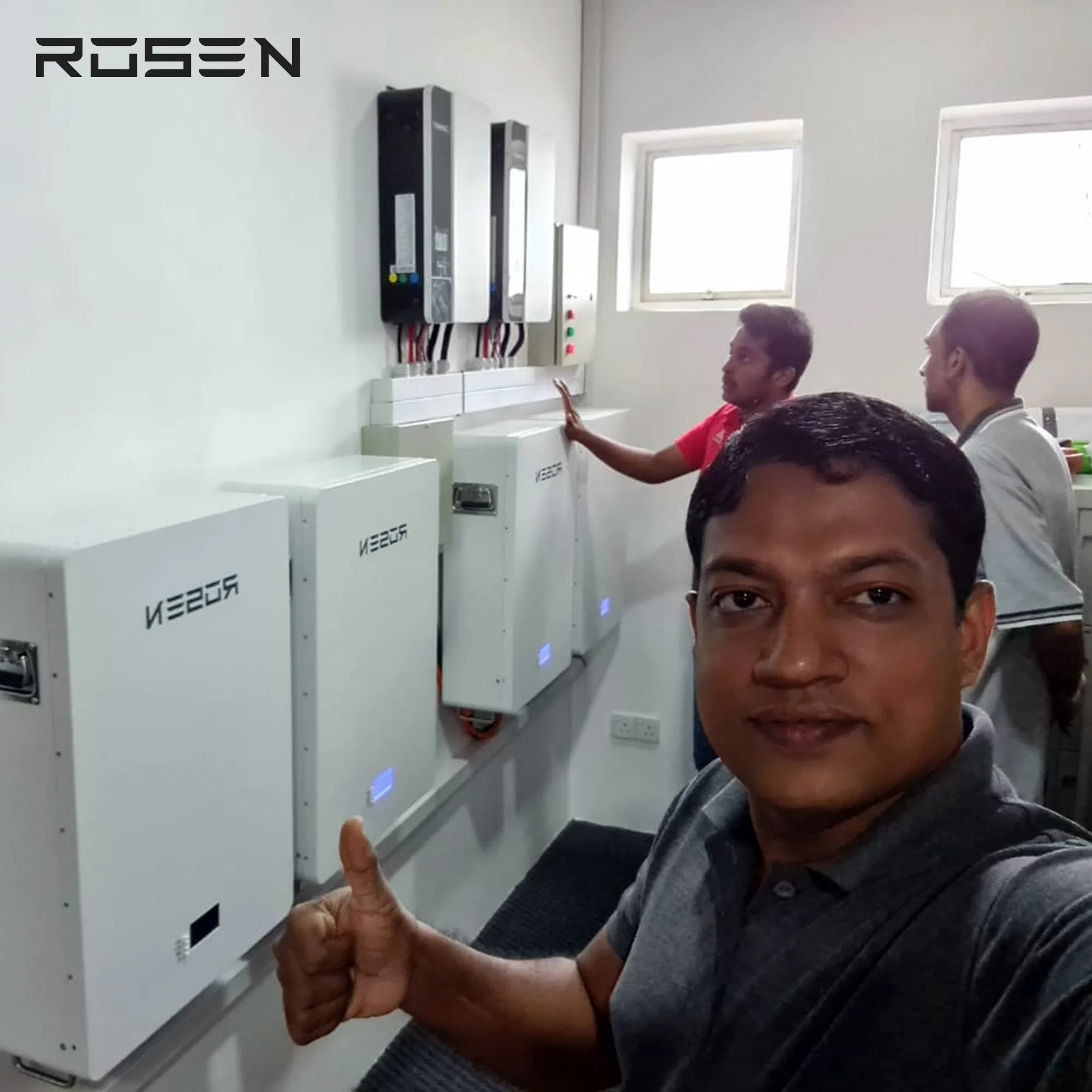

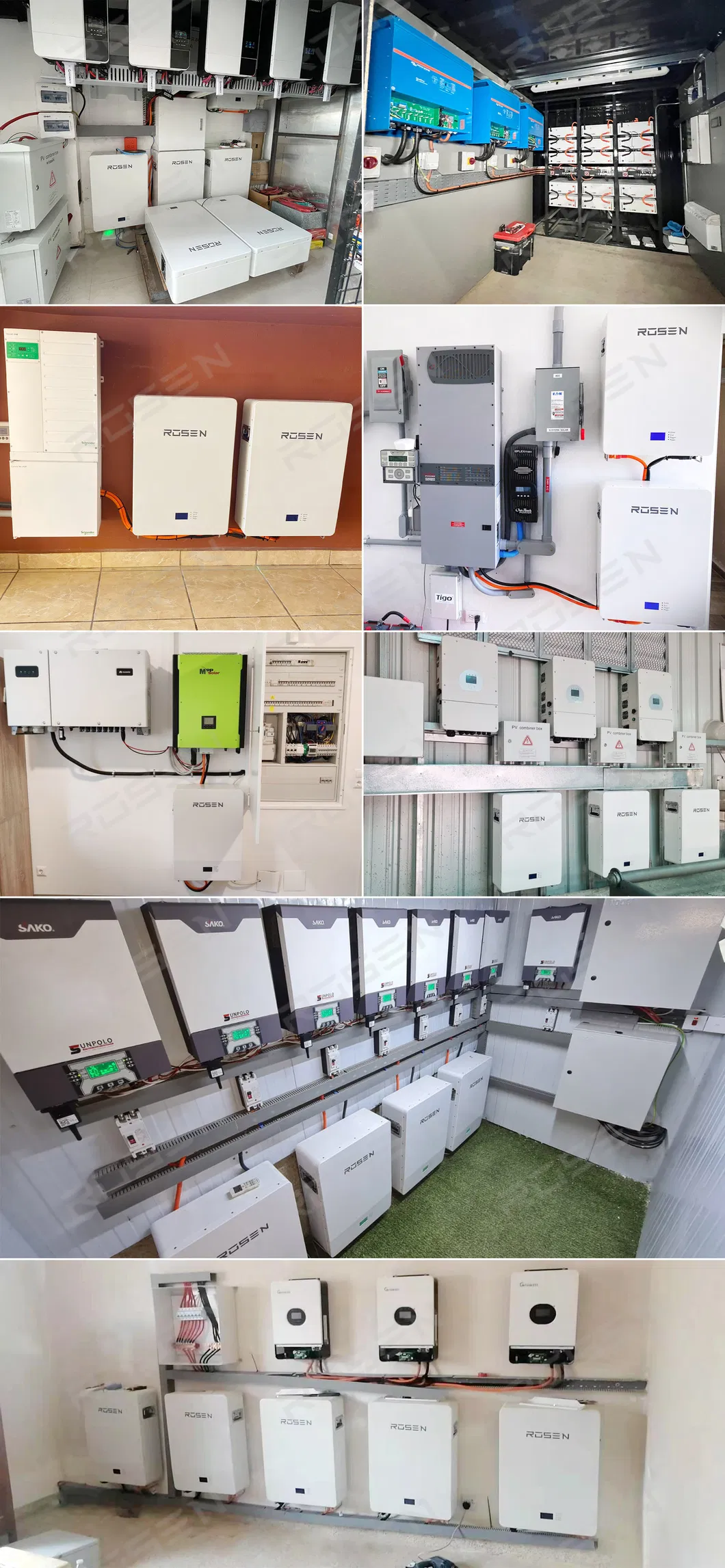

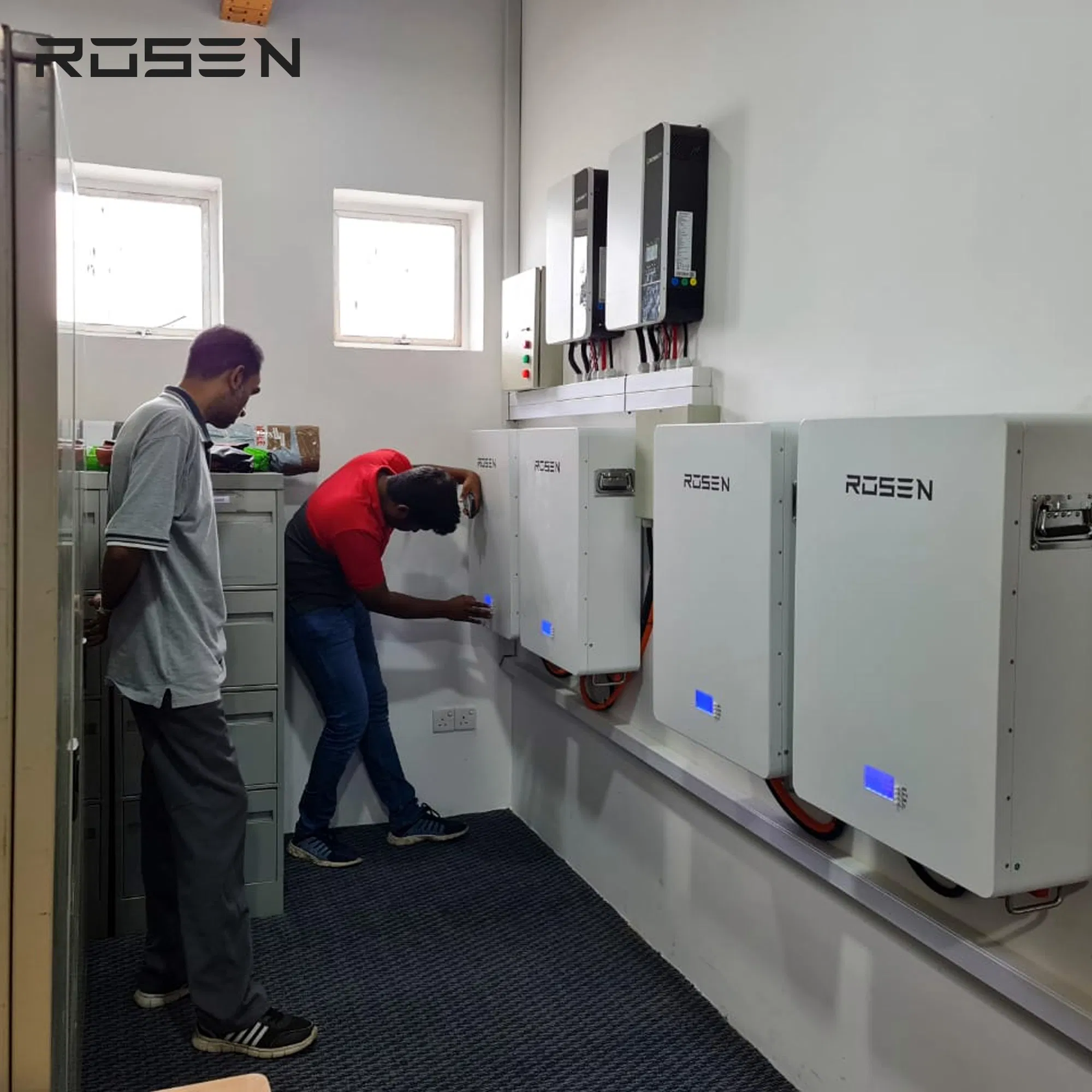

Lithium battery projects are installed worldwide for residential and commercial solar energy storage. Home projects typically utilize 48Vdc or 51.2Vdc systems with capacities ranging from 50Ah to 400Ah, compatible with hybrid inverters (3kw to 12kw). Commercial BESS solutions serve factories and large-scale facilities with containerized designs from 100kw up to 10MW, featuring programmable EMS for optimal energy management.
