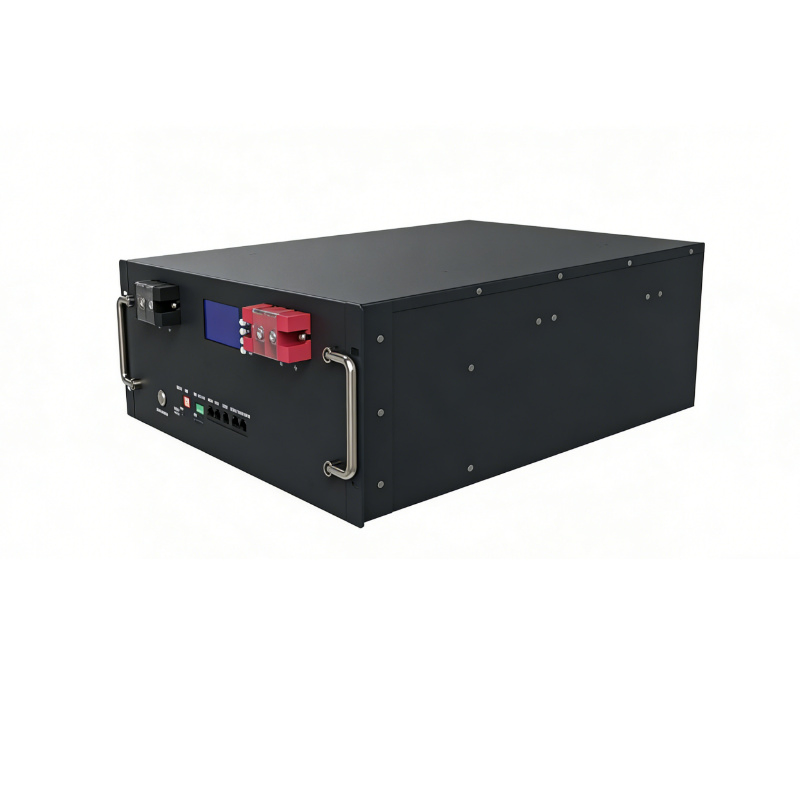

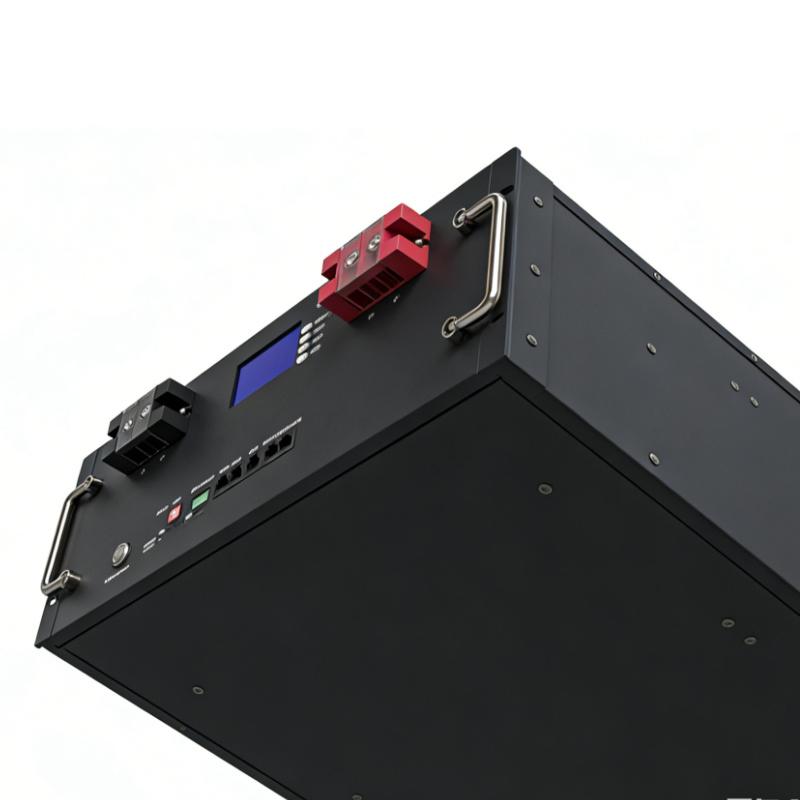

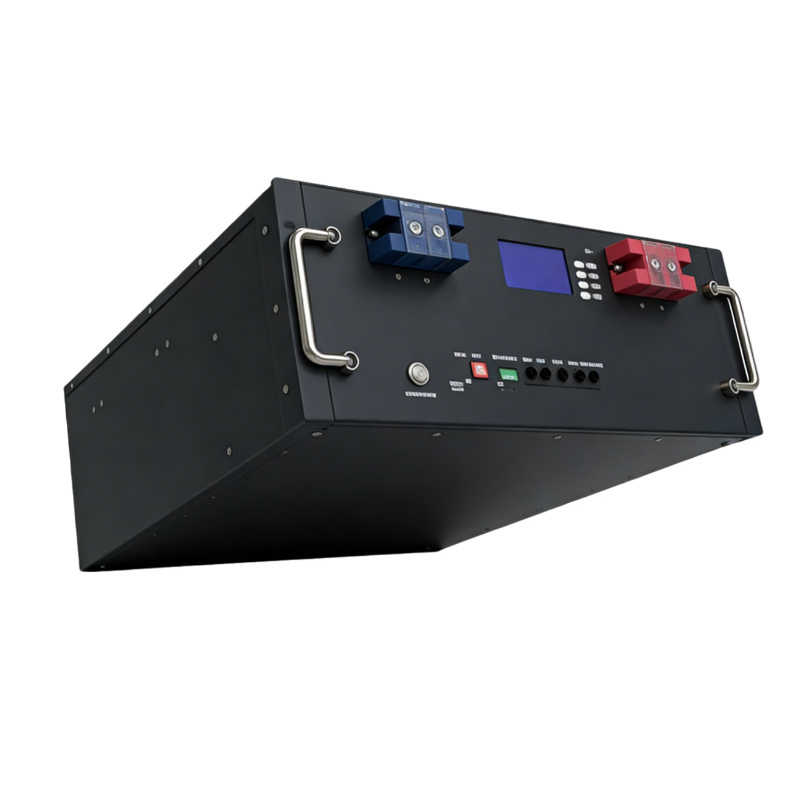

Home Solar Energy Storage 5kwh LiFePO4 Lithium Battery Pack

1 / 5

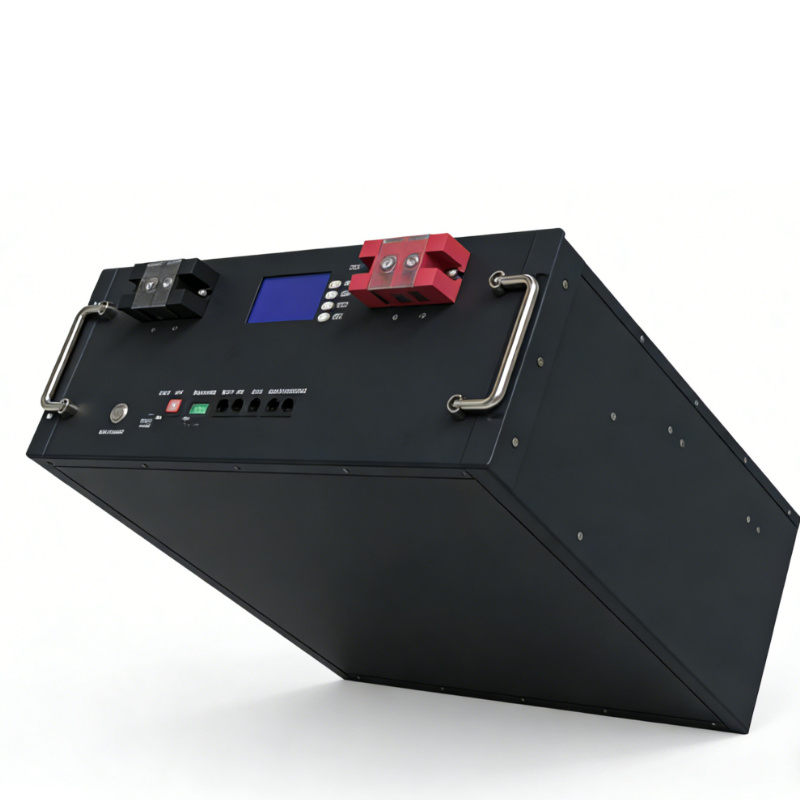

Home Solar Energy Storage 5kwh LiFePO4 Lithium Battery Pack

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power

Send Inquiry

Product Description

Basic Information

Model NO.

F51.2 100

Nominal Voltage

51.2V

Battery Type

LiFePO4 Lithium Battery

Capacity

100Ah

Discharge Rate

High Discharge Rate

Installation

Rack-Mounted / Packaged

Life Cycles

5000+ (80% DOD)

Communication

CAN, RS232, RS485

Weight

42kg

Dimension

450*440*180mm

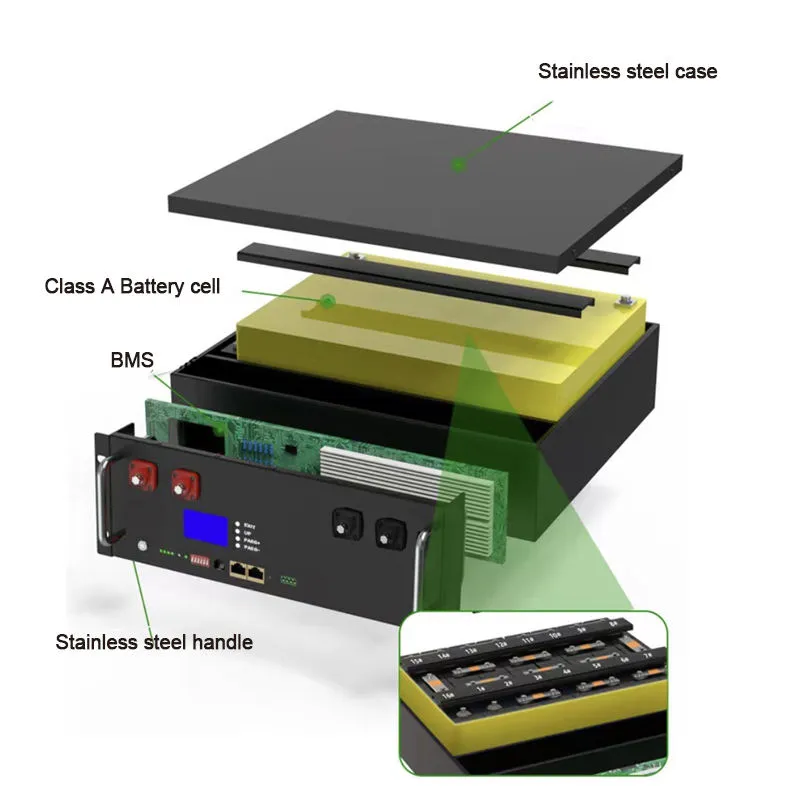

Product and Function Overview

✔

Lithium Iron Phosphate Pack: 85% DOD, More than 5000 Cycles times.

✔

Long Service life: Designed for up to 10 years of operation.

✔

Compact Design: Higher energy density, smaller volume for households.

✔

Built-in BMS: Monitors operation and prevents usage outside limitations.

✔

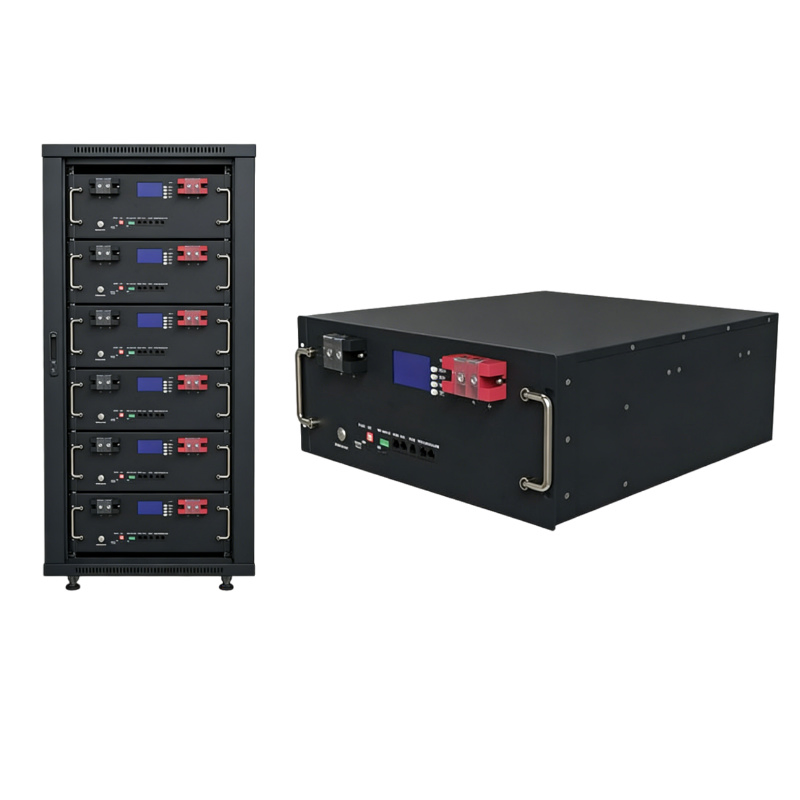

Expandable: Easily expanded by adding packs in parallel.

Detailed Parameters

MODEL	51.2V*100Ah	51.2V*200Ah	51.2V*300Ah
Nominal voltage	51.2V
Nominal Capacity	100Ah	200Ah	300Ah
Nominal energy	5.12KWH	10.24KWH	15.36KWH
Life Cycles	5000+ (80% DoD)
Recommended Charge Voltage	58.4V
Battery Cell Type	3.2V 100AH (LiFePO4)	3.2V 200AH (LiFePO4)	3.2V 300AH (LiFePO4)
Standard Charge/Discharge	100A	200A	200A
Communication	CAN/RS485
Dimension (L x W x H)	450440180mm	540440225mm	700482240mm
Approx. Weight	42 kg	84 kg	119 kg
Certifications	CE / FCC / MSDS / UN38.3

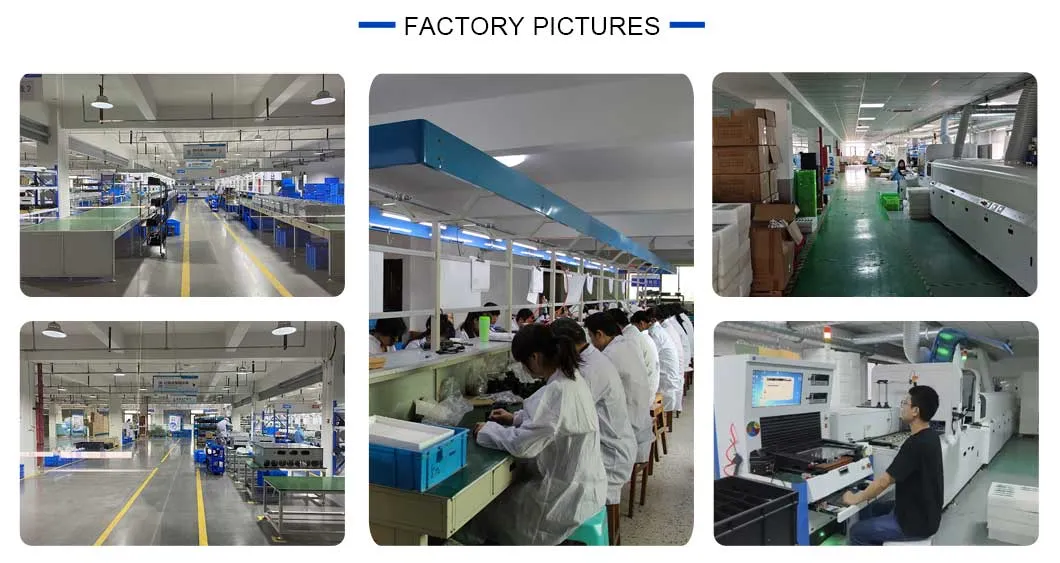

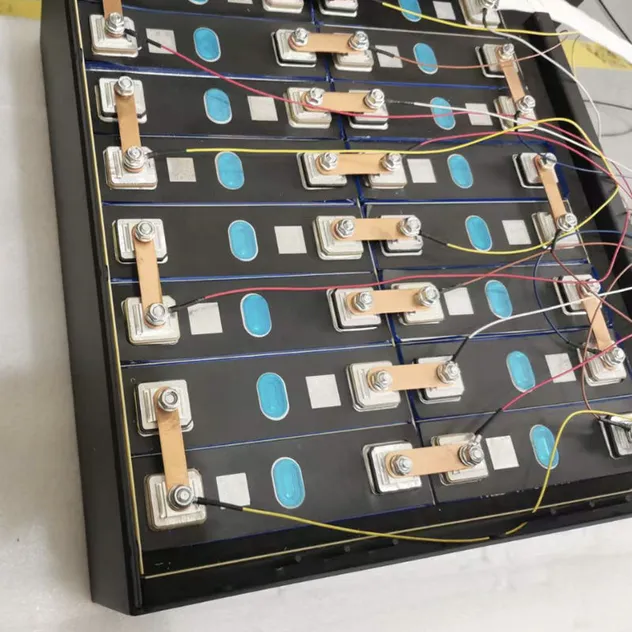

Applications and Manufacturing

Frequently Asked Questions

What can you buy from us?

We provide solutions for energy conservation, monitoring, and power quality. Our main products include smart electrical systems, energy meters, power meters, smart circuit breakers, and smart gateways.

Are your products original?

Yes! All products are original and produced by original manufacturers. All parts undergo strict quality testing.

What is your warranty period?

We offer a warranty within 90 days after the package has been received.

What is the typical lead time?

For products in stock, there is no lead time. Most products can be shipped within 7 days after payment.

Can I request a sample for testing?

Of course. Sample requests are welcome, though a sample fee may be required.

Do you provide OEM/ODM services?

Yes, we provide full OEM/ODM services. Your logo and specific designs can be applied to the merchandise.
