| Model NO. | CTS-HV-345210 |
| Voltage | 345V 360V 400V 500V 614V 800V |
| Capacity | 100ah 206ah 230ah |
| Assembly | 1p192s |
| BMS | Smart BMS with Can Bus |

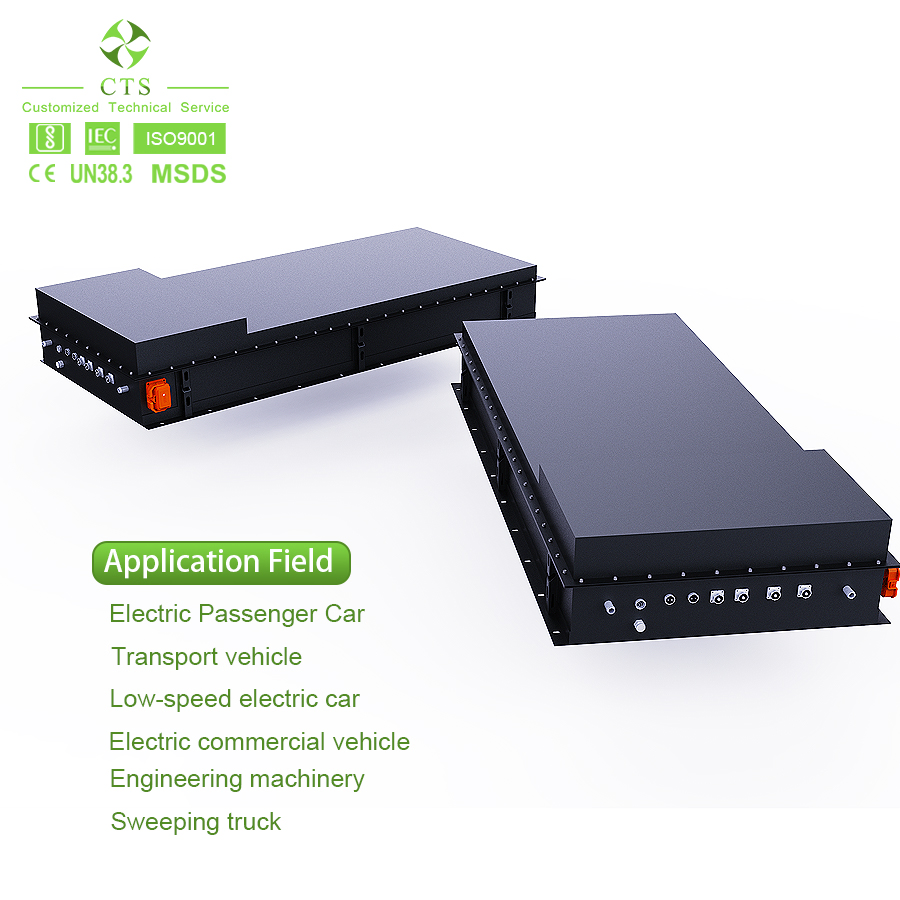

| Application | Electric Car, Truck, Bus, EV Car, Electric Vehicles |
| Waterproof Standard | IP67 |
| Certification | MSDS UN38.3 R100 |
| Production Capacity | 50,000 Units Per Year |

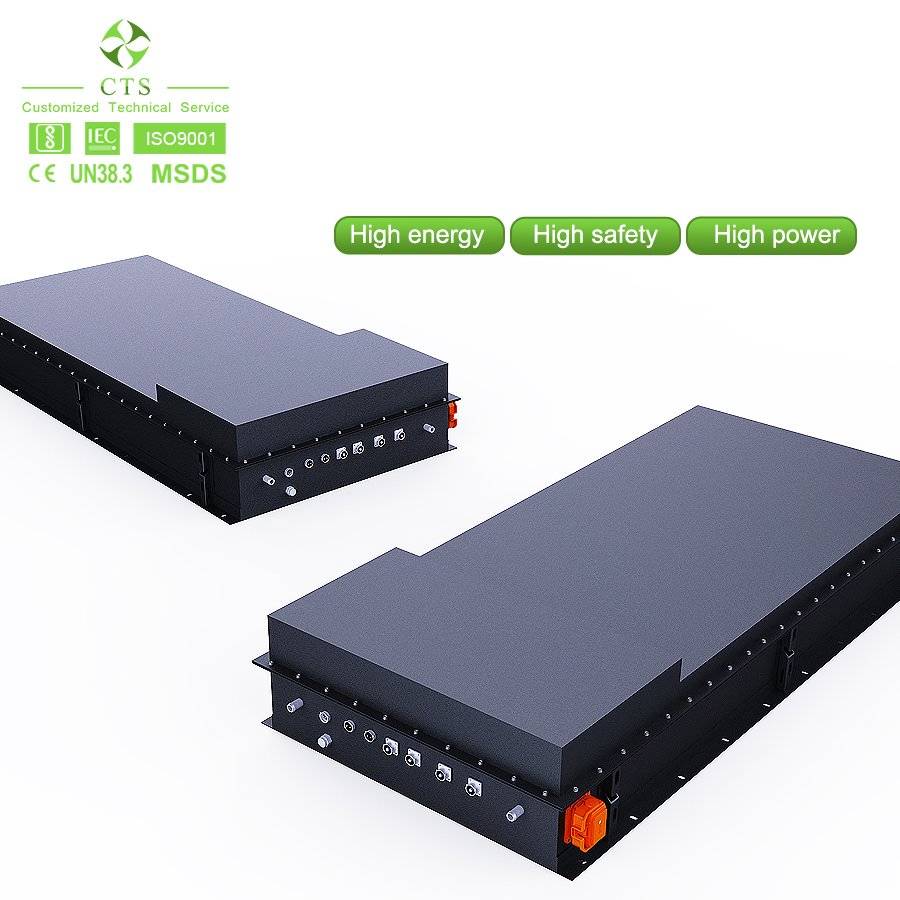

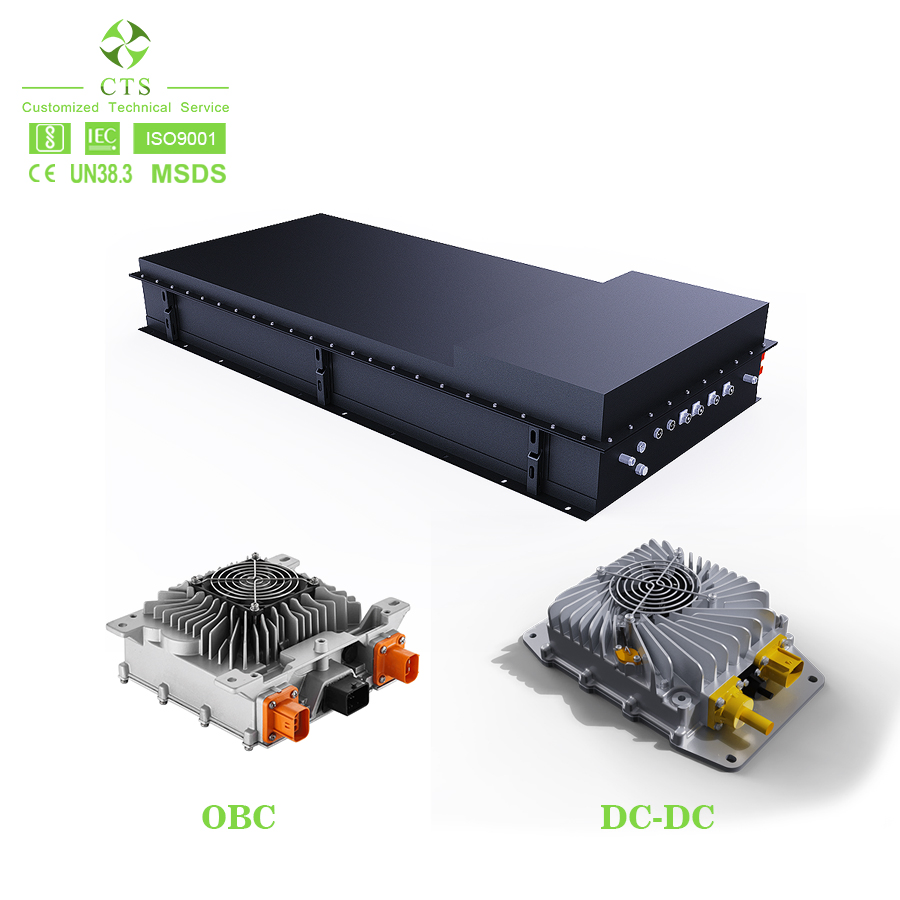

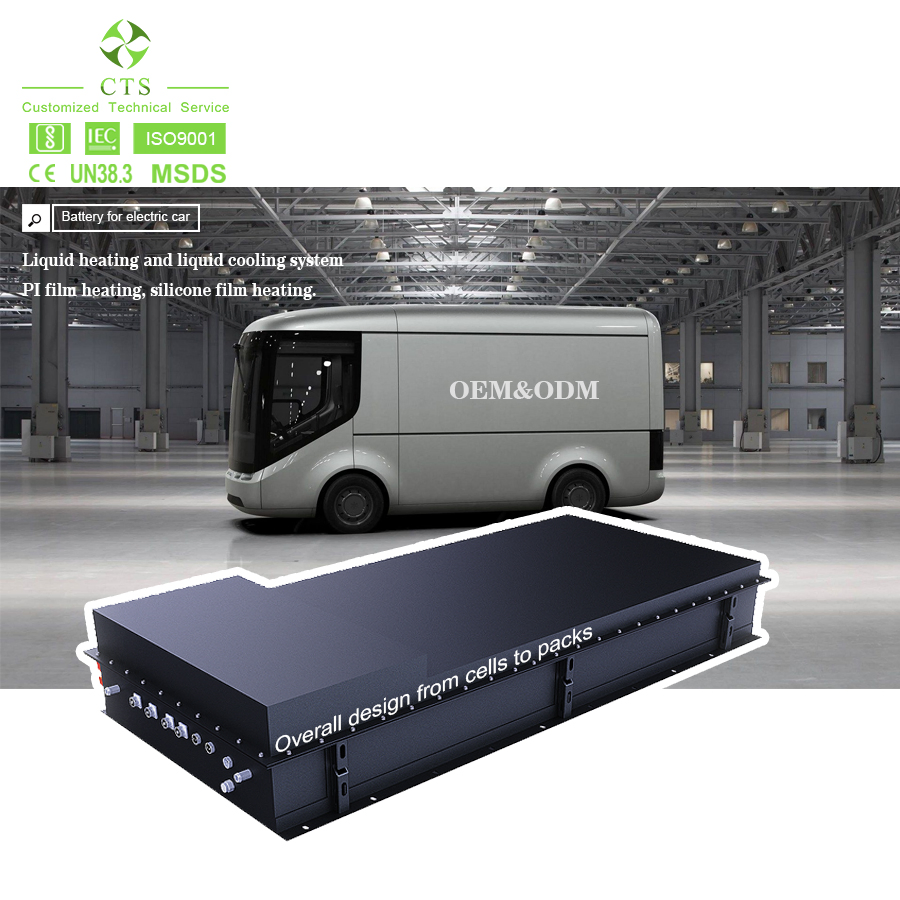

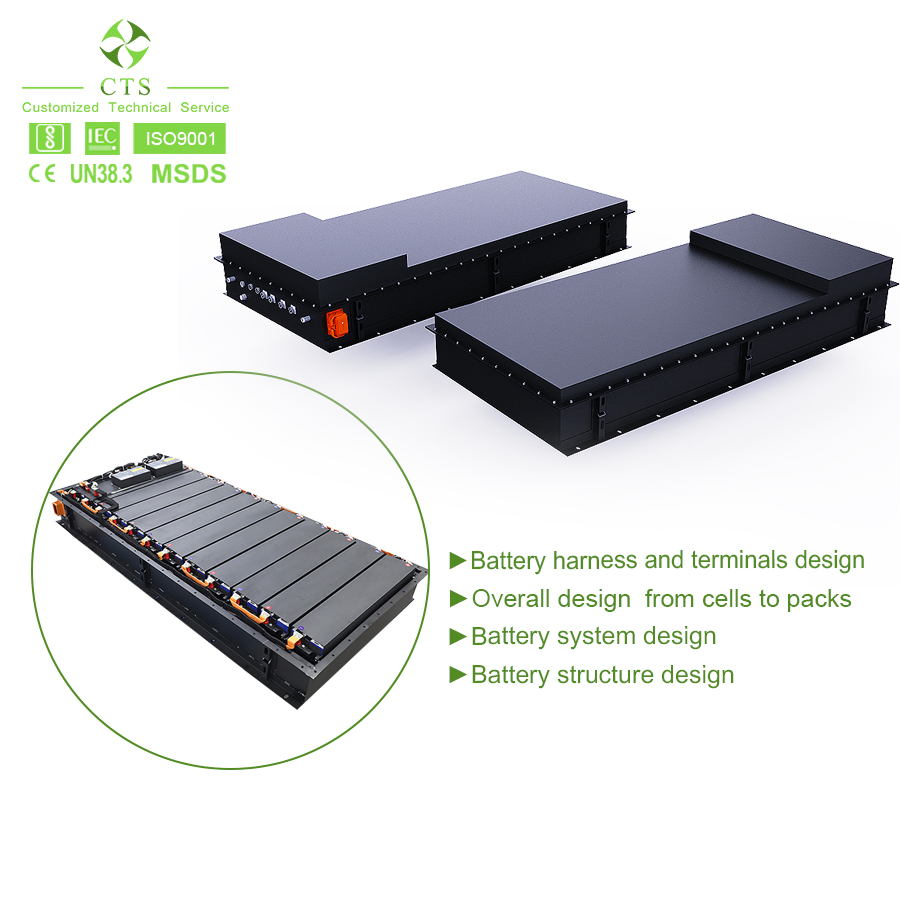

Factory Directly Electric Car Lithium Battery Li-ion Battery 345V 210ah Battery Pack
| Parameters of 614v 100Ah Lifepo4 battery pack | ||
| Items | Technical requirement | Note |
| Battery Type | Lifepo4 | - |
| Capacity(Ah) | 100 | @25ºC |
| Voltage | 614.4V | - |
| Power(kWh) | 61.44kWh | - |
| Working Voltage range | 480V-700.8V | DC |
| Continuous discharge current | 80A | @EOL, @25ºC |
| Peak discharge current | 200A | For 30 seconds |

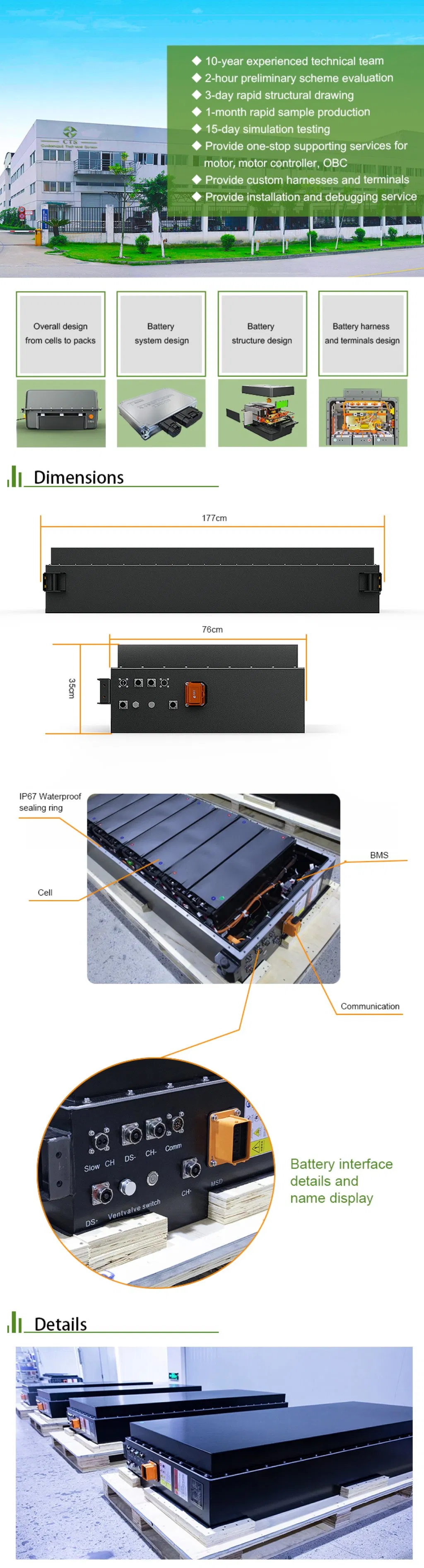

| Dimension (L/W/H) | 1780*720*345 mm | - |
🔹 1. Lightweight and Scalability

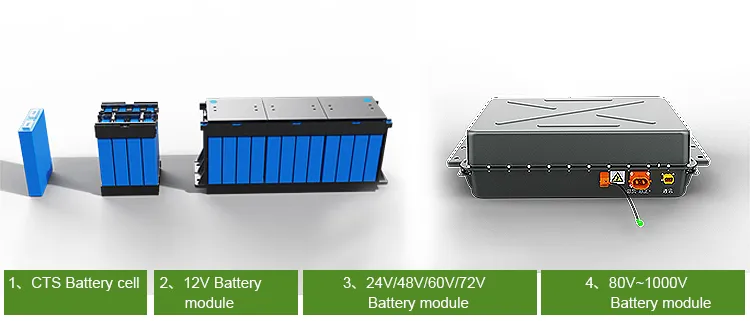

Cell design and electrical component selection are systematically optimized. Using lightest steel/aluminum alloy and high-strength plastics combined with CAE structural simulation to ensure strength and improve energy density. Standardized modules (12V/24V/48V/72V) provide excellent scalability to shorten design cycles.
🔹 2. BMS and Active Balance

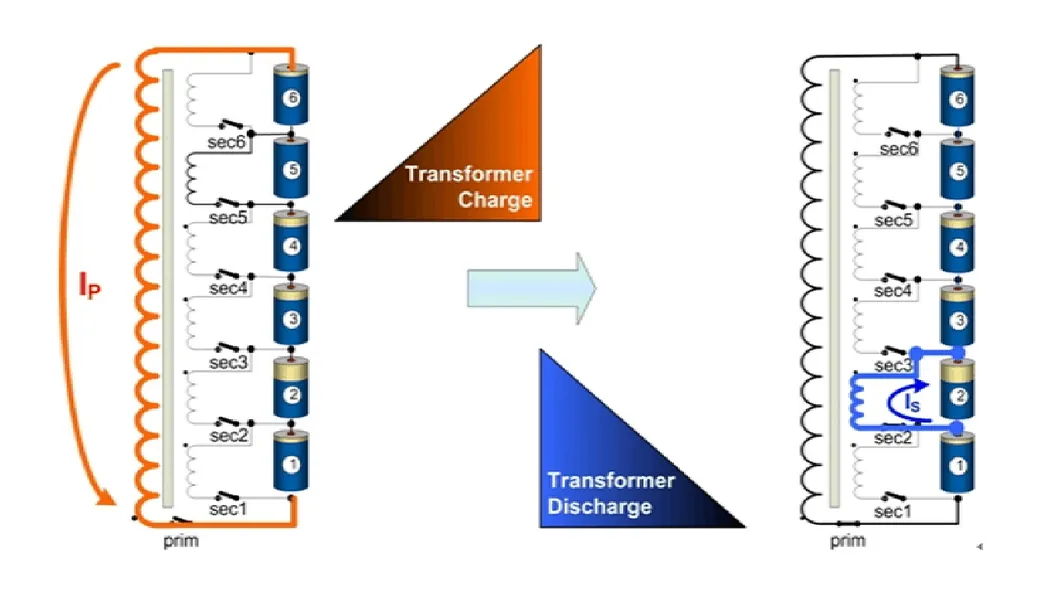

Experienced development team. BMS supports passive balance by default, with active balance options. Parameters such as CAN/RS485 protocols, over/under voltage protection, and temperature protection can be customized on-site.

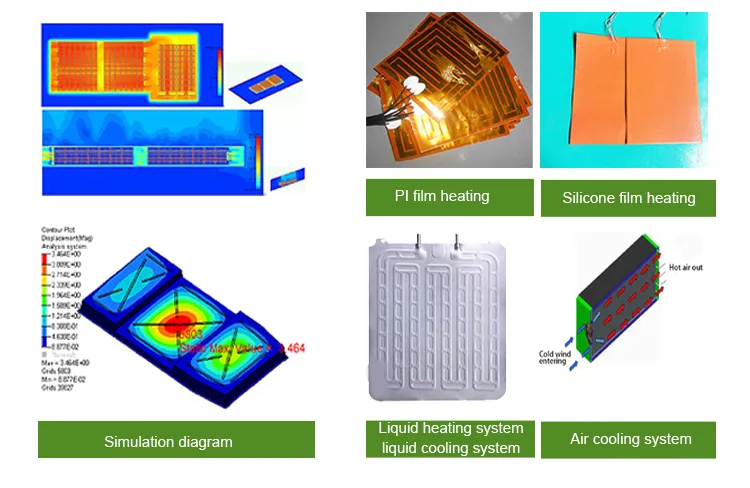

🔹 3. Thermal Management and Simulation Design
Full capabilities for CFD (Computational Fluid Dynamics) and CAE (Computer Aided Engineering) simulation. Management options include air cooling, liquid heating/cooling systems, PI film heating, and silica gel film heating.
🔹 4. Test and Verification

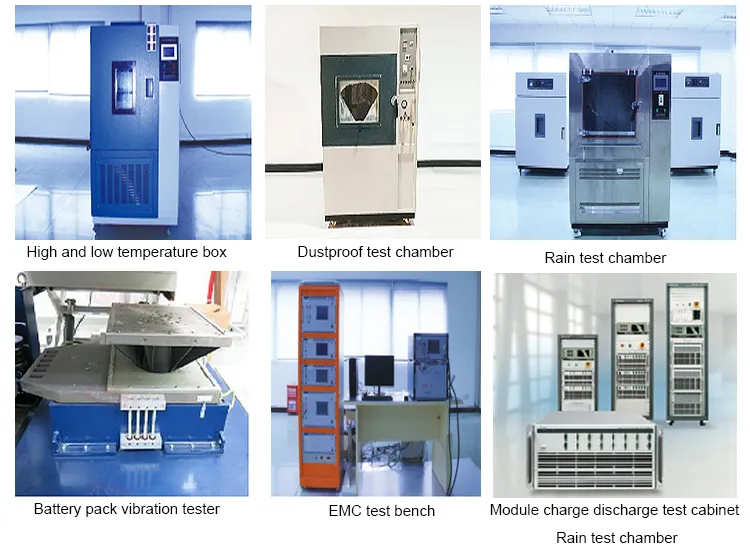

DV/PV (design/production verification) stages are conducted in professional laboratories. Testing includes mechanical, temperature, external environment simulation, electrical safety, and performance abuse tests.

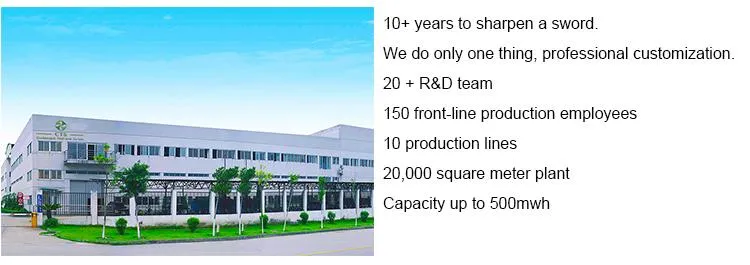

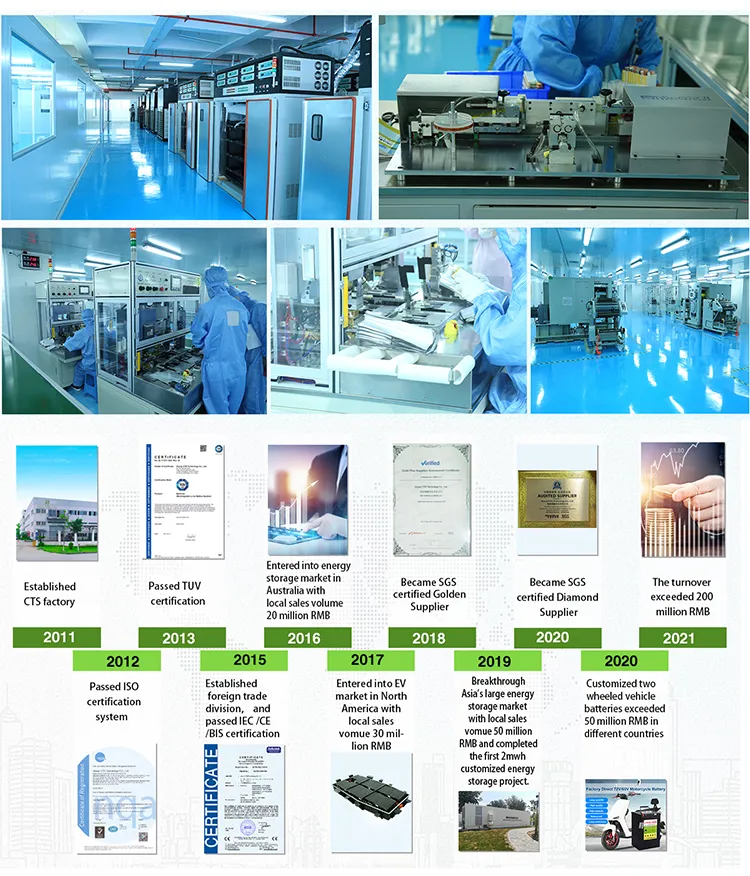

Since 2011, the focus has been on one-stop customization of lithium battery products for electric vehicles, large energy storage, smart home storage, and high-end electric motorcycles.
With over 30 types of cells, OEM battery packs from 12V-800V and 10-200Ah are available for applications including E-bikes, UPS, telecommunication stations, golf carts, forklifts, and electric wheelchairs.
Committed to quality through continuous innovation, the facility utilizes advanced automated equipment and technologies. Certified under ISO 9001, ISO 14001, and OHSAS 18001 standards.
Adhere to the principle of service first
We provide a wide range of high-voltage solutions, typically ranging from 345V, 360V, 400V, up to 800V, depending on your vehicle's requirements.
Yes, we specialize in OEM/ODM services. We can customize the capacity (Ah), voltage, and physical dimensions to fit electric cars, trucks, buses, and other specialized electric vehicles.

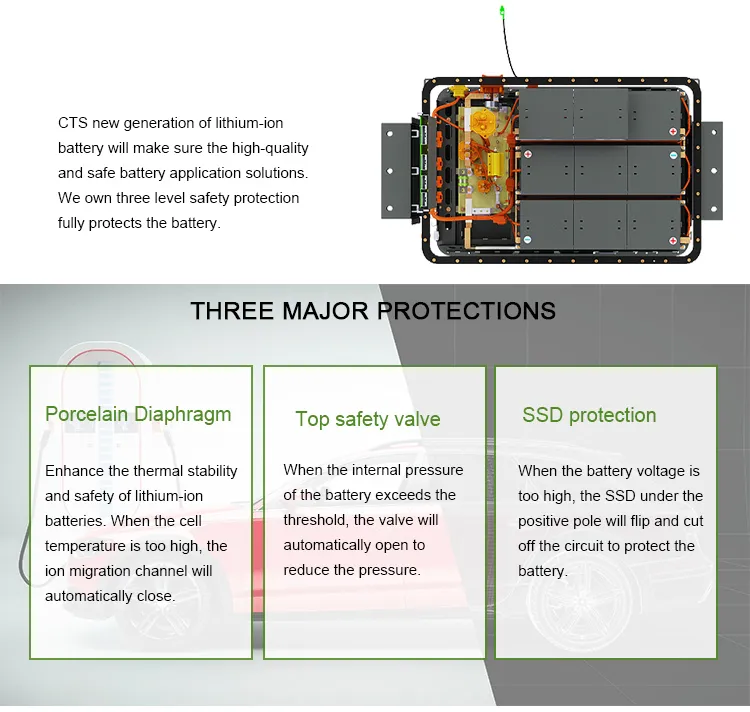

Each pack is equipped with a Smart BMS (Battery Management System) that provides protection against over-voltage, under-voltage, over-current, and temperature extremes. We also use CAE simulation to ensure structural integrity.
Our batteries are fully certified with MSDS and UN38.3. They also comply with R100 standards, ensuring they meet the safety requirements for international transport and customs clearance.
We utilize advanced thermal management designs, including air cooling, liquid cooling systems, and specialized heating films (PI or silica gel) to maintain optimal operating temperatures.
Our battery packs are designed with high-quality metal cases and meet the IP67 waterproof standard, making them suitable for various demanding environmental conditions.
