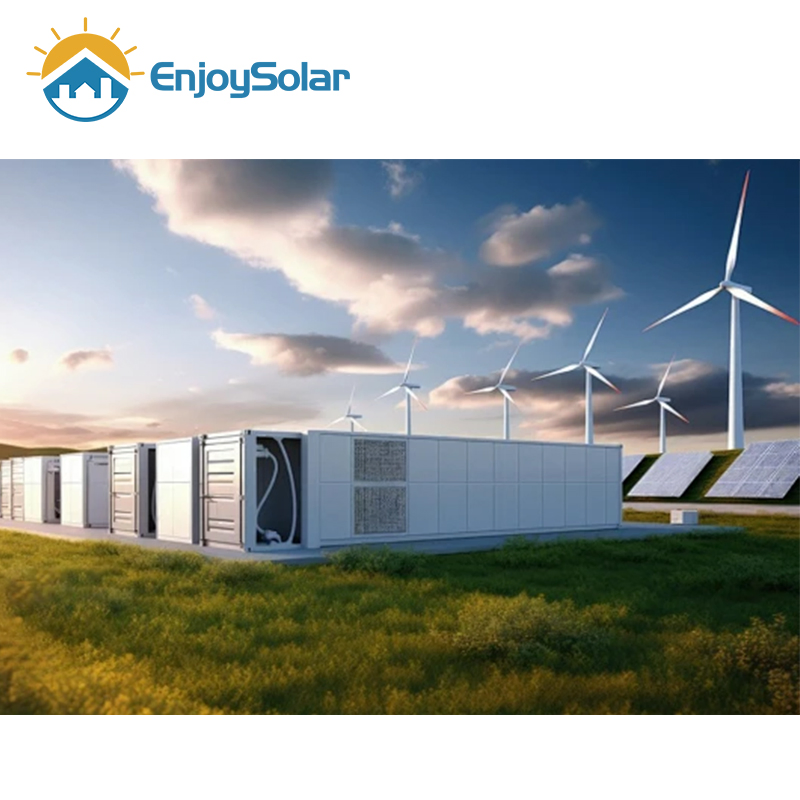

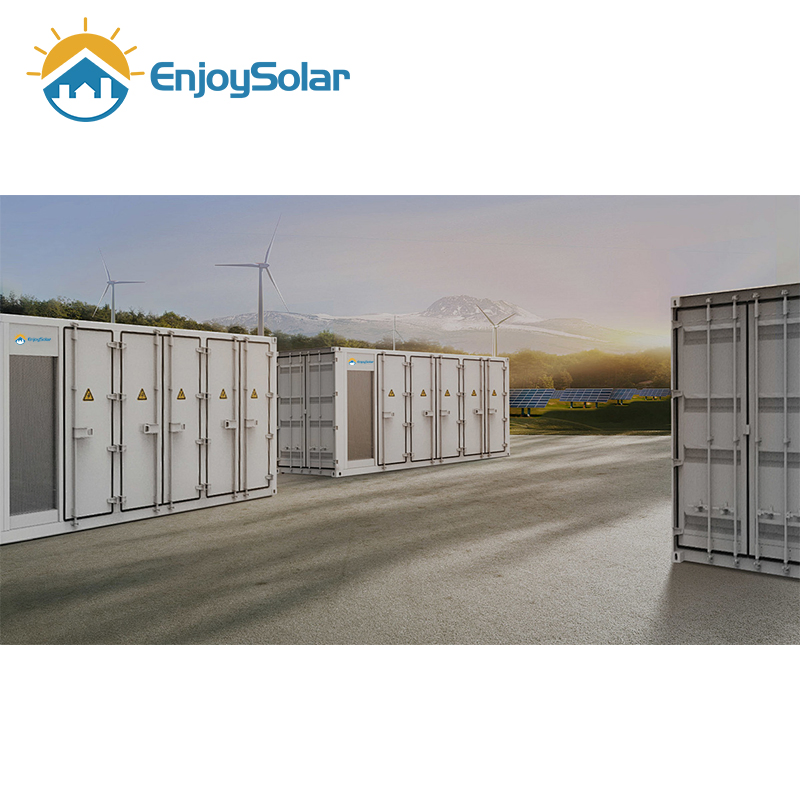

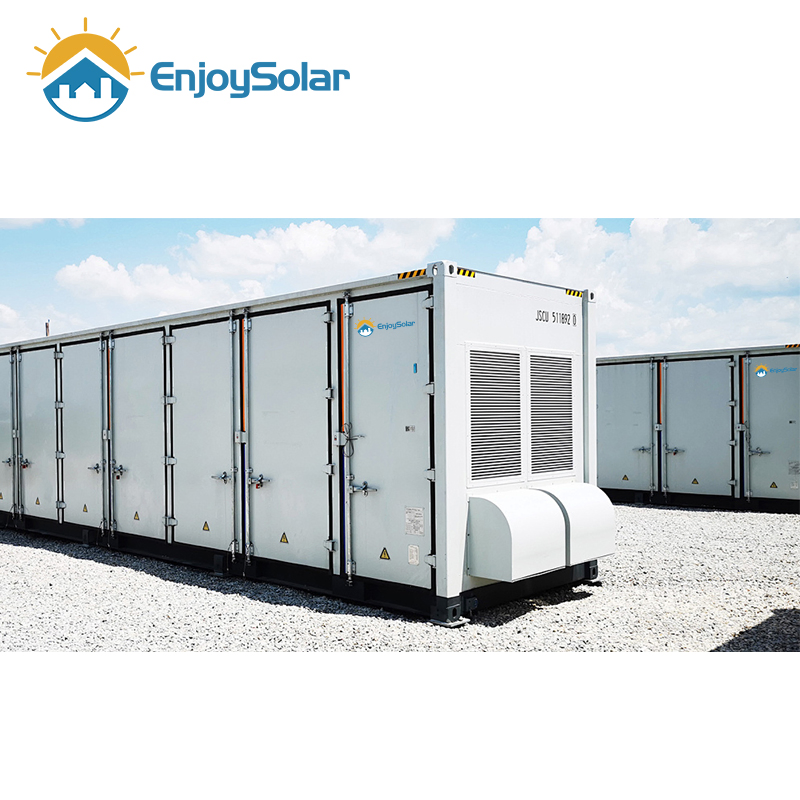

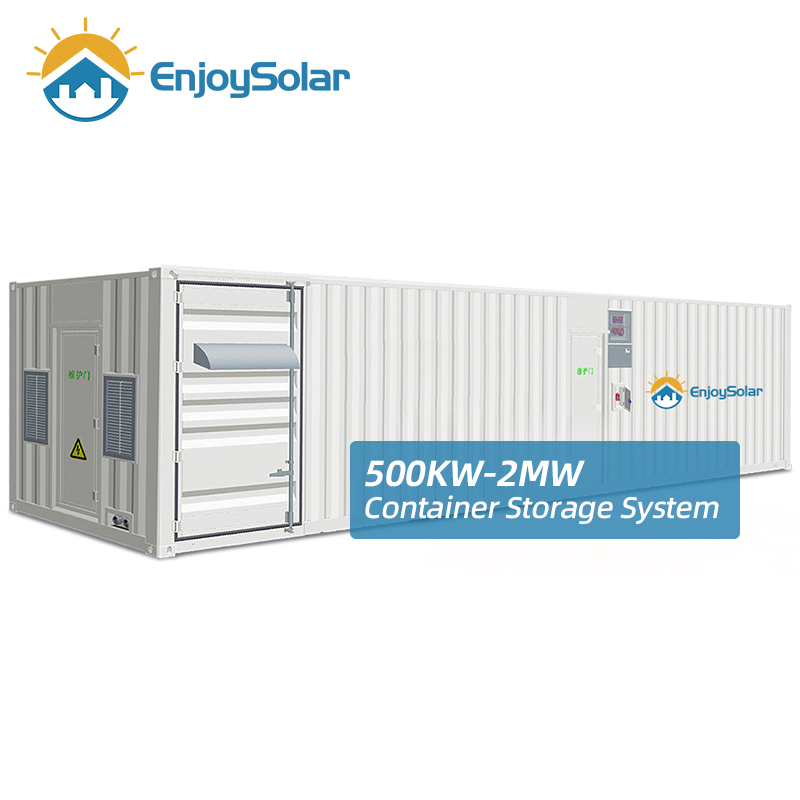

Enjoy Solar Customized Lithium Integrated Solar Ess Container Energy Storage System for High Voltage 2MW/4mwh Lithium Titanate Batteries

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
ES-ESS-40ft
Nominal Voltage
400V/380V 3phase
Warranty
10 Years
Nominal Capacity
800kwh
Cycle Life
6000 Times
Battery Type
Lithium Ion Battery
Communication
Can, RS485
Grid Connection
Hybrid, On-Grid, Off-Grid
Cooling
Air or Liquid Cooling
Product Name
Integrated ESS Bess
PCS Power
250kw/500kw/1MW
Battery Capacity
500kwh/1mwh/2mwh
BMS
3 Levels Active BMS
Certification
CE, Un38.3, En50549, G99, VDE4105
Safety
Built-in Fire Protection
Specification
12192*2591*2438mm
Product Overview

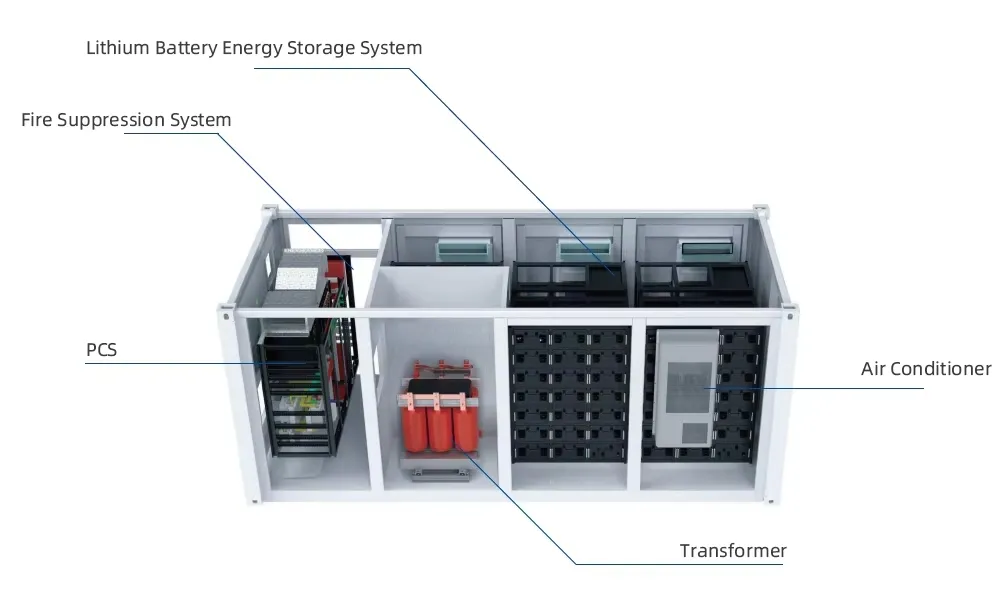

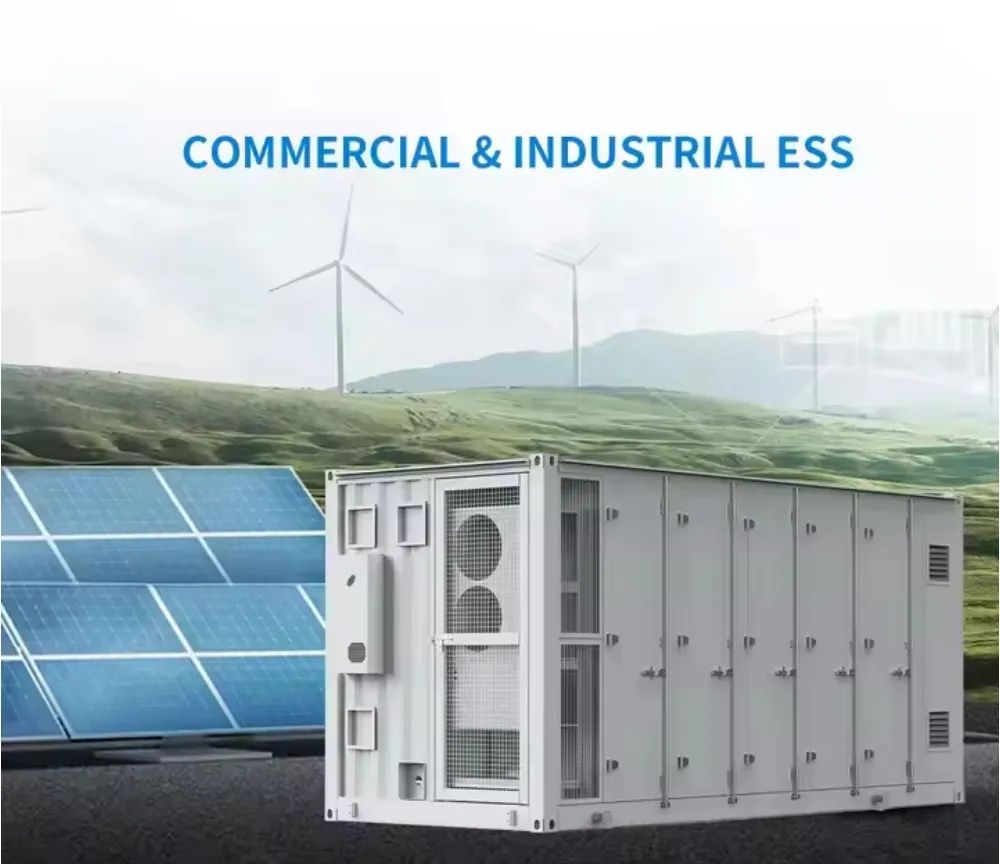

Integrated Solar Ess Container Energy Storage System Containerized Energy Storage Solution
Solutions Design - 20FT System
20FT System Configuration
ItemModelQuantityDescription
PV Panel600W42012pcs/string, total 35 strings. Capacity: 252kw
Combiner BoxPV Combiner57 inputs 1 output for PV strings
InverterPBD250 / PCS2501 / 1250kW solar charge controller & battery inverter
Battery51.2V 280AH60Module Capacity 14.3kWh each
Container20ft IP541Outdoor installation, lighting, fire protection, HVAC
Solutions Design - 40FT System
40FT System Configuration
ItemModelQuantityDescription
PV Panel600W84012pcs/string, total 70 strings. Capacity: 504kw
Inverter SystemPCS500 + Isolation1500kW battery inverter + 500KVA Transformer
Battery51.2V 280AH150Total integration with BMS and Rack system
Container40ft IP541Integrated fire-resistance and air conditioning system

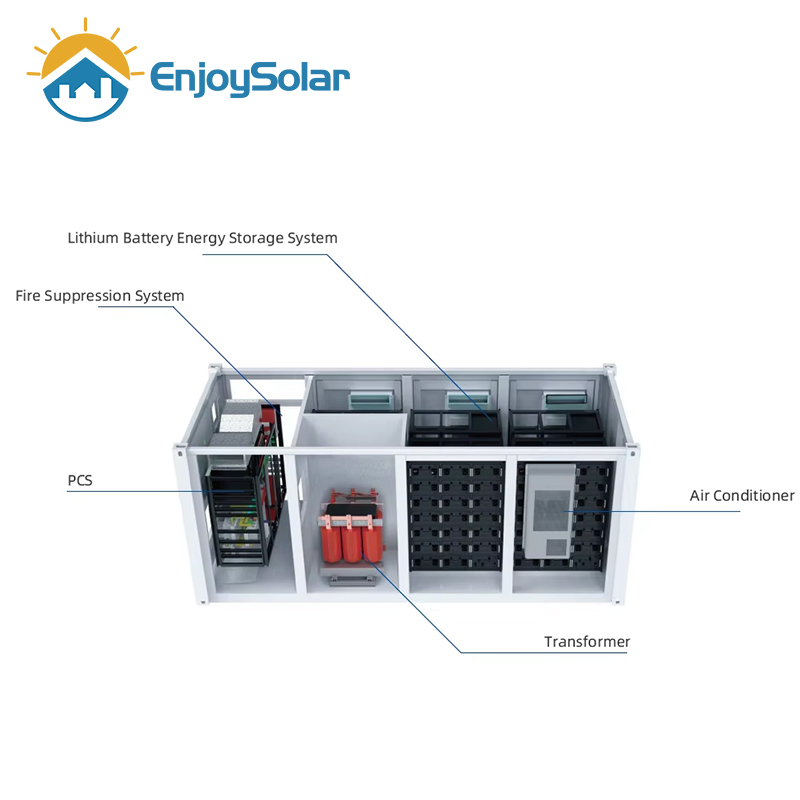

Internal Components & Racks

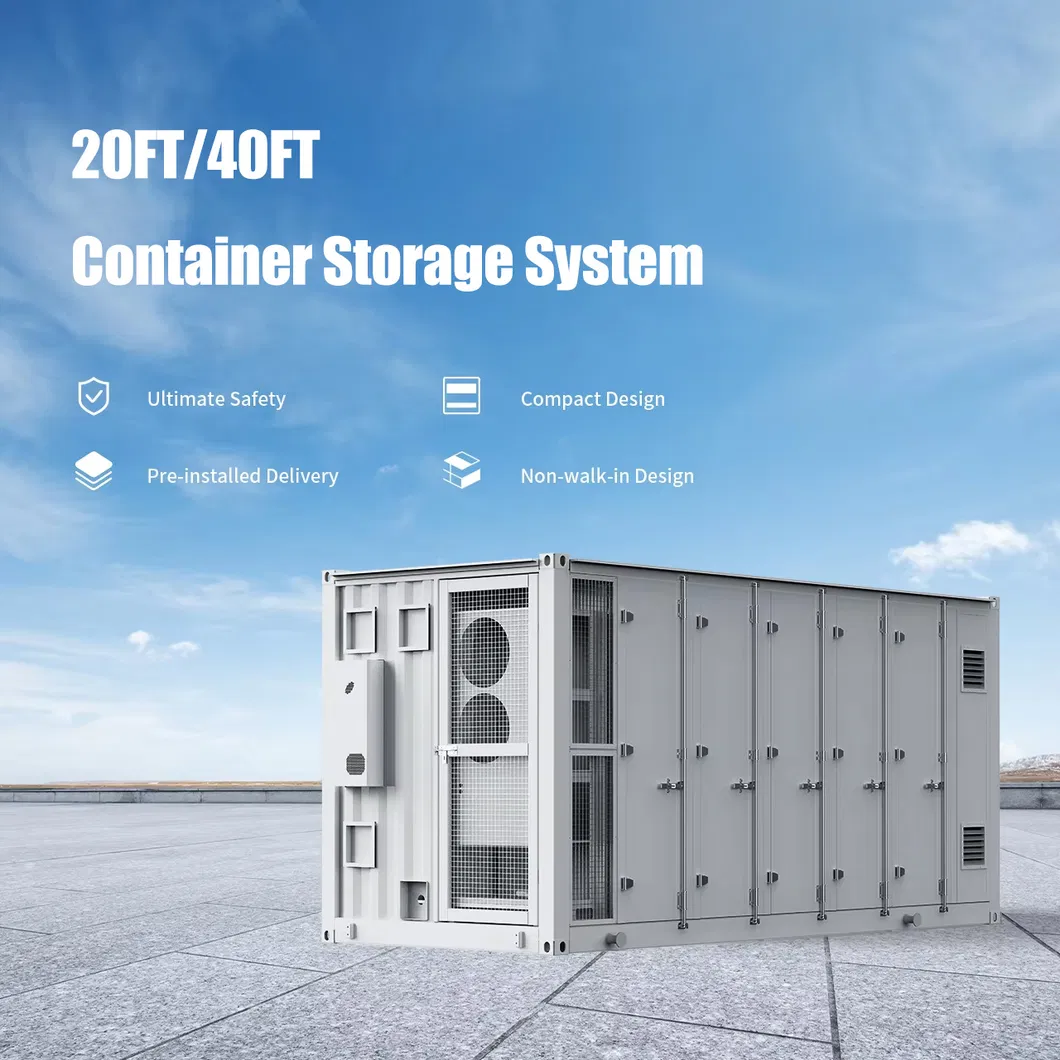

ESS Battery Rack Design

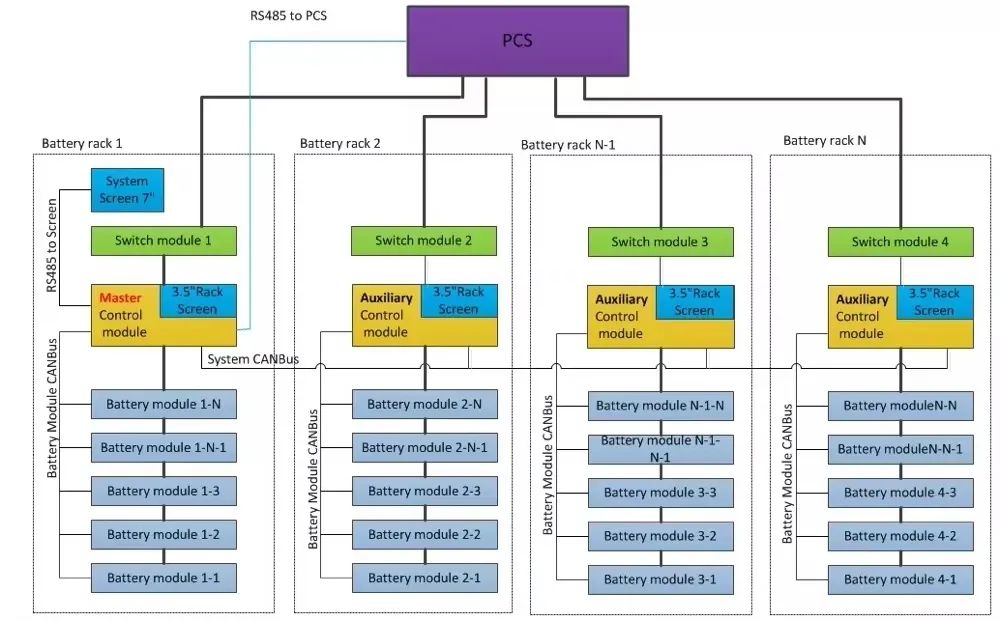

Integrated Control System
Manufacturing Facility

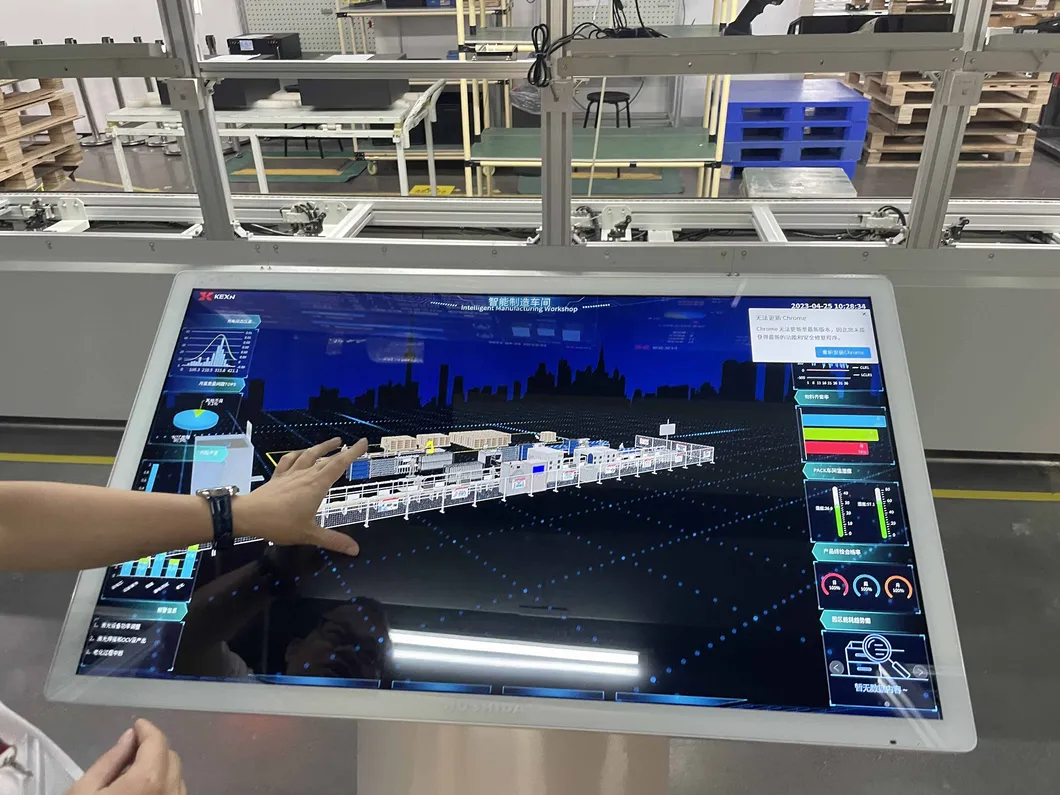

Factory Production Line

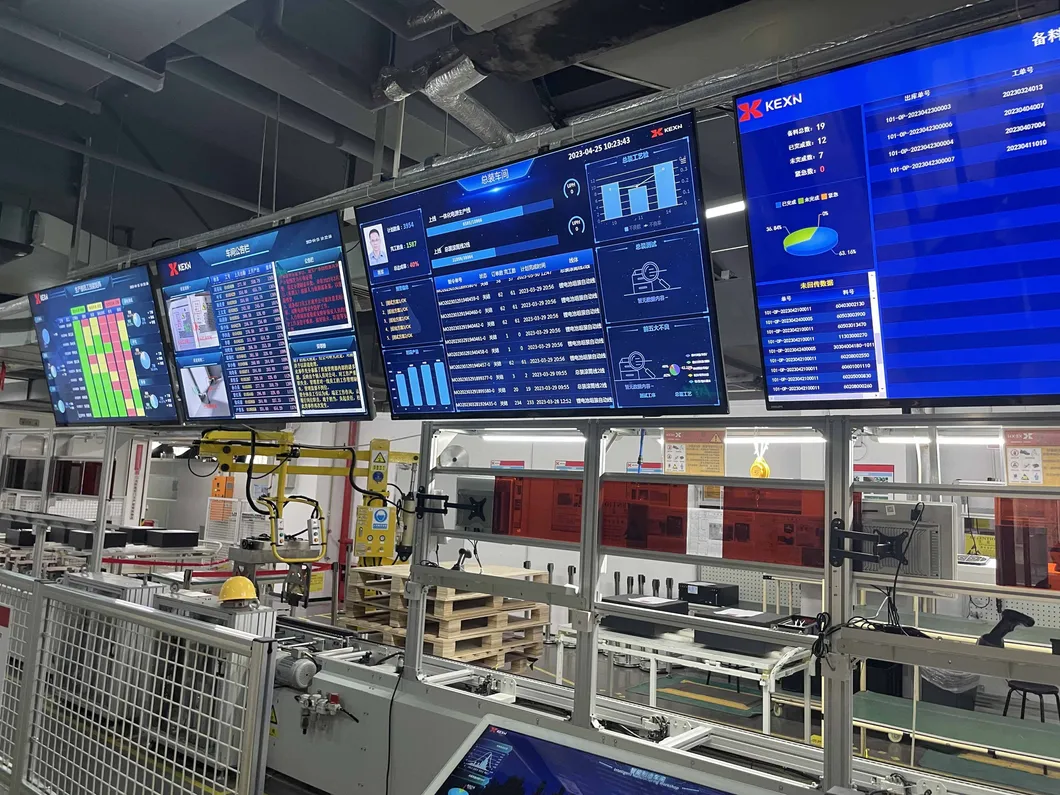

Quality Control Process

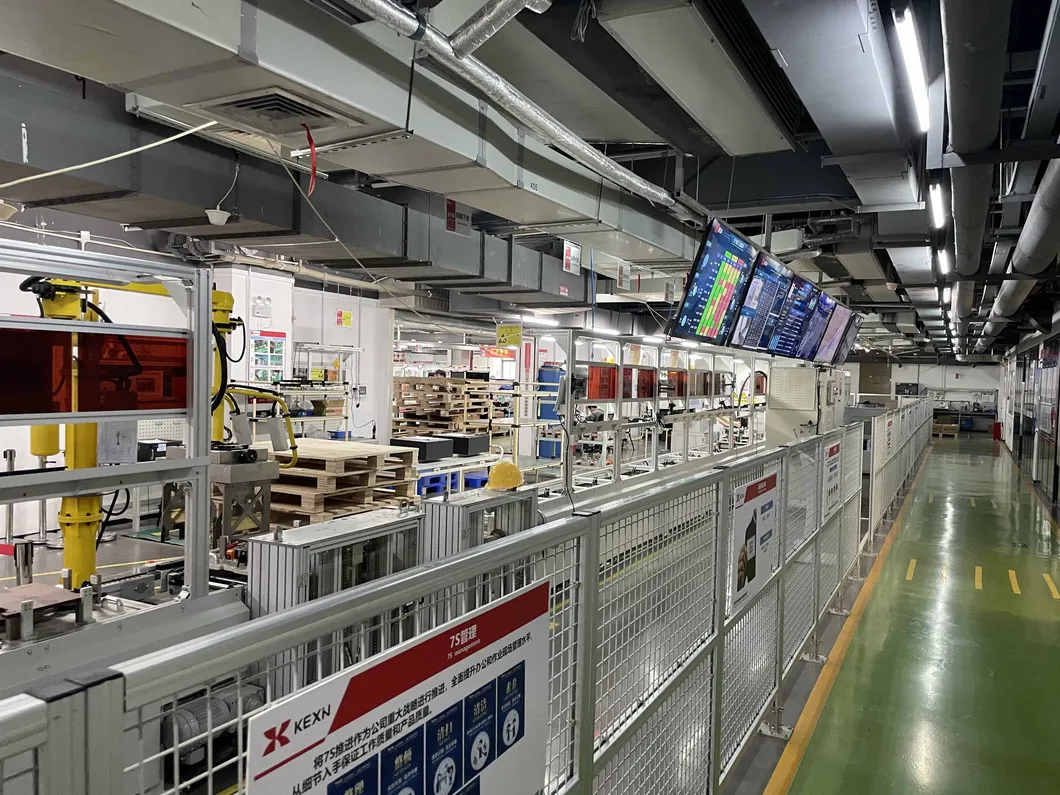

Battery Assembly

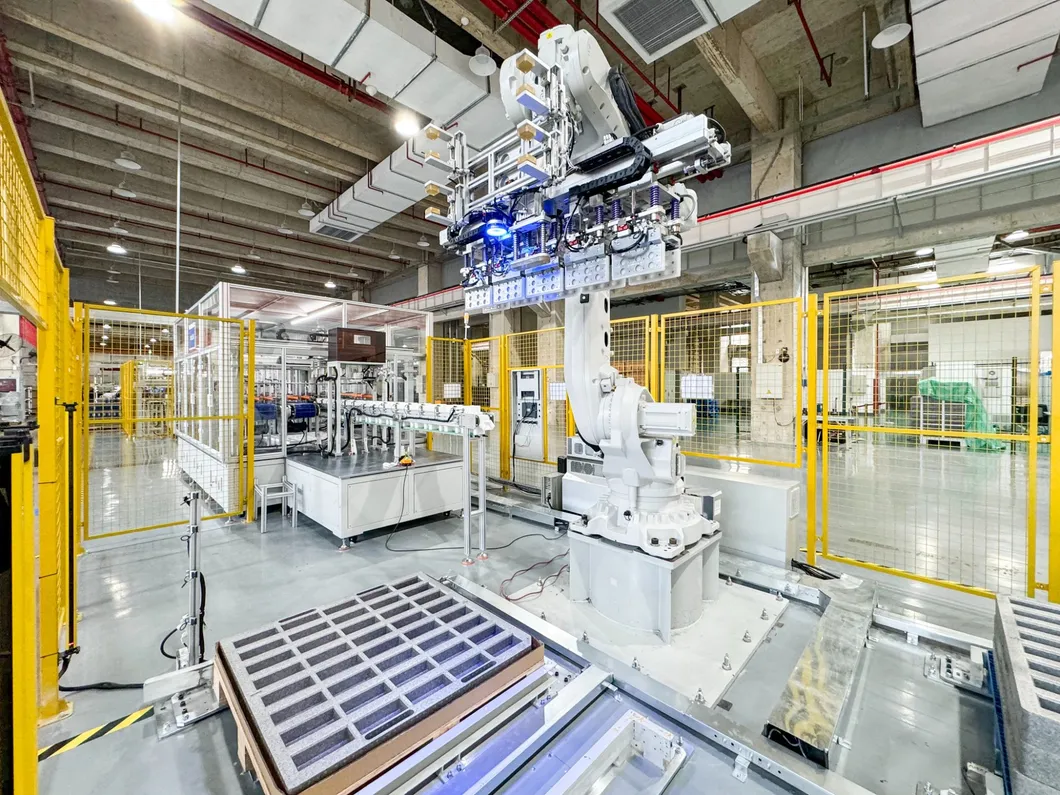

Final Product Testing
Global Projects

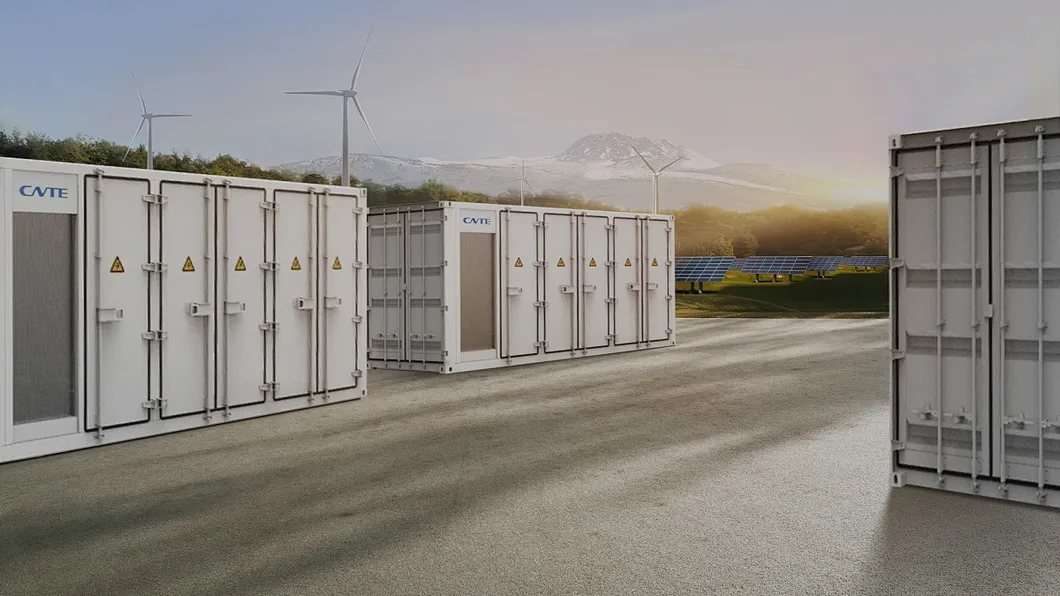

ESS Project Installation

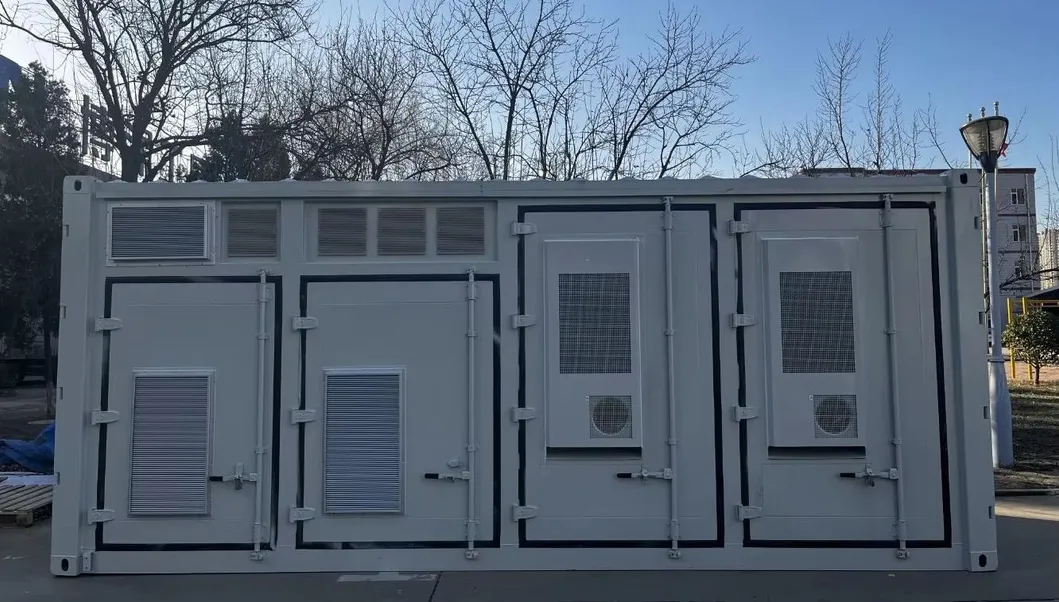

Commercial Energy Storage Project
Frequently Asked Questions
What is the lifespan of the battery system?
The system utilizes high-quality Lithium Ion cells providing a cycle life of over 6000 times, backed by a 10-year warranty.
Is the system compatible with off-grid applications?
Yes, the system is designed to support Hybrid, On-Grid, and Off-Grid configurations, allowing for seamless switching between modes.
What safety features are integrated into the container?
Every container includes a built-in fire protection system, IP54 rated outdoor protection, and a 3-level active BMS for monitoring.
How is the temperature regulated inside the ESS?
Depending on the specific requirements, we offer both advanced air cooling and liquid cooling options to ensure optimal operating temperatures.
Can the capacity be customized?
Yes, we provide modular designs ranging from 500kWh up to 2MWh+ in standard 20ft and 40ft container sizes to meet different energy demands.
