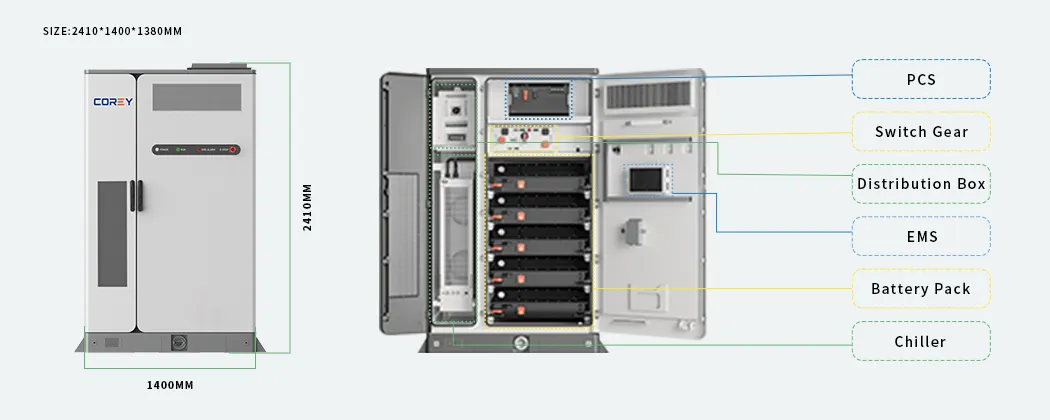

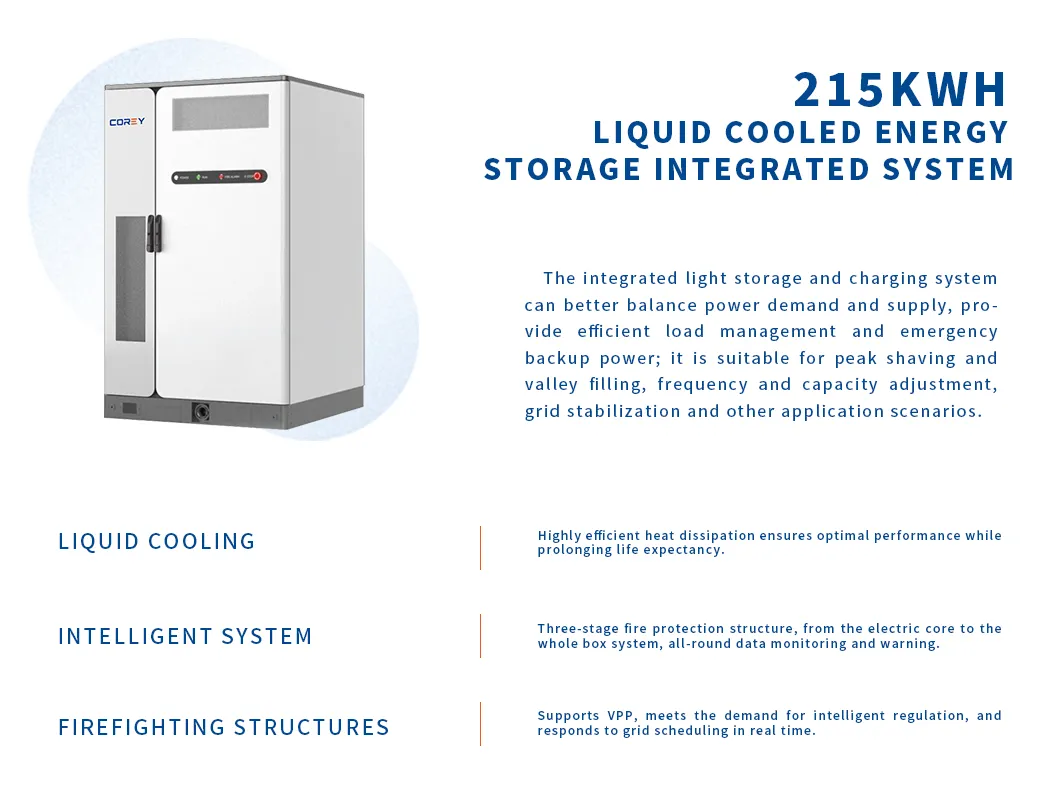

The commercial and industrial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. The divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the maximum safety of people and assets.
| Parameter Category | Specifications (Model 215CE) | |
|---|---|---|
| System Parameter | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 215kWh | |
| Rated Power | 105kW | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol (Pack + Cluster) + Water (Cabinet) | |
| Protection Level | IP54 / C4 Anti-corrosion | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Rated Frequency | 50/60 Hz | |
| Power Factor | ≥0.99 (-1 to 1) | |
| Switching Time | 20ms (Optional Automatic Switching) | |
| DC Side | Rated Voltage | 768V |
| Voltage Range | 682~864V | |
| Discharge Depth | 95% DOD | |
Certifications: CQC, LVRT/HVRT, EN 62477, EN 61000, EN 50549-2, UN38.3, EN 62619, VDE 4105, VDE O126-1-1, XP C15-712-3, UTE C15-712-1, VFR 2019.

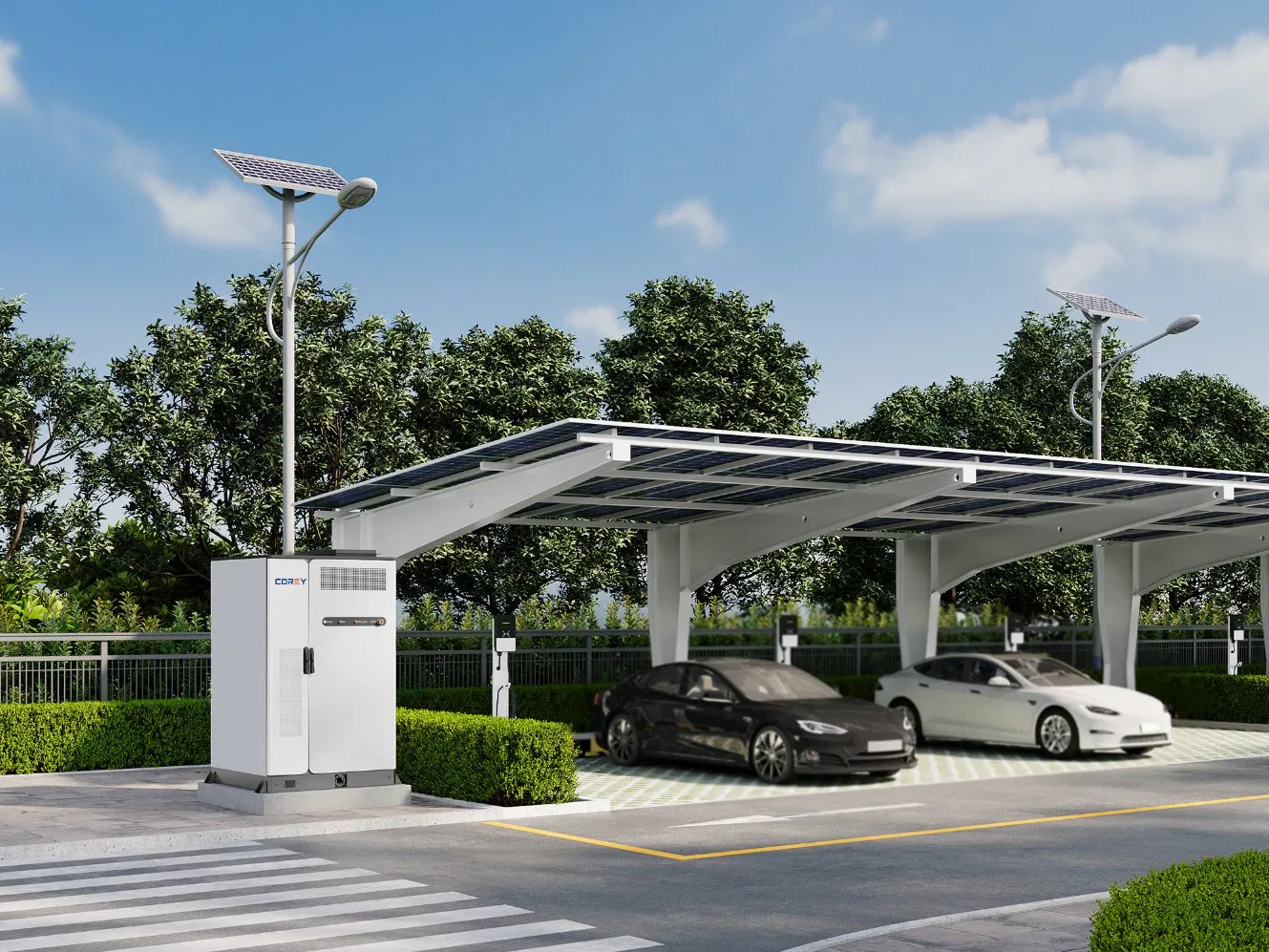

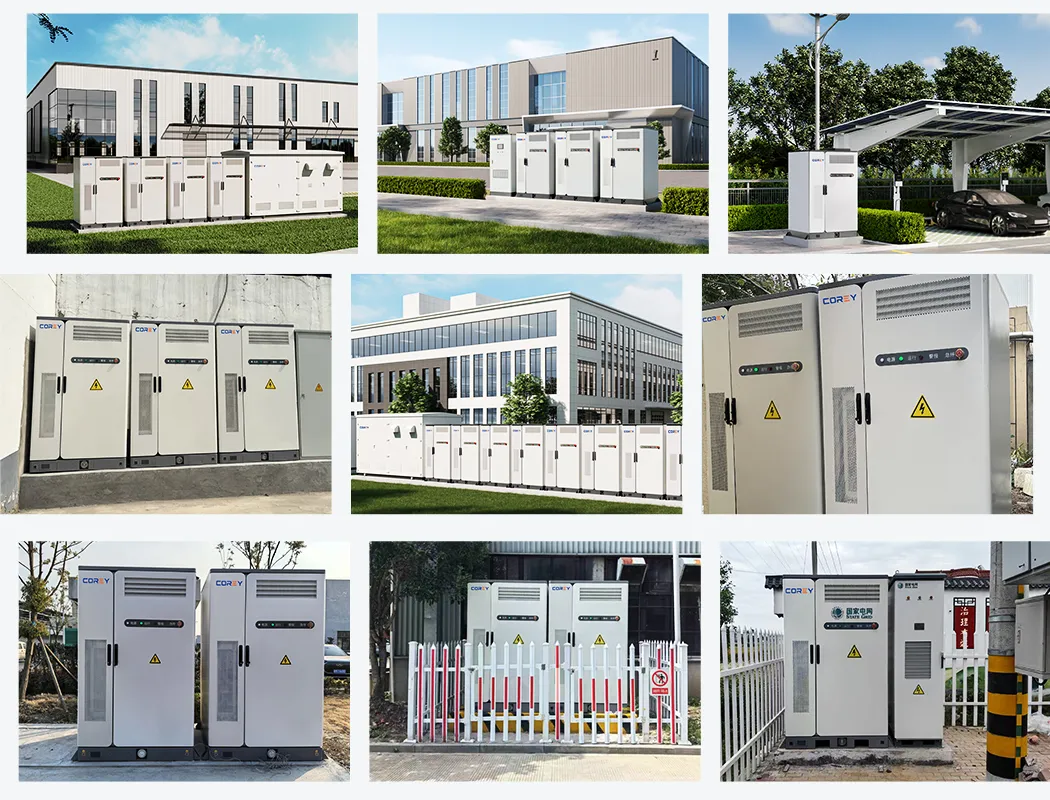

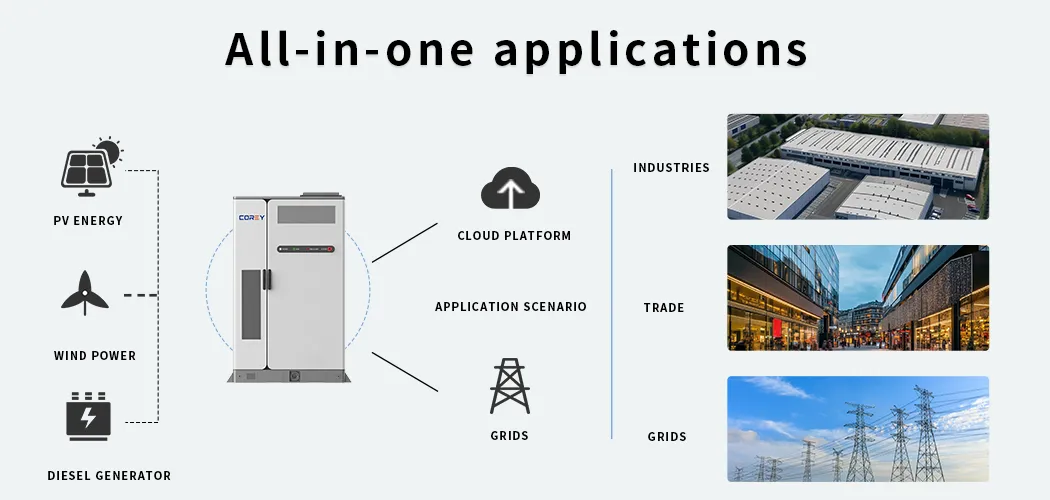

Ideally suited for commercial buildings, factory complexes, remote off-grid areas, and regions experiencing frequent power shortages.

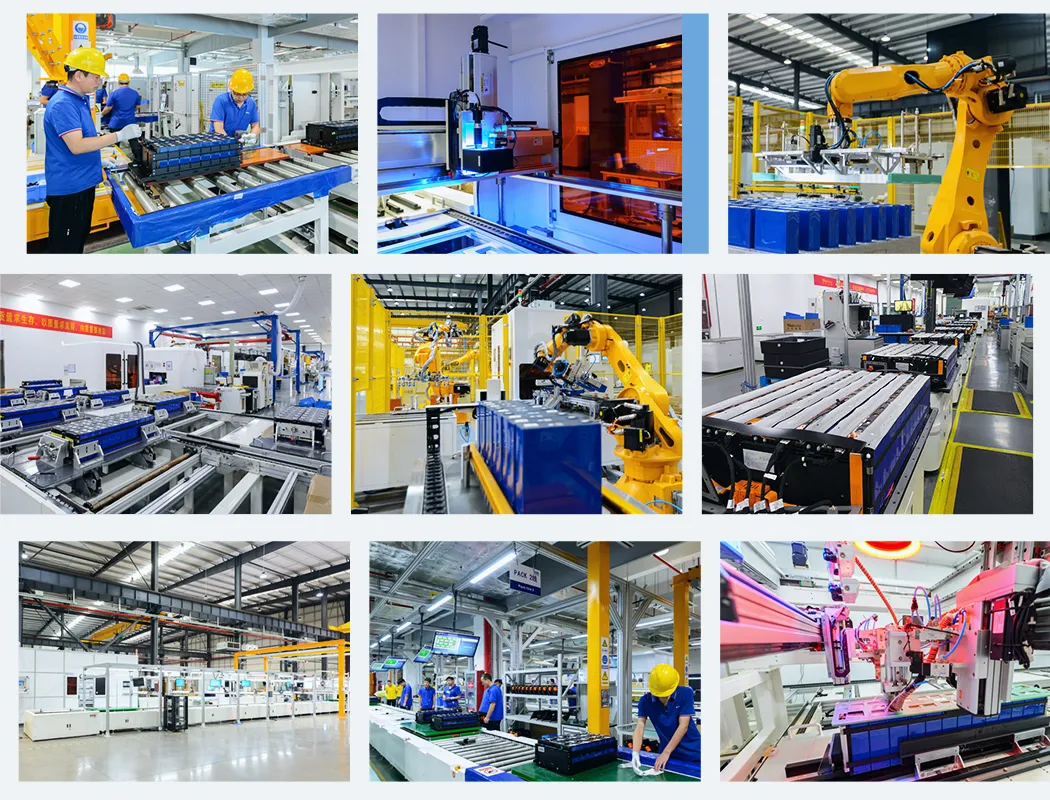

Established in 2014, our group began with automated intelligent equipment and laser welding technologies for lithium battery modules. We provide high-intelligence manufacturing solutions for top-tier energy storage system integrators.
We are dedicated to providing one-stop green power station solutions, including Turnkey Services, Microgrid Solutions, and specialized Energy Storage Project Solutions. We aim to become a global leader in energy transformation, building zero-carbon power systems that are stable, safe, and clean.
