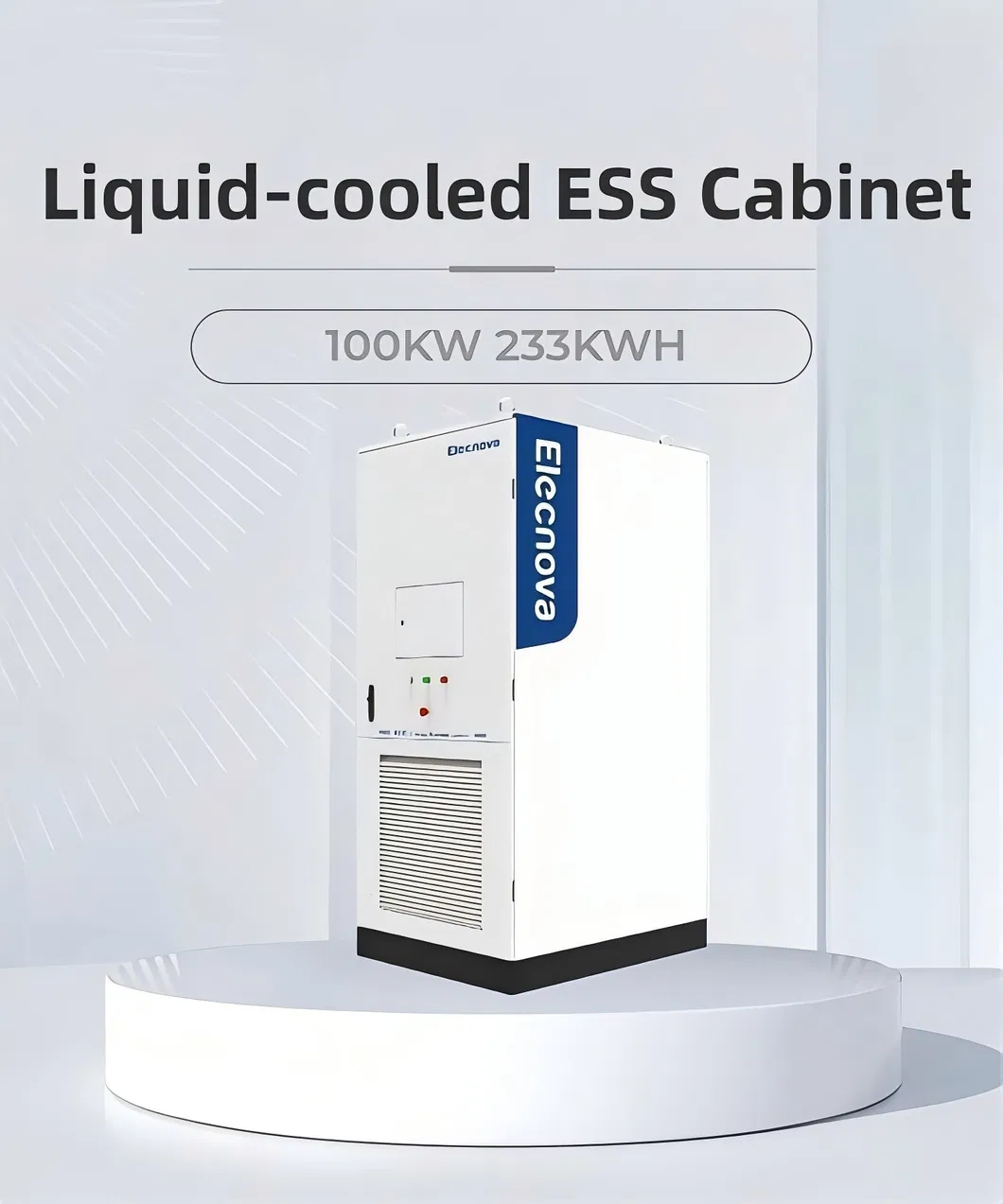

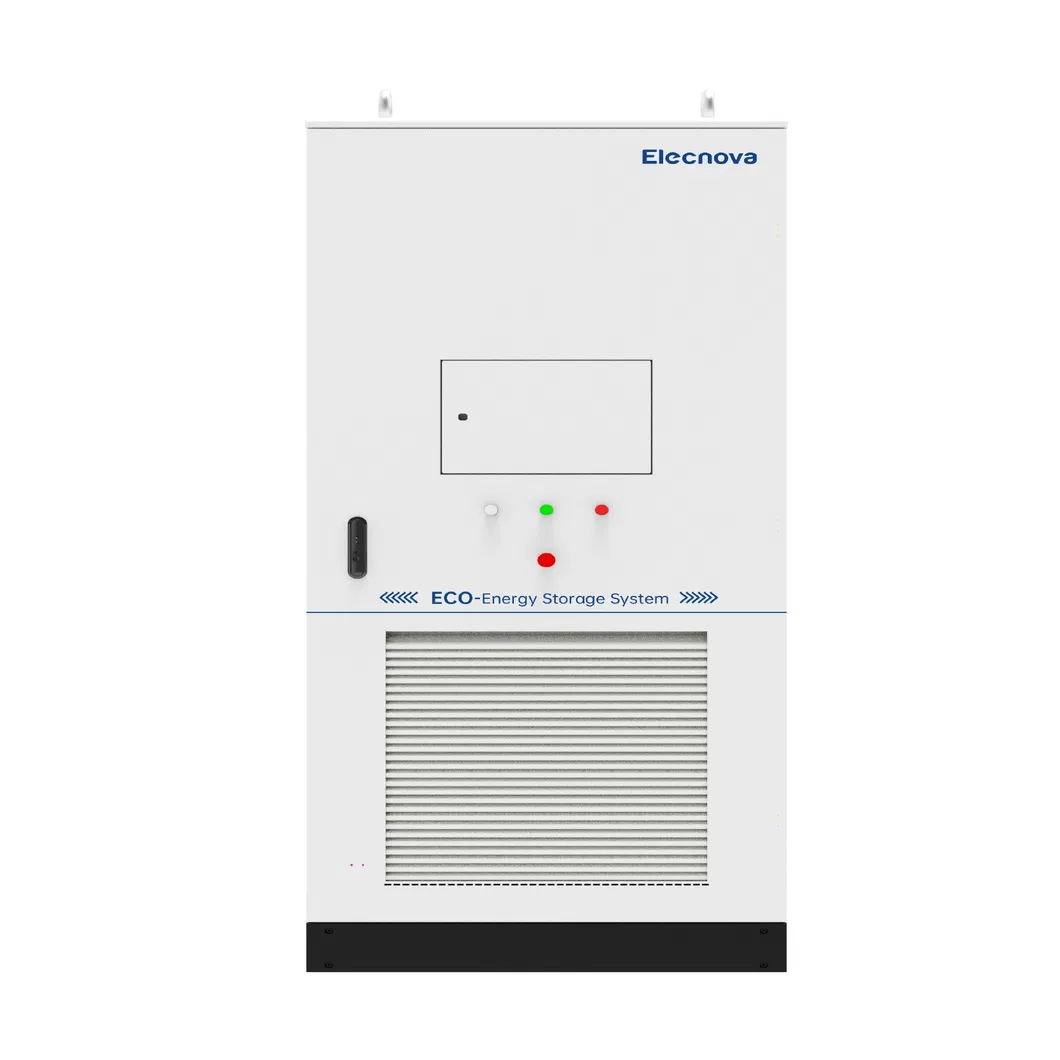

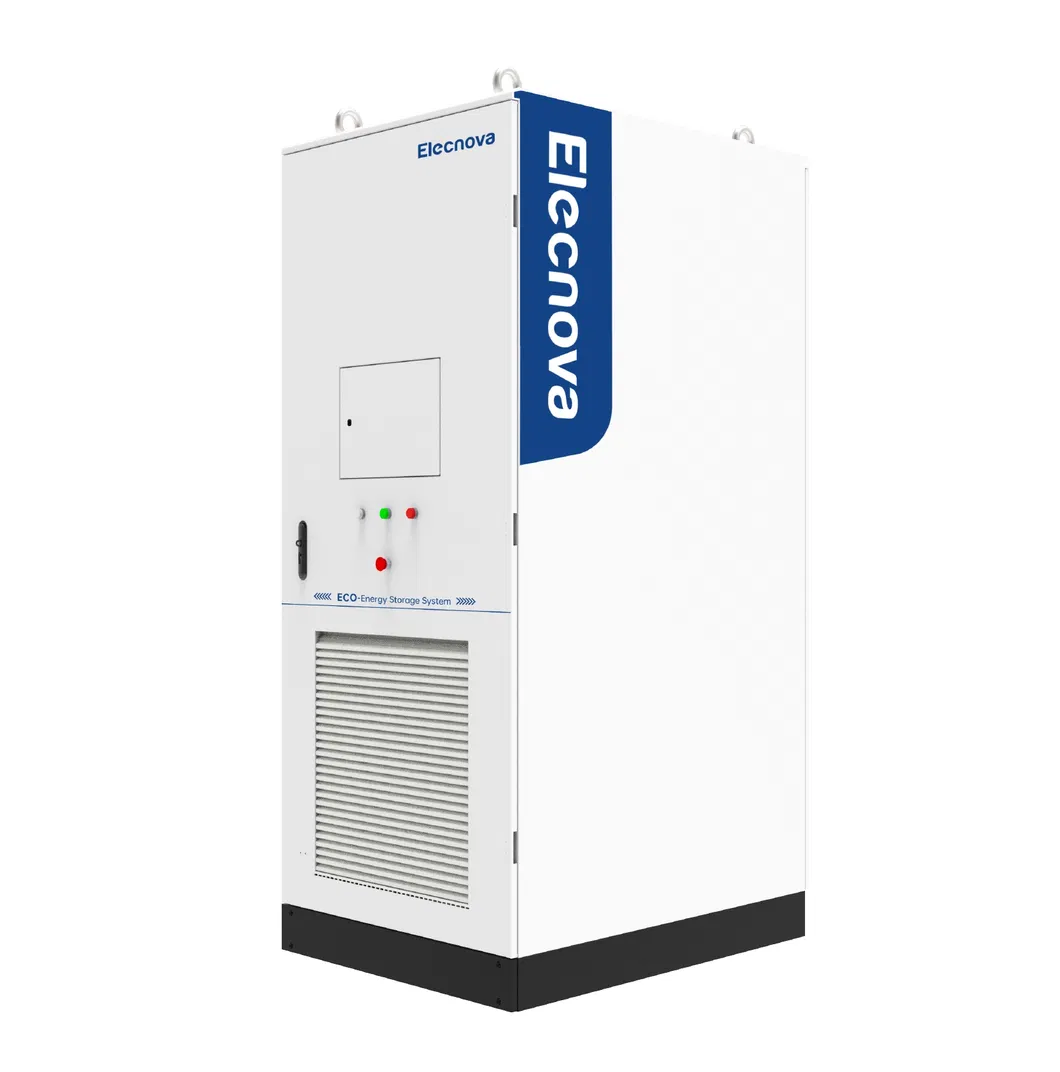

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Efficiency: Conversion efficiency of 99%. IP65 rating with ms-level on/off-grid switching.
Thermal Control: Active thermal management system ensures over 8,000 cycle life and 10-year lifespan.

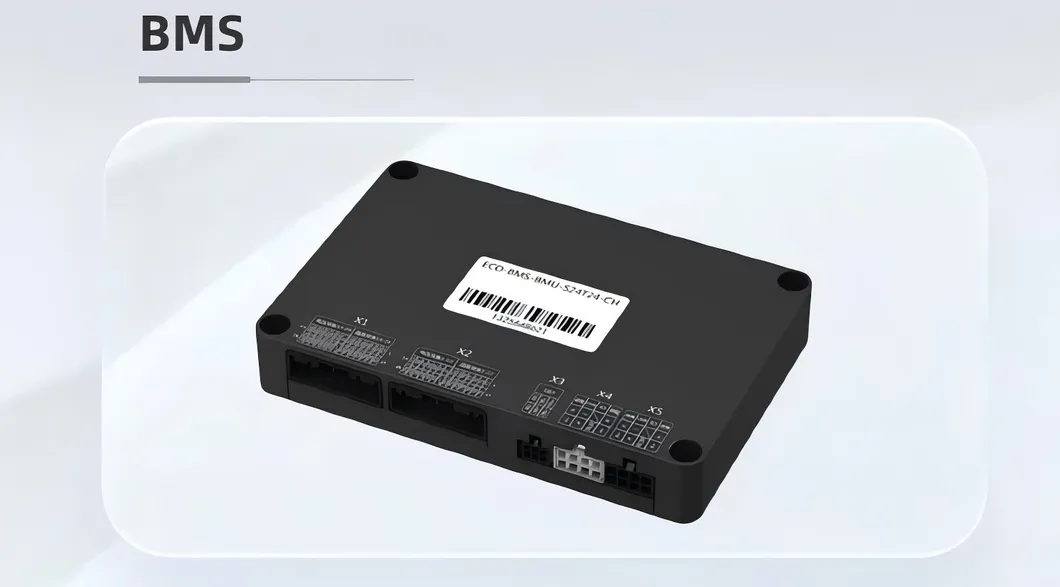

Accuracy: SOC Estimation Accuracy Error < 5% with 100ms sampling intervals.

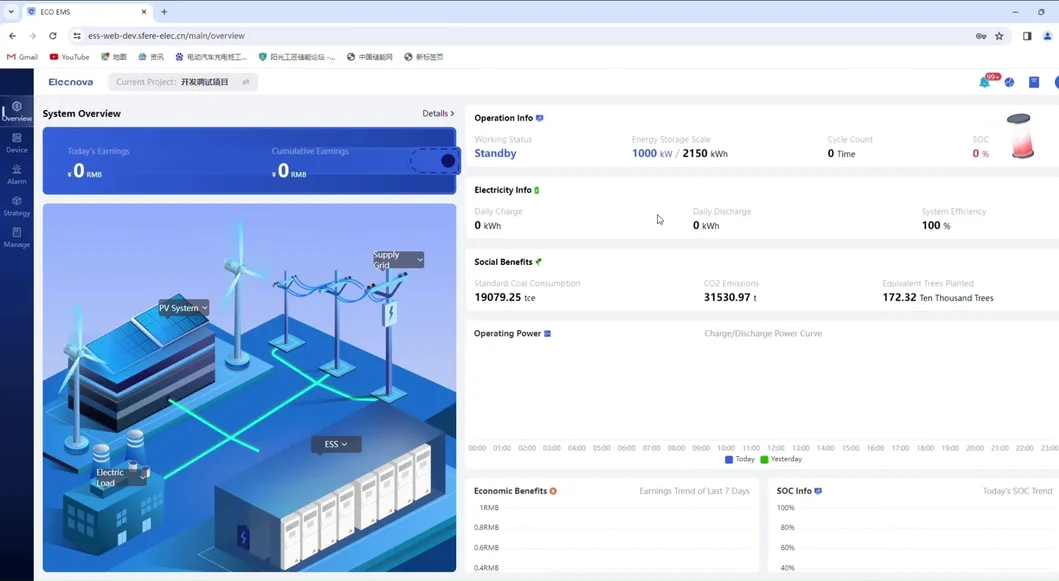

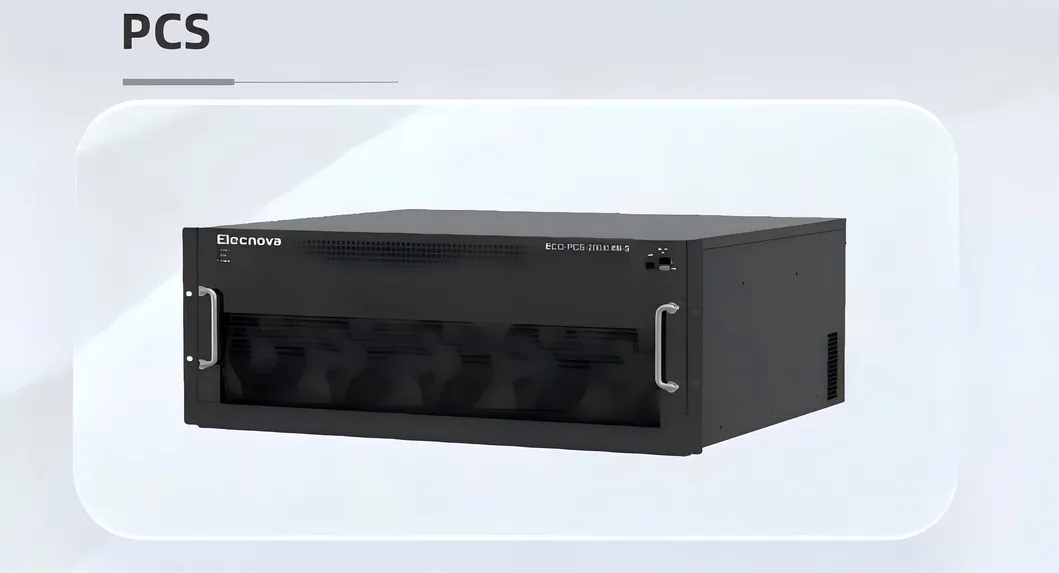

Monitoring: Full monitoring of PCS, BMS, and air conditioning for energy arbitrage.
| DC Side Specifications | |
|---|---|

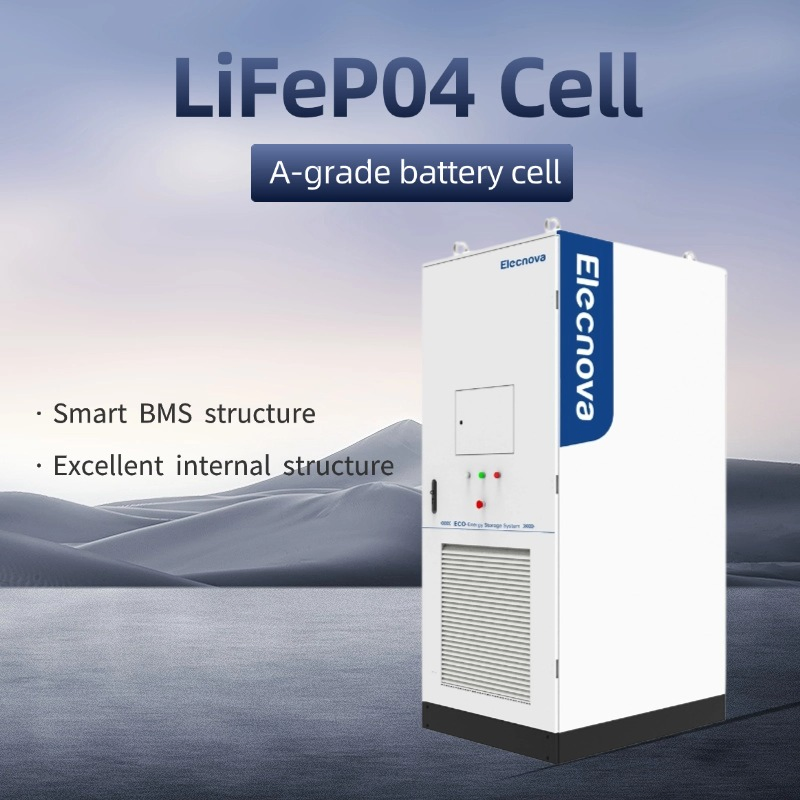

| Cell Type | LFP280Ah |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Specifications | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| THDi | <3% |

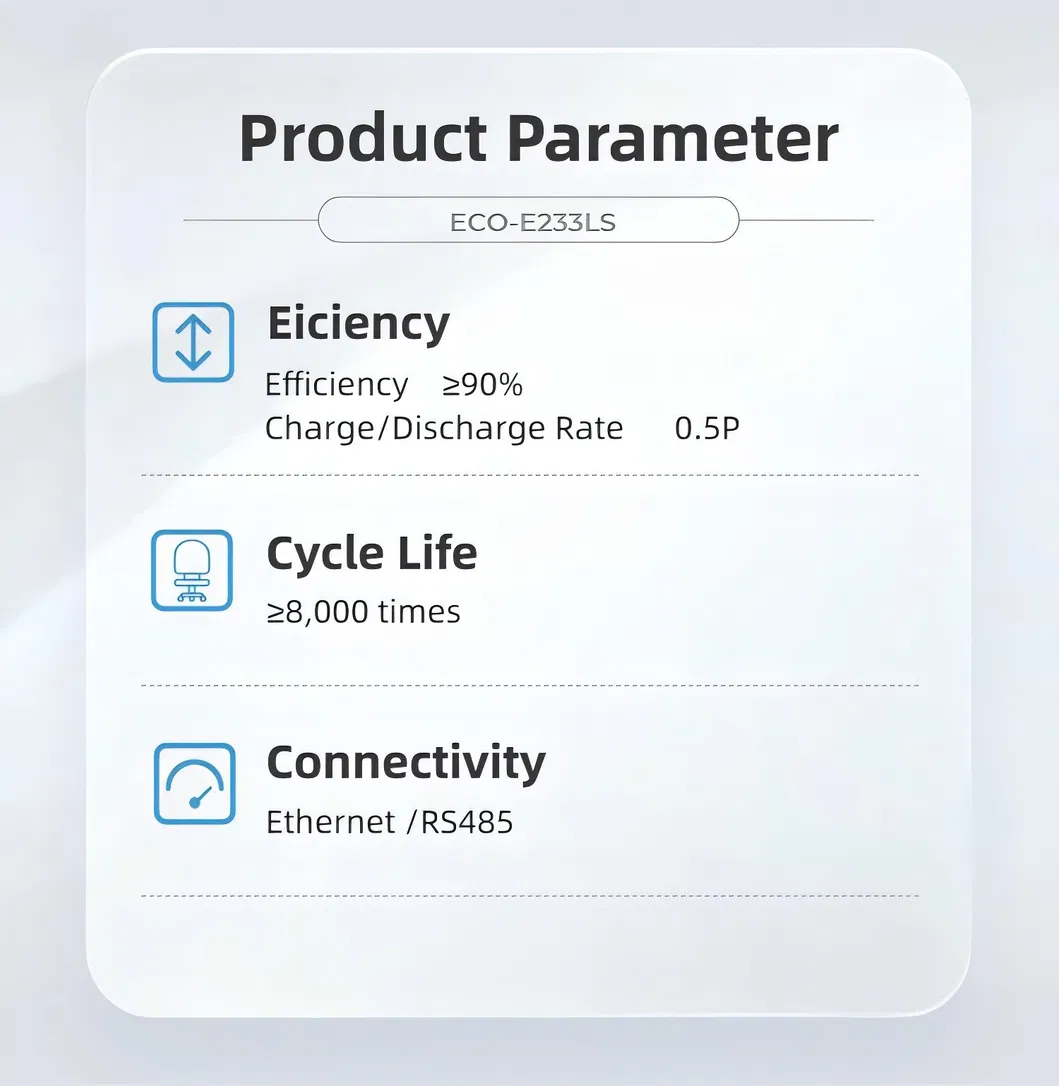

| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Cooling | Active liquid cooling |
| Fire Safety | Aerosol |
| Weight | 2,570kg |

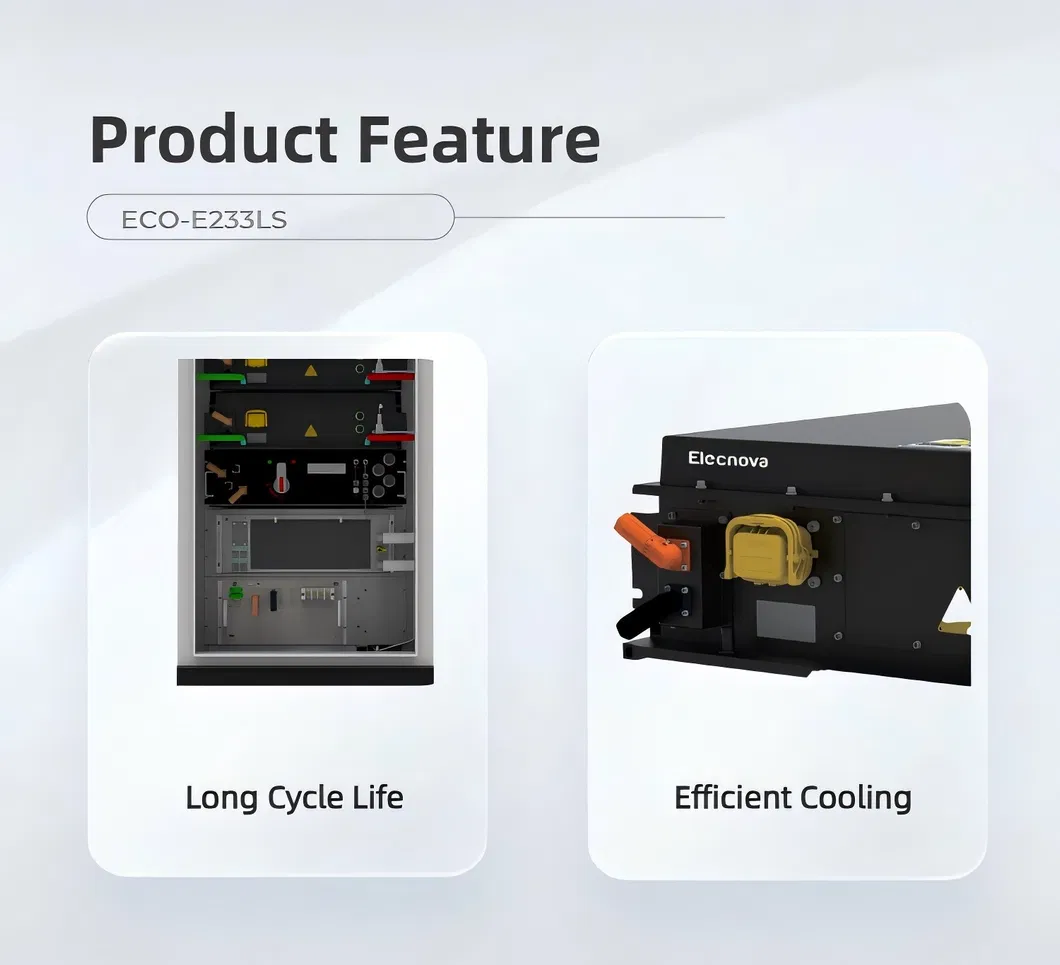

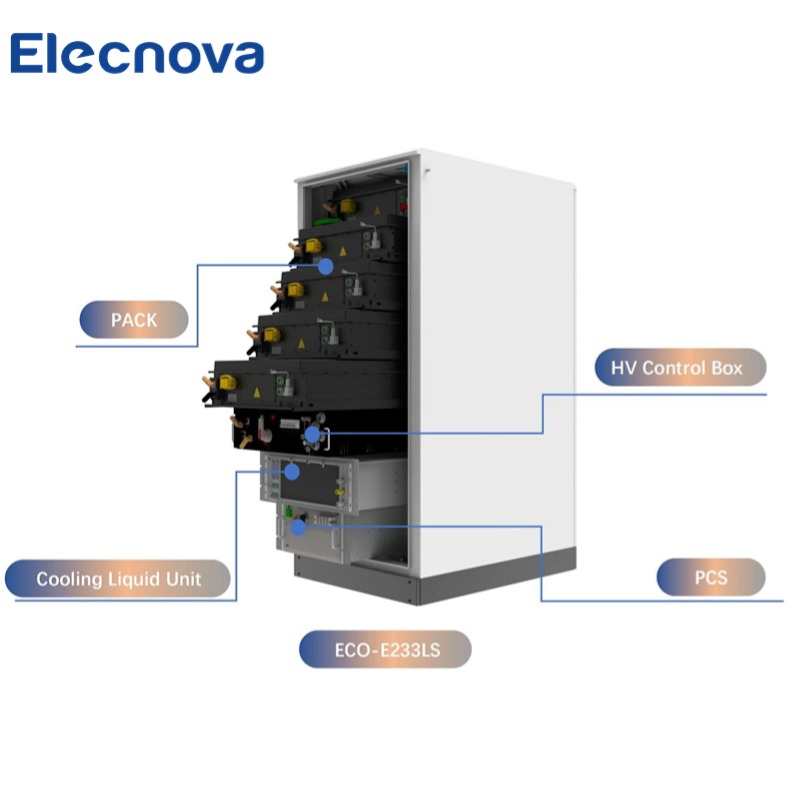

Compact: 1.4m² footprint, easy transport.

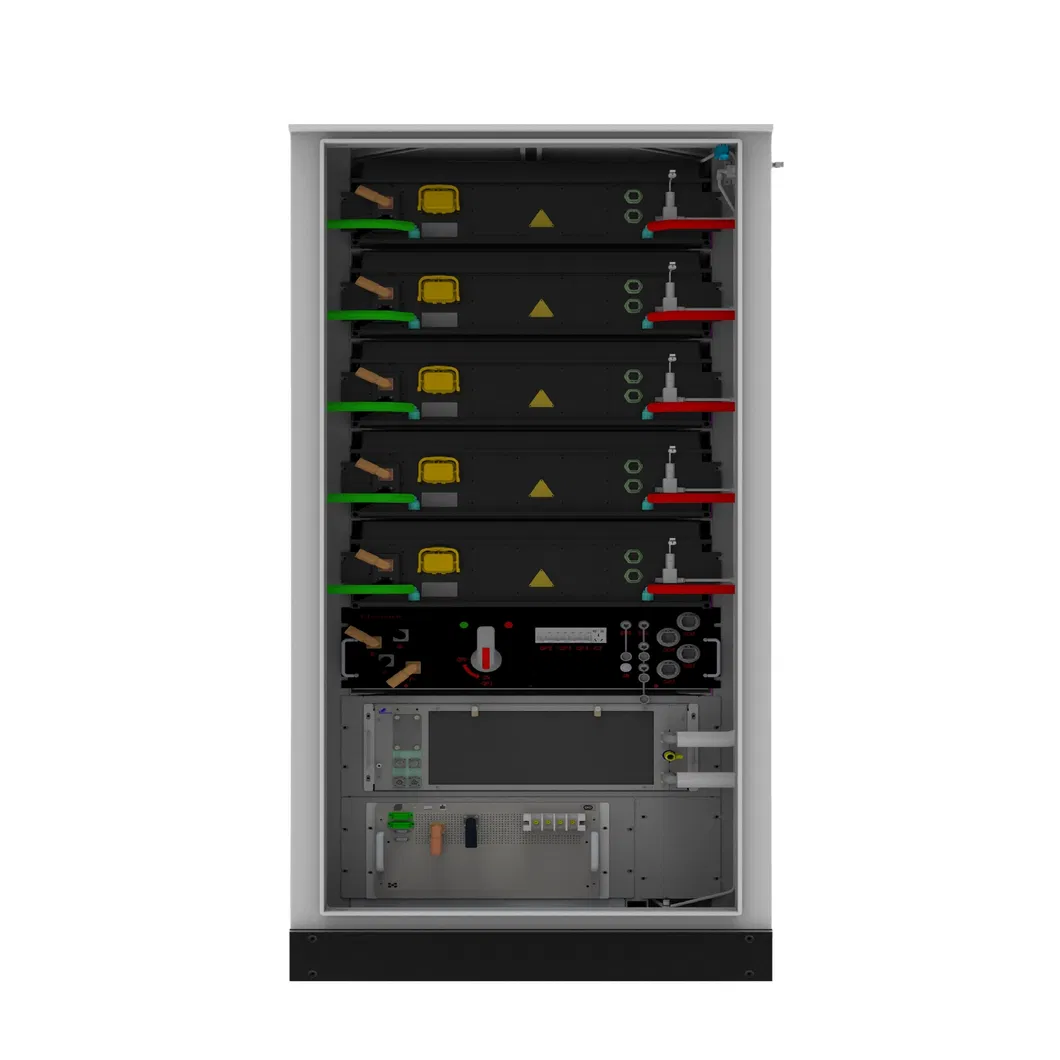

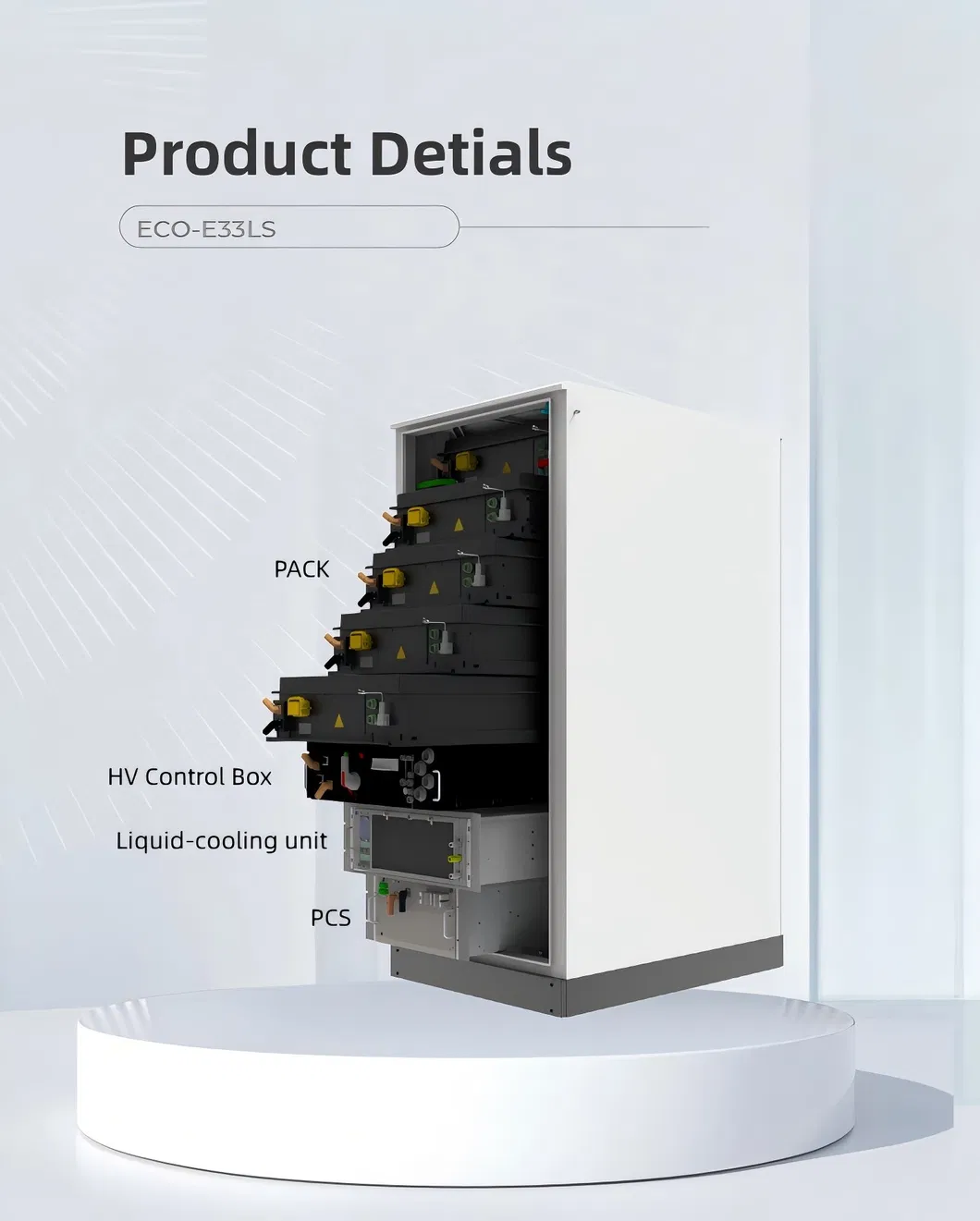

High Integration: 233kWh in one cabinet.

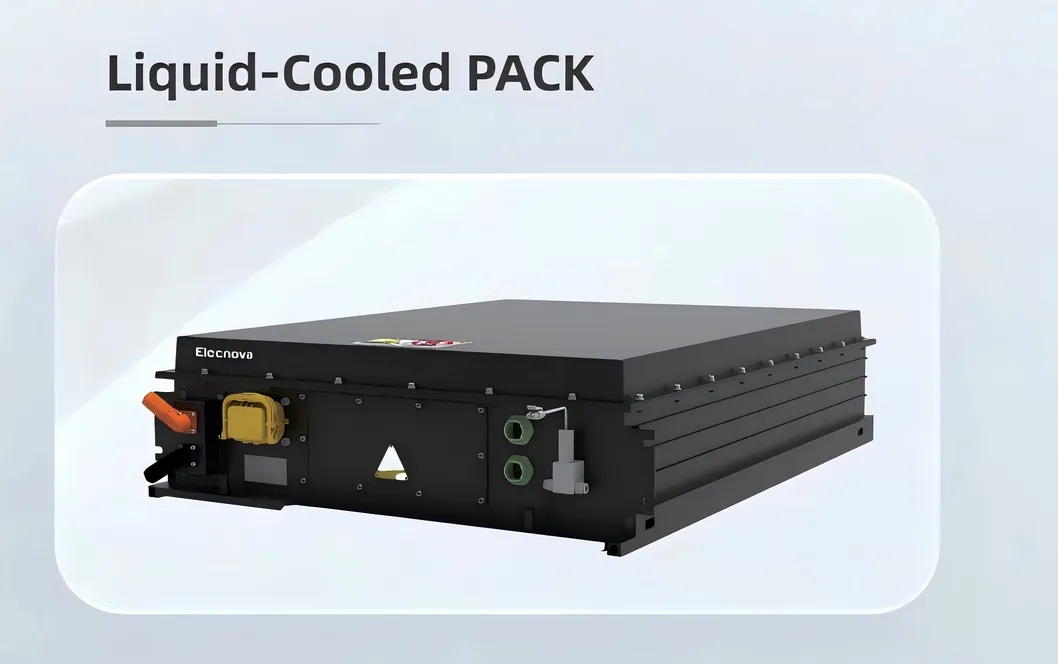

Efficient Cooling: Optimal in-PACK duct design.
Ultimate Safety: In-PACK fire warning (Aerosol), prevent heat diffusion.

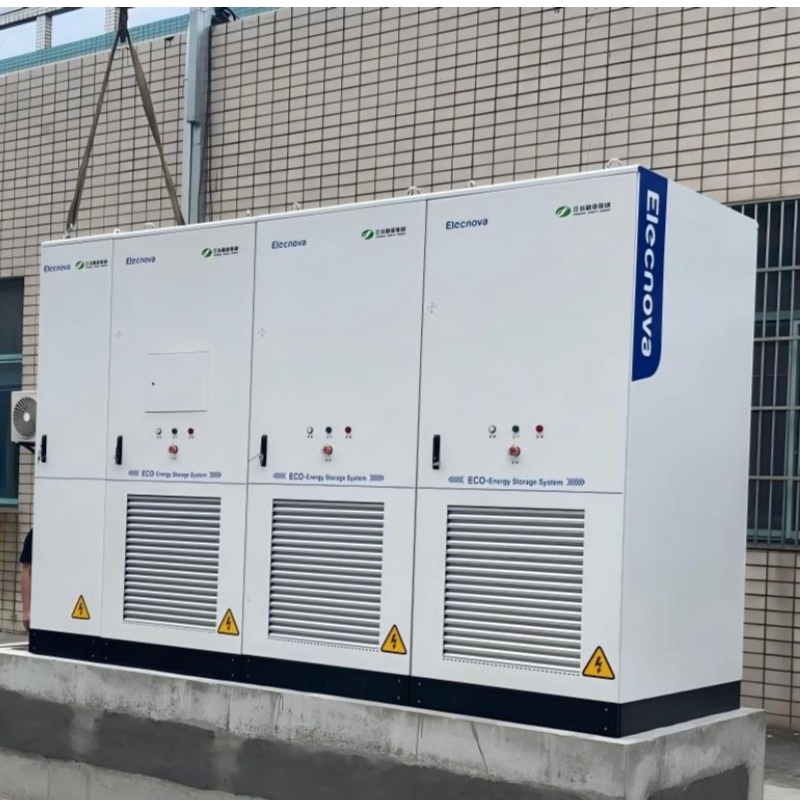

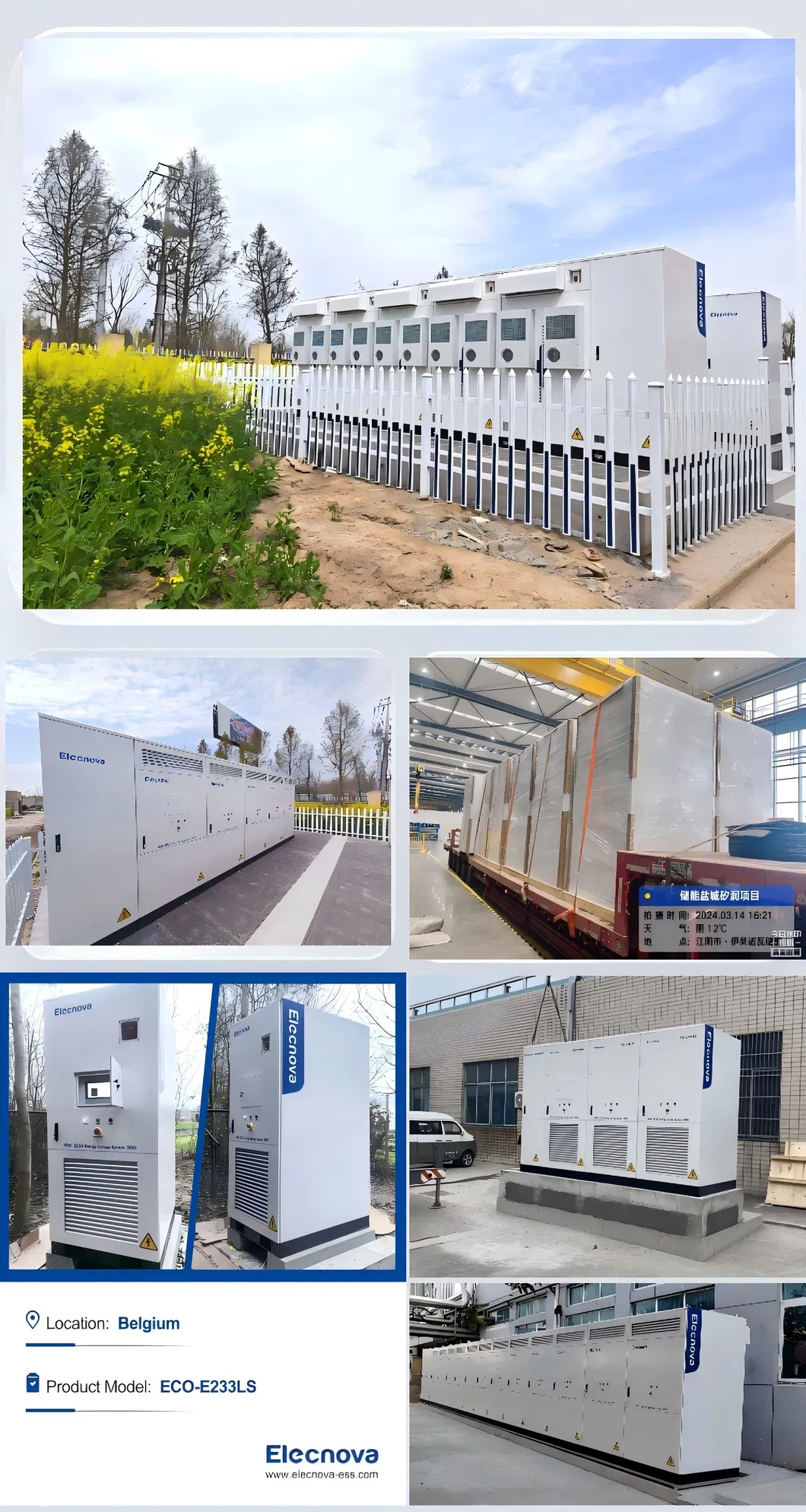

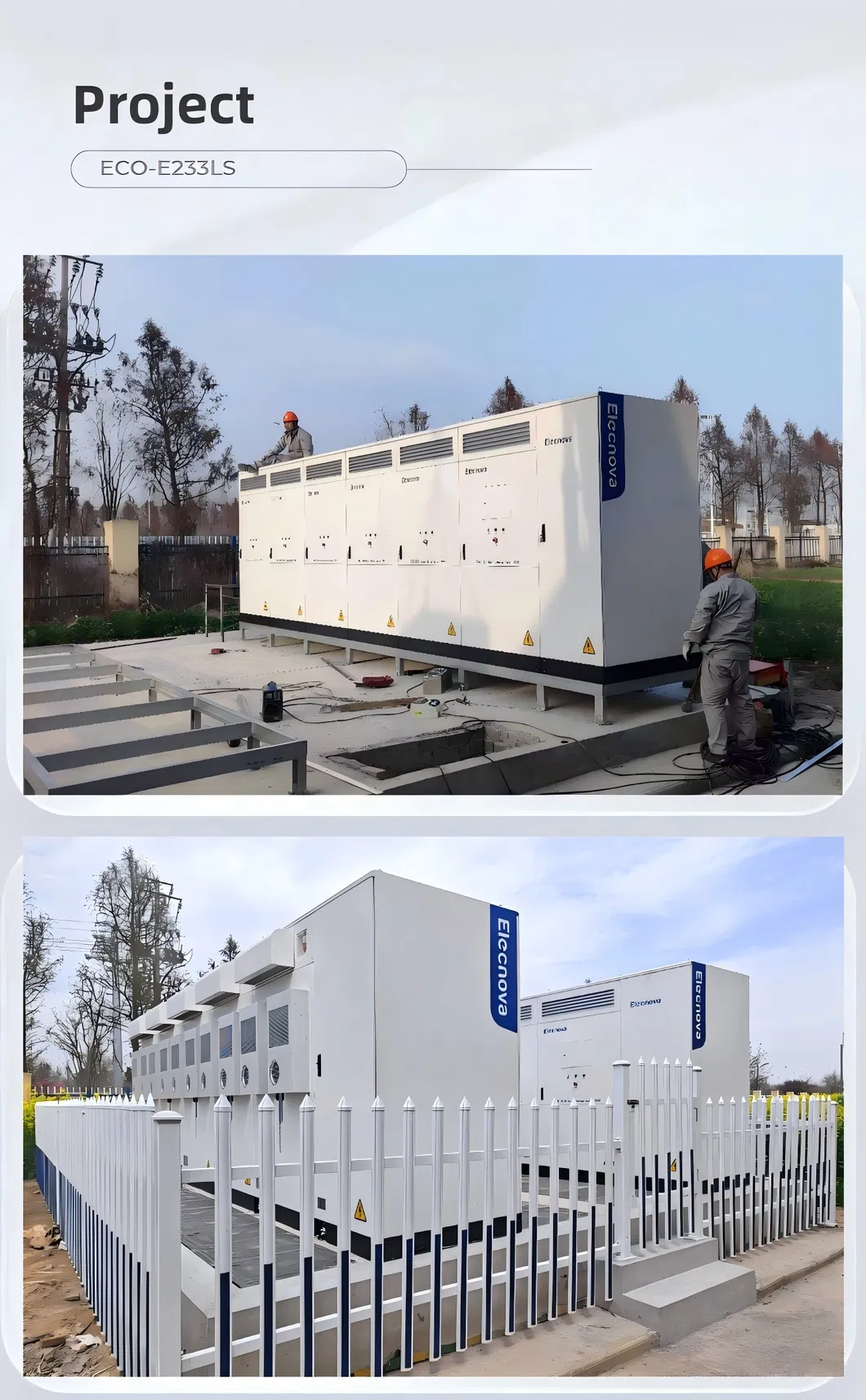

Our 2.4MWh energy storage projects have successfully connected to the grid, utilizing advanced equipment characterized by high efficiency, stability, and safety.
