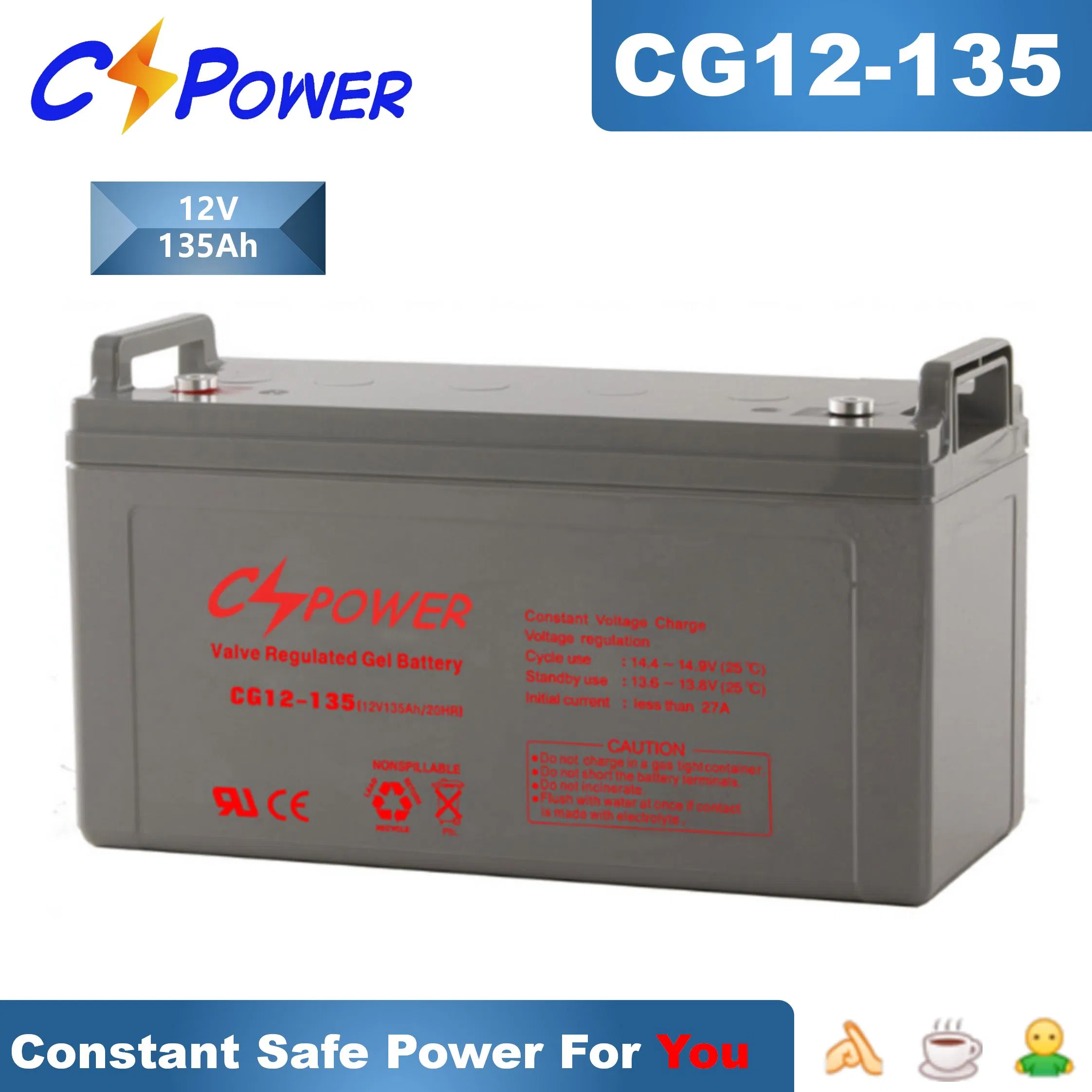

Constant Safe Power Durable GEL VRLA Battery CG Series are recognized as the most reliable and high quality battery system in the industry. Designed with advanced patented GEL technology, these batteries offer a long service life of 12-15 years and 1200 cycles at 50% DOD. They comply with international standards such as IEC60896-21/22, BS6290-4, and Eurobat Guide.
| Parameter Item | Specification | |
|---|---|---|
| Nominal Voltage | 12V | 6 cells per unit |
| Design Floating Life | @ 25ºC | 12 Years |
| Nominal Capacity | @ 25ºC | 33Ah (10 hour rate) |
| Internal Resistance | Fully Charged | ≤11.0mΩ |
| Max. Discharge Current | @ 25ºC | 198A (5s) |
| Dimensions | L*W*H (mm) | 196*130*155 (Total H: 167) |
| Model | Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

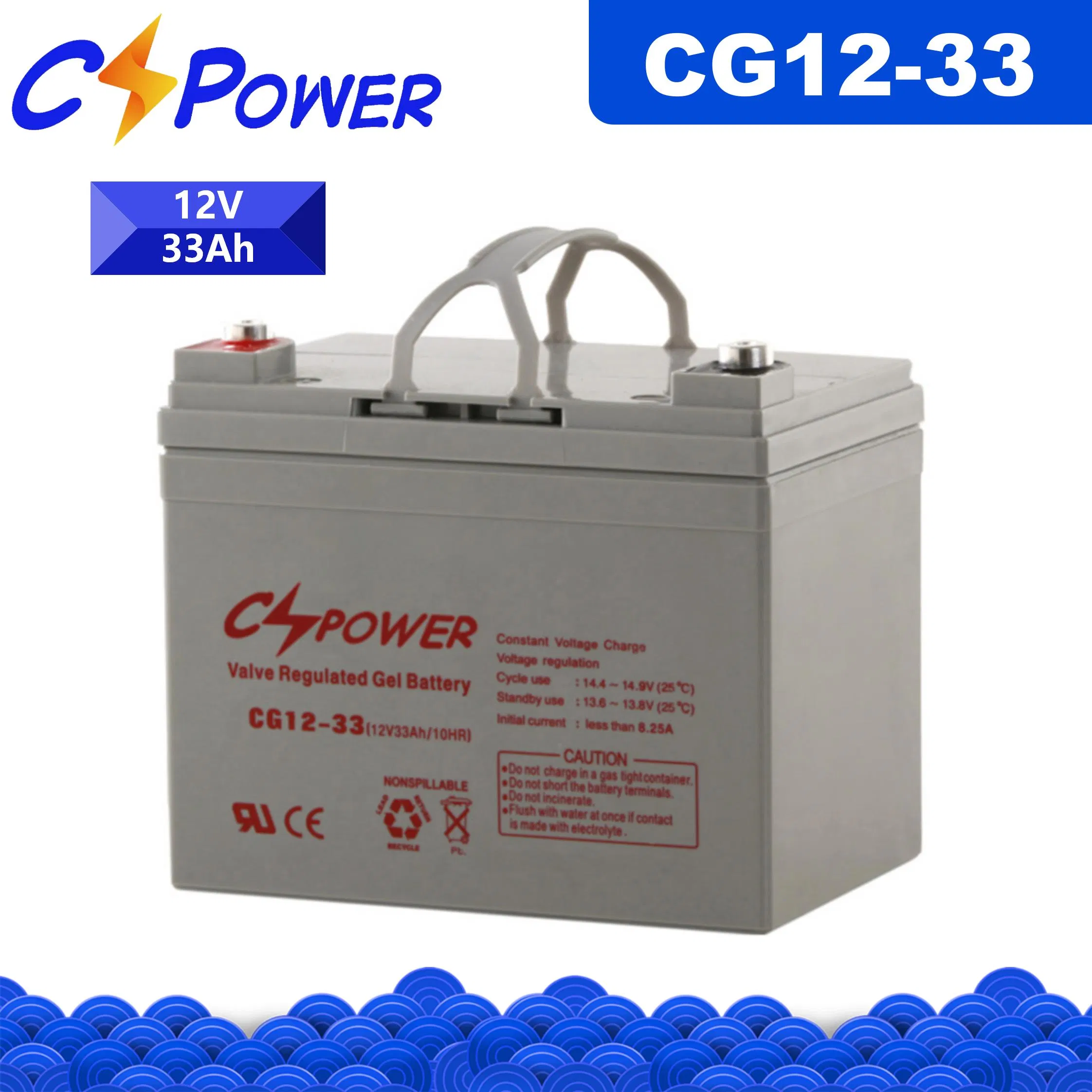

| CG12-33 | 12 | 33 | 196 | 130 | 155 | 10.0 |
| CG12-65 | 12 | 65 | 350 | 167 | 178 | 20.5 |

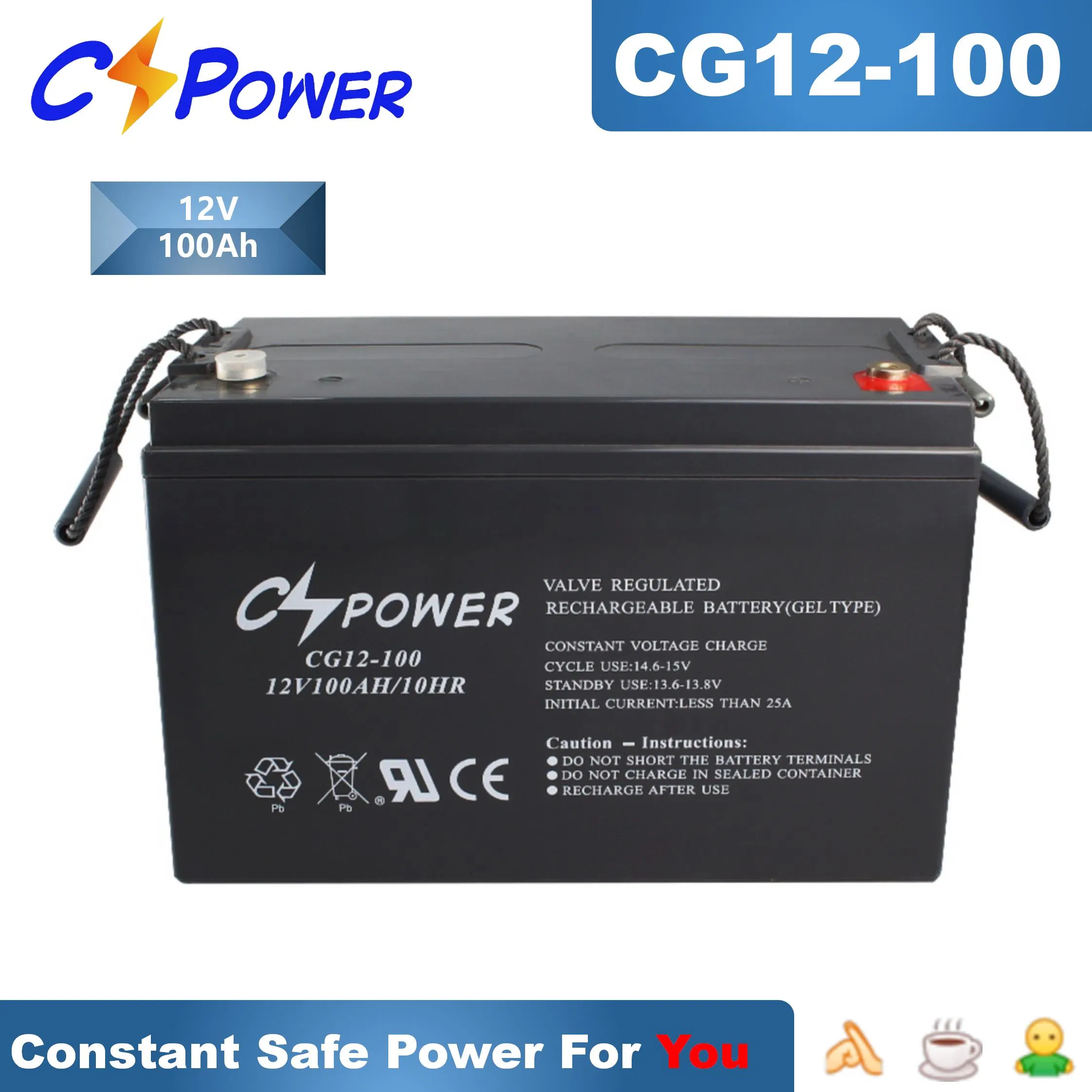

| CG12-100A | 12 | 100 | 331 | 174 | 214 | 29.0 |
| CG12-150A | 12 | 150 | 484 | 171 | 241 | 43.5 |
| CG12-200A | 12 | 200 | 522 | 240 | 219 | 58.2 |
| CG12-250 | 12 | 250 | 520 | 268 | 220 | 70.0 |
