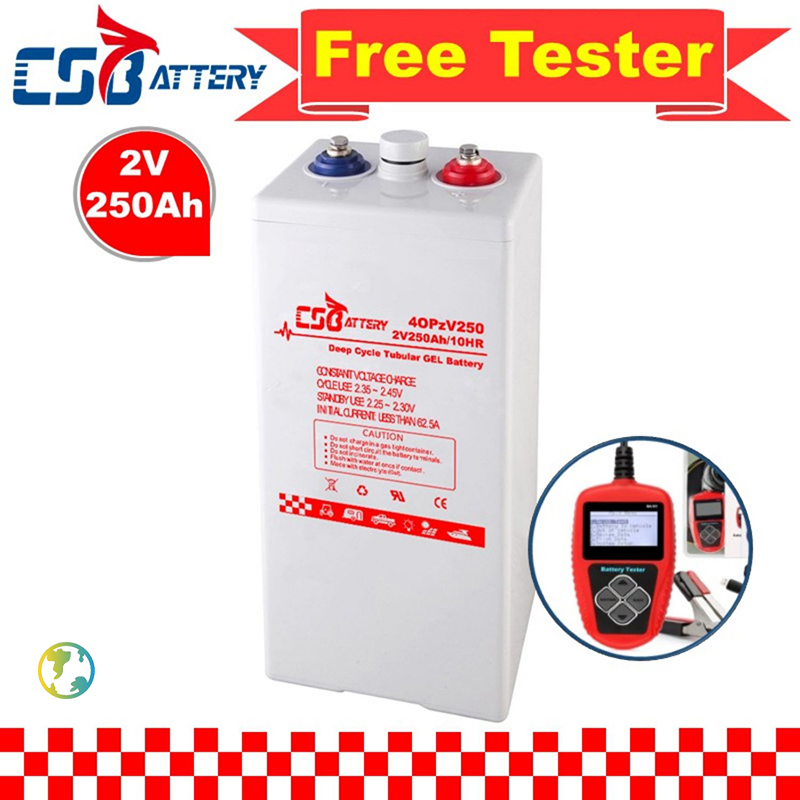

2V OPzV Tubular GEL Tubular Plate Deep Cycle Battery
OPzV series are recognized as the most reliable and high-quality battery systems in the industry. Designed with advanced patented GEL technology, offering long service life (20-25 years) and high cycle performance (80% DOD over 2000 cycles). The batteries comply with international standards such as IEC60896-21/22 and BS6290-4.
| Model: 5OPzV2-250 | Nominal Voltage: 2V | ||
|---|---|---|---|
| Design Floating Life @ 25ºC | 25 Years | Nominal Capacity @ 25ºC | 250Ah |
| Internal Resistance | ≤0.57mΩ | Max. Discharge Current | 1200A (5s) |
| Dimensions (L*W*H) | 124 * 206 * 375mm (Total Height 390mm) | ||
| Operating Temp (Discharge) | -40ºC ~ 70ºC | Self-Discharge @ 25ºC | 2% per Month |
| Model | Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Total Height (mm) | Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|
| 4OPzV200 | 2 | 200 | 103 | 206 | 390 | 18 | M8 |
| 5OPzV250 | 2 | 250 | 124 | 206 | 390 | 22.5 | M8 |
| 6OPzV300 | 2 | 300 | 145 | 206 | 390 | 25 | M8 |
| 8OPzV800 | 2 | 800 | 191 | 210 | 681 | 65 | M8 |
| 10OPzV1000 | 2 | 1000 | 233 | 210 | 681 | 74 | M8 |
| 12VOPzV100 | 12 | 100 | 407 | 177 | 225 | 36 | M8 |
| 12VOPzV200 | 12 | 200 | 521 | 262 | 225 | 73 | M8 |

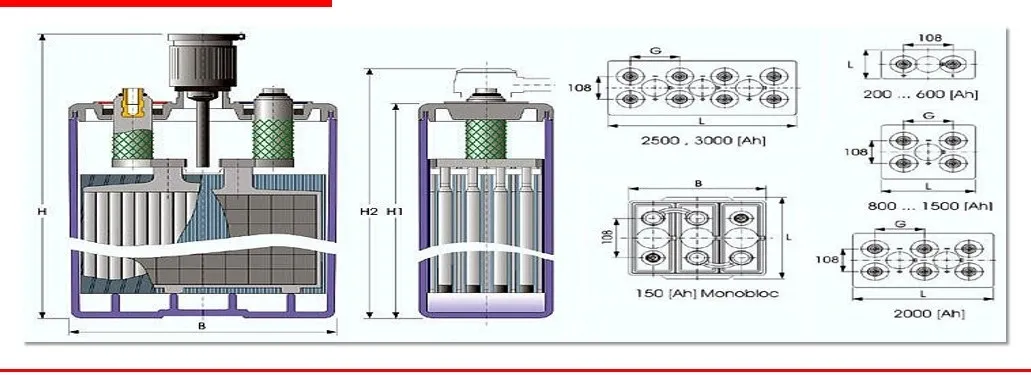

| Component | Positive plate | Negative plate | Container & Cover | Separator | Electrolyte |
|---|---|---|---|---|---|
| Features | Tubular Plate, high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Advanced PVC separator | Silicon Gel |
