Basic Specifications
Model NO.LWS-1S10A-059
Max Discharge10A
Operating Temp-20~+60℃
Delivery Time7-15 Days
UsageLithium Ion/LiFePO4 Packs
CertificateISO9001/CE/RoHS

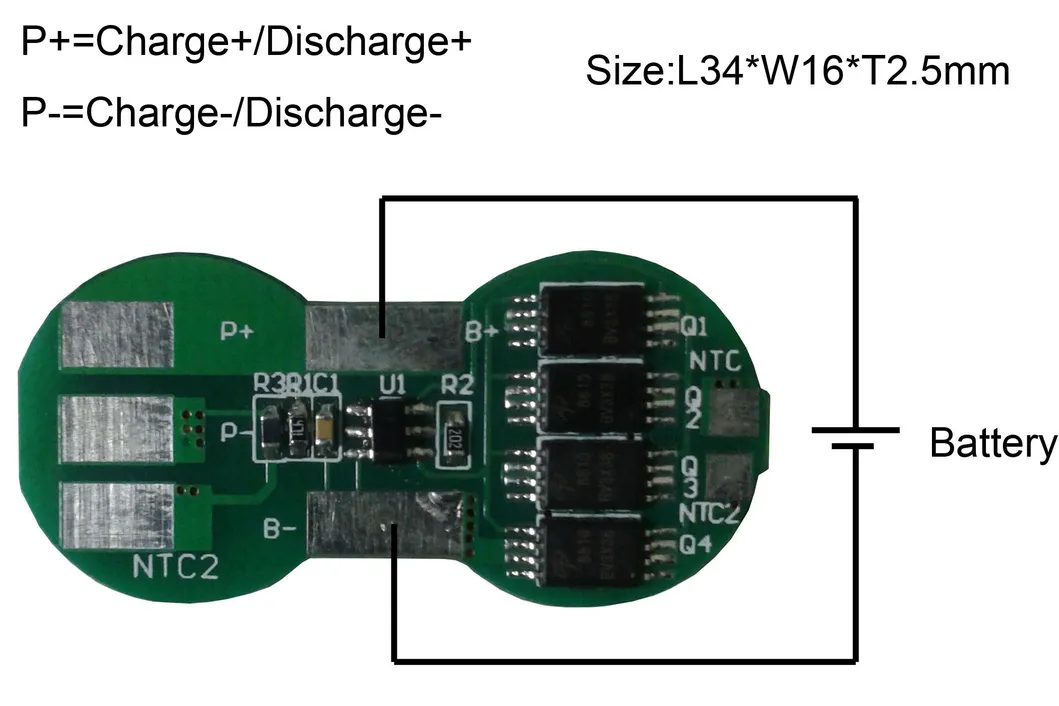

SpecificationL34*W16*T2.5mm
Capacity100,000/Month
Product Overview
1S 10A Lithium Ion/LiFePO4 Battery Management System (BMS)
⚙️
Custom Service
OEM/ODM and tailored PCM solutions available.
💎
High Quality
Built with smart balance functions and high-end IC/MOSFET.
🚀
Fast Delivery
Reliable production with ISO certified standards.
💰
Wholesale Advantage
Factory direct pricing for bulk orders.
Technical Specifications (3.7V Li-ion)
| Test Item |
Criterion |
| Charging Voltage |
DC: 4.2V / Cell |
| Current Consumption |
≤ 50μA |
| Max Continuous Charging Current |
10A |
| Max Continuous Discharging Current |
10A |
| Over Charge Detection Voltage |
4.25±0.025V |
| Over Charge Release Voltage |
4.05±0.050V |
| Over Discharge Detection Voltage |
2.50±0.080V |
| Over Discharge Release Voltage |
3.00±0.100V |
| Over Current Detection Current |
20-25A |
| Short Protection Delay Time |
200-500us |
| Inner Resistance (MOSFET) |
≤ 50mΩ |
Available for LiFePO4 battery by changing the control IC.
Key Advantages
🛡️Full protection: Over-charge, Over-discharge, Over-current, Short-circuit.
⚖️Integrated automatic voltage balance function.
🧩Stable quality with simplified structural design.
🔄Flexible application for various battery series connections.
Frequently Asked Questions
How do I identify my battery material?
Check the battery voltage: 3.2V typically indicates LiFePO4, while 3.6V or 3.7V indicates Li-ion or Li-polymer batteries.
Can I use this BMS for different battery types?
This specific protection board must match the number of cells in series. However, it can be adjusted for either Li-ion or LiFePO4 by changing the IC.
What is the purpose of the cell balance function?
Balance ensures that all cells in a pack reach the same voltage during charging, preventing individual cells from overcharging or underperforming due to natural inconsistencies.
Is there a Minimum Order Quantity (MOQ)?
No, we do not have a strict MOQ. We cater to different requirements and offer various capacities and sizes based on your needs.
What payment methods are accepted?
We accept common payment terms including T/T, PayPal, L/C, and Western Union.
How can I get a recommendation for my project?
Simply provide your battery voltage, cell count, and required current or equipment type, and we will recommend the most suitable BMS solution.
