* High efficiency air cooled battery PACK box
* Reinforced and thickened aluminum alloy bottom plate, hot-dip galvanized + spray material shell.
* Meet the electrical clearance, creepage distance design requirements.
* Electrostatic spray, bottom polyurethane egg condensation.
* Accept personalized individual customization

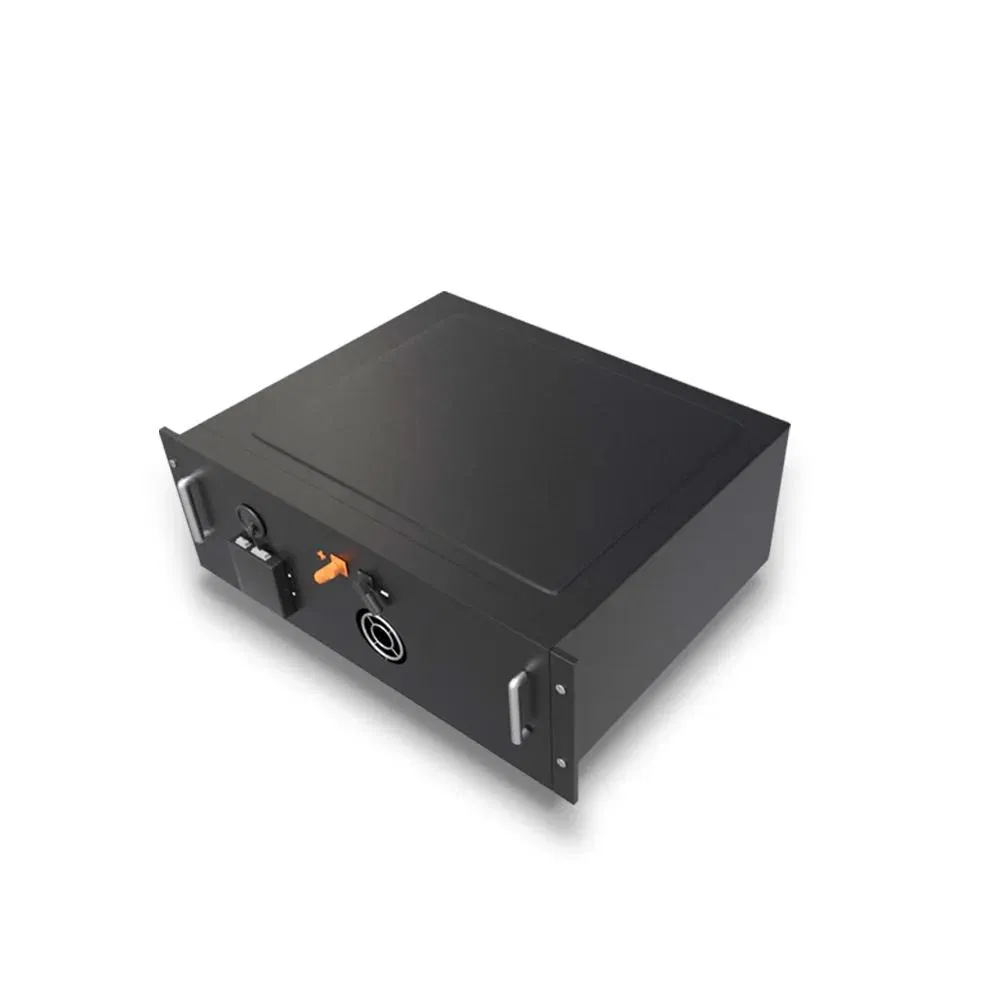

* 51.2V*280Ah Air cooled battery pack
* Bag safety warning device, explosion-proof valve, independent fire nozzle.

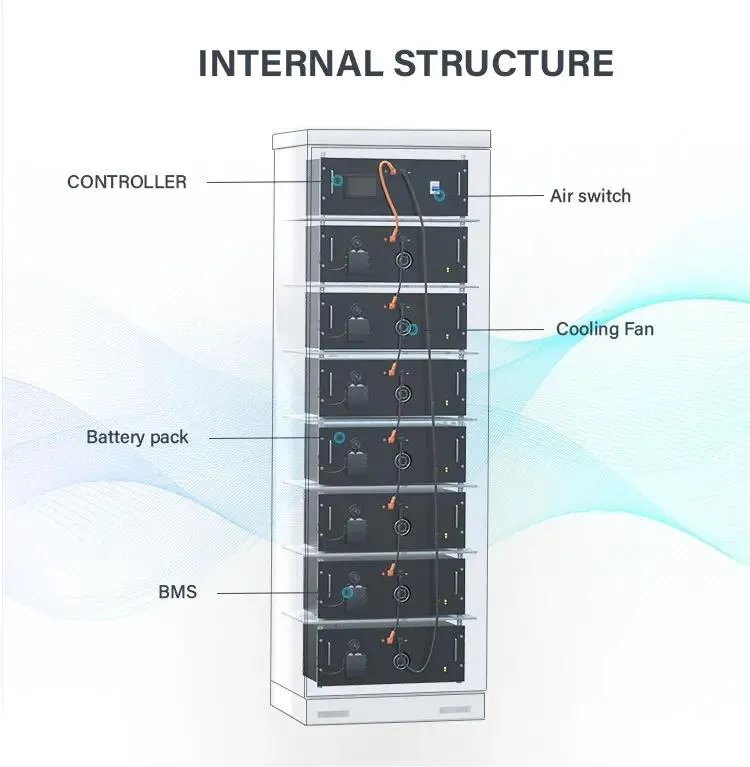

* Modular design, more convenient maintenance.
* Reliable laser welding is used between pole and guide piece.

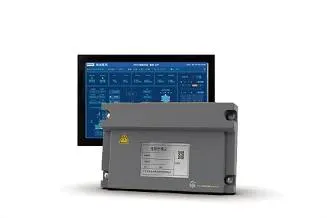

* Accurate detection of single cell voltage, temperature.
* Visual operation monitoring industrial screen.
* Supports multi-channel communication such as 485, CAN, Ethernet, etc.
* Temperature and voltage measurement.
* Detection of electric shock status of moving components.
* Ultra-wide operating temperature range, up to 55°C.

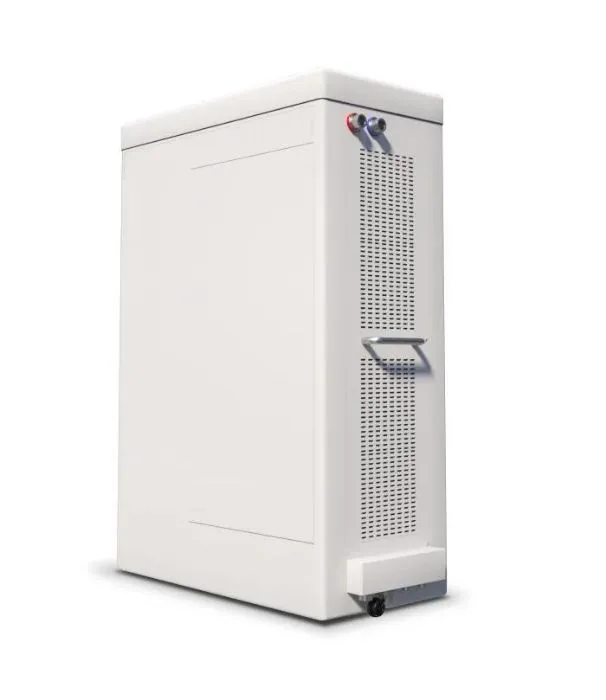

* Frequency conversion control technology, precise temperature control.
* Closed circulation system ensures stable coolant performance.
* Precise adjustment for low temperature difference between supply and return water.
* High efficiency and energy saving through real-time processing mode.

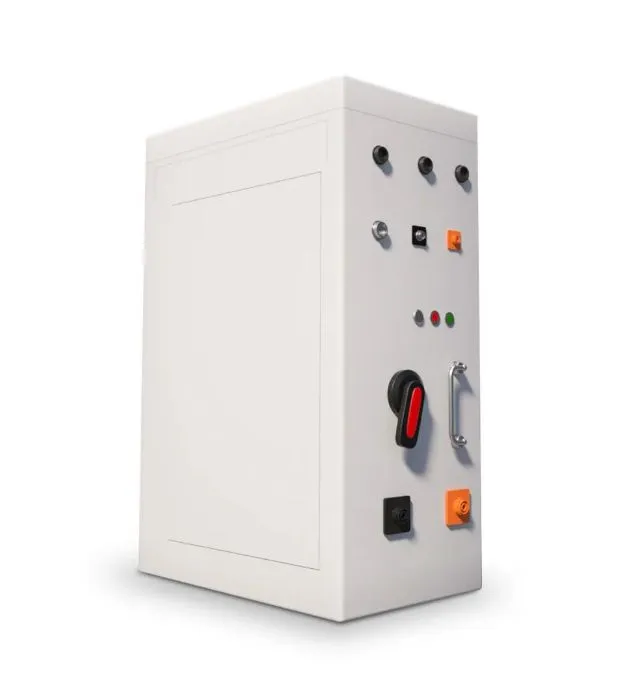

* Three-level topology, maximum 99% conversion efficiency.
* Support constant power, constant current, constant voltage control.
* Frequency modulation, VSG, Black boot functions.
* Integrated family level battery management.
* Support IEC61850 protocol with MS-level response.
* IP66 protection level.

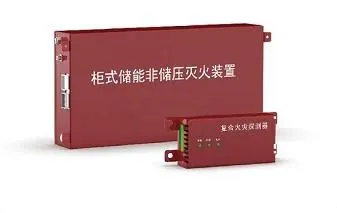

* High-sensitivity sensors for early fire detection.
* Real-time air environment monitoring.
* Perfluorohexanone fire extinguishing agent: obvious cooling, no damage to live or precision equipment, non-conductive.

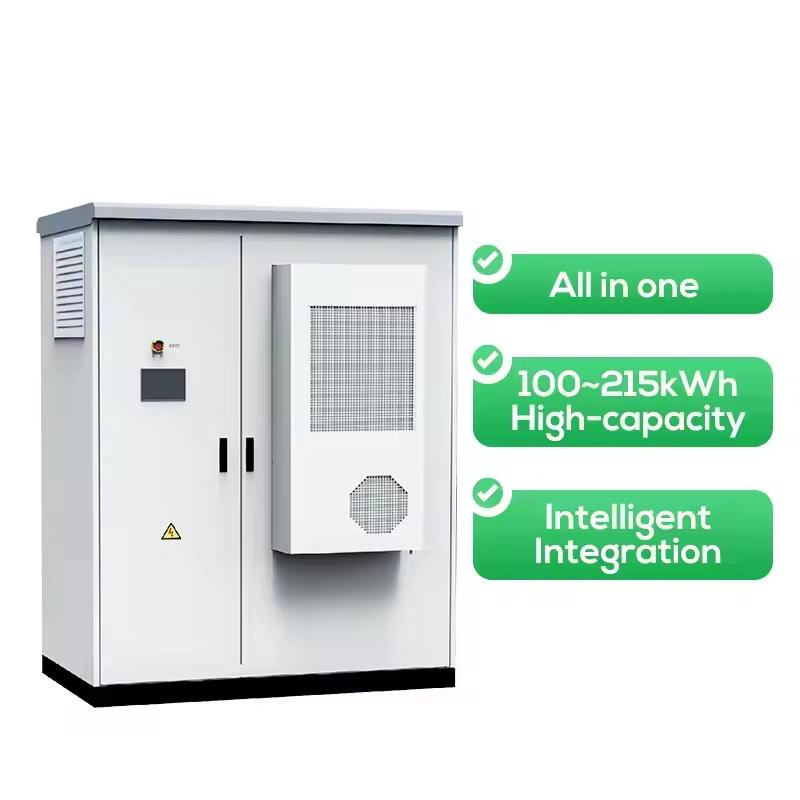

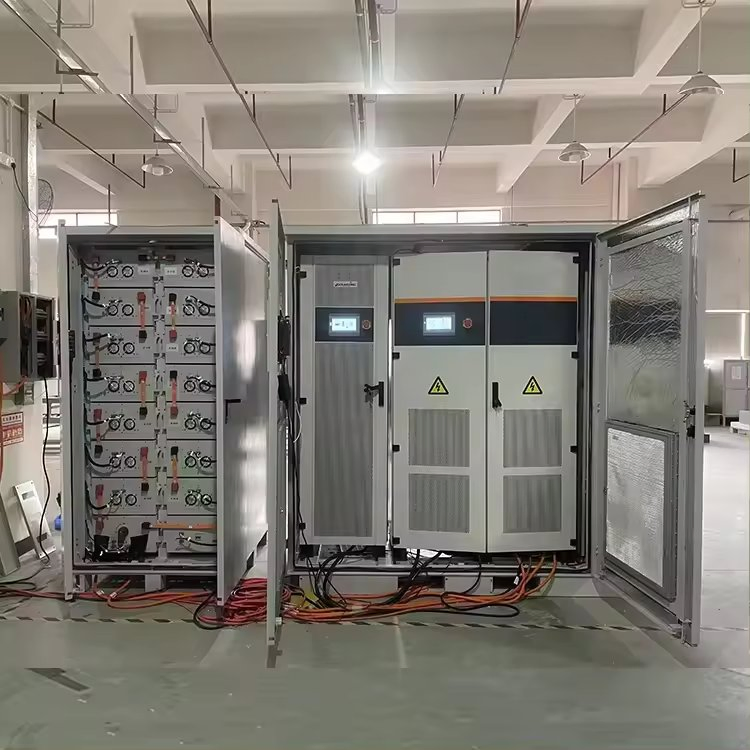

| Technical Parameter | 100kWh wind cooled | 186kWh wind cooled | 215kWh wind cooled |
|---|---|---|---|
| Cell Capacity | 280Ah | ||
| Battery Type | Lifepo4 battery | ||
| Nominal Voltage | DC358.4V | DC665.6V | DC768V |
| Voltage Range | DC313.6-403.2V | DC627.2-748.8V | DC672-864V |
| Nominal Energy | 100kwh | 186kwh | 215kwh |
| Equalization | Active equalization | ||
| Charge/Discharge | ≤0.5C | ||
| Working Temp | -40°C to 55°C | ||
| Protection Level | IP54 | ||
