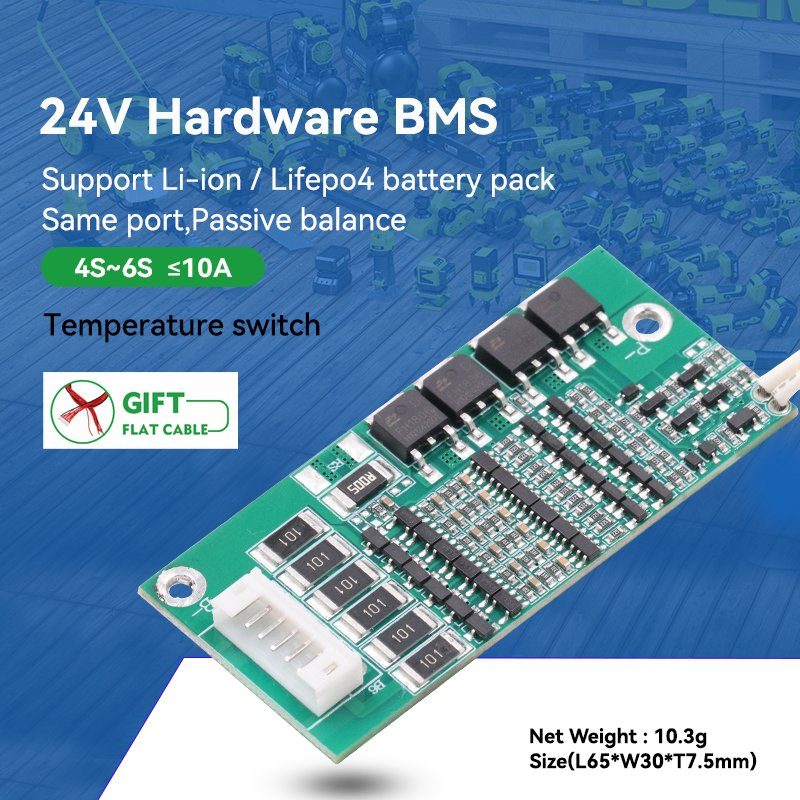

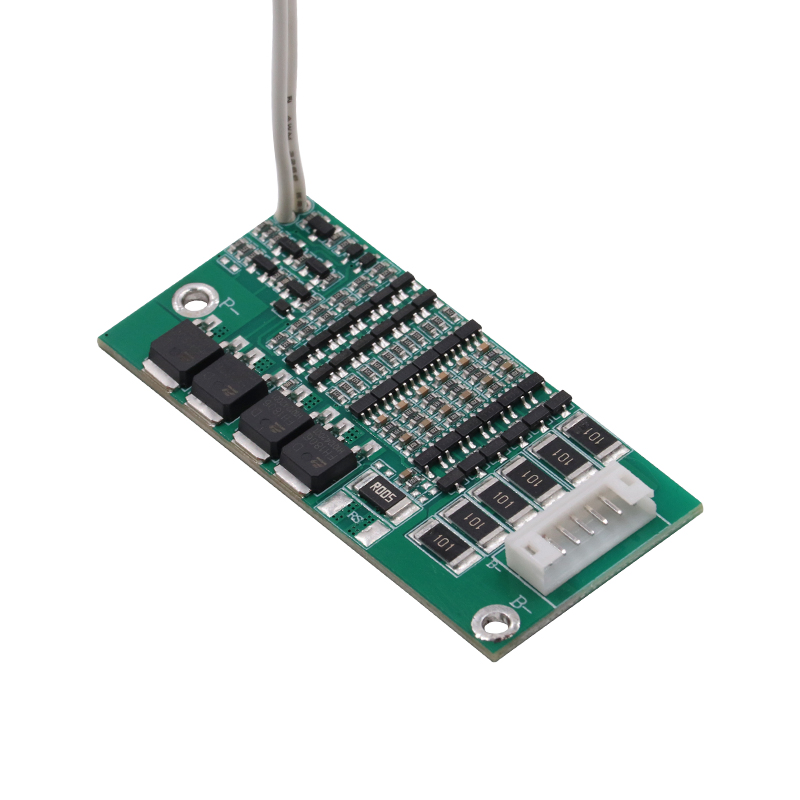

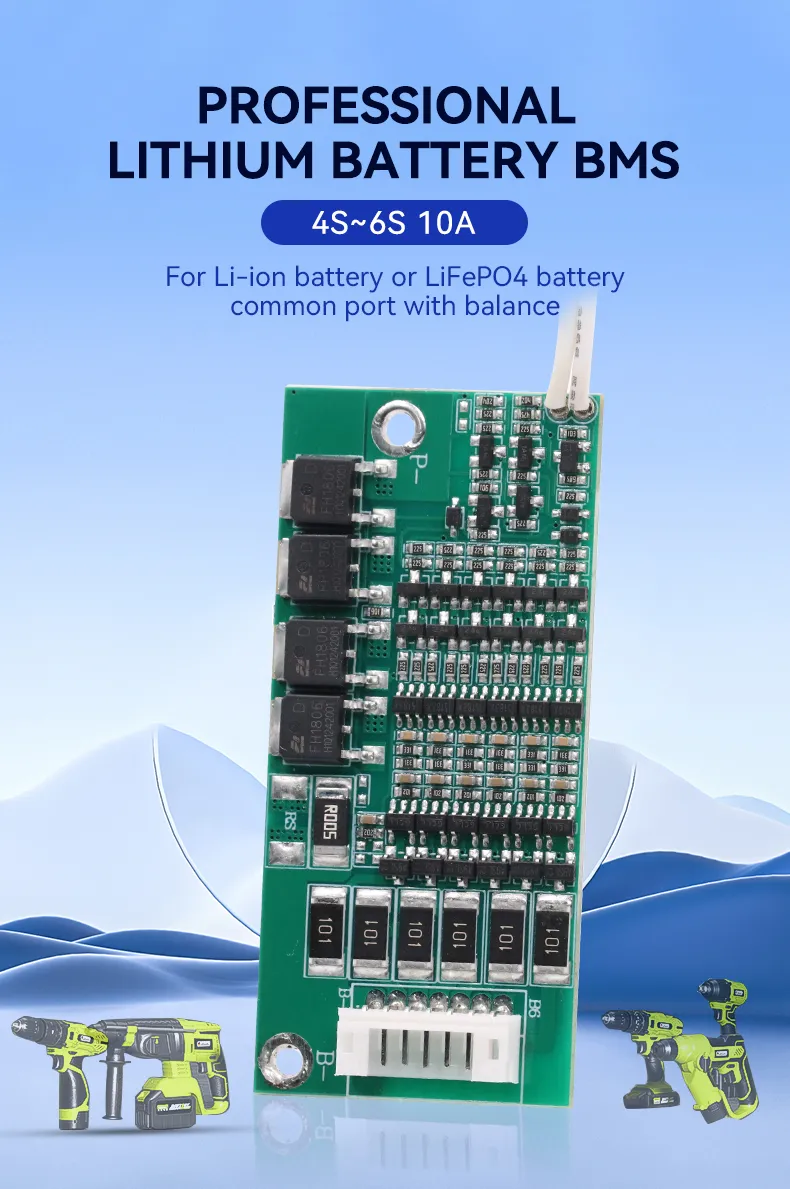

Lithium Ion Battery Management System (BMS) 5S 6S 10A
The protection board is a professional component that must be used with batteries of good consistency. It is suitable for a wide range of applications including solar street lamps, power tools, electric bicycles, and medical equipment.
| Item | Test Parameter | Criterion |
|---|---|---|
| Voltage | Balance voltage for single cell | 4.20±0.08V |
| Current | Max continuous charging/discharging current | 10A |
| Current | Balance current for single cell | 42±10mA |

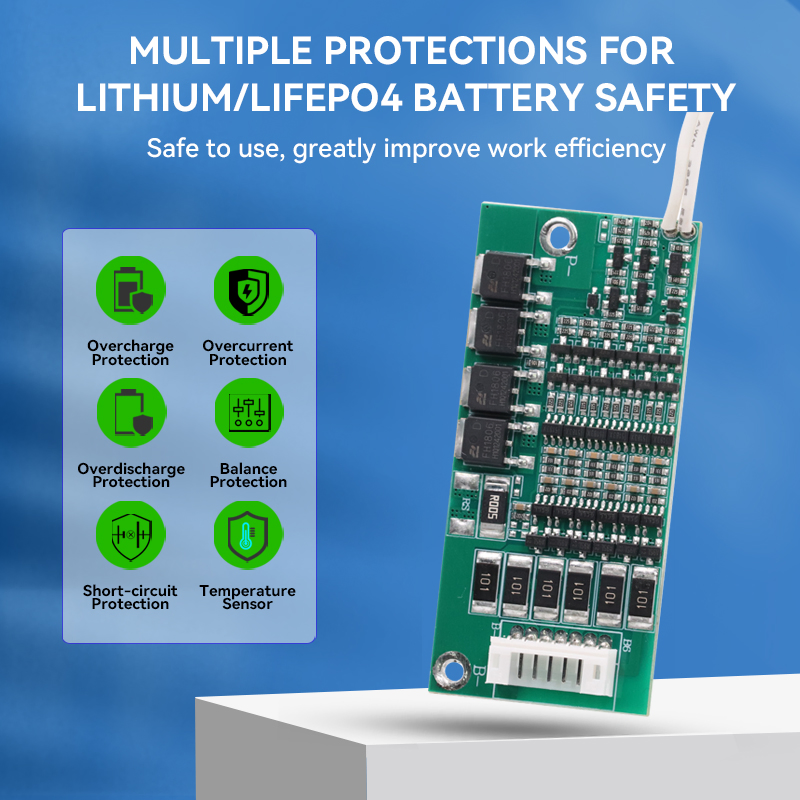

| Over Charge | Detection voltage / Delay time | 4.25±0.025V / 0.5S-1.5S |
| Over Discharge | Detection voltage / Release voltage | 2.0V±0.05V / 2.5±0.05V |
| Over Current | Detection current / Delay time | 30±10A / 5mS-50mS |
| Resistance | Protection circuitry (MOSFET) | ≤50mΩ |
With a production capacity of 100,000 PCS per month, we offer a wide variety of hardware PCM/BMS and software BMS solutions including Bluetooth, RS485, and SMBUS protocols. Our solutions cover battery assemblies from 1S to 35S in series, with working currents up to 350A.
Inner Packing: Vacuum packing or Anti-static plastic bags.
Outer Packing: Standard carton or customized according to requirements.
