Lithium forklift batteries are tailor-made for low-speed power and large-capacity series lithium battery packs. They feature automotive-grade cells, ensuring safety and reliability. The intelligent BMS (Battery Management System) incorporates voltage collection, large current active balancing, and comprehensive protection against overcharge, over-discharge, over-current, and over-temperature.
The integrated large current active balancing technology maximizes battery consistency and significantly improves battery life. With a user-friendly mobile app (compatible with Android and iOS), users can monitor the battery's working status, modify parameters, and control charge/discharge switches via Bluetooth.
| Voltage (V) | Capacity (AH) | Cell Type | Series/Parallel | Plug Type | L (mm) | W (mm) | H (mm) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 25.6V | 150AH | 150AH | 1P8S | REMA160 | 648 | 156 | 595 | 65 |
| 25.6V | 440AH | 110AH | 4P8S | REMA160F | 830 | 327 | 627 | 445 |
| 38.4V | 330AH | 110AH | 3P12S | Anderson SB175 | 620 | 515 | 385 | 160 |

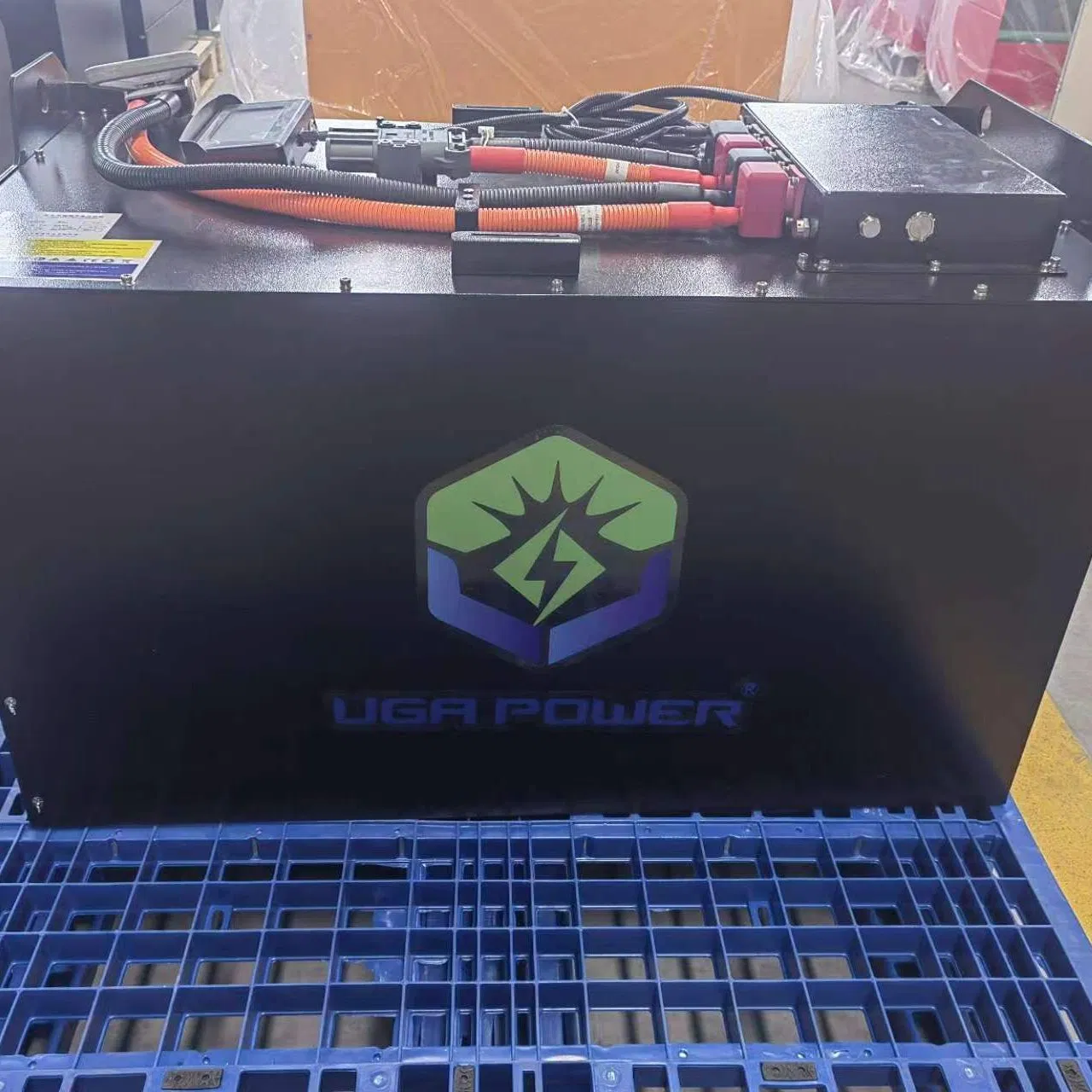

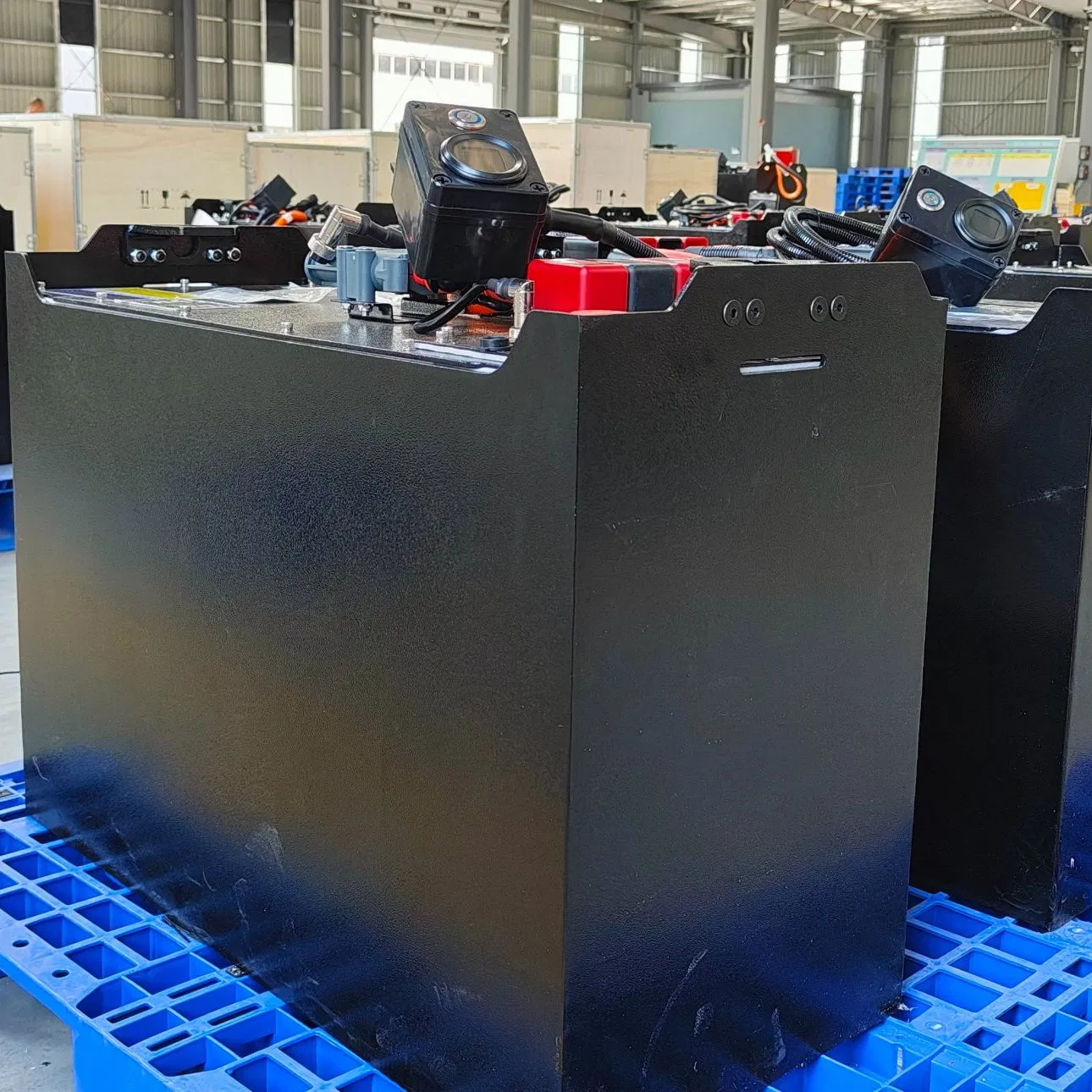

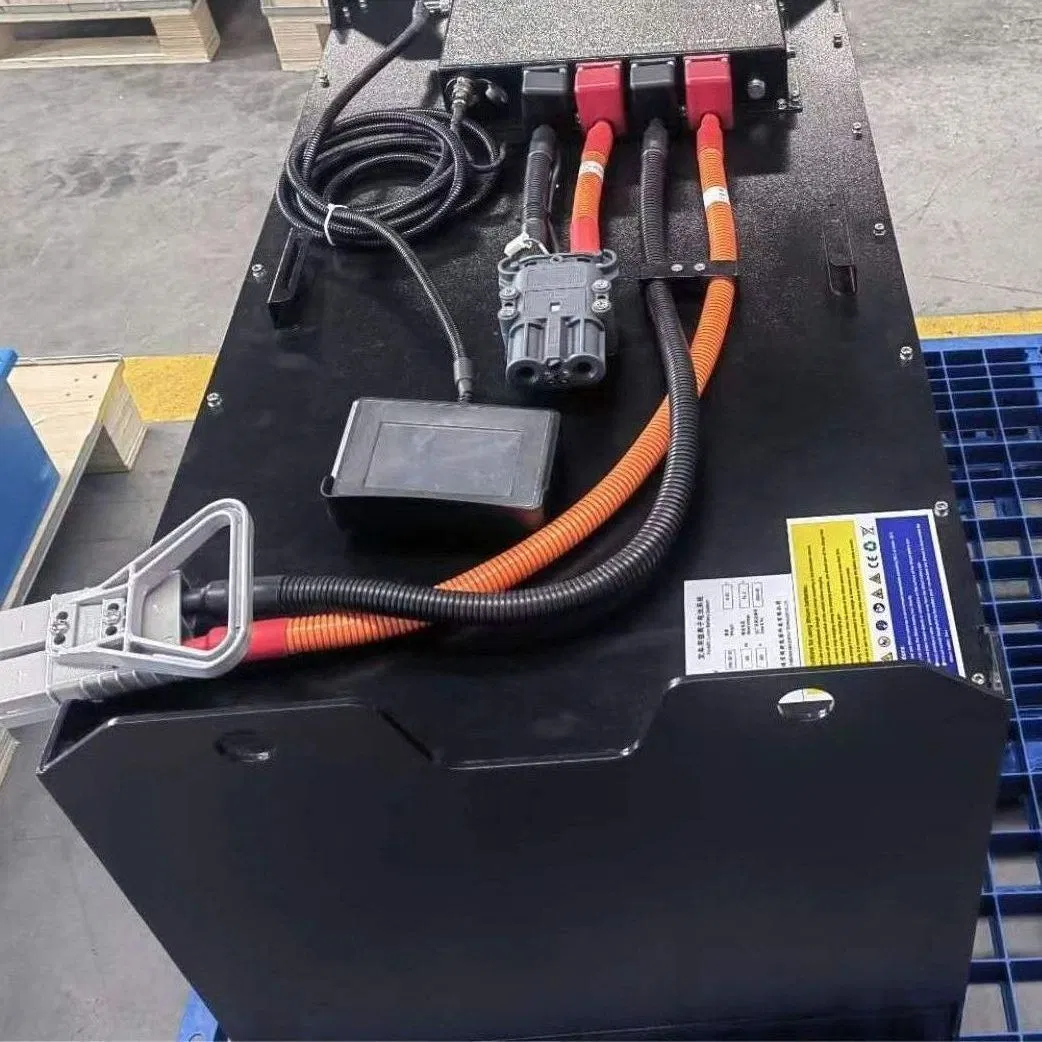

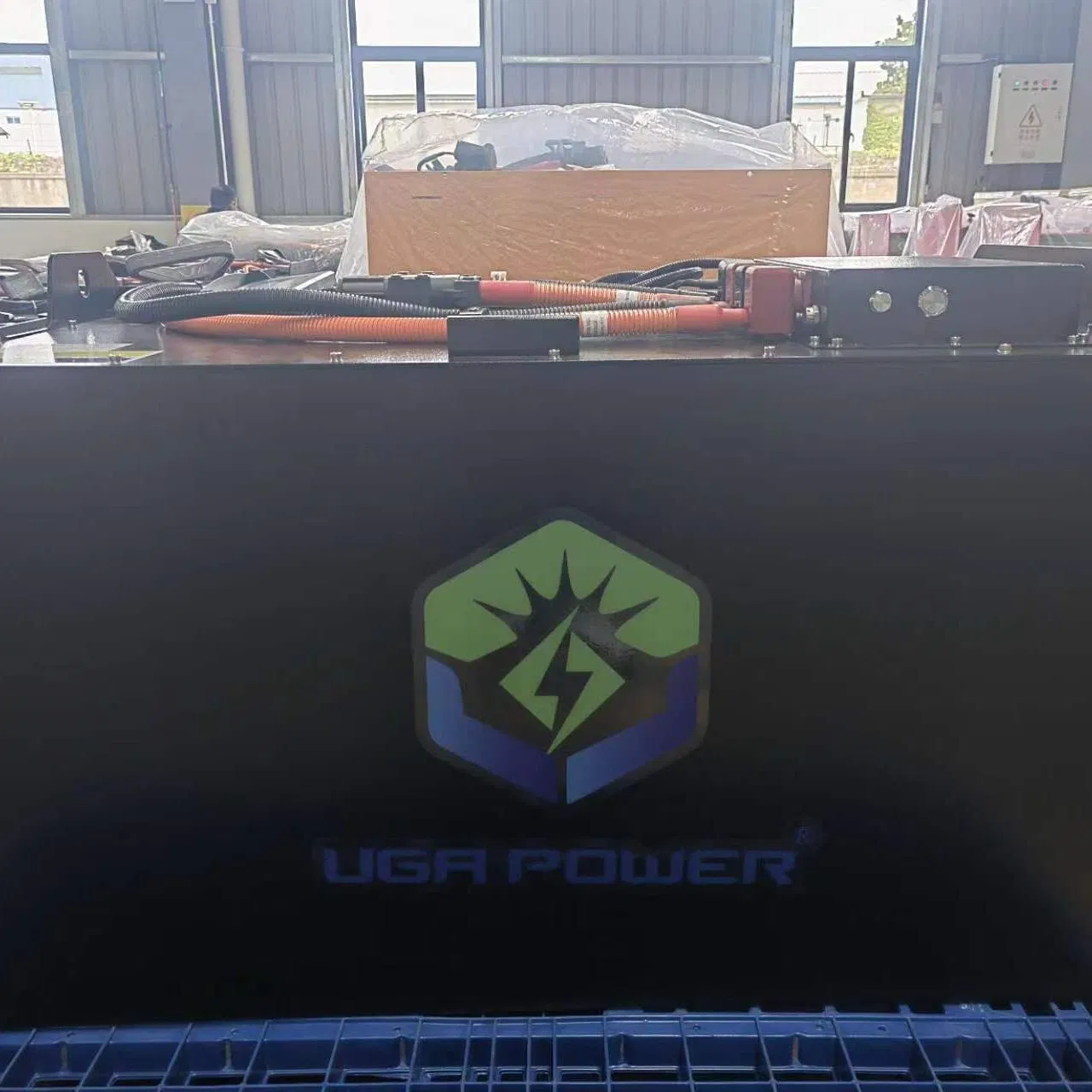

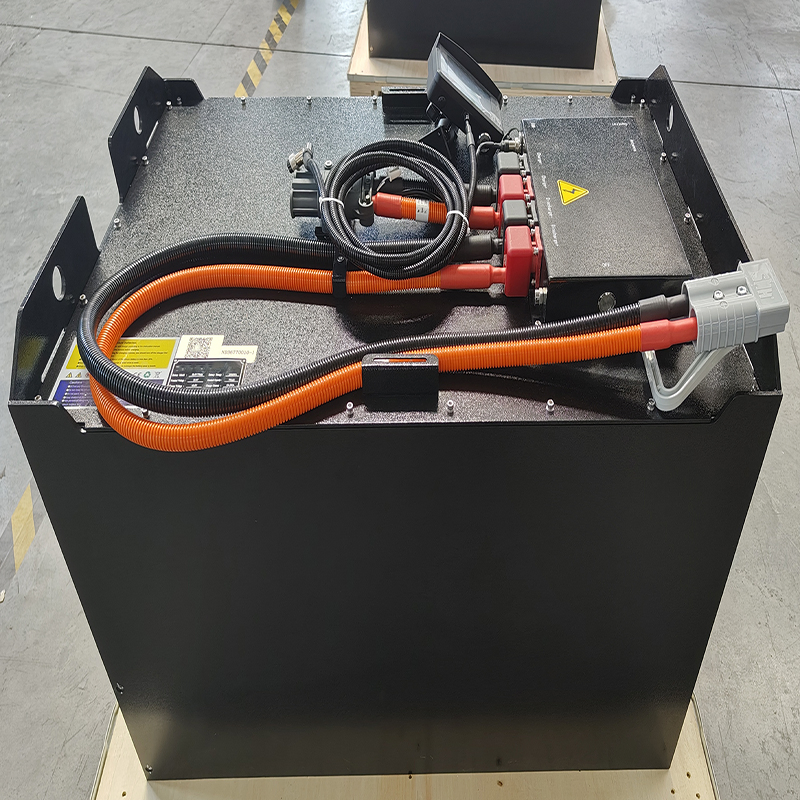

| 51.2V | 440AH | 110AH | 4P16S | Anderson SB175 | 982 | 535 | 590 | 855 |
| 51.2V | 600AH | 100AH | 6P16S | Anderson SB350 | 1140 | 1110 | 580 | 1950 |
| 83.2V | 700AH | 100AH | 7P26S | REMA320F | 1028 | 855 | 801 | 1880 |
| Comparison Item | Lithium-Ion Battery | Lead-Acid Battery |
| Charging | 4–5× Faster; High-Current Support | Slow Charging; Not Suitable for Fast Charge |
| Cycle Life | Over 5,000 Cycles | 500–1,500 Cycles |
| Maintenance | Maintenance-Free; No Watering | Regular Watering & Equalization Required |
| Energy Density | 130 – 160 Wh/Kg | 30 – 50 Wh/Kg |
Daily: Check for deformation, oxidation, or paint peeling on the exterior; verify installation is secure.
Monthly: Inspect plugs/sockets for water or burn marks; check cables and ensure connectors are tight.
Storage: Store in a dry, ventilated environment (20°C–35°C). Charge the battery once every three months during storage.
