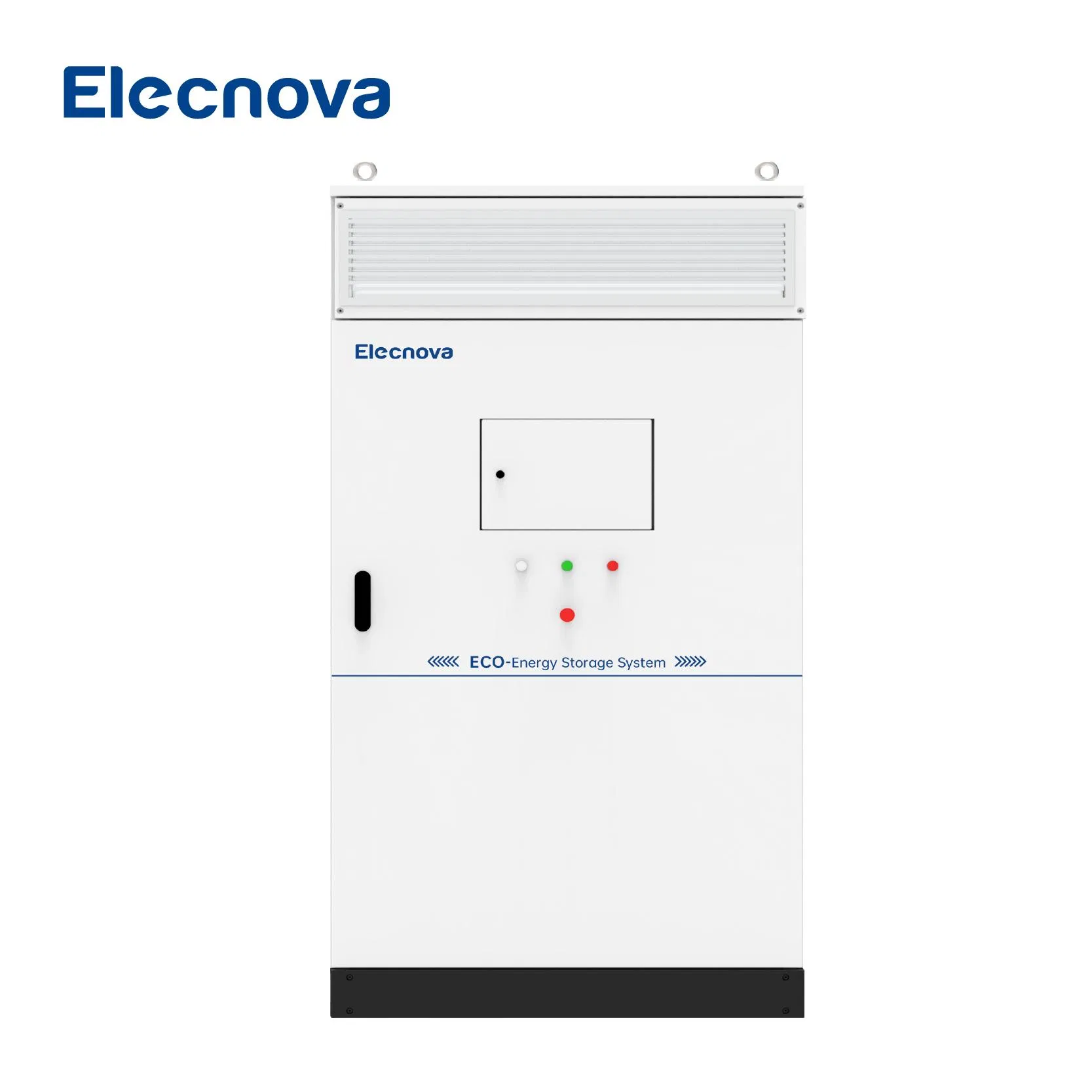

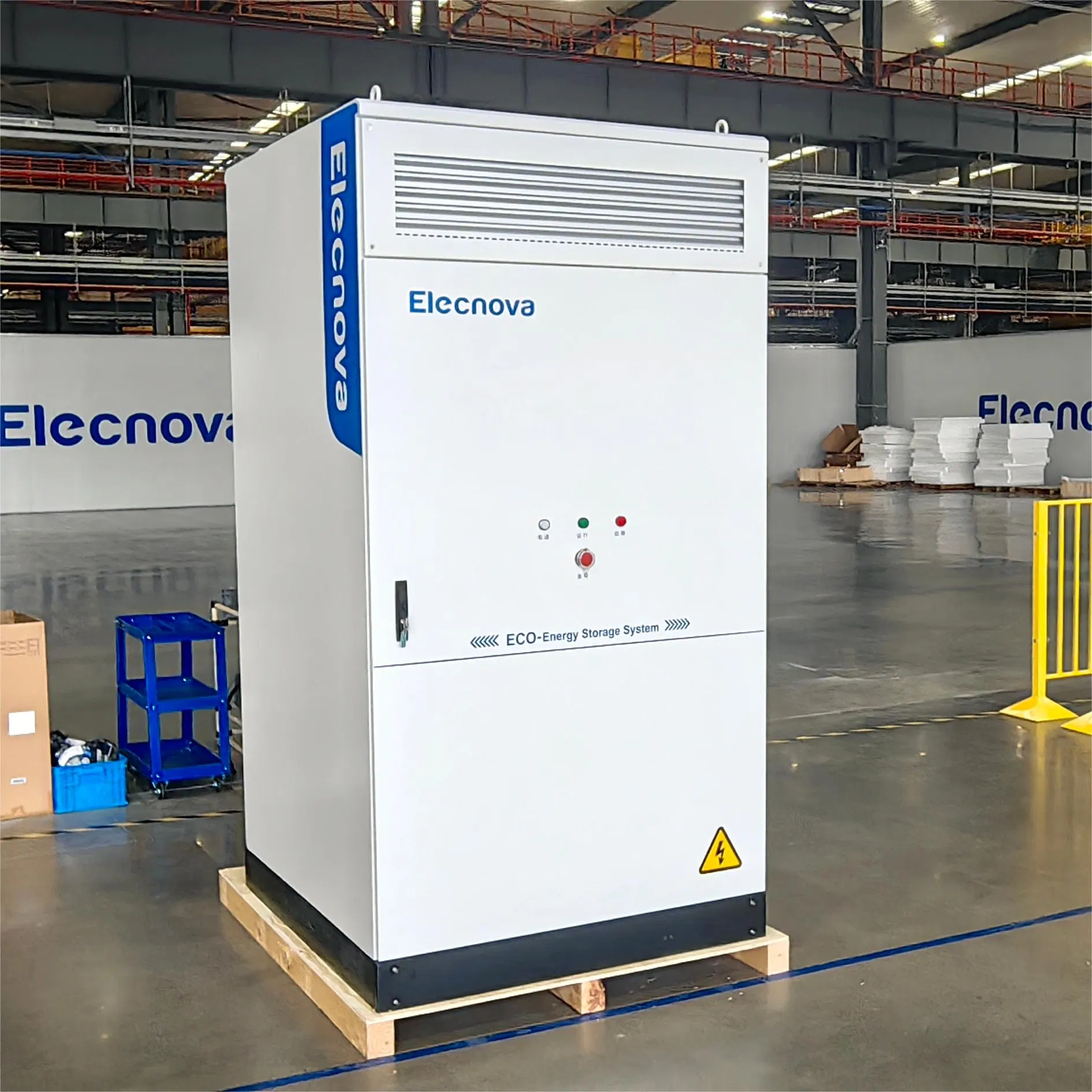

Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
1 / 5
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems
Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems

Elecnova LiFePO4 Solar PV 215kwh Industrial Commercial Air Lithium Generator Power Backup Battery Energy Storage Systems

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
ECO-E215WS
Nominal Capacity
215kwh
Cycle Life
8000 Cycles
Application
Industrial Commercial Factory
Cooling
Air-Cooled
OEM/ODM
Accepted
Communication Port
RS485
Type
Energy Storage System
Grid Type
on Grid/ off Grid
BMS
Built-in BMS Protection
Specification
1250*1300*2400mm
Origin
China

Product Description

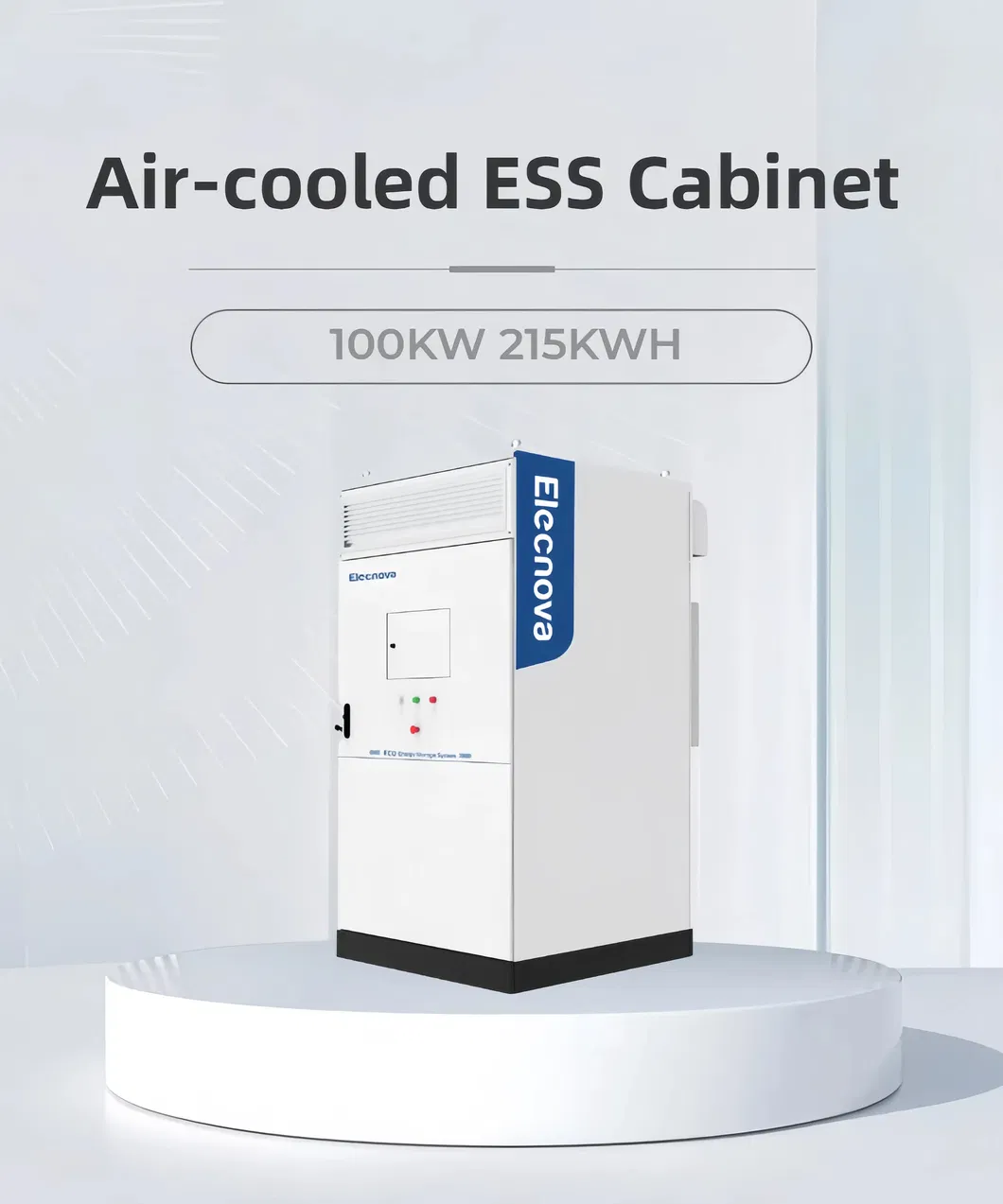

Energy Storage System 1

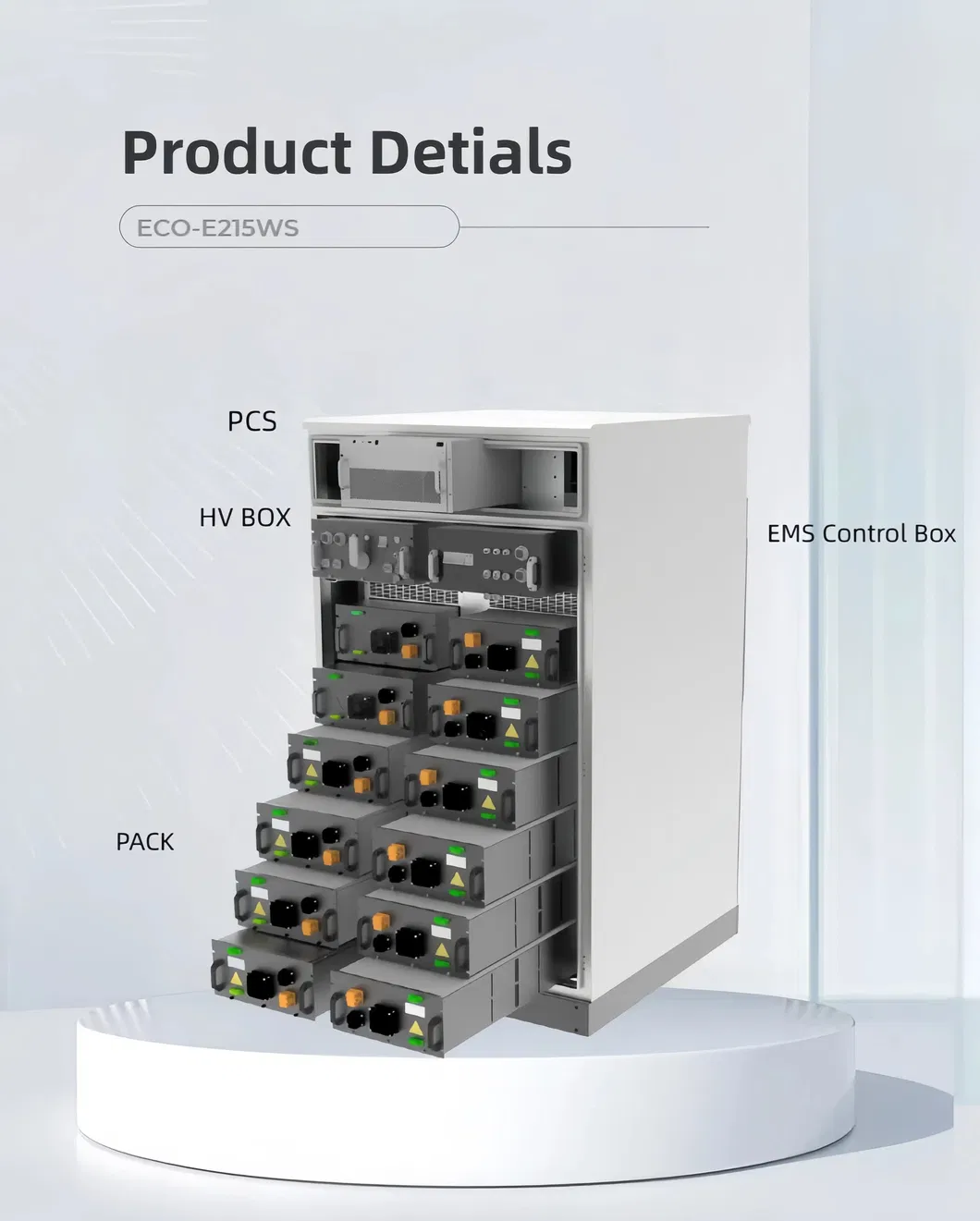

Energy Storage System 2

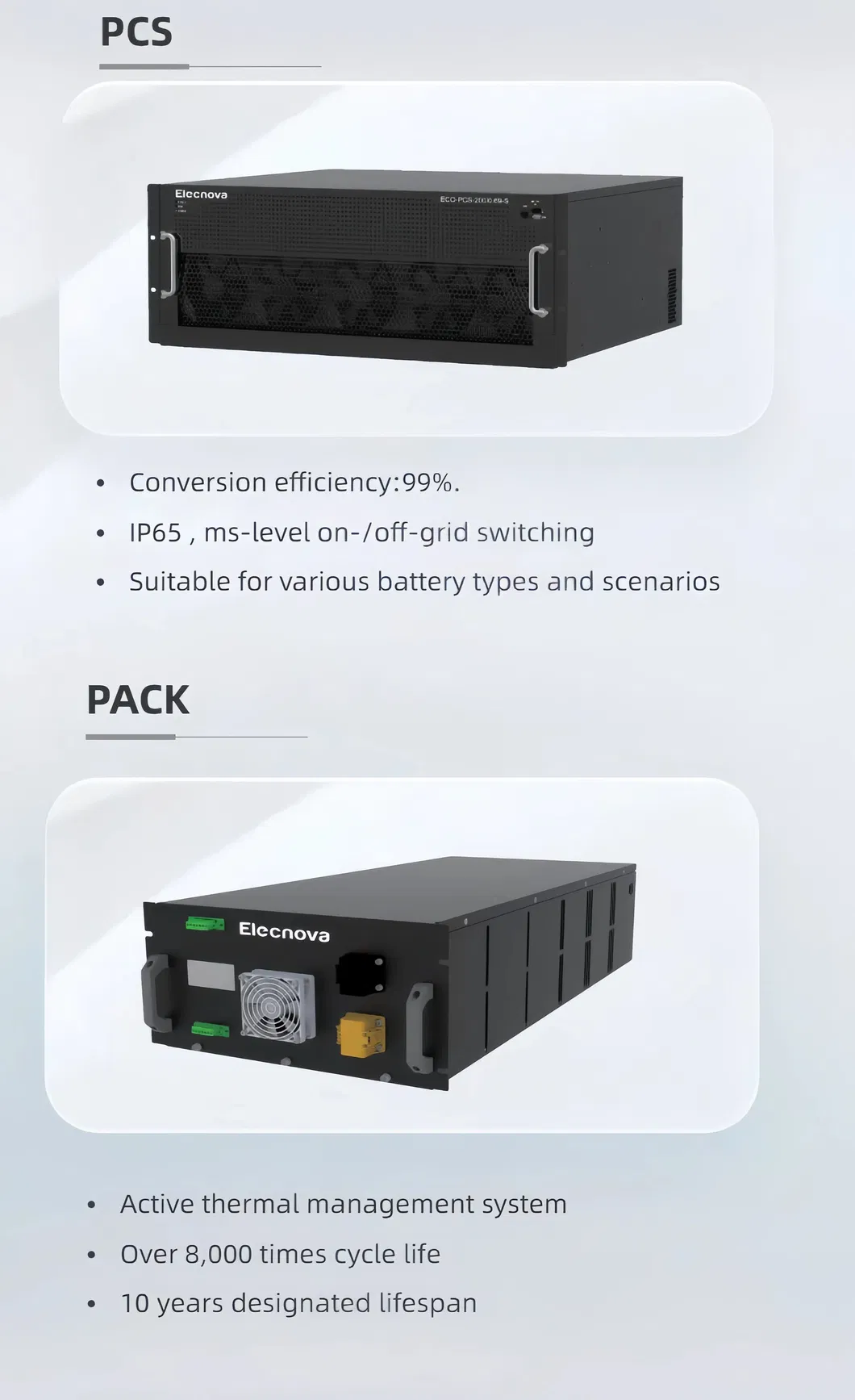

Energy Storage System 3

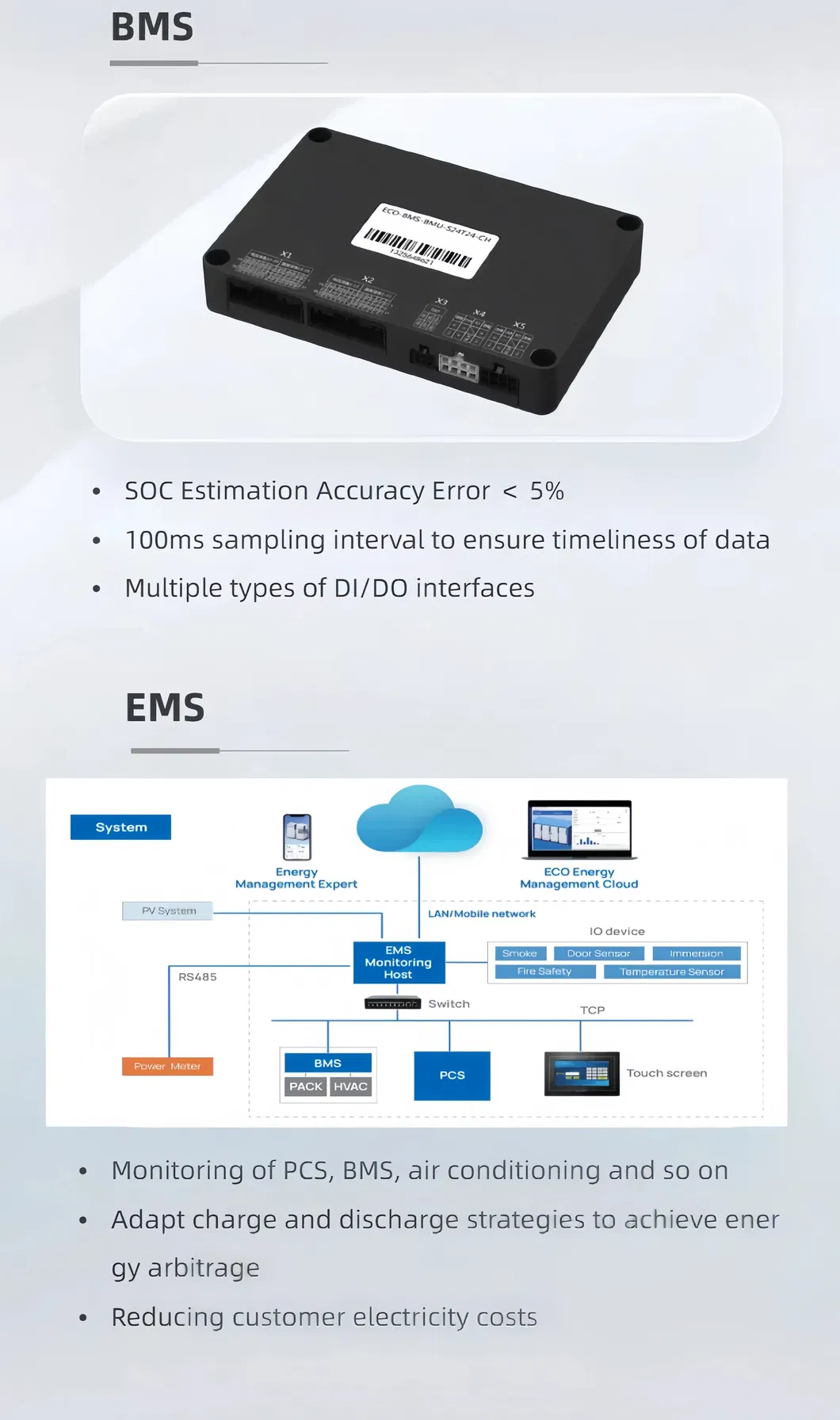

Energy Storage System 4

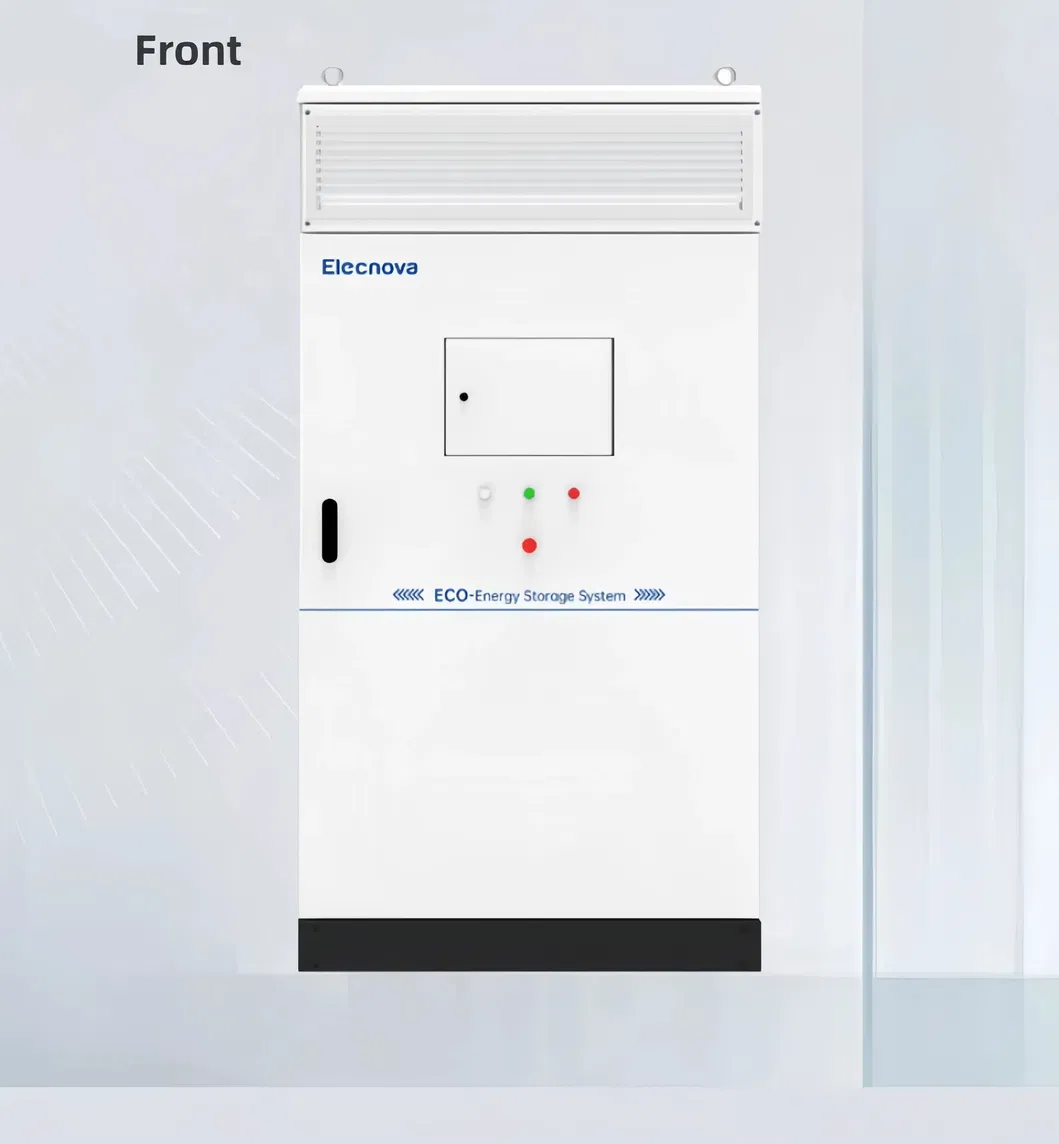

Energy Storage System 5

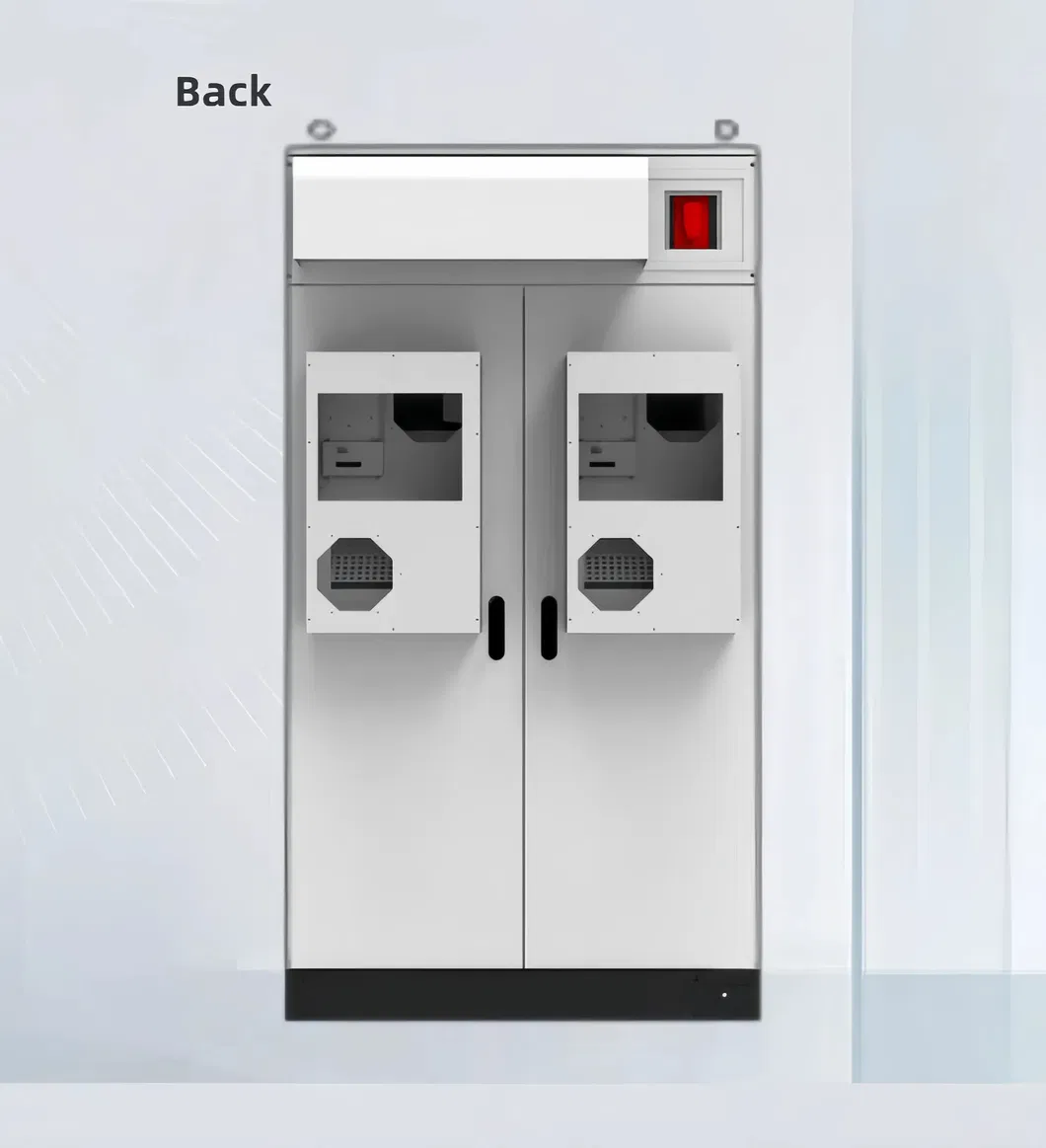

Energy Storage System 6
This technology-based enterprise focuses on overall solutions for energy storage systems. With overall supporting capability for the system integration of PACK, PCS, and BMS, we aim to meet the diversified energy requirements of segmented markets and customers. Quality serves as the cornerstone of providing customized products and services for various energy consumption scenarios on the power generation side, grid side, and user side.
DC Part
Cell TypeLFP 3.2V/280Ah
PACK17.92kWh/1P20S
Battery System215kWh/1P240S
Voltage Range672~864Vdc
Rated Voltage768Vdc
AC Part
Rated Power100kW
Max. Power110kW (60s)
THDi<3%
Nominal Voltage400Vac
Nominal Frequency50/60 Hz
General Data
Efficiency≥90%
Cycle Life≥8,000 times
Ingress RatingIP55
CoolingForced Air Cooling
Operating Temperature-25ºC~55ºC
Fire SafetyAerosol + Active Warning
Dimensions (W*D*H)1,250*1,300*2,400 (mm)
Weight2,500kg
System Diagram 1

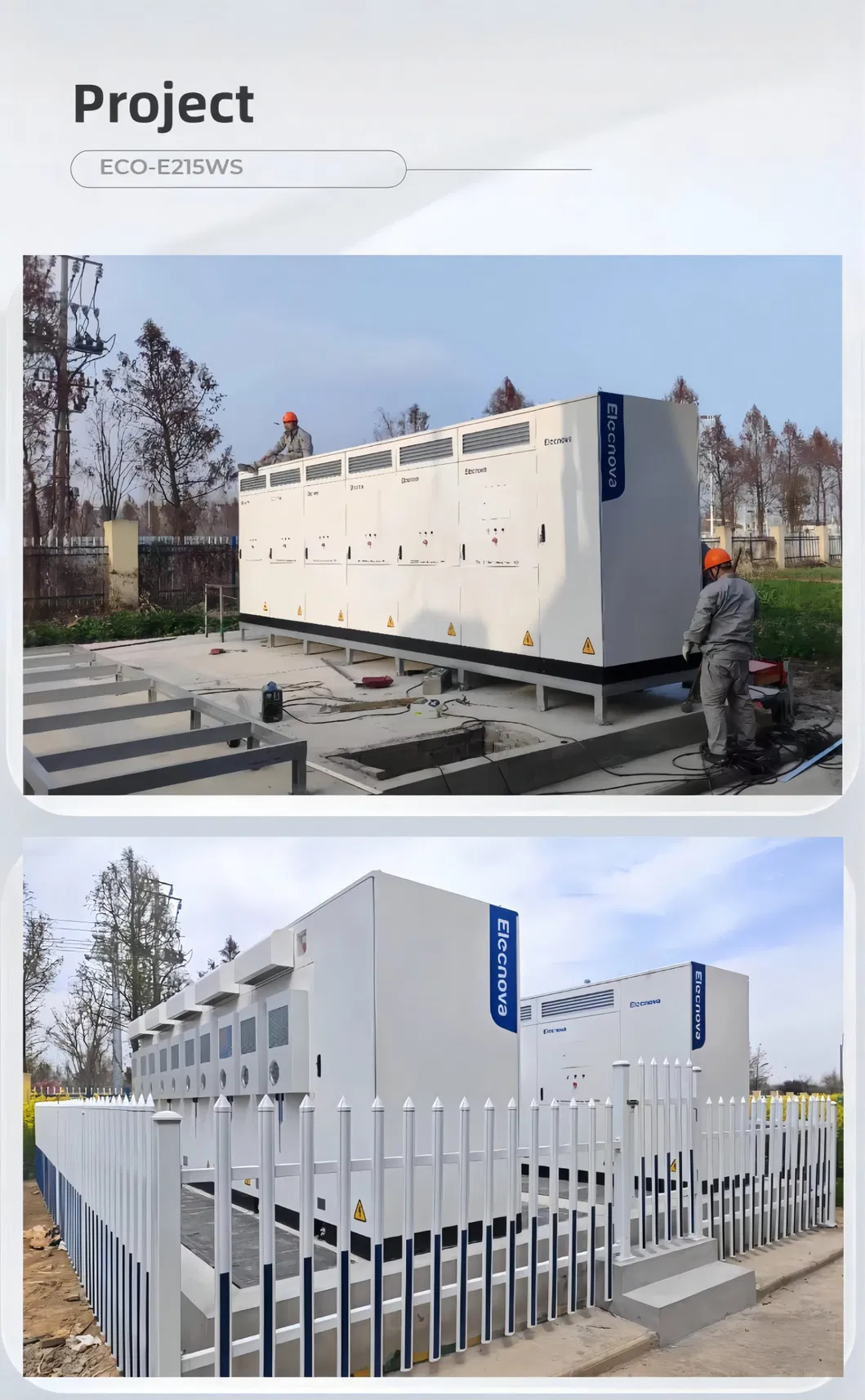

System Diagram 2

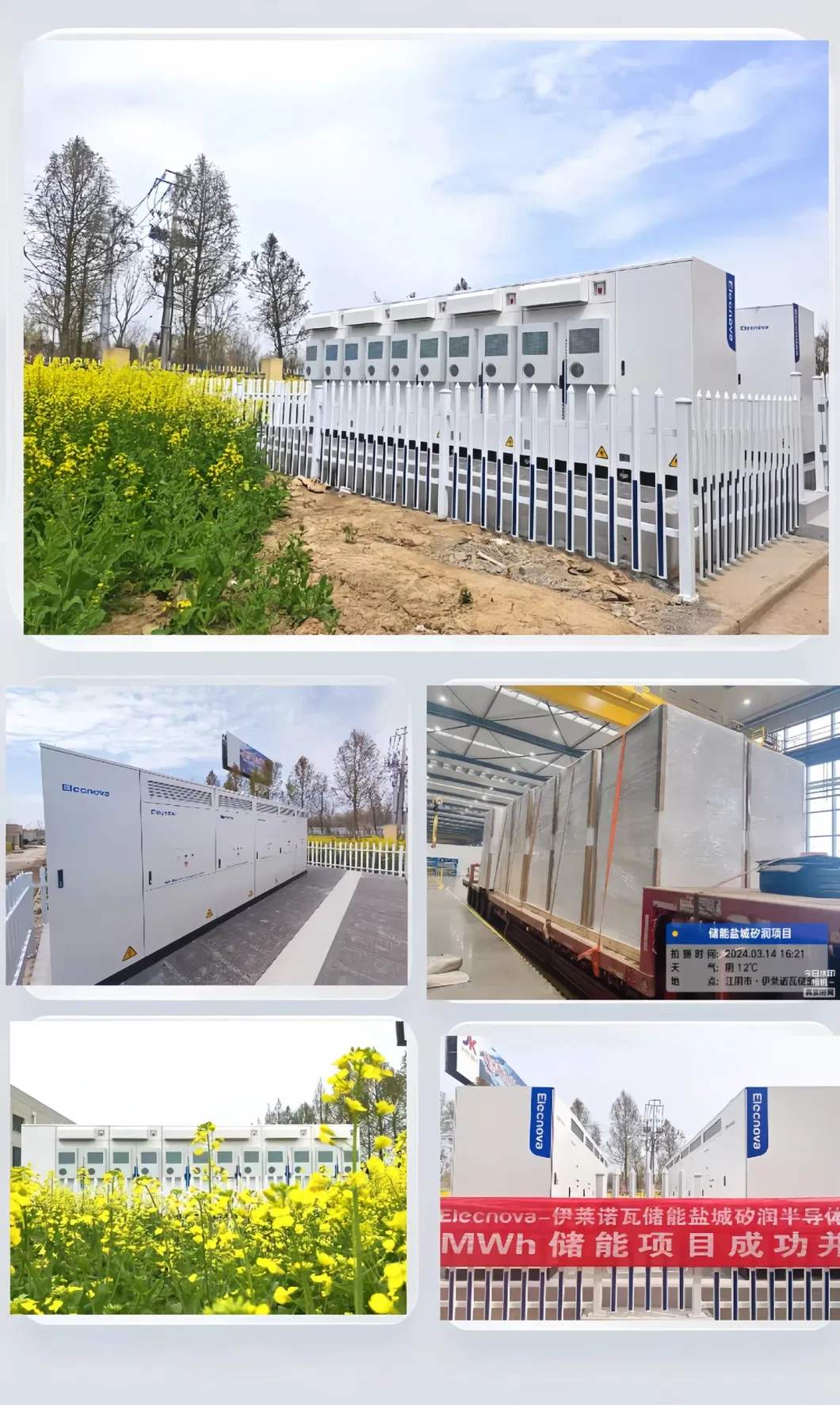

System Diagram 3

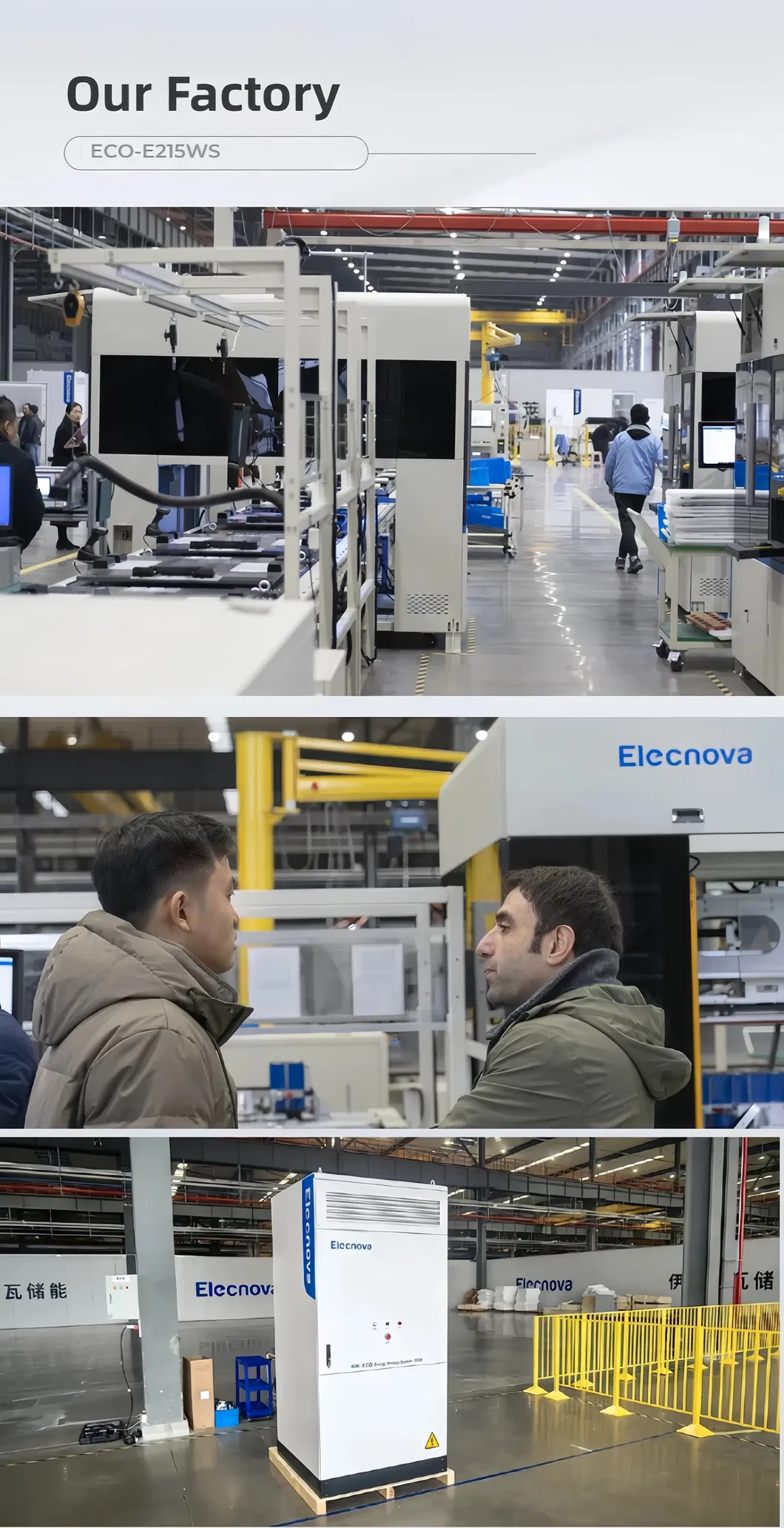

Comprehensive View

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional manufacturer based in China, established in 1998, with a team of over 600 experts.
Do you provide OEM & ODM services?
Yes, we provide both OEM and ODM services, subject to a minimum order quantity.
How are battery products shipped?
We work with professional forwarders specialized in battery shipments to ensure safe delivery by sea or air.
What is the warranty period for the storage system?
Our standard warranty ranges from 5 to 10 years depending on the specific configuration and requirements.
How is after-sales service handled?
We have dedicated branches and support structures to provide repair, maintenance, and replacement services.
Can I request a sample for testing?
Yes, please provide your requirements and contact information, and our team will get in touch with you shortly.
