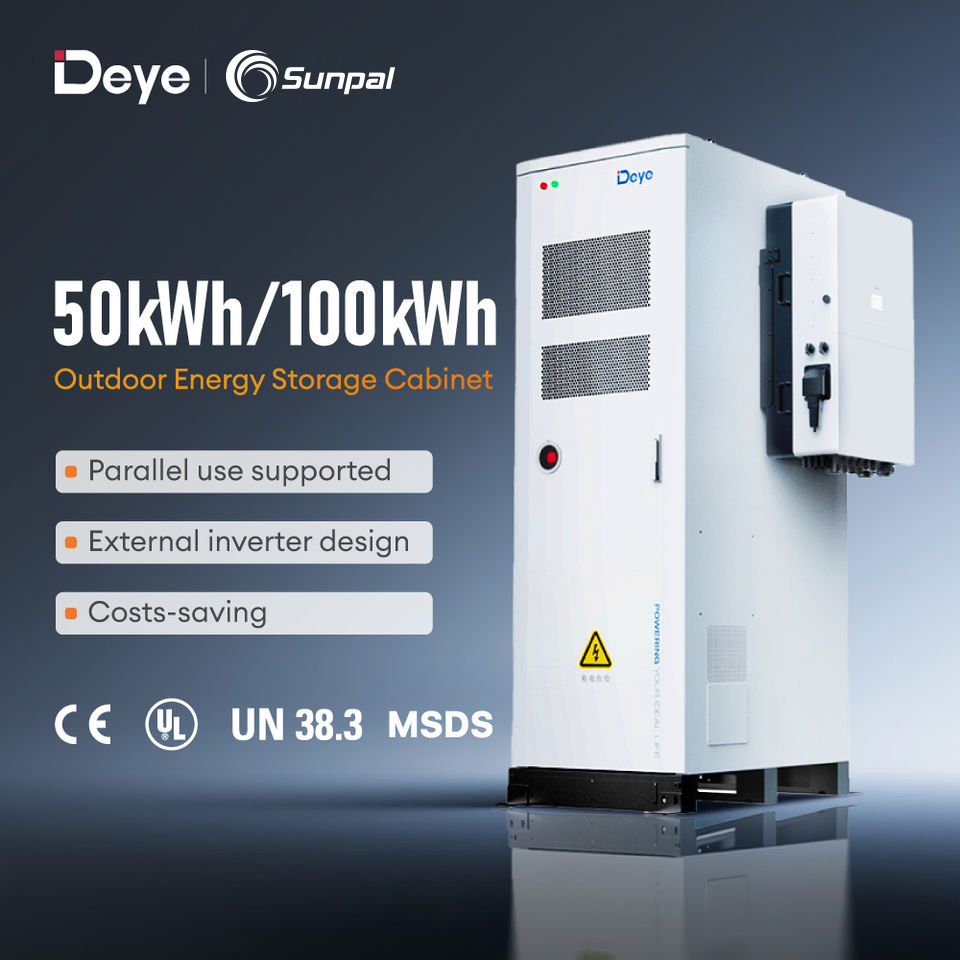

Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems

1 / 5

Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems

Customization:	Available
Warranty:	10 year
Condition:	New

Send Inquiry

Product Description

ℹ Basic Information

Model NO.

All in one Hybrid System

Certification

Application

Industrial, Commercial

Battery Type

Lithium Ion

Grid Connection

Off grid, Hybrid grid, on grid

Dimension (L*W*H)

1780*1056*2235

Weight

1070kg

Communication Port

CAN, RS485, WIFI

Protection Class

IP55

Rated Grid Frequency

50/60 Hz

Power Factor

>0.99

Specification

50kw-100kwh

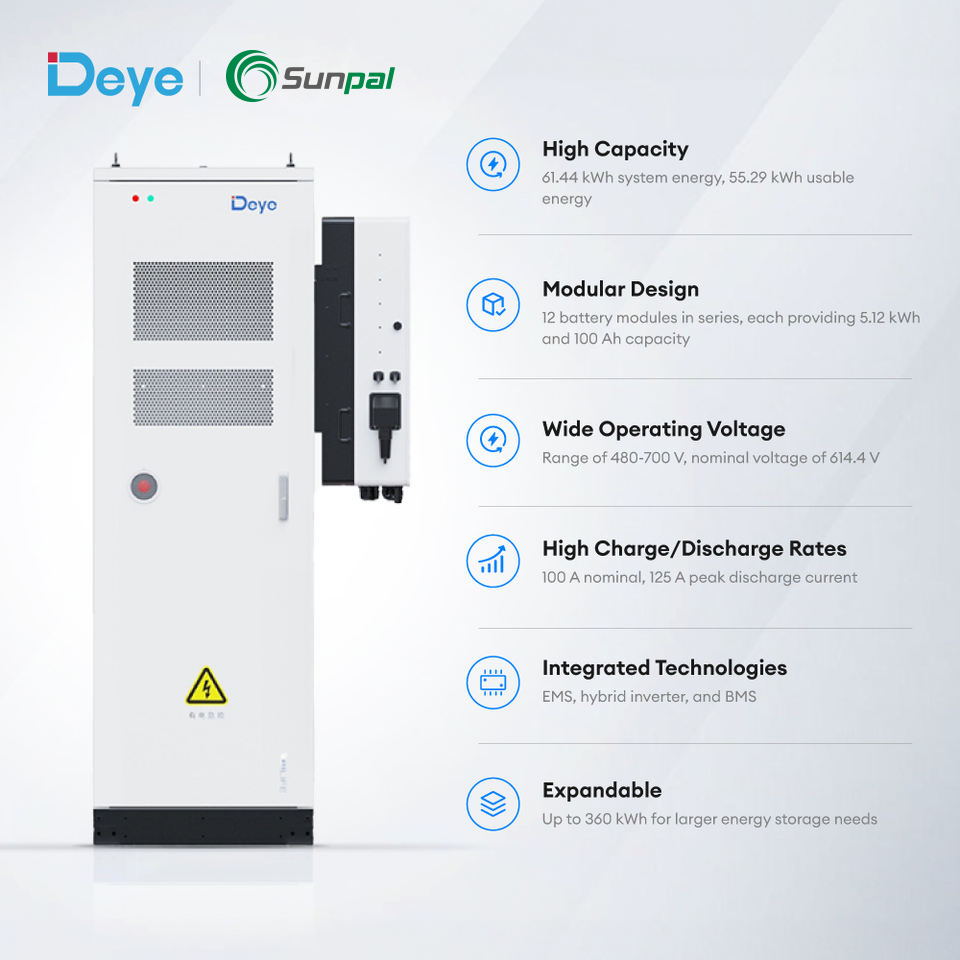

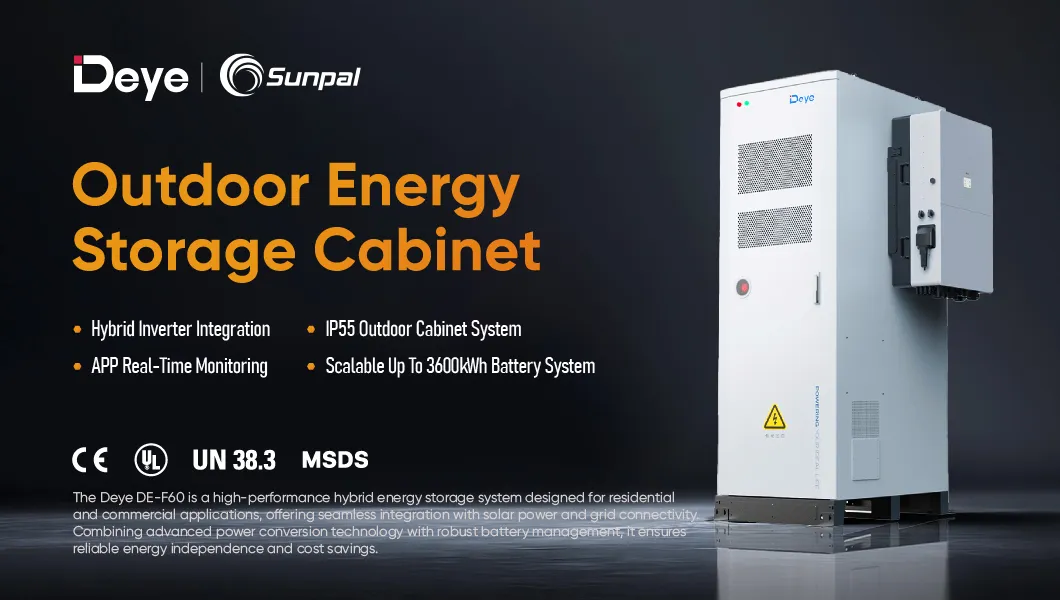

📦 Product Overview

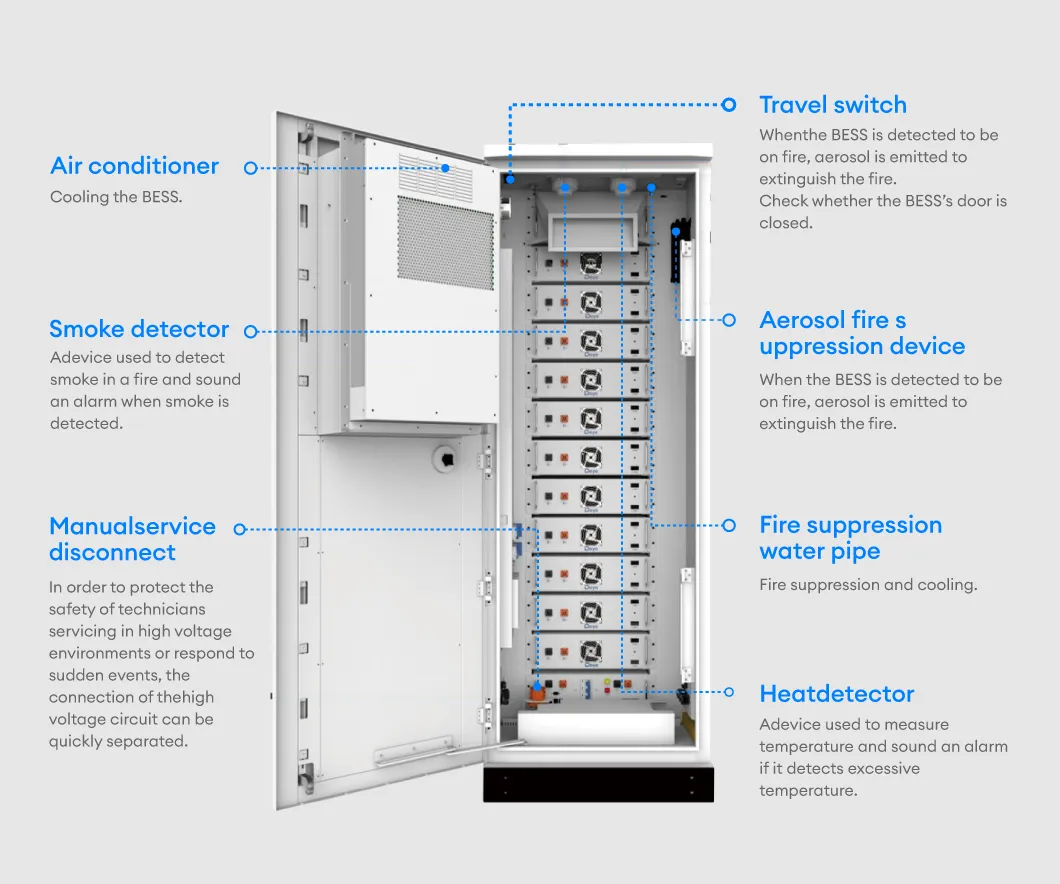

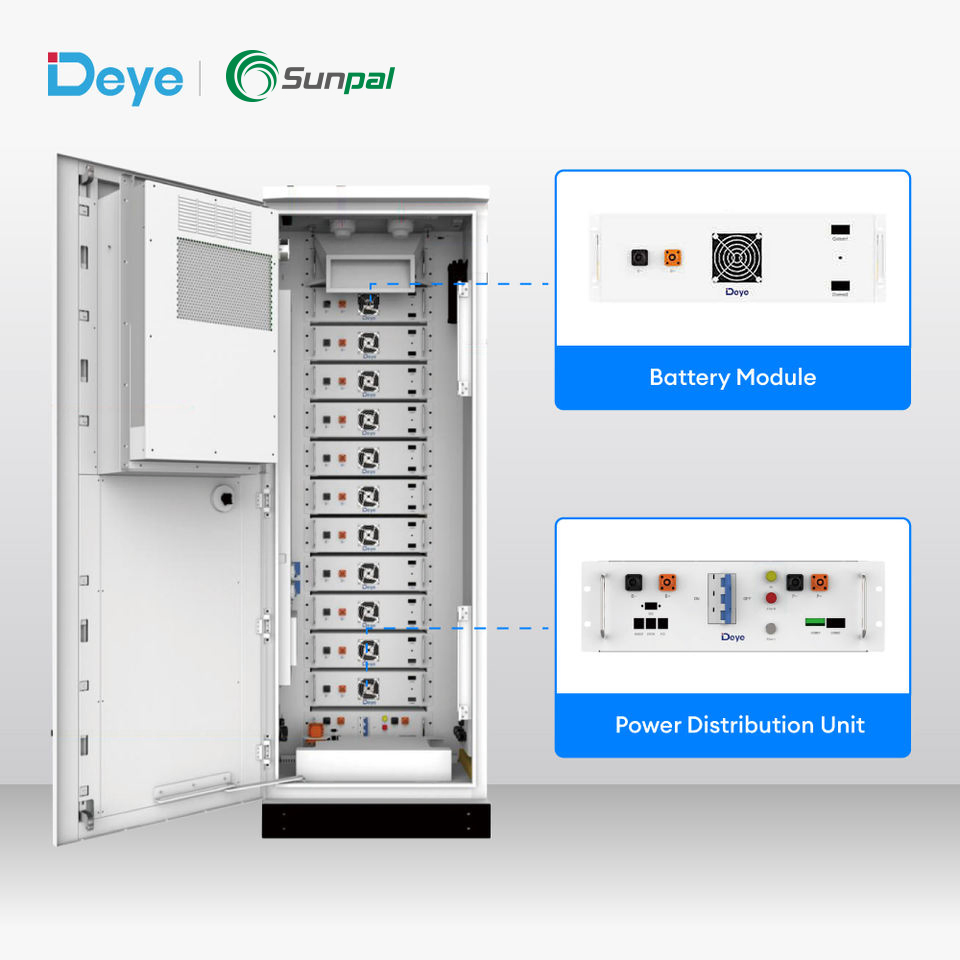

⚙ System & Structure

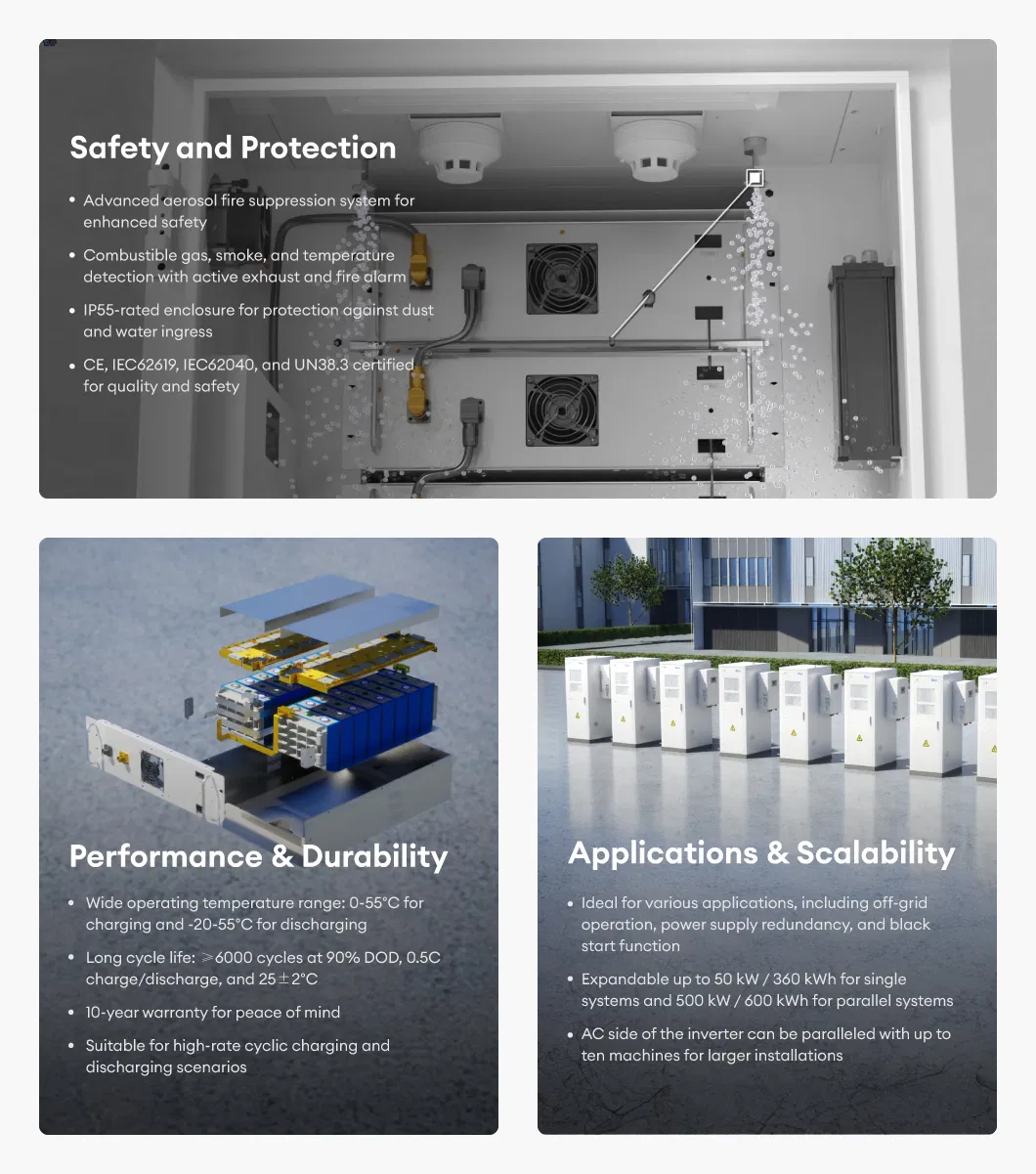

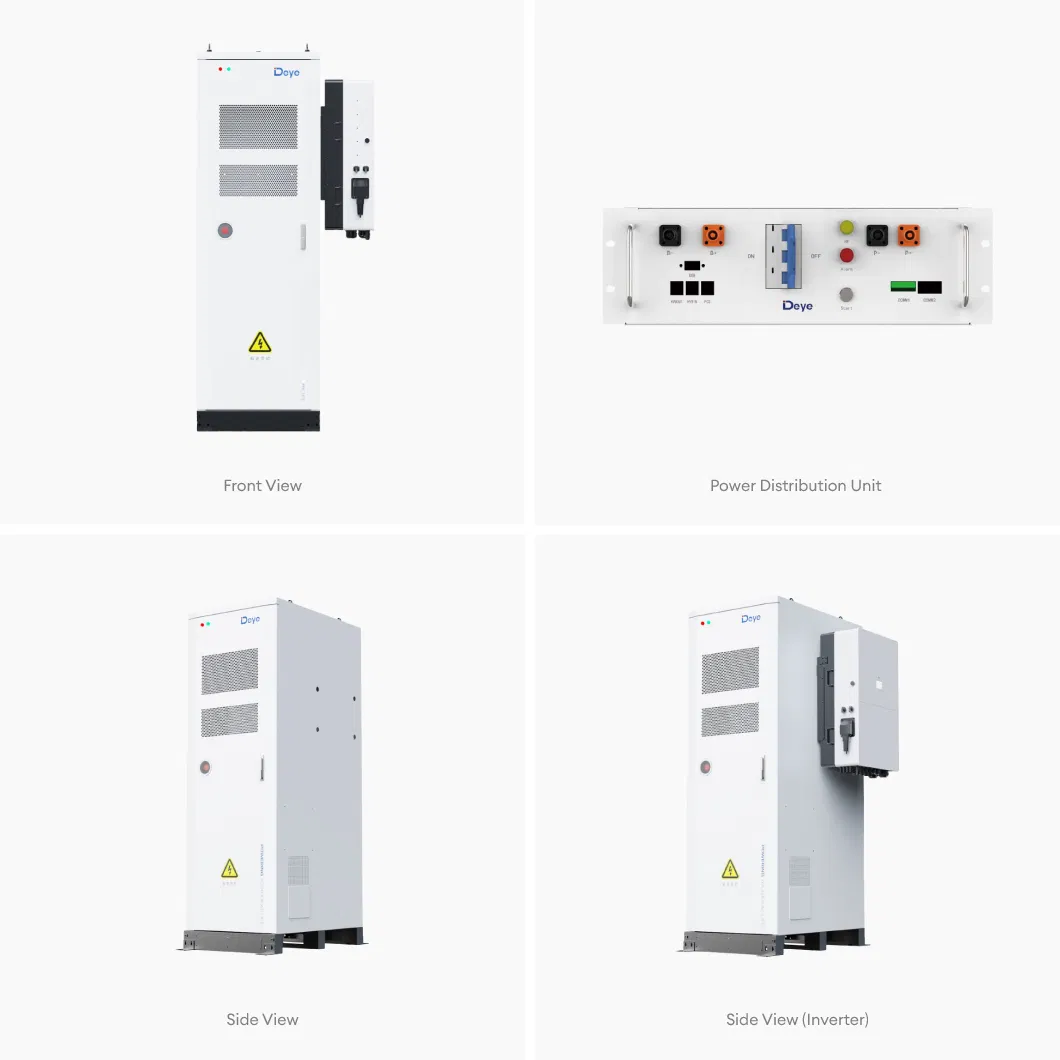

🔍 Details & Features

📊 Technical Datasheet (GE-F60)

Parameter		Specification
Model		GE-F60
Cell Chemistry		LiFePO4
Module Energy (kWh)		5.12
System Nominal Voltage (V)		614.4
System Operating Voltage (V)		480~700
System Energy (kWh)		61.44
System Usable Energy (kWh)		55.29
Charge/Discharge Current (A)	Recommend	50
	Nominal	100
	Peak Discharge (2 mins, 25℃)	125
Working Temperature (°C)		Charge: 0~55 / Discharge: -20~55
Communication Port		CAN2.0 / RS485
IP Rating of Enclosure		IP55
Cycle Life		25±2°C, 0.5C/0.5C, EOL70% ≥ 6000
Warranty		10 years
Certification		CE, IEC62619, IEC62040, UN38.3

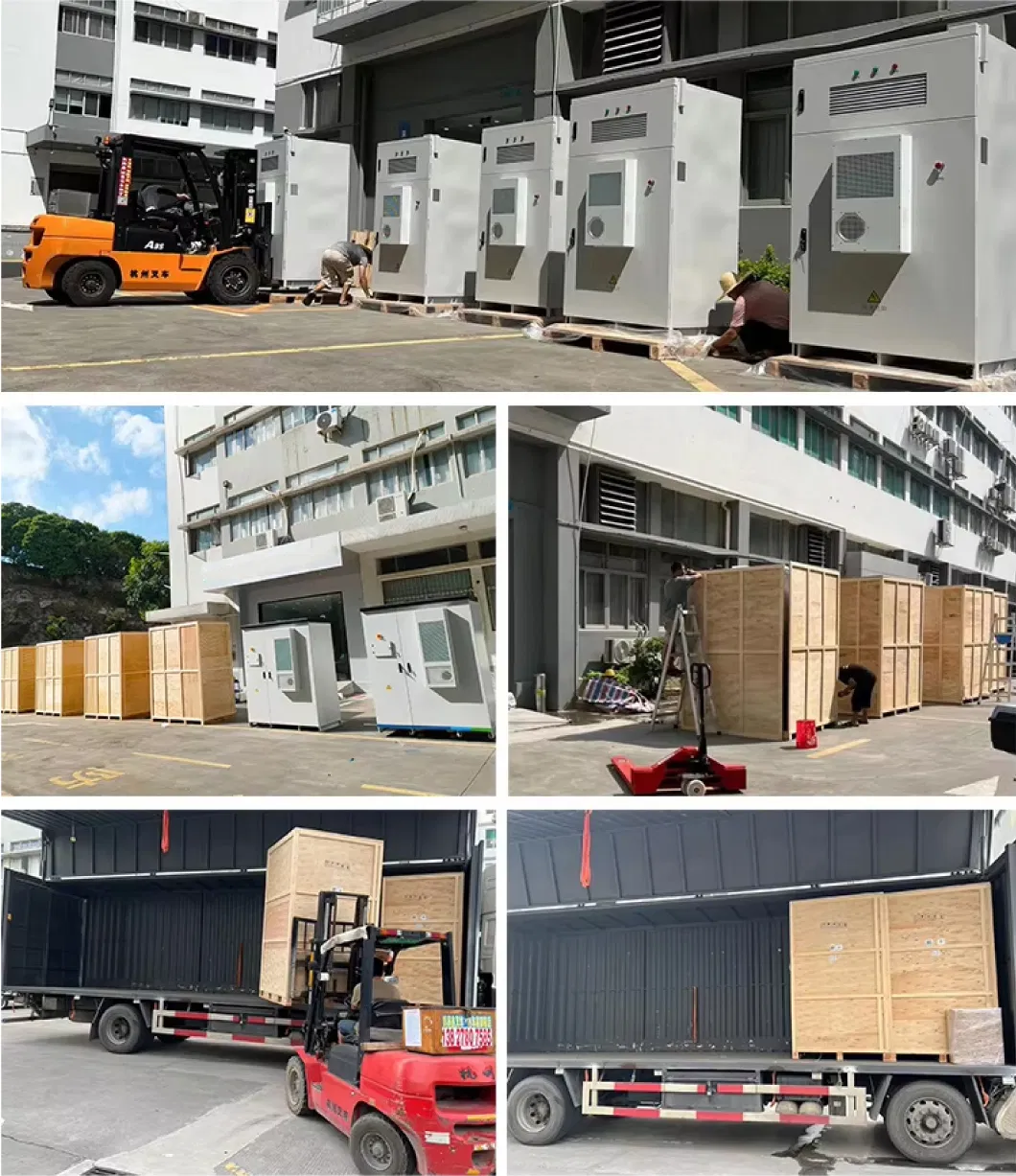

🚚 Packaging & Shipping

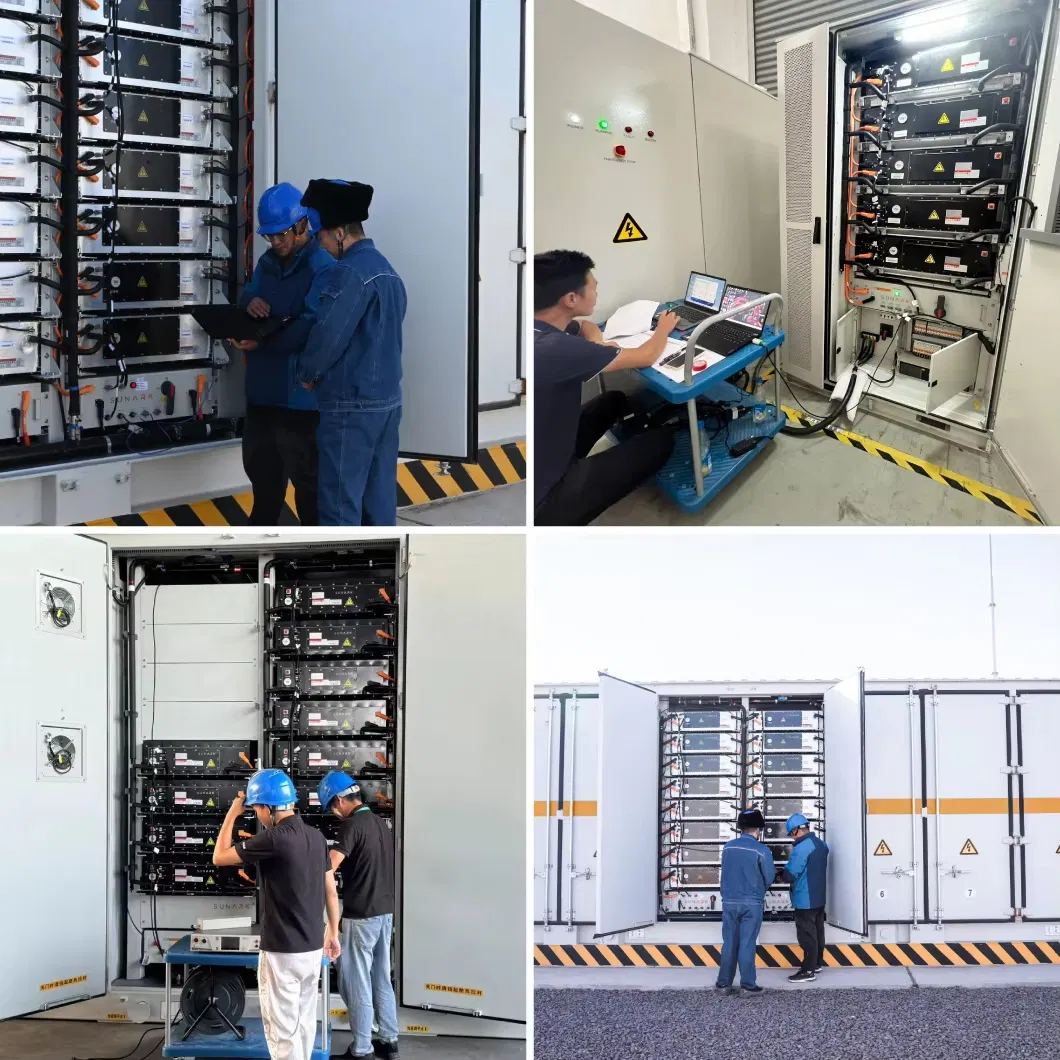

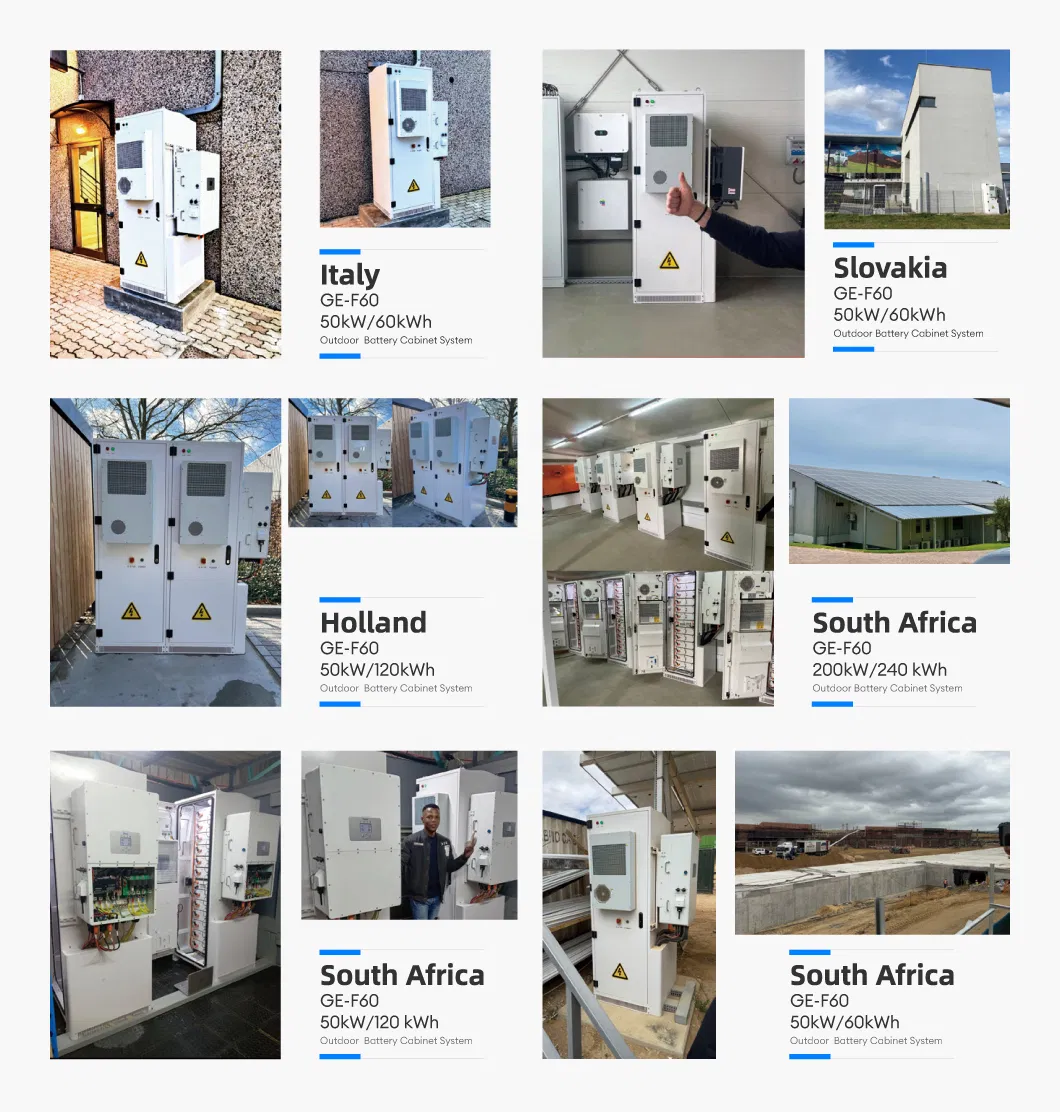

🏢 Project Cases & Applications

❓ Frequently Asked Questions

1. What type of battery cells are used in this system?

The system utilizes high-quality Lithium Iron Phosphate (LiFePO4) chemistry, known for its safety, thermal stability, and long cycle life.

2. What is the expected lifespan of the battery system?

The system offers a cycle life of ≥6000 cycles at 25±2°C (0.5C/0.5C) until 70% End of Life (EOL). It also comes with a 10-year warranty.

3. Can this system be installed outdoors?

Yes, the enclosure is rated IP55, providing excellent protection against dust and water, making it suitable for outdoor cabinet energy storage applications.

4. What grid configurations are supported?

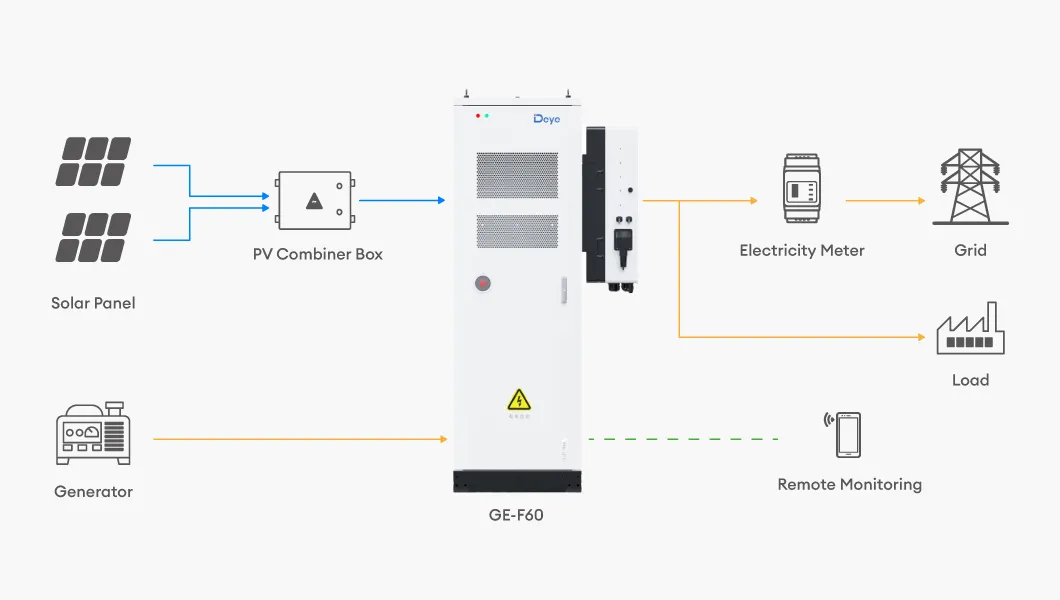

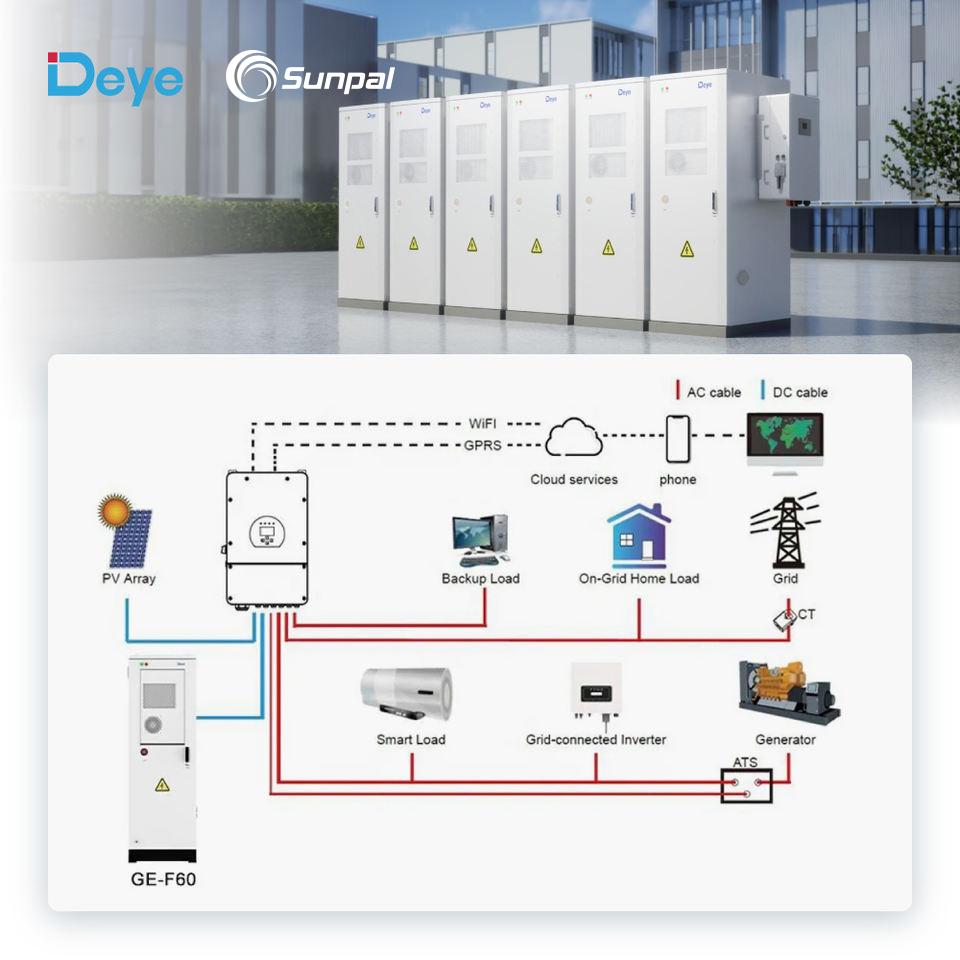

This all-in-one hybrid system is highly versatile and supports Off-grid, Hybrid grid, and On-grid connections.

5. What communication protocols are available?

The system supports multiple communication interfaces including CAN2.0, RS485, and WIFI for easy monitoring and integration.

6. What is the recommended depth of discharge (DoD)?

The recommended depth of discharge for optimal performance and longevity is 90%.
