GB series lead acid batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle. The VRLA AGM battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the GB range features 30% higher cyclic life with 10 years of float life when compared to the other standard Duration range.

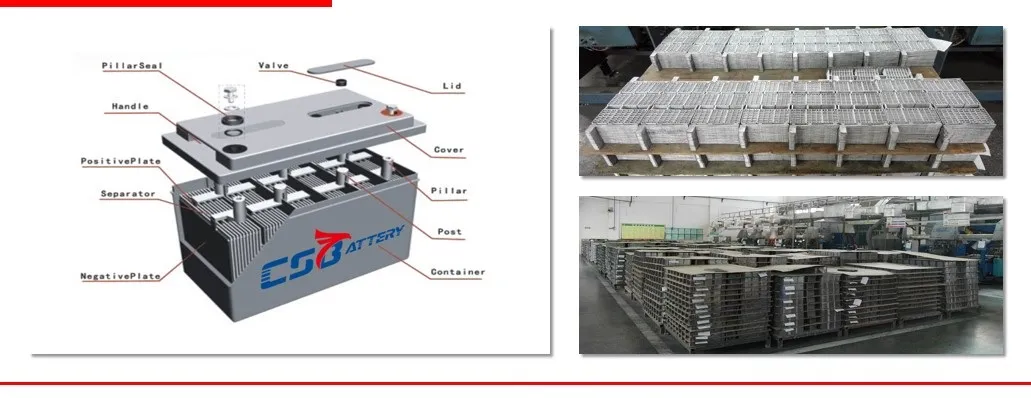

| Component | Positive plate | Negative plate | Container | Safety valve | Separator | Electrolyte |
|---|---|---|---|---|---|---|
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Si-Rubber aging resistance | Advanced PVC/AGM | Silicon Gel / Acid |

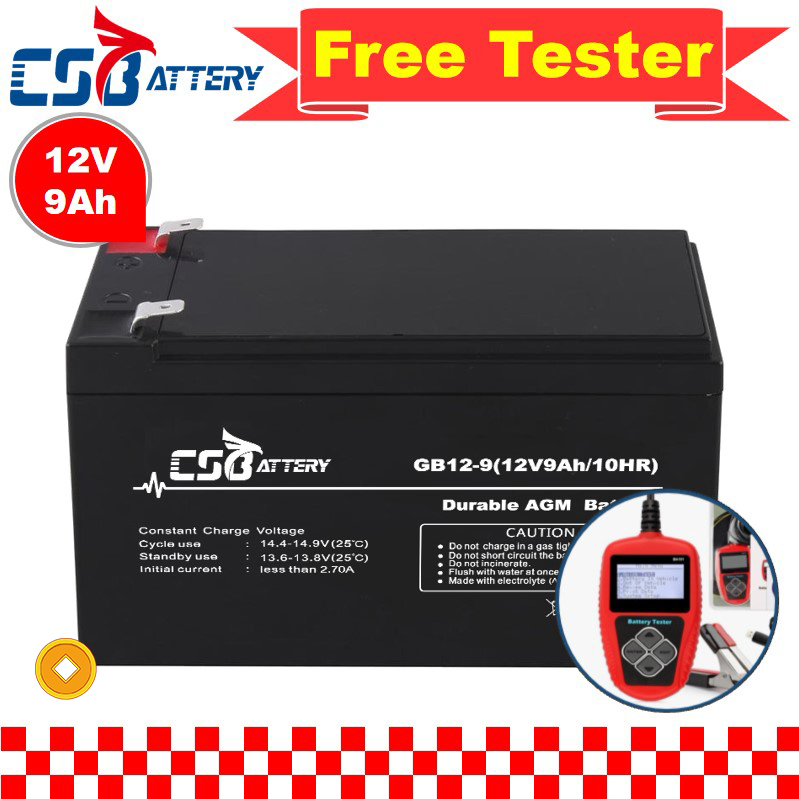

| GB12-9 Data Sheet | |||
| Nominal Voltage | 12V | Design Life | 5-8 Years |
| Nominal Capacity | 9Ah @ 20hr | Internal Resistance | ≤20.0mΩ |
| Dimension (L*W*H) | 151 ± 1mm * 65 ± 1mm * 94 ± 1mm | ||
| Charge Voltage | Cycle: 14.4-14.9V | Standby: 13.6-13.8V | Max Current: 2.7A |
