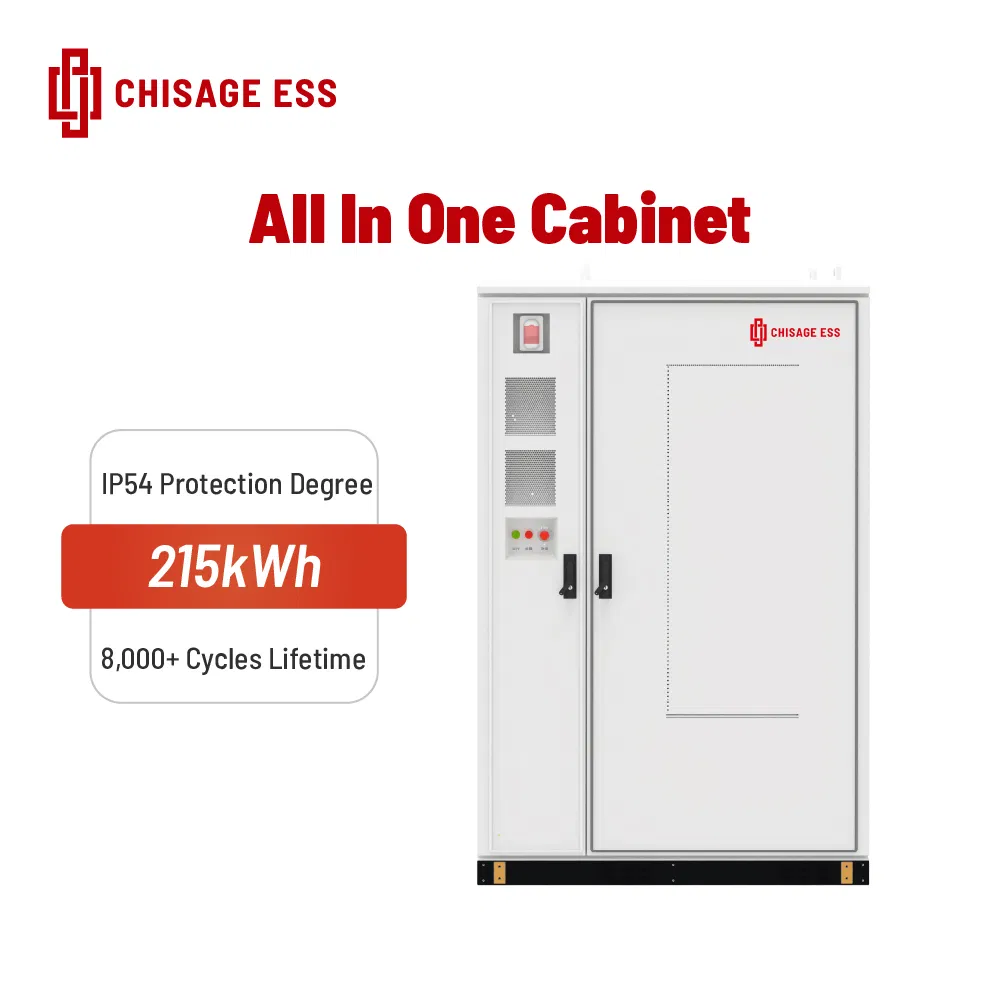

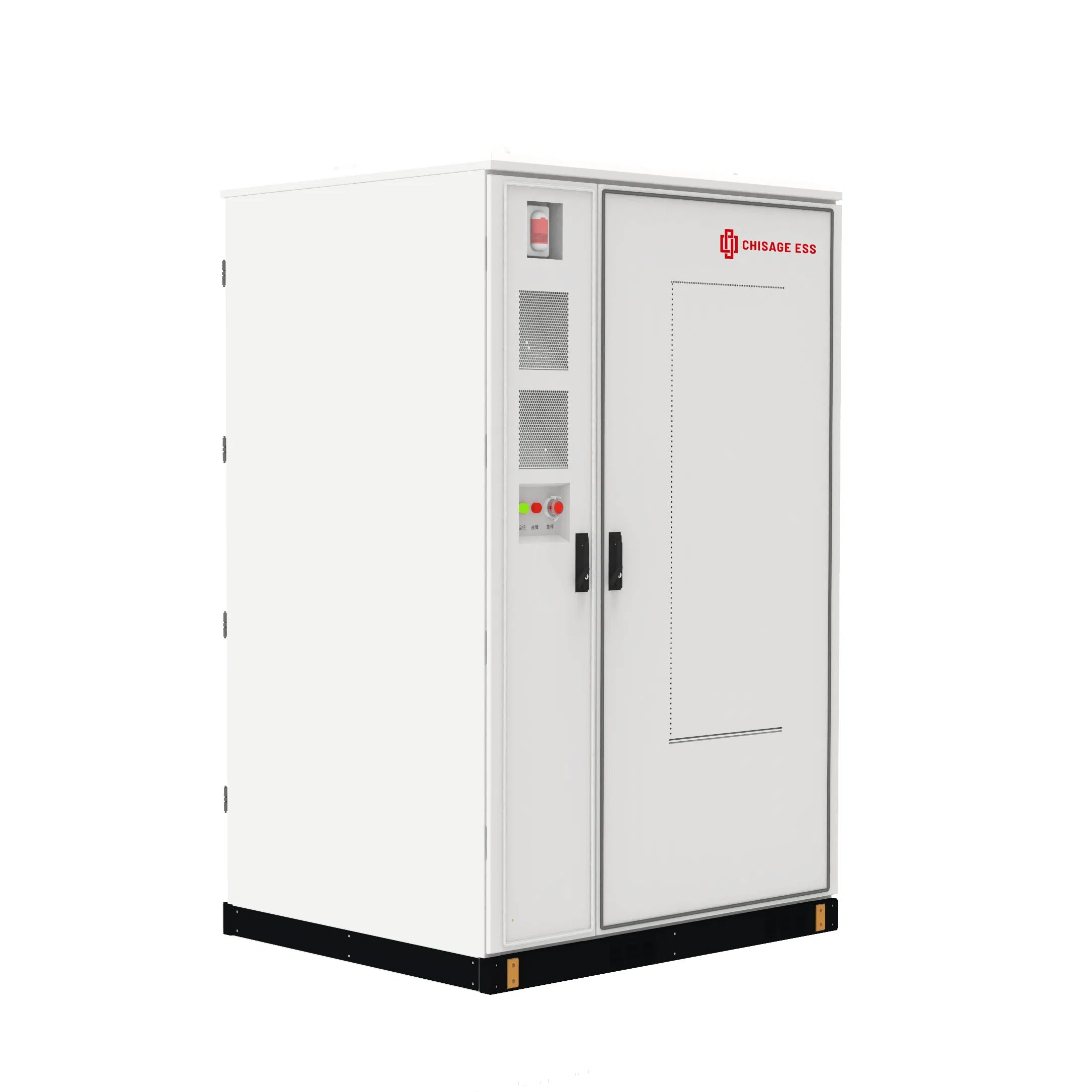

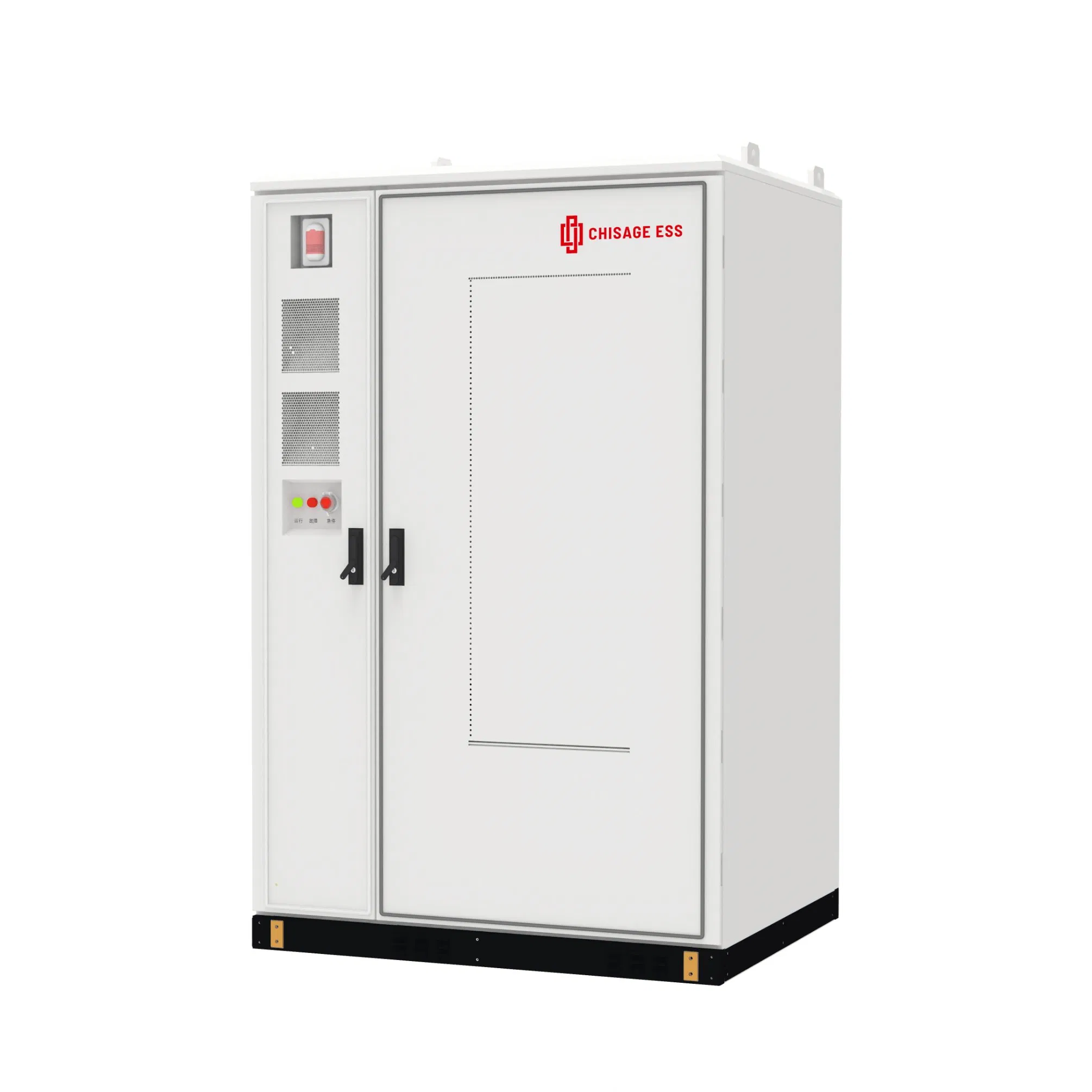

Chisage Commercial 215kwh High Voltage Lithium Battery Power Energy Storage System Cabinet for Industrial Commerial

1 / 5

Chisage Commercial 215kwh High Voltage Lithium Battery Power Energy Storage System Cabinet for Industrial Commerial

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

■ Overview

Model NO.

CE100215-B

Nominal Voltage

768V

Warranty

1 Years

Nominal Capacity

215kwh

Cycle Life

8000 Cycles

DC Rated Voltage (V)

768

Maximum Charging Efficiency

94%

Maximum Discharge Efficiency

94%

AC Output Voltage Waveform

Pure Sine Wave

AC Output Power Factor

0.8 Lagging ~ 0.8 Leading

Rated Voltage (V)

400, 3 Phase

Rated Charging Power (Kw)

100

Rated Discharge Power (Kw)

100

Battery Type

LFP/280ah

Rated Capacity (Ah)

280

Battery Rated Voltage (V)

768V

Battery Rated Energy (Kwh)

215kwh

Battery Cycle Life

8000 Cycles, 70%Eol @25°c 0.5c

Protection Degree

IP54

Cooling

Air Conditioner + Air Cooling

Transport Package

Standard Export Carton Package

Specification

1500mm*1250mm*2435mm

Production Capacity

50000pieces/Year

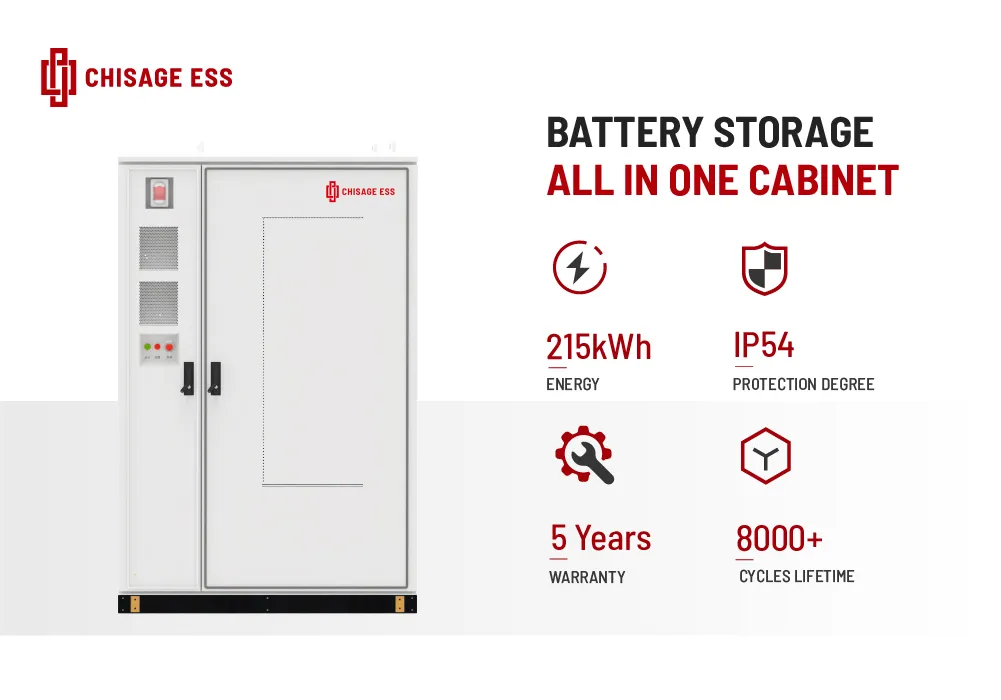

■ Product Description

Commercial 215kwh High Voltage Lithium Battery Power Energy Storage System Cabinet

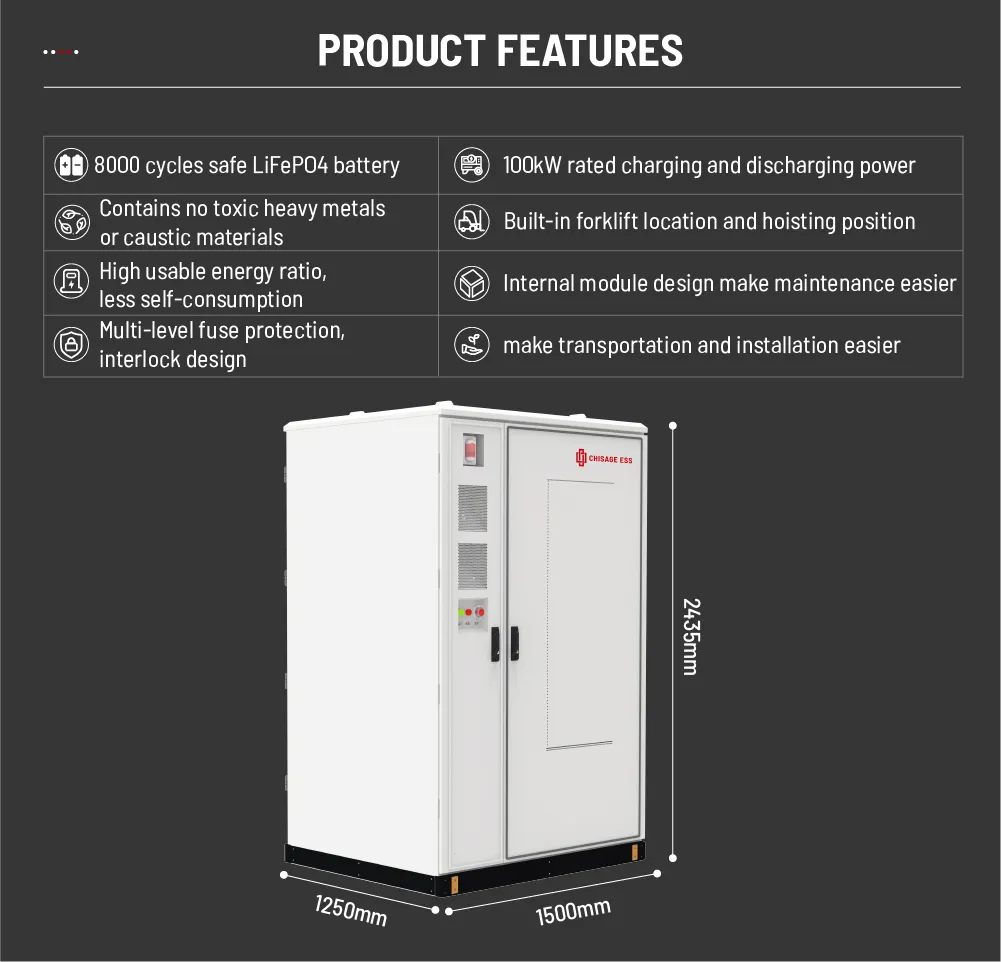

■ Product Features

■ Technical Specification

Technical Data
Model	CE100215-B
DC Parameter (Battery)
Battery Type	LFP/280Ah
Series and Parallel	1P240S
Rated Capacity (Ah)	280
Rated Voltage (V)	768
Rated Energy (kWh)	215
Continuous Charge/Discharge Current (A)	0.5C
Cycle life	8000 cycles, 70%Eol @25°C 0.5C
AC Parameter
Rated Voltage (V)	400, 3 phase
Voltage Range (V)	320~460
Frequency (Hz)	50
THD	< 3% (rated power)
Rated Charging Power (kW)	100
Rated Discharge Power (kW)	100
Power Factor	0.8 lagging ~ 0.8 leading
Efficiency
Max. Charging Efficiency	94.00%
Max. Discharge Efficiency	94.00%
General
Operation Temperature Range (°C)	-25~+55
Protection Degree	IP54
Cooling	Air conditioner + air cooling
Dimension (mm)	1500W1250D2435H
Weight (kg)	about 3000kg
Firefighting	Perfluorohexanone/Aerosol

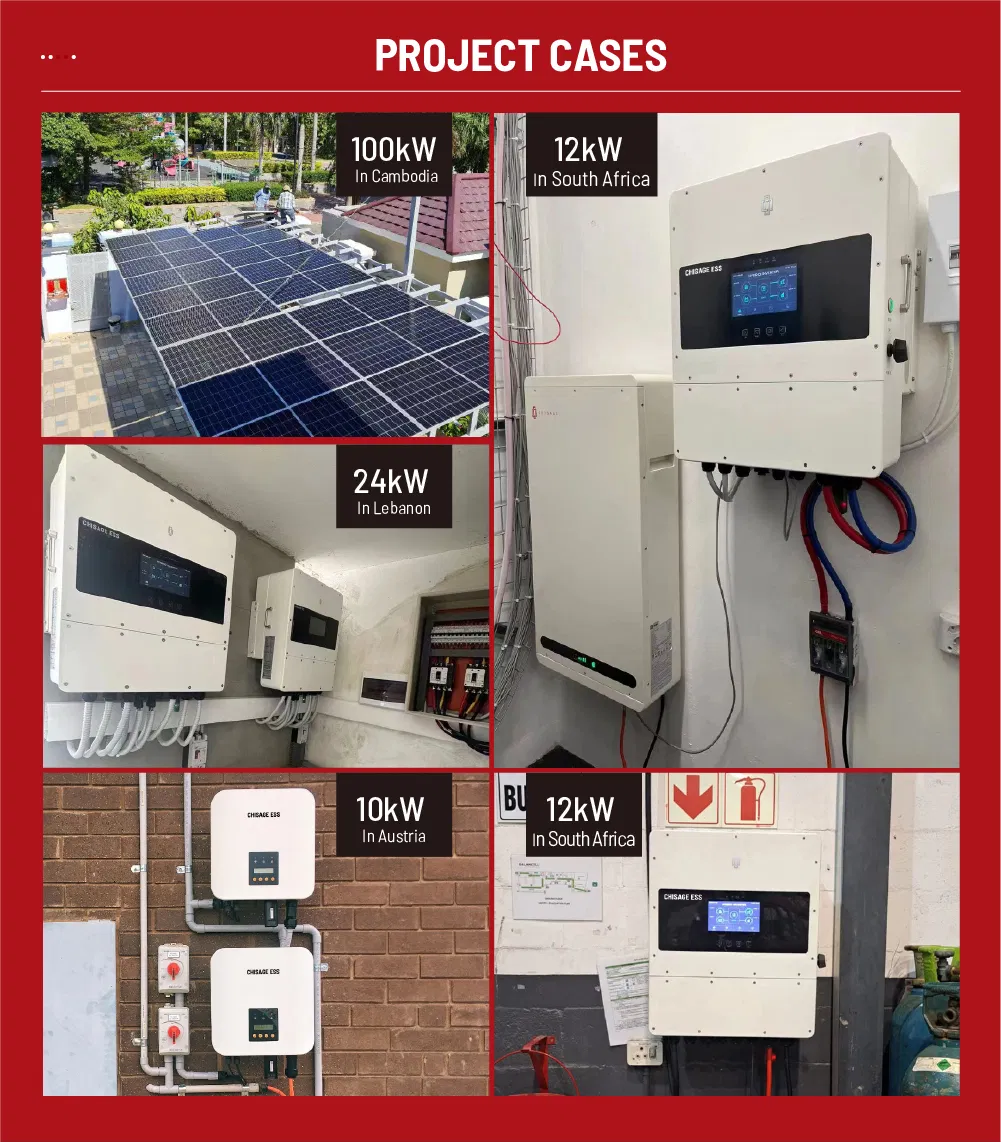

■ Why Choose Us

■ FAQ

Are you a factory or trading company?

We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team. We prioritize innovation and reliability, committed to delivering top-tier solutions to our customers.

What is the MOQ?

The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.

Do you accept custom products?

Yes, OEM and ODM is supported. We have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc.

What is your after-sales service?

a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year.
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For large quantity purchases, we provide comprehensive technical support.

What's the payment term?

We support a variety of payment methods, such as T/T, L/C, Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
