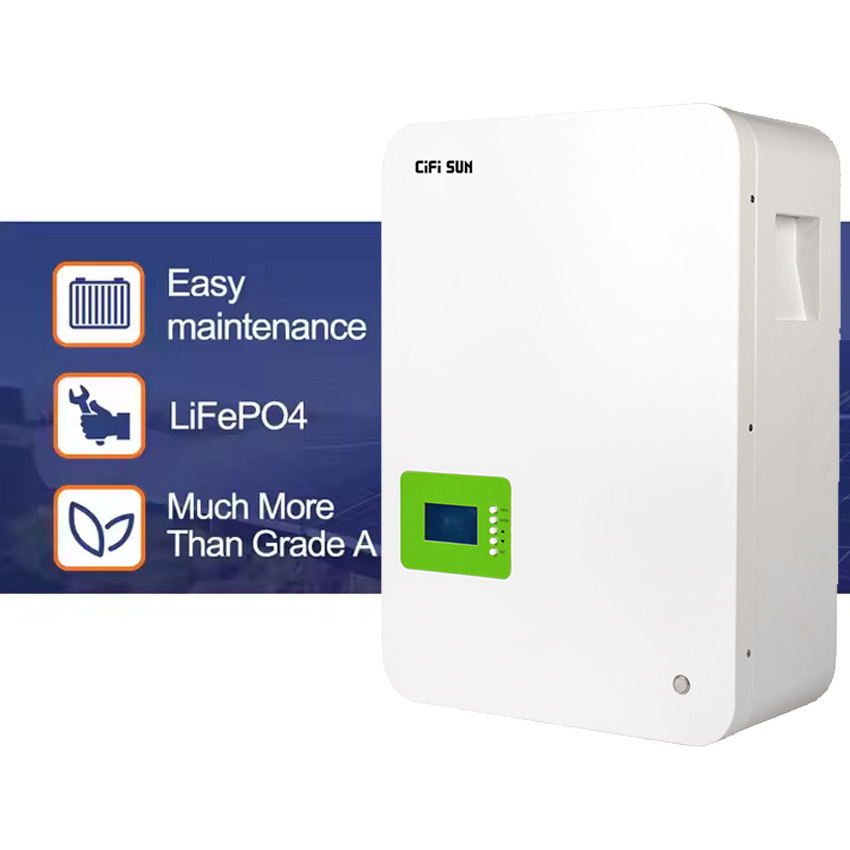

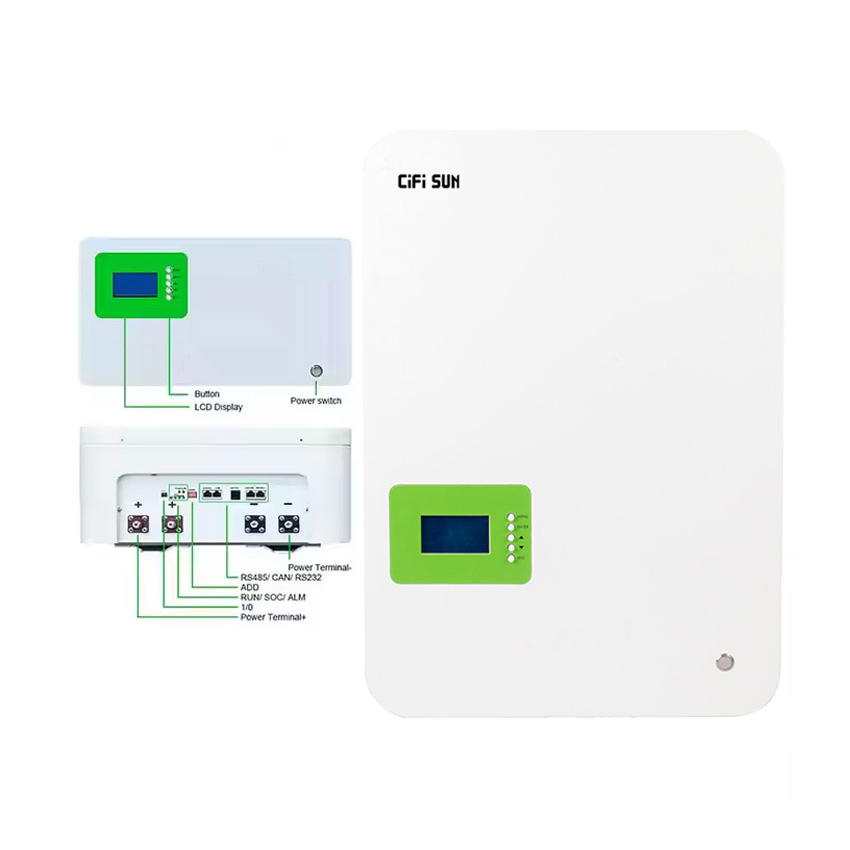

48V LiFePO4 Power Wall Home Solar Storage Lithium Battery 5-10-15-20kwh 100ah Capacity Energy Storage Forklift BMS

📊 Basic Information

Model

Powerwall 1

Nominal Capacity

100ah~280ah

Cycle Life

6000+

Battery Capacity

5kwh~15kwh

Cell Chemistry

LiFePO4

Certification

CE, UL, Un38.3, MSDS

Installation

Wall Mounted

Application

Solar, Wind, UPS, Telecom

Package

Wooden Cases

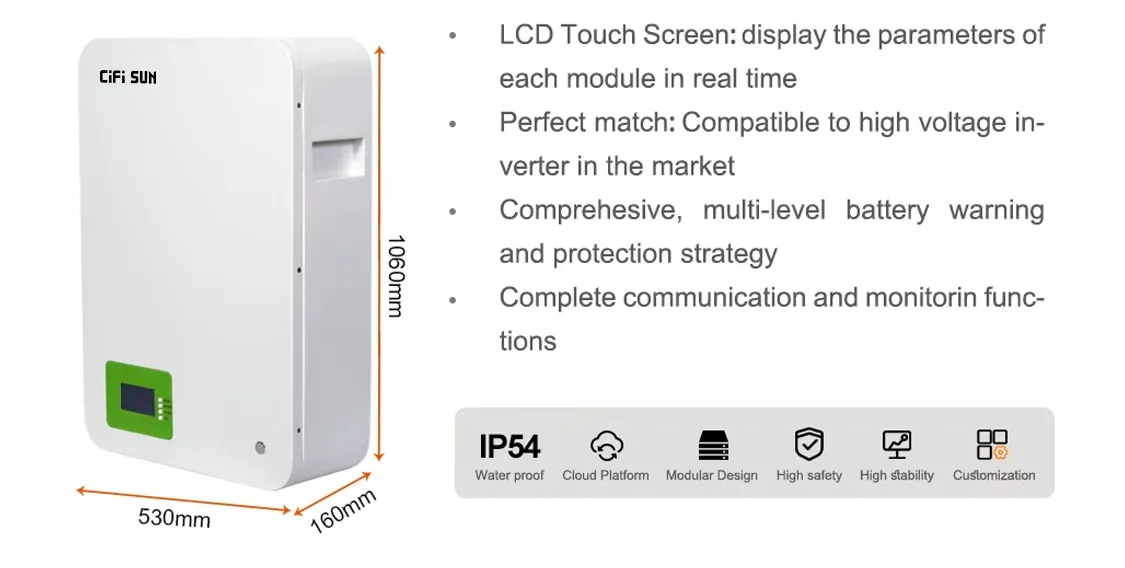

Specification

576*820*200mm

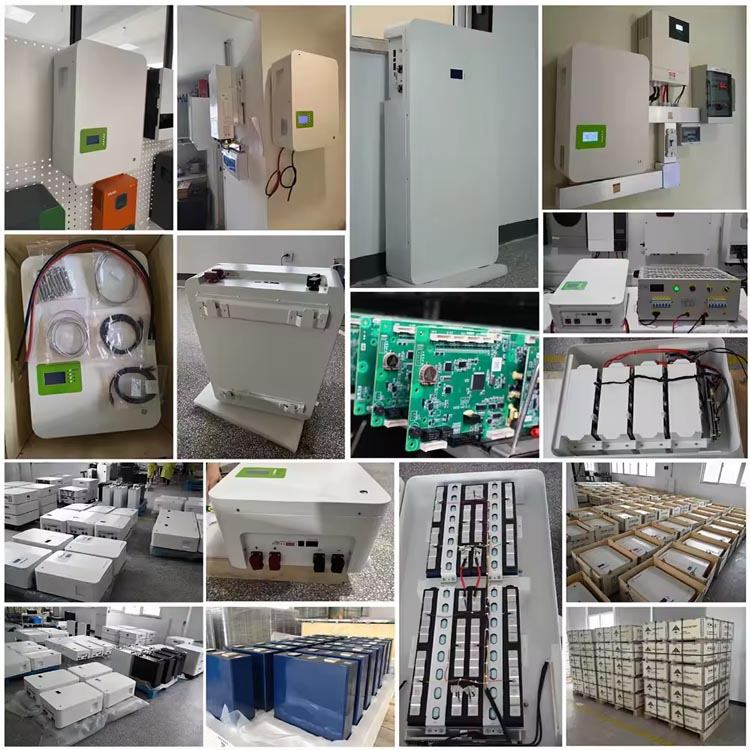

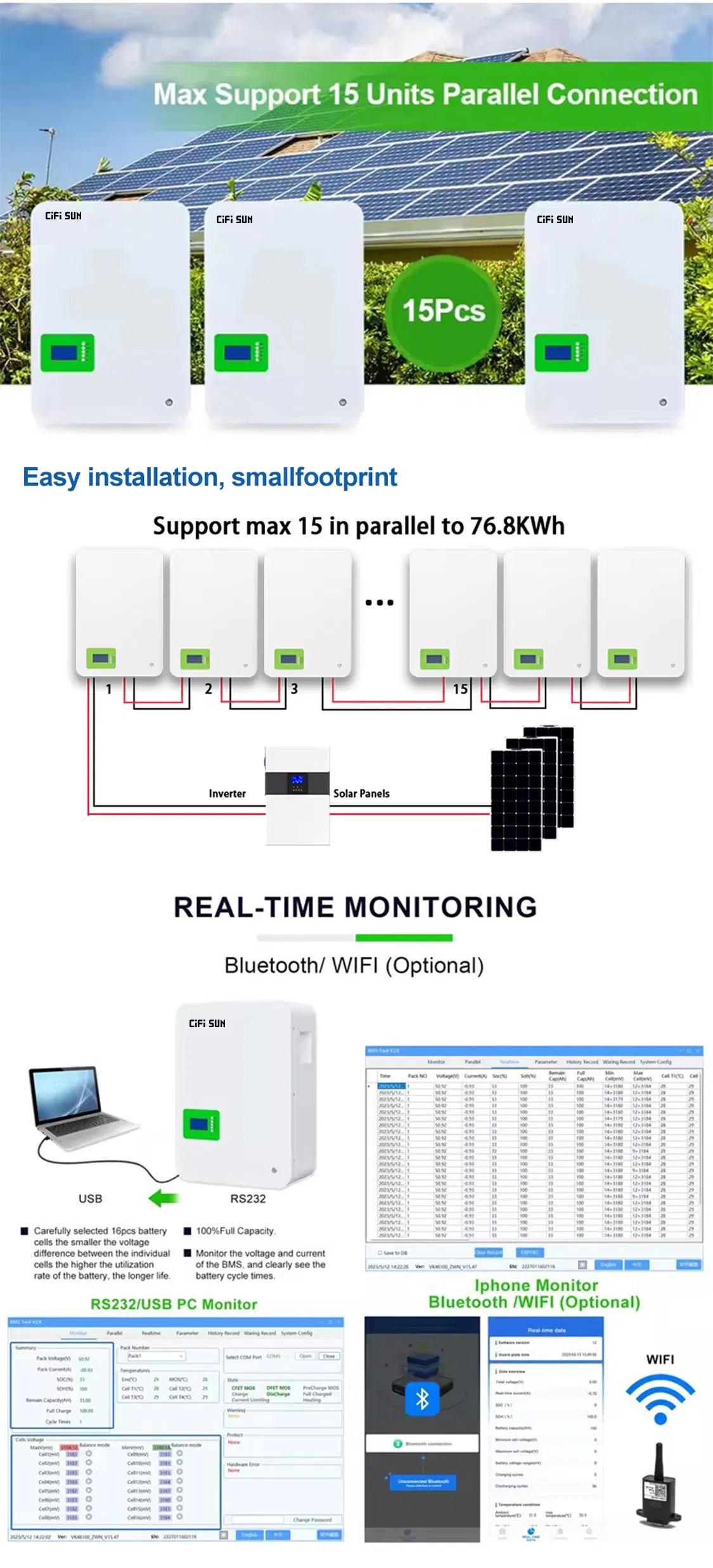

🔋 Product Description

📝 Technical Specifications

Model	LWN-51.2V 100AH	LWN-51.2V 150AH	LWN-51.2V 200AH	LWN-51.2V 280AH
Standard Voltage	43.2~57.6VDC
Rated Energy	5.12kWh	7.68kWh	10.24kWh	14.336kWh
Communication	CAN / RS485 / RS232 / WIFI / Bluetooth
DOD	90%
Cycle Life	≥6000 @ 25℃, 80% DOD
Max Charge Current	100A	100A	100A	200A
Working Temp	0~55℃
Net Weight	44kg	84kg	96kg	125kg

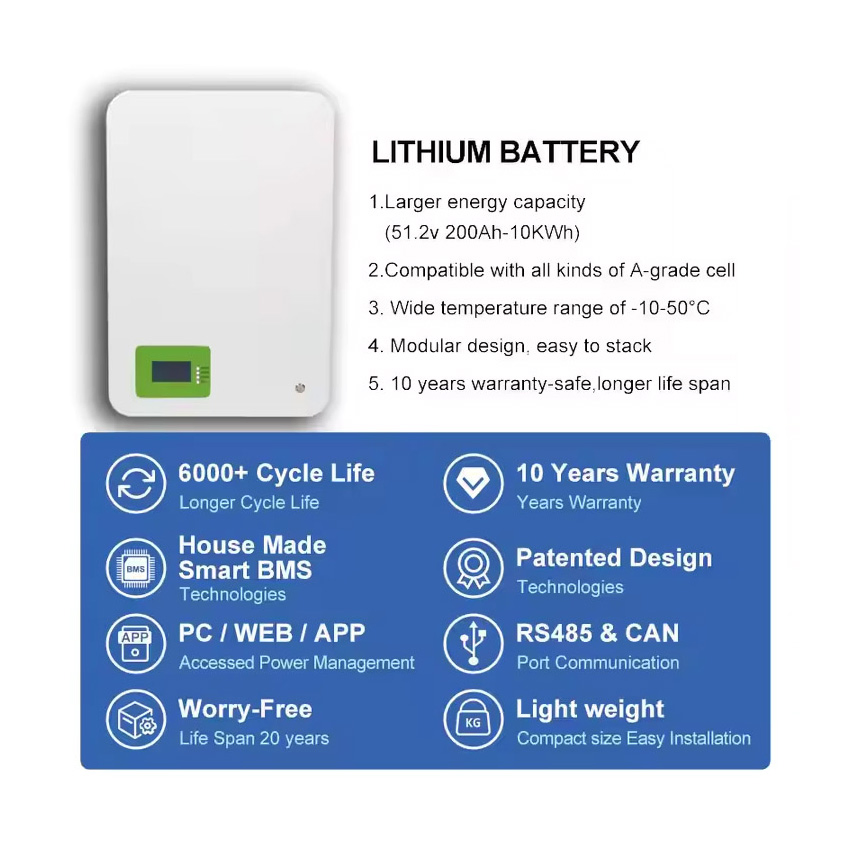

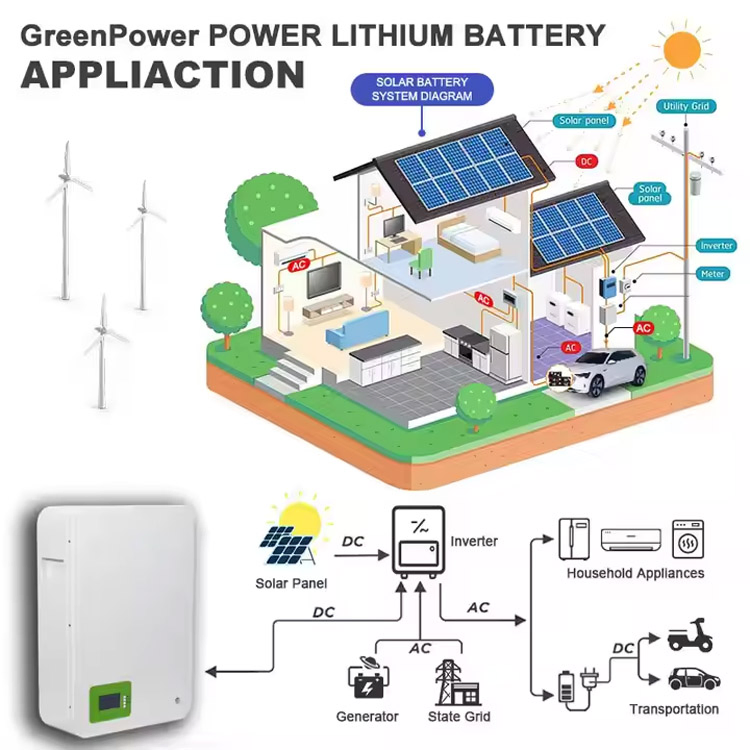

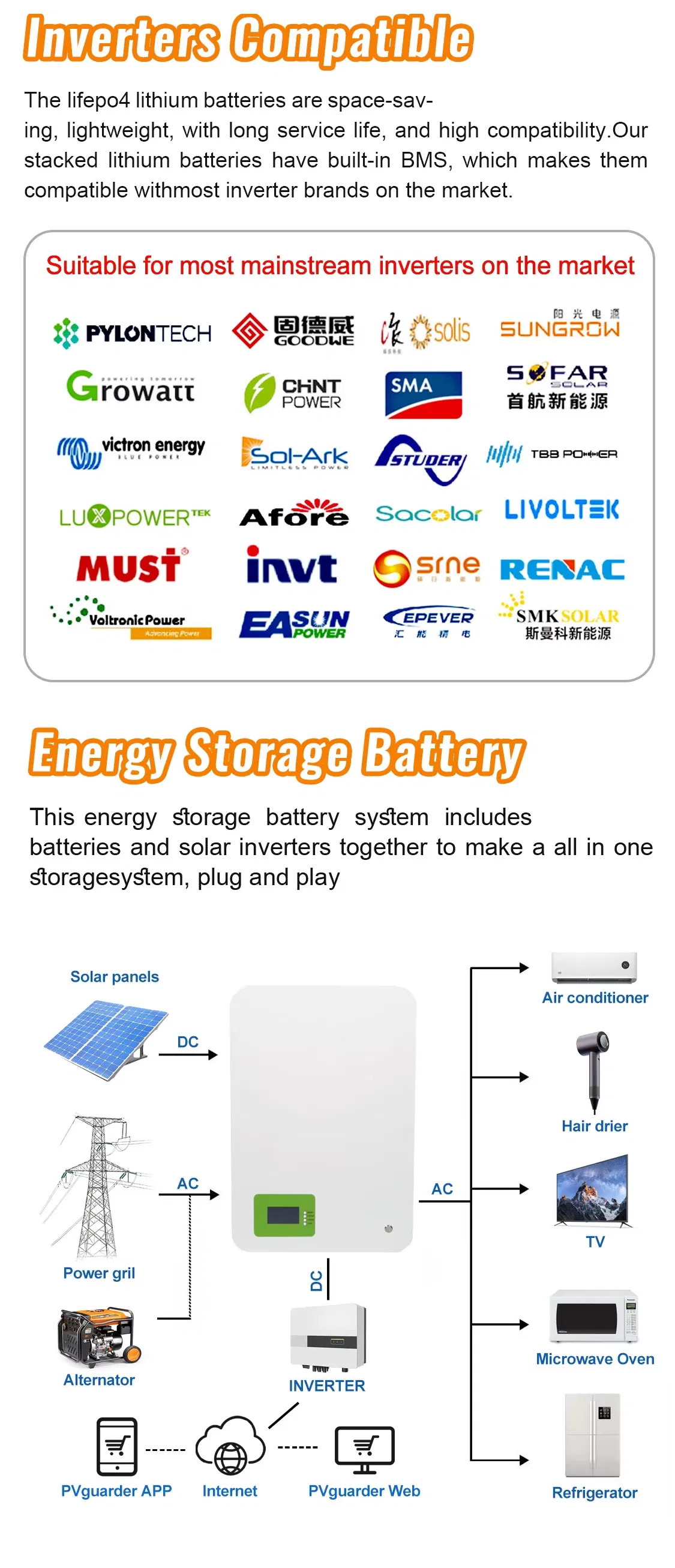

💎 Product Advantages & Applications

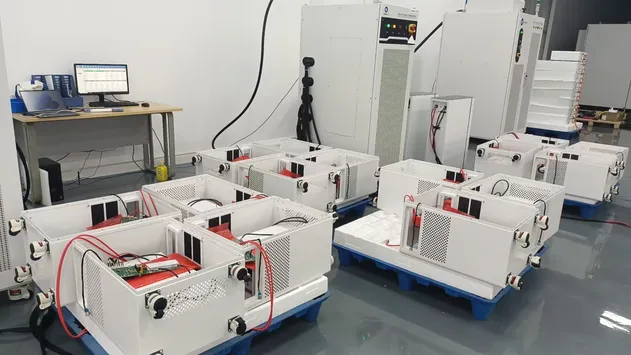

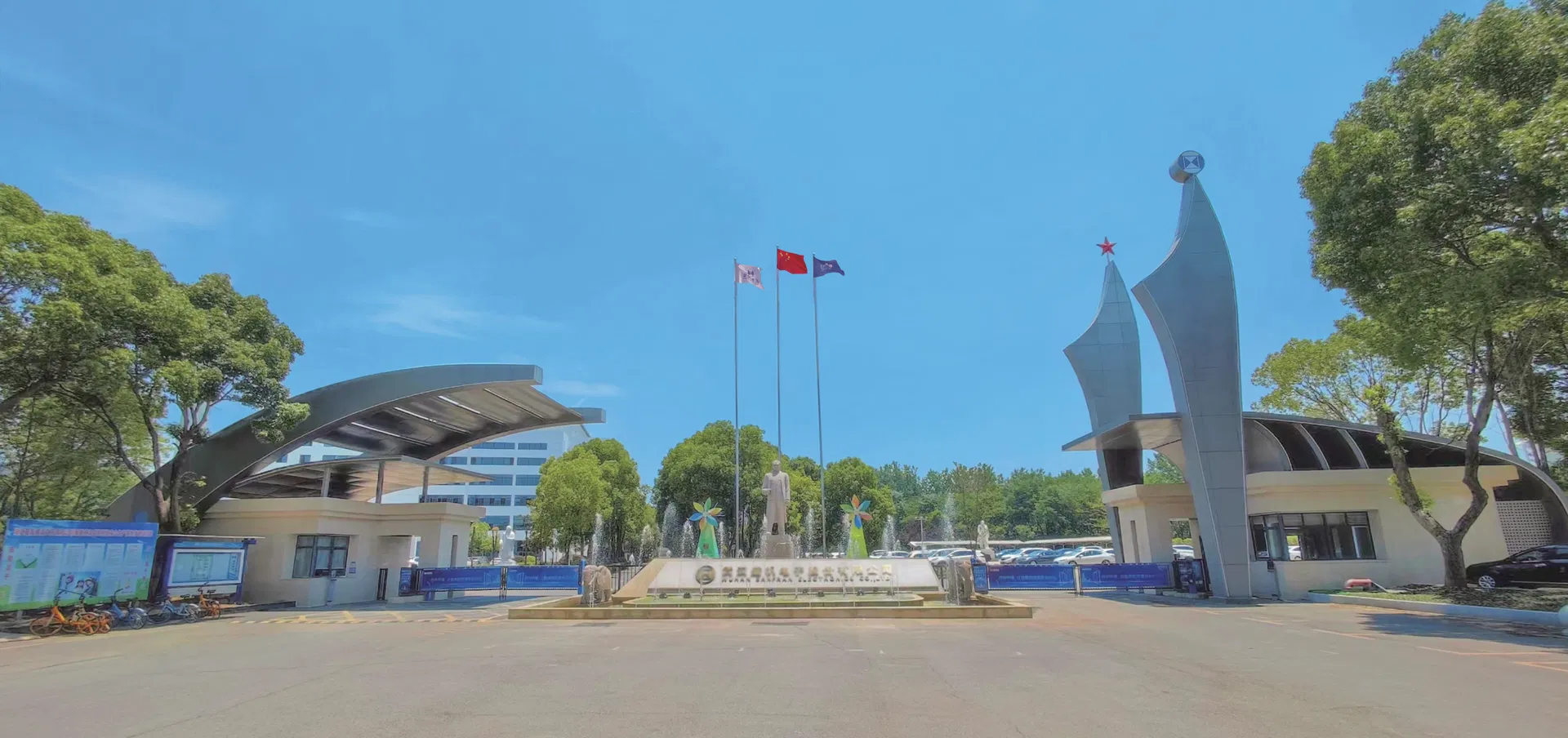

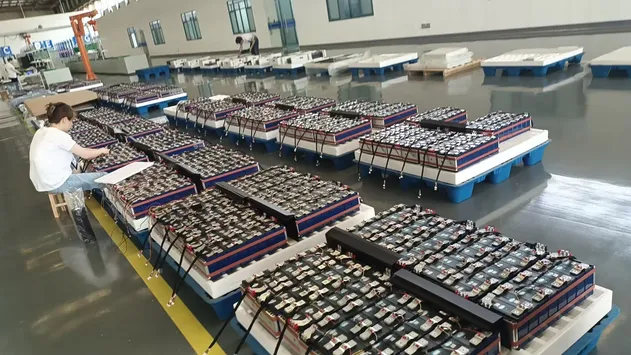

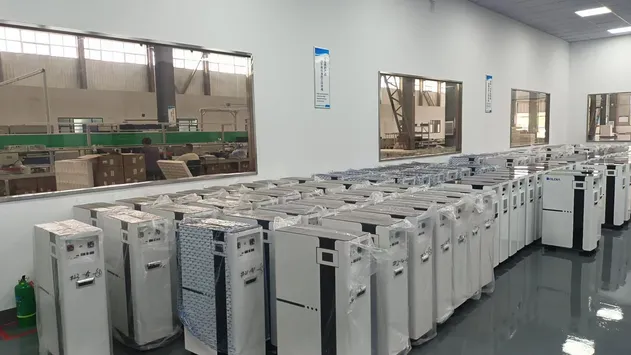

🏭 Production & Capability

Specialized in Lifepo4 lithium battery packs, widely used for solar energy storage systems. Our production procedures strictly follow international quality management standards, ensuring a short delivery cycle through functional modularization and mechanism standardization.

6+
Production Lines

30GW+
Export Capacity

8,000+
Clients Served

24/7
Technical Support

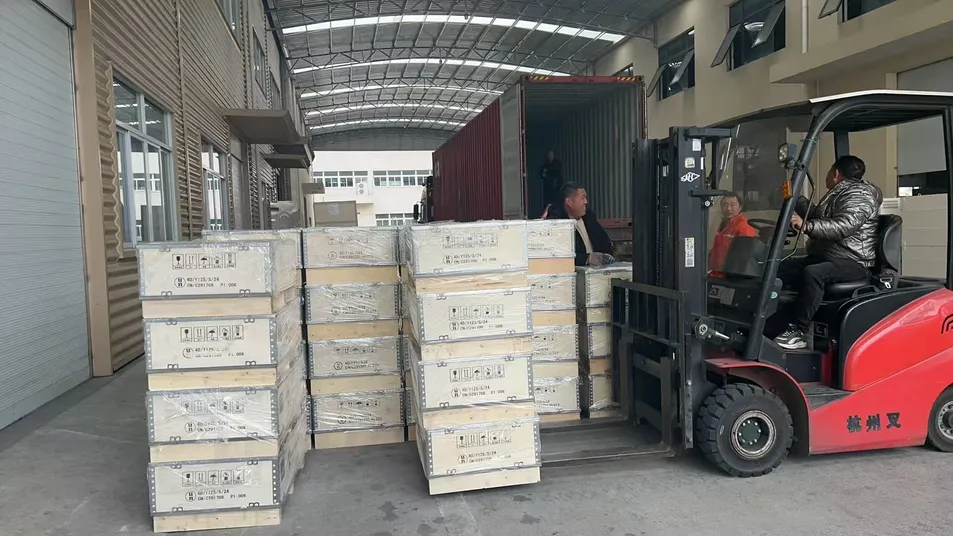

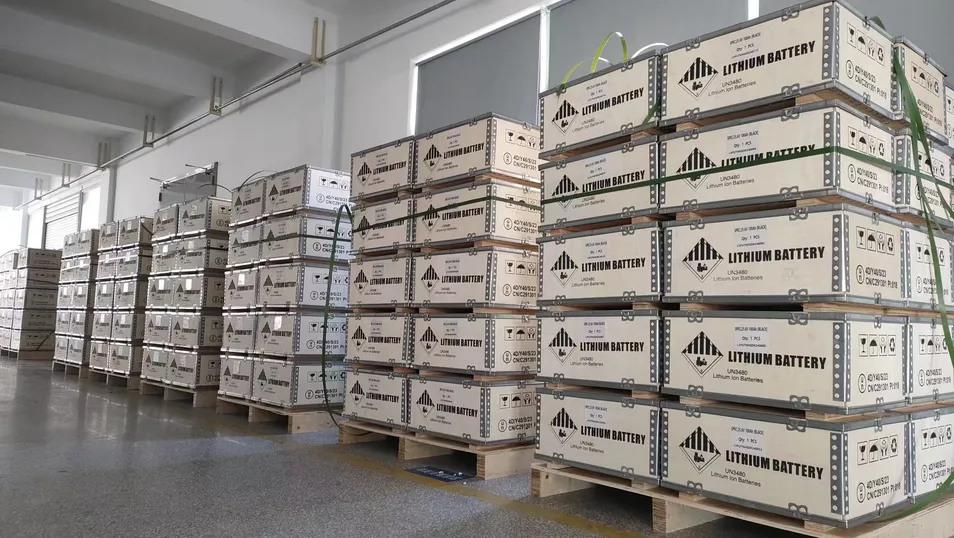

📦 Exhibition & Packaging

❓ Frequently Asked Questions

Are the batteries brand new and top quality?

Yes, all batteries are top quality with intact QR codes, brand new from the original factory.

Do the batteries come with busbars and bolts?

Yes, the price includes bus bars and bolts. Each battery cell comes with one set for connection.

Is each battery tested prior to shipping?

We strictly test all battery voltage and internal resistance for consistency before every shipment.

What is the delivery time for an order?

Small orders are typically delivered within 1-15 working days. Mass orders will be confirmed based on quantity.

Can the BMS be used in series?

No, the battery management systems (BMS) are designed for parallel use and cannot be used in series.

How should I maintain the battery consistency?

If using long wires or copper bars for assembly, impedance compensation via the BMS is necessary to ensure cell consistency.
