| Nominal Voltage | 38.4V, 48V | Discharge Rate | Medium Discharge Rate |
| Shape | Square Battery | Electrolyte | LiFePO4 Battery, Li-ion |
| Installation | Fixed, Open Frame | Rechargeable | Yes |
| Cathode Material | LFP | Cycle Life (80% DOD) | >4000 Times |
| Self-Discharge Rate | ≤3% (Month) | Weight (Approx.) | 760kg |
| Battery Dimensions | 960 × 500 × 570 mm | Certificate | CE, UN38.3, IEC62133, RoHS, MSDS |

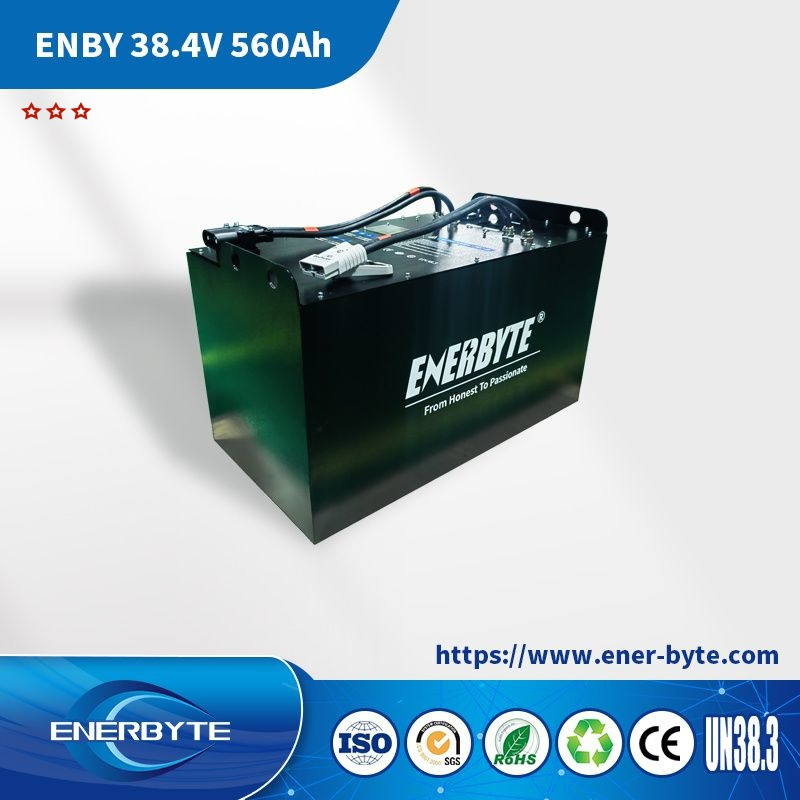

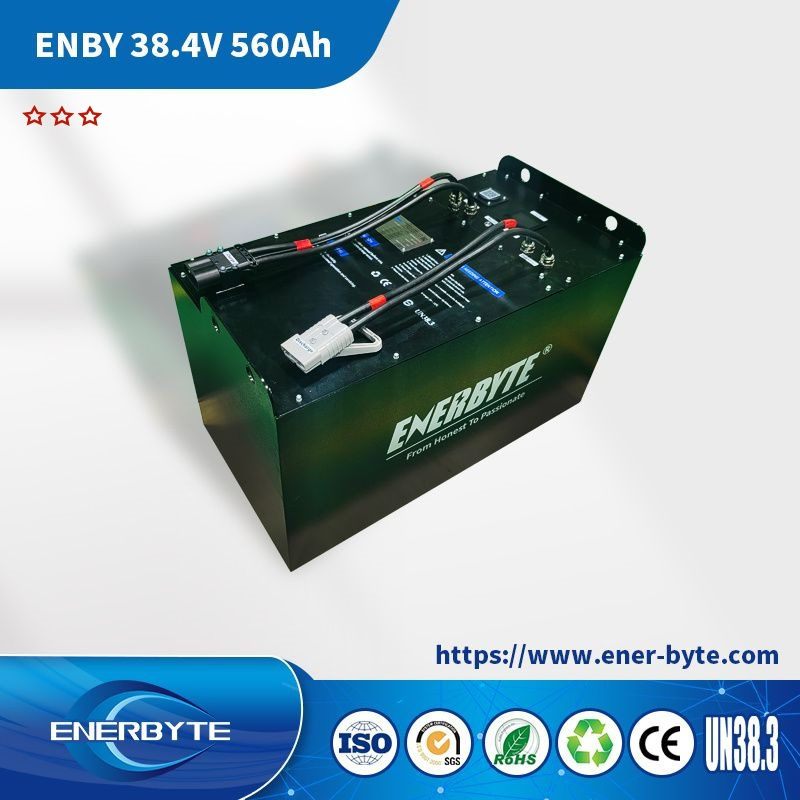

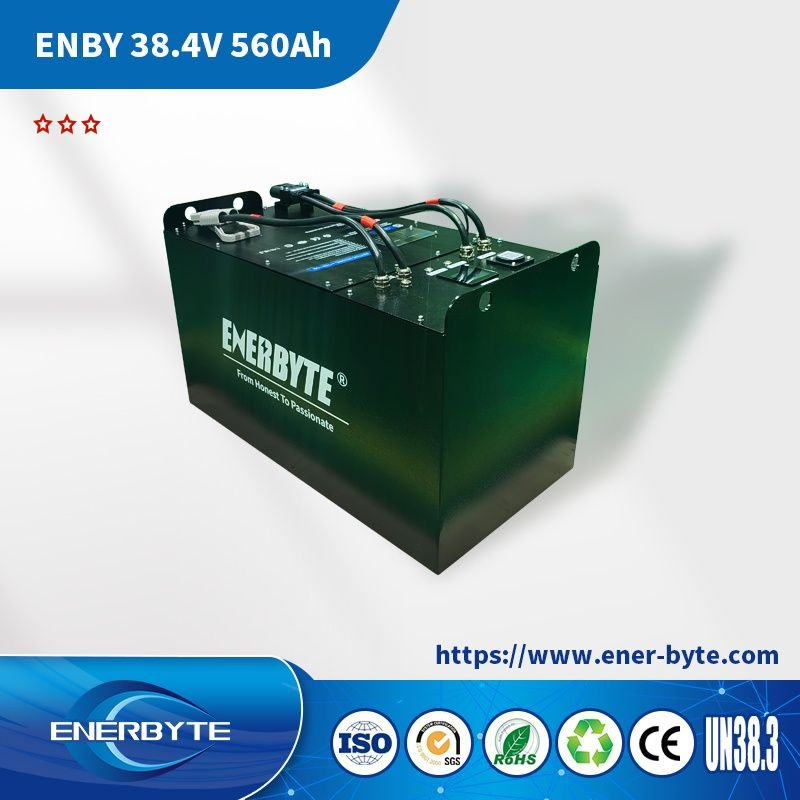

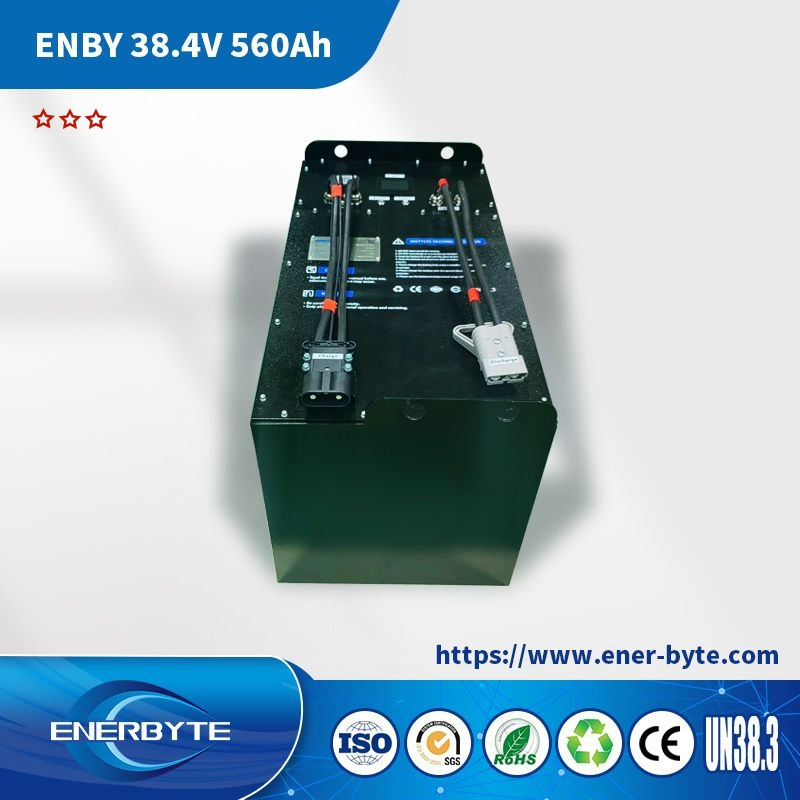

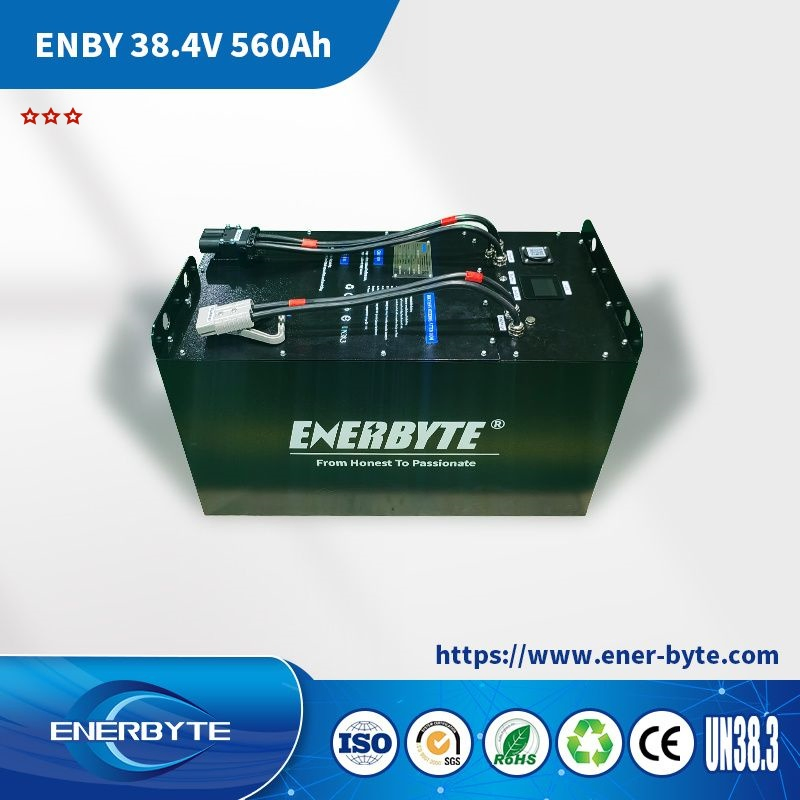

The 38.4V 560Ah forklift lithium battery is a high-performance and reliable power source designed to provide strong support for the efficient operation of electric forklifts and industrial trucks.
| Model Details | 38.4V 560Ah Specification | |
|---|---|---|
| Battery Pack Configuration | 12S2P | |
| Rated Capacity | 560Ah | |
| Working Voltage Scope | 30V~43.8V | |
| Charge Mode | CC, CV | |
| Max. Charge Voltage | 43.8V | |
| Max. Continuous Current | 300A | |
| Max. Pulse Current | 350A / 300S | |
| Communication Mode | CAN | |
| Operating Temp (Charge) | 0°C~45°C (32°F~113°F) | |
| Operating Temp (Discharge) | -20°C~60°C (-4°F~140°F) | |
This lithium-ion battery features excellent high-energy-density characteristics, allowing for large energy storage in a compact volume compared to traditional lead-acid batteries, optimizing forklift layout and handling flexibility.
We offer customized solutions tailored to your unique requirements, including specific voltage, capacity, and dimensions. Our team analyzes your usage patterns and operational environment to design a battery that maximizes efficiency and longevity.
Suitable for almost all electric industrial trucks and forklifts.

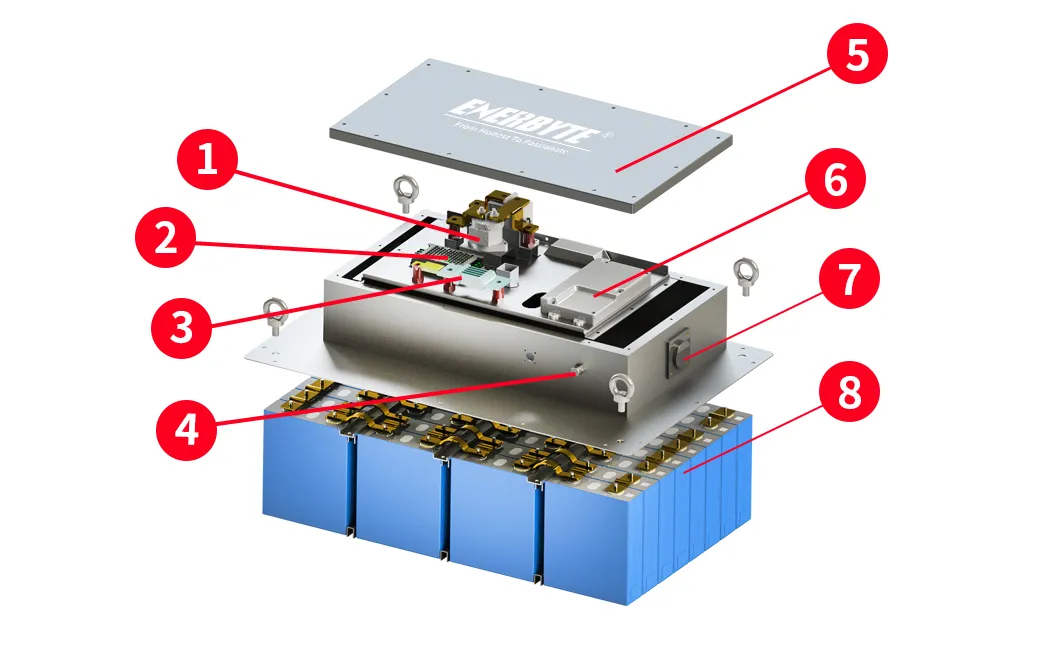

| 1. Relay | 2. DC-DC | 3. Diverter | 4. Safety Valve |
| 5. Upper Cover | 6. BMS | 7. 4G Antenna | 8. Battery Pack |

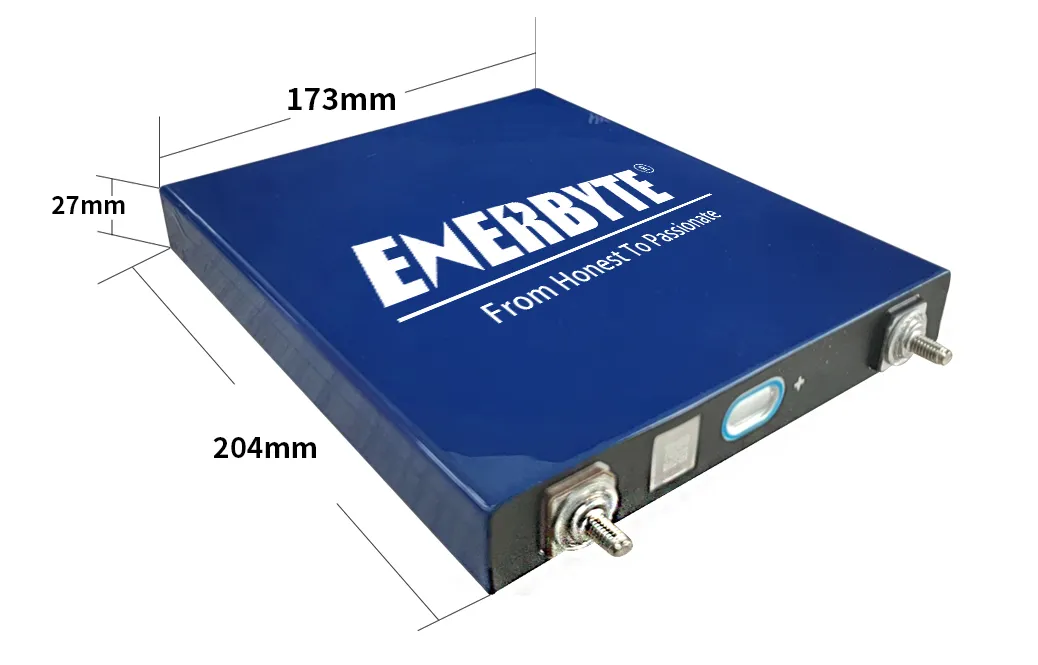

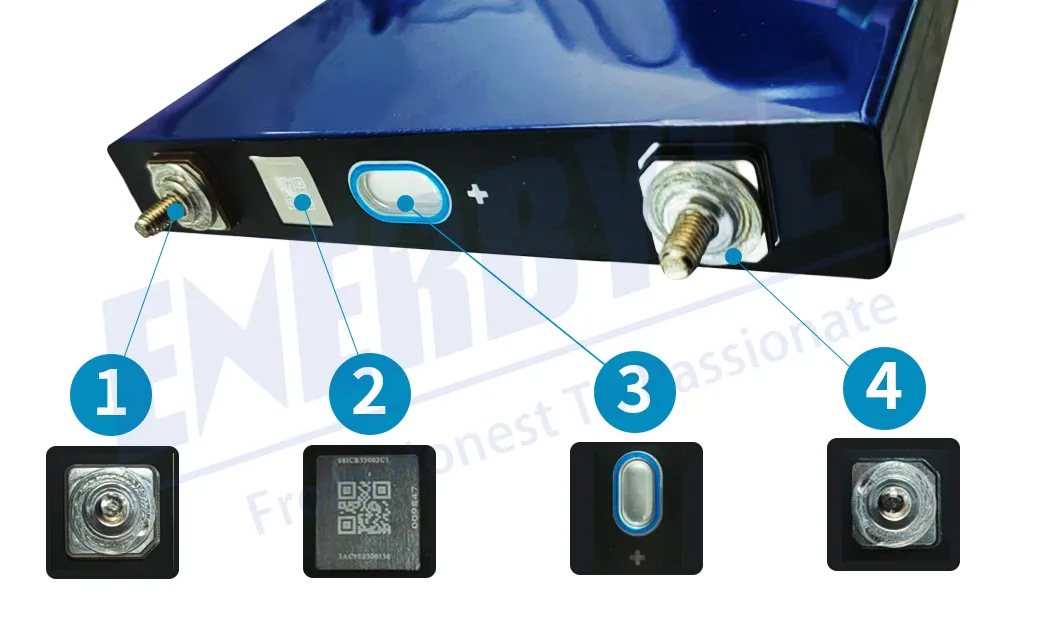

Our batteries utilize Laser Welding Studs and high-quality LFP cells characterized by:

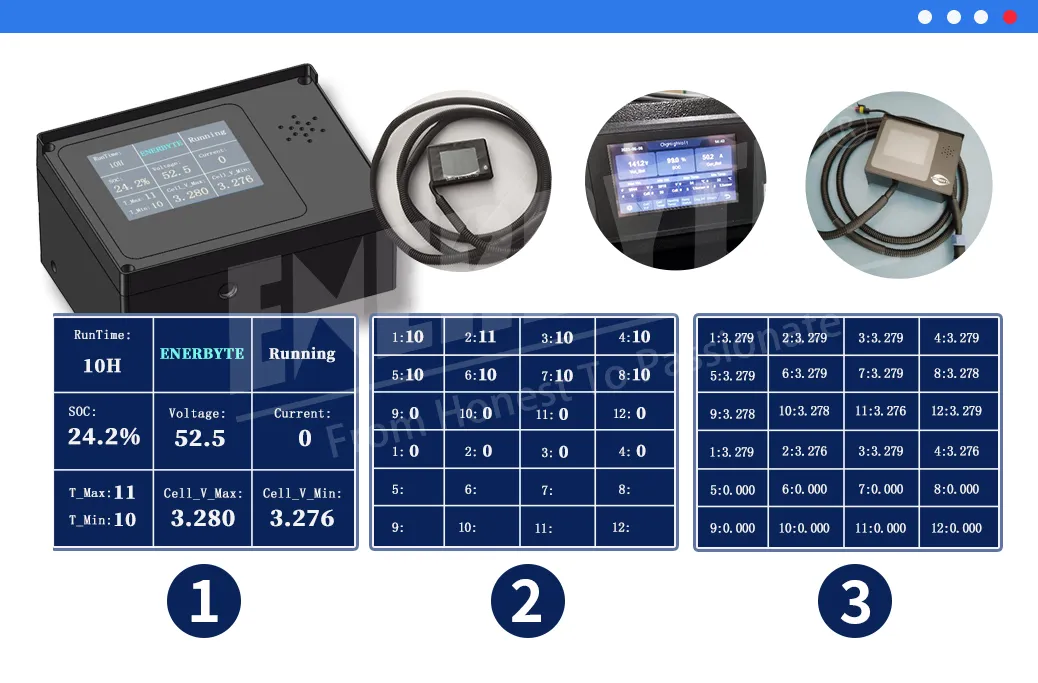

The external high-precision display monitors power, voltage, current, and health status in real-time, preventing overcharging and overheating.

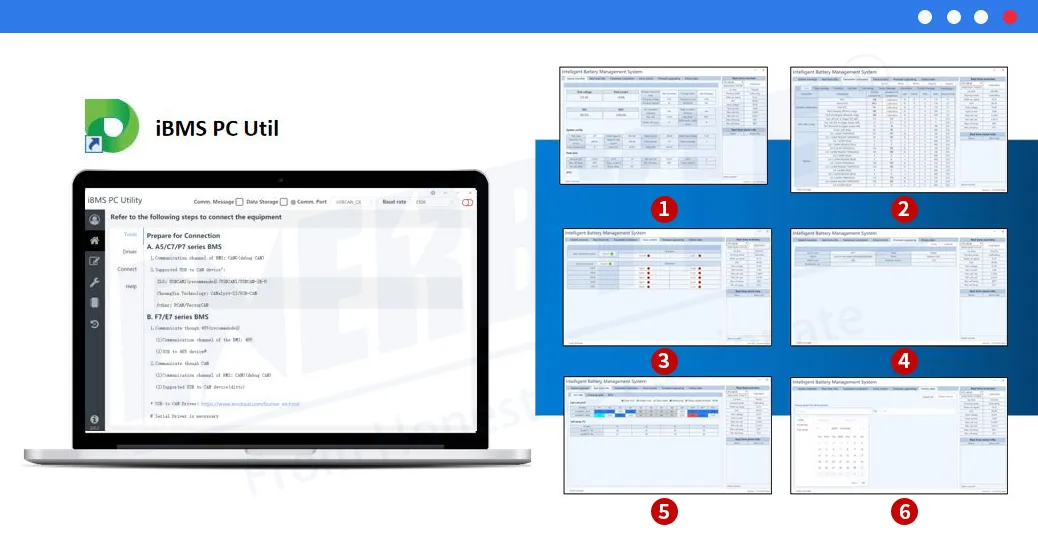

Manage your entire fleet via computer or mobile apps. The 4G network allows global monitoring, remote diagnostics, and data analysis throughout the battery's lifecycle.

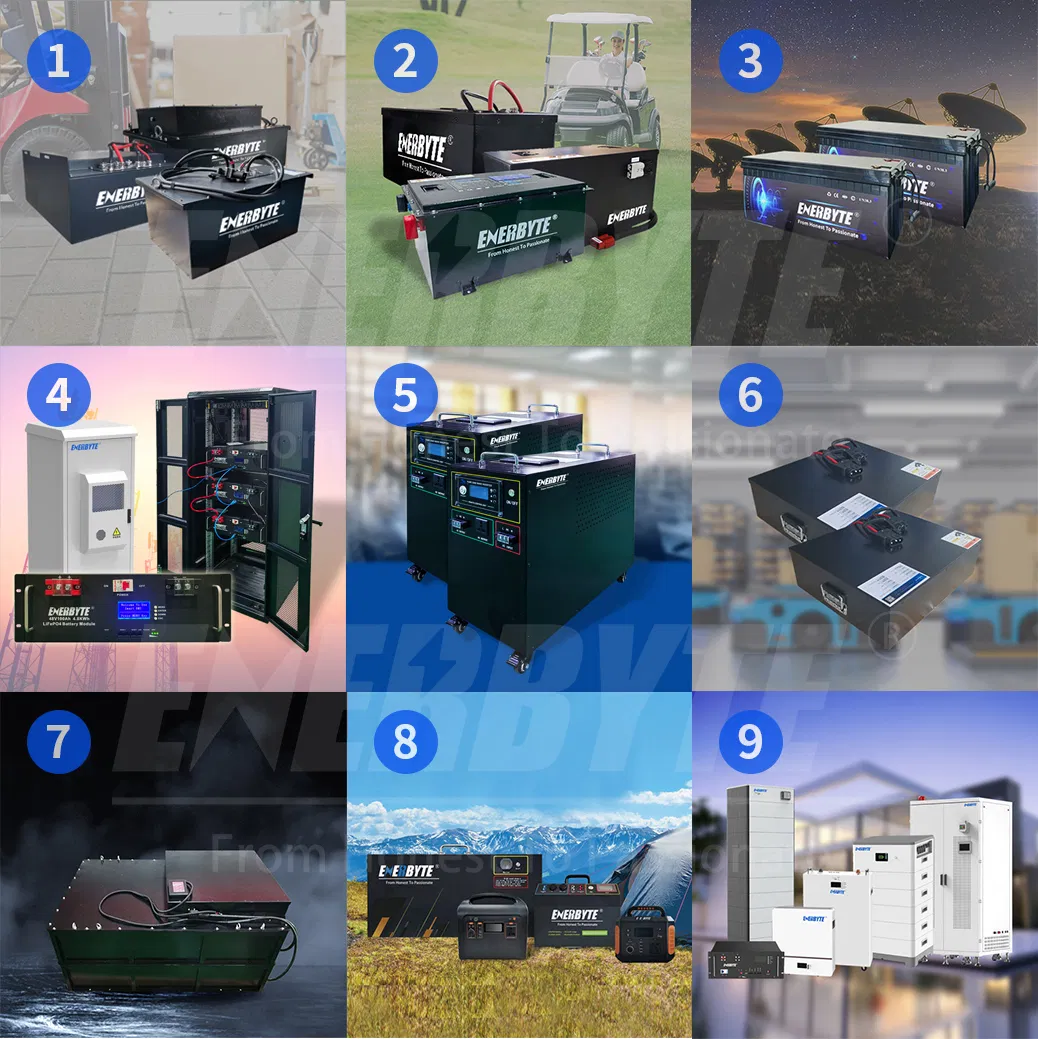

| 1. Forklift Battery | 2. Golf Cart Battery | 3. LiFePO4 Battery Packs |
| 4. Telecom Lithium Battery | 5. UPS Lithium Battery | 6. AGV Battery |
| 7. Customized Lithium Battery | 8. Power Bank | 9. Home Energy Storage |
