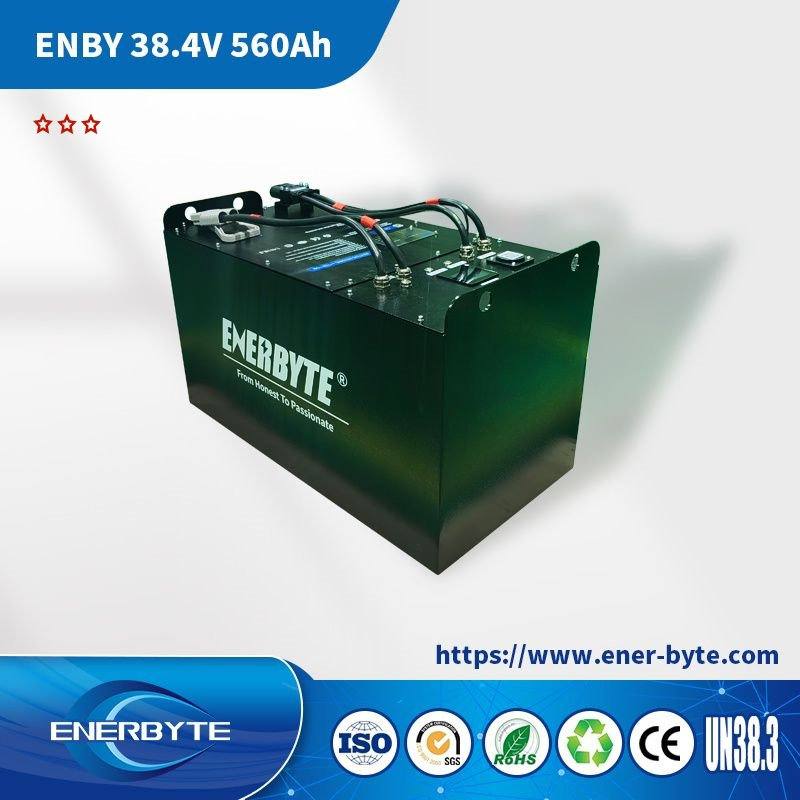

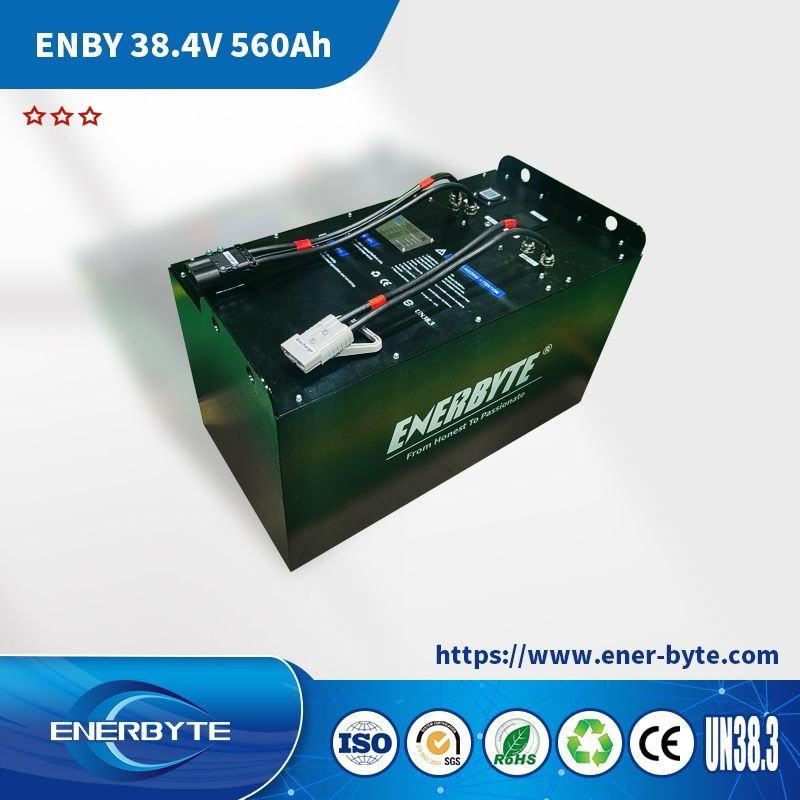

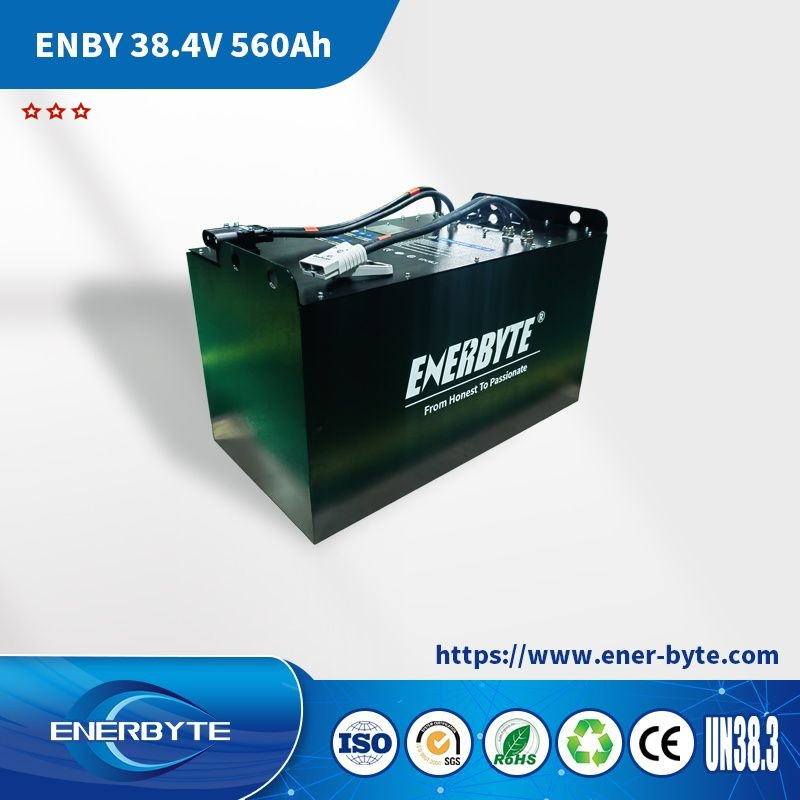

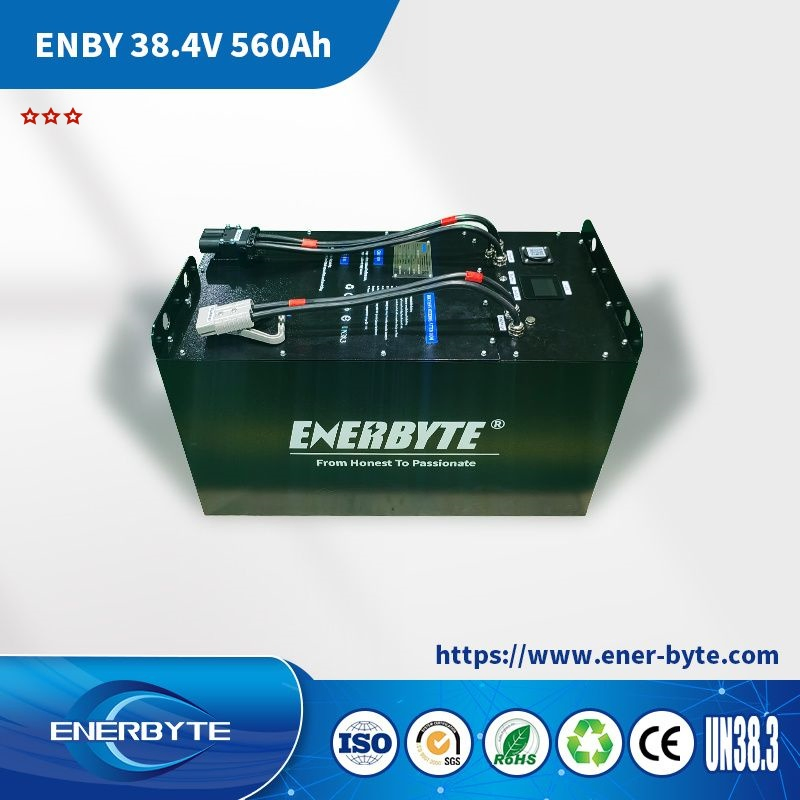

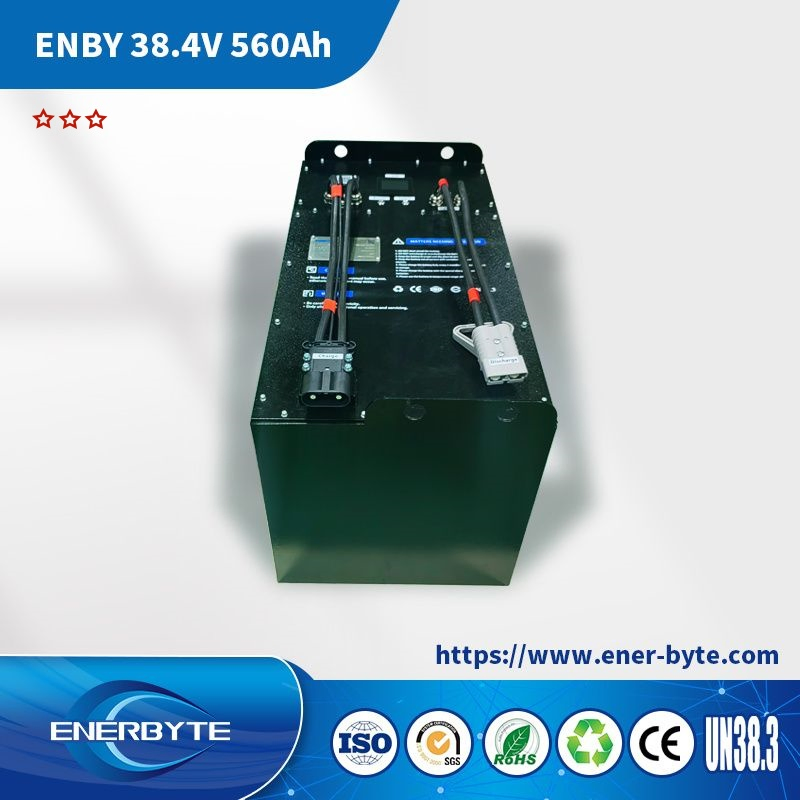

38.4V/560ah Electric LiFePO4 Lithium Ion Battery Maintenance-Free for Electric Forklift/Truck with UL

Still deciding? Get samples of $ !
Request Sample

Product Description

Product Overview

The 38.4V 560ah forklift lithium battery is a high-performance and reliable power source designed for the efficient operation of industrial vehicles. It offers a superior alternative to traditional lead-acid batteries with higher energy density and longer service life.

Rechargeable
Yes
Usage
Forklift, Car, Bus, UPS, Boat
Discharge Rate
Medium Discharge Rate
Shape
Square Battery
Electrolyte
LiFePO4 Battery
Nominal Voltage
38.4V
Cycle Life
>4000 Times (80% DOD)
Self-Discharge
≤3% / Month
Weight
Approx. 760kg
Dimensions
960 × 500 × 570 mm
Product Strengths
Multi-Shift Support

Supports 3~4 shifts operations per day

🔋 Grade A Cells

New Grade A cells from top factories

⏱️ Rapid Charging

2~3 hours rapid charging time

🛠️ Zero Maintenance

Maintenance-free during lifespan

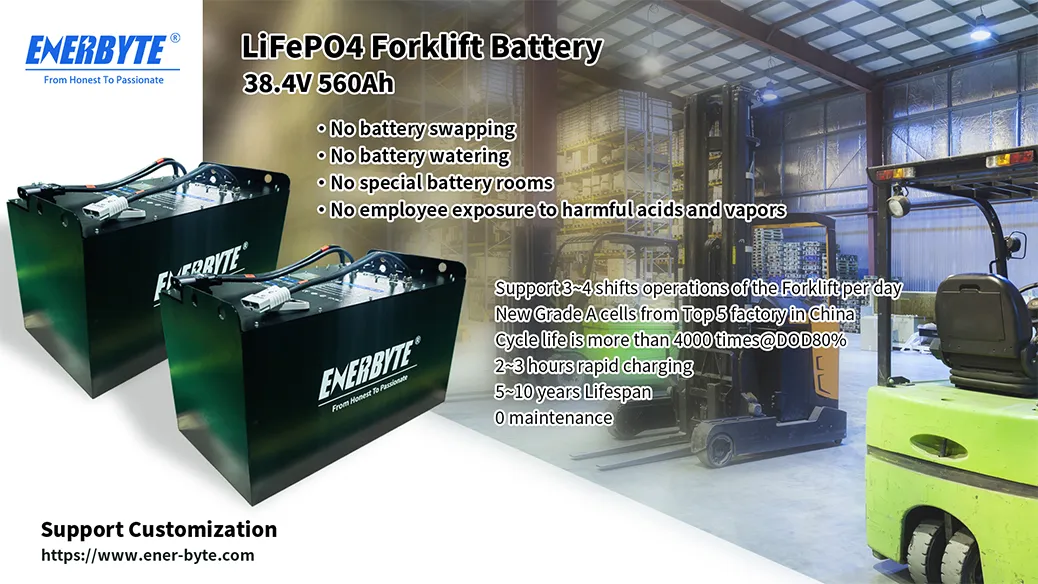

38.4V/560ah Lithium Battery
Maintenance-Free Battery
Technical Specifications
Parameter Specification
Model38.4V 560Ah
Battery Pack12S2P
Rated Capacity560Ah
Working Voltage Scope30V ~ 43.8V
Charge ModeCC, CV
Max. Continuous Current300A
Max. Pulse Current350A / 300S
Communication ModeCAN
Operating Temp (Charge)0°C ~ 45°C
Operating Temp (Discharge)-20°C ~ 60°C
Advanced Technology & Structure

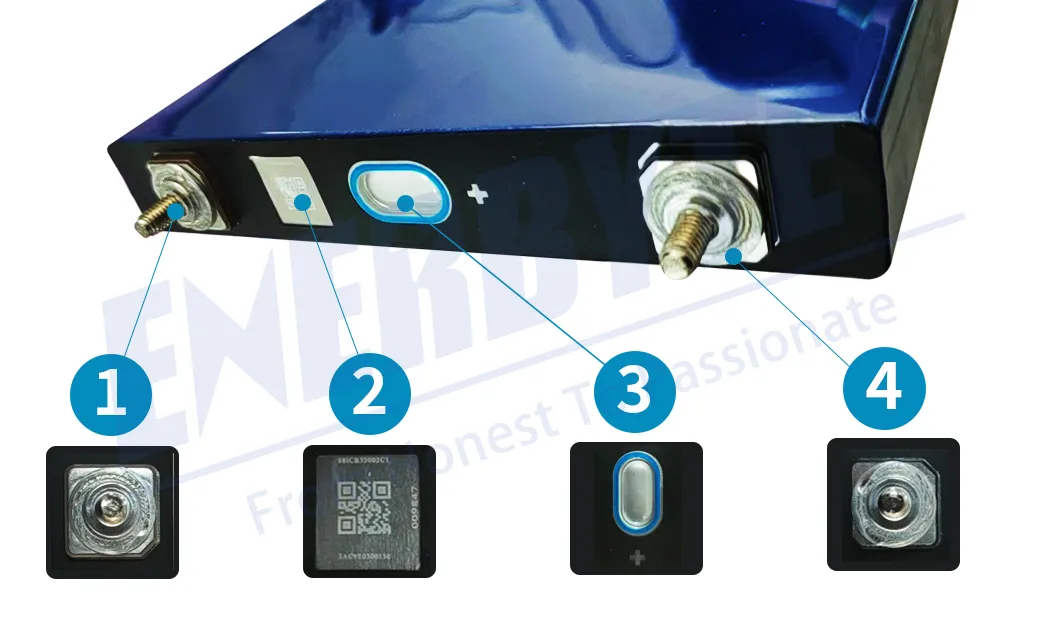

Battery Structure
BMS Monitoring

Our lithium batteries feature an integrated BMS (Battery Management System) for real-time monitoring of SOC (State of Charge) and DOD (Depth of Discharge). This ensures precise power management and safety through overcharge, over-discharge, and thermal protection.

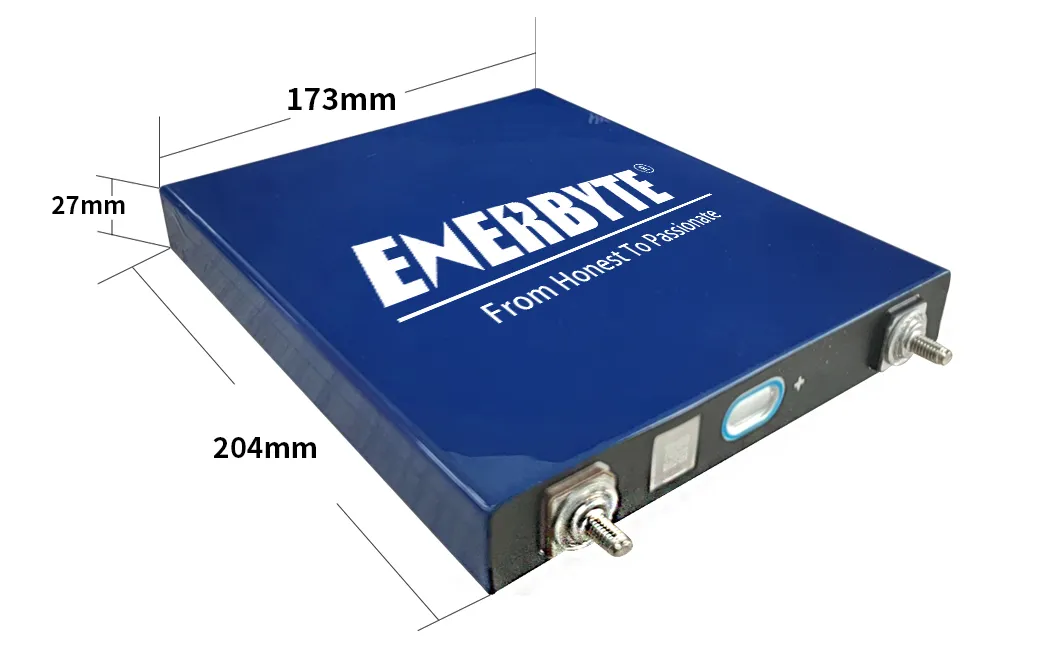

Cell Quality

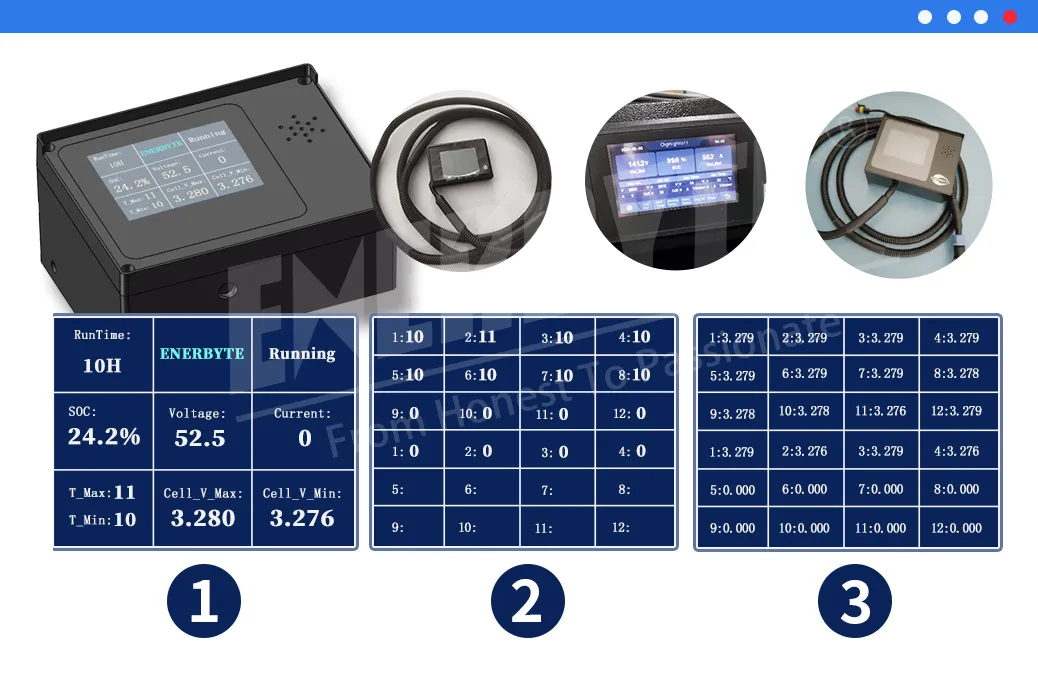

Display Screen
Key Advantages
  • Safety: Safest Li-Ion battery technology with built-in BMS, no fire or explosive risks.
  • Green Energy: Clean energy without toxic heavy metals.
  • Long Life Cycle: Over 4000 deep cycles at 80% capacity retention.
  • No Memory Effect: Efficiently charge at any time without capacity reduction.
  • Thermal Stability: Excellent performance and resistance at high temperatures.
  • Low Self-Discharge: Rate of less than 3% monthly for better storage.
Precautions
  • Use only designated lithium battery chargers.
  • Avoid storage in humid or high-temperature environments.
  • Do not short-circuit terminals or reverse charge.
  • Prohibit disassembly of the battery shell.
  • Avoid charging in direct sunlight.
  • When not in use, store in a cool, dry place and charge every 3 months.
FAQ
What payment terms do you accept?
We accept T/T, L/C, and Western Union.
What is your Warranty Policy?
We offer a 5-year warranty for our products. If there are quality issues, components can be replaced. Our batteries have a service life of more than 10 years.
How do I choose the right battery?
Please share your specific requirements (voltage, capacity, and forklift model) with our sales team, and we will recommend the most suitable solution.
What is your Minimum Order Quantity (MOQ)?
We have no MOQ; a single sample order is acceptable. However, larger quantities offer better cost performance.
Can you accept OEM and ODM Service?
Yes, we provide both OEM and ODM services tailored to specific client requirements, including custom dimensions and capacities.
How long is the delivery time?
Typically, delivery takes approximately 4 weeks, though this may vary depending on order quantity and specific customization requirements.
