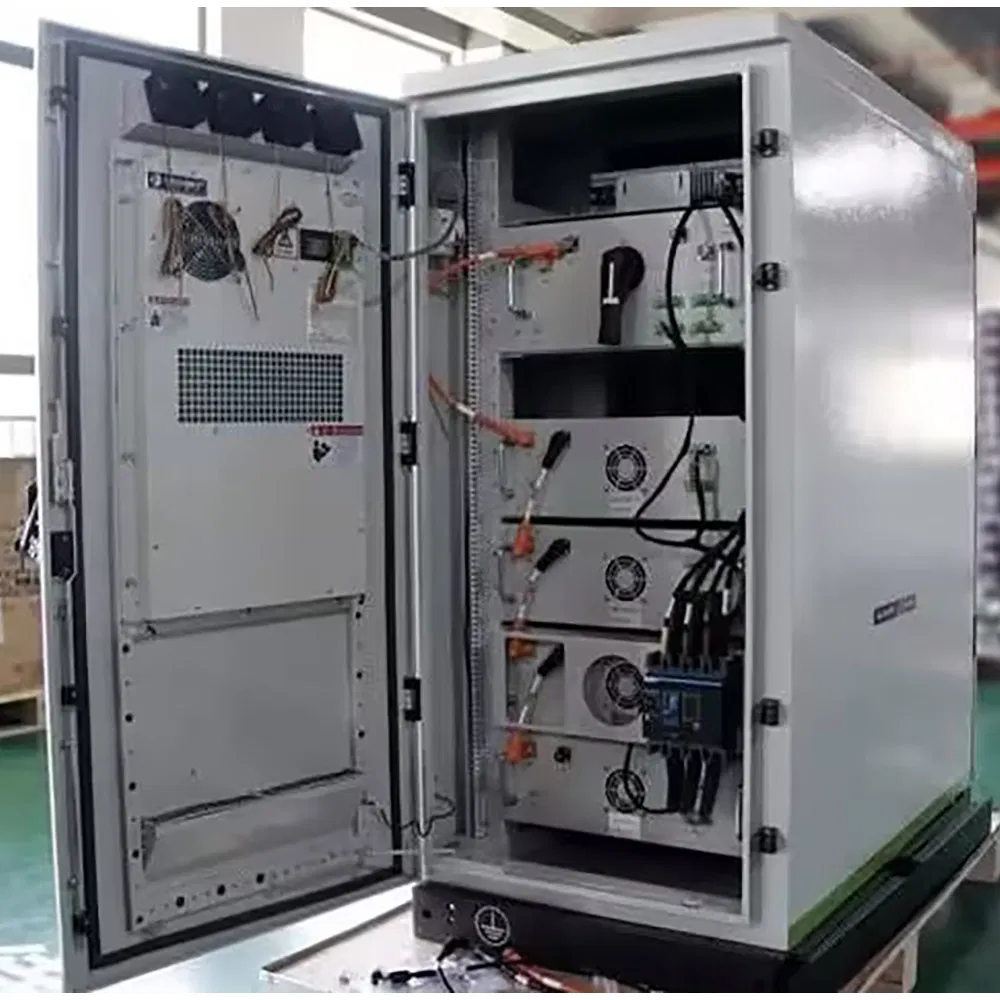

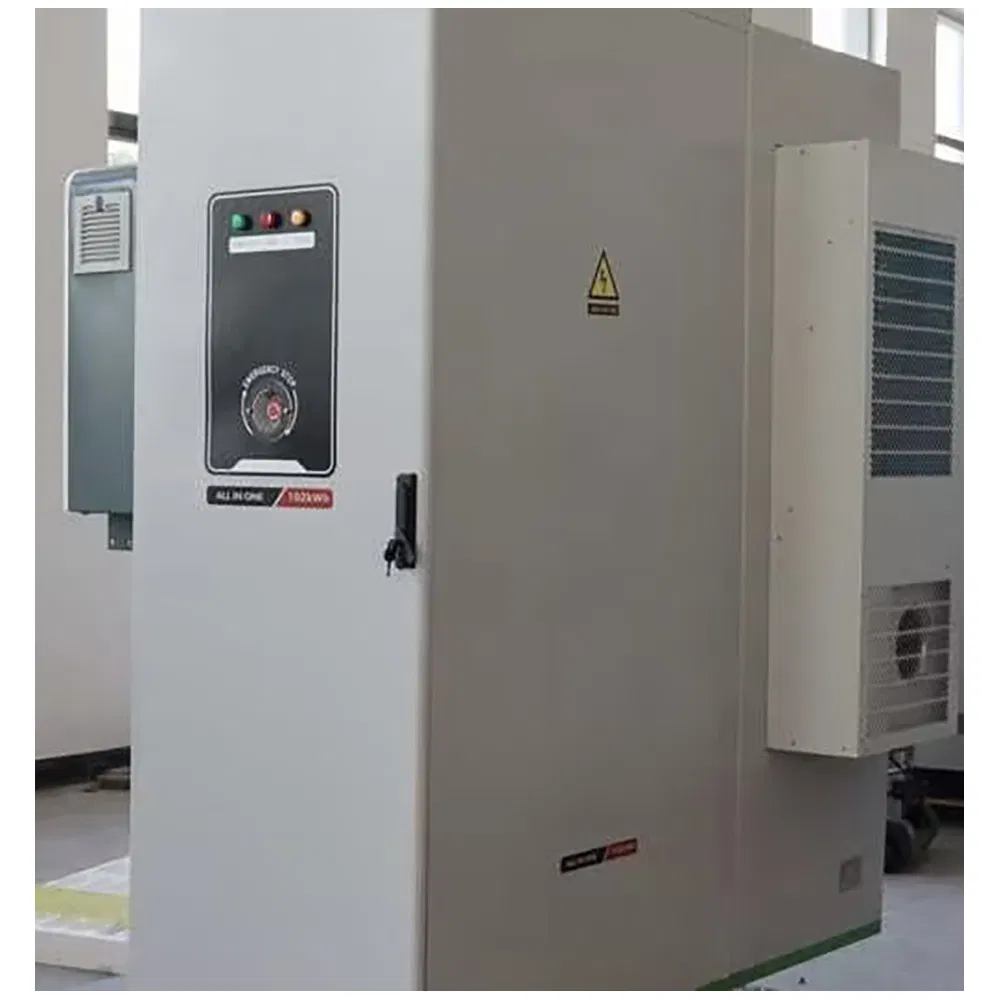

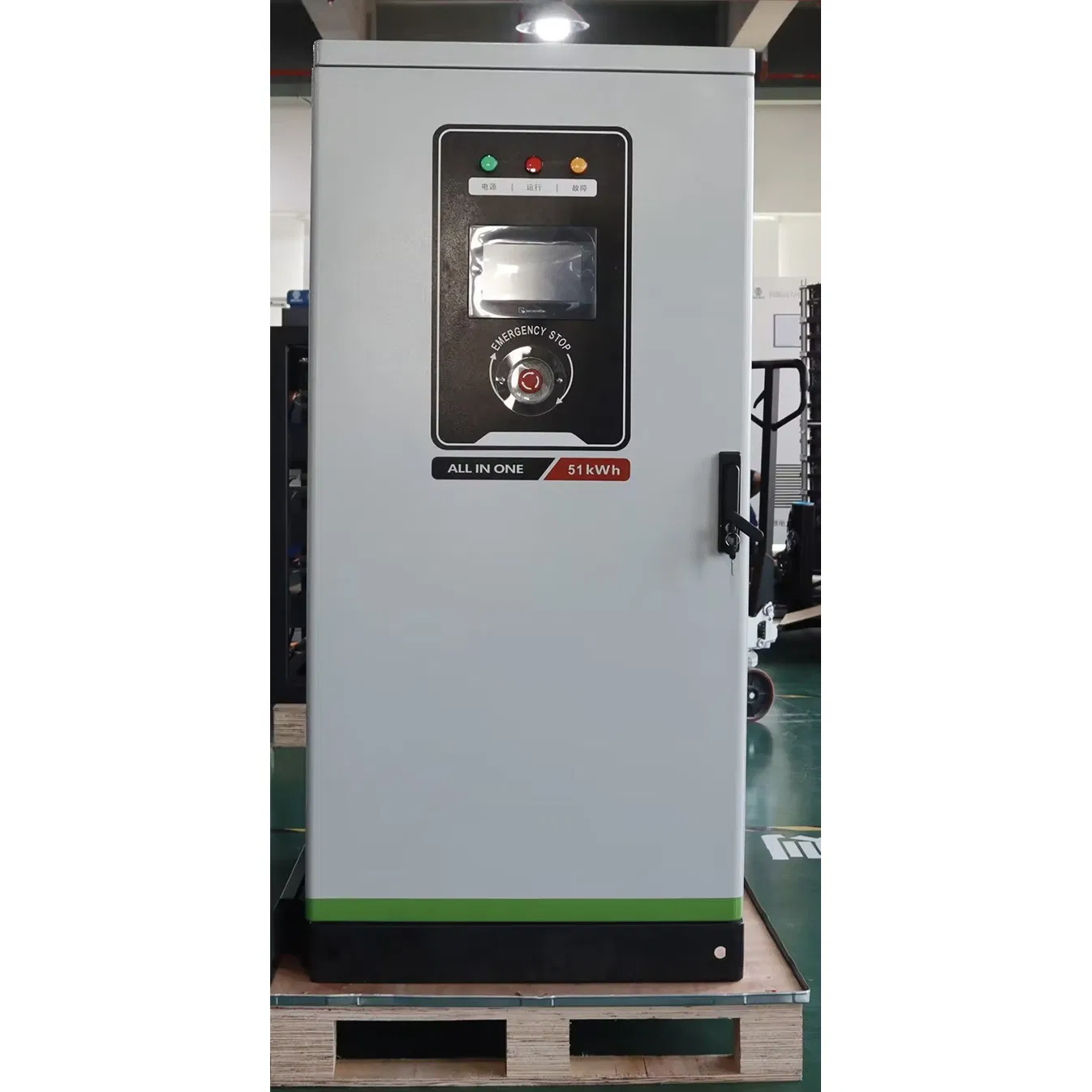

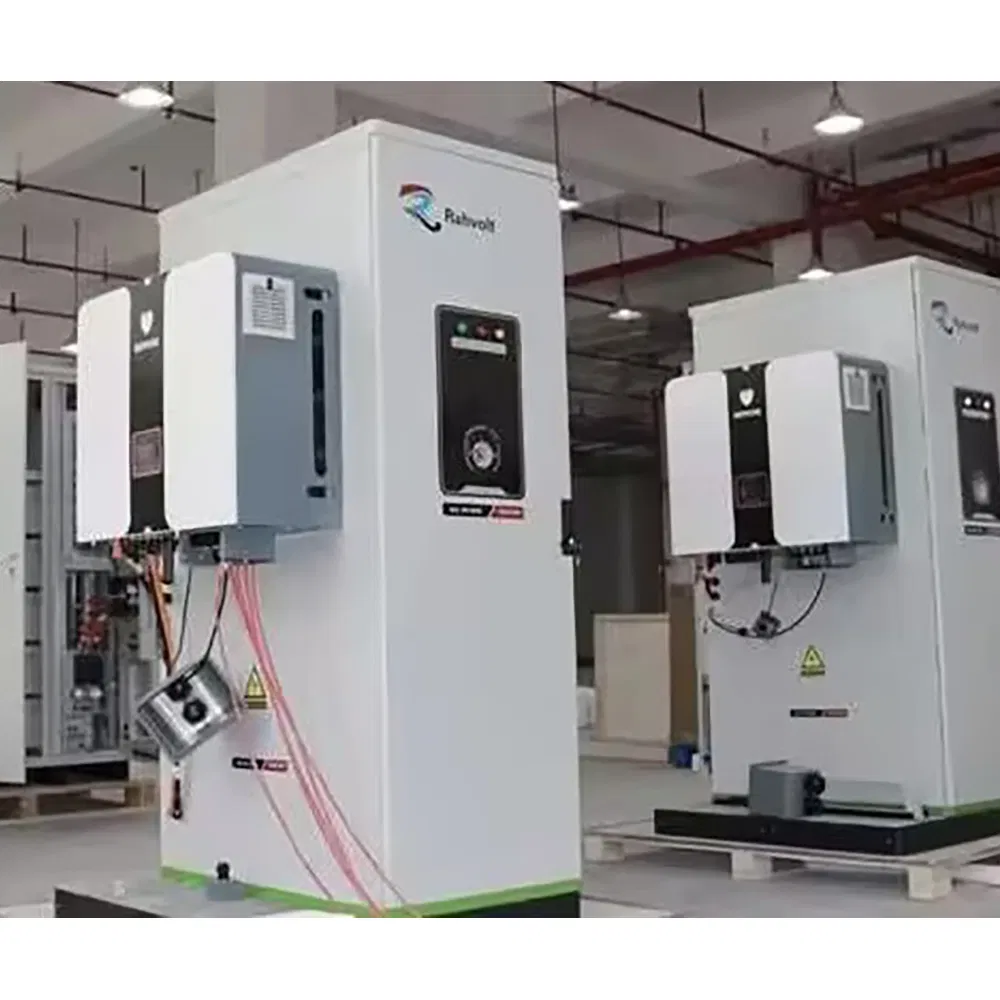

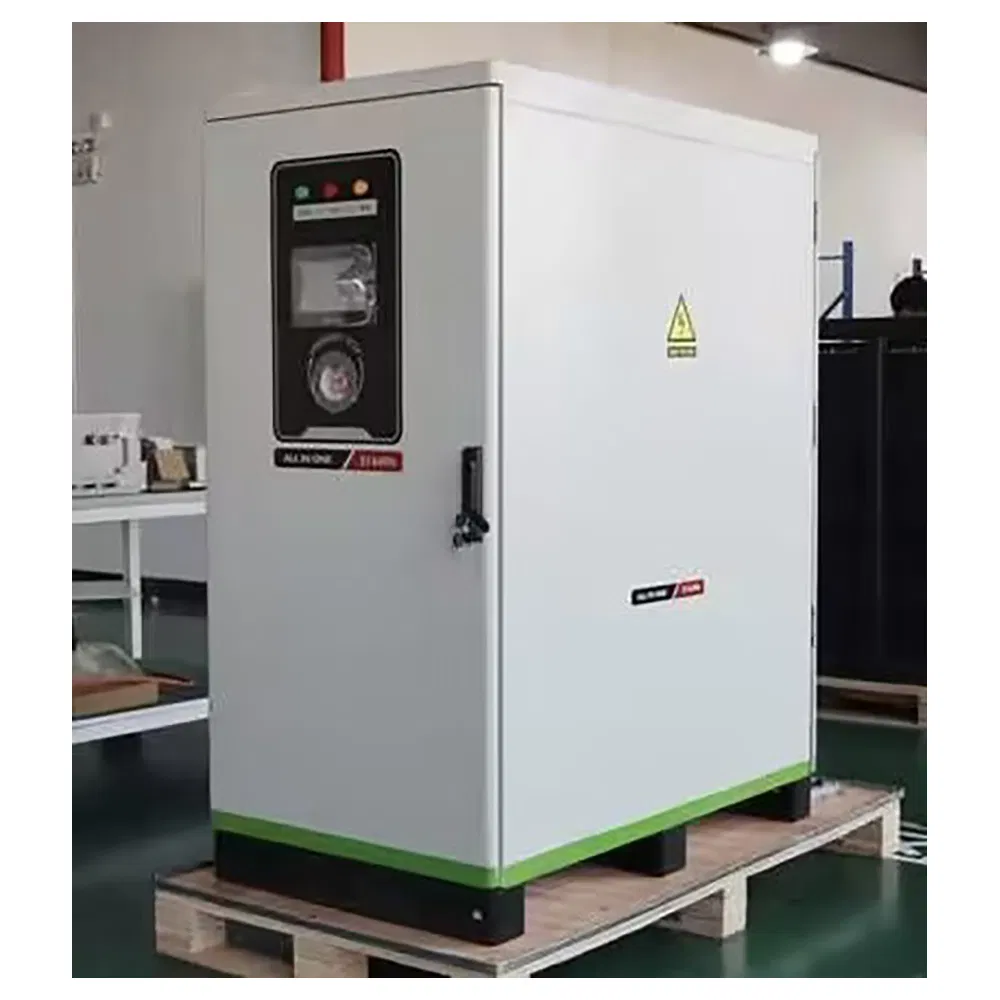

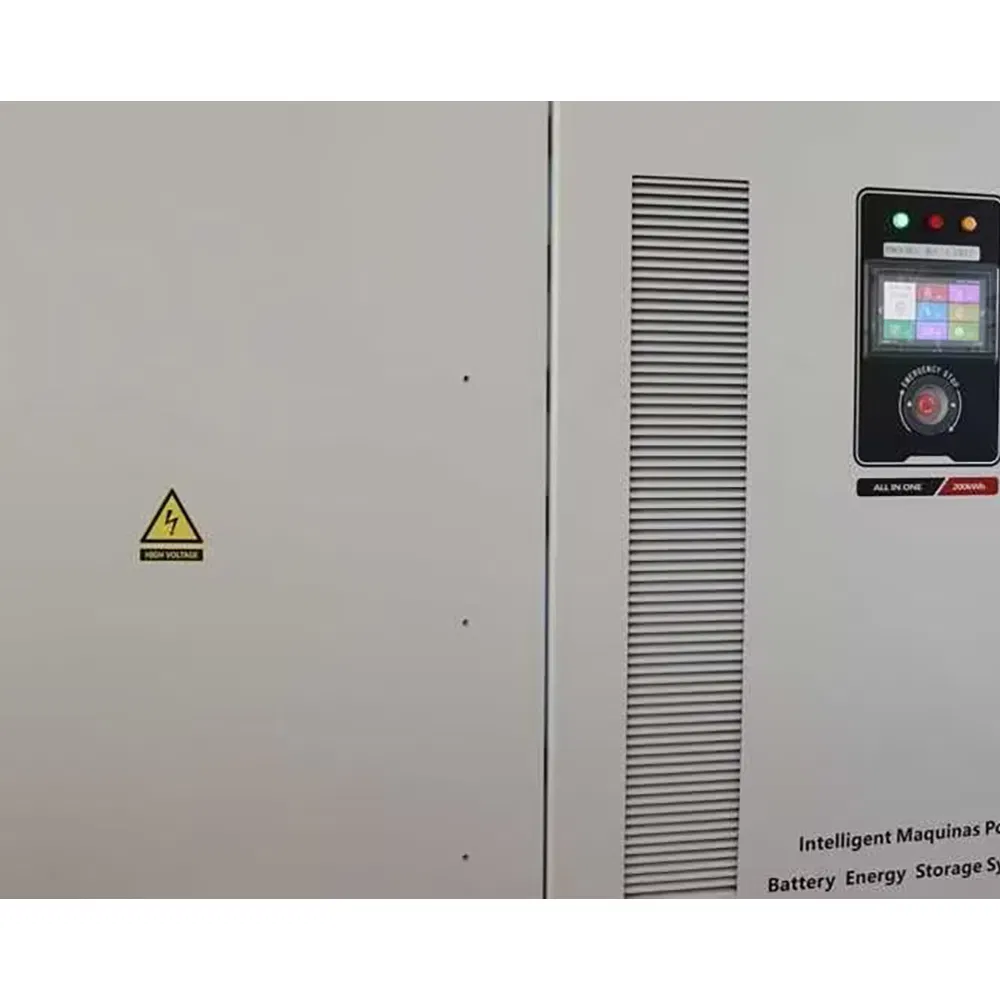

| YH-ESS 102Kwh Technical Specification | |
|---|---|
| Cell Type | LFP-3.2V-100Ah |
| System Battery Configuration | 2P160S |
| Nominal capacity [Ah] | 200Ah |
| Nominal voltage [Vdc] | 51.2 |
| Voltage range [Vdc] | 400~584VDC |
| Charge and Discharge Rate | 0.5P |
| Storage Temperature | -20 ºC ~ + 55 ºC (reduction above 40 ºC) |
| Weight [kg] | 1.6T |
| Number of Cycles | 6000 |
| Protection Level | IP55 |
| Size (W * D * H) | 1050*1340*2160mm |
We are a high-tech green energy enterprise. We focus on customized solutions and products of lithium-ion batteries.
Our products are widely used in solar energy storage systems, electric vehicles, electric forklifts, marine applications, golf carts, AGVs, etc.
Our batteries include lithium-ion phosphate and NMC types. We provide standard battery cells, modules, and packs, as well as tailor-made solutions.
